HONDA CR-Z 2015 1.G Owners Manual

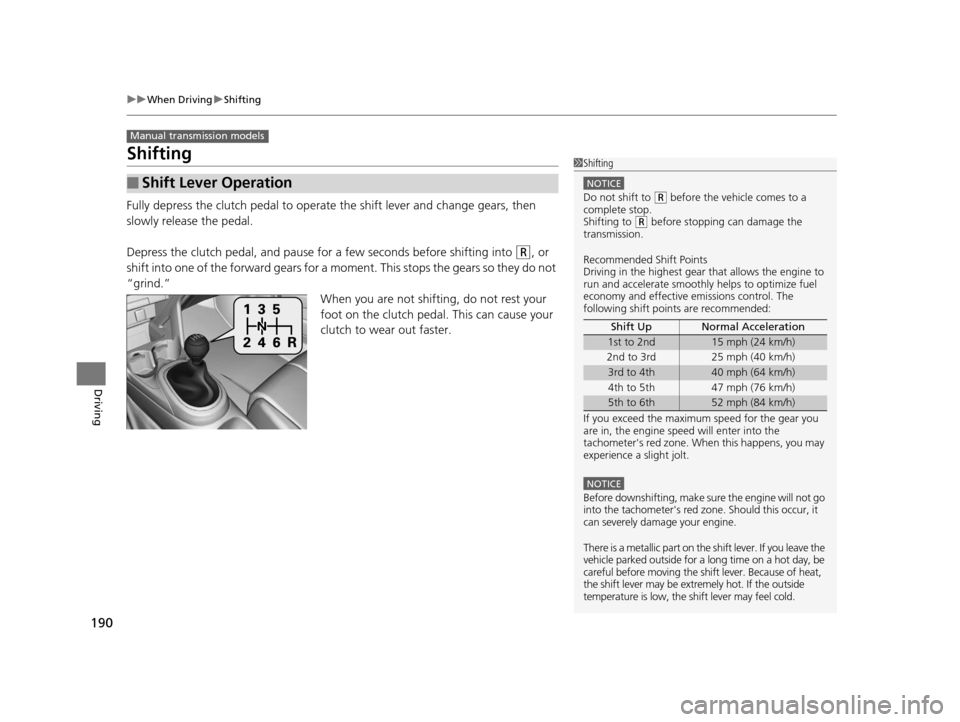

190
uuWhen Driving uShifting
Driving
Shifting
Fully depress the clutch pedal to operate the shift lever and change gears, then
slowly release the pedal.
Depress the clutch pedal, and pause for a few seconds before shifting into
(R, or
shift into one of the forward gears for a moment. This stop s the gears so they do not
“grind.”
When you are not shifting, do not rest your
foot on the clutch pedal. This can cause your
clutch to wear out faster.
■Shift Lever Operation
Manual transmission models
1Shifting
NOTICE
Do not shift to (R before the vehicle comes to a
complete stop.
Shifting to
( R before stopping can damage the
transmission.
Recommended Shift Points
Driving in the highest gear that allows the engine to
run and accelerate smoothly helps to optimize fuel
economy and effective emissions control. The
following shift points are recommended:
If you exceed the maximum speed for the gear you
are in, the engine speed will enter into the
tachometer's red zone. When this happens, you may
experience a slight jolt.
NOTICE
Before downshifting, make su re the engine will not go
into the tachometer's red zone. Should this occur, it
can severely damage your engine.
There is a metallic part on th e shift lever. If you leave the
vehicle parked outside for a long time on a hot day, be
careful before moving the shift lever. Because of heat,
the shift lever may be extr emely hot. If the outside
temperature is low, the shift lever may feel cold. Shift Up Normal Acceleration
1st to 2nd15 mph (24 km/h)
2nd to 3rd 25 mph (40 km/h)
3rd to 4th40 mph (64 km/h)
4th to 5th 47 mph (76 km/h)
5th to 6th52 mph (84 km/h)
15 CR-Z-31SZT6400.book 190 ページ ２０１４年８月１日　金曜日　午後１時５９分

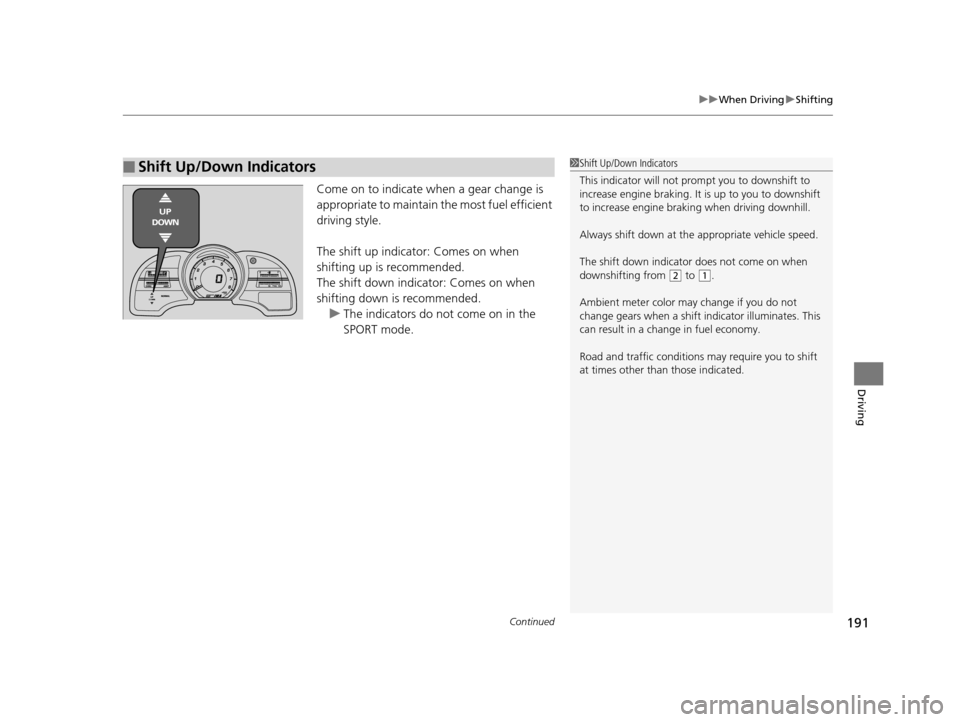

Continued191
uuWhen Driving uShifting
Driving
Come on to indicate when a gear change is
appropriate to maintain the most fuel efficient
driving style.
The shift up indicato r: Comes on when
shifting up is recommended.
The shift down indicator: Comes on when
shifting down is recommended. u The indicators do not come on in the
SPORT mode.
■Shift Up/Down Indicators1Shift Up/Down Indicators
This indicator will not prompt you to downshift to
increase engine br aking. It is up to you to downshift
to increase engine brak ing when driving downhill.
Always shift down at the appropriate vehicle speed.
The shift down indicator does not come on when
downshifting from
( 2 to (1.
Ambient meter color may change if you do not
change gears when a shift i ndicator illuminates. This
can result in a change in fuel economy.
Road and traffic c onditions may require you to shift
at times other than those indicated.READY
15 CR-Z-31SZT6400.book 191 ページ ２０１４年８月１日　金曜日　午後１時５９分

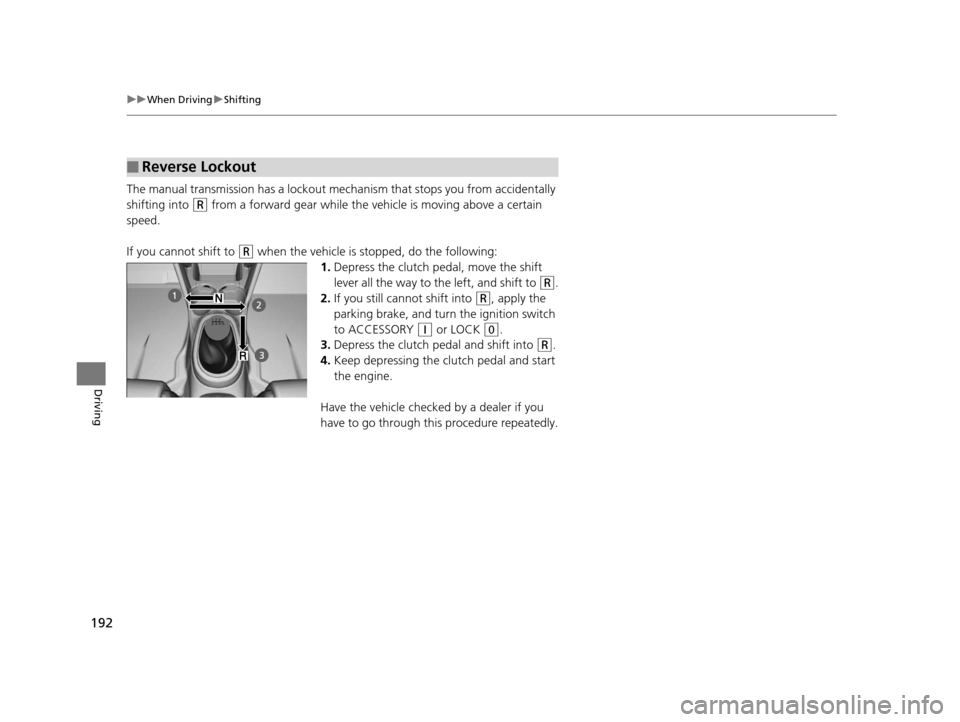

192
uuWhen Driving uShifting
Driving
The manual transmission has a lockout mech anism that stops you from accidentally
shifting into
(R from a forward gear while the ve hicle is moving above a certain
speed.
If you cannot shift to
(R when the vehicle is stopped, do the following: 1.Depress the clutch pedal, move the shift
lever all the way to the left, and shift to
(R.
2. If you still cannot shift into
(R, apply the
parking brake, and turn the ignition switch
to ACCESSORY
(q or LOCK (0.
3. Depress the clutch pedal and shift into
(R.
4. Keep depressing the clutch pedal and start
the engine.
Have the vehicle checked by a dealer if you
have to go through this procedure repeatedly.
■Reverse Lockout
15 CR-Z-31SZT6400.book 192 ページ ２０１４年８月１日　金曜日　午後１時５９分

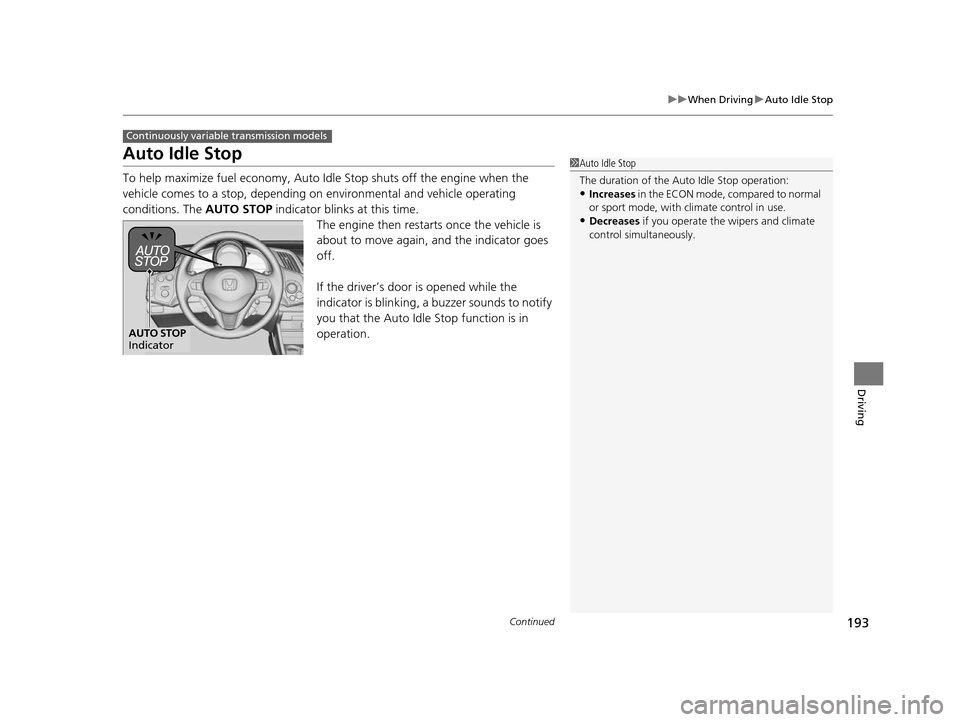

193
uuWhen Driving uAuto Idle Stop
Continued
Driving
Auto Idle Stop
To help maximize fuel economy, Auto Id le Stop shuts off the engine when the
vehicle comes to a stop, depending on environmental and vehicle operating
conditions. The AUTO STOP indicator blinks at this time.
The engine then restarts once the vehicle is
about to move again, and the indicator goes
off.
If the driver’s door is opened while the
indicator is blinking, a buzzer sounds to notify
you that the Auto Idle Stop function is in
operation.
Continuously variable transmission models
1Auto Idle Stop
The duration of the Au to Idle Stop operation:
•Increases in the ECON mode, compared to normal
or sport mode, with climate control in use.
•Decreases if you operate the wipers and climate
control simultaneously.
AUTO STOP
Indicator
15 CR-Z-31SZT6400.book 193 ページ ２０１４年８月１日　金曜日　午後１時５９分

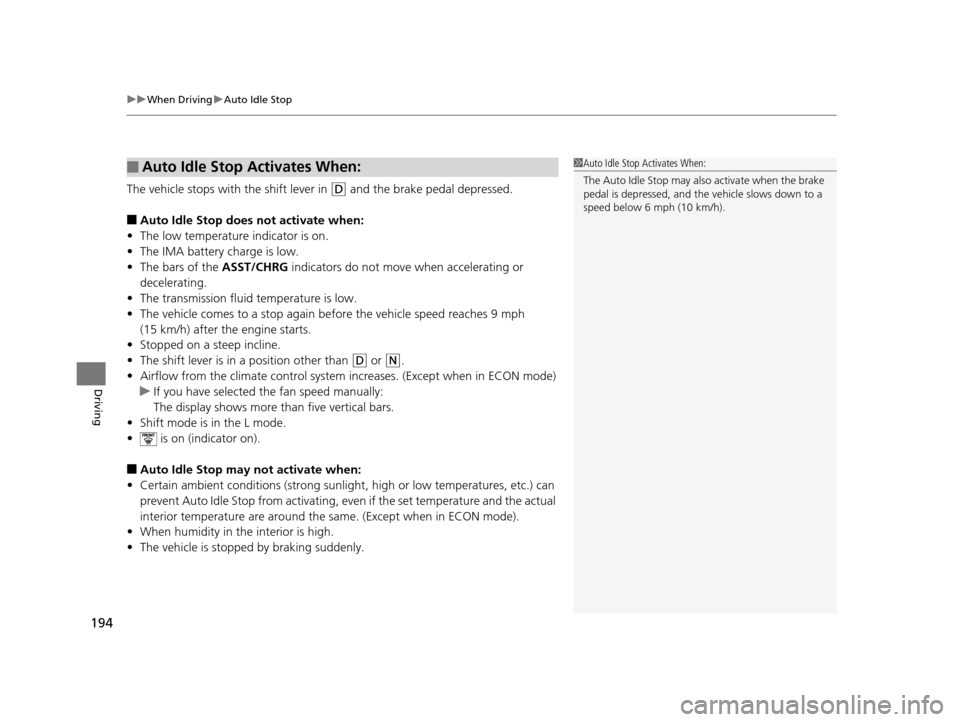

uuWhen Driving uAuto Idle Stop
194
Driving
The vehicle stops with the shift lever in (D and the brake pedal depressed.
■Auto Idle Stop does not activate when:
• The low temperature indicator is on.
• The IMA battery charge is low.
• The bars of the ASST/CHRG indicators do not move when accelerating or
decelerating.
• The transmission fluid temperature is low.
• The vehicle comes to a stop again be fore the vehicle speed reaches 9 mph
(15 km/h) after the engine starts.
• Stopped on a steep incline.
• The shift lever is in a position other than
(D or (N.
• Airflow from the climate con trol system increases. (Except when in ECON mode)
u If you have selected the fan speed manually:
The display shows more than five vertical bars.
• Shift mode is in the L mode.
• is on (indicator on).
■Auto Idle Stop may not activate when:
• Certain ambient conditions (strong sunlight , high or low temperatures, etc.) can
prevent Auto Idle Stop from activating, ev en if the set temperature and the actual
interior temperature are around the same. (Except when in ECON mode).
• When humidity in the interior is high.
• The vehicle is stopped by braking suddenly.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
The Auto Idle Stop may also activate when the brake
pedal is depressed, and th e vehicle slows down to a
speed below 6 mph (10 km/h).
15 CR-Z-31SZT6400.book 194 ページ ２０１４年８月１日　金曜日　午後１時５９分

195
uuWhen Driving uAuto Idle Stop
Driving
The brake pedal is released.
■The engine restarts even if the brake pedal is depressed when:
• The shift position is changed to
(R.
• Shift mode set in the L mode.
• The accelerator pedal is depressed.
• The pressure to the brake pedal is redu ced and the vehicle starts moving while
stopped on an incline.
• The IMA battery charge becomes low.
• The low temperature indicator comes on.
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
• The pressure on the brake pedal is rep eatedly applied and released slightly.
• The (windshield defogger) button is pressed.
■The Engine Automatically Restarts When:
15 CR-Z-31SZT6400.book 195 ページ ２０１４年８月１日　金曜日　午後１時５９分

196
uuWhen Driving uAuto Idle Stop
Driving
Auto Idle Stop
To help maximize fuel econ omy, the engine automatica lly stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
AUTO STOP indicator blinks at this time. The engine then restarts once the vehicle
is about to move again when you depress the clutch pedal fully, and the indicator
goes off. If the driver’s door is opened while the
indicator is blinking, a buzzer sounds to notify
you that the Auto Idle Stop function is in
operation.
Manual transmission models
1Auto Idle Stop
If the Auto Idle Stop ope rating time lasts long enough
to lower the 12 volt battery charge or the IMA battery
charge, the engine may not restart automatically.
Manually turn off the engi ne when you leave your
vehicle.
The duration of Auto Idle Stop operation:
•Increases in the ECON mode, compared to normal
or sport mode, with climate control in use.
•Decreases if you operate the wipers and climate
control simultaneously.
AUTO STOP
Indicator
15 CR-Z-31SZT6400.book 196 ページ ２０１４年８月１日　金曜日　午後１時５９分

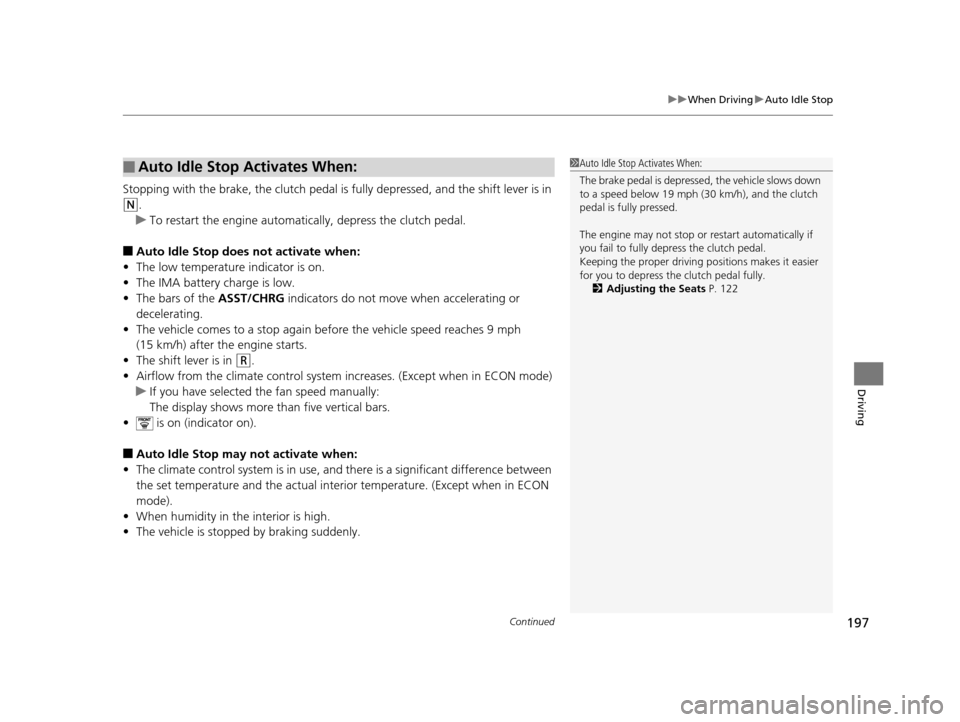

Continued197
uuWhen Driving uAuto Idle Stop
Driving
Stopping with the brake, the clutch pedal is fully depressed, and the shift lever is in
(N.
u To restart the engine automatica lly, depress the clutch pedal.
■Auto Idle Stop does not activate when:
• The low temperature indicator is on.
• The IMA battery charge is low.
• The bars of the ASST/CHRG indicators do not move when accelerating or
decelerating.
• The vehicle comes to a stop again be fore the vehicle speed reaches 9 mph
(15 km/h) after the engine starts.
• The shift lever is in
(R.
• Airflow from the climate control system increases. (Except when in ECON mode)
u If you have selected the fan speed manually:
The display shows more than five vertical bars.
• is on (indicator on).
■Auto Idle Stop may not activate when:
• The climate control system is in use, an d there is a significant difference between
the set temperature and the actual interi or temperature. (Except when in ECON
mode).
• When humidity in the interior is high.
• The vehicle is stopped by braking suddenly.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
The brake pedal is depresse d, the vehicle slows down
to a speed below 19 mph (30 km/h), and the clutch
pedal is fully pressed.
The engine may not stop or restart automatically if
you fail to fully depress the clutch pedal.
Keeping the proper driving po sitions makes it easier
for you to depress the clutch pedal fully.
2 Adjusting the Seats P. 122
15 CR-Z-31SZT6400.book 197 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuWhen Driving uAuto Idle Stop
198
Driving
The clutch pedal is fully depressed, and the shift lever is moved to a position other
than
(N.
■The engine automatically restarts when the clutch pedal is fully depressed
even if the shift lever is in
(N when:
• The low temperature indicator comes on.
• The accelerator pedal is pressed.
• The IMA battery charge becomes low.
• The climate control system is in us e, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is bein g used to dehumidify the interior.
The engine automatically restarts when the pressure on the brake pedal is
repeatedly applied and released slightly durin g a stop. This applies even if the clutch
pedal is not fully depressed.
Fully depress the clutch pedal.
u The engine automatically restarts.
■The Engine Automatically Restarts When:
■When the Auto Idle Stop Indicator Starts Blinking Rapidly1When the Auto Idle Stop Indi cator Starts Blinking Rapidly
The indicator starts blin king rapidly under the
following conditions:
•The (windshield defogge r) button is pressed.•When the climate control system is in use and
moisture builds up inside the vehicle.
•When the climate control system is in use and the
difference between the set temperature and the
actual temperature inside the vehicle becomes
significant.
15 CR-Z-31SZT6400.book 198 ページ ２０１４年８月１日　金曜日　午後１時５９分

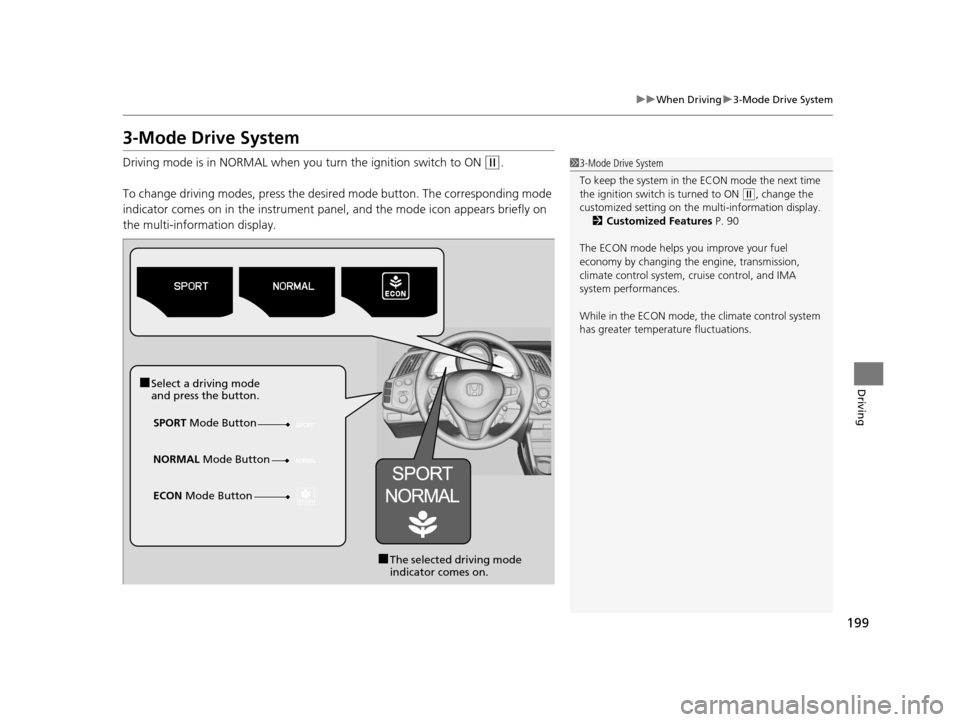

199
uuWhen Driving u3-Mode Drive System
Driving
3-Mode Drive System
Driving mode is in NORMAL when you turn the ignition switch to ON (w.
To change driving modes, press the desired mode button. The corresponding mode
indicator comes on in the instrument panel, and the mode icon appears briefly on
the multi-information display.1 3-Mode Drive System
To keep the system in the ECON mode the next time
the ignition switch is turned to ON
(w, change the
customized setting on the multi-information display.
2 Customized Features P. 90
The ECON mode helps y ou improve your fuel
economy by changing the engine, transmission,
climate control system, cr uise control, and IMA
system performances.
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
■Select a driving mode
and press the button.
SPORT Mode Button
■The selected driving mode
indicator comes on.
NORMAL
Mode Button
ECON Mode Button
15 CR-Z-31SZT6400.book 199 ページ ２０１４年８月１日　金曜日　午後１時５９分
