steering HONDA CR-Z 2015 1.G Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 39
2Instrument Panel P. 65
Indicators P. 66 Gauges and Multi-Information Display P. 81
2Controls P. 97
Clock P. 98 Locking and Unlocking the Doors P. 99
Operating the Switches Ar ound the Steering Wheel P. 111
Interior Lights/Interior Convenience Items P. 127
2 Features P. 139
Audio System P. 140 Audio Error Messages P. 155
2Driving P. 173
Before Driving P. 174 Towing a Trailer P. 179
Multi-View Rear Camera P. 215
Refueling P. 218 Fuel Economy P. 221
2Maintenance P. 223
Before Performing Maintenance P. 224 Maintenance MinderTM P. 227
Checking and Maintaining Wiper Blades P. 252
Climate Control System Maintenance P. 267
2Handling the Unexpected P. 273
Tools P. 274 If a Tire Goes Flat P. 275
Overheating P. 294 Indicator, Coming On/Blinking P. 296
2Information P. 309
Specifications P. 310 Identification Numbers P. 312
Emissions Testing P. 315 Warranty Coverages P. 317
15 CR-Z-31SZT6400.book 2 ページ ２０１４年８月１日　金曜日　午後１時５９分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Rear Window Defogger (P 118)
❙Heated Mirror Button* (P 118)
❙Seat Heater Switches* (P135)
❙Ignition Switch (P 111)
❙Steering Wheel Adjustments (P 119)
❙SPORT Mode Button (P 199)
❙NORMAL Mode Button (P 199)
❙ECON Mode Button (P 199)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 206)
❙km/h/mph Change Button (P81)
❙System Indicators (P 66)
❙Gauges (P 81)
❙Multi-Information Display (P 83)
❙Climate Control System (P136 )
❙Hazard Warning Button
❙Clock (P98)
❙Audio System (P 140)
❙Navigation System*
() See the Navigation System Manual
15 CR-Z-31SZT6400.book 4 ページ ２０１４年８月１日　金曜日　午後１時５９分

15
Quick Reference Guide
Safe Driving (P27)
Airbags (P39)
● Your vehicle is fitted with ai rbags to help protect you and
your passenger during a moderate-to-severe collision.
Child Safety (P54)
● Your vehicle is not recommended for child passengers. If you decide to
disregard our recommendations and tra nsport a child passenger, the child
should be properly restrained.
Never put a rear-facing child seat in the passenger's seat.
Exhaust Gas Hazard (P62)
● Your vehicle emits dangerous exha ust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P174)
● Before driving, check that the seats, steering wheel, and
mirrors have been properly adjusted.
Seat Belts (P32)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passenger is wearing their
seat belt correctly.
Fasten your lap belt as
low as possible.
15 CR-Z-31SZT6400.book 15 ページ ２０１４年８月１日　金曜日　午後１時５９分

16
Quick Reference Guide
Instrument Panel (P65)
Tachometer
CHRG
/ASST
Indicators
IMA Battery
Charge Level
Indicator
Shift UP/DOWN Indicator
*Multi-Information
Display
7-Speed Manual Shift
Mode Indicator
*
System Indicators
Lights Indicators
Instant Fuel
Economy
Gauge Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever
Position Indicator
Gauges (P81)/Multi-Information Display (P83)/System Indicators (P66)
Ambient Meter
System Indicators System Indicators System Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
12 Volt Battery
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA
®) System
Indicator
VSA ® OFF Indicator
Turn Signal and
Hazard Warning
Indicators
Electric Power
Steering (EPS) System
Indicator
Immobilizer System
Indicator
IMA System Indicator
Auto Idle Stop
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Low Tire Pressure/
TPMS Indicator
U.S. models only
Door/Hatch Open
Indicator
CRUISE MAIN
Indicator
CRUISE CONTROL
Indicator
System Message
IndicatorHigh Temperature
Indicator
Low Temperature
Indicator
SPORT Mode
Indicator
NORMAL Mode
Indicator
ECON Mode
Indicator Low Fuel Indicator
Plus Sport System
Indicator
Plus Sport READY
Indicator
Plus Sport Indicator
Canada U.S.
Canada U.S.
15 CR-Z-31SZT6400.book 16 ページ ２０１４年８月１日　金曜日　午後１時５９分

18
Quick Reference Guide
Steering Wheel (P119)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside
(P102)
● Pull either door inner handle to unlock
and open it in one motion.
Hatch (P105)
● With the doors unlocked, press the hatch
release button on the hatch to open it.
Power Door Mirrors
(P121)
●With the ignition switch in ON
(w, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P109)
● With the ignition switch in ON
(w, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger's window can
be opened and closed with its own
switch.
● If the power window lock button is in the
on position, the pa ssenger's window
switch is disabled.
Power Window Lock Button
Window Switch
15 CR-Z-31SZT6400.book 18 ページ ２０１４年８月１日　金曜日　午後１時５９分

21
Quick Reference Guide
Driving (P173)
Manual Transmission (P190)
Continuously Variable
Transmission
(P185)
● Shift to
(P and depress the brake pedal when
starting the engine.
● Shifting
7-Speed Manual Shift Mode (P187)
● Allows you to manually shift the transmission up or down without
removing your hands from the steering wheel.
●Pulling a paddle shifter changes the mode
from continuously vari able transmission
to 7-speed manual shift mode. The M
indicator and the selected speed number
are displayed in the shift indicator.
● Pulling a paddle shifter temporarily
changes the mode from continuously
variable transmission to 7-speed manual
shift mode. The selected speed number is
displayed in the shift indicator.
L (Low) Mode (P189)
● Use Low to get more power when
climbing steep hills.
● Pull the
(+ and (- paddle shifters at the
same time until the shift indicator display
changes to L.
SPORT Mode
NORMAL Mode/ECON Mode
(M Indicator
Shift Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Ignition Switch
Release
ButtonShift Lever
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
7-speed manual shift mode
can be used.
L mode is available.
Depress the brake pedal
and press the release
button to move out of
(P.
Move the shift lever
without pressing the
release button.
Press the release button to
move the shift lever.
15 CR-Z-31SZT6400.book 21 ページ ２０１４年８月１日　金曜日　午後１時５９分

25
Quick Reference Guide
What to Do If
The ignition switch does
not turn from
(0 to (q.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
while turning the ignition key.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The shift lever should be moved to (P on
the continuously variable transmission
model.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
15 CR-Z-31SZT6400.book 25 ページ ２０１４年８月１日　金曜日　午後１時５９分

30
uuFor Safe Driving uYour Vehicle's Safety Features
Safe Driving
Your Vehicle's Safety Features
The following checklist will help you take an active role in protecting yourself and
your passenger.
1 Your Vehicle's Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passenger dur ing a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsi ble steering
column, and tensioners that tighten the seat belts in
a sufficient crash.
However, you and your passenger cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
6
7
89
10
11
12
7
8
9
10
678910
12
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks
Occupant Position Detection
System (OPDS) Sensor Side Airbags
11Automatic Seat Belt Tensioners
15 CR-Z-31SZT6400.book 30 ページ ２０１４年８月１日　金曜日　午後１時５９分

40
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that continually
monitors and can re cord information
about the sensors, the airbag activators,
the seat belt tensioners, and driver and
passenger seat belt use when the ignition
switch is in ON
(w.
eAutomatic seat belt tensioners. The
driver's and passenger's seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver's seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the passenger's seat.
The passenger's airbag will be turned off
if the weight on the seat is 65 lbs (29 kg)
or less (the weight of an infant or small
child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the passenger's front airbag has
been turned off.
jSensors that can detect if a child or small
statured adult is in the deployment path
of the passenger's side airbag.
kAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
lAn indicator on the instrument panel that
alerts you that the passenger's side
airbag has been turned off.
15 CR-Z-31SZT6400.book 40 ページ ２０１４年８月１日　金曜日　午後１時５９分

41
uuAirbags uAirbag System Components

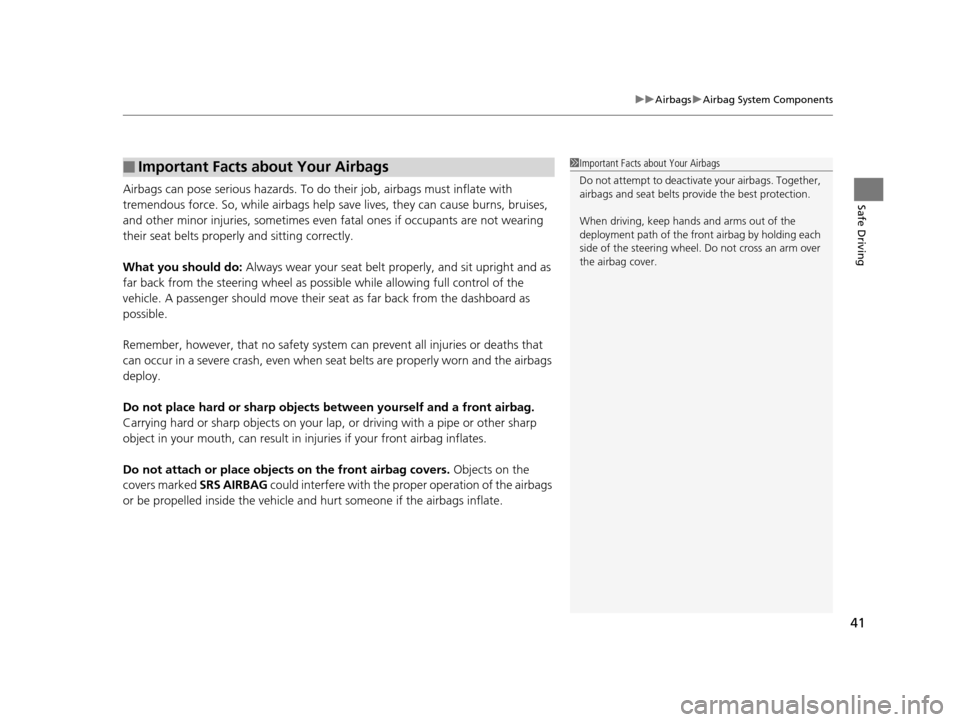

Safe DrivingAirbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help sa ve lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properl y and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possi ble while allowing full control of the
vehicle. A passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system ca n prevent all injuries or deaths that
can occur in a severe crash, even when s eat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in in juries if your front airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the prop er operation of the airbags
or be propelled inside the vehicle an d hurt someone if the airbags inflate.
■Important Facts about Your Airbags1Important Facts about Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts pr ovide the best protection.
When driving, keep hands and arms out of the
deployment path of the fro nt airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
15 CR-Z-31SZT6400.book 41 ページ ２０１４年８月１日　金曜日　午後１時５９分
