HONDA CR-Z 2015 1.G Technology Reference Guide

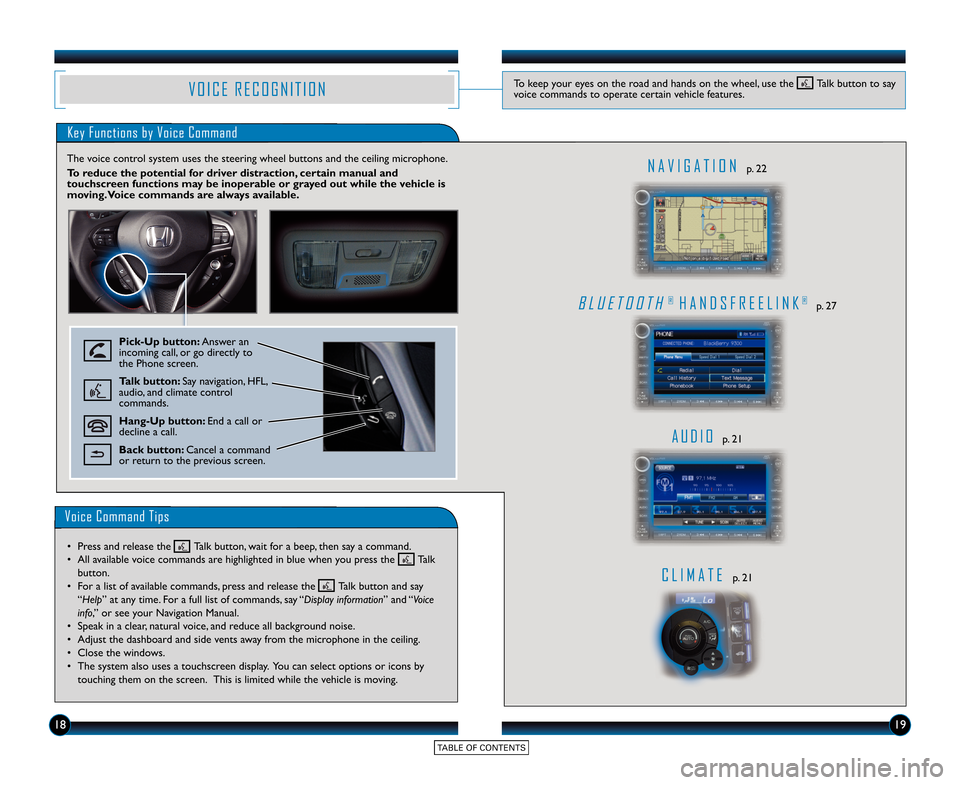

Voice Command Tips
V O I C E R E C O G N I T I O N
Key Functions by Voice Command
B L U E T O O T H® H A N D S F R E E L I N K®p. 27
A U D I Op. 21
C L I M A T Ep. 21
N A V I G A T I O Np. 22
The voice control system uses the steering wheel buttons and th\0e ceiling microphone.
To reduce the potential for driver distraction, certain manual and
touchscreen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
1819
PickUp button\f Answer an
incoming call, or go directly to
the Phone screen.
Talk button\f Say navigation, HFL,
audio, and climate control
commands.
HangUp button\f End a call or
decline a call.
Back button\f Cancel a command
or return to the previous screen.
To keep your eyes on the road and hands on the wheel, use the Talk button to say
voice commands to operate certain vehicle features.
• Press and release the Talk button, wait for a beep, then say a command.
• All available voice commands are highlighted in blue when you press the Talk button.
• For a list of available commands, press and release the Talk button and say “Help” at any time. For a full list of commands, say “Display information” and “Voice
info,” or see your Navigation Manual.
• Speak in a clear, natural voice, and reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touchscreen display. You can select options or icons by touching them on the screen. This is limited while the vehicle is moving.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 11

2021

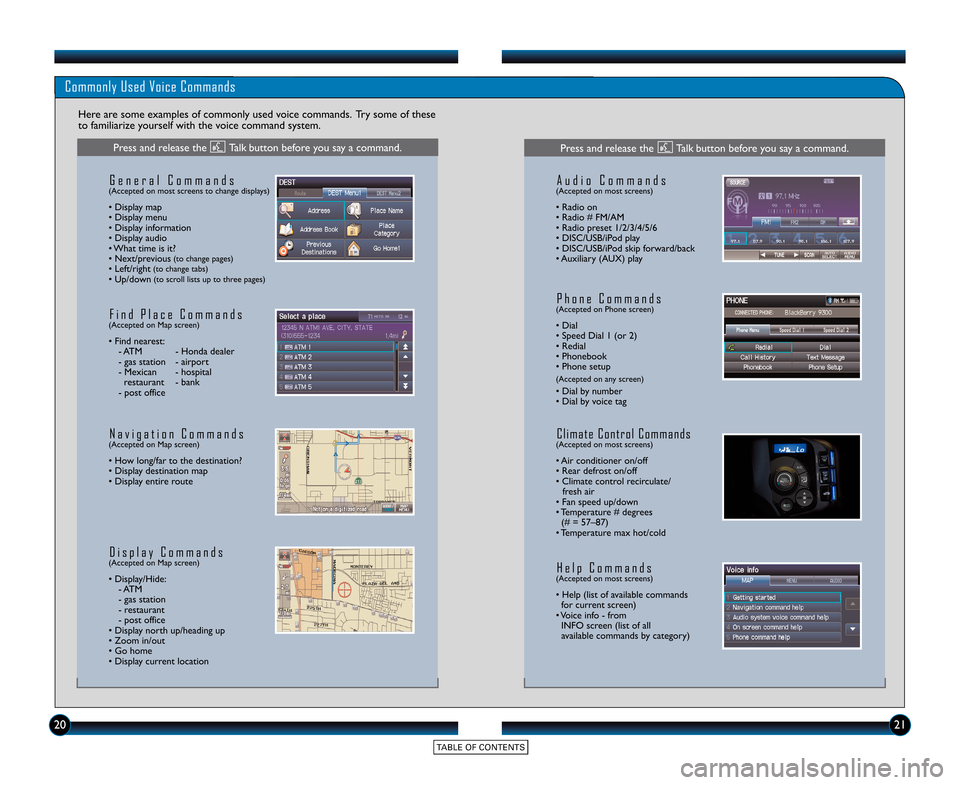

Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Display information
• Display audio
• What time is it?
• Next\fprevious
(to change pages)• Left\fright(to change tabs)• Up\fdown(to scroll lists up to three pages)
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long\ffar to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display\fHide: ATM
gas station
restaurant
post office
• Display north up\fheading up
• Zoom in\fout
• Go home
• Display current location
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM\fAM
• Radio preset 1\f2\f3\f4\f5\f6
• DISC\fUSB\fiPod play
• DISC\fUSB\fiPod skip forward\fback
• Auxiliary (AUX) play
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice info from INFO screen (list of all
available commands by category)
P h o n e C o m m a n d s(Accepted on Phone screen)
• Dial
• Speed Dial 1 (or 2)
• Redial
• Phonebook
• Phone setup
(Accepted on any screen)
• Dial by number
• Dial by voice tag
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on\foff
• Rear defrost on\foff
• Climate control recirculate\f fresh air
• Fan speed up\fdown
• Temperature # degrees (# = 57–87)
• Temperature max hot\fcold
Press and release the Talk button before you say a command.Press and release the Talk button before you say a command.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 12

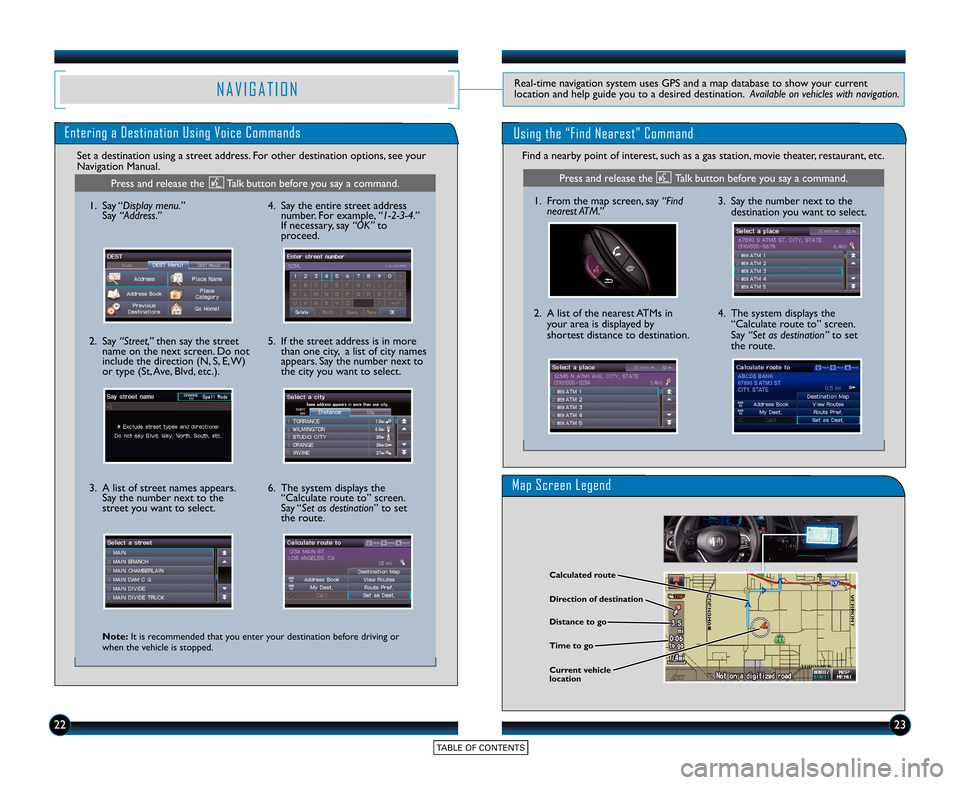

Map Screen Legend
N A V I G A T I O NRealtime navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination. Available on vehicles with navigation.
2223
Entering a Destination Using Voice Commands
Set a destination using a street address. For other destination options, see your
Navigation Manual.
1. Say “Display menu.” Say “Address.”
2. Say “Street,” then say the street
name on the next screen. Do not
include the direction (N, S, E, W)
or type (St, Ave, Blvd, etc.).
3. A list of street names appears. Say the number next to the
street you want to select.
Note\f It is recommended that you enter your destination before driving or
when the vehicle is stopped.
5. If the street address is in more than one city, a list of city names
appears. Say the number next to
the city you want to select.
6. The system displays the “Calculate route to” screen.
Say “Set as destination” to set
the route.
4. Say the entire street address number. For example, “123\f.”
If necessary, say “OK” to
proceed.
Direction of destination
Calculated route
Distance to go
Time to go
Current vehicle
location
Find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
Using the “Find Nearest” Command
1. From the map screen, say “Find nearest ATM.”
2. A list of the nearest ATMs in your area is displayed by
shortest distance to destination. 3. Say the number next to the
destination you want to select.
4. The system displays the “Calculate route to” screen.
Say “Set as destination” to set
the route.
Press and release the Talk button before you say a command.Press and release the Talk button before you say a command.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 13

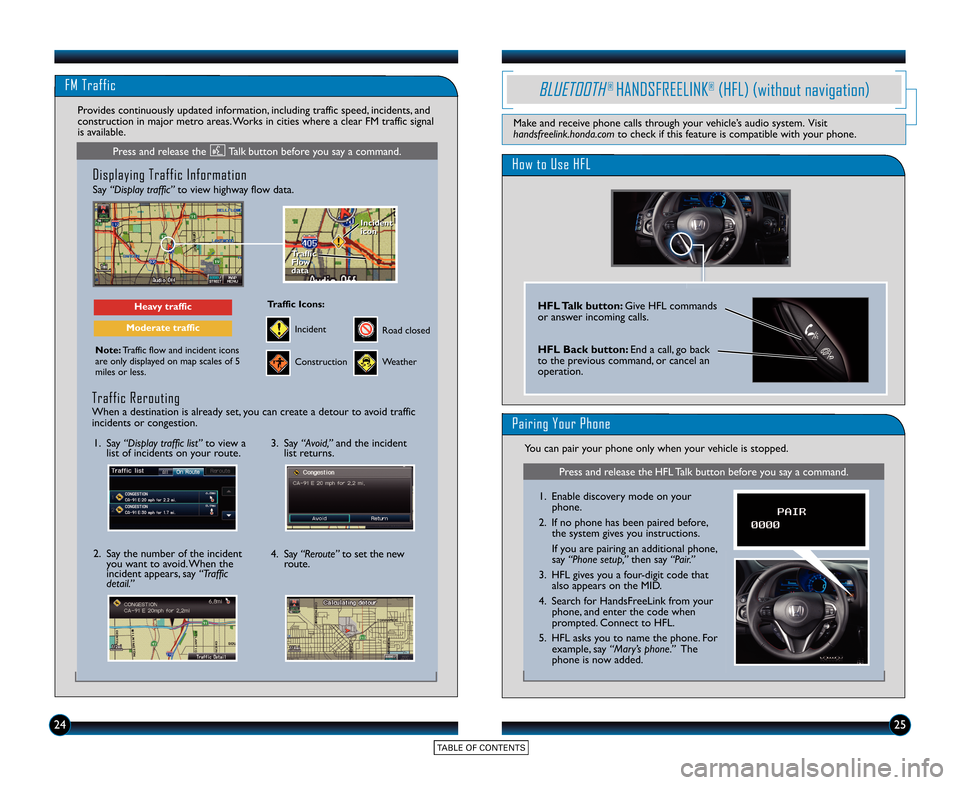

FM Traffic
25
Displaying Traffic Information
Say “Display traffic”to view highway flow data.
Note\fTraffic flow and incident icons
are only displayed on map scales of 5
miles or less.
Heavy traffic
Moderate traffic
Traffic
Flow
data
Traffic
Flow
data Incident
icon
Incident
icon
Incident
Traffic Icons\f
Construction
Road closed
Weather
Provides continuously updated information, including traffic speed, incidents, and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
1. Say “Display traffic list” to view a
list of incidents on your route.
2. Say the number of the incident you want to avoid. When the
incident appears, say “Traffic
detail.”
3. Say “Avoid,” and the incident
list returns.
4. Say “Reroute” to set the new
route.
Traffic Rerouting
When a destination is already set, you can create a detour to avoid traffic
incidents or congestion.
24
How to Use HFL
HFL Talk button\f Give HFL commands
or answer incoming calls.
HFL Back button\f End a call, go back
to the previous command, or cancel an
operation.
BLUETOOTH® HANDSFREELINK®(HFL) (without navigation)
Make and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if this feature is compatible with your phone.
Pairing Your Phone
You can pair your phone only when your vehicle is stopped.
Press and release the Talk button before you say a command.
Press and release the HFL Talk button before you say a command.
1. Enable discovery mode on your
phone.
2. If no phone has been paired before, the system gives you instructions.
If you are pairing an additional phone,
say “Phone setup,” then say “Pair.”
3. HFL gives you a fourdigit code that also appears on the MID.
4. Search for HandsFreeLink from your phone, and enter the code when
prompted. Connect to HFL.
5. HFL asks you to name the phone. For example, say “Mary’s phone.” The
phone is now added.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 14

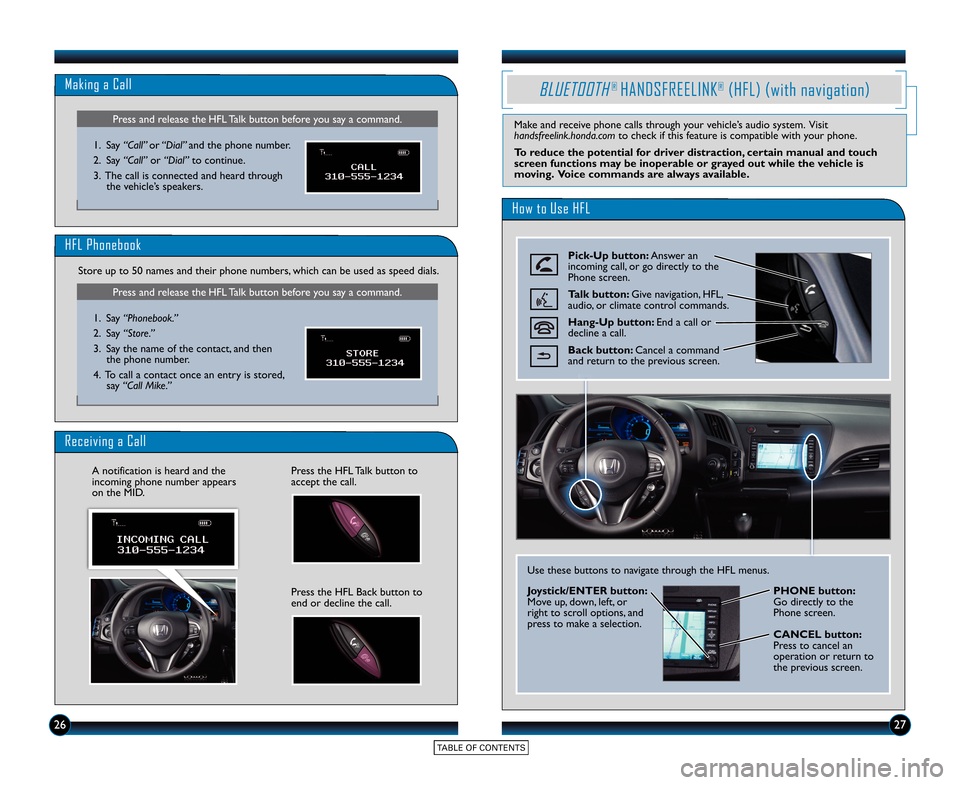

Receiving a Call
Press the HFL Talk button to
accept the call.
Press the HFL Back button to
end or decline the call.
A notification is heard and the
incoming phone number appears
on the MID.
2627
Press and release the HFL Talk button before you say a command.
Making a Call
1. Say “Call” or “Dial” and the phone number.
2. Say “Call” or “Dial”to continue.
3. The call is connected and heard through the vehicle’s speakers.
Press and release the HFL Talk button before you say a command.
HFL Phonebook
1. Say “Phonebook.”
2. Say “Store.”
3. Say the name of the contact, and then the phone number.
4. To call a contact once an entry is stored, say “Call Mike.”
Store up to 50 names and their phone numbers, which can be used as speed dials.
BLUETOOTH® HANDSFREELINK®(HFL) (with navigation)
Make and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if this feature is compatible with your phone.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
How to Use HFL
PickUp button\f Answer an
incoming call, or go directly to the
Phone screen.
Talk button\f Give navigation, HFL,
audio, or climate control commands.
HangUp button\f End a call or
decline a call.
Back button\f Cancel a command
and return to the previous screen.
Use these buttons to navigate through the HFL menus.
Joystick\bENTER button\f
Move up, down, left, or
right to scroll options, and
press to make a selection. PHONE button\f
Go directly to the
Phone screen.
CANCEL button\f
Press to cancel an
operation or return to
the previous screen.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 15

2829

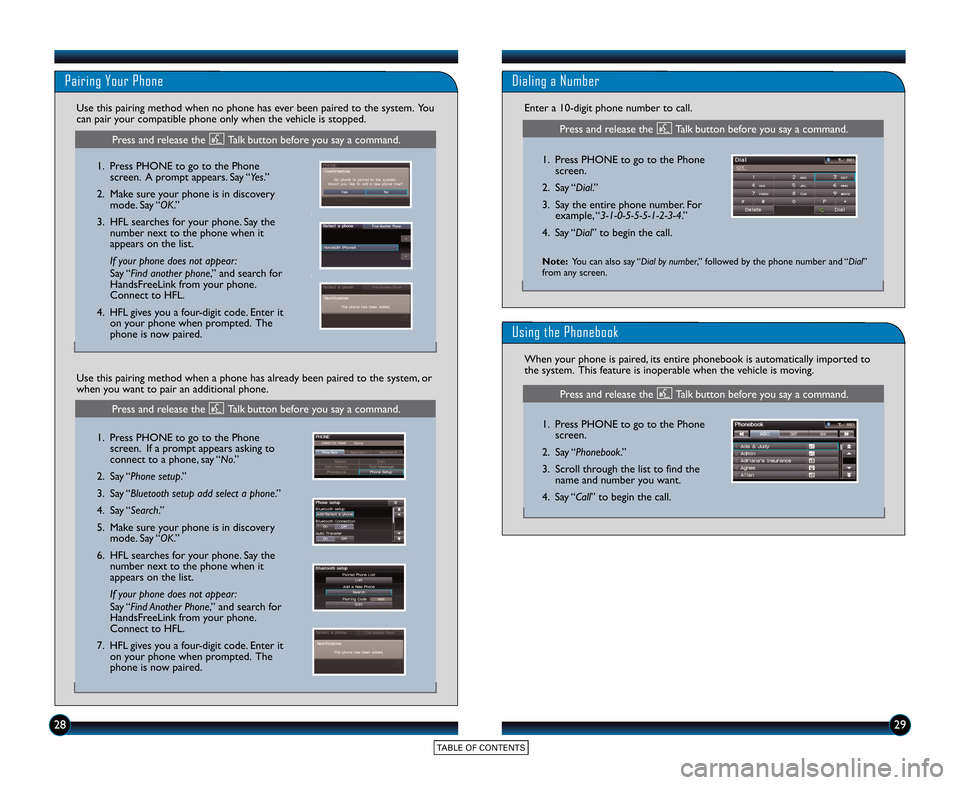

Pairing Your Phone
1. Press PHONE to go to the Phonescreen. A prompt appears. Say “Yes.”
2. Make sure your phone is in discovery mode. Say “OK.”
3. HFL searches for your phone. Say the number next to the phone when it
appears on the list.
If your phone does not appear:
Say “Find another phone,” and search for
HandsFreeLink from your phone.
Connect to HFL.
4. HFL gives you a fourdigit code. Enter it on your phone when prompted. The
phone is now paired.
Use this pairing method when no phone has ever been paired to the system. You
can pair your compatible phone only when the vehicle is stopped.
1. Press PHONE to go to the Phone screen. If a prompt appears asking to
connect to a phone, say “No.”
2. Say “Phone setup.”
3. Say “Bluetooth setup add select a phone.”
4. Say “Search.”
5. Make sure your phone is in discovery mode. Say “OK.”
6. HFL searches for your phone. Say the number next to the phone when it
appears on the list.
If your phone does not appear:
Say “Find Another Phone,” and search for
HandsFreeLink from your phone.
Connect to HFL.
7. HFL gives you a fourdigit code. Enter it on your phone when prompted. The
phone is now paired.
Use this pairing method when a phone has already been paired to the system, or
when you want to pair an additional phone.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
Dialing a Number
Enter a 10digit phone number to call.
1. Press PHONE to go to the Phonescreen.
2. Say “Dial.”
3. Say the entire phone number. For example, “31\b555123\f.”
4. Say “Dial” to begin the call.
Using the Phonebook
1. Press PHONE to go to the Phone screen.
2. Say “Phonebook.”
3. Scroll through the list to find the name and number you want.
4. Say “Call” to begin the call.
When your phone is paired, its entire phonebook is automatically imported to
the system. This feature is inoperable when the vehicle is moving.
Press and release the Talk button before you say a command.
Note\f You can also say “Dial by number,” followed by the phone number and “Dial”
from any screen.
Press and release the Talk button before you say a command.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 1\b

3031

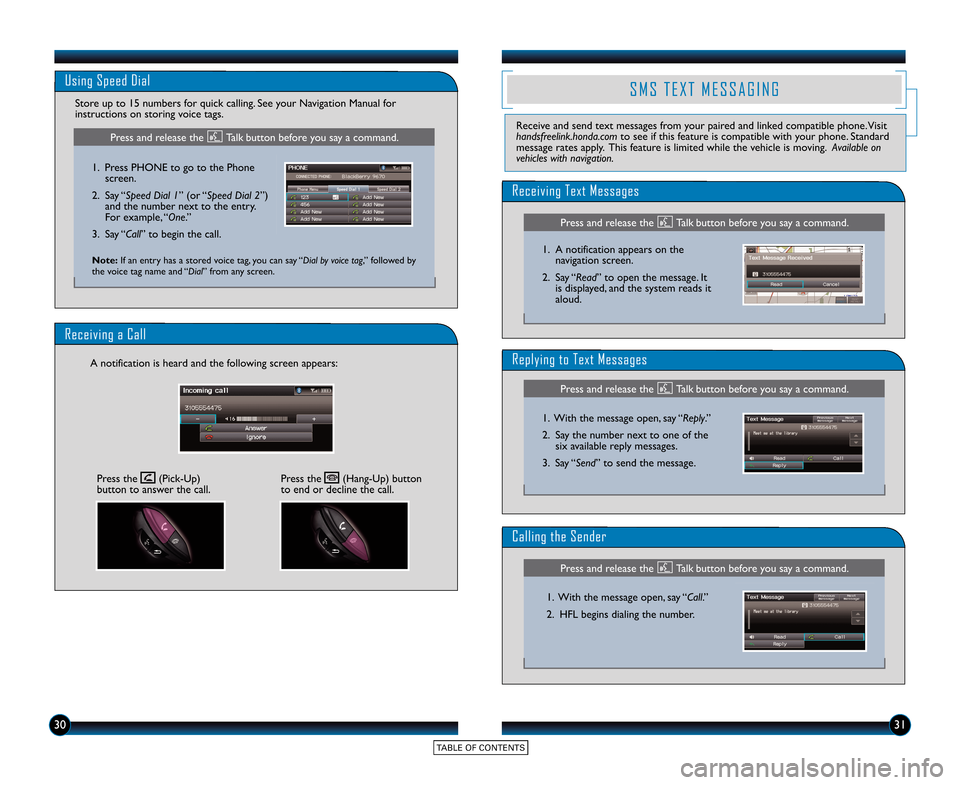

Receiving a Call
A notification is heard and the following screen appears:
Using Speed Dial
Store up to 15 numbers for quick calling. See your Navigation Manual for
instructions on storing voice tags.
Press the (PickUp)
button to answer the call.Press the (HangUp) button
to end or decline the call.
1. Press PHONE to go to the Phone
screen.
2. Say “Speed Dial 1” (or “Speed Dial 2”) and the number next to the entry.
For example, “One.”
3. Say “Call” to begin the call.
Press and release the Talk button before you say a command.
Note\f If an entry has a stored voice tag, you can say “Dial by voice tag,” followed by
the voice tag name and “Dial” from any screen.
S M S T E X T M E S S A G I N G
Receive and send text messages from your paired and linked compatible phone. Visit
handsfreelink.honda.com to see if this feature is compatible with your phone. Standard
message rates apply. This feature is limited while the vehicle is moving. Available on
vehicles with navigation.
Receiving Text Messages
Replying to Text Messages
Calling the Sender
1. With the message open, say “Reply.”
2. Say the number next to one of the six available reply messages.
3. Say “Send” to send the message.
1. With the message open, say “Call.”
2. HFL begins dialing the number.
1. A notification appears on the
navigation screen.
2. Say “Read” to open the message. It is displayed, and the system reads it
aloud.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
Press and release the Talk button before you say a command.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 17

4. Press (9) (:) or (+) () to change
tracks.
Notes\f
• You may need to enable additional settings on your phone for playback.
• Remote audio controls and the play\fpause function may not be supported on all phones.
• Operate your phone only when your vehicle is stopped.
3. From your phone, open the desired audio player or app and begin playing.
Sound is redirected to the audio
system.
Make sure the volume on your phone
is properly adjusted.
3233

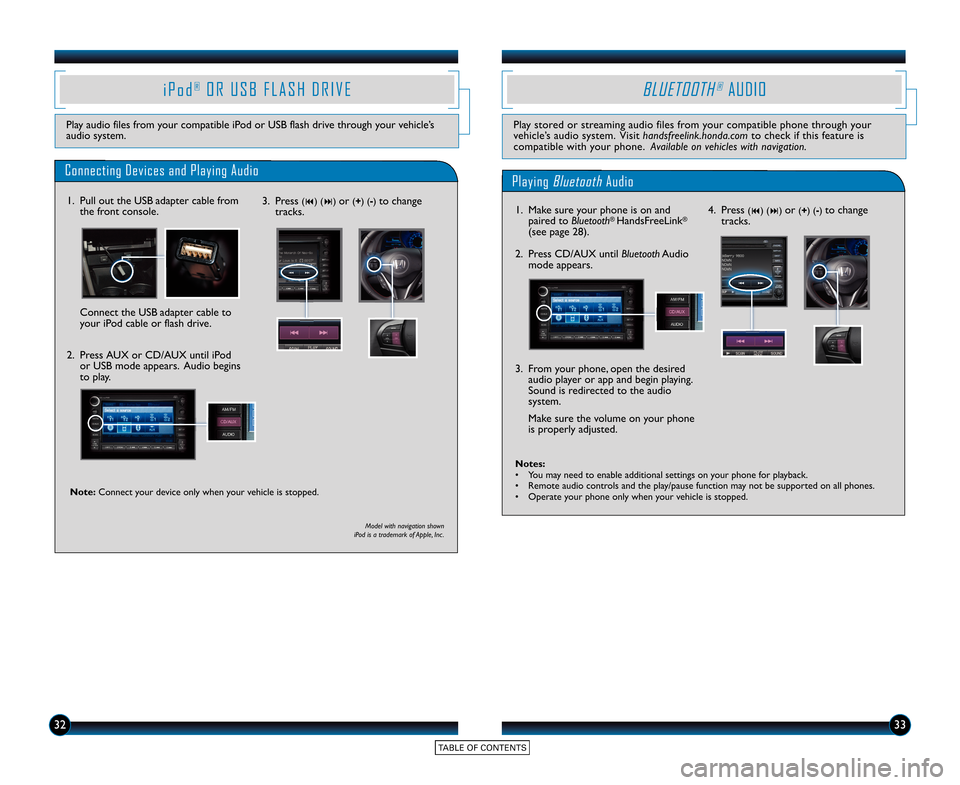

i P o d®O R U S B F L A S H D R I V E
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system.
Connecting Devices and Playing Audio
1. Pull out the USB adapter cable from the front console.
2. Press AUX or CD\fAUX until iPod or USB mode appears. Audio begins
to play.
Playing BluetoothAudio
BLUETOOTH®AUDIO
Play stored or streaming audio files from your compatible phone through your
vehicle’s audio system. Visit handsfreelink.honda.comto check if this feature is
compatible with your phone. Available on vehicles with navigation.
1. Make sure your phone is on and
paired to Bluetooth® HandsFreeLink®
(see page 28).
2. Press CD\fAUX until Bluetooth Audio
mode appears.
Connect the USB adapter cable to
your iPod cable or flash drive.
Model with navigation shown
iPod is a trademark of Apple, Inc .
3. Press (9) (:) or (+) () to change
tracks.
Note\f Connect your device only when your vehicle is stopped.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 18

3435

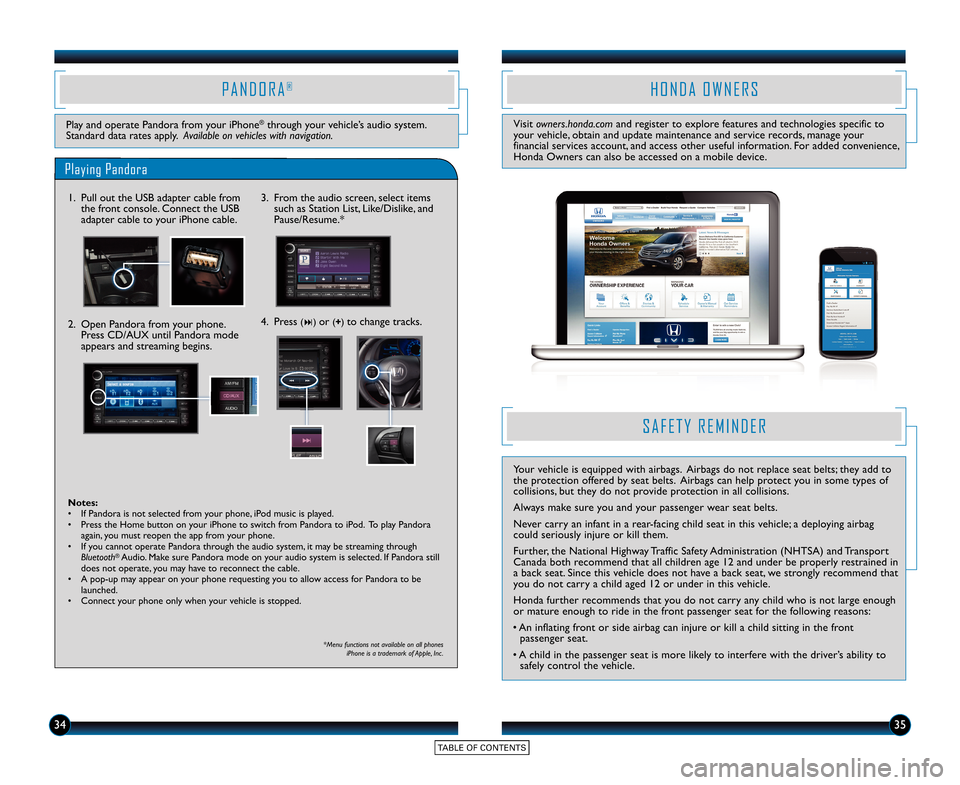

Play and operate Pandora from your iPhone®through your vehicle’s audio system.
Standard data rates apply. Available on vehicles with navigation.
S A F E T Y R E M I N D E R
Your vehicle is equipped with airbags. Airbags do not replace seat belts; they add to
the protection offered by seat belts. Airbags can help protect you in some types of
collisions, but they do not provide protection in all collisions.
Always make sure you and your passenger wear seat belts.
Never carry an infant in a rearfacing child seat in this vehicle; a deploying airbag
could seriously injure or kill them.
Further, the National Highway Traffic Safety Administration (NHTSA) and Transport
Canada both recommend that all children age 12 and under be properly restrained in
a back seat. Since this vehicle does not have a back seat, we strongly recommend that
you do not carry a child aged 12 or under in this vehicle.
Honda further recommends that you do not carry any child who is not large enough
or mature enough to ride in the front passenger seat for the following reasons:
• An inflating front or side airbag can injure or kill a child sitting in the front passenger seat.
• A child in the passenger seat is more likely to interfere with the driver’s ability to safely control the vehicle.
4. Press (:) or (+) to change tracks.
Notes\f
• If Pandora is not selected from your phone, iPod music is played.
• Press the Home button on your iPhone to switch from Pandora to iPod. To play Pandora
again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is selected. If Pandora still
does not operate, you may have to reconnect the cable.
• A popup may appear on your phone requesting you to allow access for Pandora to be launched.
• Connect your phone only when your vehicle is stopped.
3. From the audio screen, select items such as Station List, Like\fDislike, and
Pause\fResume.*
Playing Pandora
P A N D O R A®
1. Pull out the USB adapter cable from the front console. Connect the USB
adapter cable to your iPhone cable.
2. Open Pandora from your phone. Press CD\fAUX until Pandora mode
appears and streaming begins.
*Menu functions not available on all phones
iPhone is a trademark of Apple, Inc .
H O N D A O W N E R S
Visit owners.honda.com and register to explore features and technologies specific to
your vehicle, obtain and update maintenance and service records, manage your
financial services account, and access other useful information. For added convenience,
Honda Owners can also be accessed on a mobile device.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f2\b \AAM Page 19

3637

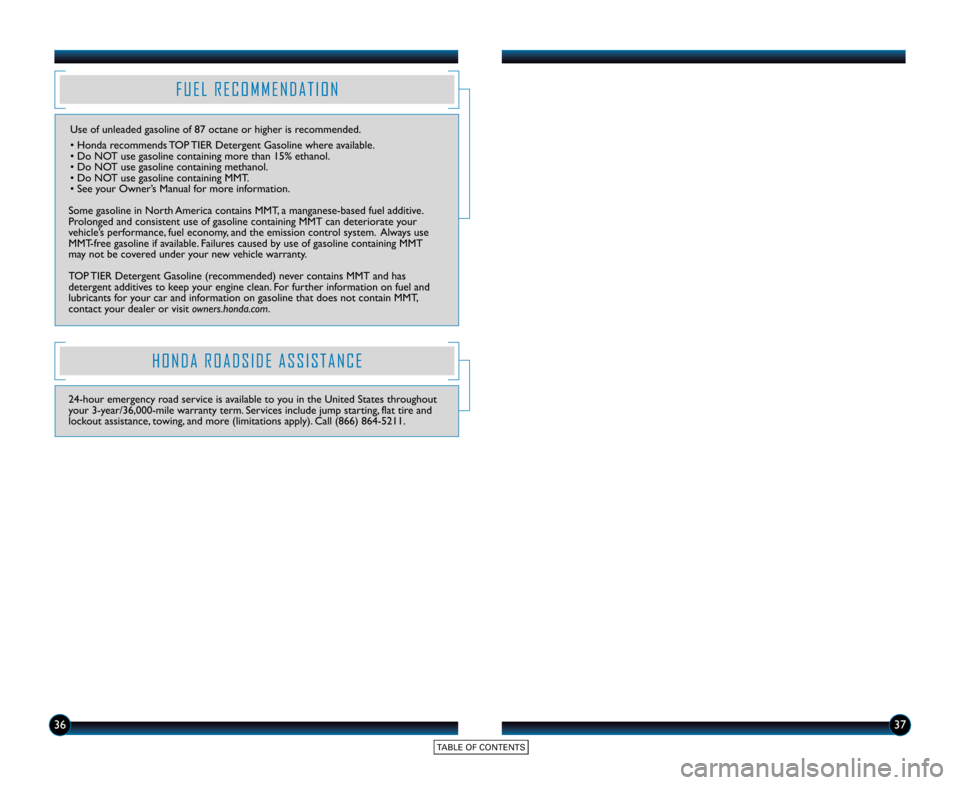

F U E L R E C O M M E N D A T I O N
Use of unleaded gasoline of 87 octane or h\0igher is recommended.
• Honda recommends TOP TIER Detergent Gasoline where available.
• Do NOT use gasoline containing more than 15% ethanol.
• Do NOT use gasoline containing methanol.
• Do NOT use gasoline containing MMT.
• See your Owner’s Manual for more information.
Some gasoline in North America contains MMT, a manganesebased fuel additive.
Prolonged and consistent use of gasoline containing M\0MT can deteriorate your
vehicle’s performance, fuel economy, and the emission control system. Always use
MMTfree gasoline if available. Failures caused by use of gasoline containing MMT
may not be covered under your new vehicle warranty.
TOP TIER Detergent Gasoline (recommended) never contains MMT and has
detergent additives to keep your engine clean. For further information on fuel and
lubricants for your car and information on gasoline that does not contain MMT,
contact your dealer or visit owners.honda.com.
H O N D A R O A D S I D E A S S I S T A N C E
24hour emergency road service is available to you in the United States throughout
your 3year\f36,000mile warranty term. Services include jump starting, flat tire and
lockout assistance, towing, and more (limitations apply). Call (866) 8645211.\0
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f2\b \AAM Page 20
