Your seat belt system includes lap/
shoulder belts in all seating positions.
The f ront seat belts are also
equipped with automatic seat belt
tensioners.If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no f ront
seat passenger and no items on the
front seat, something may be
interf ering with the monitoring
system. Look f or and remove:
Any items under the f ront
passenger’s seat.
Any object(s) hanging on the seat
or in the seat-back pocket.
Any object(s) touching the rear of
the seat-back.
If no obstructions are f ound, have
your vehicle checked by a dealer.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on. If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
Additional Inf ormation About Your Seat Belts
Seat Belt System Components
18
10/08/27 14:15:28 31TP6610_023
2011 Accord Crosstour

CONT INUED
For added protection, the f ront seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a f ront passenger in position.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page f or how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. Af ter exiting the
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move f reely. The seat belts in all positions except
the driver’s have a lockable retractor
that must be activated to secure a
child seat (see page ). All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move f reely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the
seat belt, pull it out only as f ar as
needed.
14
44
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensioners
L ap/Shoulder Belt
Driver and Passenger Saf ety
19
10/08/27 14:15:38 31TP6610_024
the vehicle, be sure the belt is out of
the way and will not get closed in the
the door.
2011 Accord Crosstour

The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a limited warranty
on seat belts. See your booklet f or
details.
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The tensioners can be activated
during a collision in which the f ront
airbags
. In this case, the
airbags would not be needed, but the
additional restraint could be helpf ul.
If the tensioner is activated, the SRS
indicator comes on and the tensioner
must be replaced.
353
Honda
Warranty Inf ormation
do not deploy
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
20
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
10/08/27 14:15:45 31TP6610_025
2011 Accord Crosstour

CONT INUED
Additional Inf ormation About Your Airbags

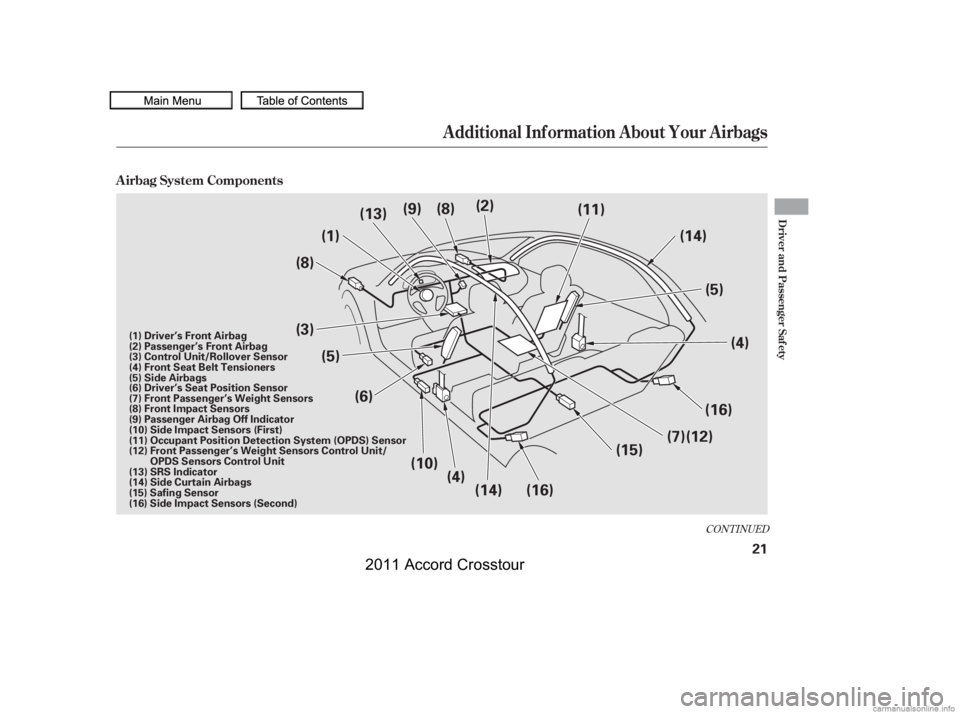

A irbag System Components
Driver and Passenger Saf ety
21
(3)(4)
(6)
(8)
(8)
(1) (9)
(2)
(11)
(5)
(13)
(10) (16)
(15) (14)
(16)
(14)
(5)
(4) (7)(12)
(15) Safing Sensor
(16) Side Impact Sensors (Second)(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First) (1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit/Rollover Sensor
(4) Front Seat Belt Tensioners
(5) Side Airbags
(11) Occupant Position Detection System (OPDS) Sensor
(12) Front Passenger’s Weight Sensors Control Unit/
OPDS Sensors Control Unit
(13) SRS Indicator
(14) Side Curtain Airbags
10/08/27 14:15:52 31TP6610_026
2011 Accord Crosstour

Automatic front seat belt
tensioners (see page ).
Your airbag system includes:
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ). Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too f ar f orward, the airbag will
inf late with less f orce (see page
).
Weight sensors that monitor the
weight on the f ront passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
inf ant or small child), the
passenger’s front airbag will be
turned of f (see page ).
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and f ront
passenger seat belt use when the
ignition switch is in the ON (II)
position.
Sensors that can detect a
moderate to severe front impact,
side impact, or if your vehicle is
about to rollover.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag of f (see
page ).
Sensors that can detect whether
the driver’s seat belt and the f ront
passenger’s seat belt are latched
or unlatched (see page ).
A rollover sensor that can detect if
your vehicle is about to roll over
and signal the control unit to
deploy both side curtain airbags
(see page ).
23
27 19
25
26
28
18
29
Additional Inf ormation About Your Airbags
22
10/08/27 14:16:02 31TP6610_027
page 28). page
2011 Accord Crosstour

CONT INUED
During a frontal crash, your seat belt
restrains your lower body and torso,
and the f ront airbag helps protect
your head and chest.
Although both airbags normally
inf late within a split second of each
other, it is possible f or only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
suf f icient protection, and the
supplemental protection of f ered by
the airbag would be minimal.
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will inf late
the driver’s and f ront passenger’s
airbags, at the time and with the
f orce needed. Only the driver’s airbag can deploy if
there is no passenger in the f ront
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned of f (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash. An indicator on the instrument
panel that alerts you to a possible
problem with your airbag system
components (see page ).
25
29
30
30
Additional Inf ormation About Your Airbags
How Your Front A irbags Work
Driver and Passenger Saf ety
23
10/08/27 14:16:12 31TP6610_028
2011 Accord Crosstour

The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is safe to
Af ter inf lating, the f ront airbags
immediately def late, so they won’t
interf ere with the driver’s visibility,
or the ability to steer or operate
other controls. Your vehicle is equipped with dual-
stage, multiple-threshold f ront
airbags (SRS). During a f rontal crash
severe enough to cause one or both
f ront airbags to deploy, the airbags
can inf late at dif f erent rates,
depending on the severity of the
crash, whether or not the seat belts
are latched, and/or other factors.
Front airbags are designed to
supplement the seat belts to help
reduce the likelihood of head and
chest injuries in f rontal crashes.
Additional Inf ormation About Your Airbags
Dual-Stage, Multiple-T hreshold
Front A irbags (SRS)
24
10/08/27 14:16:18 31TP6610_029
do so.
2011 Accord Crosstour

CONT INUED
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too f ar f orward, the airbag will
inf late with less f orce, regardless of
the severity of the impact.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.
Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children or small-statured adults who
ride in f ront.
For both advanced airbags to work
properly:
Occupants must sit upright and
wear their seat belts properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any objects or metal items
under the f ront seats. Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly.
Objects placed or pushed under
the f ront passenger’s seat may
cause the sensor to malf unction,
increasing the risk of injury in a
crash.
Additional Inf ormation About Your Airbags
Advanced Airbags
Driver and Passenger Saf ety
25
DRIVER’S
SEAT
POSITION
SENSOR
10/08/27 14:16:27 31TP6610_030
2011 Accord Crosstour

When the passenger airbag gets
turned of f by the weight sensors, a
‘‘passenger airbag of f ’’ indicator in
the center of the dashboard comes
on (see page ). Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
If the weight sensors detect there is
no passenger in the f ront seat, the
airbag is automatically turned off.
However, the passenger airbag of f
indicator in this situation will not
come on.To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the f ront
passenger’s seat.
Moving the f ront seat f orcibly
back against cargo on the seat or
f loor behind it.
Hanging heavy items on the f ront
passenger seat, or placing heavy
items in the seat-back pocket.
Moving the front seat or seat-back
f orcibly back against the f olded
rear seat.
The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
inf ant or small child in f ront, if the
sensors detect the weight of an
inf ant or small child (up to about 65
lbs or 29 kg), the system will
automatically turn the passenger’s
front airbag off. 30
Additional Inf ormation About Your Airbags
do not do anyt hing
t hat would increase or decrease t he weight on the f ront passenger’s seat.
26
PASSENGER’S
SEAT WEIGHT
SENSORS
10/08/27 14:16:35 31TP6610_031
2011 Accord Crosstour

CONT INUED
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection f rom the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag.
Also,makesurethefloormat
behind the f ront passenger’s seat
is properly positioned on the f loor
(see page ). If it is not, the mat
may interfere with the proper
operation of the f ront passenger’s
seat and its sensors.
Back seat passengers should not
wedge objects or intentionally
f orce their f eet under the f ront
passenger seat.
353
Additional Inf ormation About Your Airbags
How Your Side A irbags Work
Driver and Passenger Saf ety
27
10/08/27 14:16:42 31TP6610_032
2011 Accord Crosstour
