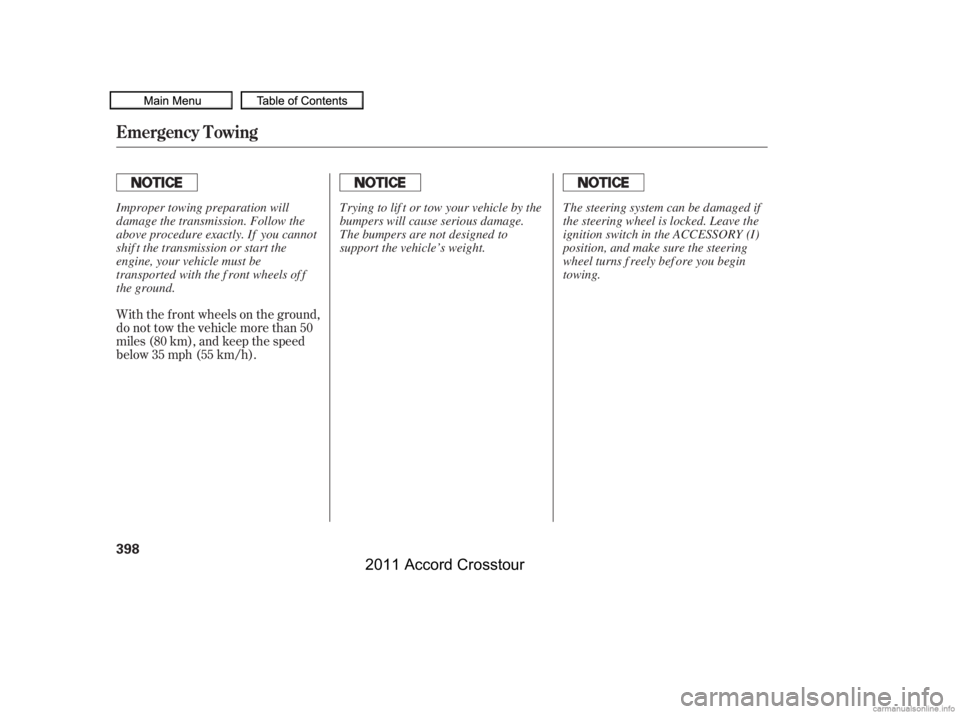

With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
Emergency Towing
398
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
10/08/27 15:06:50 31TP6610_403
2011 Accord Crosstour

µ

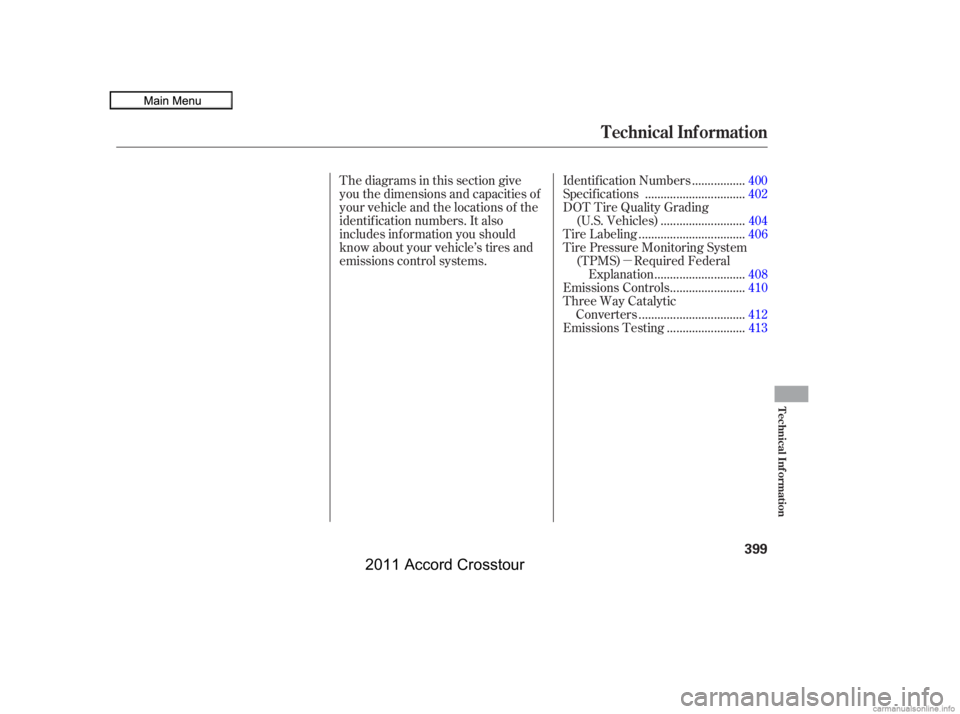

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems. ................
Identif ication Numbers . 400
...............................
Specif ications .402
DOT Tire Quality Grading ..........................
(U.S. Vehicles) .404
.................................
Tire Labeling .406
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .408
.......................
Emissions Controls .410
Three Way Catalytic .................................
Converters .412
........................
Emissions Testing .413
T echnical Inf ormation
Technical Inf ormation
399
10/08/27 15:06:54 31TP6610_404
2011 Accord Crosstour

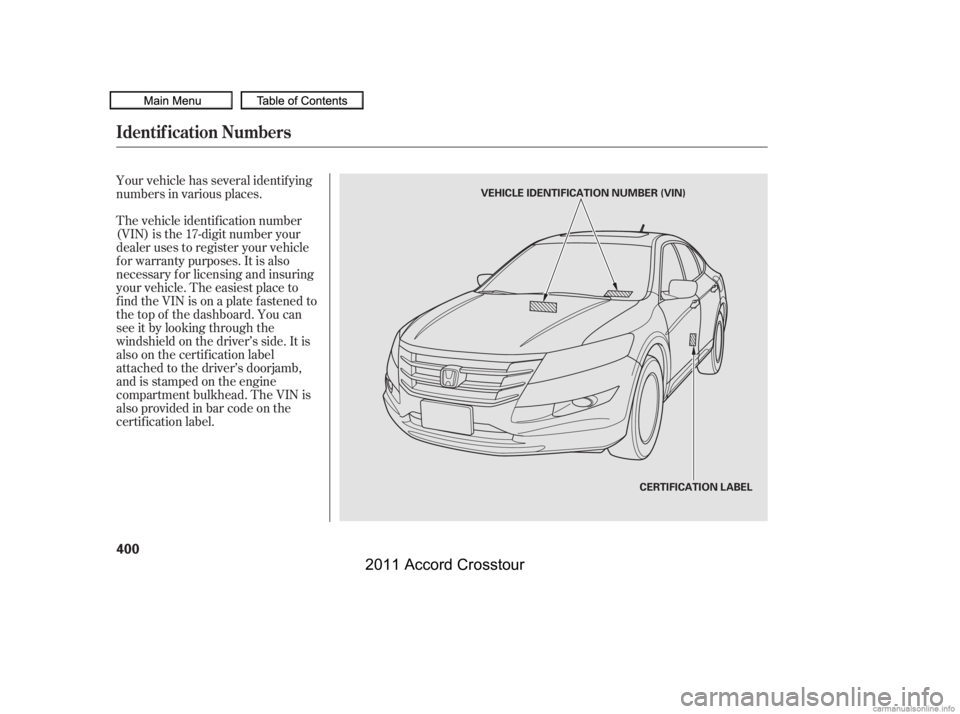

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
400
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
10/08/27 15:06:58 31TP6610_405
2011 Accord Crosstour

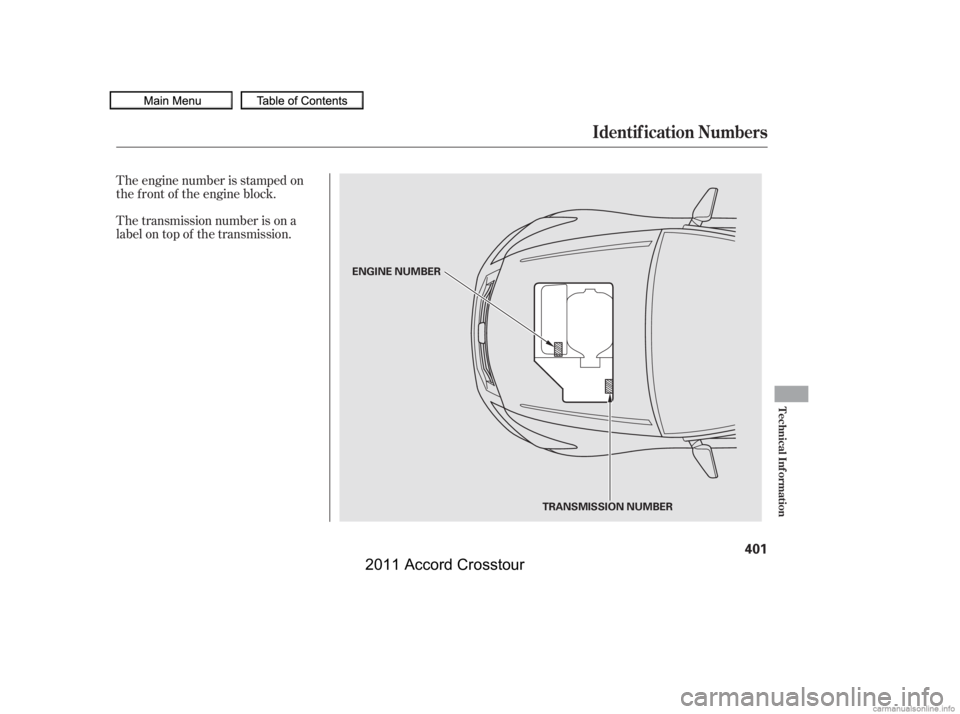

The transmission number is on a
label on top of the transmission. The engine number is stamped on
the f ront of the engine block.
Identif ication Numbers
Technical Inf ormation
401
ENGINE NUMBERTRANSMISSION NUMBER
10/08/27 15:07:02 31TP6610_406
2011 Accord Crosstour

µµÎ
Î
Î
Î
Specif ications
402
Dimensions
Weights
Air Conditioning
Engine
Seating Capacities Capacities
110.1 in (2,797 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) ND-OIL8
196.8 in (4,999 mm)
74.7 in (1,898 mm)
65.7 in (1,670 mm)
64.9 in (1,648 mm)
3.50 x 3.66 in (89.0 x 93.0 mm) 212 cu-in (3,471 cm
)
10.5 : 1
ILZKR7B11
SXU22HCR11
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Total
Front
Rear
5
2
3 18.5 US gal (70.0
)
1.74 US gal (6.6)
2.27 US gal (8.6)
4.5 US qt (4.3
)
4.2 US qt (4.0)
5.3 US qt (5.0)
3.5 US qt (3.3
)
3.0 US qt (2.8)
7.9 US qt (7.5
)
8.3 US qt (7.9)
Excluding the oil remaining in the engine Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.180 US gal (0.68
)
5.3 US qt (5.0
)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid (4WD)
Transfer
assembly
fluid (4WD)
Windshield
washer
reservoir
1.3 US qt (1.2
)
0.43 US qt (0.41
)
1.5 US qt (1.4
)
0.48 US qt (0.45
)
Water cooled 4-stroke
SOHC i-VTEC VCM 6-cylinder (V6) gasoline engine Approx.
1:
2: Change
Total
Front/Rear
NGK:
DENSO: Change
Including filter
Without filter
Total
Change 2WD
4WD
Total 2WD
4WD
Change
Total
Change
Total
1
2
10/08/27 15:07:21 31TP6610_407
2011 Accord Crosstour

µ
µ
µ Î
Î
Î
Î
Î
Î
Î Î
Î
Î Î Î
Î
Specif ications
Technical Inf ormation
403
Fuses
Battery Tires
Lights
Alignment Interior
Under-hood
8W 60 W (HB3)
55 W (H11)
24/2 2 CP
5W
55 W
21 W
21 W
21/5 W
5W
8W 225/65R17 102T
Replacement of a light bulb should be done by your dealer.
Capacity 12 V
12 V 72 AH/20 HR
60 AH/5 HR See page
395or the fuse label
attached on the side panel.
See page 396or the fuse label
attached to the inside of the fuse
box door.
See page 394or the fuse box
cover.
225/60R18 100H
Size
Pressure T155/90D16 110M
T155/90D17 101M
32 psi (220 kPa , 2.2 kgf/cm
)
1.4 W 3.8 W
5W 3.8 W
Headlights
Front turn signal/parking lights
Front side marker lights
Front Fog lights
Rear turn signal lights
Back-up lights
Stop/taillights
License plate lights
High-mount brake light
Ceiling light
Spotlights
Glove box light
Courtesy light (Ceiling)
Cargo area lights
Front door courtesy lights
Vanity mirror lights
60 psi (420 kPa , 4.2 kgf/cm
)
Toe-in
Camber
Caster 3°30’1°
0°
0.08 in (2.0 mm) 0.00 in (0.0 mm)
33 psi (230 kPa , 2.3 kgf/cm)
High
Low
Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side
1:
2:
3:
4: EX
EX-L
2WD
4WD
(Amber)
(H11) (Amber)
LED type
LED type
: Front/Rear
Spare
Front/Rear
Spare
1
2
4 3 3
4
10/08/27 15:07:42 31TP6610_408
2011 Accord Crosstour

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear
T raction
DOT Tire Quality Grading (U.S. Vehicles)
404
10/08/27 15:07:50 31TP6610_409
2011 Accord Crosstour

Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Temperature
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
405
10/08/27 15:07:54 31TP6610_410
2011 Accord Crosstour

µ
µ
µ
µ
µ µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry). Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
R
DOT
225
60
18 H
100 AP14
Tire Labeling
Tire Size
T ire Ident if icat ion Number (T IN)
406
(3)
(4)
Tire Labeling Example
(1)
(2) (1)
(2)
(3)
(4) (1) Tire Size Tire Identification Number (TIN)
Maximum Tire Pressure
Maximum Tire Load
DOT AP14 002X 2202
225/60R18 100H
10/08/27 15:08:08 31TP6610_411
2011 Accord Crosstour

µ
µ µ
µ
µ µ
µ
µ Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
driven less than 1 mile (1.6 km).
Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure.
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating Means the
load rating for a tire at the maximum
permissible inf lation pressure f or
that tire.
Recommended Inf lation Pressure
The cold tire inf lation pressure
recommended by the manuf acturer. Treadwear Indicators (TWI)
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
Week Date of manufacture.
Year Tire type code.
2202 002X
Tire Labeling
Glossary of T ire T erminology
Technical Inf ormation
407
