HONDA CROSSTOUR 2014 1.G Owners Manual

540

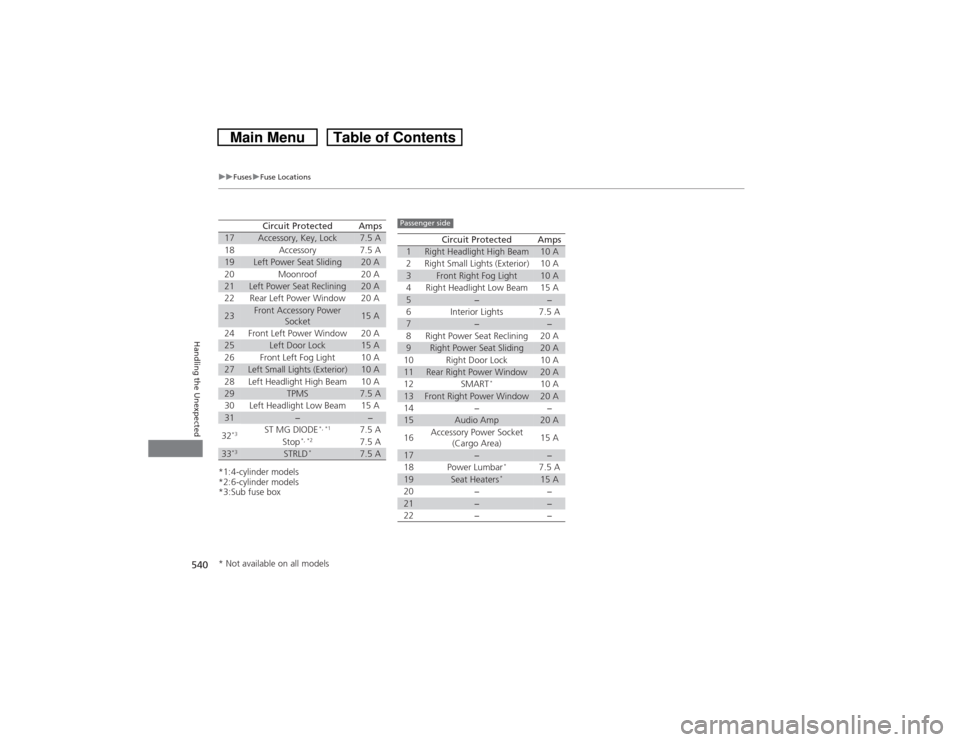

uuFusesuFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box17
Accessory, Key, Lock
7.5 A
18
Accessory
7.5 A
19
Left Power Seat Sliding
20 A
20
Moonroof
20 A
21
Left Power Seat Reclining
20 A
22
Rear Left Power Window
20 A
23
Front Accessory Power
Socket
15 A
24
Front Left Power Window
20 A
25
Left Door Lock
15 A
26
Front Left Fog Light
10 A
27
Left Small Lights (Exterior)
10 A
28
Left Headlight High Beam
10 A
29
TPMS
7.5 A
30
Left Headlight Low Beam
15 A
31
−
−
32*3
ST MG DIODE
*, *1
7.5 A
Stop
*, *2
7.5 A
33*3
STRLD
*
7.5 A
Circuit Protected
Amps
Circuit Protected
Amps
1
Right Headlight High Beam
10 A
2
Right Small Lights (Exterior)
10 A
3
Front Right Fog Light
10 A
4
Right Headlight Low Beam
15 A
5
−
−
6
Interior Lights
7.5 A
7
−
−
8
Right Power Seat Reclining
20 A
9
Right Power Seat Sliding
20 A
10
Right Door Lock
10 A
11
Rear Right Power Window
20 A
12
SMART
*
10 A
13
Front Right Power Window
20 A
14
−
−
15
Audio Amp
20 A
16
Accessory Power Socket
(Cargo Area)
15 A
17
−
−
18
Power Lumbar
*
7.5 A
19
Seat Heaters
*
15 A
20
−
−
21
−
−
22
−
−
Passenger side
* Not available on all models

541

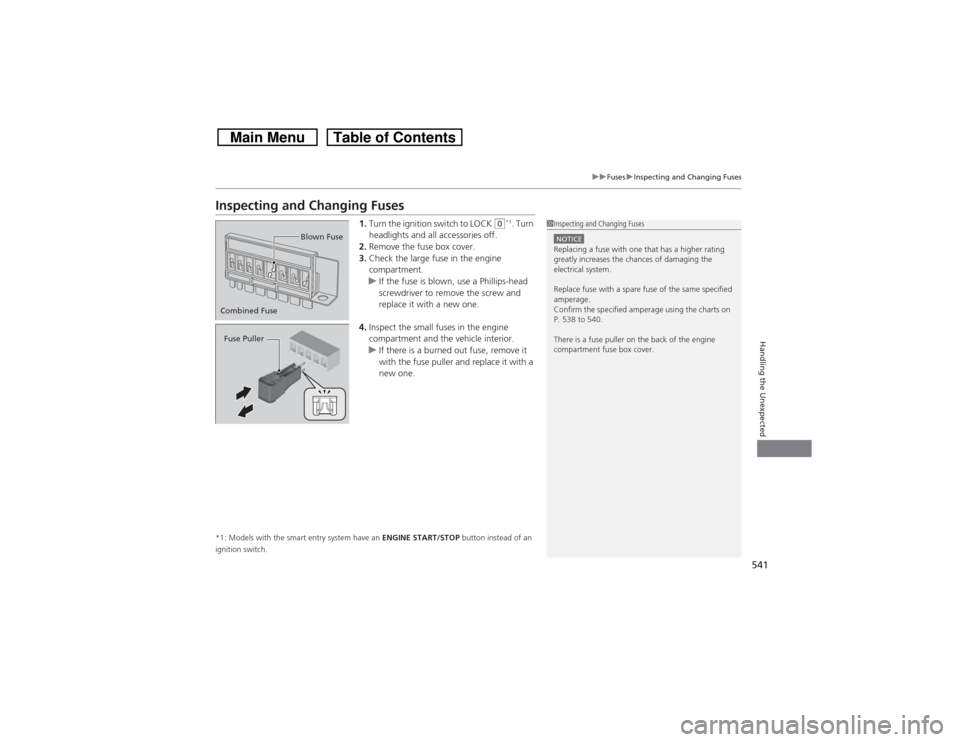

uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK
(0*1. Turn
headlights and all accessories off.
2.Remove the fuse box cover.
3.Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined FuseBlown FuseFuse Puller

542Handling the Unexpected

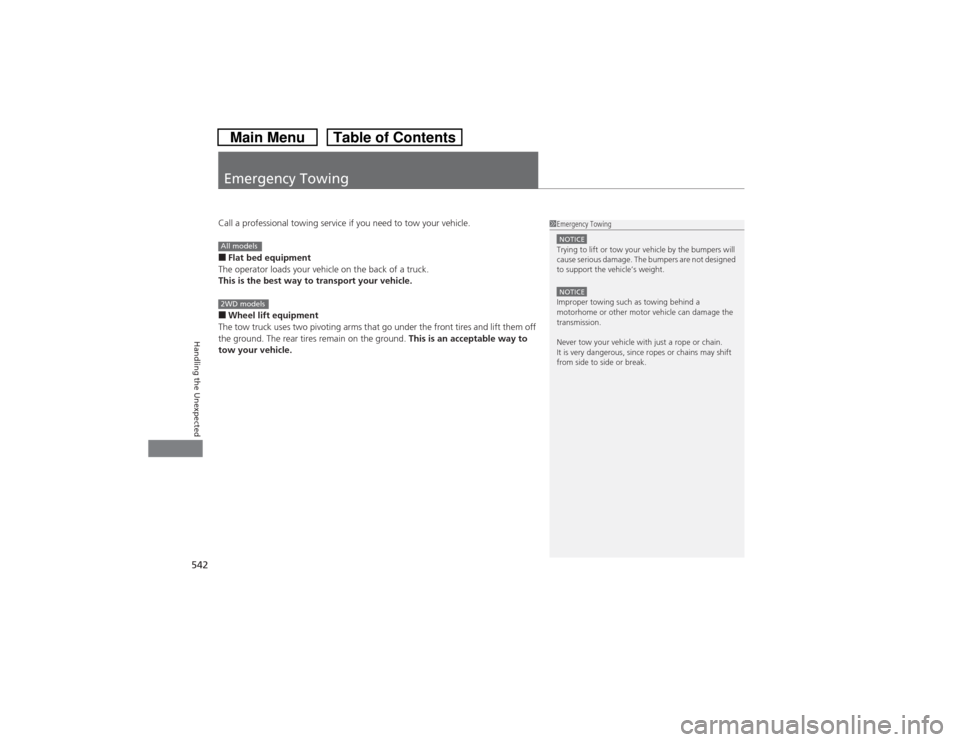

Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models2WD models

543Handling the Unexpected

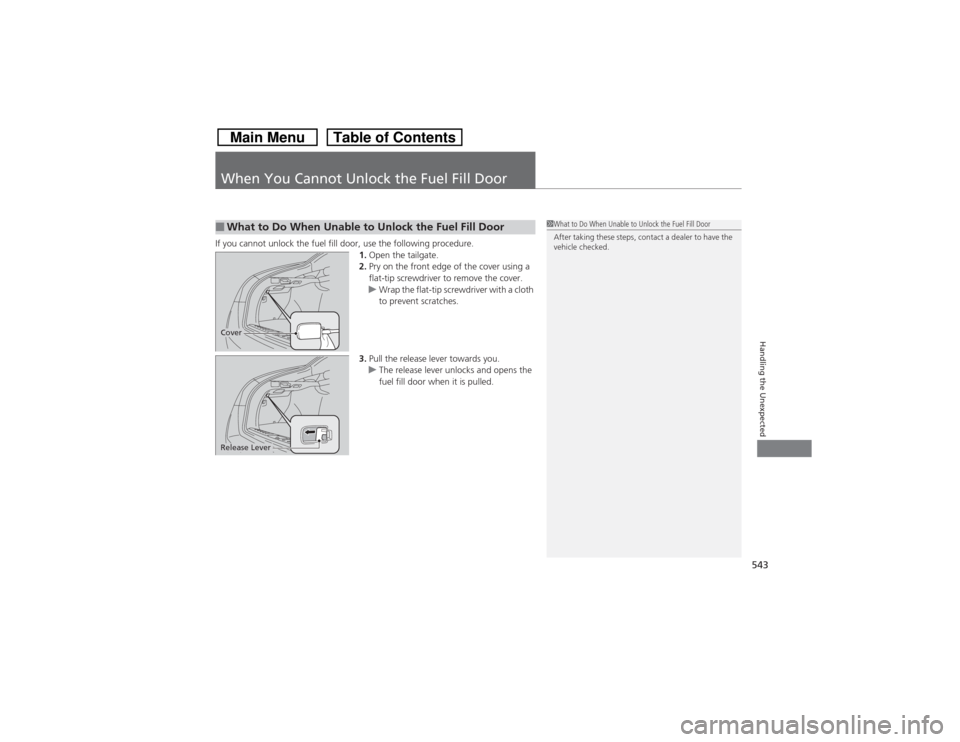

When You Cannot Unlock the Fuel Fill DoorIf you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate.
2.Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
3.Pull the release lever towards you.
uThe release lever unlocks and opens the
fuel fill door when it is pulled.■What to Do When Unable to Unlock the Fuel Fill Door
1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
CoverRelease Lever

544Handling the Unexpected

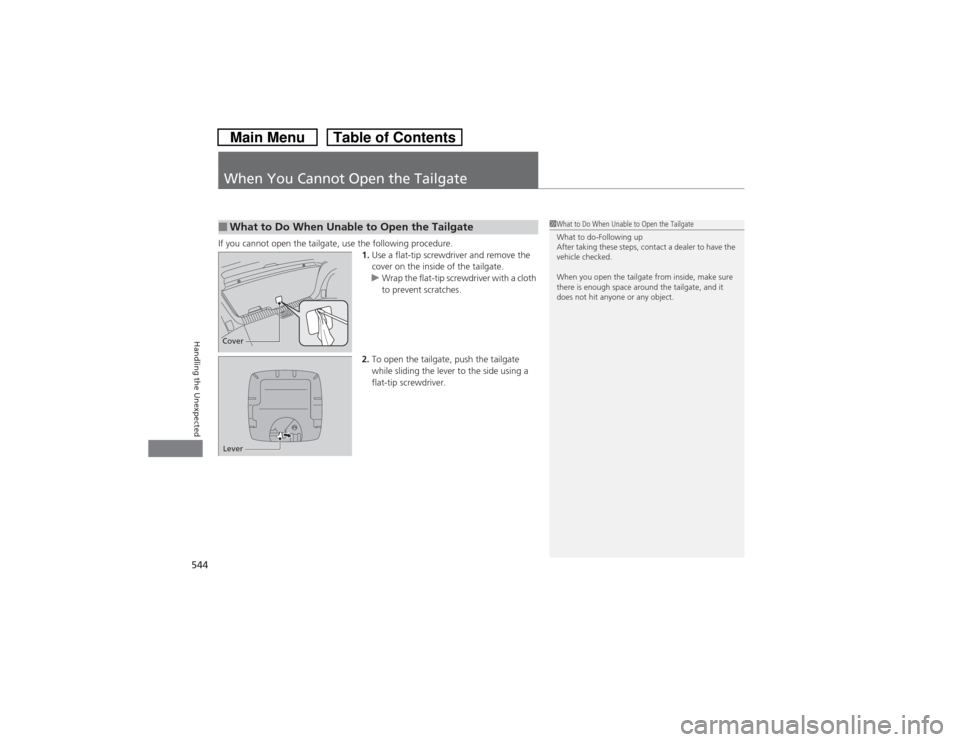

When You Cannot Open the TailgateIf you cannot open the tailgate, use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
2.To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.■What to Do When Unable to Open the Tailgate
1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
CoverLever

545
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 546
Identification Numbers
Vehicle Identification Number (VIN) ... 550Engine Number and Transmission
Number...................................... 550Devices that Emit Radio Waves....... 551
Reporting Safety Defects................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages........................ 555
Authorized Manuals......................... 557
Customer Service Information......... 558

546Information
Specifications■Vehicle SpecificationsModel
Crosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)
U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models
■Engine Specifications
■Fuel
■Washer FluidDisplacement
144 cu-in (2,354 cm
3)
Spark PlugsNGK ILZKR7B11S
DENSO SXU22HCR11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights
24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights
3CP
Back-Up Lights 21W
Rear Turn Signal Lights
21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights
5W
Cargo Area Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Glove Box Light
1.4W
Ambient Light
LED
Courtesy Lights
2CP

547
uuSpecificationsu
Continued
Information
■Brake Fluid
■Automatic Transmission Fluid
■Power Steering FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.6 US qt (2.5 ℓ)
Specified
Honda Power Steering Fluid
■Engine Oil
■Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 4.0 US qt (3.8 ℓ)
Change
including
filter4.2 US qt (4.0 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)
(change including the remaining 0.18 US gal
(0.68 ℓ) in the reserve tank)
■TireRegular
Size
225/65R17 102T
Pressure
psi (kPa [kgf/cm
2])
Front
32 (220 [2.2])
Rear
32 (220 [2.2])
Compact
SpareSize T155/90D16 110M
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
17 x 6 1/2J
Compact Spare
16 x 4T

548
uuSpecificationsu
Information
■Vehicle Specifications*1: 2WD models
*2: 4WD modelsModel
Crosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,938 lbs (2,240 kg)
*1
5,115 lbs (2,320 kg)
*2
Canada: 2,240 kg
*1
2,320 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,623 lbs (1,190 kg)
*1
2,668 lbs (1,210 kg)
*2
Canada: 1,190 kg
*1
1,210 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,381 lbs (1,080 kg)
*1
2,513 lbs (1,140 kg)
*2
Canada: 1,080 kg
*1
1,140 kg
*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 86-cylinder models
■Engine Specifications
■Fuel
■Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark PlugsNGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights
24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights
3CP
Back-Up Lights 21W
Rear Turn Signal Lights
21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights
5W
Cargo Area Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Glove Box Light
1.4W
Ambient Light
LED
Courtesy Lights
2CP

549
uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
■Rear Differential Fluid
■Transfer Assembly FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.28 US qt (3.1 ℓ)
Specified
Honda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
Specified
·SAE 90 Viscosity Hypoid Gear Oil
·API Service Classified GL4 or GL5 only
Capacity Change 0.43 US qt (0.41 ℓ)
■Engine Oil
■Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.92 US gal (7.3 ℓ)
(change including the remaining 0.17 US gal
(0.64 ℓ) in the reserve tank)
■Tire*1: 2WD models
*2: 4WD modelsRegular
Size
225/60R18 100H
Pressure
psi (kPa [kgf/cm
2])
33 (230 [2.3])
FrontRear
33 (230 [2.3])
Compact
SpareSizeT155/90D16 110M
*1
T155/90D17 101M
*2
Pressure
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel Size
Regular
18 x 7J
Compact Spare
16 x 4T
*1
17 x 4T
*2
