HONDA CROSSTOUR 2015 1.G Owners Manual

230
uuAudio System Basic Operation uVoice Control Operation
Features
In keyboard screen, letters can be selected
by saying each individual letter or by saying
a keyword phrase. These keyword phrases
are:

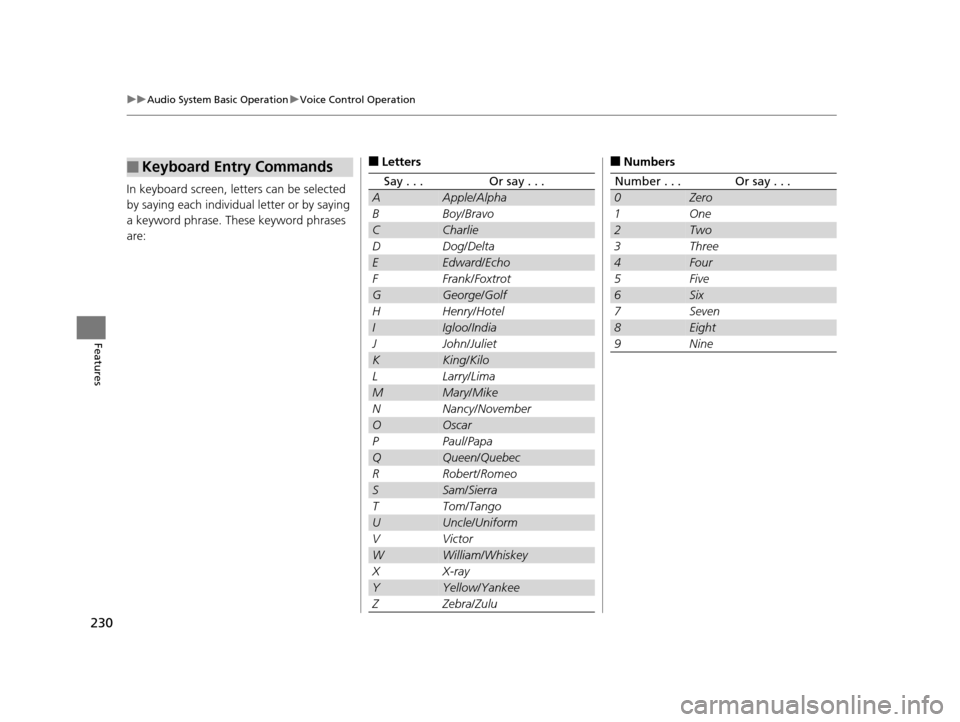

■Keyboard Entry Commands■Letters
Say . . .Or say . . .
AApple /Alpha
BBoy /Bravo
CCharlie
DDog /Delta
EEdward /Echo
FFrank /Foxtrot
GGeorge /Golf
HHenry /Hotel
IIgloo/ India
JJohn/Juliet
KKing/Kilo
LLarry /Lima
MMary /Mike
NNancy /November
OOscar
PPaul /Papa
QQueen /Quebec
RRobert /Romeo
SSam /Sierra
TTom /Tango
UUncle /Uniform
VVictor
WWilliam /Whiskey
XX-ray
YYellow /Yankee
ZZebra /Zulu
■Numbers
Number . . . Or say . . .
0Zero
1One
2Two
3Three
4Four
5Five
6Six
7Seven
8Eight
9Nine
15 CROSSTOUR-31TP66500.book 230 ページ ２０１４年７月３１日　木曜日　午後３時２３分

231
uuAudio System Basic Operation uVoice Control Operation
Features

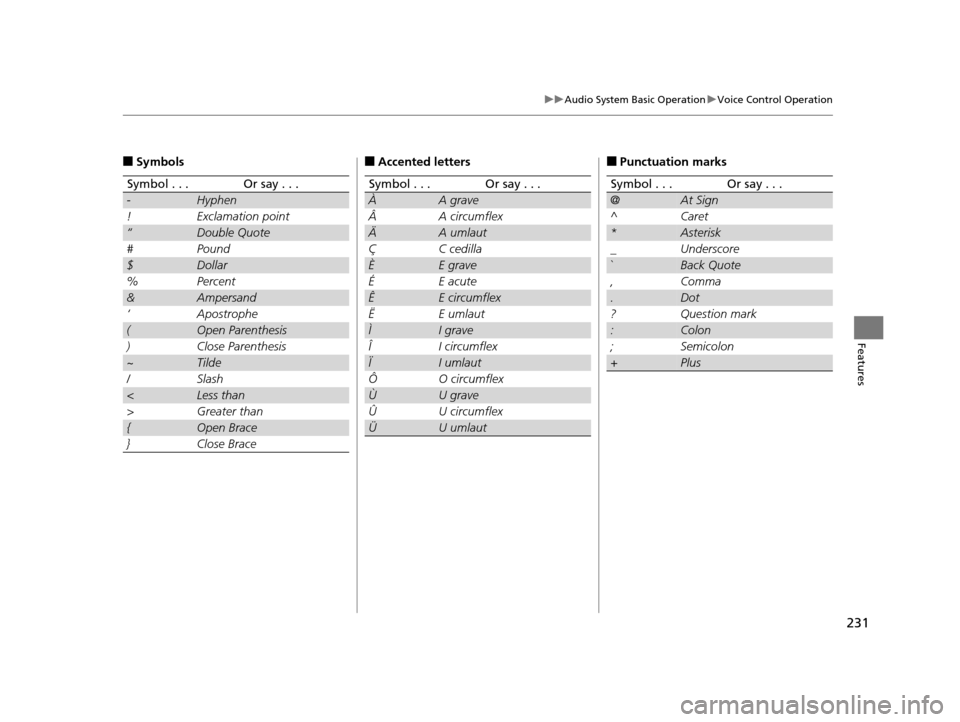

■Symbols
Symbol . . .Or say . . .
-Hyphen
!Exclamation point
“Double Quote
#Pound
$Dollar
%Percent
&Ampersand
‘Apostrophe
(Open Parenthesis
)Close Parenthesis
~Tilde
/Slash
>Greater than
{Open Brace
}Close Brace
■Accented letters
Symbol . . .Or say . . .
ÀA grave
ÂA circumflex
ÄA umlaut
ÇC cedilla
ÈE grave
ÉE acute
ÊE circumflex
ËE umlaut
ÌI grave
ÎI circumflex
ÏI umlaut
ÔO circumflex
ÙU grave
ÛU circumflex
ÜU umlaut
■Punctuation marks
Symbol . . .Or say . . .
@At Sign
^Caret
*Asterisk
_Underscore
`Back Quote
,Comma
.Dot
?Question mark
:Colon
;Semicolon
+Plus
15 CROSSTOUR-31TP66500.book 231 ページ ２０１４年７月３１日　木曜日　午後３時２３分

232
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

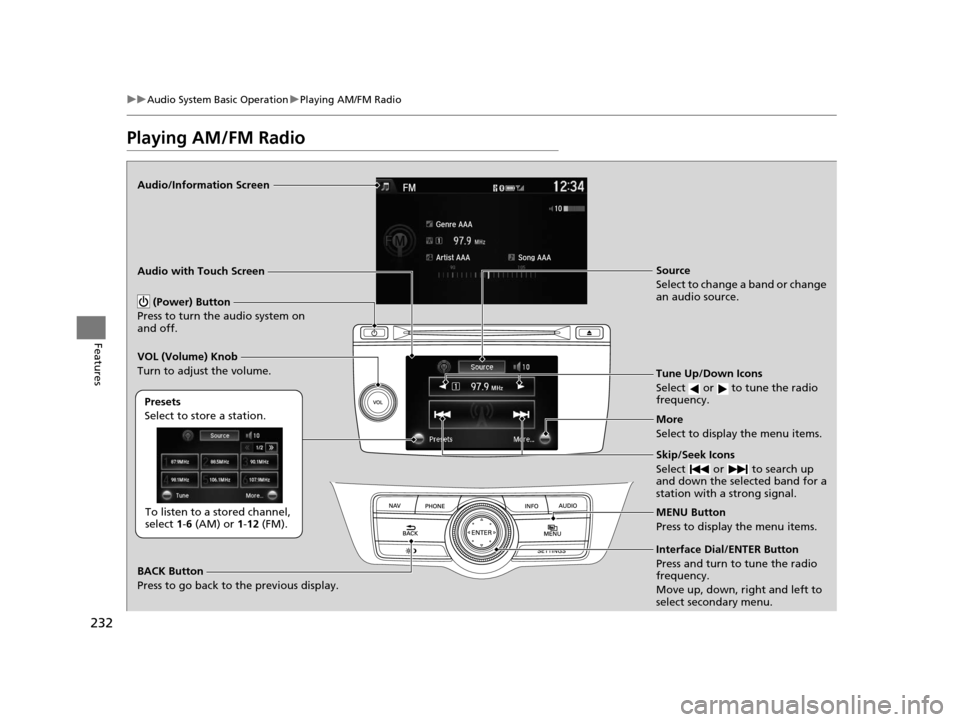

Playing AM/FM Radio
Audio/Information Screen
Audio with Touch Screen
Tune Up/Down Icons
Select or to tune the radio
frequency.
MENU Button
Press to display the menu items.
(Power) Button
Press to turn the audio system on
and off.
Source
Select to change a band or change
an audio source.
To listen to a stored channel,
select 1-6 (AM) or 1-12 (FM).
Presets
Select to store a station.
Skip/Seek Icons
Select or to search up
and down the selected band for a
station with a strong signal.
More
Select to display the menu items.
BACK Button
Press to go back to the previous display. VOL (Volume) Knob
Turn to adjust the volume.
Interface Dial/ENTER Button
Press and turn to tune the radio
frequency.
Move up, down, right and left to
select secondary menu.
15 CROSSTOUR-31TP66500.book 232 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued233
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

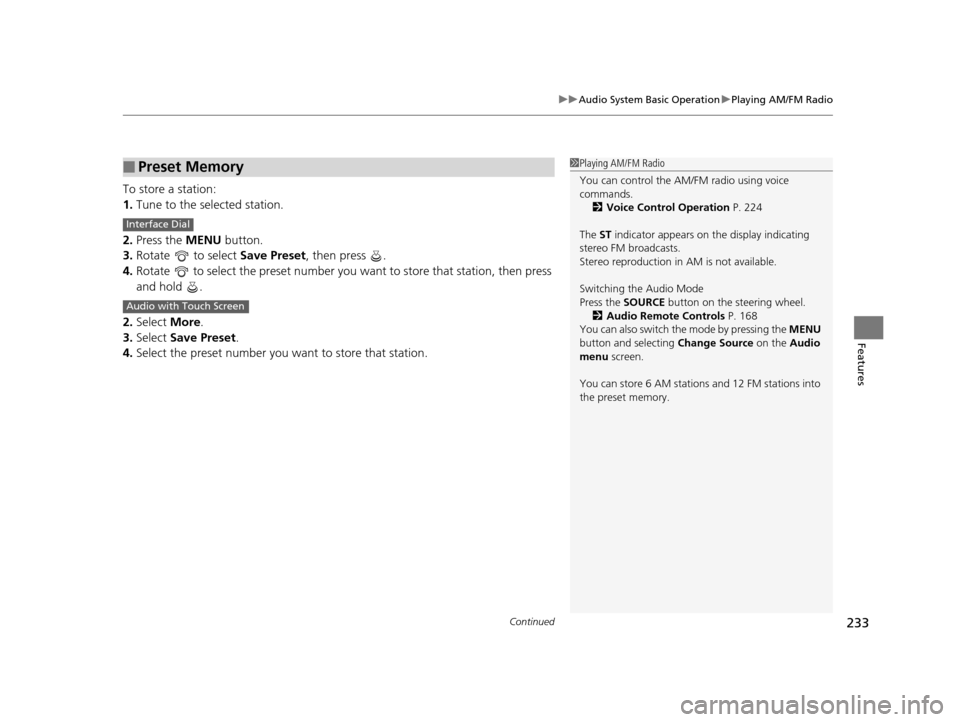

To store a station:
1. Tune to the selected station.
2. Press the MENU button.
3. Rotate to select Save Preset, then press .
4. Rotate to select the preset number you want to store that station, then press
and hold .
2. Select More.
3. Select Save Preset .
4. Select the preset number you want to store that station.
■Preset Memory1Playing AM/FM Radio
You can control the AM/FM radio using voice
commands.
2 Voice Control Operation P. 224
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel.
2 Audio Remote Controls P. 168
You can also switch the mode by pressing the MENU
button and selecting Change Source on the Audio
menu screen.
You can store 6 AM stations and 12 FM stations into
the preset memory.
Interface Dial
Audio with Touch Screen
15 CROSSTOUR-31TP66500.book 233 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuAudio System Basic Operation uPlaying AM/FM Radio
234
Features

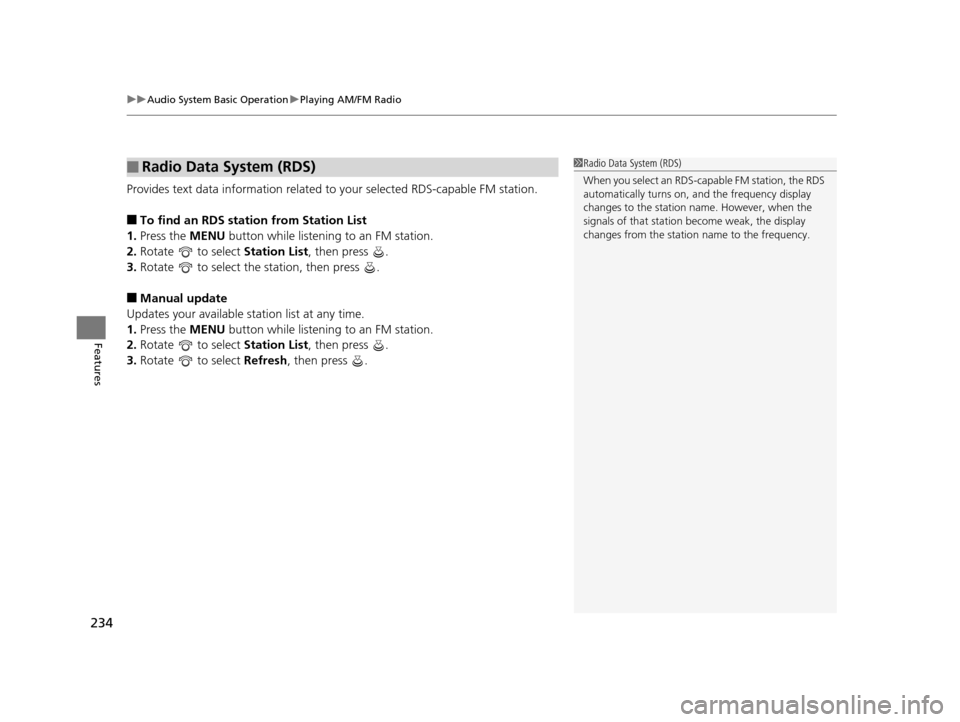

Provides text data information related to your selected RDS-capable FM station.
■To find an RDS station from Station List
1. Press the MENU button while listening to an FM station.
2. Rotate to select Station List, then press .
3. Rotate to select the station, then press .
■Manual update
Updates your available station list at any time.
1. Press the MENU button while listening to an FM station.
2. Rotate to select Station List, then press .
3. Rotate to select Refresh, then press .
■Radio Data System (RDS)1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the statio n name to the frequency.
15 CROSSTOUR-31TP66500.book 234 ページ ２０１４年７月３１日　木曜日　午後３時２３分

235
uuAudio System Basic Operation uPlaying AM/FM Radio
Features

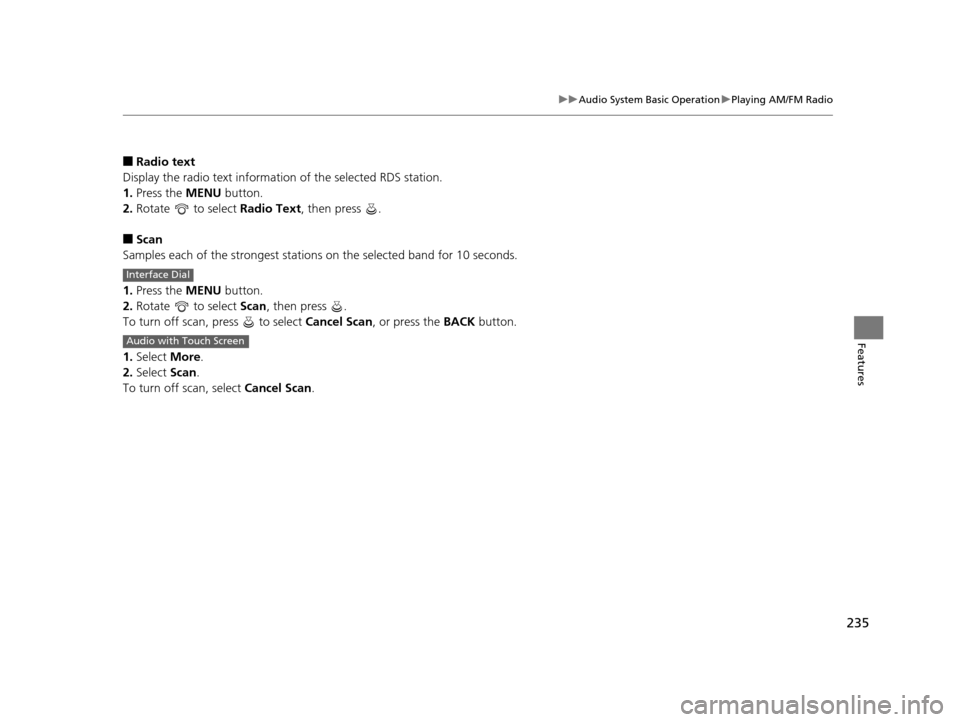

■Radio text
Display the radio text information of the selected RDS station.
1. Press the MENU button.
2. Rotate to select Radio Text, then press .
■Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the MENU button.
2. Rotate to select Scan, then press .
To turn off scan, press to select Cancel Scan, or press the BACK button.
1. Select More.
2. Select Scan.
To turn off scan, select Cancel Scan.
Interface Dial
Audio with Touch Screen
15 CROSSTOUR-31TP66500.book 235 ページ ２０１４年７月３１日　木曜日　午後３時２３分

236
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features

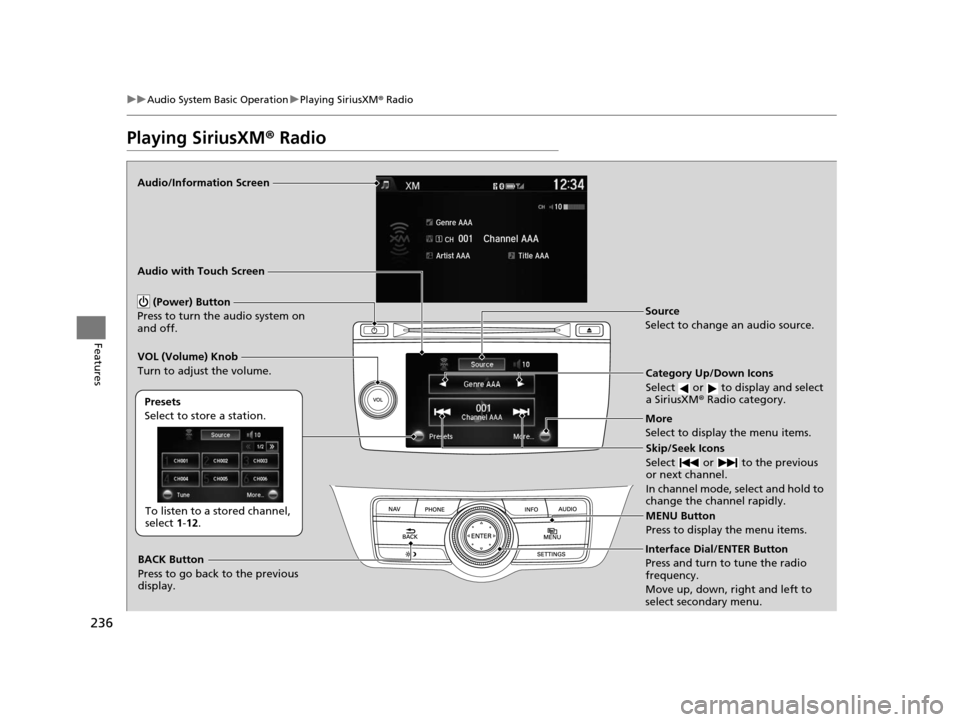

Playing SiriusXM ® Radio
Audio/Information Screen
Audio with Touch Screen
Category Up/Down Icons
Select or to display and select
a SiriusXM® Radio category.
MENU Button
Press to display the menu items.
(Power) Button
Press to turn the audio system on
and off.Source
Select to change an audio source.
To listen to a stored channel,
select 1-12.
Presets
Select to store a station.
Skip/Seek Icons
Select or to the previous
or next channel.
In channel mode, select and hold to
change the channel rapidly.
More
Select to display the menu items.
BACK Button
Press to go back to the previous
display.
VOL (Volume) Knob
Turn to adjust the volume.
Interface Dial/ENTER Button
Press and turn to tune the radio
frequency.
Move up, down, right and left to
select secondary menu.
15 CROSSTOUR-31TP66500.book 236 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued237
uuAudio System Basic Operation uPlaying SiriusXM ® Radio
Features

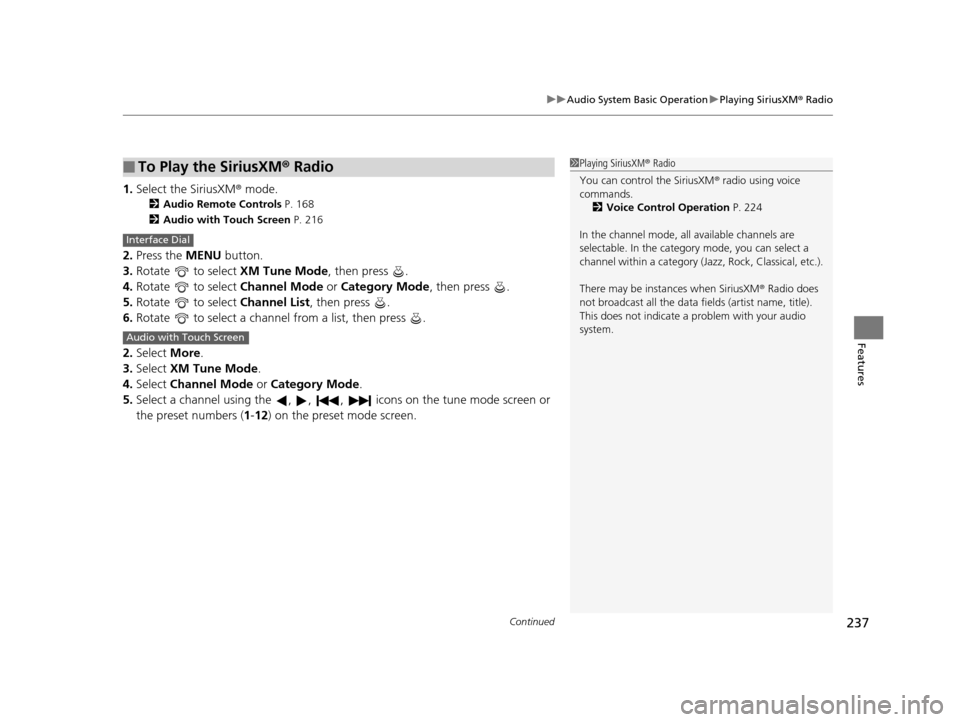

1. Select the SiriusXM ® mode.
2Audio Remote Controls P. 168
2 Audio with Touch Screen P. 216
2.Press the MENU button.
3. Rotate to select XM Tune Mode, then press .
4. Rotate to select Channel Mode or Category Mode , then press .
5. Rotate to select Channel List, then press .
6. Rotate to select a channel from a list, then press .
2. Select More.
3. Select XM Tune Mode .
4. Select Channel Mode or Category Mode .
5. Select a channel using the , , , ic ons on the tune mode screen or
the preset numbers ( 1-12) on the preset mode screen.
■To Play the SiriusXM ® Radio1 Playing SiriusXM ® Radio
You can control the SiriusXM ® radio using voice
commands.
2 Voice Control Operation P. 224
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
Interface Dial
Audio with Touch Screen
15 CROSSTOUR-31TP66500.book 237 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
238
Features

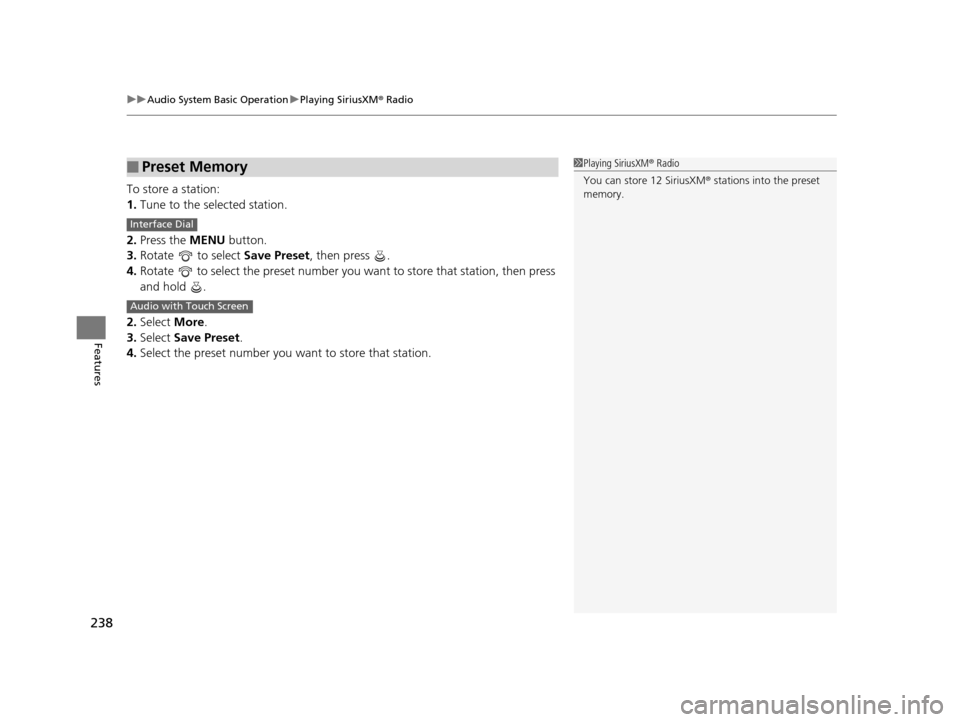

To store a station:
1. Tune to the selected station.
2. Press the MENU button.
3. Rotate to select Save Preset, then press .
4. Rotate to select the preset number you want to store that station, then press
and hold .
2. Select More.
3. Select Save Preset .
4. Select the preset number you wa nt to store that station.
■Preset Memory1Playing SiriusXM ® Radio
You can store 12 SiriusXM ® stations into the preset
memory.
Interface Dial
Audio with Touch Screen
15 CROSSTOUR-31TP66500.book 238 ページ ２０１４年７月３１日　木曜日　午後３時２３分

239
uuAudio System Basic Operation uPlaying a CD
Continued
Features

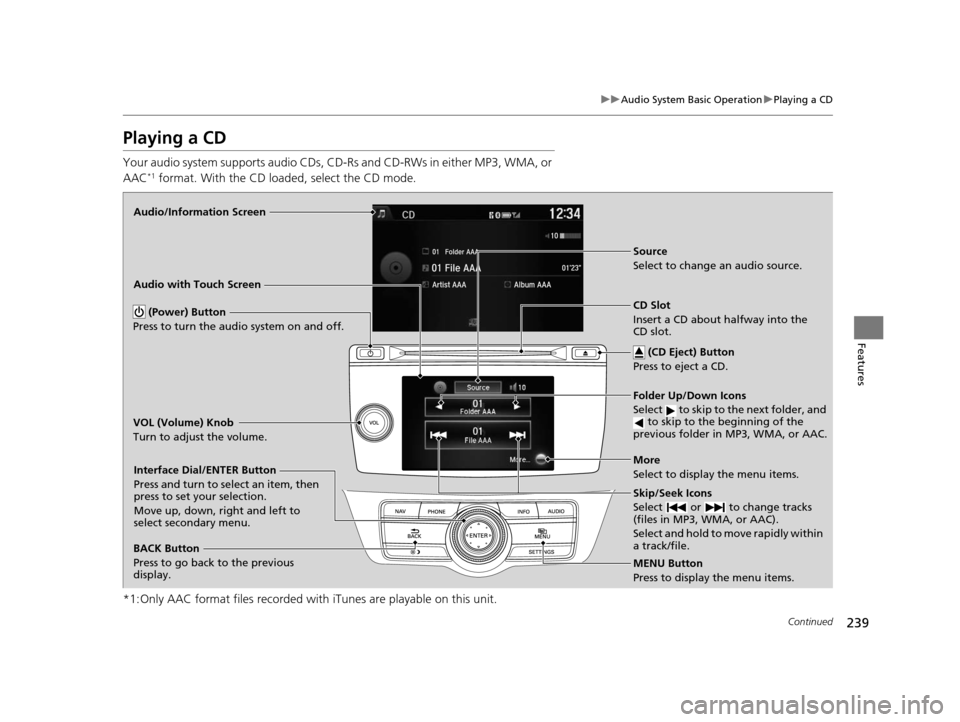

Playing a CD
Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or
AAC*1 format. With the CD loaded, select the CD mode.
*1:Only AAC format files recorded with iTunes are playable on this unit.
Audio/Information Screen
Audio with Touch Screen
MENU Button
Press to display the menu items.
CD Slot
Insert a CD about halfway into the
CD slot. (CD Eject) Button
Press to eject a CD.
Folder Up/Down Icons
Select to skip to the next folder, and to skip to the beginning of the
previous folder in MP3, WMA, or AAC.
Source
Select to change an audio source.
Skip/Seek Icons
Select or to change tracks
(files in MP3, WMA, or AAC).
Select and hold to move rapidly within
a track/file.
More
Select to display the menu items.
(Power) Button
Press to turn the audi o system on and off.
BACK Button
Press to go back to the previous
display.
VOL (Volume) Knob
Turn to adjust the volume.
Interface Dial/ENTER Button
Press and turn to select an item, then
press to set your selection.
Move up, down, right and left to
select secondary menu.
15 CROSSTOUR-31TP66500.book 239 ページ ２０１４年７月３１日　木曜日　午後３時２３分
