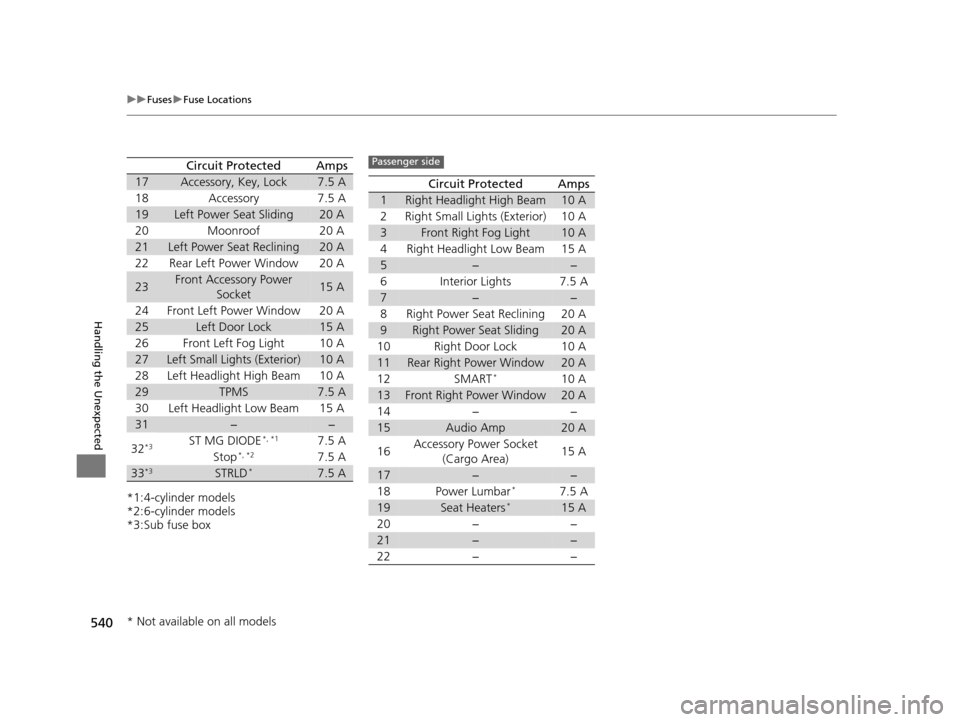

540
uuFuses uFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box
17Accessory, Key, Lock7.5 A
18Accessory7.5 A
19Left Power Seat Sliding20 A
20Moonroof20 A
21Left Power Seat Reclining20 A
22Rear Left Power Window20 A
23Front Accessory Power
Socket15 A
24Front Left Power Window20 A
25Left Door Lock15 A
26Front Left Fog Light10 A
27Left Small Lights (Exterior)10 A
28Left Headlight High Beam10 A
29TPMS7.5 A
30Left Headlight Low Beam15 A
31−−
32*3ST MG DIODE*, *17.5 A
Stop*, *27.5 A
33*3STRLD*7.5 A
Circuit ProtectedAmps
Circuit ProtectedAmps
1Right Headlight High Beam10 A
2Right Small Lights (Exterior)10 A
3Front Right Fog Light10 A
4Right Headlight Low Beam15 A
5−−
6Interior Lights7.5 A
7−−
8Right Power Seat Reclining20 A
9Right Power Seat Sliding20 A
10Right Door Lock10 A
11Rear Right Power Window20 A
12SMART*10 A
13Front Right Power Window20 A
14−−
15Audio Amp20 A
16Accessory Power Socket (Cargo Area)15 A
17−−
18Power Lumbar*7.5 A
19Seat Heaters*15 A
20−−
21−−
22−−
Passenger side
* Not available on all models
15 CROSSTOUR-31TP66500.book 540 ページ ２０１４年７月３１日　木曜日　午後３時２３分

541
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
15 CROSSTOUR-31TP66500.book 541 ページ ２０１４年７月３１日　木曜日　午後３時２３分

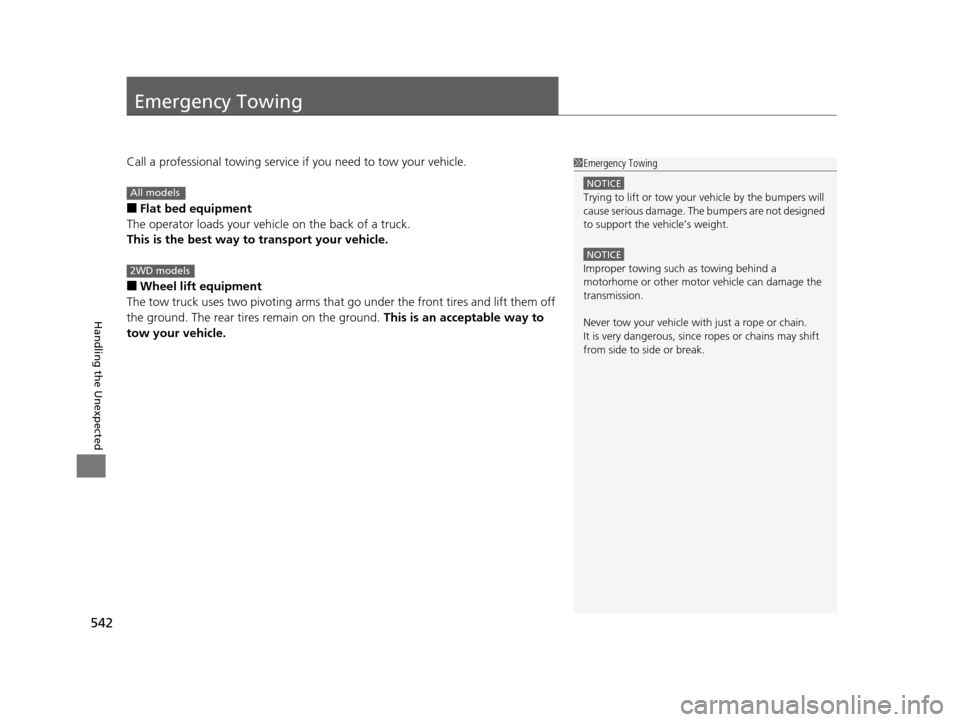

542
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models
2WD models
15 CROSSTOUR-31TP66500.book 542 ページ ２０１４年７月３１日　木曜日　午後３時２３分

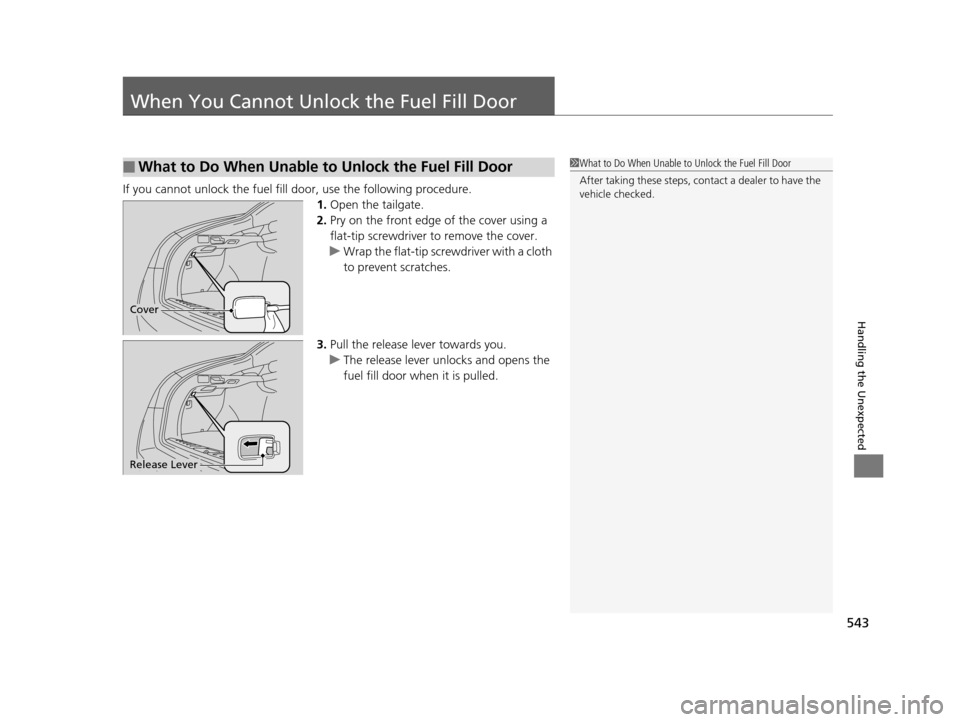

543
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the tailgate.
2. Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
3. Pull the release lever towards you.
u The release lever unlocks and opens the
fuel fill door when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
15 CROSSTOUR-31TP66500.book 543 ページ ２０１４年７月３１日　木曜日　午後３時２３分

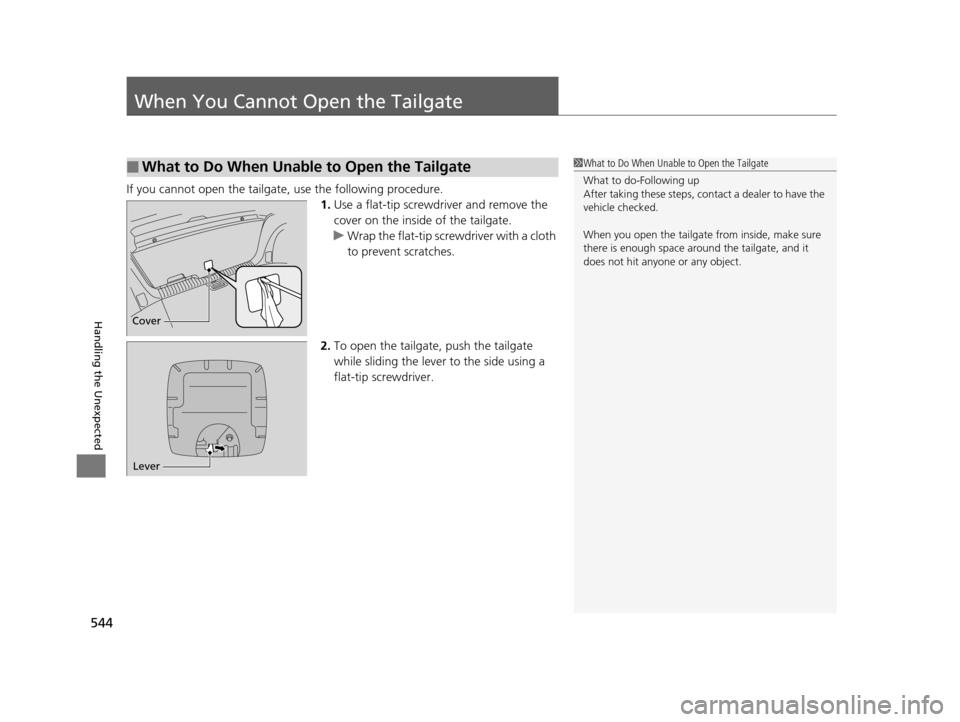

544
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
15 CROSSTOUR-31TP66500.book 544 ページ ２０１４年７月３１日　木曜日　午後３時２３分

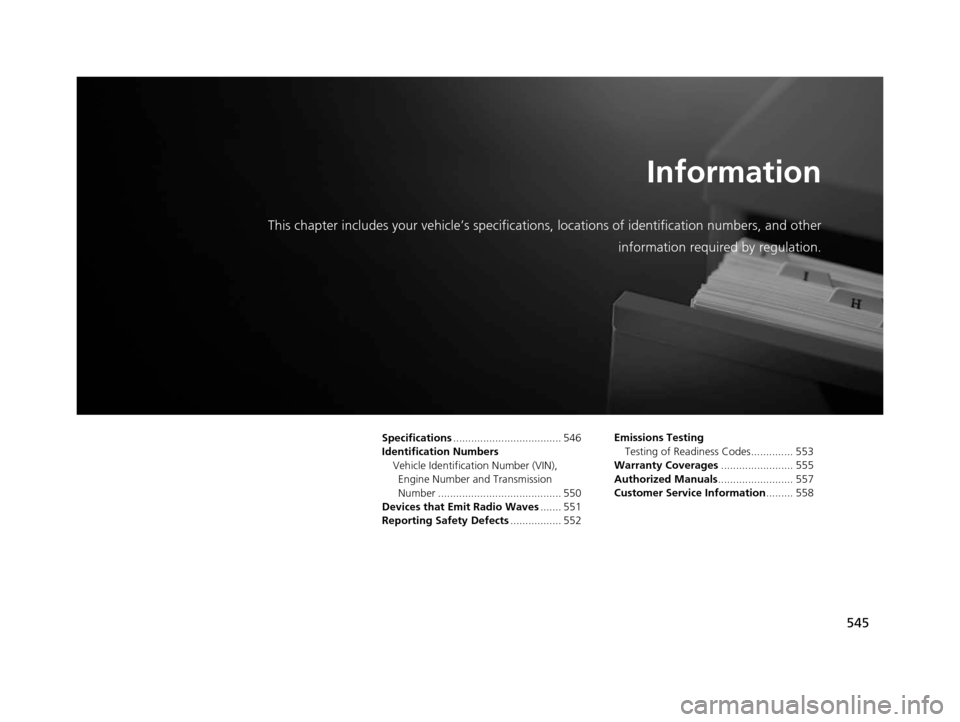

545
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 546
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 550
Devices that Emit Radio Waves ....... 551
Reporting Safety Defects ................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages ........................ 555
Authorized Manuals ......................... 557
Customer Service Information ......... 558
15 CROSSTOUR-31TP66500.book 545 ページ ２０１４年７月３１日　木曜日　午後３時２３分

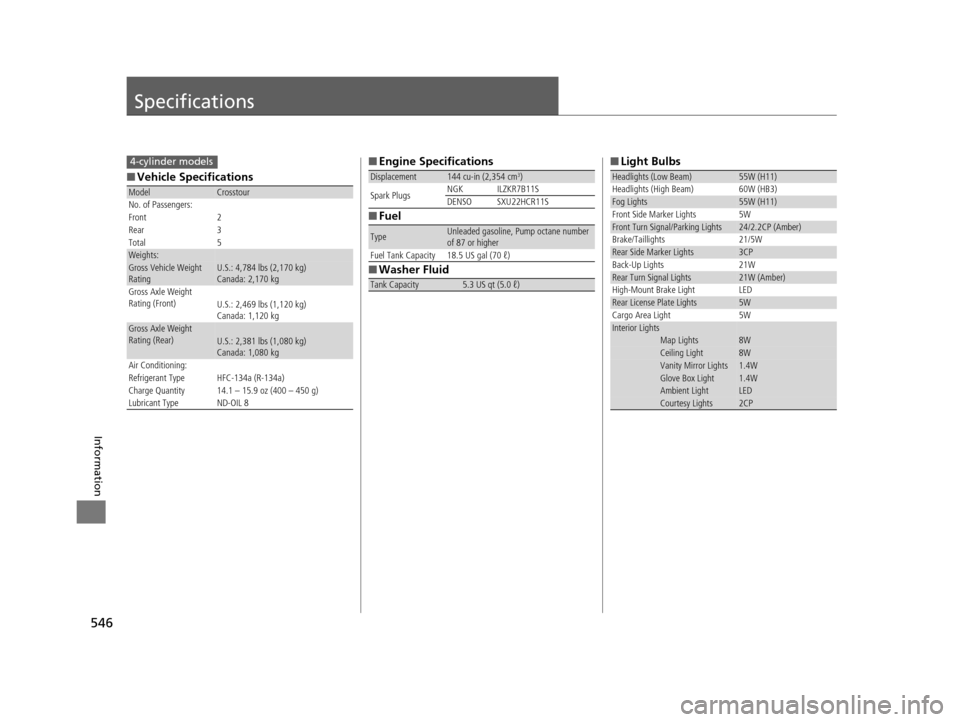

546
Information
Specifications
■Vehicle Specifications
ModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B11S
DENSO SXU22HCR11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity5.3 US qt (5.0 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
15 CROSSTOUR-31TP66500.book 546 ページ ２０１４年７月３１日　木曜日　午後３時２３分

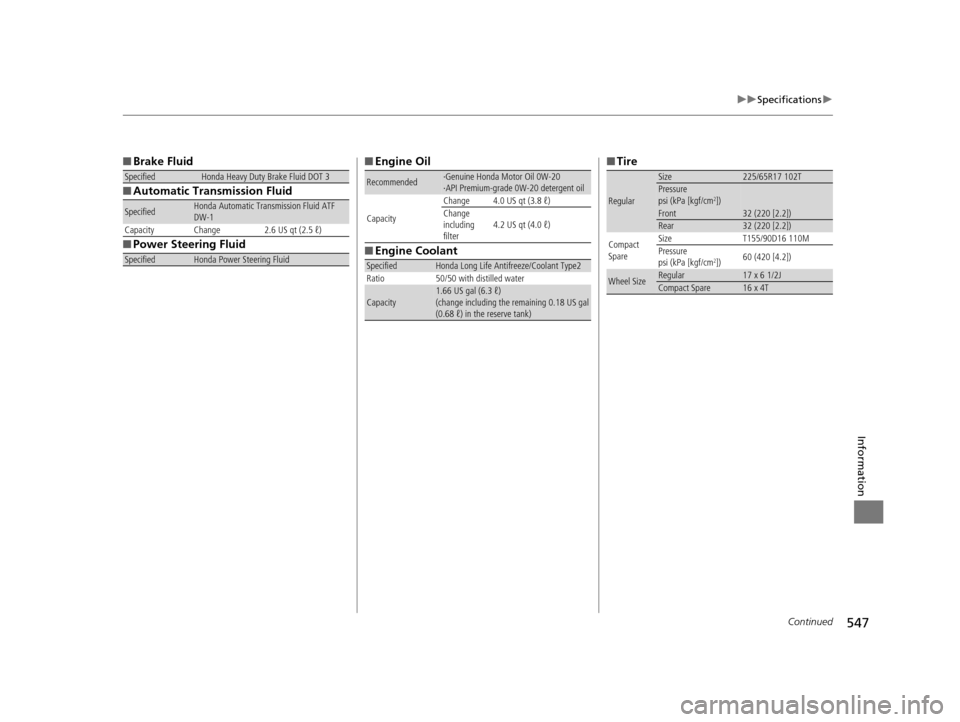

547
uuSpecifications u
Continued
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Power Steering Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 2.6 US qt (2.5 ℓ)
SpecifiedHonda Power Steering Fluid
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 ℓ)
Change
including
filter
4.2 US qt (4.0 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining 0.18 US gal
(0.68 ℓ) in the reserve tank)
■ Tire
Regular
Size225/65R17 102TPressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear32 (220 [2.2])
Compact
Spare Size
T155/90D16 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 6 1/2JCompact Spare16 x 4T
15 CROSSTOUR-31TP66500.book 547 ページ ２０１４年７月３１日　木曜日　午後３時２３分

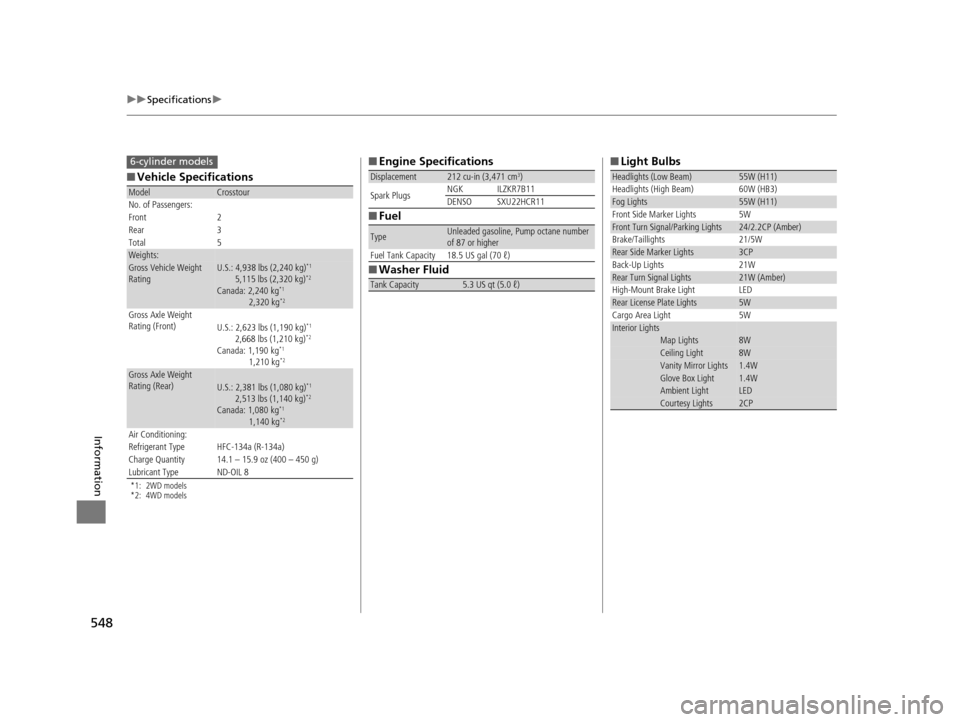

548
uuSpecifications u
Information
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
ModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,938 lbs (2,240 kg)*1
5,115 lbs (2,320 kg)*2
Canada: 2,240 kg*1
2,320 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,623 lbs (1,190 kg)*1
2,668 lbs (1,210 kg)*2
Canada: 1,190 kg*1
1,210 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)*1
2,513 lbs (1,140 kg)*2
Canada: 1,080 kg*1
1,140 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity5.3 US qt (5.0 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
15 CROSSTOUR-31TP66500.book 548 ページ ２０１４年７月３１日　木曜日　午後３時２３分

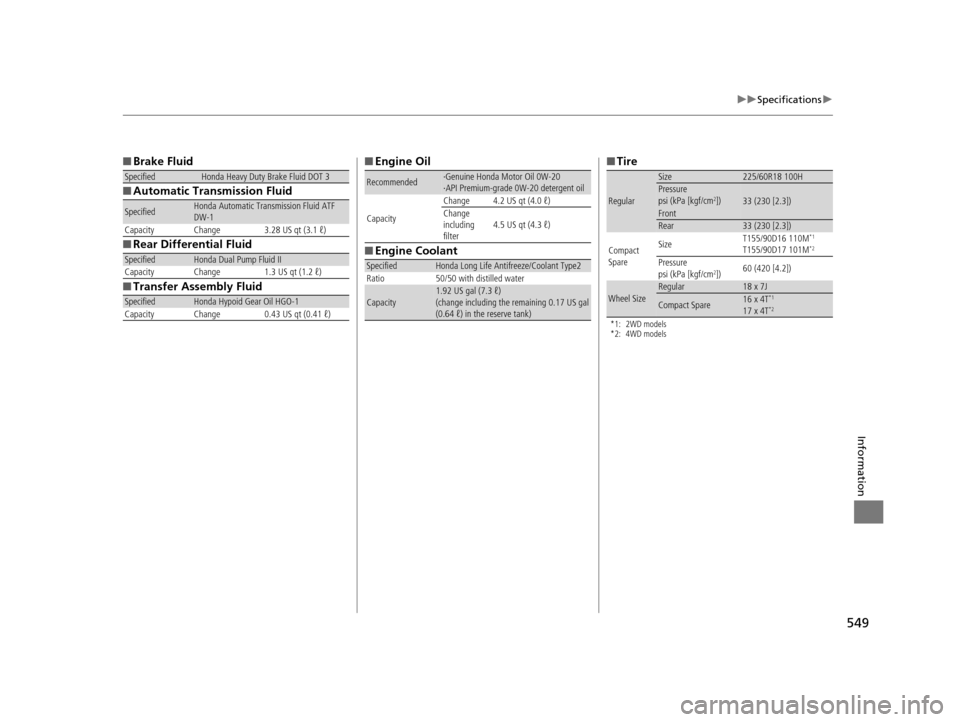

549
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
■ Transfer Assembly Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 3.28 US qt (3.1 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
SpecifiedHonda Hypoid Gear Oil HGO-1
Capacity Change 0.43 US qt (0.41 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.92 US gal (7.3 ℓ)
(change including the remaining 0.17 US gal
(0.64 ℓ) in the reserve tank)
■ Tire
*1: 2WD models
*2: 4WD models
Regular
Size225/60R18 100HPressure
psi (kPa [kgf/cm2])33 (230 [2.3])FrontRear33 (230 [2.3])
Compact
Spare Size
T155/90D16 110M*1
T155/90D17 101M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 7J
Compact Spare16 x 4T*1
17 x 4T*2
