HONDA CRV 2023 Owners Manual

660
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

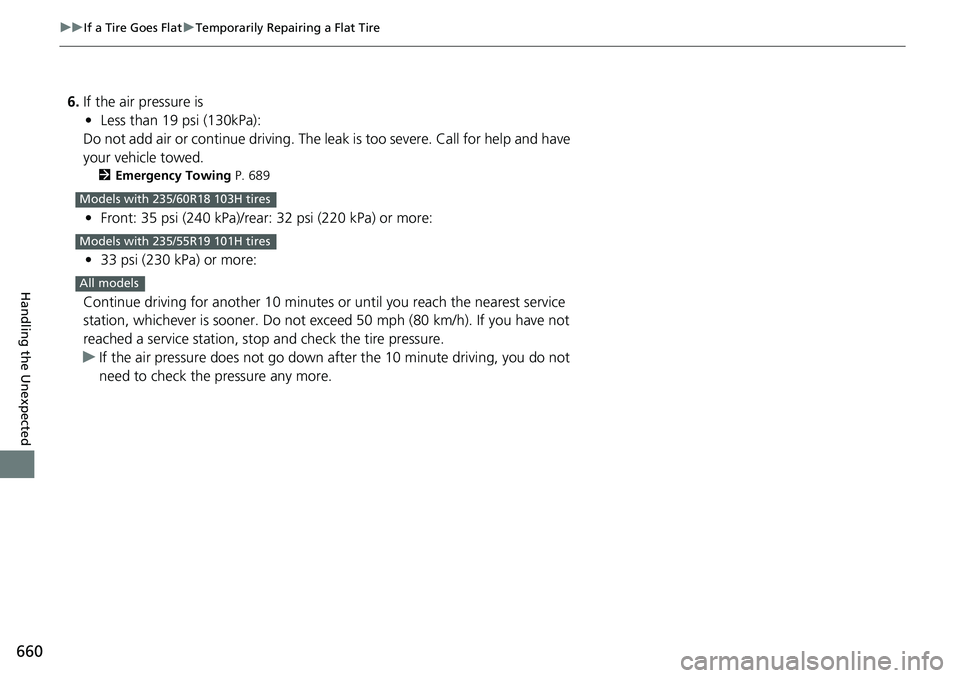

6. If the air pressure is
• Less than 19 psi (130kPa):
Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 689
•Front: 35 psi (240 kPa)/rear: 32 psi (220 kPa) or more:
• 33 psi (230 kPa) or more:
Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u If the air pressure does not go down after the 10 minute driving, you do not
need to check the pressure any more.
Models with 235/60R18 103H tires
Models with 235/55R19 101H tires
All models

661
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less than front: 35 psi (240 kPa)/rear: 32
psi (220 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
35 psi (240 kPa)/rear : 32 psi (220 kPa).
2Inflating an Under-inflated Tire P. 663
•Greater than 19 psi (130 kPa), but less than 33 psi (230 kPa):
Turn the air compressor on to inflate the tire until the tire pressure reaches 33
psi (230 kPa).
2 Inflating an Under-inflated Tire P. 663
Then, drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exc eed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u You should repeat this procedure as long as the air pressure is not within the
range indicated for the tire size.
Models with 235/60R18 103H tires
Models with 235/55R19 101H tires
All models

662
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

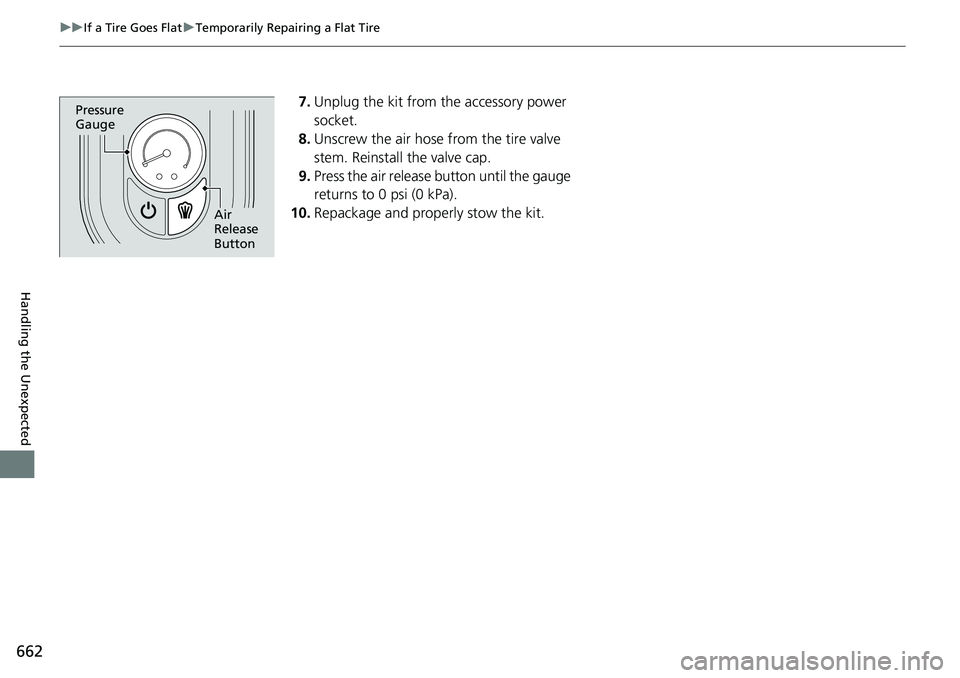

7. Unplug the kit from the accessory power
socket.
8. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
9. Press the air release bu tton until the gauge
returns to 0 psi (0 kPa).
10. Repackage and proper ly stow the kit.
Air
Release
Button
Pressure
Gauge

Continued663
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Remove the cover on the left side of the
cargo area.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 654
2.Take the kit out of the cargo area.
3. Place the kit, face up, on flat ground near
the tire to be inflated, away from traffic.
Do not place the kit on its side.
4. Remove the power plug and air hose from
the kit.
5. Remove the valve cap.
6. Attach the air hose on to the tire valve
stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1 Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Power
Plug
Air
Hose
Valve Cap
Tire Valve Stem
Air Hose

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
664
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electric devices
into other accessory power sockets.
2 Accessory Power Socket P. 224
8.Turn the power system on.
2 Turning on the Power P. 455
uKeep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 92
9.Turn the selector knob to .
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Console Panel
Cargo Area
AIR Side

665
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the air release
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
15. Press the air release button until the gauge
returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Air
Release
Button
Pressure
Gauge

666
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.
Jacking Points

667
Handling the Unexpected

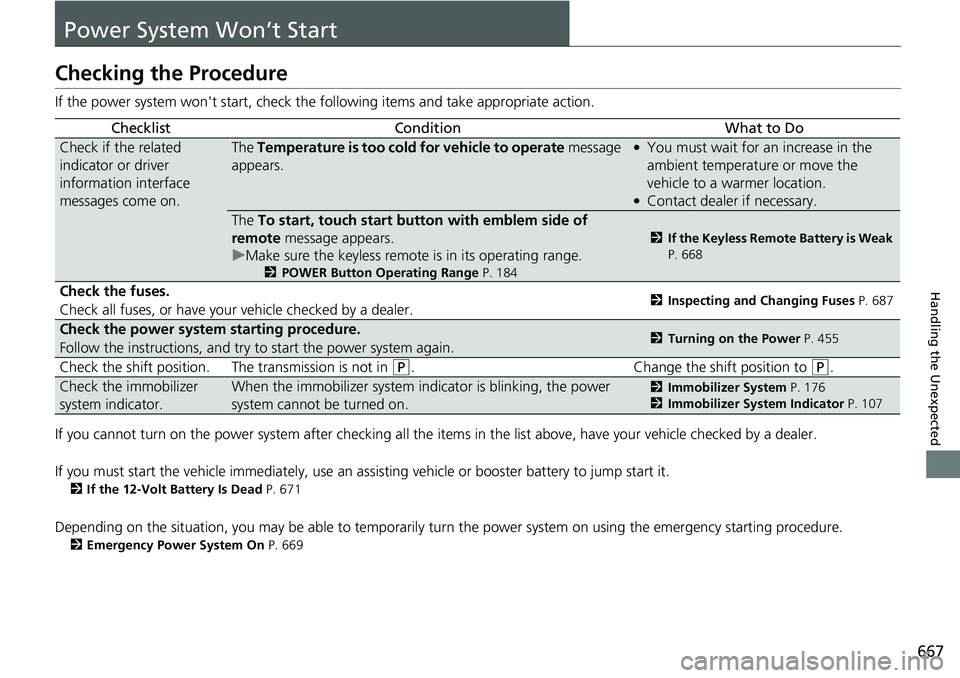

Power System Won’t Start
Checking the Procedure
If the power system won't start, check the following items and take appropriate action.
If you cannot turn on the power system after checking all the it ems in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an as sisting vehicle or booster battery to jump start it.
2If the 12-Volt Battery Is Dead P. 671
Depending on the situation, you may be able to temporarily turn the power system on using the emergency starting procedure.
2Emergency Power System On P. 669
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature is too cold for vehicle to operate message
appears.●You must wait for an increase in the
ambient temperature or move the
vehicle to a warmer location.
●Contact dealer if necessary.
The To start, touch start butto n with emblem side of
remote message appears.
u Make sure the keyless remote is in its operating range.
2 POWER Button Operating Range P. 184
2If the Keyless Remote Battery is Weak
P. 668
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.2Inspecting and Changing Fuses P. 687
Check the power system starting procedure.
Follow the instructions, and try to start the power system again.2Turning on the Power P. 455
Check the shift position. The transmission is not in (P. Change the shift position to (P.
Check the immobilizer
system indicator.When the immobilizer system indicator is blinking, the power
system cannot be turned on.2Immobilizer System P. 176
2 Immobilizer System Indicator P. 107

668
uuPower System Won’t Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

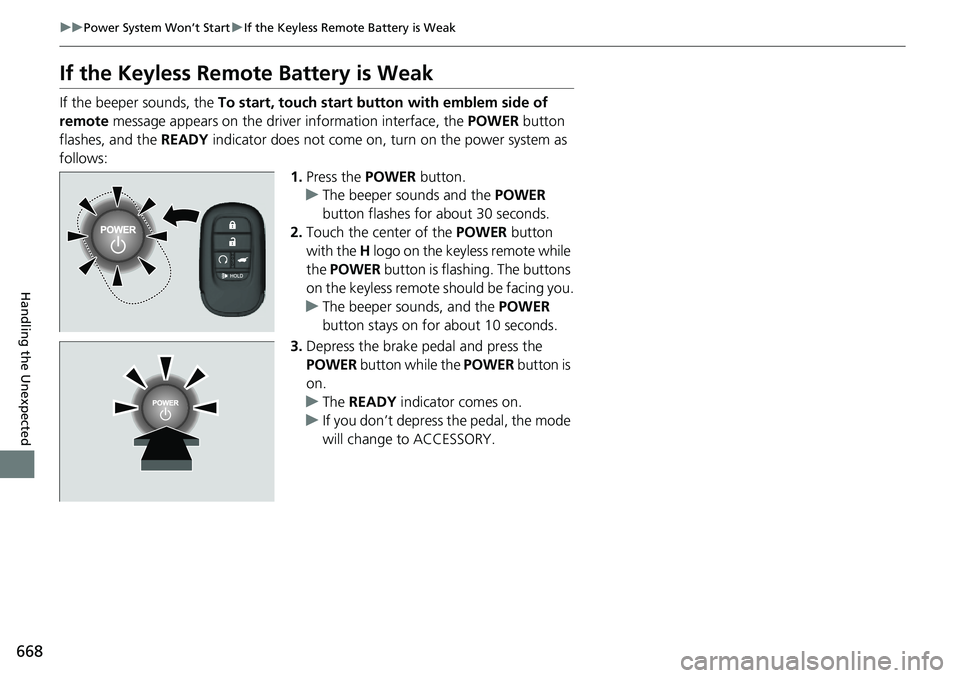

If the Keyless Remote Battery is Weak
If the beeper sounds, the To start, touch start butto n with emblem side of
remote message appears on the driver information interface, the POWER button
flashes, and the READY indicator does not come on, tu rn on the power system as
follows: 1.Press the POWER button.
u The beeper sounds and the POWER
button flashes for about 30 seconds.
2. Touch the center of the POWER button
with the H logo on the keyless remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The beeper sounds, and the POWER
button stays on for about 10 seconds.
3. Depress the brake pedal and press the
POWER button while the POWER button is
on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.

669
uuPower System Won’t Start uEmergency Power System On
Handling the Unexpected

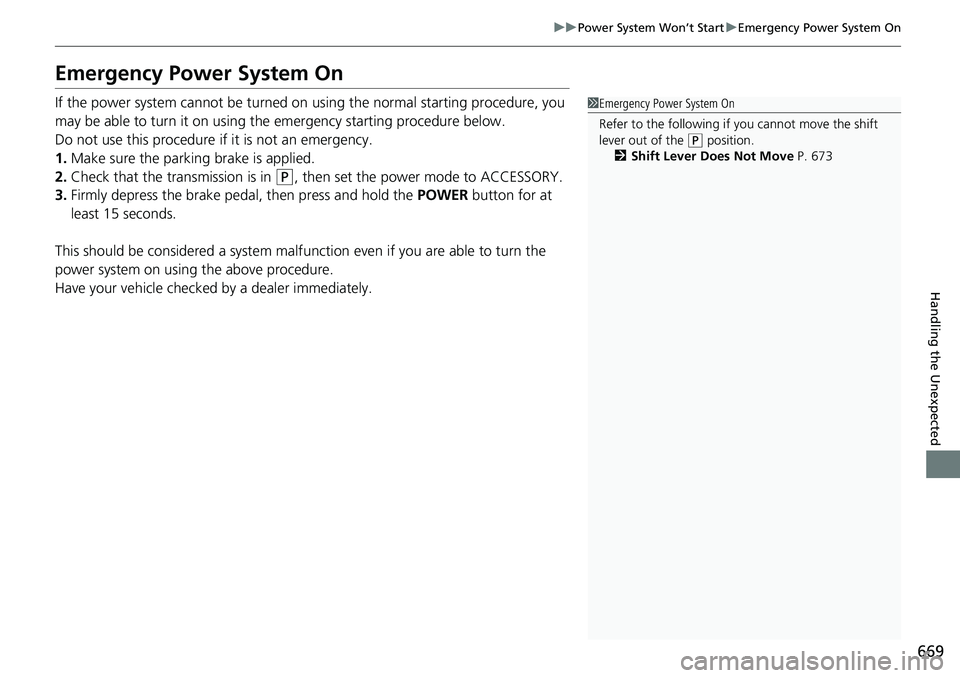

Emergency Power System On
If the power system cannot be turned on using the normal starting procedure, you
may be able to turn it on using the emergency starting procedure below.
Do not use this procedure if it is not an emergency.
1. Make sure the parking brake is applied.
2. Check that the transmission is in
(P, then set the power mode to ACCESSORY.
3. Firmly depress the brake peda l, then press and hold the POWER button for at
least 15 seconds.
This should be considered a system malfun ction even if you are able to turn the
power system on using the above procedure.
Have your vehicle checked by a dealer immediately.
1Emergency Power System On
Refer to the following if you cannot move the shift
lever out of the
( P position.
2 Shift Lever Does Not Move P. 673
