If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.This could cause
very serious injuries in a crash.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the f orces of a crash
over the strongest bones in your
upper body.
To adjust the height of a f ront seat
belt anchor, squeeze the release
button and slide the anchor up or
down as needed (the anchor has f our
positions).
CONT INUED
Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
Protecting A dults and Teens
Driver and Passenger Saf ety15
RELEASE BUTTONS
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned beforedriving.
 —
 —y
y
(+
 y   y

The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
Your Honda has an anti-thef t audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 90
.........................
Air Flow Buttons . 91
............................
Playing the Radio . 94
..............................
Radio Reception . 97
....................................
Playing a CD . 99
....................
Protecting Your CDs . 101
.........
CD Player Error Messages . 102
.....
CD Changer Error Messages . 103
.................
Radio Thef t Protection . 104
..........................
Setting the Clock . 105
......................
Auxiliary Input Jack . 106
...............................
Cruise Control . 107
Comf ort and Convenience Features
Comf ort and Convenience Feat ures89
 —
 —y
 y
(+
 y  y

Turn this dial clockwise to increase
fan speed and increase the airflow.
Turning this dial clockwise increases
the temperature of the airflow.The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode). The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
Air flows from the center
and corner vents in the dashboard.
Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
63
If equipped If equipped
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Rear Window Def ogger Button
Mode Control Dial
Recirculation Button
Comf ort and Convenience Feat ures
Air Flow Buttons
91
 —
 —y
 y
(+
 y  y

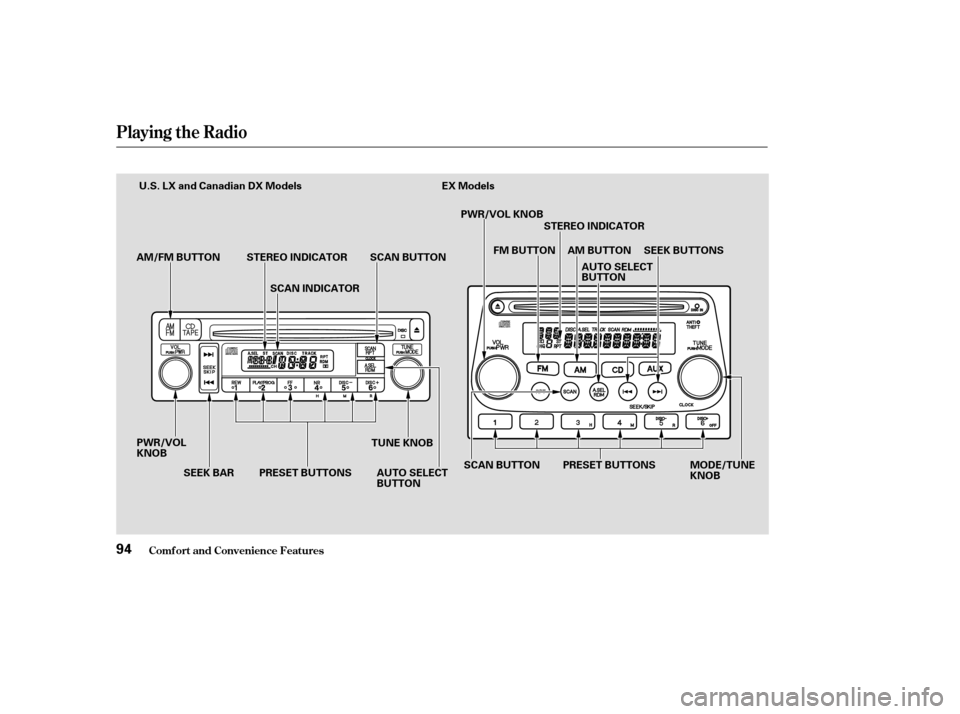

Playing the Radio
Comf ort and Convenience Feat ures94
AM/FM BUTTON STEREO INDICATORSCAN INDICATORSCAN BUTTON
SEEK BAR
PWR/VOL KNOB
AUTO SELECT
BUTTON
PRESET BUTTONS STEREO INDICATOR
PWR/VOL KNOB
SEEK BUTTONS
TUNE KNOB SCAN BUTTON PRESET BUTTONSFM BUTTON
U.S. LX and Canadian DX Models EX Models
AM BUTTONAUTO SELECT
BUTTON
MODE/TUNEKNOB
 —
 —y

 y
(+
 y  y

µ
µ
µ µ
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press either ( or ), then
release it.
The ignition switch must be in
ACCESSORY (I) or ON (II). Turn
the system on by pushing the PWR/
VOL knob or the AM or FM button.
Adjust the volume by turning the
same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
You can use these five methods to
f ind radio stations on a selected
band: the
preset buttons, and .
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it for five seconds. When it plays a station you want to listen to,
press the SCAN button again.
Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
2. 3. 4.
1.
CONT INUED
To Play the Radio TUNE
SEEK
To Select a Station TUNE,SEEK,SCAN, AUTO SELECT SCAN Preset
Playing the Radio
Comf ort and Convenience Feat ures95
 —
 —y

 y
(+
 y
  y

µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described. press the
A. SEL button. This restores the
presets you originally set.
Press the MODE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), Fader (FAD),
and Sub-Woof er (SUB-W) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the MODE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. The
system will automatically return the
display to the selected audio mode
about f ive seconds af ter you stop
adjusting a mode. These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use
the TRE/BAS/SUB-W modes to
adjust the tone to your liking.To turn of f Auto Select,
If equippedAUTO SELECT Adjusting the SoundBalance/Fader
T reble/Bass/Sub-Woof er
Playing the Radio
Comf ort and Convenience Feat ures96
 —
 —y

 y
(+
 y

y

Comf ort and Convenience Feat ures

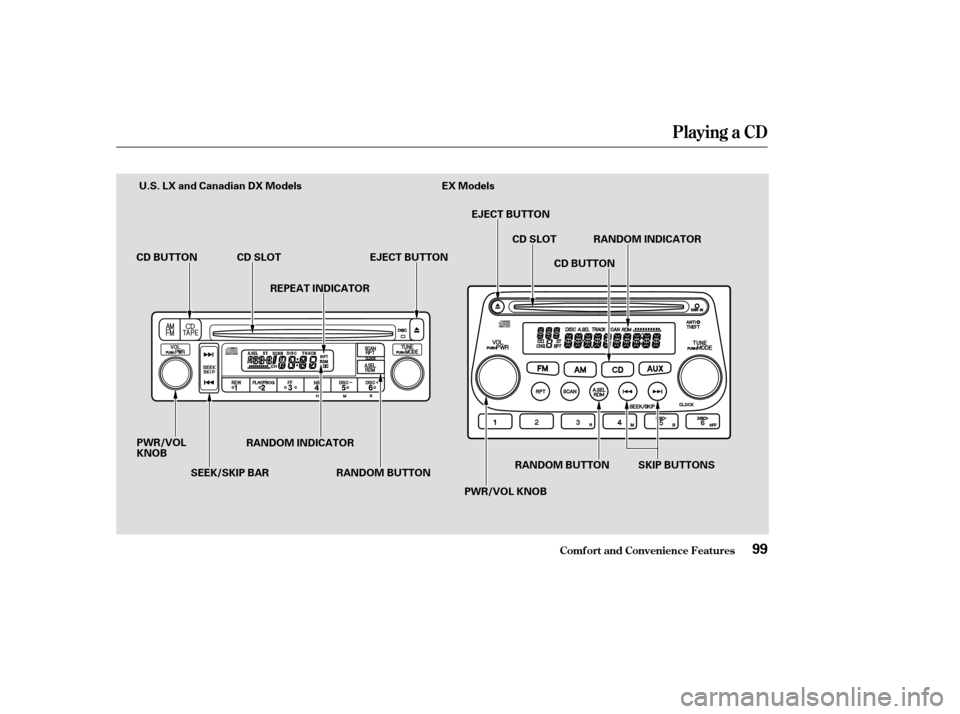

Playing a CD
99
PWR/VOL KNOB
CD BUTTON
REPEAT INDICATOREJECT BUTTON
CD SLOT
SEEK/SKIP BAR CD BUTTON
SKIP BUTTONS
EJECT BUTTON
CD SLOT
PWR/VOL KNOB
U.S. LX and Canadian DX Models EX Models
RANDOM INDICATORRANDOM BUTTON RANDOM BUTTONRANDOM INDICATOR
 —
 —y



y
(+
 y
 y

If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour bef ore trying again.If the code card is lost, a Honda
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘COdE’’,
then turn the radio off. Push the
preset 1 and preset 6 at the same
time, then quickly release.
You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If your vehicle’s battery is discon-
nected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive-digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If youshouldhappentolosethecard,
you must obtain the code number
f rom a Honda dealer. To do this, you
will need the system’s serial number.
On EX models
Radio T hef t Prot ect ion
Comf ort and Convenience Feat ures104
 —
 —y


y
(+
 y
 y

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied mechanic.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page ).
6.
104
On EX models
Fuses
T aking Care of t he Unexpect ed198
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
 —
