To use the horn, press the center pad of the steering wheel.
:

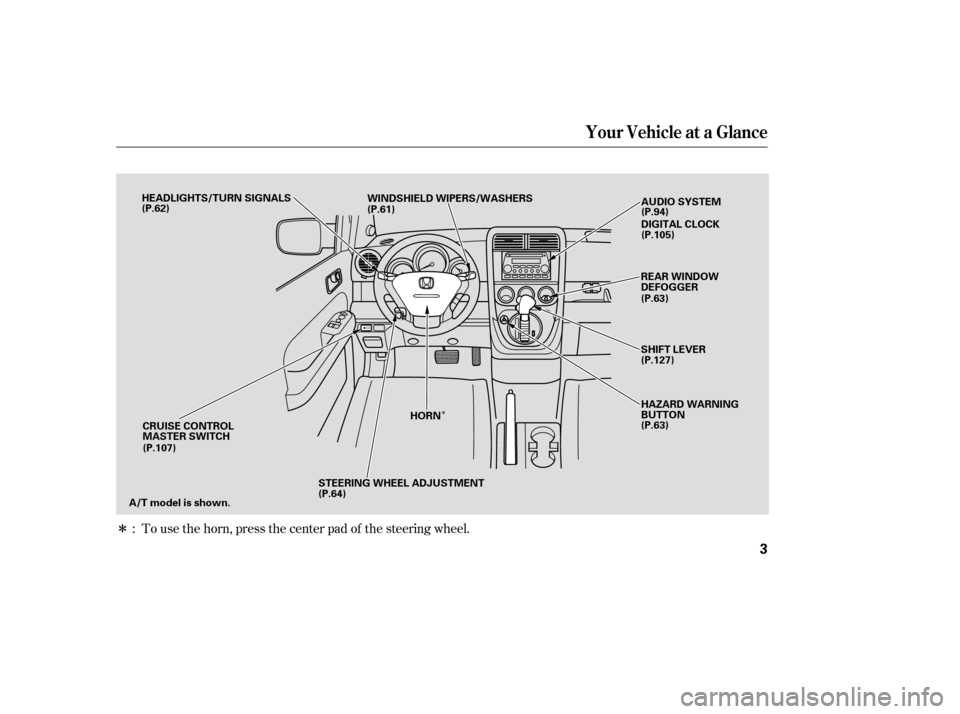

Your Vehicle at a Glance
3
HEADLIGHTS/TURN SIGNALS
REAR WINDOW
DEFOGGER
A/T model is shown. HORN
HAZARD WARNING
BUTTON
STEERING WHEEL ADJUSTMENT SHIFT LEVERAUDIO SYSTEM
WINDSHIELD WIPERS/WASHERS
DIGITAL CLOCK
(P.62)
(P.107)
CRUISE CONTROL
MASTER SWITCH
(P.64) (P.63)
(P.127)
(P.63) (P.94)
(P.105)
(P.61)
—
—y
y
(+
yy

µ
µ
µ µ
µ
µ
µ
µ
µ
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
f ew seconds.
The wipers run at low speed.
The wipers run at high speed.
Hold past ON to turn the window
wiper on and the window washer
to spray.
OFF
Rotate clockwise to turn the rear
window wiper ON.
Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever.
Rotate counterclockwise to spray
the window washer only.
1.2.3.4.5.6.
1. 2. 3. 4.
Windshield Wiper
MIST
OFF INT LO HIRear Window Wiper and Washer
Windshield Washer
Wipers and Washers
Inst rument s and Cont rols61
—
—y
y
(+
yy

´
Ü Õ
If it takes several pushes on the
button to lock or unlock the doors
and the hatch, replace the battery as
soon as possible.
Battery type: CR2025 To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the
cover with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, including
interf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not cause
interf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Inst rument s and Cont rols
Replacing the Transmitter
Battery
68
ROUND
COVER
CUSHION RING
BATTERY
—
—y

y
(+
yy

To lock or unlock the hatch.Lock the hatch by pushing down
the lock tab on the driver’s door
(see page ), or by using the
master key in the driver’s door
lock.
Lock or unlock the hatch with the
master door lock switch.
With the hatch unlocked, open it by
pulling the handle and lif ting up.
To close the hatch, lower it, then
press down on the back edge.
When both the hatch and tailgate are
open, the hatch cannot be latched
without f irst closing the tailgate.
Useyourmasterkeytolockand
unlock the hatch. Turn the key
clockwise to lock the hatch, and
counterclockwise to unlock it. 70
CONT INUED
Door L ocks
Inst rument s and Cont rols
Hatch
71
UNLOCK
LOCK
—
—y
y
(+
yy

The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
Your Honda has an anti-thef t audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 90
.........................
Air Flow Buttons . 91
............................
Playing the Radio . 94
..............................
Radio Reception . 97
....................................
Playing a CD . 99
....................
Protecting Your CDs . 101
.........
CD Player Error Messages . 102
.....
CD Changer Error Messages . 103
.................
Radio Thef t Protection . 104
..........................
Setting the Clock . 105
......................
Auxiliary Input Jack . 106
...............................
Cruise Control . 107
Comf ort and Convenience Features
Comf ort and Convenience Feat ures89
—
—y
y
(+
yy

Turn this dial clockwise to increase
fan speed and increase the airflow.
Turning this dial clockwise increases
the temperature of the airflow.The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode). The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
Air flows from the center
and corner vents in the dashboard.
Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
63
If equipped If equipped
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Rear Window Def ogger Button
Mode Control Dial
Recirculation Button
Comf ort and Convenience Feat ures
Air Flow Buttons
91
—
—y
y
(+
yy

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
To set the hour, press the H button
while pressing the CLOCK (SCAN/
RPT) button, and hold until the hour
advances to the desired time.
Change the minutes by pressing the
M button while pressing the CLOCK
(SCAN/RPT) button until the
minute numbers advance to the
desired time. You can use the R button to quicklyset the time to the nearest hour.
Press the R button while pressing
the CLOCK button. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00Press and hold the CLOCK button
until the number f lash and you hear
a beep. Change the hours by
pressing the H button until the
numbers advance to the desired time.
Change the minutes by pressing the
M button until the numbers advance
to the desired time.
CONT INUED
U.S. LX and Canadian DX models
On EX models
Setting the Clock
Comf ort and Convenience Feat ures105
CLOCK
BUTTON
H BUTTON R BUTTON TIME DISPLAY
M BUTTON TIME DISPLAY CLOCK
BUTTON
H BUTTON R BUTTON M BUTTON
—
—y

y
(+
y

y

You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, press the R
(RESET) button to set the clock
back to the previous hour. If the
displayed time is af ter the half hour,
pressing R sets the clock f orward to
the beginning of the next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
When you are f inished, press the
CLOCK button again.Your audio system will accept
auxiliary inputs f rom a portable
cassette player, CD changer, MP3
player, etc. To use the jack, turn
down the volume of the audio unit
and the portable unit. Then pivot the
cover up, plug in a mini-jack cable
between the portable unit and the
jack, and press the AUX button on
the audio unit.
An auxiliary input jack is located on
the dashboard next to the accessory
power socket.
On EX models
Setting the Clock, Auxiliary Input Jack
Auxiliary Input Jack
Comf ort and Convenience Feat ures106
—
—y

y
(+
y


y

When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components. Check the level in the windshield
washer reservoir at least monthly
during normal use.
The low washer
level indicator will light when the
level is low (see page ).
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
3. 4. 5.
2.
1. 57
Canadian Models:
Maint enance
Engine Coolant, Windshield Washers
Windshield Washers
161
RADIATOR CAP
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
—
—y
y
(+
y
y

Remove the electrical connector
f rom the bulb by pulling the
connector straight back.
Remove the rubber weather seal
by pulling on the tab.
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Reinstall the rubber seal. Make
sure it is right side up; it is marked
‘‘TOP.’’
The f ront parking/turn signal light
is next to the headlight bulb. On
the driver’s side, remove the f ront
end of the air intake duct by
pulling it out.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Push the electrical connector onto
the new bulb.
(Driver’s side)
Install the f ront end of the air
intake duct. 1.
2. 3. 4. 5. 6. 7. 8.
2.
CONT INUED
Replacing a Front Parking/Turn
Signal Light Bulb
Lights
Maint enance167
—
