This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system.190
Temperature Gauge
Gauges
Inst rument s and Cont rols59
—
—y
y
(+
yy

Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. The A/C indicator does not
come on. Select and Fresh Air mode. Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally. Set the mode control dial to MAX
A/C.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
Set the f an to the desired speed.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the tailgate.
Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed. Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
1. 2. 3.4. 1.2.3.
1. 2. 3.
59
1. 2.3. 4. 5.
To cool the interior with MAX A/C:
If equipped
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Using the A /C
Using the Heater
(Fresh A ir mode)
Ventilation
92
—
—y


y
(+
yy

Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.Remove the dipstick (orange tab).
Wipe the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its tube. Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page . Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page f or
inf ormation on adding the proper
coolant.
Refer to on page f or inf ormation
on checking other items in your
Honda.
1. 2. 3.
157
151160
4.
Service Station Procedure
Bef ore Driving
Oil Check
A dding OilEngine Coolant Check
A dding
Engine Coolant
Owner’s Maintenance
Checks
113
DIPSTICK
UPPER MARKLOWER MARK RESERVE TANK
MAX
MIN
—
—y

y
(+
y

y

This section explains the importance
of keeping your vehicle well
maintained and why you should
f ollow basic maintenance saf ety
precautions.
If you have the skills and tools to per-
f orm more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page f or inf ormation on how to
obtain a copy, or see your Honda
dealer.
This section also includes
Maintenance Schedules f or normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions f or simple maintenance tasks
you may want to take care of
yourself .
......................
Maintenance Saf ety . 148
.................
Maintenance Schedule . 149
....................
Maintenance Record . 154
..............................
Fluid Locations . 156
........................
Adding Engine Oil . 157
.........
Changing the Oil and Filter . 158
..............................
Engine Coolant . 160
....................
Windshield Washers . 161
.......................
Transmission Fluid . 162
................
Brake and Clutch Fluid . 164
....................
Power Steering Fluid . 165
............
Cleaning the Body Panels . 165
.............................................
Lights . 166
.......................................
Seat Belts . 170
..................
Dust and Pollen Filter . 170
.................................
Wiper Blades . 171
...............................................
Tires . 172
...................
Checking the Battery . 177
.............................
Vehicle Storage . 178
217
Maintenance
Maint enance147
—
—y

y
(+
y
y

µµ µ
µ
µ µ µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed. Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Windshield washer f luid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers f requently, check
the reservoir each time you stop
f or f uel. See page .
Brakes Check the f luid level
monthly. See page .
Automatic transmission Check
the f luid level monthly. See page
. Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate light monthly. See
page .
113
113
161 166
162 164 172
Maintenance Schedule
Maint enance
Owner’s Maintenance Checks
151
—
—y

y
(+
y
y

ÎÌ Ì
Ì
Î
Follow the Normal Maintenance
Schedule if the severe driving
conditions specif ied in the Severe
Conditions Maintenance Schedule on
the next page do not apply.
NOT E: If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should f ollow the Normal Conditions
Maintenance Schedule.
Maint enance
152
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
Every 3 years (independent of mileage)
((OOrreevveerryy66yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOtthheerrwwiisseeaaddjjuussttoonnllyyiiffnnooiissyy))
Every 10,000 miles (16,000 km)((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
Check inflation and condition once a monthCheck oil and coolant at each fuel stop
10 16
2032304840645080 609670
112 80
128
((OOrreevveerryy22yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years.
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOrreevveerryy55yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))Every 160,000 miles (256,000 km)
At 120,000 miles (192,000 km) or 10 years, then
every 60,000 miles (96,000 km) or 5 years 150 240
140224
130208
120192
110176
100160
90
144
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 175 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace rear differential fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
See information on maintenance and emissions warranty, last column, page .
1:
: 150
1Maintenance Schedule for Normal Conditions
—
—y
y
(+
y
y

Î ÎÌ
µ
ÌÌÎ
Î
Follow the Severe Maintenance
Schedule if you drive your vehicle
MAINLY under one or more of the
f ollowing conditions:Driving less than 5 miles (8 km) per
trip or, in f reezing temperatures,
driving less than 10 miles (16 km)
per trip.
Driving in extremely hot [over 90°F
(32°C)] conditions.
Driving on muddy, dusty, or de-iced
roads.
T railer towing, driving with a roof
rack, or driving in mountainous
conditions.
Follow the
Maintenance Schedule f or Severe
Conditions. Extensive idling or long periods of
stop and go driving, such as a taxi or
a commercial delivery vehicle.
Maint enance
For Canadian Owners
153
miles x 1,000
km x 1,000
Every 3 years (independent of mileage)
((OOrreevveerryy33yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOtthheerrwwiisseeaaddjjuussttoonnllyyiiffnnooiissyy))
((OOrreevveerryy22yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
10 16508070
112
Check oil and coolant at each fuel stop 150240
Service the items listed at the indicated distance (or time, if given).
Every 10,000 miles (16,000 km)
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
40 64
2032 609680
128
3048
Every 160,000 miles (256,000 km)
At 120,000 miles (192,000 km) or 10 years, then
every 60,000 miles (96,000 km) or 5 years
((OOrreevveerryy44yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
Replace at 60,000 miles (96,000 km) or 3
years, then every 30,000 miles (48,000
km) or 2 years.
90
144 100 160 140224
130208
120192
110176
See dust and pollen filter on page for
replacement information under special
driving conditions.
Every 15,000 miles (24,000 km)
(Use normal schedule except in dusty condition)
See information on maintenance and
emissions warranty, last column, page.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 175 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items:
Tie rod ends, steering gearbox, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system , Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace rear differential fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid 1: 2:
: 150 170
1
2
Maintenance Schedule for Severe Conditions
—
—y


y
(+
y
y

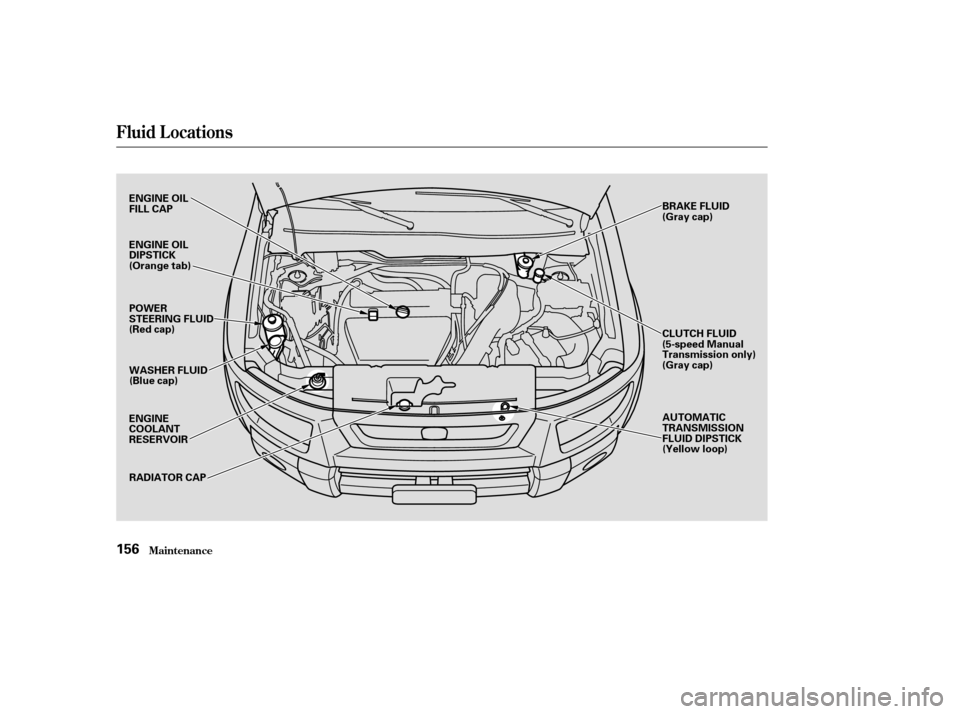

Fluid Locations
Maint enance156
BRAKE FLUID
(Gray cap)
CLUTCH FLUID
(5-speed Manual
Transmission only)
(Gray cap)AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR WASHER FLUID
(Blue cap)
ENGINE OIL
FILL CAP
POWER
STEERING FLUID
(Red cap)
ENGINE OIL
DIPSTICK
(Orange tab)
—
—y

y
(+
y

y

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to between the
MIN and MAX lines. Inspect the
cooling system f or leaks.Always use Honda All Season
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Engine Coolant
Maint enance
A dding Engine Coolant
160
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
—
—y
y
(+
y
y

When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components. Check the level in the windshield
washer reservoir at least monthly
during normal use.
The low washer
level indicator will light when the
level is low (see page ).
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
3. 4. 5.
2.
1. 57
Canadian Models:
Maint enance
Engine Coolant, Windshield Washers
Windshield Washers
161
RADIATOR CAP
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
—
—y
y
(+
y
y
