Lock all doors and the hatch when
your vehicle is not in use. Children
who play in vehicles can
accidentally get trapped inside the
vehicle. Teach your children not to
play in or around vehicles.
Keep vehicle keys and remote
transmitters (on some models) out
of the reach of children. Even very
young children learn how to
unlock vehicle doors, turn on the
ignition, and open the tailgate or
hatch, which can lead to accidental
injury or death.
Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. And
children lef t alone with the key in
the ignition can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Driver and Passenger Saf ety
Protecting Children General Guidelines
33
—
—y
y
(+
yy

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
f or leaks whenever:The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side. High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. If you must sit in your parked vehicle,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
Select the Fresh Air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
With the tailgate/hatch open, air
f low can pull exhaust gas into your
vehicle’s interior and create a
hazardous condition. If you must
drive with the tailgate/hatch open,
openallthewindowsandsetthe
heating and cooling system as shown
below. 1. 2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety48
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
—
—y
y
(+
yy

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations . 52
............................
Instrument Panel . 53
.............................................
Gauges . 58
...................................
Trip Meter . 58
.....................................
Odometer . 58
..................................
Fuel Gauge . 58
...................
Temperature Gauge . 59
Controls Near the Steering .......................................
Wheel . 60
......................
Wipers and Washers . 61
...........
Turn Signal and Headlights . 62
........
Instrument Panel Brightness . 63
.................
Hazard Warning Button . 63
.................
Rear Window Def ogger . 63
..........
Steering Wheel Adjustment . 64
...............................
Keys and Locks . 65
........................
Immobilizer System . 66
.......................
Remote Transmitter . 67
................................
Ignition Switch . 69
......................................
Door Locks . 70
......................
Power Door Locks . 70
..................................
Rear Doors . 70
............................................
Hatch . 71
........................................
Tailgate . 72
.................................................
Seats . 73
........................
Seat Adjustments . 73 Driver’s Seat Height
..............................
Adjustment . 74
...................
FrontSeatArmrests .74
..........................
Head Restraints . 75
........................
Rear Seat Access . 75
..........
Reclining the Front Seats . 76
...............
Folding the Rear Seats . 77
..........
Removing the Rear Seats . 79
..............................
Power Windows . 81
.............................................
Mirrors . 82
....
Adjusting the Power Mirrors . 82
.................................
Rear Windows . 83
.................................
Parking Brake . 83
............................................
Skylight . 83
...........
Interior Convenience Items . 86
.......................
Beverage Holders . 87
..........
Accessory Power Sockets . 87
....................................
Glove Box . 87
.................................
Interior Lights . 88
................................
Ceiling Light . 88
........................
Cargo Area Light . 88
.....................................
Spotlights . 88
..................
Ignition Switch Light . 88
Instruments and Controls
Inst rument s and Cont rols51
—
—y
y
(+
yy

Î
ÎThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

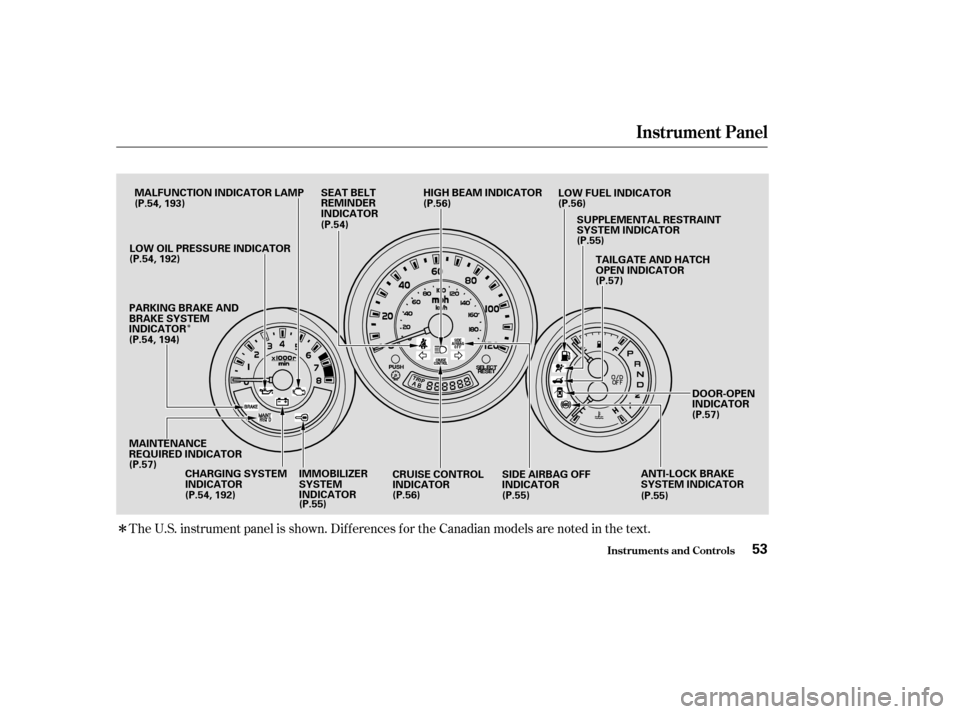

Instrument Panel
Inst rument s and Cont rols53
IMMOBILIZER
SYSTEM
INDICATOR
MAINTENANCE
REQUIRED INDICATOR DOOR-OPEN
INDICATOR
CRUISE CONTROL
INDICATOR
LOW OIL PRESSURE INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR LOW FUEL INDICATOR
HIGH BEAM INDICATOR
TAILGATE AND HATCH
OPEN INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
ANTI-LOCK BRAKE
SYSTEM INDICATOR
SEAT BELT
REMINDER
INDICATOR
SIDE AIRBAG OFF
INDICATOR
(P.54, 193)
(P.54, 192)
(P.54, 194)
(P.57) (P.54, 192) (P.55)(P.56)
(P.55)
(P.55)(P.57)
(P.57)
(P.55)
(P.56)
(P.56)
(P.54)
—
—y

y
(+
yy

µ
Canadian models onlyThis indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages .
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
Thiscomesonwhenthewasher
f luid level is low. Add washer f luid
when you see this light come on (see
page ).
This indicator comes on if any door
is not closed tightly.
This indicator comes on if the
tailgate or the hatch is not closed
tightly.
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), it will
light f or two seconds when you f irst
turn the ignition switch to ON (II),
andthenflashfortenseconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.
Turn of f the engine.
Press and hold the Select/Reset
button on the instrument panel,
then turn the ignition switch to
ON (II).
Hold the button for about 10
seconds until the indicator goes
of f .
1.
152 153
2. 3.
161
Inst rument s and Cont rols
Washer L evel Indicator Maintenance Required
Indicator
Door-open Indicator
Tailgate and Hatch Open
Indicator
Instrument Panel
57
—
—y
y
(+
yy

To lock or unlock the hatch.Lock the hatch by pushing down
the lock tab on the driver’s door
(see page ), or by using the
master key in the driver’s door
lock.
Lock or unlock the hatch with the
master door lock switch.
With the hatch unlocked, open it by
pulling the handle and lif ting up.
To close the hatch, lower it, then
press down on the back edge.
When both the hatch and tailgate are
open, the hatch cannot be latched
without f irst closing the tailgate.
Useyourmasterkeytolockand
unlock the hatch. Turn the key
clockwise to lock the hatch, and
counterclockwise to unlock it. 70
CONT INUED
Door L ocks
Inst rument s and Cont rols
Hatch
71
UNLOCK
LOCK
—
—y
y
(+
yy

See page for information on
cargo loading. Keep the hatch closed
at all times while driving to avoid
damaging the hatch, and to prevent
exhaust gas from getting into the
interior. Seeon page .
Youcanopenthetailgateonlywhen
the hatch is open. To open the
tailgate, slide the lock lever to the
lef t and swing down the tailgate. To
close the tailgate, lif t it up and push
it f irmly until it latches.
Bef ore closing the tailgate, make
sure the hatch is raised. Closing the
tailgate on the lowered hatch can
damage the hatch and the tailgate. See page for information on
cargo loading. Keep the tailgate and
the hatch closed at all times while
driving to avoid damaging them, and
to prevent exhaust gas f rom getting
into the interior. See
on page .
117
48 117
48
Inst rument s and Cont rols
Door L ocks
Carbon Monoxide
Hazard Carbon
Monoxide Hazard
Tailgate
72
—
—y
y
(+
yy

Turn of f the engine, and set the
parkingbrake.Thenpulldownthe
lever, squeeze both sides of the pivot
while pushing up the red tab in the
lever, and pull the lever assembly
away from the ceiling.Push up the rear of the skylight.
Standing on the tailgate with the
hatch down, hold both sides of the
skylight and pull it toward you to
remove it f rom the vehicle roof .
To remove the skylight:
Skylight
Inst rument s and Cont rols84
Bef ore lif ting the skylight, make sure
the roof of the vehicle is dry. Rain or
remaining water af ter car-washing may
get into the f rame of the skylight. In
winter, remove the buildup of snow on
the roof .
If you try to tilt up the skylight in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage it.
The maximum weight on the tailgate is
440 lbs (200 kg).
—
—y
y
(+
yy

Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. The A/C indicator does not
come on. Select and Fresh Air mode. Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally. Set the mode control dial to MAX
A/C.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
Set the f an to the desired speed.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the tailgate.
Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed. Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
1. 2. 3.4. 1.2.3.
1. 2. 3.
59
1. 2.3. 4. 5.
To cool the interior with MAX A/C:
If equipped
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Using the A /C
Using the Heater
(Fresh A ir mode)
Ventilation
92
—
—y


y
(+
yy

Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the f loor
behind the f ront seats cannot roll
under the seats and interf ere with
the pedals or seat operation.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
Distribute cargo evenly on the
f loor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.If you carry large items that
prevent you f rom closing the
tailgate or the hatch, exhaust gas
can enter the passenger area. To
avoid the possibility of
, f ollow the
instructions on page .
If you can carry any items on a
roof rack,besurethetotalweight
of the rack and the items does not
exceed the maximum allowable
weight. Please contact your Honda
dealer f or f urther inf ormation.
If you use an accessory roof rack,
the roof rack weight limit may be
lower. Ref er to the inf ormation that
came with your roof rack. The driver’s seat-back and lef t rear
seat-back are equipped with
adjustable bungee cords to hold
medium-sized, lightweight objects.
If the cords are not installed, route
one cord through the loops as shown.
To attach the hooks, press the top of
the hook down, and slide to the
desired position, then release. Adjust
as needed.
48
EX models
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Cargo A rea
or on a Roof Rack
carbon
monoxide poisoning Seat-Back Bungee
Carrying Cargo
Bef ore Driving119
SEAT-BACK PLASTIC CORD
LOOP
HOOK
—
—y

y
(+
y
y
