This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .52
............................
Instrument Panel .53
..........
Instrument Panel Indicators .54
.............................................
Gauges .58
...................................
Trip Meter .58
.....................................
Odometer .58
..................................
Fuel Gauge .59
..........
Check Fuel Cap Indicator .59
...................
Temperature Gauge .59
Controls Near the Steering .......................................
Wheel .60
.
Windshield Wipers and Washers .61
...........
Turn Signal and Headlights .62
........
Instrument Panel Brightness .63
.................
Hazard Warning Button .63
.................
Rear Window Def ogger .63
..........
Steering Wheel Adjustment .64
...............................
Keys and Locks .65
........................
Immobilizer System .66
.......................
Remote Transmitter .67
................................
Ignition Switch .69
......................................
Door Locks .70
......................
Power Door Locks .70
..................................
Rear Doors .70
............................................
Hatch .71
........................................
Tailgate .72.................................................
Seats .73
........................
Seat Adjustments .73
Driver’s Seat Height ..............................
Adjustment .74
...................
FrontSeatArmrests .74
..........................
Head Restraints .75
........................
Rear Seat Access .75
..........
Reclining the Front Seats .76
...............
Folding the Rear Seats .77
..........
Removing the Rear Seats .79
..............................
Power Windows .81
.............................................
Mirrors .82
....
Adjusting the Power Mirrors .82
.................................
Rear Windows .83
.................................
Parking Brake .83
............................................
Skylight .83
...........
Interior Convenience Items .86
.......................
Beverage Holders .87
..........
Accessory Power Sockets .87
....................................
Glove Box .87
.................................
Interior Lights .88
................................
Ceiling Light .88
........................
Cargo Area Light .88
.....................................
Spotlights .88
..................
Ignition Switch Light .88
Instruments and Controls
Inst rument s and Cont rols
51

This shows the number of miles (U.S.)
or kilometers (Canada) driven since
you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer by
pressing the Select/Reset button
repeatedly.Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’ Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated. Odometer
Trip Meter
Gauges
58
TACHOMETER SPEEDOMETER FUEL GAUGE
ODOMETER/TRIP METER TEMPERATURE GAUGE SELECT/RESET
BUTTON

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system. If the system still detects a loose or
missing f uel cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f , and check or
retighten the f uel cap at least 3 clicks.
The MIL goes out af ter several days
of normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/trip
meter display after you start the
engine. Turn the engine of f and
conf irm the f uel cap is installed. If it
is, loosen the cap, then retighten it at
least 3 clicks. When you restart the
engine, the message appears again.
To clear the message, press and hold
the select/reset button until the
message is replaced the odometer/
trip meter display.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. Driving
uphill or making turns can cause the
needle to f luctuate or the low f uel
indicator to come on early. The
needle returns to the bottom after
you turn of f the ignition.
210
207
Gauges
Temperature Gauge
Check Fuel Cap Indicator
(odometer/trip meter message)
Fuel Gauge
Inst rument s and Cont rols
59
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

Push the button next to the shift
levertoturnonthehazardwarning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about15minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Push the button in the speedometer
repeatedly to adjust the brightness
of the instrument panel lights. There
are six brightness levels. A segment
display shows the current brightness
level.
CONT INUED
Instrument Panel Brightness
Rear Window Def ogger
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button, Rear Window Def ogger
Inst rument s and Cont rols
63

µµ
µ µ
You can use any of f ive methods to
f ind radio stations on the selected
band: the
preset buttons, and .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
AM/FM button. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a lower f requency.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press either ( or ), then
release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 5 seconds (U.S. LX and
Canadian base models) or 10
seconds (U.S. EX and Canadian Y
package models).
If you do nothing, the system will
then scan f or the next strong station
andplayitfor5seconds(U.S.LX
and Canadian base models) or 10 seconds (U.S. EX and Canadian Y
package models). When it plays a
station you want to listen to, press
the SCAN button again.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
2.
3.
4. 1.
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN, AUTO SELECT
TUNE SEEK
SCAN
Preset
Playing the AM/FM Radio
96

µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use
the TRE/BAS/SUB-W modes to
adjust the tone to your liking.
Press the A. SEL button. ‘‘A. SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. press the
A. SEL button. This restores the
presets you originally set.
Eachmodeisshowninthedisplayas
it changes. Turn the MODE or
SOUND knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode. Press the MODE or SOUND knob
repeatedly to display the bass (BAS),
treble (TRE), balance (BAL), f ader
(FAD), and sub-woofer (SUB-W)
settings.To turn of f auto select,AUTO SELECT Balance/Fader
T reble/Bass/Sub-Woof er
Adjusting the Sound
Playing the AM/FM Radio
Features
97

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Frequencies
Radio Reception
A M/FM Radio Reception
98

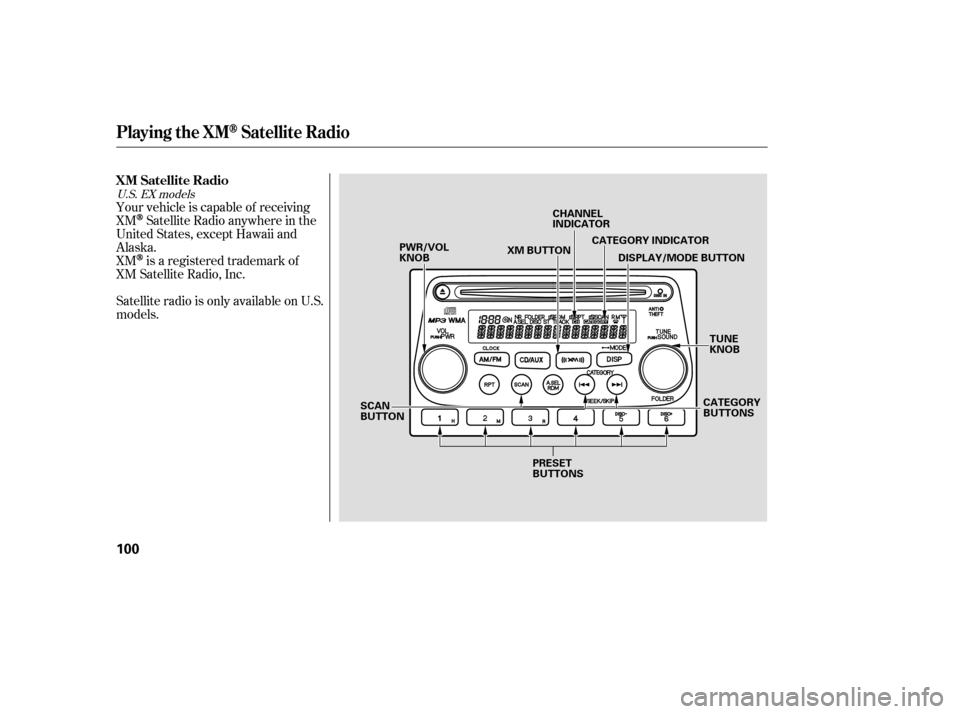

Satellite radio is onlyavailable on U.S.
models. Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trademark of
XM Satellite Radio, Inc.
U.S. EX models
Playing the XMSatellite Radio
XM Satellite Radio
100
TUNE
KNOB
PWR/VOL
KNOB
CATEGORY INDICATOR
CATEGORY
BUTTONS
XM BUTTON
SCAN
BUTTON PRESET
BUTTONSCHANNEL
INDICATOR
DISPLAY/MODE BUTTON

µµ
µ
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category. Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob lef t
or right to select channels. In the
category mode, you can only select
channels within that category.
In
the category mode, press either
button to select another category.
CONT INUED
Playing the XMSatellite Radio
Operating the Satellite Radio
MODE TUNE
CATEGORY ( or )
Features
101

µµThe scan f unction gives
you sampling of all channels while in
the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or 5 seconds, then
selects the next channel. When you
hear a channel you want to continue
listening to, press the button. Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Use the TUNE knob, or the
CATEGORY or SCAN buttons to
tune to a desired channel.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels. Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, press and
release the proper preset button to
tune to it.
2.
3.
4. 1. 5.
Playing the XMSatellite Radio
SCA N
Preset
102
