display HONDA ELEMENT 2007 1.G Owners Manual

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .58 ............................
Instrument Panel .59
..........
Instrument Panel Indicators .60
.............................................
Gauges .66
...................................
Trip Meter .66
.....................................
Odometer .66
..................................
Fuel Gauge .67
..........
Check Fuel Cap Message .67
...................
Temperature Gauge .68
..................
Maintenance Minder .68
Controls Near the Steering ...........................................
Wheel .69
.
Windshield Wipers and Washers .70
...........
Turn Signal and Headlights .71
........
Instrument Panel Brightness .72
.................
Hazard Warning Button .73
.................
Rear Window Def ogger .73
..........
Steering Wheel Adjustment .74
...............................
Keys and Locks .75
........................
Immobilizer System .76
.......................
Remote Transmitter .77
................................
Ignition Switch .79
......................................
Door Locks .80
......................
Power Door Locks .80
..................................
Rear Doors .81
............................................
Hatch .81
........................................
Tailgate .82 .................................................
Seats .83
........................
Seat Adjustments .83
Driver’s Seat Height
..............................
Adjustment .84
...................
FrontSeatArmrests .84
..........................
Head Restraints .85
..........
Reclining the Front Seats .86
...............
Folding the Rear Seats .87
..........
Removing the Rear Seats .89
..............................
Power Windows .91
.............................................
Mirrors .92
....
Adjusting the Power Mirrors .92
.................................
Rear Windows .93
.................................
Parking Brake .93
............................................
Skylight .93
...........
Interior Convenience Items .96
.......................
Beverage Holders .97
..........
Accessory Power Sockets .97
....................................
Glove Box .97
.................................
Interior Lights .98
................................
Ceiling Light .98
.....................................
Spotlights .98
........................
Cargo Area Light .98
..................
Ignition Switch Light .98
..........................................
Sun Visor .99
..................................
Vanity Mirror .99
Instruments and Controls
Inst rument s and Cont rols
57

If either of you do not fasten your
seat belt while driving, the beep er
will sound and the indicator will flash
again at regular intervals. For more
info rmation, see page .
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
poten tial problem with your front
airbags. This indica tor will also alert
you to a poten tial problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
info rmation, see page . This
indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
info rmation, see page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
an ti-lock function. For more
info rmation, see page . This
indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in for scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
20
34
33 162179
Instrument Panel Indicators
Side Airbag Of f Indicator
Supplemental Restraint
System Indicator Anti-lock Brake System
(A BS) IndicatorMaintenance Minder
Indicator
Inst rument s and Cont rols
61
Canada
U.S.

This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on with the
high beam headlights. For more
info rmation, see page .
On Canadian models, this indicator
comes on with reduced brightness
wh en the daytime running lights
(DRL) are on (see page ). This
indicator comes on when the
washer fluid level is low. Add washer
fluid when you see this indicator
come on (see page ).
All of the indicators in the monitor
display come on f or a f ew seconds
when you turn the ignition switch to
the ON (II) position. The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly. When the indicator comes on, there
is about 2.8 U.S. gal (10.5
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
This indicator comes on as a
reminder that you must ref uel soon.
72
72 193
Canadian models only
Instrument Panel Indicators
Lights On Indicator
High Beam Indicator
Washer Level Indicator
Door and T ailgate Open Monitor
Low Fuel Indicator
Inst rument s and Cont rols
63
LOW FUEL INDICATOR

This shows the number of miles (U.S.)
or kilometers (Canada) driven since
you last reset it.Each trip meter works independently,
so you can keep track of two
dif f erent distances.The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
When you turn the ignition switch to
the ON (II) position, the meter you
last selected is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to " 0.0."
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/
reset knob repeatedly. Odometer
Trip Meter
Gauges
66
SPEEDOMETER FUEL GAUGE
TACHOMETER
TEMPERATURE GAUGE
ODOMETER/TRIP METER SELECT/RESET
KNOB

This shows how much fuel you have.
It may show slightly more or less
th an the actual amount. The needle
returns to the bottom after you turn
off the ignition. Your
vehicl e’s on board diagnostic
system will detect a loose or missing
fu el fill cap as an evaporative system
leak. The first time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display. If
the system still detects a leak in
your vehicle’s evaporative emissions
system, the malfunction indicator
lamp (MIL) comes on. If the fuel fill
cap was not already tightened, turn
the engine off, and check or
retighten the fuel fill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f . 232
Gauges
Fuel Gauge
Check Fuel Cap Message
Inst rument s and Cont rols
67
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page for
more information.
This
shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system. 229
179
Gauges
Maintenance Minder
Temperature Gauge
68

µµ
µ µ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select. The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
AM/FM button. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a higher f requency, or lef t to tune to a
lower f requency.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press either ( or ), then
release it.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 5 seconds (LX model) or
10 seconds (EX and SC models).
If you do nothing, the system will
then scan f or the next strong station
and play it f or 5 seconds (LX model)
or 10 seconds (EX and SC models).
When it plays a station you want to listen to, press the SCAN button
again.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
2.
3.
4. 1.
CONT INUED

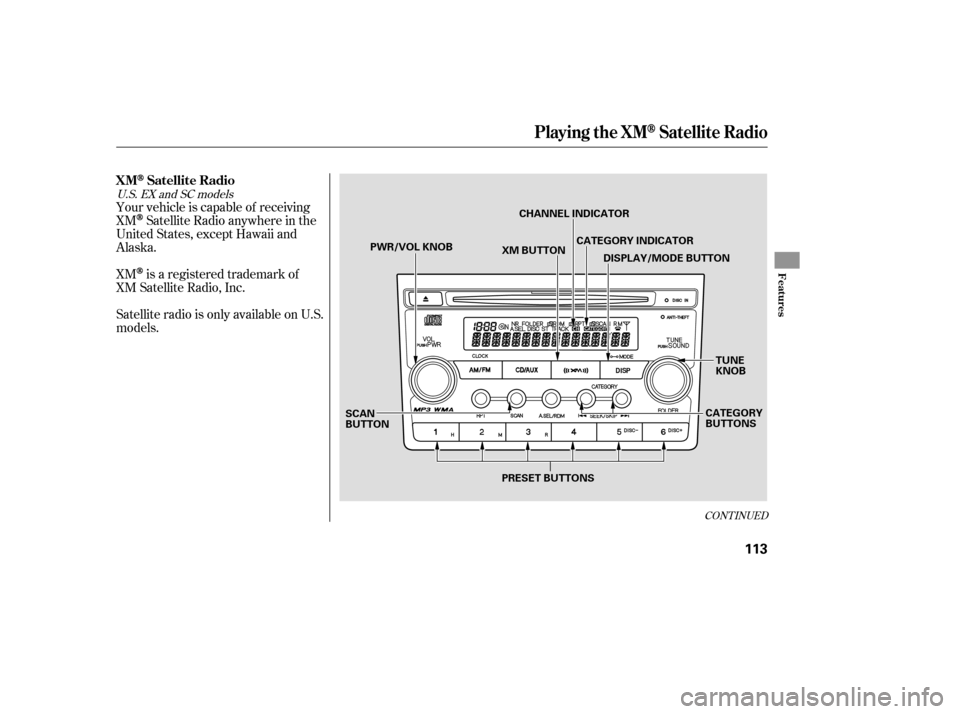

To Play the Radio
To Select a Station
TUNE SEEK
SCAN
Preset
Playing the AM/FM Radio
Features
109

µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use
the TRE/BAS/SUB-W modes to
adjust the tone to your liking.
Press the A. SEL button. ‘‘A. SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. press the
A. SEL button. This restores the
presets you originally set.
Eachmodeisshowninthedisplayas
it changes. Turn the MODE or
SOUND knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode. Press the MODE or SOUND knob
repeatedly to display the bass (BAS),
treble (TRE), balance (BAL), f ader
(FAD), and sub-woofer (SUB-W)
settings.To turn of f auto select,AUTO SELECT Balance/Fader
T reble/Bass/Sub-Woof er
Adjusting the Sound
Playing the AM/FM Radio
110

The radio can receive the complete
AM and FM bands. Those bands
cover these f requencies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Frequencies Radio Reception
A M/FM Radio Reception
Features
111

Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
Satellite radio is only available on U.S.
models. XM
is a registered trademark of
XM Satellite Radio, Inc.
CONT INUED
U.S. EX and SC models
XMSatellite Radio
Playing the XMSatellite Radio
Features
113
TUNE
KNOB
CATEGORY
BUTTONS
XM BUTTON
SCAN
BUTTON PRESET BUTTONSDISPLAY/MODE BUTTON
CATEGORY INDICATOR
CHANNEL INDICATOR
PWR/VOL KNOB
