instrument panel HONDA ELEMENT 2008 1.G Owners Manual

How to operate the heating and air
conditioning system, the audio
system, and other conveniencef eatures.
A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column. ID numbers, dimensions, capacities,
and technical information.
How to order manuals and other
technical literature.
A summary of the inf ormation you
need when you pull up to the f uel
pump.
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
The proper way to start the engine,
shif t the transmission, and park; plus
what you need to know if you’re
planning to tow a trailer.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints. A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
The maintenance minder shows you
when you need to take your vehicle
to the dealer for maintenance service.
There is also a list of things to check
and instructions on how to check
them.
This section covers several problems
motorists sometimes experience,
and details how to handle them.
Overview of Contents
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls
Features T echnical Inf ormation
Warranty and Customer
Relations
(U.S. and Canada only)
Authorized Manuals
(U.S. only)
Index
Service Inf ormation Summary
Bef ore Driving
Maintenance
Driving
T aking Care of the Unexpected
3
\f—\f—y
y
(+\fy\f\f\fy
2008 Element

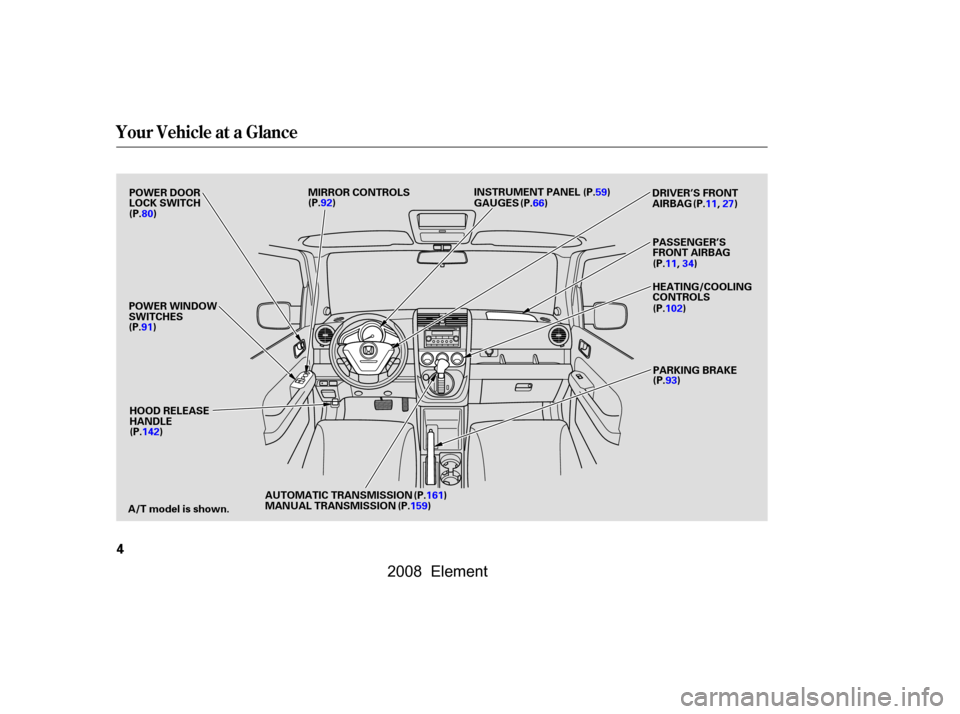

Your Vehicle at a Glance
4
POWER DOOR
LOCK SWITCHMIRROR CONTROLS
POWER WINDOW
SWITCHES
A/T model is shown. HOOD RELEASE
HANDLE HEATING/COOLING
CONTROLS
AUTOMATIC TRANSMISSION
MANUAL TRANSMISSION (P.92)
(P.80)
(P.91) PARKING BRAKE
(P.93)
(P.102)
INSTRUMENT PANEL
GAUGES (P.66)
(P.59)
(P.142) (P.161)
(P.159) DRIVER’S FRONT
AIRBAG
(P.11,27)
PASSENGER’S
FRONT AIRBAG
(P.11,34)
\f—\f—y
y
(+\fy\f\f\fy
2008 Element

Your vehicle is equipped with seat
belts in all seating positions.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Inf ants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in saf ety f eatures.
Help protect you in almost every
type of crash, including f rontal,
side, and rear impacts and
rollovers. Help keep you f rom being thrown
against the inside of the vehicle
and against other occupants.
Keep you f rom being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury f rom an inf lating airbag and
allows you to get the best
advantage f rom the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to f asten your seat belts.
Your Vehicle’s Saf ety Features
Seat Belts
Why Wear Seat Belt s
What You Should Do:
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
\f—\f—y
y
(+\fy\f\f
y
2008 Element

µAdjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard.
The f ollowing pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the f ront.
See pages f or important
guidelines on how to properly
protect inf ants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Your vehicle has a door and
tailgate open monitor on
the instrument panel to indicate
when a specif ic door or the tailgate
or the hatch is not tightly closed.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers f rom
accidentally opening a door and
f alling out.
Locking the doors also helps prevent
an outsider f rom unexpectedly
opening a door when you come to a
stop.
See page f or how to lock the
doors, and page f or how the door
and tailgate monitor system works.
53
37
63
80
CONT INUED
Protecting A dults and Teens
Adjust the Front Seats
Close and L ock the Doors
Introduction 2. 1.
Driver and Passenger Saf ety
13
\f—\f—y
y
(+\fy\f\f
y
2008 Element

This system uses the same sensors
as the front airbags to monitor
whether the f ront seat belts are
latched or unlatched, and how much
weight is on the f ront passenger’s
seat (see pages and ).The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore the beeper stops, the indicator will
stop f lashing but remain on.
If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no f ront
seat passenger and no items on the
front seat, something may be
interf ering with the monitoring
system. Look f or and remove:
Any items under the f ront
passenger’s seat.
Any object(s) hanging on the seat
or in the seat-back pocket.
Any objects, such as a f olded-down
back seat, that are touching the
rear of the seat-back.
If no obstructions are f ound, have
your vehicle checked by a dealer.
Your seat belt system includes lap/
shoulder belts in all f our seating
positions. The f ront seat belts are
also equipped with automatic seat
belt tensioners.
If either the driver or a f ront
passenger does not f asten their seat
belt, the beeper will sound and the
indicator will f lash again at regular
intervals.
2930
Seat Belt System Components
Additional Inf ormation About Your Seat Belts
20
\f—\f—y
\fy
(+\fy\f\fy
2008 Element

Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact,
side impact, or rollover.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag of f (see
page ).An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned of f (see page ).
Sensors that can detect whether
the driver’s seat belt and the f ront
passenger’s seat belt are latched
or unlatched (see page ).
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too f ar f orward, the airbag will
inf late with less f orce (see page ). Weight sensors that monitor the
weight on the f ront passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
inf ant or small child), the
passenger’s f ront airbag will be
turned of f (see page ).
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and f ront
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
22
31
29 33 34
34
20 29
Additional Inf ormation About Your Airbags
26
\f—\f—y
\fy
(+\fy\f\f
y
2008 Element

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .58 ............................
Instrument Panel .59
..........
Instrument Panel Indicators .60
.............................................
Gauges .66
...................................
Trip Meter .66
.....................................
Odometer .66
..................................
Fuel Gauge .67
..........
Check Fuel Cap Message .67
...................
Temperature Gauge .68
..................
Maintenance Minder .68
Controls Near the Steering ...........................................
Wheel .69
.
Windshield Wipers and Washers .70
...........
Turn Signal and Headlights .71
........
Instrument Panel Brightness .72
.................
Hazard Warning Button .73
.................
Rear Window Def ogger .73
..........
Steering Wheel Adjustment .74
...............................
Keys and Locks .75
........................
Immobilizer System .76
.......................
Remote Transmitter .77
................................
Ignition Switch .79
......................................
Door Locks .80
......................
Power Door Locks .80
..................................
Rear Doors .81
............................................
Hatch .81
........................................
Tailgate .82 .................................................
Seats .83
........................
Seat Adjustments .83
Driver’s Seat Height
..............................
Adjustment .84
...................
FrontSeatArmrests.84
..........................
Head Restraints .85
..........
Reclining the Front Seats .86
...............
Folding the Rear Seats .87
..........
Removing the Rear Seats .89
..............................
Power Windows .91
.............................................
Mirrors .92
....
Adjusting the Power Mirrors .92
.................................
Rear Windows .93
.................................
Parking Brake .93
............................................
Skylight .93
.................................
Interior Lights .96
................................
Ceiling Light .96
.....................................
Spotlights .96
........................
Cargo Area Light .96
..................
Ignition Switch Light .96
...........
Interior Convenience Items .97
.......................
Beverage Holders .98
..........
Accessory Power Sockets .98
....................................
Glove Box .98
......................................
Sun Visor .99
..............................
Vanity Mirror .99
Instruments and Controls
Inst rument s and Cont rols
57
\f—\f—y

y
(+\fy\f\fy
2008 Element

ÃŽ
ÃŽ
: If equipped

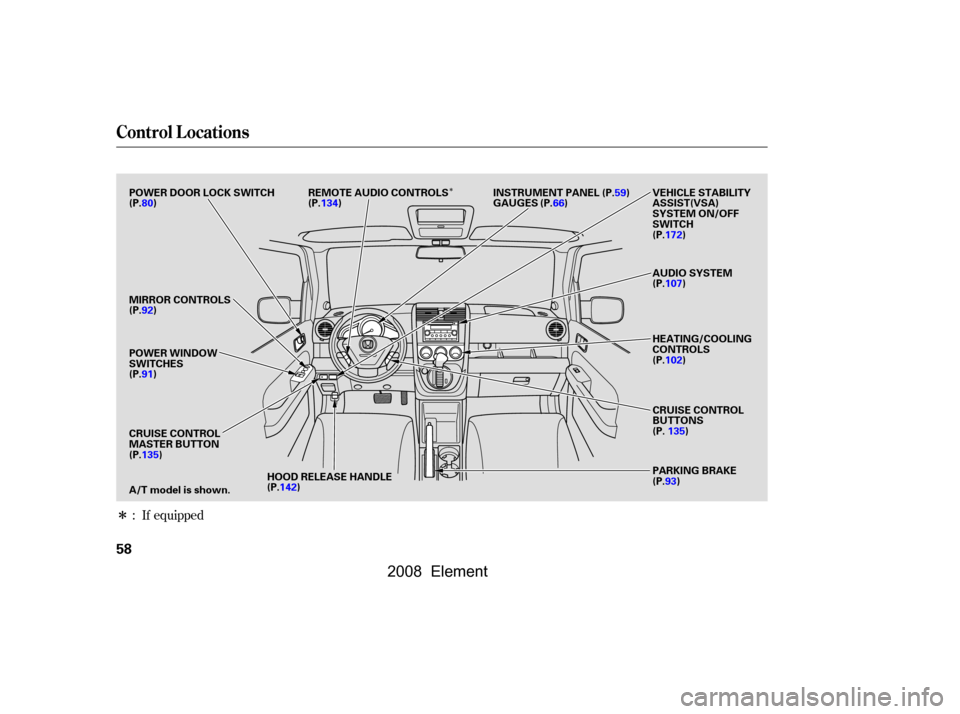

Control L ocations
58
HEATING/COOLING
CONTROLSCRUISE CONTROL
BUTTONS
AUDIO SYSTEM
(P.102)
PARKING BRAKE
(P.93)
(P.80)
POWER WINDOW
SWITCHES
(P.107)
INSTRUMENT PANEL
GAUGES
(P.59)
(P.66)
CRUISE CONTROL
MASTER BUTTON VEHICLE STABILITY
ASSIST(VSA)
SYSTEM ON/OFF
SWITCH
A/T model is shown.
POWER DOOR LOCK SWITCH
(P.91)
MIRROR CONTROLS REMOTE AUDIO CONTROLS
(P.92)
HOOD RELEASE HANDLE(P.134)
(P.172)
(P.135)
(P.135)
(P.142)
\f—\f—y
y
(+\fy\f\fy
2008 Element

ÃŽThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
:
Instrument Panel
Inst rument s and Cont rols
59
CRUISE CONTROL
INDICATOR
(P.61)
(P.64)
VEHICLE STABILITY
ASSIST(VSA) SYSTEM
INDICATOR (P.61)
(P.65)
MAINTENANCE MINDER
INDICATOR (P.61)
LIGHT ON INDICATORSEAT BELT REMINDER
INDICATOR (P.60)
(P.62)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
CHARGING SYSTEM INDICATOR
LOW FUEL
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR (P.62) SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
SIDE AIRBAG OFF
INDICATOR
LOW TIRE PRESSURE
INDICATOR
(P.64)
VSA ACTIVATION
INDICATOR
(P.64) (P.63)
(P.63)
(P.60)
HIGH BEAM INDICATOR
(P.63)
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATORDOOR AND TAILGATE
OPEN MONITOR (P.63)TPMS INDICATOR
(P.60,236)
(P.60,237)
(P.60,235)
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR (P.61)
\f—\f—y
\fy
(+\fy\f\fy
2008 Element

The instrument panel has many
indicators that give you important
inf ormation about your vehicle.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .This indicator has two f unctions:
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
2.
1.
236
235
235 237
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator (Red)
Instrument Panel Indicators
60
U.S. Canada
\f—\f—y

y
(+\fy\f\fy
2008 Element
