Specif ications
248
Dimensions Seating Capacities Engine
Weights 169.3 in (4,300 mm)
62.5 in (1,587 mm)
62.3 in (1,582 mm)
62.1 in (1,578 mm)
62.1 in (1,577 mm)
101.4 in (2,575 mm)
70.4 in (1,788 mm)
71.5 in (1,815 mm)
Length
Width
Height
Wheelbase
Track 170.9 in (4,341 mm)
170.3 in (4,326 mm)
69.4 in (1,763 mm)Total
Front
Rear
4
2
2
Type
BorexStroke
Displacement
Compression ratio
Spark plugs Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine 3.43 x 3.90 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
9.7 : 1
IZFR6K-11
SKJ20DR-M11
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb (front
edge of rear door). NGK:
DENSO:
Front
Rear
1:
2:
3:LX model
EX model
SC model
1, 2
3
1, 2
31
3
2
1, 2
3
\f—\f—y
\f
y
(+\fy\fy
2008 Element

Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear T raction
DOT Tire Quality Grading (U.S. Vehicles)
Technical Inf ormation
251
\f—\f—y
\fy
(+\fy\fy
2008 Element

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
Tire type code.
Date of manuf acture.
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Rim diameter in inches.
Tire construction code (R
indicates radial).
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
P
R
16
DOT
B97R
FW6X
2202
215
70
99
S
Year
Week
CONT INUED
Tire Labeling
T ire Ident if icat ion Number (T IN)
Tire Size
253

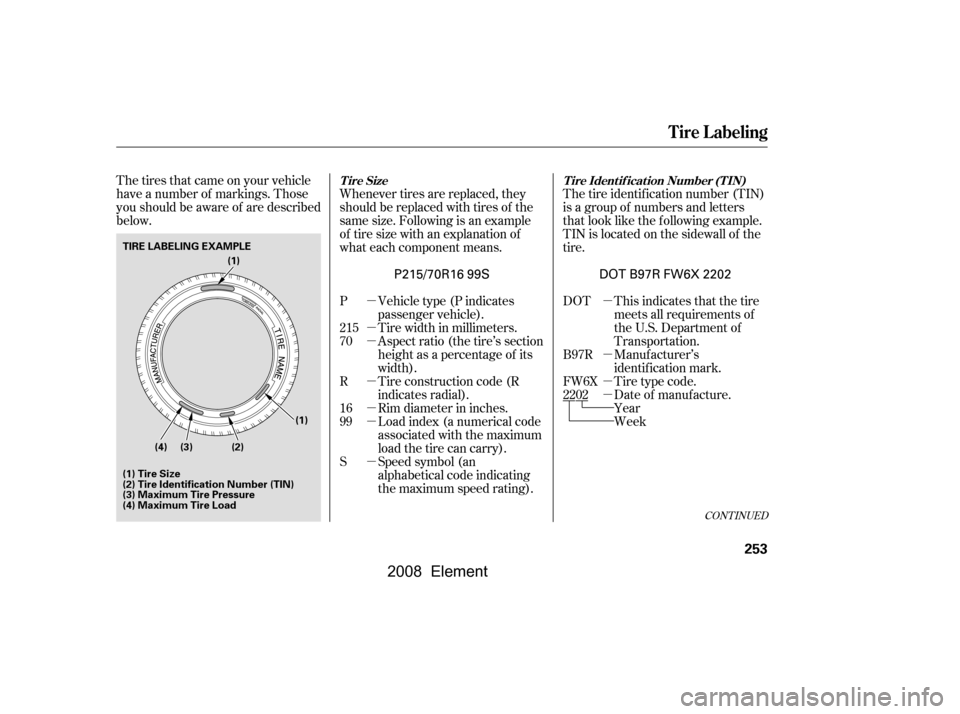

TIRE LABELING EXAMPLE
(1)
(1)
(2)
(3)
(4)
(1) Tire Size
(2) Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load
DOT B97R FW6X 2202
P215/70R16 99S
