XM®Radio
On EX and SC models
Your vehicle is capable of receiving XM®Radio anywhere in the United
States, and Canada except Hawaii,
Alaska and Puerto Rico. XM is a
registered trademark of Sirius XMRadio
®, Inc. and XM CANADA®is a
registered business name of
Canadian Satellite Radio Inc.

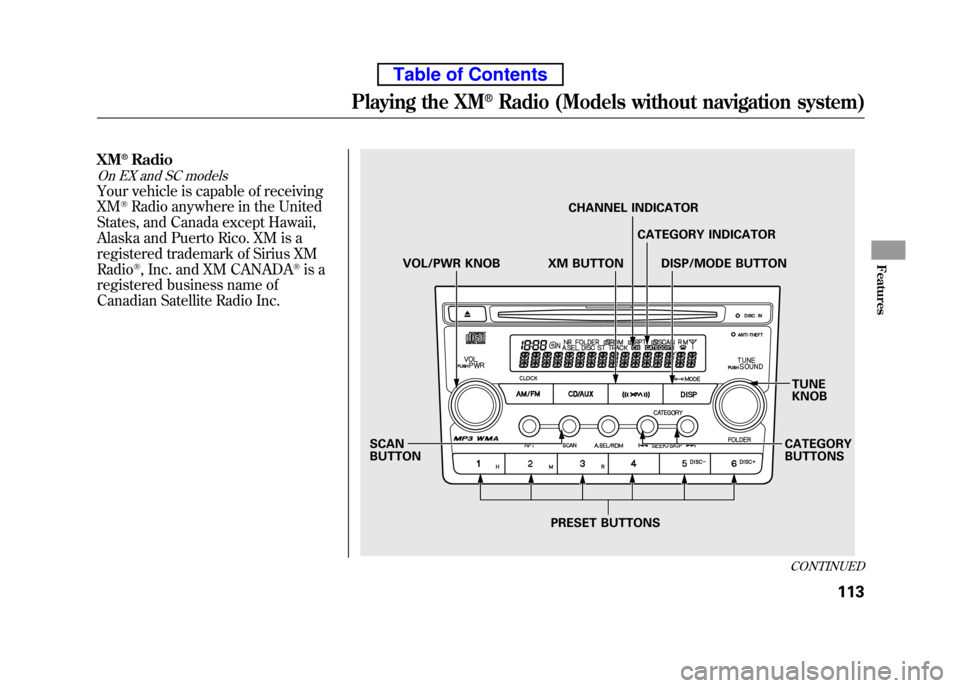

PRESET BUTTONS CATEGORY
BUTTONS
TUNE
KNOB
SCANBUTTON VOL/PWR KNOB XM BUTTON
CHANNEL INDICATOR
CATEGORY INDICATOR
DISP/MODE BUTTON
CONTINUED
Playing the XM®Radio (Models without navigation system)
113
Features
Table of Contents

XM Radio receives signals from two
satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, XM Radio
allows you to view channel and
category selections in the display.Operating the XM Radio
To listen to the XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
VOL/PWR knob to turn on the audio
system, and press the XM button.
Adjust the volume by turning the
VOL/PWR knob. The last channel
you listened to will show in thedisplay. MODE
－To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category. Each time you press and release the
DISP/MODE button, the display
changes in the following sequence:
channel name, channel number,
category, artist name, and music title.
You may experience periods when
XM Radio does not transmit the
artist's name and song title
information. If this happens, there is
nothing wrong with your system. TUNE
－Turn the TUNE knob left
or right to select channels. In the
category mode, you can only select
channels within that category.
CATEGORY (
or) － Press
either button to select another category.
Playing the XM®Radio (Models without navigation system)
114
Table of Contents

SCAN－The scan function gives
you sampling of all channels while in
the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order for a few seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press thebutton. Preset
－You can store up to 12
preset channels using the six preset
buttons. Each button stores one
channel from the XM1 band and one
channel from the XM2 band.
To store a channel:
1. Press the XM button. Either XM1 or XM2 will show in the display.
2. Use the TUNE knob, the CATEGORY buttons, or the SCAN
buttons to tune to a desired channel.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected.
3. Pick the preset button you want for that channel. Press and hold the
button until you hear a beep.
4. Repeat steps 2 and 3 to store the first six channels. 5. Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, press and
release the proper preset button to
tune to it.
CONTINUED
Playing the XM®Radio (Models without navigation system)
115
Features
Table of Contents

XM Radio Display Messages ‘‘LOADING ’’－ XM is loading the
audio or program information. ‘‘ OFF AIR ’’－ The channel
currently selected is no longer broadcasting. ‘‘ UPDATING ’’－ The encryption
code is being updated. Wait until the
encryption code is fully updated.
Channels 0 and 1 should still work normally. ‘‘
NO SIGNAL ’’－ The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon. ‘‘
’’ － The selected channel
number does not exist, is not part of
your subscription, or this channel
has no artist or title information at
this time. ‘‘ ANTENNA ’’－ There is a problem
with the XM antenna. Please consult
your dealer.
Playing the XM®Radio (Models without navigation system)
116
Table of Contents

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate for this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the farther north you
travel from the equator. Carrying
large items on a roof rack can also
block the signal.
Signal may be blocked
by mountains or large
obstacles to the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
CONTINUED
Playing the XM®Radio (Models without navigation system)
117
Features
Table of Contents

Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:● Driving on the north side of an
east/west mountain road.
● Driving on the north side of a large
commercial truck on an east/westroad.
● Driving in tunnels.
● Driving on a road beside a vertical
wall, steep cliff, or hill to the south
of you.
● Driving on the lower level of a
multi-tiered road.
● Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
● Large items carried on a roof rack.
There may be other geographic
situations that could affect XM Radioreception.As required by the FCC: Changes or modifications not expressly
approved by the party responsible forcompliance could void the user'sauthority to operate the equipment.
Receiving XM Radio Service
If your XM Radio service has expired or
you purchased your vehicle from a
previous owner, you can listen to a
sampling of the broadcasts available on
XM Radio. With the ignition switch in the
ACCESSORY (I) or ON (II) position,
push the VOL/PWR knob to turn on the
audio system and press the XM button. A
variety of music types and styles will play.
If you decide to purchase XM Radio
service, contact XM Radio at
www.xmradio.com,or at 1-800-852-9696.
In Canada, contact XM CANADA at
www.xmradio.ca, or at 1-877-209-0079.
You will need to give them your radio I.
D. number and your credit card number.
To get your radio I.D. number, turn the
TUNE knob until ‘‘0 ’’ appears in the
display. Your I.D. will appear in thedisplay. After you've registered with XM Radio,
keep your audio system in the XM Radio
mode while you wait for activation. This
should take about 30 minutes.
While waiting for activation, make sure
your vehicle remains in an open area
with good reception. Once your audio
system is activated, you'll be able to
listen to XM Radio broadcasts. XM Radio
will continue to send an activation signal
to your vehicle for at least 12 hours from
the activation request. If the service has
not been activated after 36 hours, contact
XM Radio. In Canada, contact XM CANADA.
Playing the XM®Radio (Models without navigation system)
118
Table of Contents

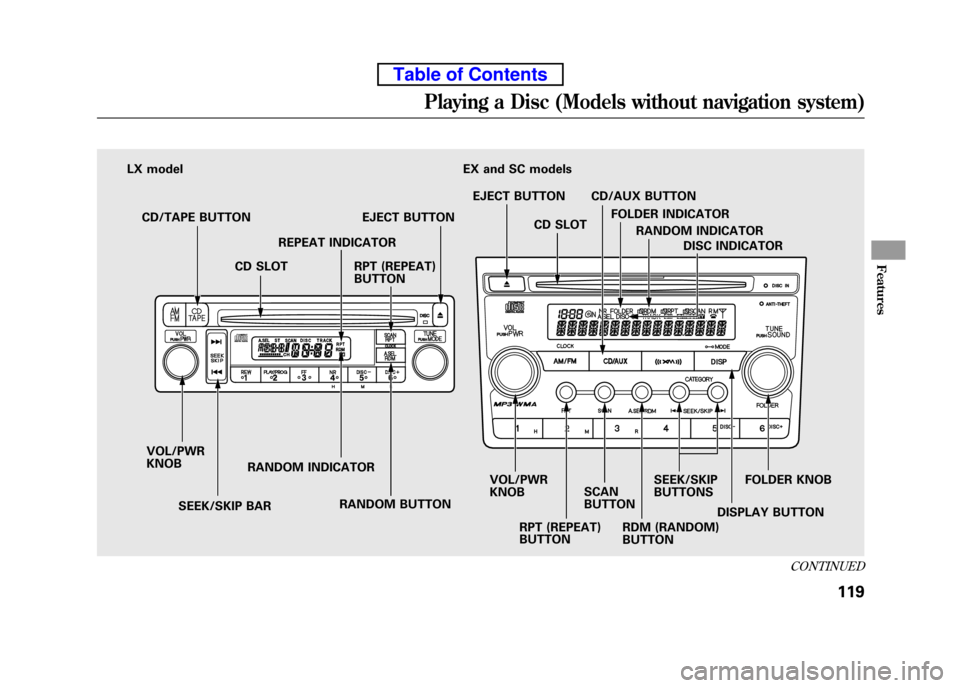

RDM (RANDOM) BUTTONDISC INDICATOR
FOLDER KNOB
SEEK/SKIPBUTTONS
RPT (REPEAT)BUTTON
RANDOM BUTTON
SEEK/SKIP BAR
VOL/PWR
KNOB
RANDOM INDICATORREPEAT INDICATOR
EJECT BUTTON
CD/TAPE BUTTON
CD SLOT CD SLOT
EJECT BUTTON
FOLDER INDICATOR
EX and SC models
LX model
RANDOM INDICATOR
DISPLAY BUTTON
RPT (REPEAT)BUTTON
SCAN BUTTONCD/AUX BUTTON
VOL/PWR KNOB
CONTINUED
Playing a Disc (Models without navigation system)
119
Features
Table of Contents

To Play a Disc
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
You operate the disc player with the
same controls used for the radio. To
select the disc player, press the CD/
TAPE or the CD/AUX button. You
will see‘‘CD ’’in the display. The
number of the track playing is shown
in the display. The system will
continuously play a disc until you
change modes.
Video CDs and DVDs do not work in
this unit.
On EX and SC models
The disc player can also play CD-Rs
and CD-RWs compressed in MP3 or
WMA formats.
When playing a disc in MP3, you will see ‘‘MP3 ’’in the display. The folder
and track numbers are displayed.
Each disc can hold up to 400 playable
files within 8 folder layers. A disc can
support a maximum number of 100
folders, and each folder can hold 255
playable files.
The specifications for compatible
MP3 file are:
– Sampling frequency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
– Bitrate:
8/16/24/32/40/48/56/64/80/96/
112/128/160/192/224/256/320kbps
– Compatible with variable bitrate
and multi-session When playing a disc in WMA, you
will see
‘‘WMA ’’in the display. The
folder and track numbers are
displayed. Each disc can hold up to
200 files within 16 subdirectories, 8
folder layers. A disc can support a
maximum number of 100 folders, and
each folder can hold 255 playablefiles.
The specifications for compatible
WMA file are:
– Sampling frequency:
32/44.1/48 kHz
– Bitrate:
48/64/80/96/128/160/192 kbps
– Compatible with variable bitrate
and multi-session
NOTE: If a file on an MP3 or WMA
disc is protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next file.
Playing a Disc (Models without navigation system)
120
Table of Contents

Insert the disc about halfway into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it. When the system reaches the
end of the disc, it will return to the
beginning and play the disc again.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD/TAPE or CD/AUX
button again to switch back to the
CD player.If you turn the system off while a disc
is playing, either with the VOL/PWR
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the disc will begin playing where it
left off.
On EX and SC models
If you press the DISP/MODE button
while playing a disc, additional
information (track, album, artist, etc.)
may be displayed.
To Change or Select Tracks/Files
On EX and SC models
Use the SEEK/SKIP button while a
disc is playing to select passages and
change tracks (files in MP3/WMAmode).
In MP3/WMA mode, use the
FOLDER knob to select folders in
the disc, and use the SEEK/SKIP
button to change files. SEEK/SKIP
－Each time you press
and release the
, the player skips
forward to the beginning of the next
track (files in MP3/WMA mode).
Press and release the
to skip
backward to the beginning of the
current track. Press it again to skip to
the beginning of the previous track.
To move rapidly within a track, press
and hold
or.
On LX models
You will see CUE or REW in the
display while moving within a track.
CONTINUED
Playing a Disc (Models without navigation system)
121
Features
Table of Contents

REPEAT (TRACK/FILE REPEAT) －To continuously replay a track
(files in MP3/WMA mode), press
and release the RPT button. You will
see RPT in the display. Press the
RPT button again to turn it off.
On EX and SC models In MP3/WMA mode
FOLDER SELECTION －To select
a different folder, use the FOLDER
knob to move to the beginning of the
next folder. Turn the knob right to
move to the beginning of the current
folder. Turn the knob left to skip to
the beginning of the previous folder.
On EX and SC models In MP3/WMA mode
FOLDER-REPEAT －This feature,
when activated, replays all the files
on the selected folder in the order
they are compressed in MP3/WMA.
To activate folder repeat, press and
hold the RPT button for 2 seconds.
You will see
RPT in the display.
The system continuously replays the
current folder. Press and hold the
RPT button for 2 seconds to turn it off.
RANDOM (Random within a Disc) － This feature plays the tracks (all
files in each folder in MP3/WMA
mode) within a disc in random order.
To activate random play, press and
release the RDM button. You will see
RDM in the display. Press the RDM
button again to return to normal play.
On EX and SC models In MP3/WMA mode
FOLDER-RANDOM －This
feature, when activated, plays the
files within a folder in random order,
rather than in the order they are
compressed in MP3/WMA. To
activate folder random play, press
and hold the RDM button. You will see
RDM in the display. The
system will then select and play files
randomly. This continues until you
deactivate folder random play by
pressing the RDM button again or
selecting a different folder with the
FOLDER knob.
Playing a Disc (Models without navigation system)
122
Table of Contents
