For example, if you check and fill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than measured
and could be underinflated and cause
the low tire pressure indicator to
come on. Or, if you check and adjust
your tire pressure in cooler
conditions, and drive into extremely
hot conditions, the tire may become
overinflated. However, the low tire
pressure indicator will not come on if
the tires are overinflated.
Refer to page 212 for tire inflation
guidelines.
Although your tire pressure is
monitored, you must manually check
the tire pressures monthly.
Each tire, including the spare, should
be checked monthly when cold and
set to the recommended inflation
pressure as specified in the vehicle
placard and this owner's manual (see
page 252).
Tire Pressure Monitoring
System (TPMS) Indicator
This indicator comes on and stays on
if there is a problem with the tire
pressure monitoring system.
If this happens, the system will shut
off and no longer monitor tire
pressures. Have the system checked
by your dealer as soon as possible.
When you restart the vehicle with
the compact spare tire, the TPMS
indicator may also come on and stay
on after driving several miles
(kilometers). Changing a Tire with TPMS
If you have a flat tire, the low tire
pressure indicator will come on.
Replace the flat tire with the compact
spare tire (see page 222).
Each wheel (except the compact
spare tire wheel) is equipped with a
tire pressure sensor. You must use
TPMS specific wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualified technician.
After you replace the flat tire with the
compact spare tire, the low tire
pressure indicator stays on. This is
normal; the system is not monitoring
the spare tire pressure. Manually
check the spare tire pressure to be
sure it is correct. After several miles
(kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low tire
pressure indicator goes off.
Tire Pressure Monitoring System (TPMS)17010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Your vehicle displays engine oil life
and maintenance service items on
the information display to show you
when you should have your dealer
do engine oil replacement and
indicated maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil life and displays it as a
percentage.Engine Oil Life Display
To see the current engine oil life,
turn the ignition switch to the ON
(II) position, then press and release
the select/reset knob repeatedly
until the engine oil life indicator
appears.The remaining engine oil life is
shown on the display according to
this table:
Calculated Engine
Oil Life (%) Displayed
Engine Oil Life (%)
100% －91% 100%
90% －81% 90%
80% －71% 80%
70% －61% 70%
60% －51% 60%
50% －41% 50%
40% －31% 40%
30% －21% 30%
20% －16% 20%
15% －11% 15%
10% －6% 10%
5% －1% 5%
0% 0%
ENGINE OIL LIFE INDICATOR SELECT/RESET KNOB
CONTINUED
Maintenance Minder
TM185
Maintenance
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

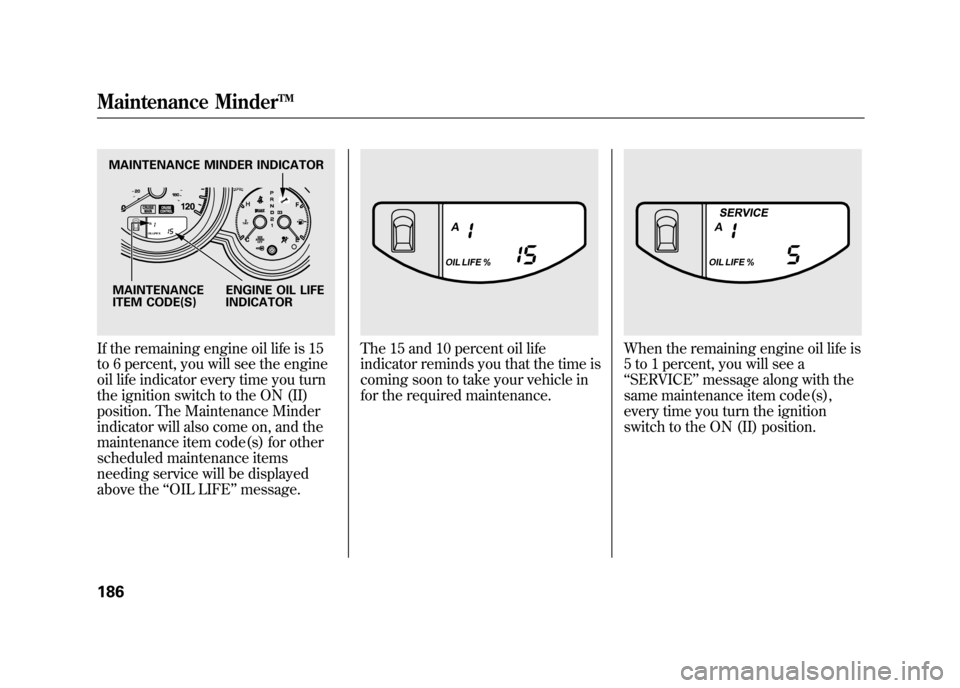

If the remaining engine oil life is 15
to 6 percent, you will see the engine
oil life indicator every time you turn
the ignition switch to the ON (II)
position. The Maintenance Minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
above the‘‘OIL LIFE’’ message.
The 15 and 10 percent oil life
indicator reminds you that the time is
coming soon to take your vehicle in
for the required maintenance.
When the remaining engine oil life is
5 to 1 percent, you will see a
‘‘SERVICE ’’message along with the
same maintenance item code(s),
every time you turn the ignition
switch to the ON (II) position.
MAINTENANCE MINDER INDICATOR
MAINTENANCE
ITEM CODE(S) ENGINE OIL LIFE
INDICATORMaintenance Minder
TM
18610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

To change the information display
from the engine oil life display to the
odometer or the trip meter, press and
release the select/reset knob.
When the engine oil life is 0 percent
or negative distance traveled, the
Maintenance Minder indicator (
)
remains on even if you change the
information display.
Immediately have the service
performed, and make sure to reset

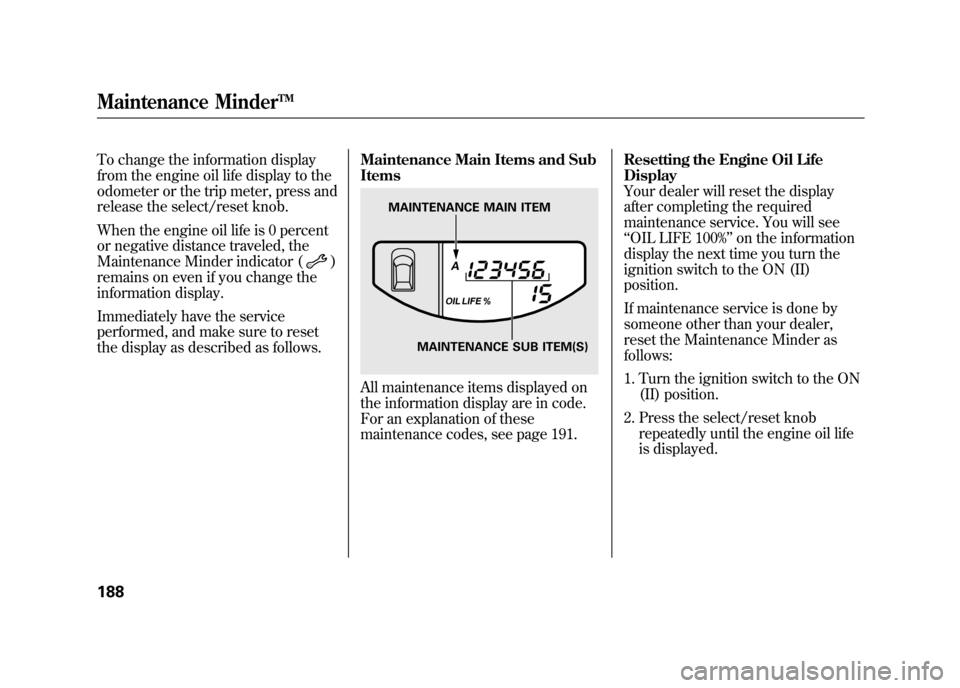

the display as described as follows. Maintenance Main Items and Sub
Items
All maintenance items displayed on
the information display are in code.
For an explanation of these
maintenance codes, see page 191.Resetting the Engine Oil Life
Display
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘
OIL LIFE 100% ’’on the information
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the Maintenance Minder as
follows:
1. Turn the ignition switch to the ON (II) position.
2. Press the select/reset knob repeatedly until the engine oil life
is displayed.
MAINTENANCE MAIN ITEM
MAINTENANCE SUB ITEM(S)
Maintenance Minder
TM
18810/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The compact spare tire pressure is:
60 psi (420 kPa, 4.2 kgf/cm
2)
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver's doorjamb.
For additional technical information
about your tires, see page 253.
Tire Inspection
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
You should look for:
●Bumps or bulges in the tread or
side of the tire. Replace the tire if
you find either of these conditions.●Cuts, splits, or cracks in the side of
the tire. Replace the tire if you can
see fabric or cord.●Excessive tread wear.

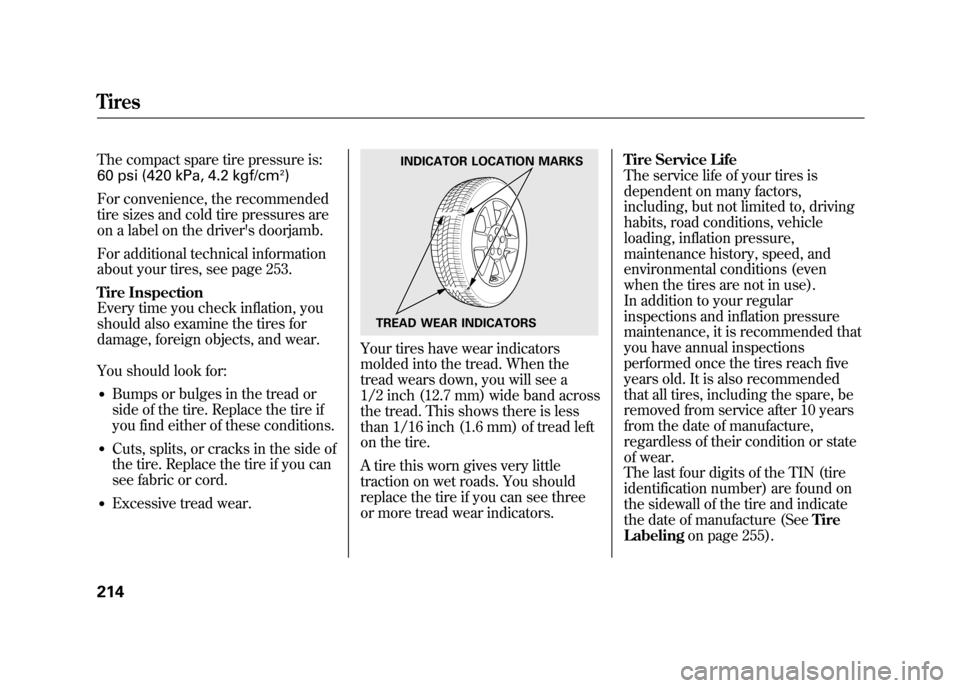

Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
1/2 inch (12.7 mm) wide band across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread left
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators. Tire Service Life
The service life of your tires is
dependent on many factors,
including, but not limited to, driving
habits, road conditions, vehicle
loading, inflation pressure,
maintenance history, speed, and
environmental conditions (even
when the tires are not in use).
In addition to your regular
inspections and inflation pressure
maintenance, it is recommended that
you have annual inspections
performed once the tires reach five
years old. It is also recommended
that all tires, including the spare, be
removed from service after 10 years
from the date of manufacture,
regardless of their condition or state
of wear.
The last four digits of the TIN (tire
identification number) are found on
the sidewall of the tire and indicate
the date of manufacture (See
Tire
Labeling on page 255).
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS
Tires21410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Low Oil Pressure Indicator
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn off
the engine as soon as you can safely get
the vehicle stopped. 1. Safely pull off the road, and shut
off the engine. Turn on the hazard
warning lights.
2. Let the vehicle sit for a minute. Open the hood, and check the oil
level (see page 145). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
3. If necessary, add oil to bring the level back to the full mark on the
dipstick (see page 193).
4. Start the engine, and watch the oil pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see Emergency Towing on page
244). Charging System Indicator
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Low Oil Pressure Indicator, Charging System Indicator
235
Taking Care of the Unexpected
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malfunction indicator lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks five times, the readiness
codes are not set. If possible, do not
take your vehicle for an emissions
test until the readiness codes are set.
Refer toEmissions Testing for
more information (see page 261). Brake System Indicator (Red)
The brake system indicator (red)
normally comes on when you turn
the ignition switch to the ON (II)
position, and as a reminder to check
the parking brake. It will stay on if
you do not fully release the parking
brake.
If the brake system indicator (red)
comes on while driving, the brake
fluid level is probably low. Press
lightly on the brake pedal to see if it
feels normal. If it does, check the
brake fluid level the next time you
stop at a service station (see page
199).
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
CONTINUED
Malfunction Indicator Lamp, Brake System Indicator
237
Taking Care of the Unexpected
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Bulbs, Halogen
..........................
202
Bungee Cords
............................
155
C
Capacities Chart
.........................
251
Carbon Monoxide Hazard
............
52
Cargo
.........................................
151
Cargo Area Light
..........................
96
Cargo Hooks
..............................
156
Cargo, How to Carry
..................
151
Carrying Cargo
..........................
151
CAUTION, Explanation of
............
iii
CD Care
.....................................
127
Ceiling Light
................................
96
Certification Label
......................
248
Chains, Tires
..............................
217
Changing a Flat Tire
..................
223
Changing Oil How to
....................................
194
When to
..................................
185
Charging System Indicator
...........................
58, 235
Check Fuel Cap Message
............
66
Checklist, Before Driving
...........
159 Child Safety
..................................
35
Booster Seats
...........................
50
Child Seats
....................
40, 41, 42
Important Safety Reminders
.....
39
Infants
......................................
40
Larger Children
.......................
49
LATCH
.....................................
44
Risks with Airbags
...................
36
Small Children
.........................
41
Tethers
....................................
48
Warning Labels
........................
37
Where Should a Child Sit?
........
36
Child Seats
.............................
35, 42
LATCH Anchorage Points
........
44
Tether Anchorage Points
.........
48
Cleaning the Seat Belts
..............
209
Clock
..........................................
133
Code, Audio System
...................
132
CO in the Exhaust
................
52, 258
Cold Weather, Starting in
...........
160
Compact Spare Tire
....................
222
Controls, Instruments and
............
55
Coolant Adding
....................................
196
Checking
................................
145
Proper Solution
.......................
196 Temperature Gauge
.................
67
Cooler Box
...................................
98
Crankcase Emissions Control System
...................................
258
Cruise Control Indicator
...............
60
Cruise Control Operation
...........
137
Cruise Main Indicator
..................
60
Cup Holders
.................................
99
Customer Service
.......................
264
D
DANGER, Explanation of
.............
iii
Dashboard
...............................
3, 56
Daytime Running Lights
..............
72
Daytime Running Lights Indicator
...................................
60
Dead Battery
..............................
231
Defects, Reporting Safety
...........
266
Defogger, Rear Window
...............
74
Dimensions
................................
250
Dimming the Headlights
..............
71
Dipstick
Automatic Transmission
.........
198
Engine Oil
...............................
145
IndexII10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Seat Belts
.................................
8, 18
Additional Information
.............
18
Advice for Pregnant Women
....
16
Automatic Seat Belt
Tensioners
...........................
20
Cleaning
..................................
209
Lap/Shoulder Belt
..............
14, 19
Maintenance
............................
20
Reminder Indicator and Beeper
.............................
18, 58
System Components
................
18
Use During Pregnancy
.............
16
Wearing a Lap/Shoulder Belt
..................................
14, 19
Seats
............................................
83
Head Restraints
........................
85
Seats, Adjusting the
.....................
83
Sensors Driver's Seat Position Sensor
...
26
Front Passenger's Weight Sensors
................................
26
Impact Sensors
........................
22
Serial Number
............................
248
Service Intervals
.........................
185
Service Manual
..........................
267
Service Station Procedures
........
143 Setting the Clock
........................
133
Shifting the Automatic Transmission
..........................
161
Shift Lever Position Indicators
...
161
Shift Lock Release
......................
163
Side Airbags
.................................
28
How the Side Airbag Off Indicator Works
...................
31
How Your Side Airbags Work..28
Side Curtain Airbags
....................
29
How Your Side Curtain Airbags Work
....................................
29
Side Marker Lights, Bulb Replacement in
.......................
206
Signaling Turns
............................
60
Snow Tires
.................................
217
Sound System
............................
109
Spare Tire
..................................
222
Inflating
...........................
212, 222
Specifications
..........................
252
Spark Plugs
................................
250
Specifications
.............................
250
Speed Control
............................
137
Speed Limiter
.............................
163
Speedometer
................................
64 SRS, Additional Information
.........
22
Additional Safety Precautions
...
33
Airbag Service
..........................
33
Airbag System Components
.....
22
How the Side Airbag Off Indicator Works
...................
31
How the SRS Indicator Works..30
How Your Front Airbags Work
....................................
24
How Your Side Airbags Work..28
How Your Side Curtain Airbags Work
....................................
29
SRS Indicator
.........................
30, 59
START (Ignition Key Position).....
79
Starting the Engine
....................
160
In Cold Weather at High Altitude
................................
160
With a Dead Battery
................
231
State Emissions Testing
.............
261
Steam Coming from Engine
.......
233
Steering Wheel
Adjustment
...............................
74
Anti-theft Column Lock
............
79
Buttons
...........................
135, 137
Stereo Sound System
..........
109, 110
Storing Your Vehicle
..................
219
IndexVIII10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
