ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
HEADLIGHTS/TURN SIGNALS
(P. 71)
REMOTE AUDIO
CONTROLS
ꭧ 2
(P. 135)
Ex model is shown. STEERING WHEEL ADJUSTMENT
(P. 74)
CRUISE CONTROL BUTTONS
(P. 137)
WINDSHIELD WIPERS/WASHERS
(P. 70)
PASSENGER AIRBAG
OFF INDICATOR
(P. 32)
AUDIO SYSTEM
(P. 109)
DIGITAL CLOCK
(P. 133)
REAR WINDOW
DEFOGGER BUTTON
(P. 74) ACCESSORY POWER
SOCKET
(P. 100)
HORN
ꭧ 1
VSA OFF SWITCH
(P. 173)
HAZARD WARNING
BUTTON
(P. 73)
Your Vehicle at a Glance410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Windshield Wiper1. MIST
2. OFF
3. INT－Intermittent
3. LO －Low speed
5. HI －High speed
6. Windshield washers Push the right lever up or down to
select a position.
MIST
－The wipers run at high
speed until you release the lever.
OFF －The wipers are not activated.
INT －The length of the wipe
interval is varied automatically
according to vehicle's speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay (
position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
LO －The wipers run at low speed.
HI －The wipers run at high speed.
Windshield Washer －Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever. Rear Window Wiper and Washer
1. Rotate the switch clockwise to turn
the rear window wiper ON.
2. Hold past ON to turn the window wiper on and the window washer
on.
3. OFF
4. Rotate the switch counterclockwise and hold to
spray the window washer and
operate the wiper.





ADJUSTMENT RING




Windshield Wipers and Washers7010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the＋side facing
up, and reinstall the cushion ring.
Align the
mark on the cover with
the
mark on the transmitter. Set
the cover in place and turn it
clockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to the
following two conditions: (1) This devicemay not cause harmful interference, and(2) this device must accept any
interference received, includinginterference that may cause undesiredoperation.
Changes or modifications not expresslyapproved by the party responsible for
compliance could void the user'sauthority to operate the equipment.
Ignition SwitchThe ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
LOCK (0) －You can insert or
remove the key only in this position.
To turn the key, push it in slightly.
The shift lever must also be in Park.
CONTINUED
Remote Transmitter, Ignition Switch
79
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The lock tab on the passenger's door
locks and unlocks only that door.
Pulling up on the driver's door lock
tab only unlocks the driver's door.
To lock the driver's door, remove the
key from the ignition switch, push
the lock tab down or push the door
lock switch down, then close the
door.
To unlock the driver's door from the
outside, turn the key and release it.Lockout PreventionWith the driver's door open and the
key in the ignition switch, the master
door lock switch is disabled. It is not
disabled if the driver's door is closed.
If you try to lock the open driver's
door with the key in the ignition
switch by pushing in the lock tab, the
tabs on all doors pop up when you
close the door.Rear Doors

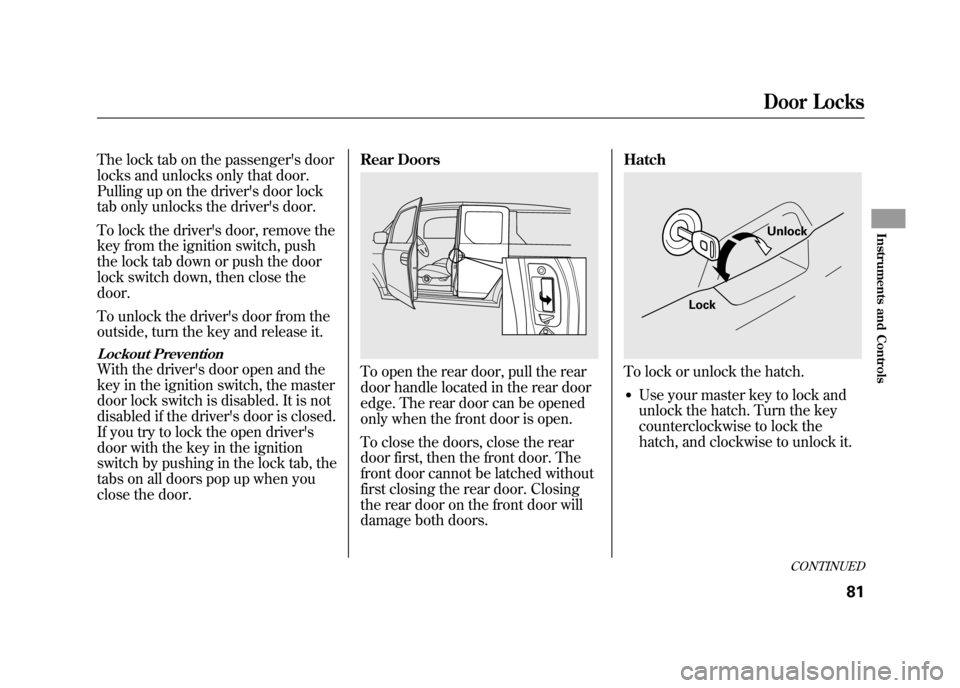

To open the rear door, pull the rear
door handle located in the rear door
edge. The rear door can be opened
only when the front door is open.
To close the doors, close the rear
door first, then the front door. The
front door cannot be latched without
first closing the rear door. Closing
the rear door on the front door will
damage both doors.Hatch
To lock or unlock the hatch.●Use your master key to lock and
unlock the hatch. Turn the key
counterclockwise to lock the
hatch, and clockwise to unlock it.
Unlock
Lock
CONTINUED
Door Locks
81
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The heating and air conditioning
system in your vehicle provides a
comfortable driving environment in
all weather conditions.
The standard audio system has many
features. This section describes
those features and how to use them.
(If you have an optional audio
system, refer to the operating
instructions that came with it.)On EX modelYour vehicle has an anti-theft audio
system that requires a code number
to enable it.Vents, Heating, and A/C
.............
104
Air Flow Controls
....................
105
Ventilation
...............................
106
Using the Heater
.....................
106
Using the A/C
.........................
106
Dehumidify the Interior
..........
107
To Defog and Defrost
..............
107
To Remove Exterior Frost or Ice From the Windows
........
108
To Turn Everything Off
...........
108
Audio System
..............................
109
Playing the AM/FM Radio
..........
110
Playing the XM
®Radio
................
113
Playing a Disc
.............................
119
Disc Player Error Messages
.......
125
Disc Changer Error Messages
................................
126
Protecting Your Discs
.................
127
FM/AM Radio Reception
............
130
Radio Theft Protection
................
132
Setting the Clock
.........................
133
Remote Audio Controls
...............
135
Auxiliary Input Jack
....................
136
Cruise Control
............................
137
Features
103
Features
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Air Flow Controls
Fan Control Dial
Turn this dial clockwise to increase
the fan speed and airflow.
Temperature Control Dial
Turning this dial clockwise increases
the temperature of the airflow.
Air Conditioning (A/C) Button
This button turns the air
conditioning on and off. The
indicator in the button is on when the
A/C is on.
Recirculation ButtonWhen the recirculation indicator is
on, air from the vehicle's interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).The outside air intakes for the
heating and cooling system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
The system should be left in fresh air
mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Rear Window Defogger Button
This button turns the rear window
defogger on and off (see page 74).
Mode Control Dial
Use the mode control dial to select
the vents the air flows from. Some air
will flow from the dashboard vents in
all modes.
The system automatically turns
on the A/C and switches to
recirculation mode. Air flows from
the center and side vents in the
dashboard (see page 106).Air flows from the center and
corner vents in the dashboard.Airflow is divided between the
vents in the dashboard and the floor
vents.Air flows from the floor vents.
When you select
, the system
automatically switches to fresh air
mode.
Airflow is divided between the
floor vents and the defroster vents at
the base of the windshield.
CONTINUED
Vents, Heating, and A/C
105
Features
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

If your vehicle's battery is
disconnected or goes dead, you may
need to set the clock.On LX modelTo set the hour, press the H button
while pressing the CLOCK (SCAN/
RPT) button until the hour advances
to the desired time. Change the
minute by pressing the M button
while pressing the CLOCK (SCAN/
RPT) button until the minute
advances to the desired time.
You can use the R button to quickly
set the time to the nearest hour.
Press the R button while pressing the
CLOCK button. If the displayed time
is before the half hour, pressing R
sets the clock back to the previous
hour. If the displayed time is after the
half hour, pressing R sets the clock
forward to the beginning of the next
hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
On EX modelPress and hold the CLOCK button
until the numbers flash and you hear
a beep. Change the hour by pressing
the H button until the numbers
advance to the desired time. Change
the minute by pressing the M button
until the numbers advance to the
desired time.
TIME DISPLAY CLOCKBUTTON
H BUTTON R BUTTON M BUTTON
TIME DISPLAY
CLOCK BUTTON
H BUTTON R BUTTON M BUTTON
CONTINUED
Setting the Clock
133
Features
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, press the R
(RESET) button to set the clock back
to the previous hour. If the displayed
time is after the half hour, pressing R
sets the clock forward to the
beginning of the next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
When you are finished, press the
CLOCK button again.Setting the Clock13410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

1. Make sure the engine and radiatorare cool.
2. Relieve any pressure in the cooling system by turning the radiator cap
counterclockwise, without
pressing down.
3. Remove the radiator cap by pushing down and turning
counterclockwise. 4. The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pour the coolant slowly and
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
5. Put the radiator cap back on and tighten it fully.
6. Pour coolant into the reserve tank. Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle's
cooling system. They may not be
compatible with the coolant or
engine components. Windshield Washers
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
Check the reservoir's fluid level by
removing the cap and looking at the
level gauge attached to the cap.
RADIATOR CAP
LEVEL GAUGE
CONTINUED
Engine Coolant, Windshield Washers
197
Maintenance
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

5. Install the new bulb into the hole,making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
6. Install the rubber seal over the back of the headlight assembly.
Make sure one of the three arrows
on the rubber seal is facing up; it is
marked ‘‘
’’.
7. Push the electrical connector onto the new bulb. Make sure it is
connected securely. Turn on the
headlights to test the new bulb.
8. (Driver's side) Install the front end of the air
intake duct. Replacing a Daytime Running
Light Bulb

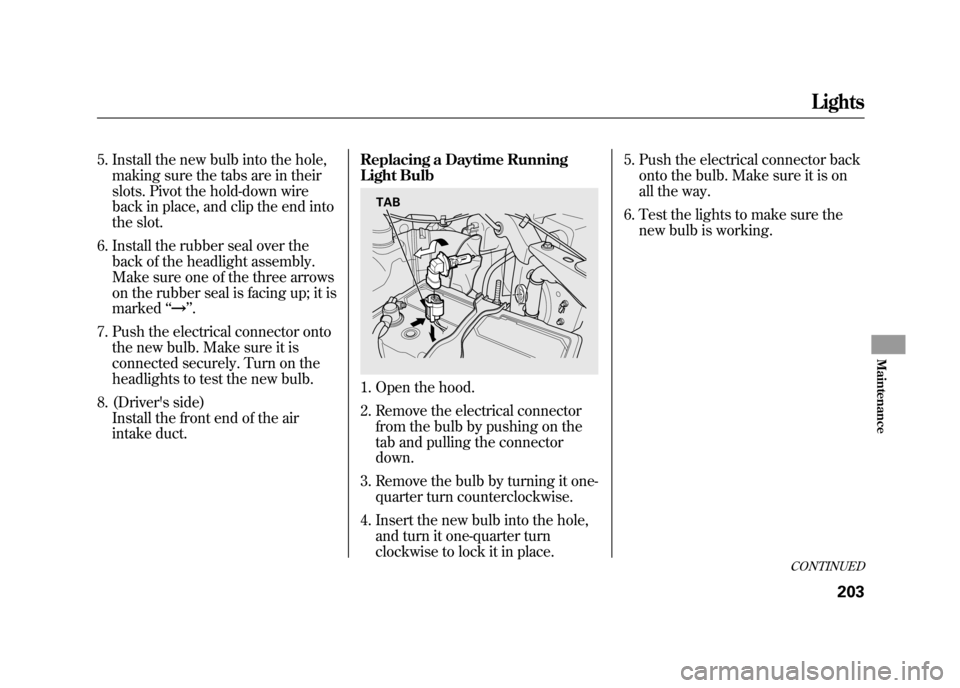

1. Open the hood.
2. Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
3. Remove the bulb by turning it one- quarter turn counterclockwise.
4. Insert the new bulb into the hole, and turn it one-quarter turn
clockwise to lock it in place. 5. Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
6. Test the lights to make sure the new bulb is working.
TAB
CONTINUED
Lights
203
Maintenance
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
