INTERIOR FUSE BOXNo.Amps. Circuits Protected1 － Not Used
2 10 A Rear Accessory Power Socket
3 10 A Daytime Running Lights/ TPMS
4 10 A ACG
5 － Not Used
No. Amps.
Circuits Protected6 7.5 A Power Window Relay
7 20 A AMP
ꭧ
8 7.5 A Accessory, Radio
9 10 A Rear Wiper
10 7.5 A Meter
11 － Not Used
No. Amps.
Circuits Protected12 7.5 A Daytime Running Lights
13 10 A SRS
14 10 A Remote Control Mirrors
15 20 A LAF Heater
16 15 A Ignition Relay
17 15 A Fuel Pump
18 15 A Front Accessory Power
Socket
19 7.5 A Turn Signal Lights
20 20 A Front Wiper
21 － Not Used
22 20 A Passenger's Power Window
23 20 A Driver's Power Window
24 － Not Used
25 － Not Used
ꭧ : If equipped
Fuse Locations24210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

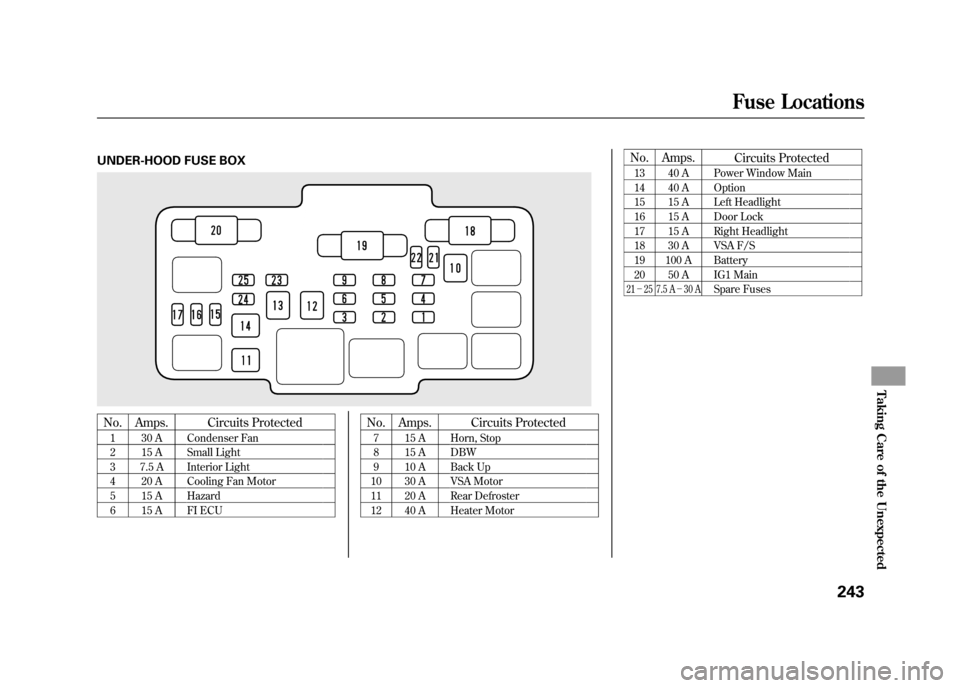

UNDER-HOOD FUSE BOXNo. Amps.Circuits Protected1 30 A Condenser Fan
2 15 A Small Light
3 7.5 A Interior Light
4 20 A Cooling Fan Motor
5 15 A Hazard
6 15 A FI ECU
No. Amps. Circuits Protected7 15 A Horn, Stop
8 15 A DBW
9 10 A Back Up
10 30 A VSA Motor
11 20 A Rear Defroster
12 40 A Heater Motor
No. Amps. Circuits Protected13 40 A Power Window Main
14 40 A Option
15 15 A Left Headlight
16 15 A Door Lock
17 15 A Right Headlight
18 30 A VSA F/S
19 100 A Battery
20 50 A IG1 Main21－ 25 7.5 A －30 A
Spare Fuses
Fuse Locations
243
