Check your brakes af ter driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Be extra
cautious and alert in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Your vehicle is equipped with f ront
disc brakes. The brakes on the rear
wheels are drum. A power assist
helps reduce the ef f ort needed on
the brake pedal. The anti-lock brake
system (ABS) helps you retain
steering control when braking very
hard.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by taking your f oot of f the
accelerator and downshif ting to a
lower gear. Resting your f oot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their ef f ectiveness.
It also keeps your brake lights on all
the time, conf using drivers behind
you.
If the f ront brake pads need
replacing, you will hear a distinctive,
metallic screeching sound when you
apply the brake pedal. If you do not
have the brake pads replaced, they
will screech all the time. It is normal
f or the brakes to occasionally squeal
or squeak when you apply them.
Braking System
Braking System Design
Brake Pad Wear Indicators
Driving
161

This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer. This section also includes
instructions on how to read the
maintenance minder messages on
the information display, a
maintenance record, and instructions
for simple maintenance tasks you
may want to take care of yourself. ......................
Maintenance Saf ety .166
....................
Maintenance Minder .167
....................
Maintenance Record .174
..............................
Fluid Locations .176
........................
Adding Engine Oil .177
Changing the Engine Oil
....................................
and Filter .178
..............................
Engine Coolant .180
....................
Windshield Washers .182
.......................
Transmission Fluid .183
..........
Automatic Transmission .183
..............
Manual Transmission .184
................
Brake and Clutch Fluid .185
.............................................
Lights .186
................
Cleaning the Seat Belts .192
.....................................
Floor Mats .192
..............................
Audio Antenna .193
..................
Dust and Pollen Filter .194
.................................
Wiper Blades .194
...........................................
Wheels .197
...............................................
Tires .197
...................
Checking the Battery .203
.............................
Vehicle Storage .204
245
Maintenance
Maint enance
165

µµµ
µ
µ
µ
Ì Engine
oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and licen se plate lights monthly.
See page .
Youshouldcheckthefollowing
items
at the specified interval s. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed. U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the
inf ormation display.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability. 135
136
183 185
199
186
Maintenance Minder
Owner’s Maintenance Checks Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certif ied’’ to EPA standards.
172

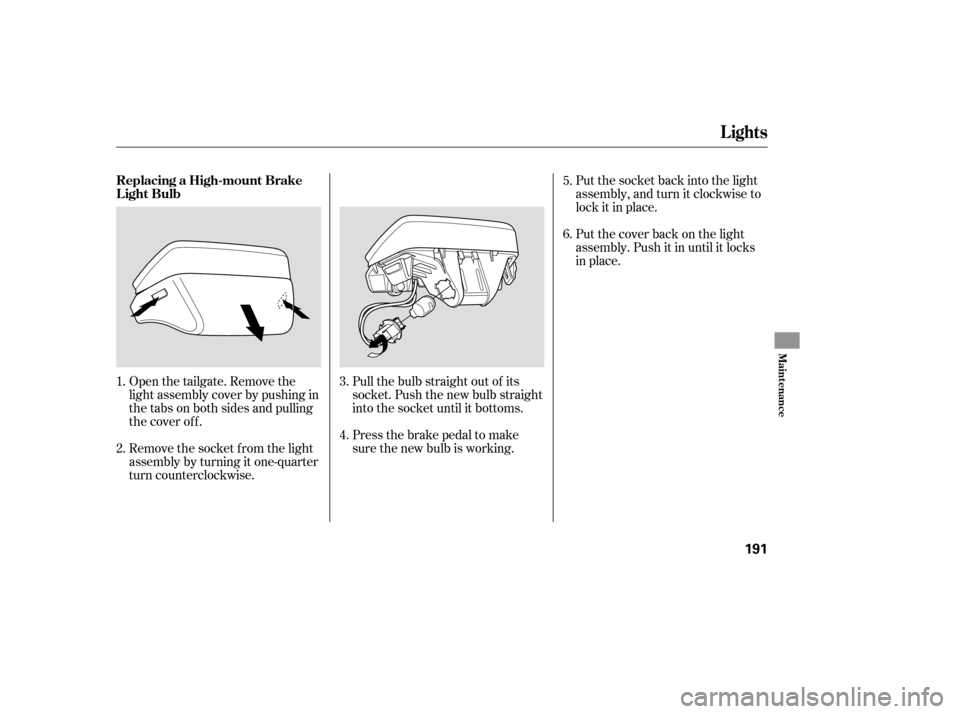

Open the tailgate. Remove the
light assembly cover by pushing in
the tabs on both sides and pulling
the cover of f .
Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.Put the socket back into the light
assembly, and turn it clockwise to
lock it in place.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Press the brake pedal to make
sure the new bulb is working. Put the cover back on the light
assembly. Push it in until it locks
in place.
1.
2. 3.
4.5.
6.
Lights
Replacing a High-mount Brake
Light Bulb
Maint enance
191

Fill the f uel tank.
Change the engine oil and f ilter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors. Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the f ront and rear wiper
blade arms with a f olded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Pref erably, do this once a
month.
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic).
Vehicle Storage
204

If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire. Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.Open the tailgate. Raise the cargo
area f loor lid by lif ting it up with
the strap that has a loop. To keep
the f loor lid open, hook the loop of
the strap to a leg of the rear center
head restraint.
Take the tool kit out of the spare
tire.
4. 3.
2. 1.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
207
JACK STRAP
TOOL KIT
SPARE
TIRE
LOOP
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

Although this seems like a simple
procedure, you should take several
precautions.
You cannot start your vehicle with an
automatic transmission by pushing
or pulling it.The numbers in the illustration show
you the order to connect the jumper
cables.
Turn of f all the electrical
accessories: heater, A/C (if
equipped), audio system, lights,
etc. Put the transmission in neutral
(M/T) or Park (A/T), and set the
parking brake. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
1.
2.To Jump Start Your Vehicle:
Jump Starting
214
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.

However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
Slow
down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it to wed and repaired as
soon as possible (see
on page ).
The
brake system indicator normally
comes on when you turn the ignition
switch to the ON (II) position, and as
a reminder to check the parking
brake. It will stay on if you do not
fully release the parking brake.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ). If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads/shoes. 185
226Emergency
Towing
Brake System Indicator
220
Canada
U.S.

µµµ
Î
Î
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î Î
Î Î
Specifications
T
echnical Inf ormat ion
233
Air Conditioning
Battery Lights Fuses
Tires Alignment
HFC-134a
(R-134a)
14.1 15.9 oz (400 450 g)
SP-10
12 V
12 V 60/55
W
21 W
12 V
12
V
12
V
12
V
12
V
12
V
12
V
12
V
12
V
21 W
5W
Refrigerant
type
Charge quantity
Lubricant type
Capacity 12
V
Headlights
Front
turn signal lights
Parking lights/side marker
lights
Fog lights
Rear turn signal lights
Stop/Taillights
Back-up lights
License plate lights
Ceiling light
Cargo area Light
Taillights
High-mount brake light 8W 3CP
21
W
21/5
W
21
W
5W
55
W
3CP See
page 224 or the fuse label
attached to the back of the driver’s
coin tray.
Interior
Under-hood
0.0in(0mm)
0.10 in (2.5 mm)
0°
1°30’
3°45’
Size
Pr essure P175/65R14
81S
P195/55R15 84H
T115/70D14 88M
T125/70D14 93M
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
Toe-in
Camber
Caster
See page225or the fuse box
cover.
12 V 40 AH/20 HR 34 AH/5 HR
12 V 12 V 32 AH/5 HR Front
Rear
Front
Rear
Front
High/Low
(Amber)
1:
2:
(HB2)
(Amber) (H11)
Front/Rear
Spare
Front
Rear
Spare
All models except Sport
Sport model
(Amber)
1 2
2 1

If you take your vehicle f or a state
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle f or retesting by
doing the f ollowing.Make sure the gas tank is nearly,
but not completely, f ull (around
3/4). Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 5th (M/T). Do not usethecruisecontrol.Whentraffic
allows, drive f or 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this f or a continuous 90
seconds because of traf f ic
conditions, drive f or at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
Keep the vehicle in Park
(automatic transmission) or
neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4of thescale(about3minutes). Make sure the vehicle has been
parked with the engine of f f or 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F.
If the testing f acility determines the
readiness codes are still not set, see
your dealer.Stop the vehicle, turn of f the
ignition switch, and leave it of f f or
30 minutes.
T esting of Readiness Codes
State Emissions T esting
240
