If you see steam and/or spray
coming f rom under the hood, turn
of f the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
The high temperature indicator
should be of f under most conditions.
If the engine coolant temperature
gets higher than normal, the
indicator will blink. If it stays on, you
should determine the reason (hot
day, driving up a steep hill, etc.).
If the vehicle overheats, you should
take immediate action. The only
indicationmaybethehigh
temperature indicator blinking or
remaining on. Or you may see steam
or spray coming f rom under the
hood.
If you do not see steam or spray,
leave the engine running, and
check the high temperature
indicator. If the high heat is due to
overloading, the engine should
start to cool down almost
immediately. If it does, wait until
the high temperature indicator
goes of f , then continue driving.
If the high temperature indicator
stays on, turn of f the engine.
Saf ely pull to the side of the road.
Put the transmission in neutral
(manual) or Park (automatic), and
set the parking brake. Turn of f all
accessories, and turn on the
hazard warning indicators.
1.
2. 3.
4.
If theEngineOverheats
228
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the high temperature
indicator on can cause serious damage
to your engine.
\f—\f—y\fy
(
\fy\fy
2008 Fit

Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (seeon page ).
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off. Start the engine, and set the
temperature control dial to
maximum heat. Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the high
temperature indicator goes of f
bef ore checking the radiator. Put the radiator cap back on
tightly. Run the engine, and check
the high temperature indicator. If
it begins to blink or comes on
again, the engine needs repair
(see on page
).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
9.
8.
7.
6.
5.
10.
11.
238
238
Emergency
Towing
Emergency T owing
If theEngineOverheats
T aking Care of t he Unexpect ed
229
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
\f—\f—y\f\fy
(
\fy\fy
2008 Fit

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning lights.
This indicator should never
come on when the engine is
running. If it starts f lashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page).
1.
2.
4.
3.
139
187
238
L ow Oil Pressure Indicator Charging System Indicator
Emergency T owing
L ow Oil Pressure Indicator, Charging System Indicator
230
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
\f—\f—y\f
y
(
\fy\fy
2008 Fit

If your vehicle has an automatic
transmission, the malf unction
indicator lamp may also come on
with the ‘‘D’’ indicator.
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the inf ormation display. Tighten the
cap until it clicks at least once.
Tightening the cap will not turn the
indicator of f immediately; it can take
several days of normal driving. If the indicator comes on repeatedly,
even though it may go of f as you
continue driving, have your vehicle
checked by a dealer as soon as
possible.
If this indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make surethese codes are set. If they are not
set, the test cannot be completed.
If the battery in your vehicle has
been disconnected or gone dead,
these codes are erased. It takes at
least three days of driving under
various conditions to set the codes
again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malf unction indicator lamp will
come on f or 20 seconds. If it then
goes of f , the readiness codes are set.
If it blinks f ive times, the readiness
codes are not set. If possible, do not
take your vehicle f or an emissions
test until the readiness codes are set.
Refer to for
more information (see page ).
254
Malf unction Indicator L amp
Readiness Codes Emissions T esting
T aking Care of t he Unexpect ed
231
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties.
\f—\f—y\f
y
(
\fy\fy
2008 Fit

However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (seeon page ). If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
The brake system indicator (red)
normallycomesonwhenyouturn
the ignition switch to the ON (II)
position, and as a reminder to check
the parking brake. It will stay on if
you do not f ully release the parking
brake.
If the brake system indicator (red)
comes on while driving, the brake
f luid level is probably low. Press
lightly on the brake pedal to see if it
f eels normal. If it does, check the
brake f luid level the next time you
stop at a service station (see page
).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads/shoes. 195238
Emergency
Towing
Brake System
Indicator (Red)
Brake System Indicator
232
U.S.
Canada
\f—\f—y\fy
(
\fy\fy
2008 Fit

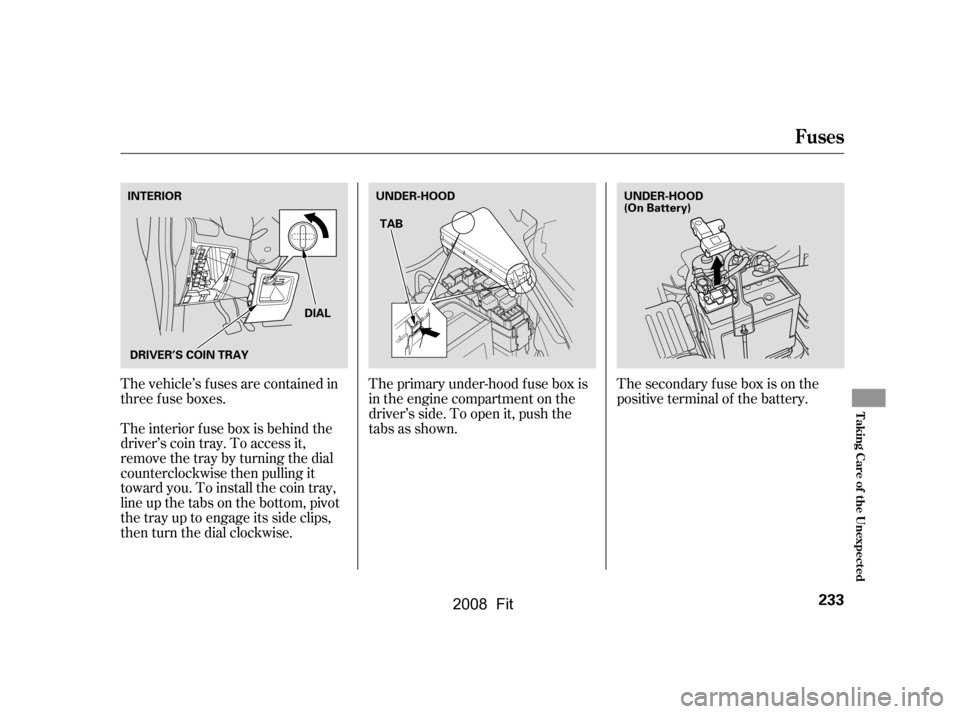

The vehicle’s f uses are contained in
threefuseboxes.The primary under-hood f use box is
in the engine compartment on the
driver’s side. To open it, push the
tabs as shown.
The interior f use box is behind the
driver’s coin tray. To access it,
removethetraybyturningthedial
counterclockwise then pulling it
toward you. To install the coin tray,
line up the tabs on the bottom, pivot
the tray up to engage its side clips,
then turn the dial clockwise. The secondary f use box is on the
positive terminal of the battery.
Fuses
T aking Care of t he Unexpect ed
233
TAB
INTERIOR
DIALUNDER-HOOD UNDER-HOOD
(On Battery)
DRIVER’S COIN TRAY
\f—\f—y\fy
(
\fy\fy
2008 Fit

If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .

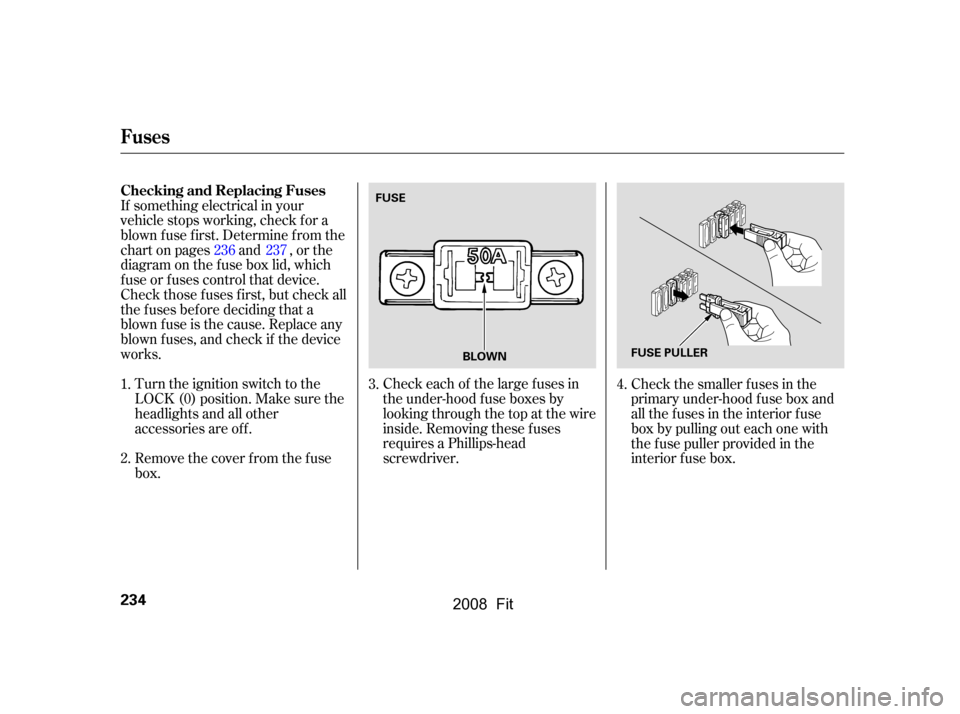

Remove the cover f rom the f use
box. Check each of the large f uses in
the under-hood f use boxes by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head
screwdriver.
Check the smaller f uses in the
primary under-hood f use box and
all the f uses in the interior f use
box by pulling out each one with
the f use puller provided in the
interior f use box.
3.
1.
2. 4.
236237
Fuses
Checking and Replacing Fuses
234

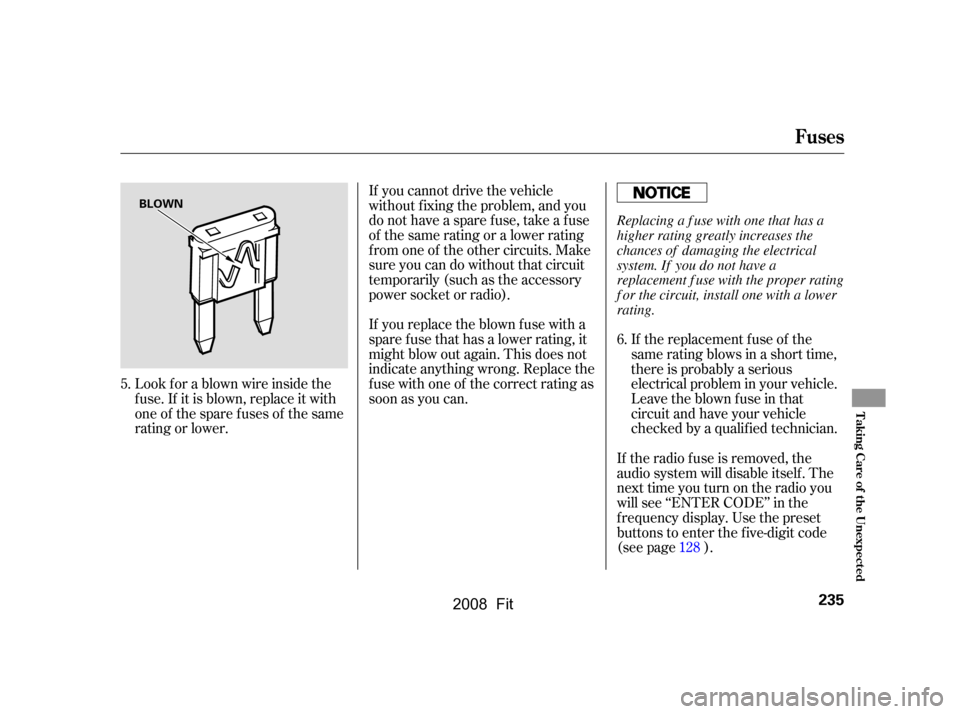

FUSE
BLOWN FUSE PULLER
\f—\f—y\fy
(
\fy\fy
2008 Fit

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied technician.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the five-digit code
(see page ).
6.
5.
128
Fuses
T aking Care of t he Unexpect ed
235
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—y\f
y
(
\fy\f\fy
2008 Fit

ÎÎ
Î
Î
Î
µ
µ
µ
µ
µ
µ
ÎÎ
No. Circuits Protected No.
Amps. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
Back Up Light
Not Used
MET ER
Turn Light
Not Used
Front Wipers
SRS
Daytime Running Light
Rear Defogger 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
10 A
10 A
10 A
30 A
10 A
(7.5 A) 20 A 7.5 A
15 A
10 A
10 A
15 A
20 A
20 A
20 A
(7.5 A) (10 A)
(20 A) 10 A
10 A
7.5 A
7.5 A 15 A
(20 A) 20 A
7.5 A 15 A
15 A HAC
Fuel Pump
Rear Wiper
SRS
IGP
Left Rear Power Window
Right Rear Power Window
Right Front Power Window
TPMS
Daytime Running Light
Not Used
Not Used
Fog Light
Small Light
LAF
Not Used
ABS
Radio
ACC Socket
Power Door Lock
Driver’s Power Window
Not Used
LAF
DBW
Ignition Coil
1 : If equipped 2 : Canadian models
2 1
2
1
1
Fuse Locations
236

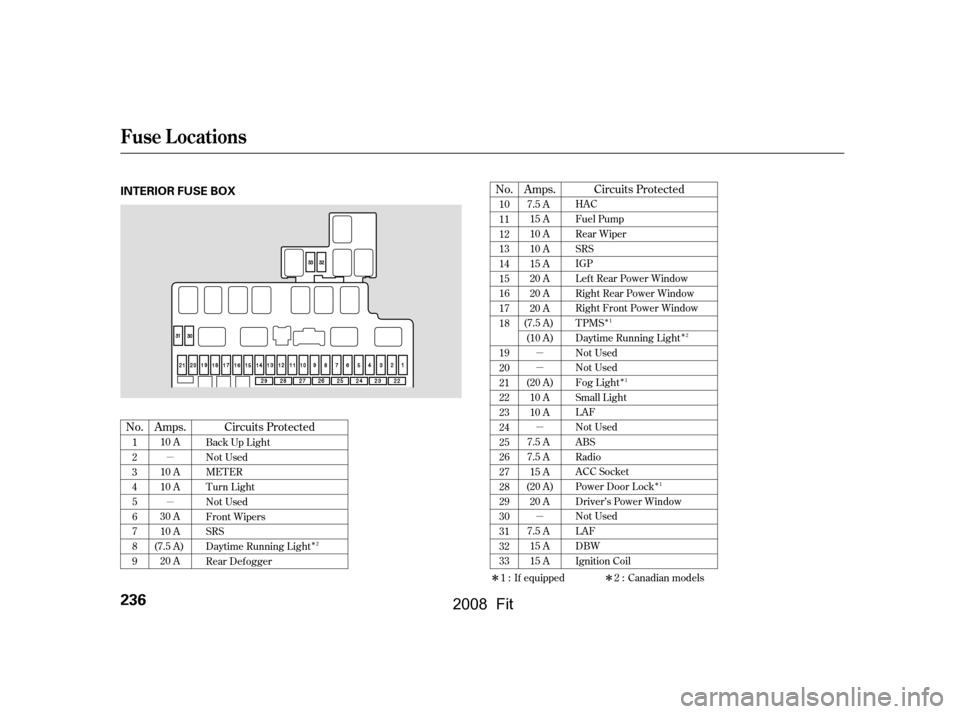

INTERIOR FUSE BOX
\f—\f—y\fy
(
\fy\f
y
2008 Fit

Î
Î
No.Amps. Circuits Protected No. Amps.
Amps. Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
80 A Battery 9
10
11
12
13
14
15
16 30 A
30 A
30 A
20 A
20 A
10 A
30 A
15 A
80 A
60 A
50 A
30 A
40 A
40 A
(30 A) 10 A Battery
EPS
Ignition
ABS
Blower Relay
Power Window
(HAC Option)
Back Up Small Light
Cooling Fan
Condenser Fan, MG Clutch
Right Headlight
Left Headlight
Hazard
ABS F/S
Horn, Stop
: If equipped
Fuse Locations
T aking Care of t he Unexpect ed
237

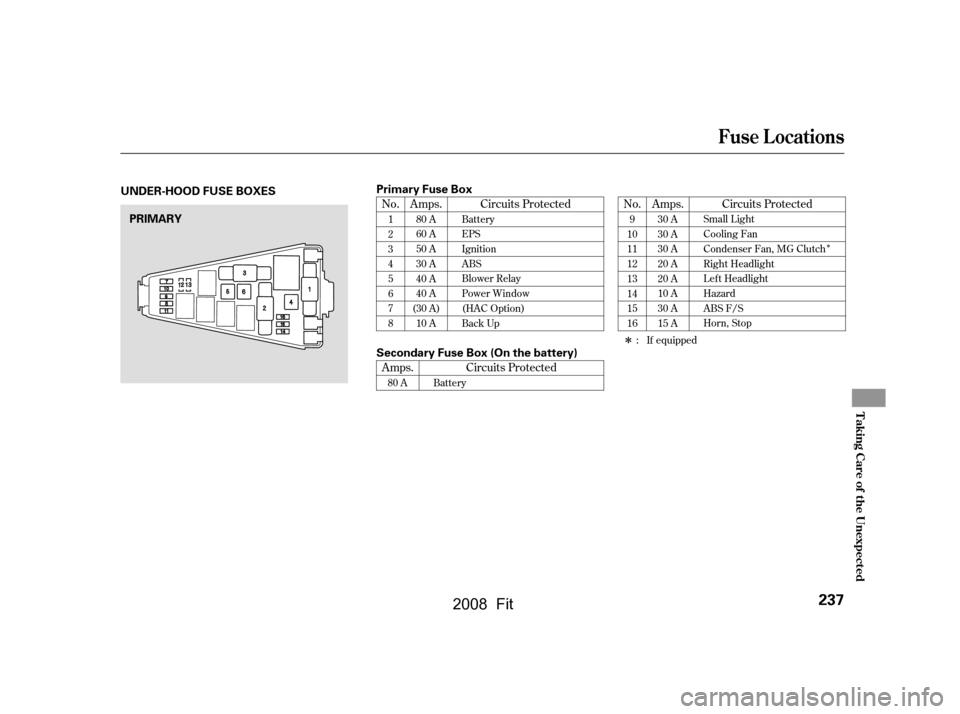

Primary Fuse Box
PRIMARY
Secondary Fuse Box (On the battery)
UNDER-HOOD FUSE BOXES
\f—\f—y\f\fy
(
\fy\fy
2008 Fit
