HONDA FIT 2012 2.G Owners Manual

260Handling the Unexpected

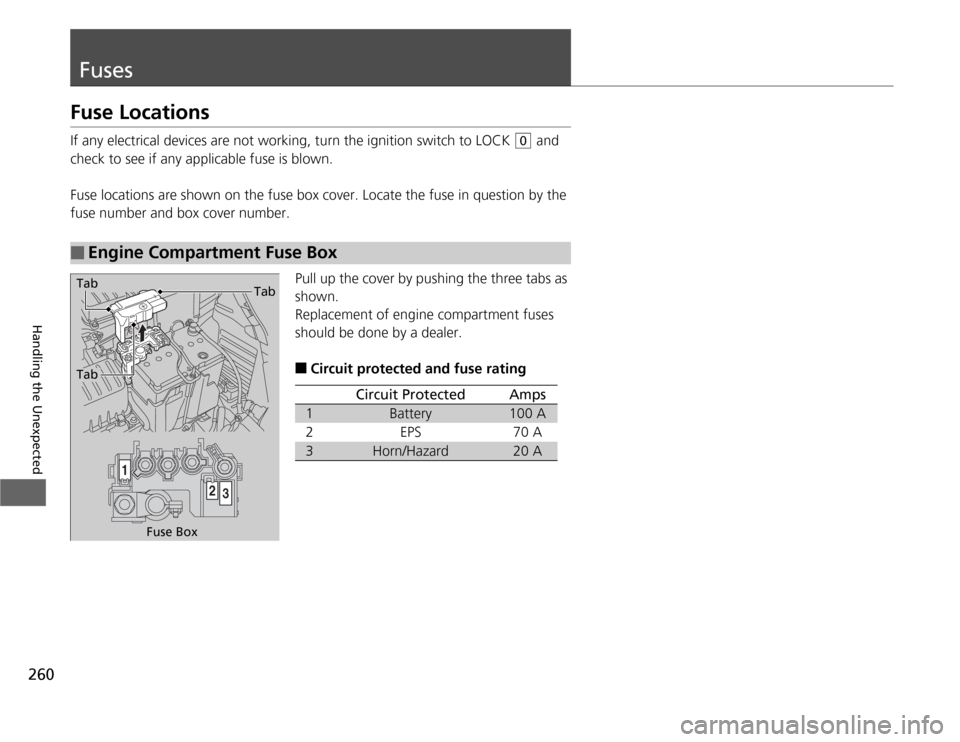

FusesFuse LocationsIf any electrical devices are not working, turn the ignition switch to LOCK
(0
and
check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
Pull up the cover by pushing the three tabs as
shown.
Replacement of engine compartment fuses
should be done by a dealer.
■
Circuit protected and fuse rating
■
Engine Compartment Fuse Box
Fuse BoxTab
TabTab
Circuit Protected
Amps
1
Battery
100 A
2
EPS
70 A
3
Horn/Hazard
20 A

261
uuFusesuFuse Locations
Handling the Unexpected

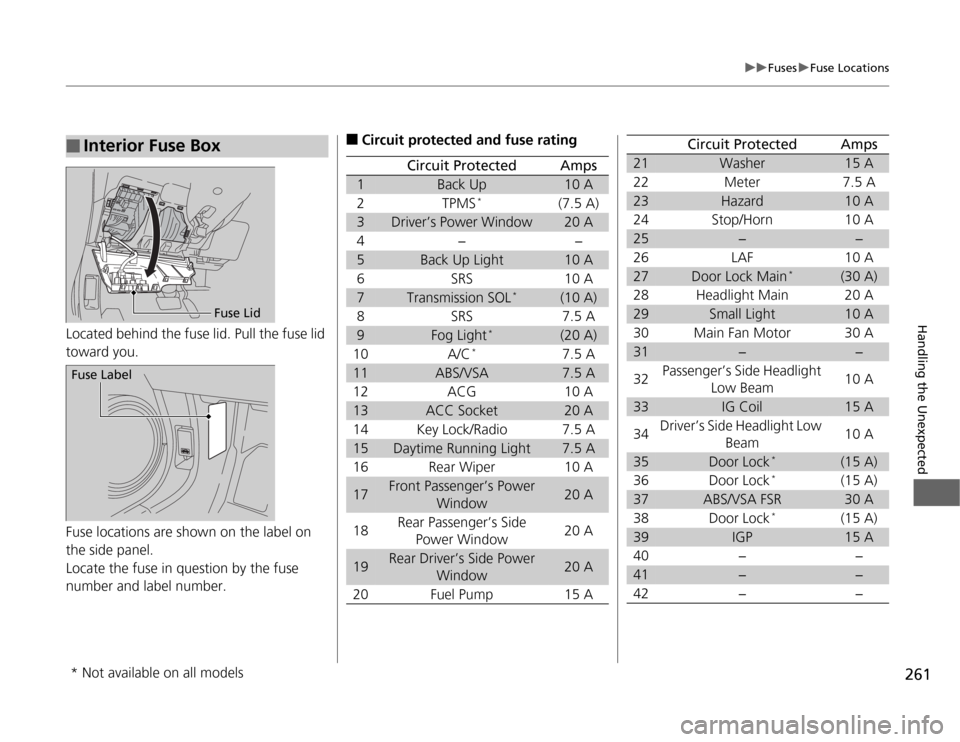

Located behind the fuse lid. Pull the fuse lid
toward you.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■
Interior Fuse Box
Fuse Lid
Fuse Label
■
Circuit protected and fuse rating
Circuit Protected
Amps
1
Back Up
10 A
2
TPMS
*
(7.5 A)
3
Driver’s Power Window
20 A
4
−
−
5
Back Up Light
10 A
6
SRS
10 A
7
Transmission SOL
*
(10 A)
8
SRS
7.5 A
9
Fog Light
*
(20 A)
10
A/C
*
7.5 A
11
ABS/VSA
7.5 A
12
ACG
10 A
13
ACC Socket
20 A
14
Key Lock/Radio
7.5 A
15
Daytime Running Light
7.5 A
16
Rear Wiper
10 A
17
Front Passenger’s Power
Window
20 A
18
Rear Passenger’s Side
Power Window
20 A
19
Rear Driver’s Side Power
Window
20 A
20
Fuel Pump
15 A
21
Washer
15 A
22
Meter
7.5 A
23
Hazard
10 A
24
Stop/Horn
10 A
25
−
−
26
LAF
10 A
27
Door Lock Main
*
(30 A)
28
Headlight Main
20 A
29
Small Light
10 A
30
Main Fan Motor
30 A
31
−
−
32
Passenger’s Side Headlight
Low Beam
10 A
33
IG Coil
15 A
34
Driver’s Side Headlight Low
Beam
10 A
35
Door Lock
*
(15 A)
36
Door Lock
*
(15 A)
37
ABS/VSA FSR
30 A
38
Door Lock
*
(15 A)
39
IGP
15 A
40
−
−
41
−
−
42
−
−
Circuit Protected
Amps
* Not available on all models

262
uuFusesuFuse Locations
Handling the Unexpected

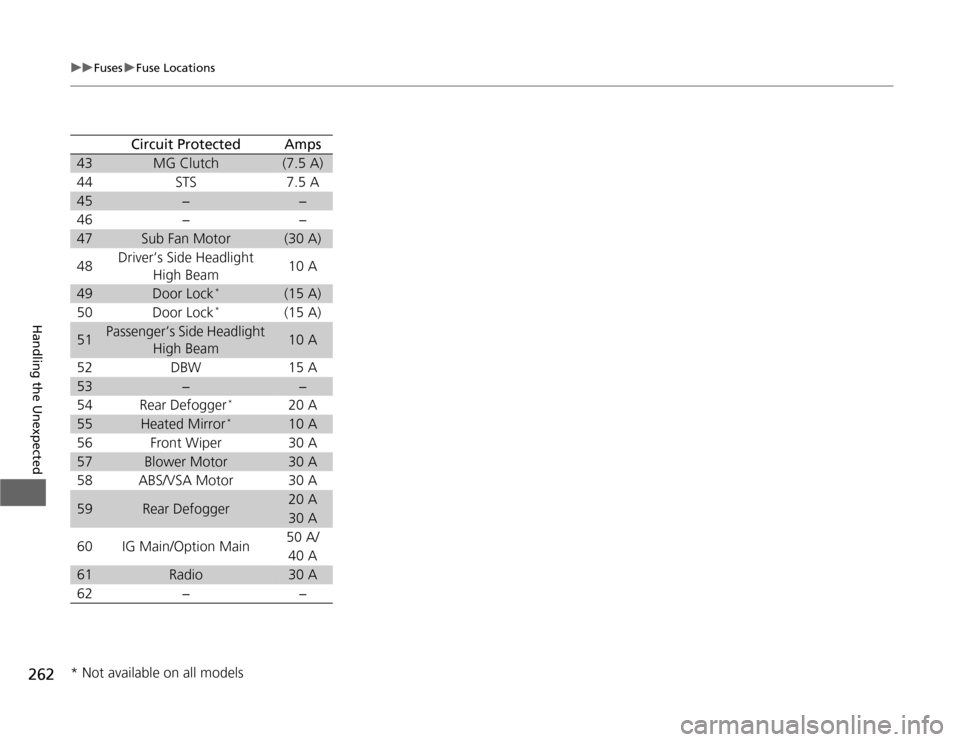

43
MG Clutch
(7.5 A)
44
STS
7.5 A
45
−
−
46
−
−
47
Sub Fan Motor
(30 A)
48
Driver’s Side Headlight
High Beam
10 A
49
Door Lock
*
(15 A)
50
Door Lock
*
(15 A)
51
Passenger’s Side Headlight
High Beam
10 A
52
DBW
15 A
53
−
−
54
Rear Defogger
*
20 A
55
Heated Mirror
*
10 A
56
Front Wiper
30 A
57
Blower Motor
30 A
58
ABS/VSA Motor
30 A
59
Rear Defogger
20 A30 A
60
IG Main/Option Main
50 A/40 A
61
Radio
30 A
62
−
−
Circuit Protected
Amps
* Not available on all models

263
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

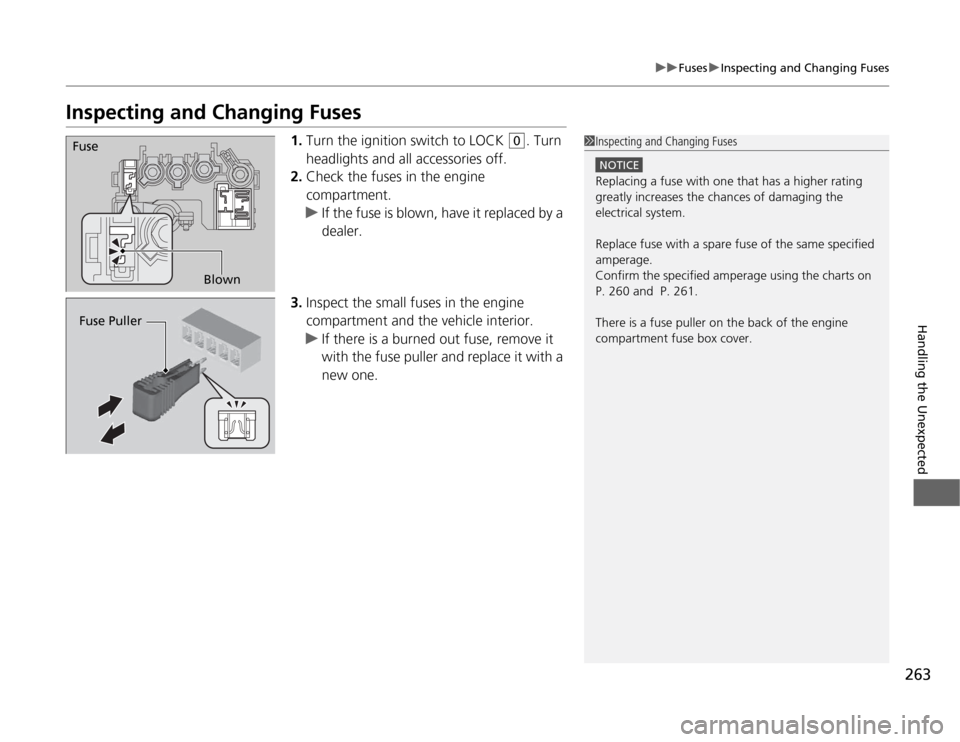

Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK
(0
. Turn
headlights and all accessories off.
2.Check the fuses in the engine
compartment.
uIf the fuse is blown, have it replaced by a
dealer.
3.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 260 and P. 261.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Fuse
BlownFuse Puller

264Handling the Unexpected

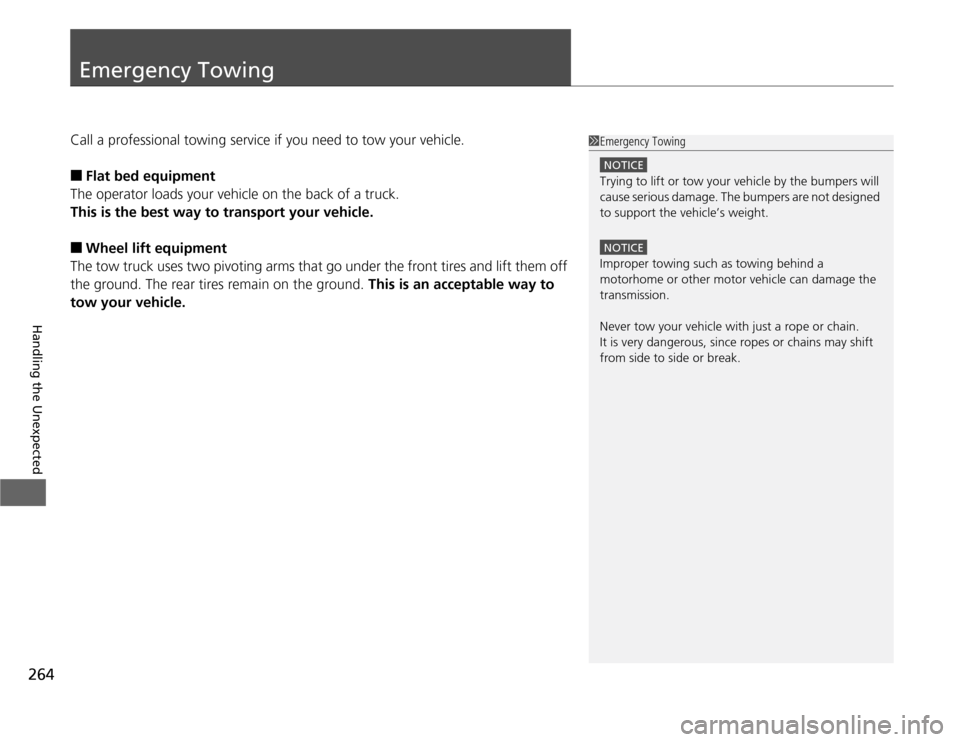

Emergency TowingCall a professional towing service if you need to tow your vehicle.■
Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■
Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency Towing
NOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

Continued
265
uuEmergency Towingu
Handling the Unexpected

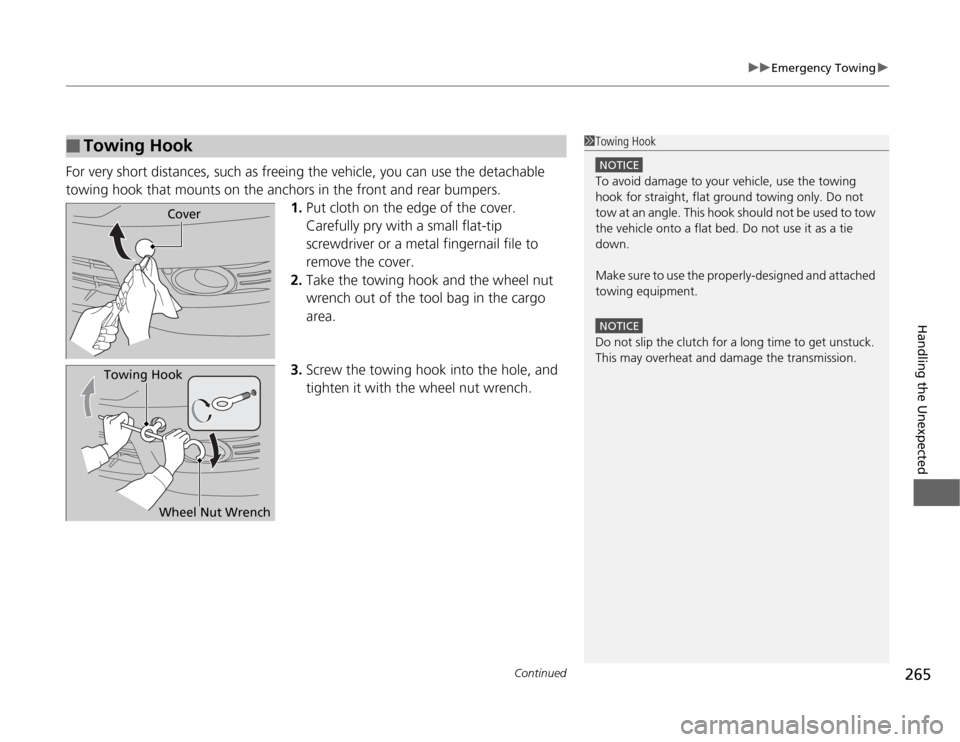

For very short distances, such as freeing the vehicle, you can use the detachable
towing hook that mounts on the anchors in the front and rear bumpers.
1.Put cloth on the edge of the cover.
Carefully pry with a small flat-tip
screwdriver or a metal fingernail file to
remove the cover.
2.Take the towing hook and the wheel nut
wrench out of the tool bag in the cargo
area.
3.Screw the towing hook into the hole, and
tighten it with the wheel nut wrench.■
Towing Hook
1Towing Hook
NOTICETo avoid damage to your vehicle, use the towing
hook for straight, flat ground towing only. Do not
tow at an angle. This hook should not be used to tow
the vehicle onto a flat bed. Do not use it as a tie
down.
Make sure to use the properly-designed and attached
towing equipment.NOTICEDo not slip the clutch for a long time to get unstuck.
This may overheat and damage the transmission.
Cover
Towing Hook
Wheel Nut Wrench

uuEmergency Towingu
266Handling the Unexpected

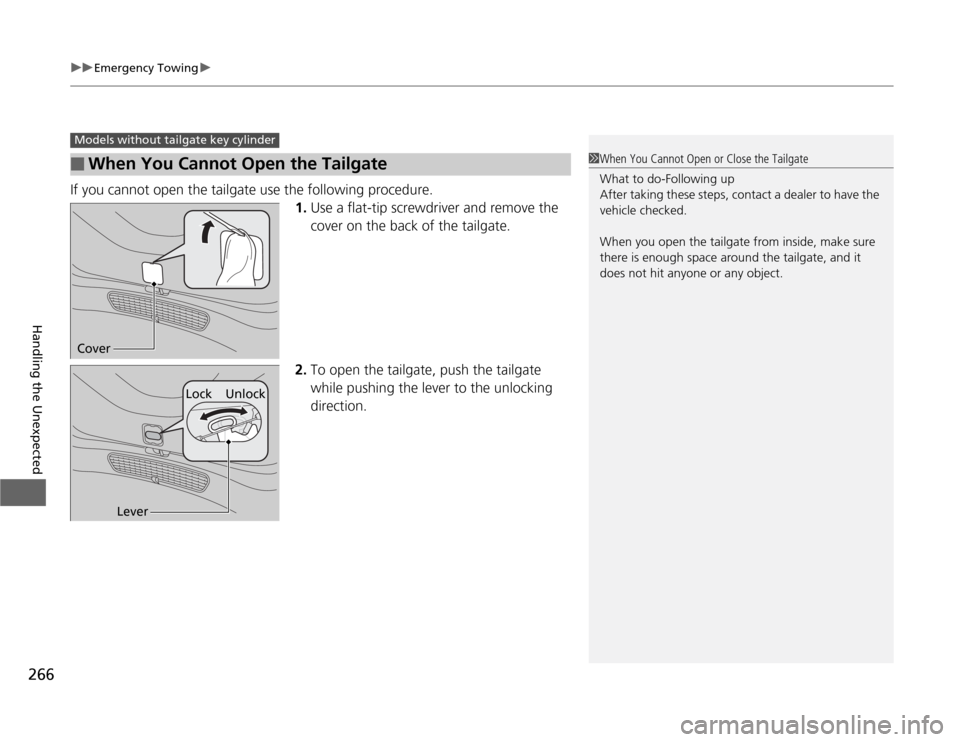

If you cannot open the tailgate use the following procedure.
1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
2.To open the tailgate, push the tailgate
while pushing the lever to the unlocking
direction.■
When You Cannot Open the Tailgate
Models without tailgate key cylinder
1When You Cannot Open or Close the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Lock Unlock

267

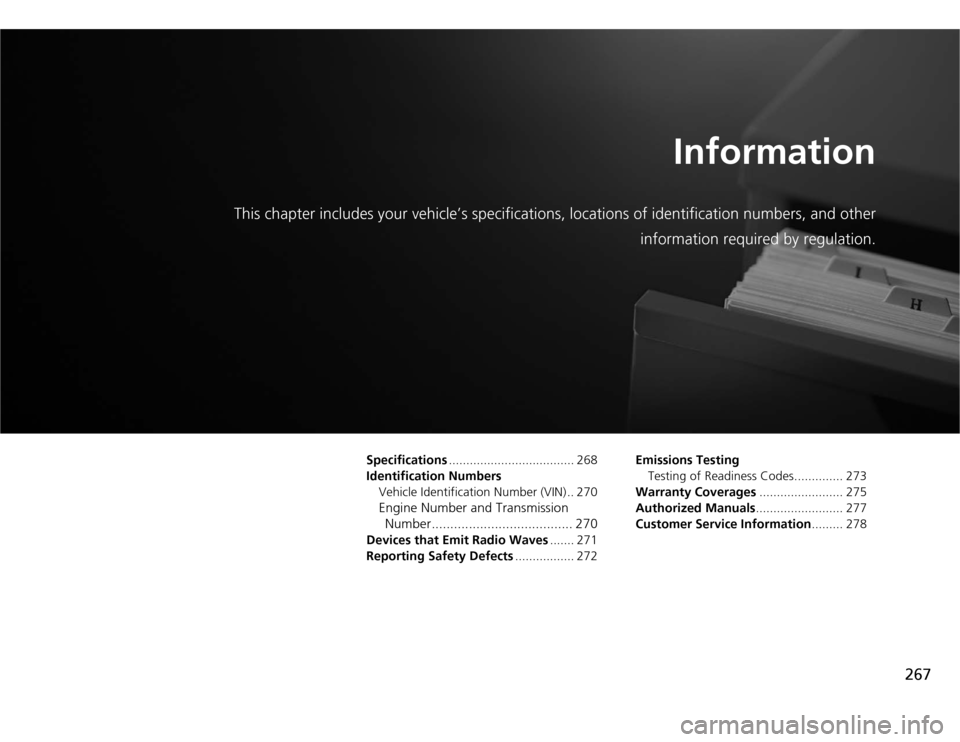

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 268
Identification Numbers
Vehicle Identification Number (VIN) .. 270
Engine Number and Transmission
Number...................................... 270
Devices that Emit Radio Waves....... 271
Reporting Safety Defects................. 272Emissions Testing
Testing of Readiness Codes.............. 273
Warranty Coverages........................ 275
Authorized Manuals......................... 277
Customer Service Information......... 278

268Information

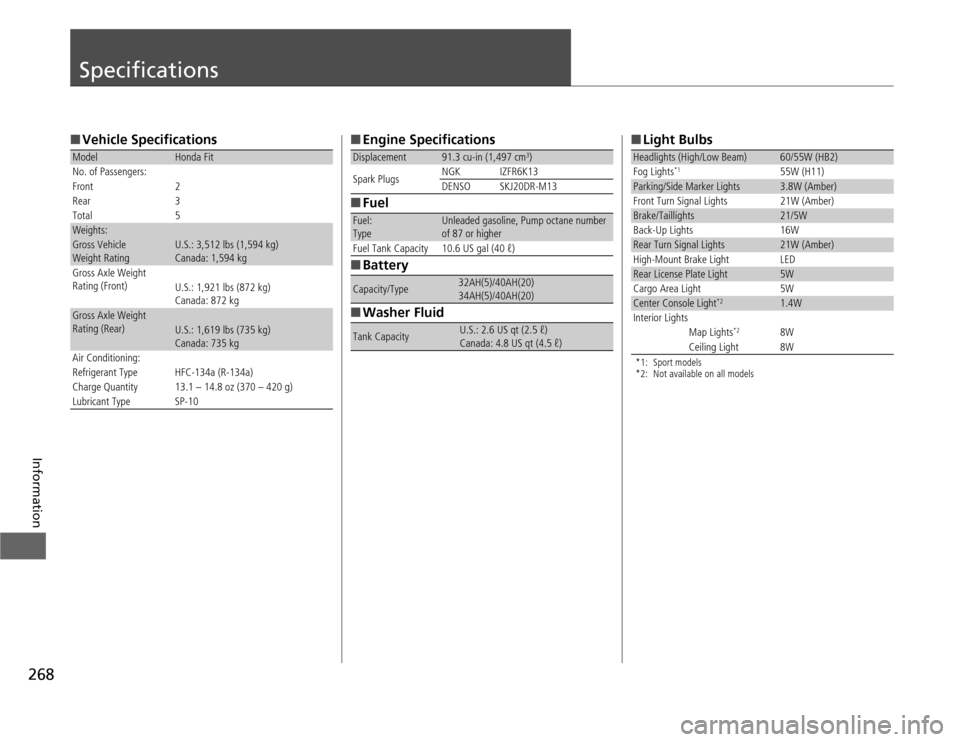

Specifications■Vehicle SpecificationsModel
Honda Fit
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,512 lbs (1,594 kg)
Canada: 1,594 kg
Gross Axle Weight
Rating (Front)
U.S.: 1,921 lbs (872 kg)
Canada: 872 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,619 lbs (735 kg)
Canada: 735 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.1 – 14.8 oz (370 – 420 g)
Lubricant Type SP-10
■Engine Specifications
■Fuel
■Battery
■Washer FluidDisplacement
91.3 cu-in (1,497 cm
3)
Spark PlugsNGK IZFR6K13
DENSO
SKJ20DR-M13
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 ℓ)
Capacity/Type
32AH(5)/40AH(20)
34AH(5)/40AH(20)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■Light Bulbs*1: Sport models
*2: Not available on all modelsHeadlights (High/Low Beam)
60/55W (HB2)
Fog Lights
*1
55W (H11)
Parking/Side Marker Lights
3.8W (Amber)
Front Turn Signal Lights 21W (Amber)
Brake/Taillights
21/5W
Back-Up Lights 16W
Rear Turn Signal Lights
21W (Amber)
High-Mount Brake Light LED
Rear License Plate Light
5W
Cargo Area Light 5W
Center Console Light
*2
1.4W
Interior Lights
Map Lights
*2
8W
Ceiling Light 8W

269
uuSpecificationsu
Information

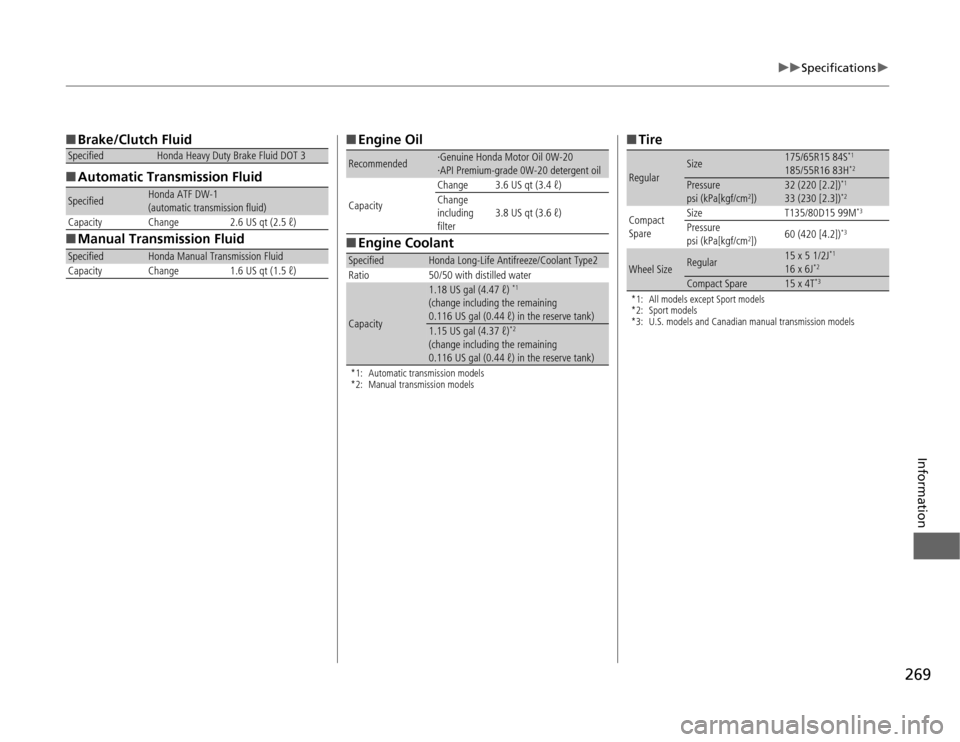

■Brake/Clutch Fluid
■Automatic Transmission Fluid
■Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.6 US qt (2.5 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 1.6 US qt (1.5 ℓ)
■Engine Oil
■Engine Coolant*1: Automatic transmission models
*2: Manual transmission modelsRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 3.6 US qt (3.4 ℓ)
Change
including
filter3.8 US qt (3.6 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.18 US gal (4.47 ℓ)
*1
(change including the remaining
0.116 US gal (0.44 ℓ) in the reserve tank)1.15 US gal (4.37 ℓ)
*2
(change including the remaining
0.116 US gal (0.44 ℓ) in the reserve tank)
■Tire*1: All models except Sport models
*2: Sport models
*3: U.S. models and Canadian manual transmission modelsRegular
Size
175/65R15 84S
*1
185/55R16 83H
*2
Pressure
psi (kPa[kgf/cm
2])
32 (220 [2.2])
*1
33 (230 [2.3])
*2
Compact
SpareSize T135/80D15 99M
*3
Pressure
psi (kPa[kgf/cm
2])60 (420 [4.2])
*3
Wheel Size
Regular
15 x 5 1/2J
*1
16 x 6J
*2
Compact Spare
15 x 4T
*3
