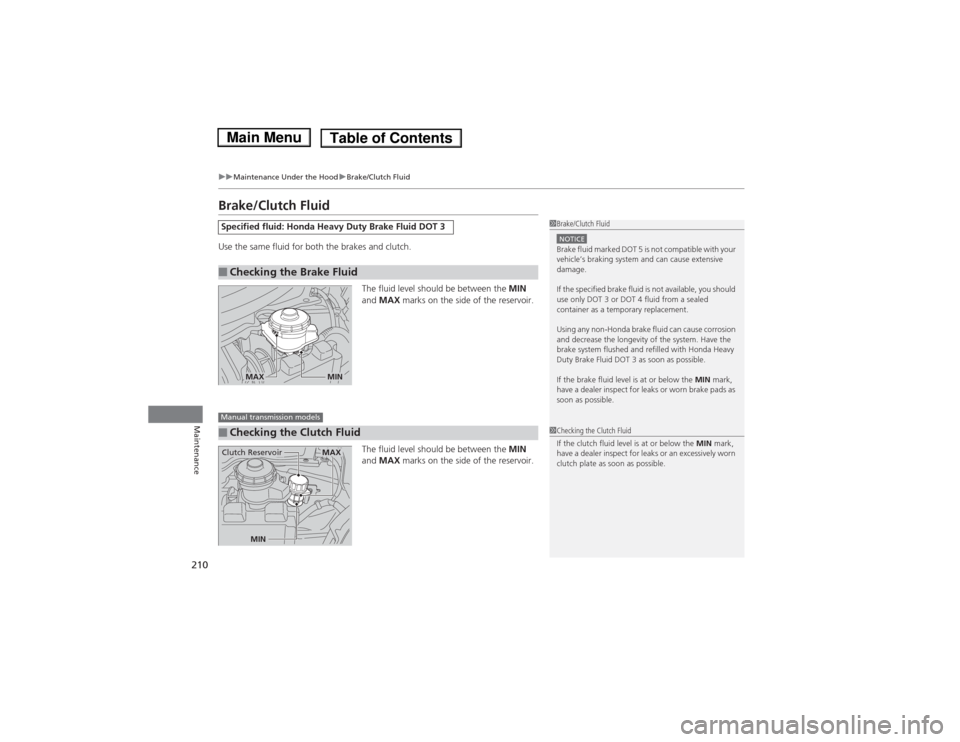

uuMaintenance Under the HooduBrake/Clutch Fluid
Maintenance
Brake/Clutch FluidUse the same fluid for both the brakes and clutch.
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.Specified fluid: Honda Heavy Duty Brake Fluid DOT 3■Checking the Brake Fluid
1Brake/Clutch FluidNOTICEBrake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for leaks or worn brake pads as
soon as possible.
MIN
MAX
■Checking the Clutch FluidManual transmission models
1Checking the Clutch Fluid
If the clutch fluid level is at or below the MIN mark,
have a dealer inspect for leaks or an excessively worn
clutch plate as soon as possible.
Clutch Reservoir
MIN
MAX

211
uuMaintenance Under the HooduRefilling Window Washer Fluid
Maintenance

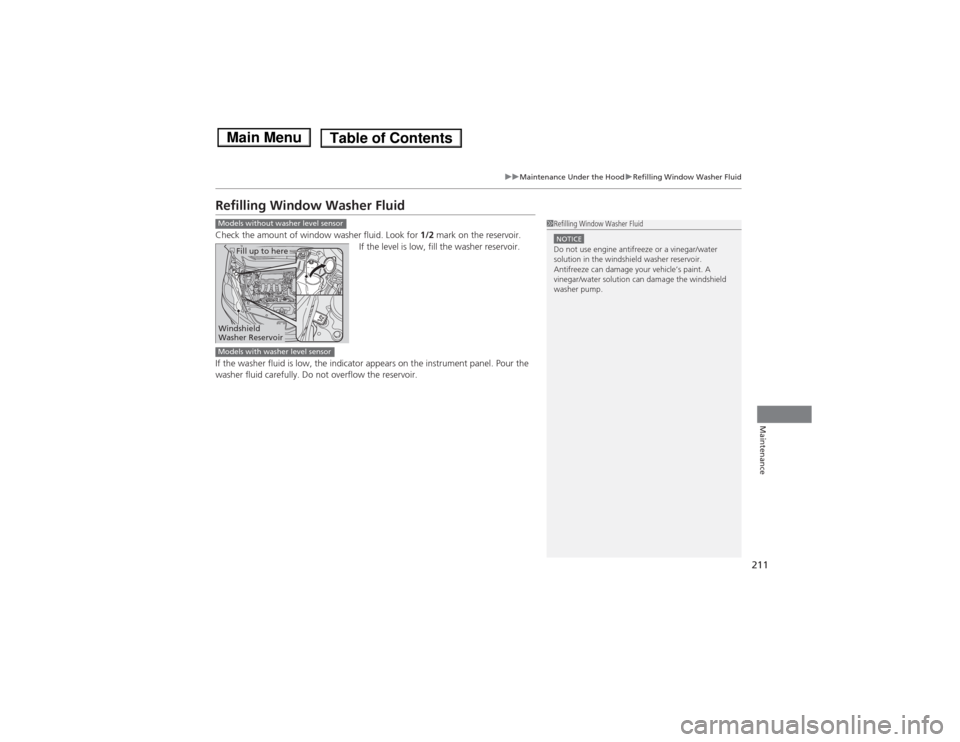

Refilling Window Washer FluidCheck the amount of window washer fluid. Look for 1/2 mark on the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the indicator appears on the instrument panel. Pour the
washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer FluidNOTICEDo not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Models without washer level sensorWindshield
Washer Reservoir
Fill up to here
Models with washer level sensor

212Maintenance

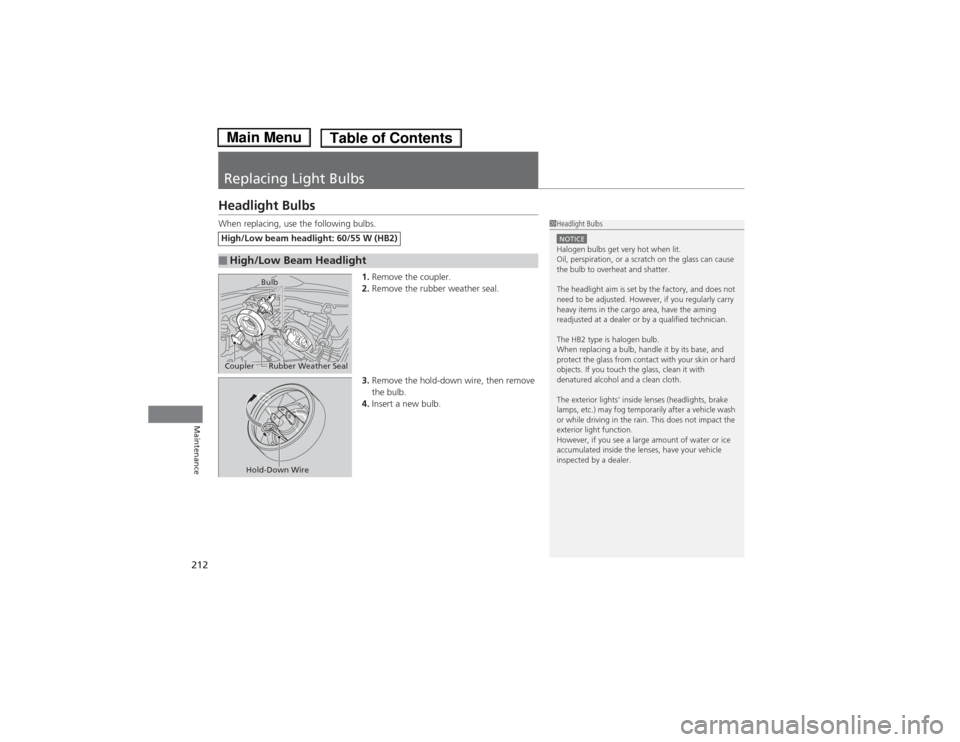

Replacing Light BulbsHeadlight BulbsWhen replacing, use the following bulbs.
1.Remove the coupler.
2.Remove the rubber weather seal.
3.Remove the hold-down wire, then remove
the bulb.
4.Insert a new bulb.High/Low beam headlight: 60/55 W (HB2)■High/Low Beam Headlight
1Headlight BulbsNOTICEHalogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
The HB2 type is halogen bulb.
When replacing a bulb, handle it by its base, and
protect the glass from contact with your skin or hard
objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights’ inside lenses (headlights, brake
lamps, etc.) may fog temporarily after a vehicle wash
or while driving in the rain. This does not impact the
exterior light function.
However, if you see a large amount of water or ice
accumulated inside the lenses, have your vehicle
inspected by a dealer.
Rubber Weather Seal
Coupler
Bulb
Hold-Down Wire

213
uuReplacing Light BulbsuFront Turn Signal Light Bulbs
Maintenance
5.Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
uYou can see if the hold-down wire is in
the right place from the inspection
window.
6.Reinstall the rubber weather seal.
7.Insert the coupler into the connector of the
bulb.

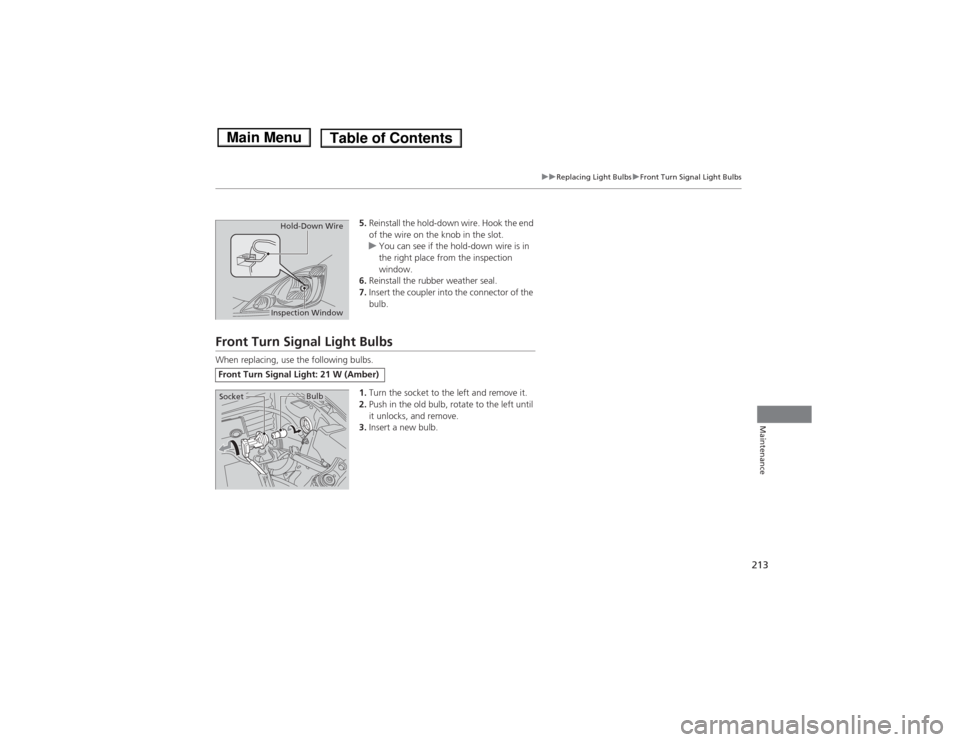

Front Turn Signal Light BulbsWhen replacing, use the following bulbs.
1.Turn the socket to the left and remove it.
2.Push in the old bulb, rotate to the left until
it unlocks, and remove.
3.Insert a new bulb.
Hold-Down WireInspection Window
Front Turn Signal Light: 21 W (Amber)
Bulb
Socket

214
uuReplacing Light BulbsuParking/Side Marker Light Bulbs
Maintenance

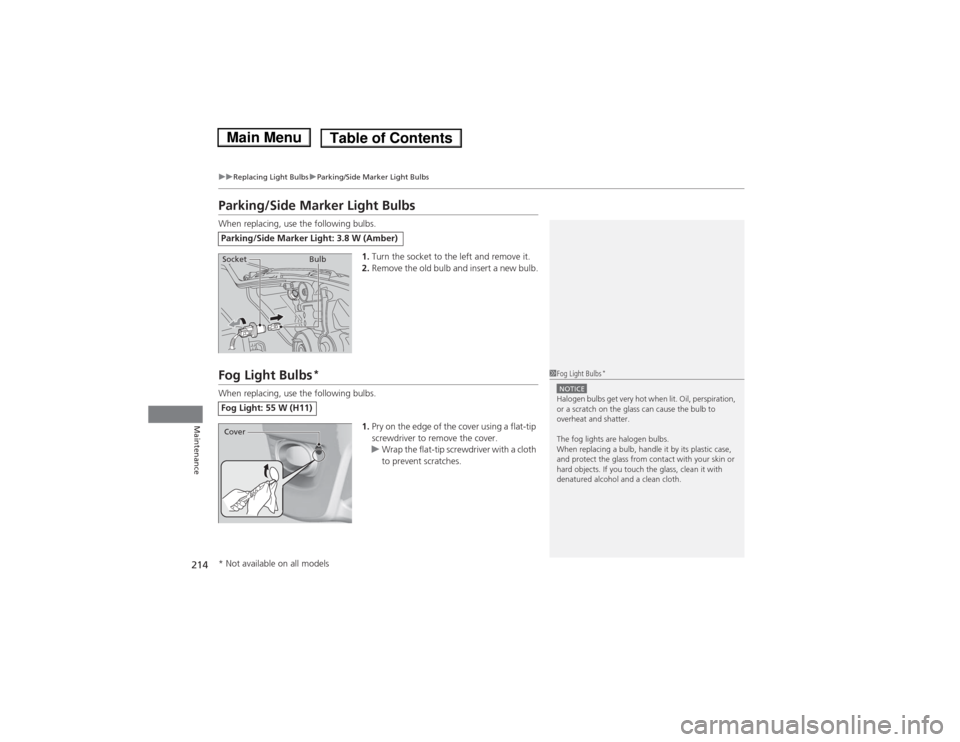

Parking/Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Turn the socket to the left and remove it.
2.Remove the old bulb and insert a new bulb.Fog Light Bulbs
*
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.Parking/Side Marker Light: 3.8 W (Amber)
Bulb
SocketFog Light: 55 W (H11)
1Fog Light Bulbs
*
NOTICEHalogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights are halogen bulbs.
When replacing a bulb, handle it by its plastic case,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Cover* Not available on all models

215
uuReplacing Light BulbsuFog Light Bulbs
*
Maintenance
2.Remove the screw using a Phillips-head
screwdriver and carefully pull the fog light
assembly out of the bumper.
3.Remove the coupler.
uIt can be removed by pushing the tab.
4.Rotate the old bulb to the left to remove.
5.Insert a new bulb into the fog light
assembly and turn it to the right.
6.Insert the coupler into the connector of the
bulb.
Screw
Bulb
Coupler
Tab

216
uuReplacing Light BulbsuBrake Light, Taillight, Back-Up Light and Rear Turn Signal Light Bulbs
Maintenance

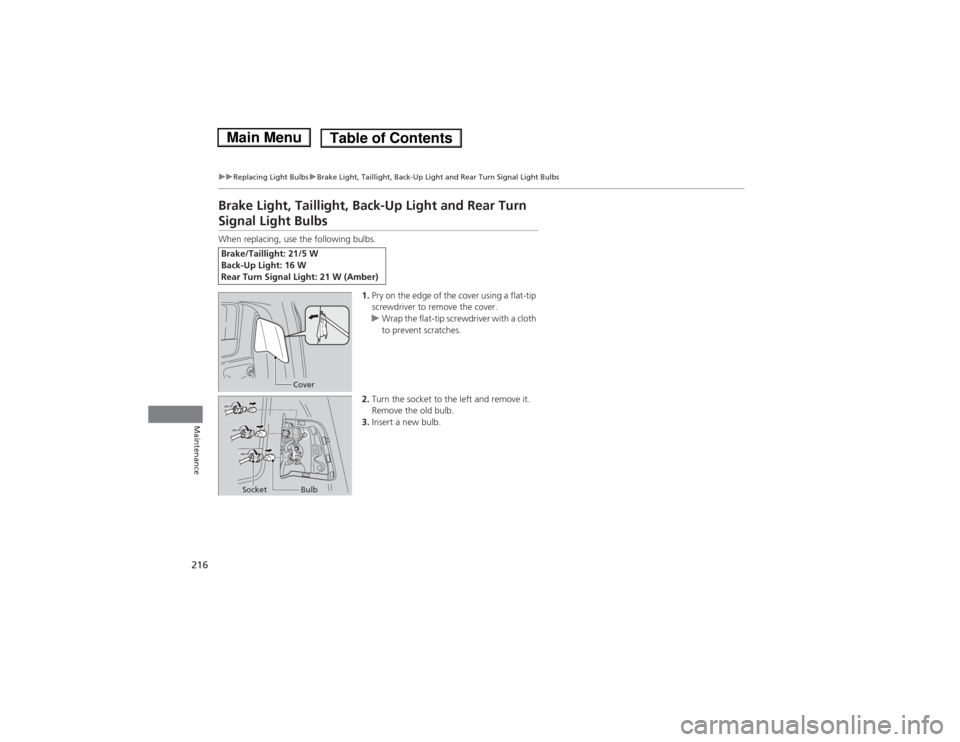

Brake Light, Taillight, Back-Up Light and Rear Turn Signal Light BulbsWhen replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
2.Turn the socket to the left and remove it.
Remove the old bulb.
3.Insert a new bulb.Brake/Taillight: 21/5 W
Back-Up Light: 16 W
Rear Turn Signal Light: 21 W (Amber)
CoverBulb Socket

217
uuReplacing Light BulbsuHigh-Mount Brake Light Bulb
Maintenance

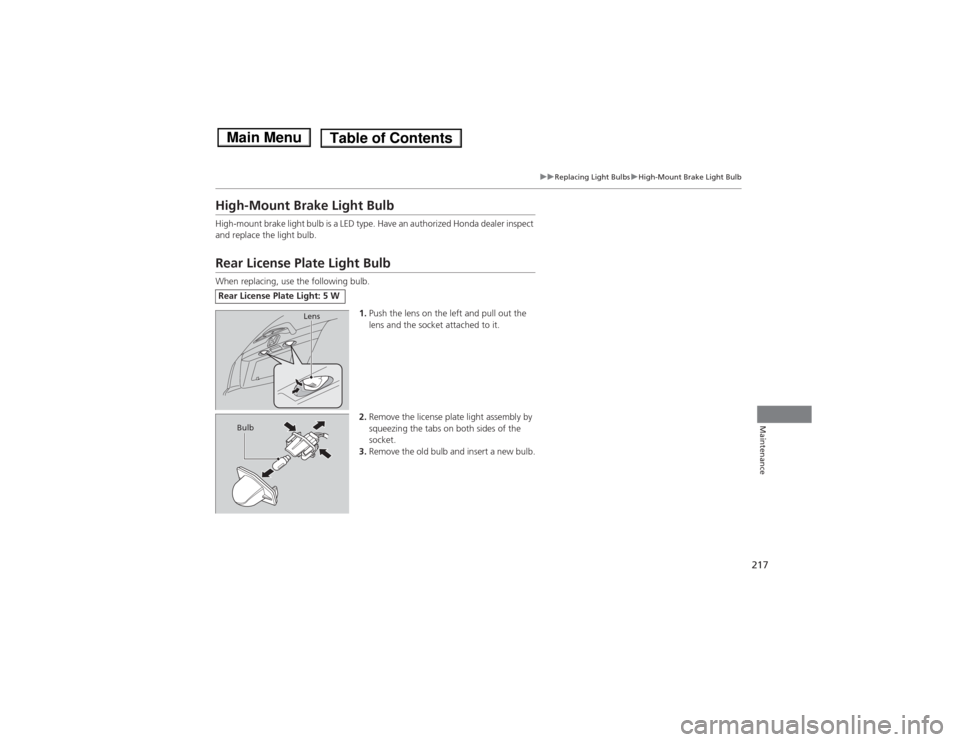

High-Mount Brake Light BulbHigh-mount brake light bulb is a LED type. Have an authorized Honda dealer inspect
and replace the light bulb.Rear License Plate Light BulbWhen replacing, use the following bulb.
1.Push the lens on the left and pull out the
lens and the socket attached to it.
2.Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
3.Remove the old bulb and insert a new bulb.Rear License Plate Light: 5 W
Lens
Bulb

218Maintenance

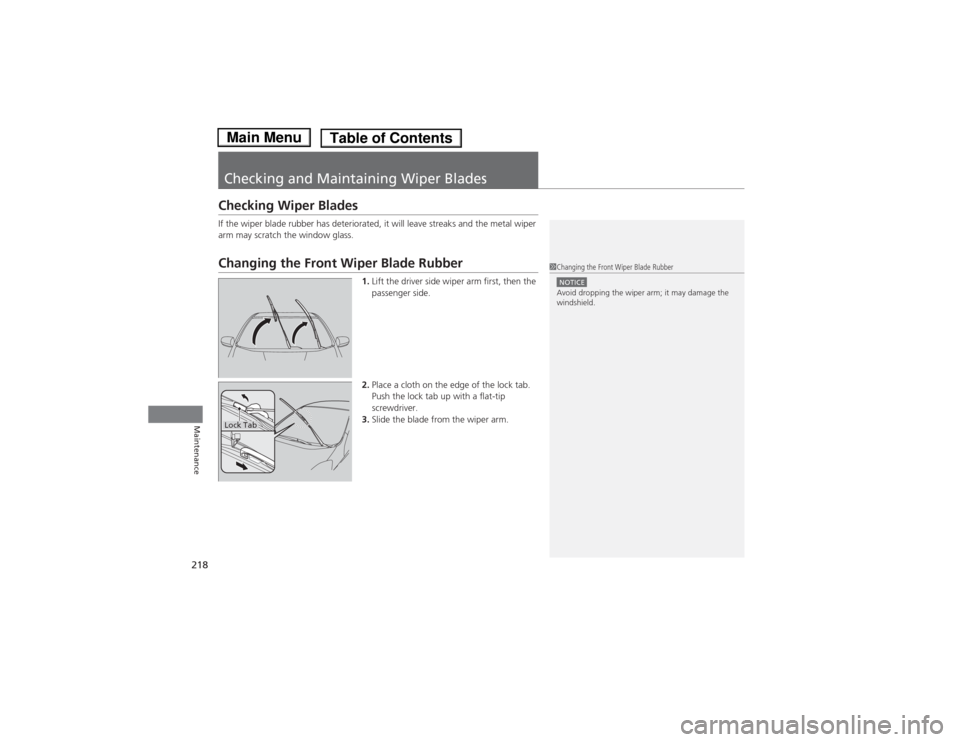

Checking and Maintaining Wiper BladesChecking Wiper BladesIf the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2.Place a cloth on the edge of the lock tab.
Push the lock tab up with a flat-tip
screwdriver.
3.Slide the blade from the wiper arm.
1Changing the Front Wiper Blade RubberNOTICEAvoid dropping the wiper arm; it may damage the
windshield.
Lock Tab

219
uuChecking and Maintaining Wiper BladesuChanging the Front Wiper Blade Rubber
Maintenance

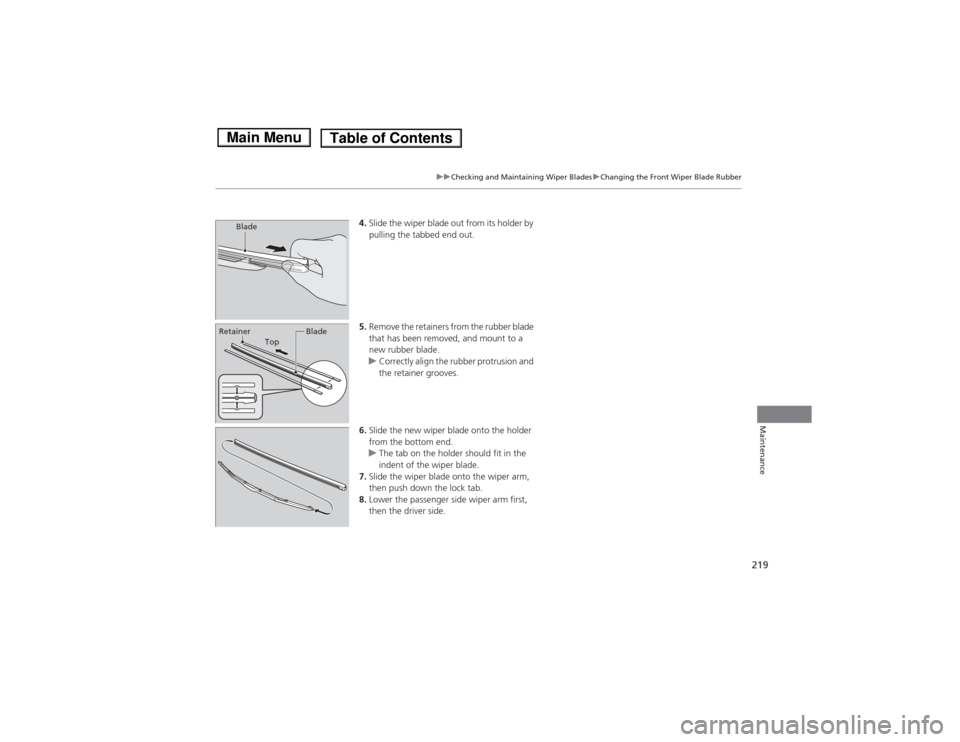

4.Slide the wiper blade out from its holder by
pulling the tabbed end out.
5.Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
uCorrectly align the rubber protrusion and
the retainer grooves.
6.Slide the new wiper blade onto the holder
from the bottom end.
uThe tab on the holder should fit in the
indent of the wiper blade.
7.Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8.Lower the passenger side wiper arm first,
then the driver side.
Blade
Top Retainer Blade
