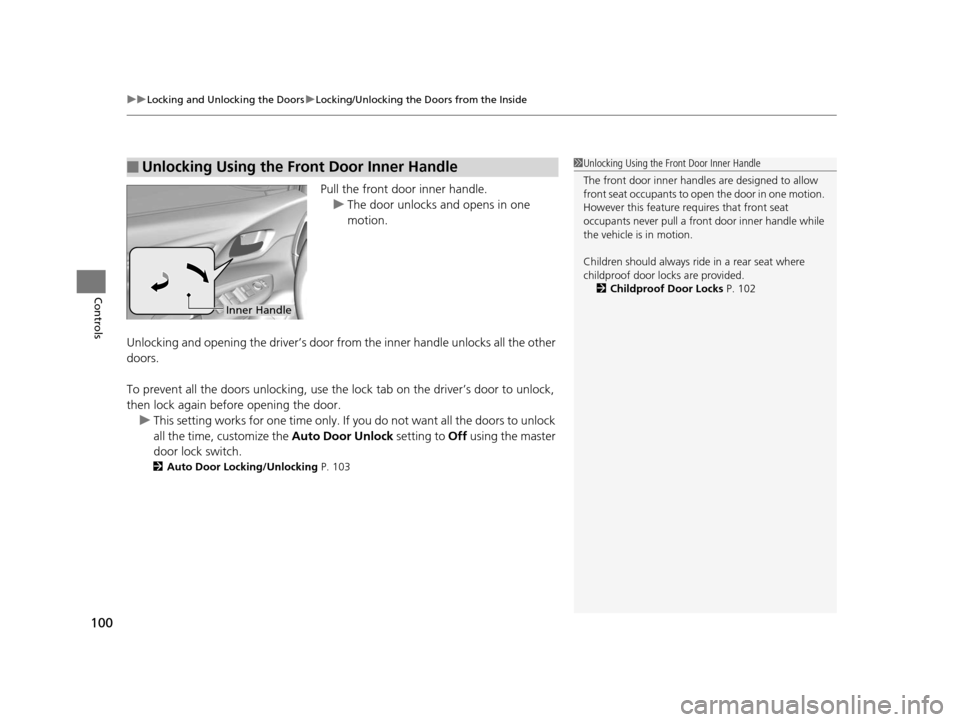

HONDA FIT 2015 3.G Owners Manual

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
100
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To prevent all the doors unlock ing, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to unlock
all the time, customize the Auto Door Unlock setting to Off using the master
door lock switch.
2 Auto Door Locking/Unlocking P. 103
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 102
Inner Handle
15 US FIT-31T5A6000.book 100 ページ ２０１４年３月６日　木曜日　午後７時５分

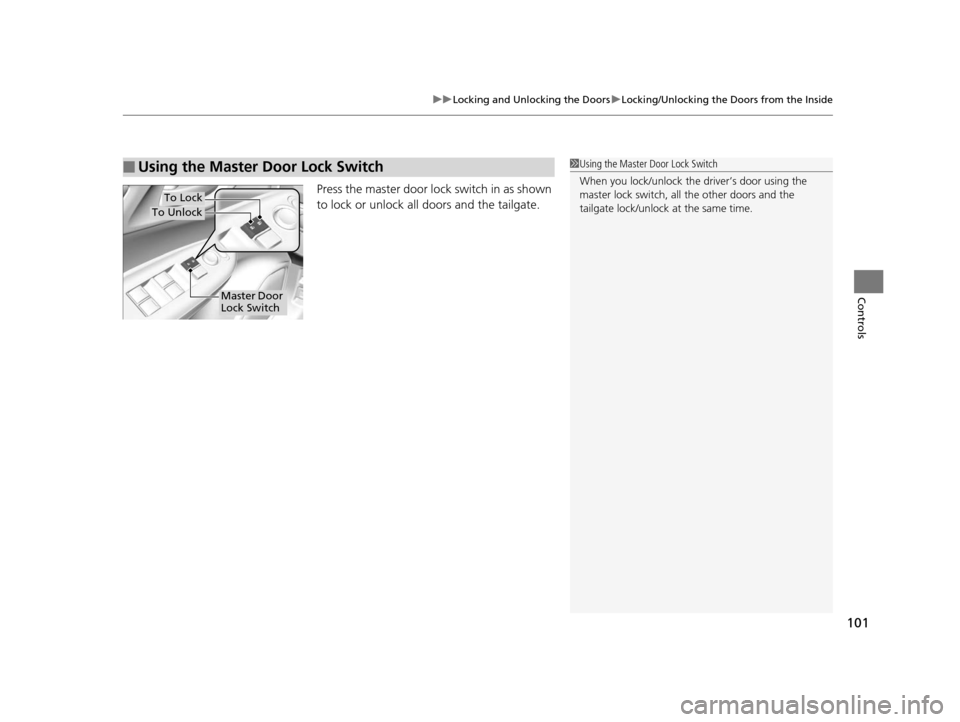

101
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Press the master door lo ck switch in as shown
to lock or unlock all doors and the tailgate.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master lock switch, al l the other doors and the
tailgate lock/unlock at the same time.
To Lock
To Unlock
Master Door
Lock Switch
15 US FIT-31T5A6000.book 101 ページ ２０１４年３月６日　木曜日　午後７時５分

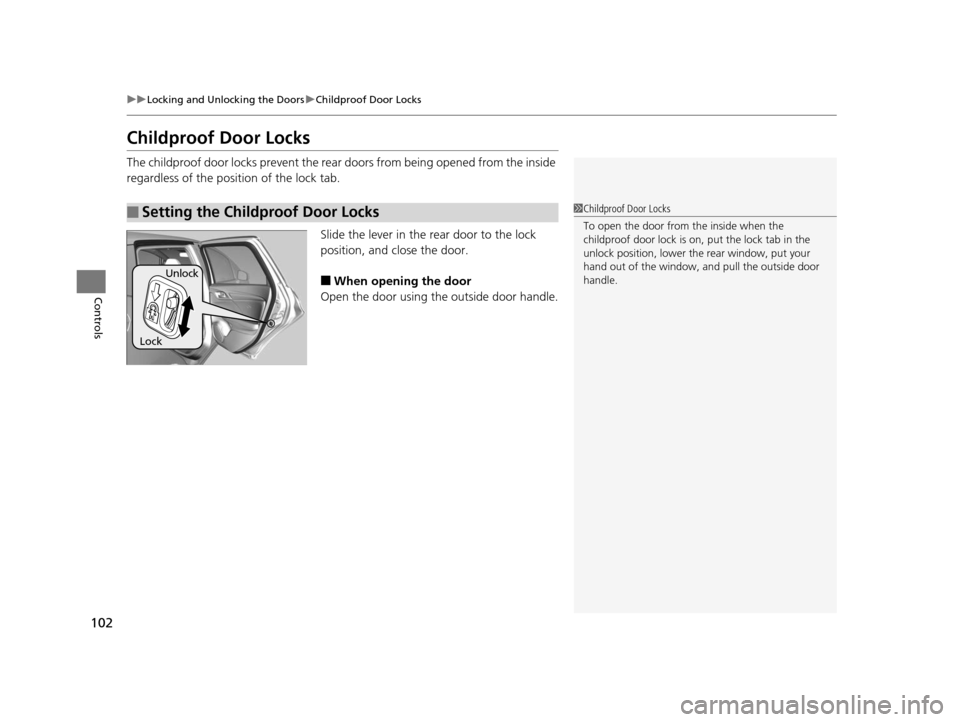

102
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Setting the Childproof Door Locks1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock Unlock
15 US FIT-31T5A6000.book 102 ページ ２０１４年３月６日　木曜日　午後７時５分

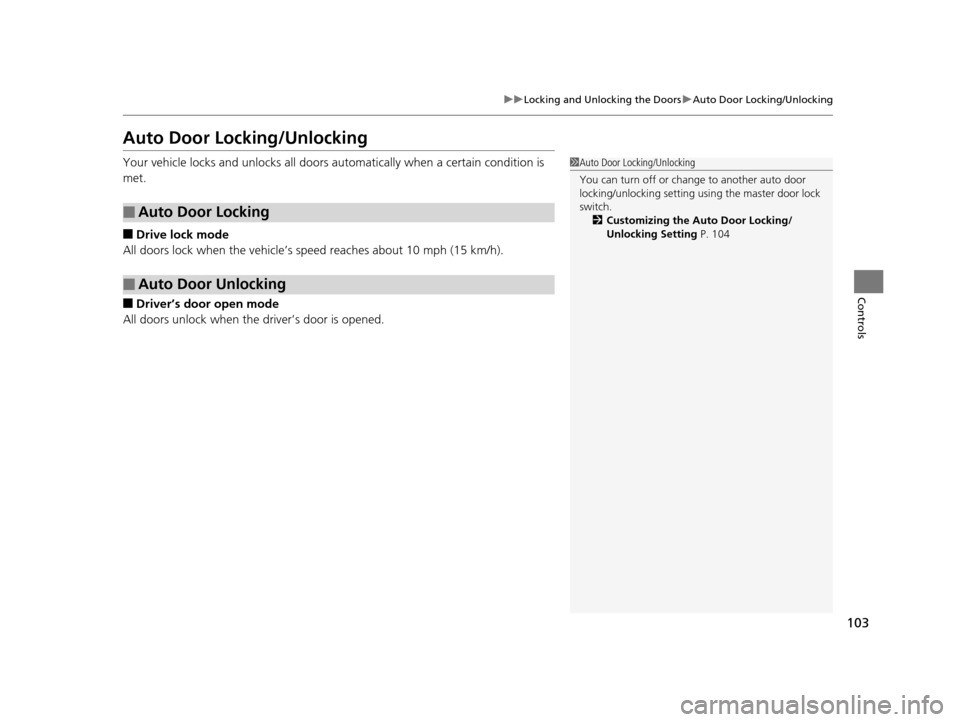

103
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors au tomatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting P. 104
15 US FIT-31T5A6000.book 103 ページ ２０１４年３月６日　木曜日　午後７時５分

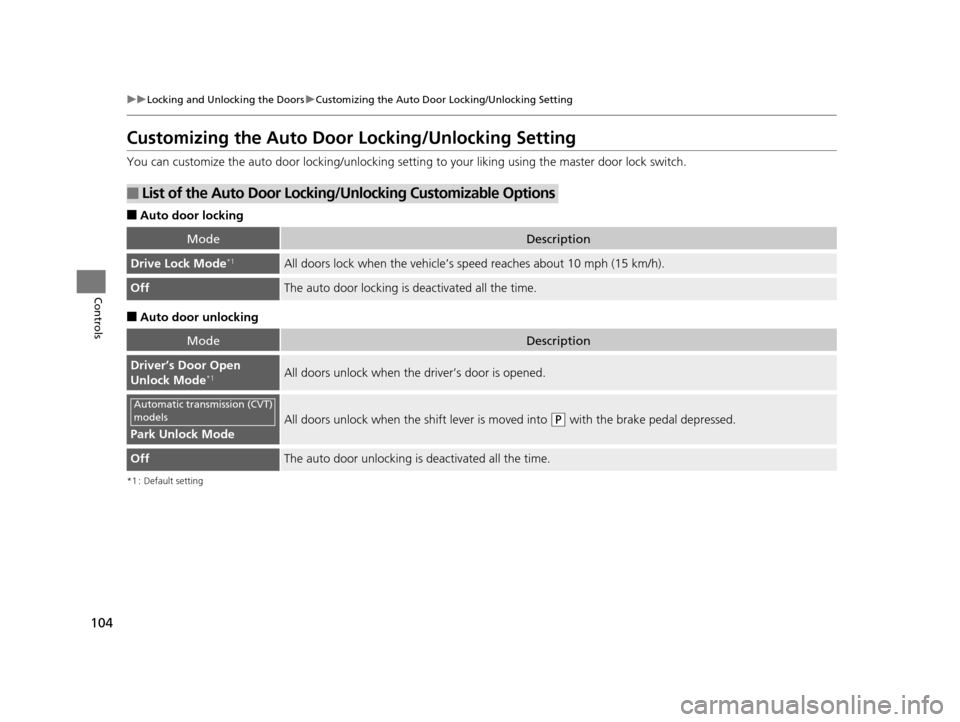

104
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setti ng to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1 : Default setting
■List of the Auto Door Locking/Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver’s Door Open
Unlock Mode*1All doors unlock when the driver’s door is opened.
Park Unlock Mode
All doors unlock when the shift lever is moved into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Automatic transmission (CVT)
models
15 US FIT-31T5A6000.book 104 ページ ２０１４年３月６日　木曜日　午後７時５分

105
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Continued
Controls
*1 : Default setting
*2 : Models without smart entry system
*3 : Models with smart entry system

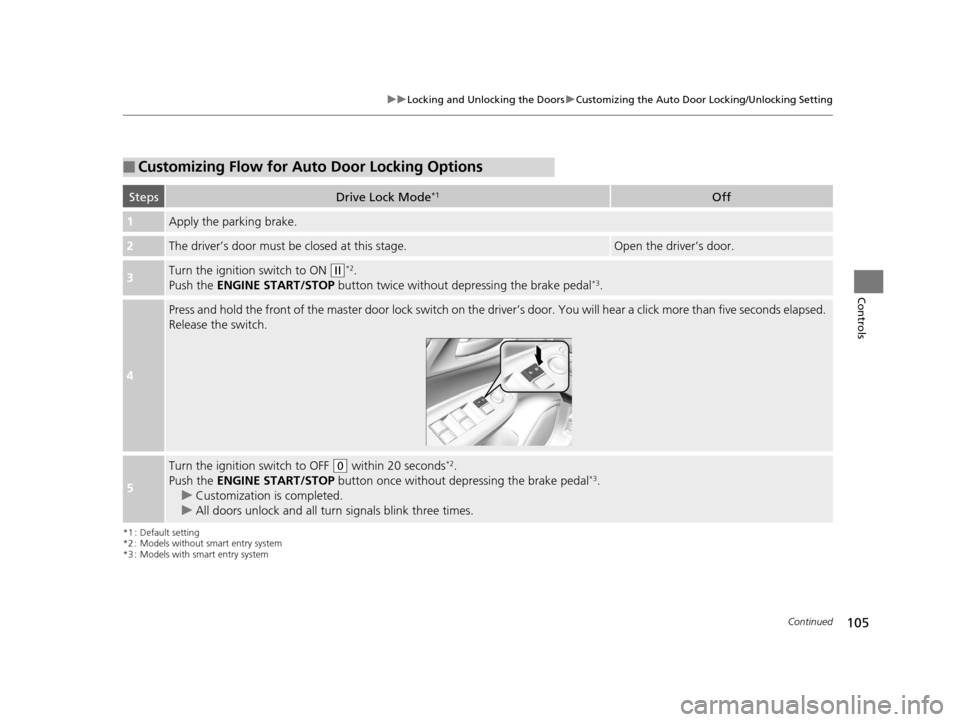

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*1Off
1Apply the parking brake.
2The driver’s door must be closed at this stage.Open the driver’s door.
3Turn the ignition switch to ON (w*2.
Push the ENGINE START/STOP button twice without depressing the brake pedal*3.
4
Press and hold the front of the master door lock switch on the driver’s door. You will hear a click more than five seconds elapsed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
Push the ENGINE START/STOP button once without depressing the brake pedal*3.
u Customization is completed.
u All doors unlock and all turn signals blink three times.
15 US FIT-31T5A6000.book 105 ページ ２０１４年３月６日　木曜日　午後７時５分

106
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1 : Default setting
*2 : Models without smart entry system
*3 : Models with smart entry system

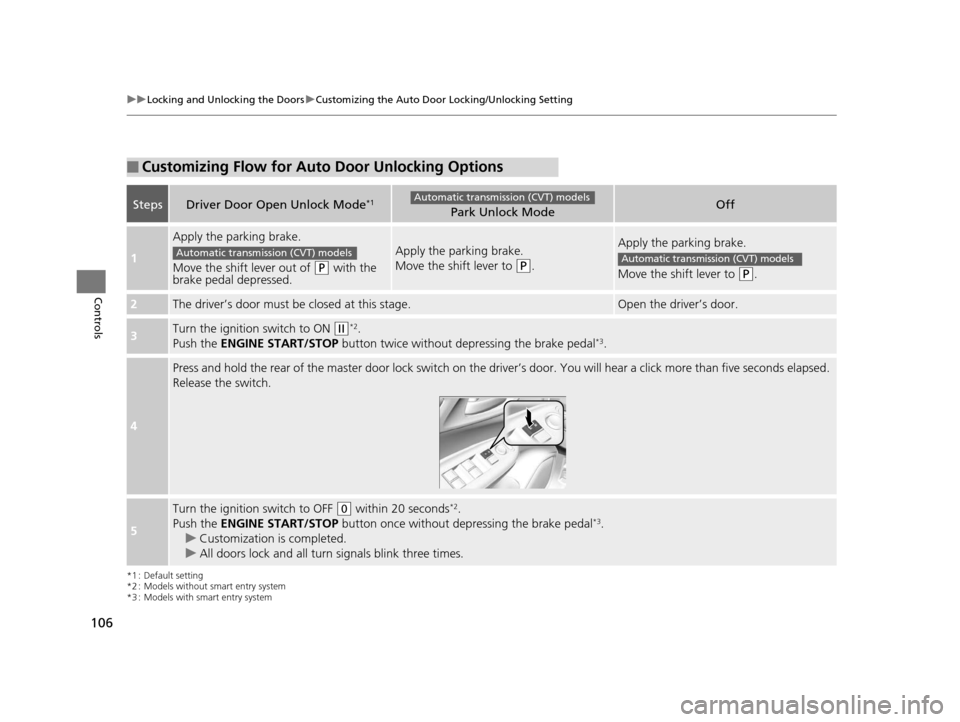

■Customizing Flow for Auto Door Unlocking Options
StepsDriver Door Open Unlock Mode*1Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P with the
brake pedal depressed.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2The driver’s door must be closed at this stage.Open the driver’s door.
3Turn the ignition switch to ON (w*2.
Push the ENGINE START/STOP button twice without de pressing the brake pedal*3.
4
Press and hold the rear of the master door lock switch on the dr iver’s door. You will hear a click more than five seconds elaps ed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
Push the ENGINE START/STOP button once without depressing the brake pedal*3.
u Customization is completed.
u All doors lock and all turn signals blink three times.
Automatic transmission (CVT) models
Automatic transmission (CVT) modelsAutomatic transmission (CVT) models
15 US FIT-31T5A6000.book 106 ページ ２０１４年３月６日　木曜日　午後７時５分

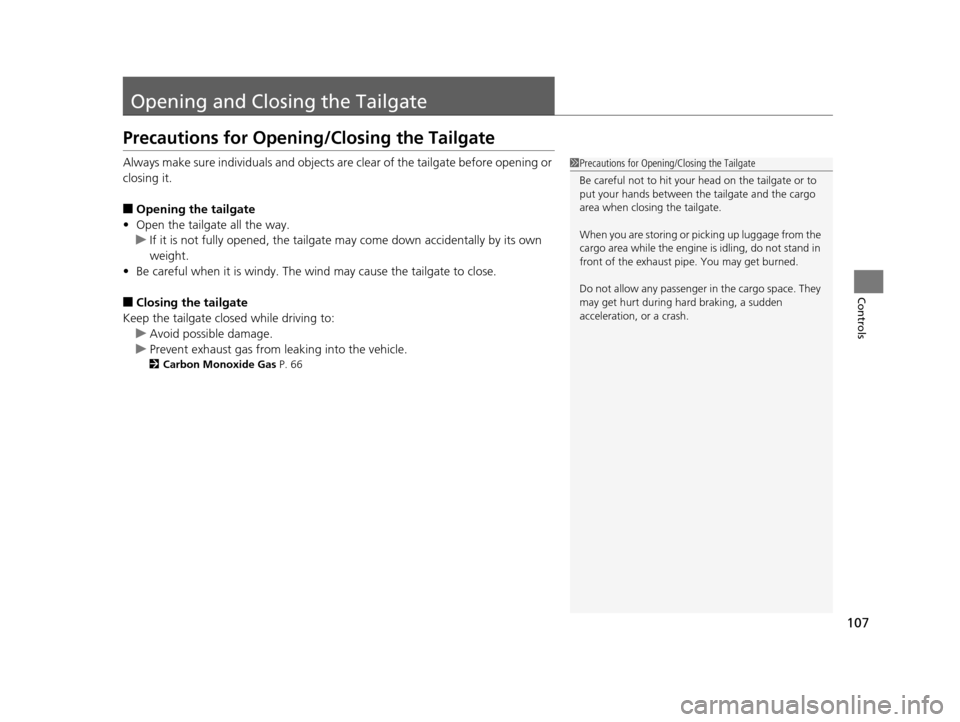

107
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may come down accidentally by its own
weight.
• Be careful when it is windy. The wi nd may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 66
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
15 US FIT-31T5A6000.book 107 ページ ２０１４年３月６日　木曜日　午後７時５分

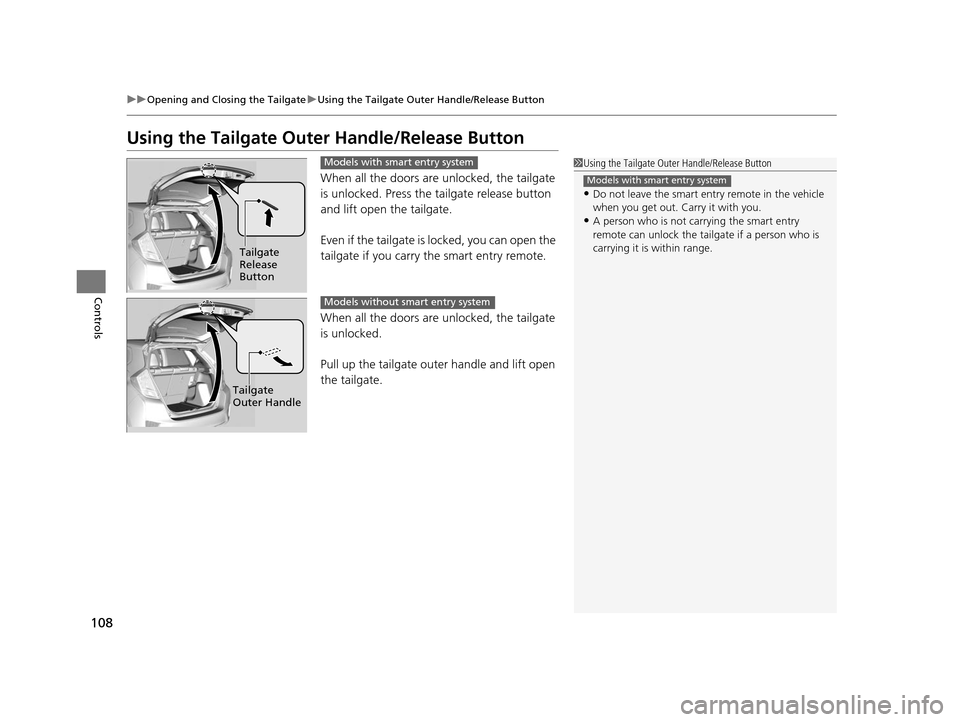

108
uuOpening and Closing the Tailgate uUsing the Tailgate Outer Handle/Release Button
Controls
Using the Tailgate Outer Handle/Release Button
When all the doors are unlocked, the tailgate
is unlocked. Press the tailgate release button
and lift open the tailgate.
Even if the tailgate is locked, you can open the
tailgate if you carry the smart entry remote.
When all the doors are unlocked, the tailgate
is unlocked.
Pull up the tailgate outer handle and lift open
the tailgate.
1Using the Tailgate Outer Handle/Release Button
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•A person who is not carrying the smart entry
remote can unlock the tail gate if a person who is
carrying it is within range.
Models with smart entry system
Tailgate
Release
Button
Models with smart entry system
Tailgate
Outer Handle
Models without smart entry system
15 US FIT-31T5A6000.book 108 ページ ２０１４年３月６日　木曜日　午後７時５分

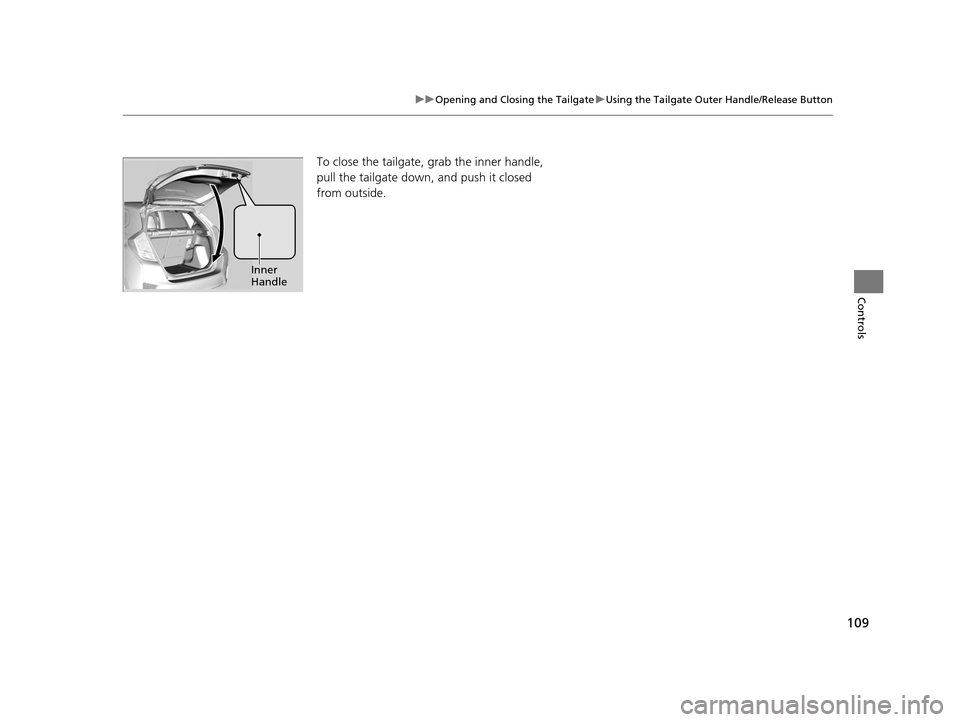

109
uuOpening and Closing the Tailgate uUsing the Tailgate Outer Handle/Release Button
Controls
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
Inner
Handle
15 US FIT-31T5A6000.book 109 ページ ２０１４年３月６日　木曜日　午後７時５分
