HONDA FIT 2017 3.G Owners Manual

130
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls

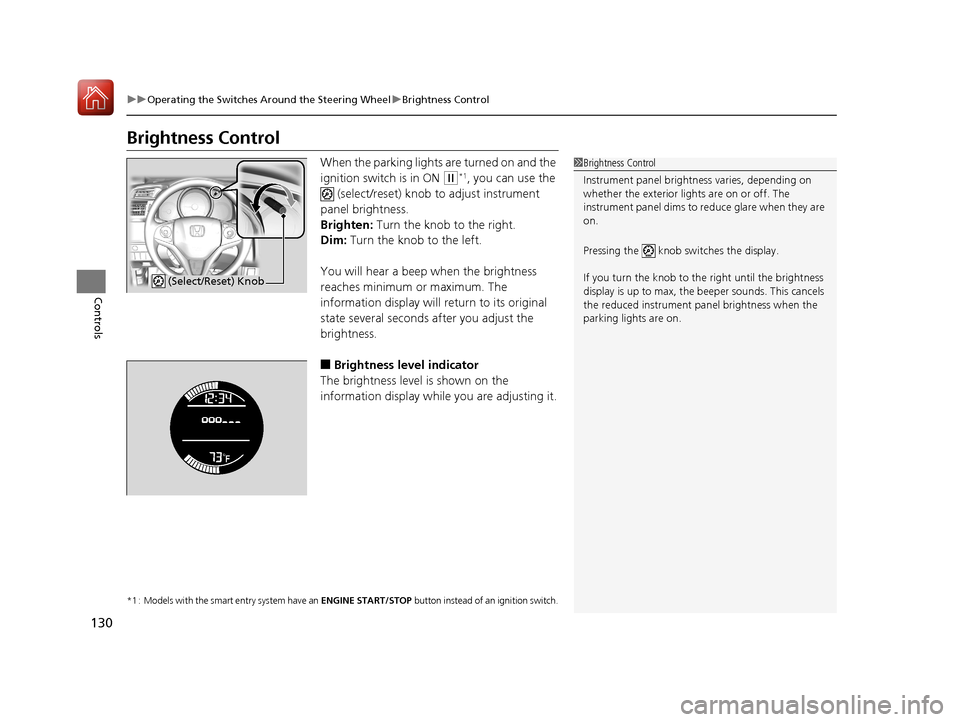

Brightness Control
When the parking lights are turned on and the
ignition switch is in ON
(w*1, you can use the
(select/reset) knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. The
information display will return to its original
state several seconds after you adjust the
brightness.
■Brightness level indicator
The brightness level is shown on the
information display while you are adjusting it.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Brightness Control
Instrument panel brightne ss varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
Pressing the knob switches the display.
If you turn the knob to the right until the brightness
display is up to max, the beeper sounds. This cancels
the reduced instrument panel brightness when the
parking lights are on.
(Select/Reset) Knob
17 FIT -31T5A6200.book 130 ページ ２０１６年５月２７日　金曜日　午後６時３３分

131
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door
mirror button or touch the icon to defog the
rear window and mirrors when the ignition
switch is in ON
(w*1.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outsid e temperature is 32°F
(0°C) or below, they do not automatically
switch off.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Rear Defogger/Heated Door Mirror* Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
Models with heating and cooling system
Models with climate control system
Models with climate control system
* Not available on all models
17 FIT -31T5A6200.book 131 ページ ２０１６年５月２７日　金曜日　午後６時３３分

132
uuOperating the Switches Around the Steering Wheel uAdjusting the Steering Wheel
Controls
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.
1.Pull the steering wheel adjustment lever up.
u The steering wheel adjustment lever is
under the steering column.
2. Move the steering wheel up or down, and
in or out.
u Make sure you can see the instrument
panel gauges and indicators.
3. Push the steering wheel adjustment lever
down to lock the steering wheel in position.
u After adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.1Adjusting the Steering Wheel
Make any steering wheel adjustments before you
start driving.
3WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.To adjust
To lock
17 FIT -31T5A6200.book 132 ページ ２０１６年５月２７日　金曜日　午後６時３３分

133Continued
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Rearview Mirror with Day and Night Positions
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 135
Tab
Daytime
Position
Night
Position
Selector Switch
Adjustment Switch
17 FIT -31T5A6200.book 133 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuAdjusting the Mirrors uPower Door Mirrors
134
Controls
The driver side door mirror has outer and inner
segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
■Expanded View Driver's Mirror1Expanded View Driver's Mirror
Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.
Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.
Outer Segment
Inner Segment
17 FIT -31T5A6200.book 134 ページ ２０１６年５月２７日　金曜日　午後６時３３分

135Continued
Controls

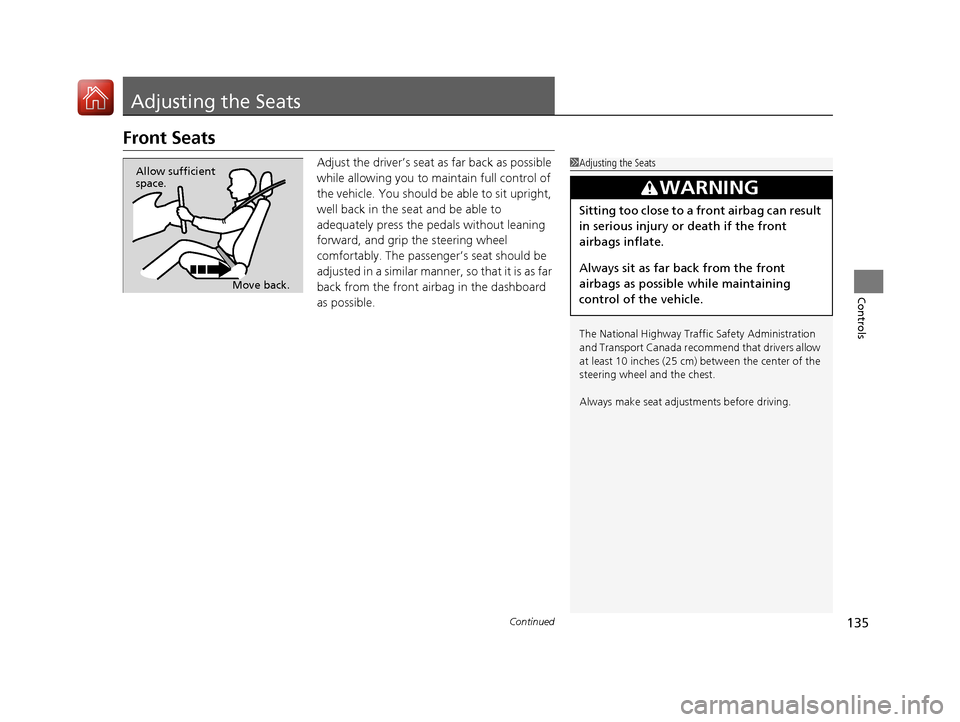

Adjusting the Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to ma intain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.1 Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
17 FIT -31T5A6200.book 135 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuAdjusting the Seats uFront Seats
136
Controls
■Adjusting the Seat Positions1Adjusting the Seat Positions
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.
Driver’s seat is shown.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Height Adjustment(Driver side only)
Pull up or push down the lever
to raise or lower the seat.
17 FIT -31T5A6200.book 136 ページ ２０１６年５月２７日　金曜日　午後６時３３分

Continued137
uuAdjusting the Seats uFront Seats
Controls

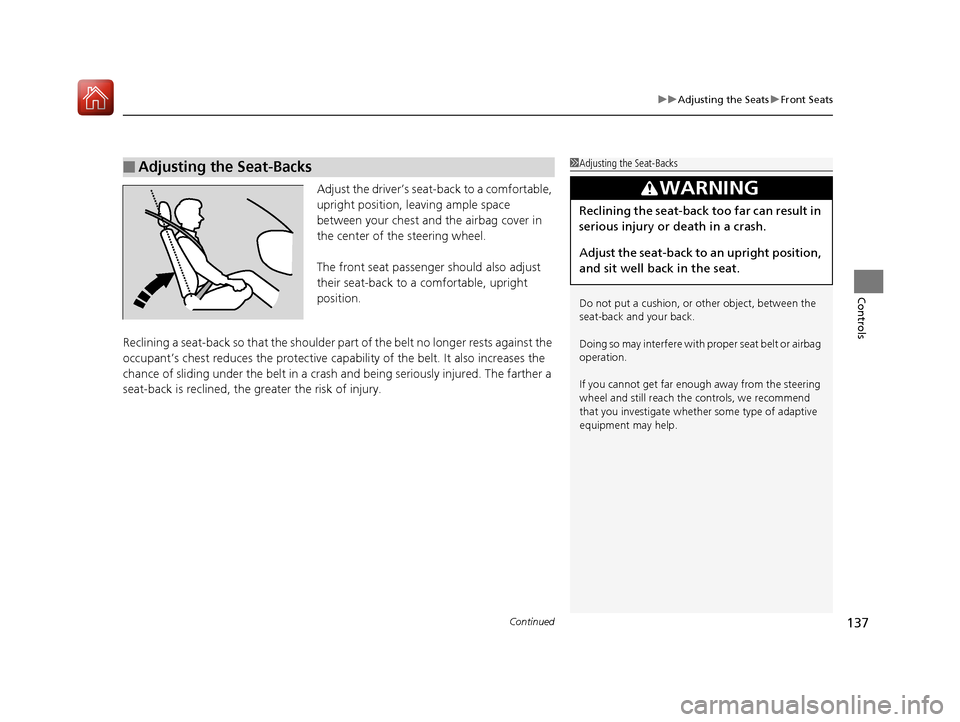

Adjust the driver’s seat -back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
17 FIT -31T5A6200.book 137 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuAdjusting the Seats uFront Seats
138
Controls

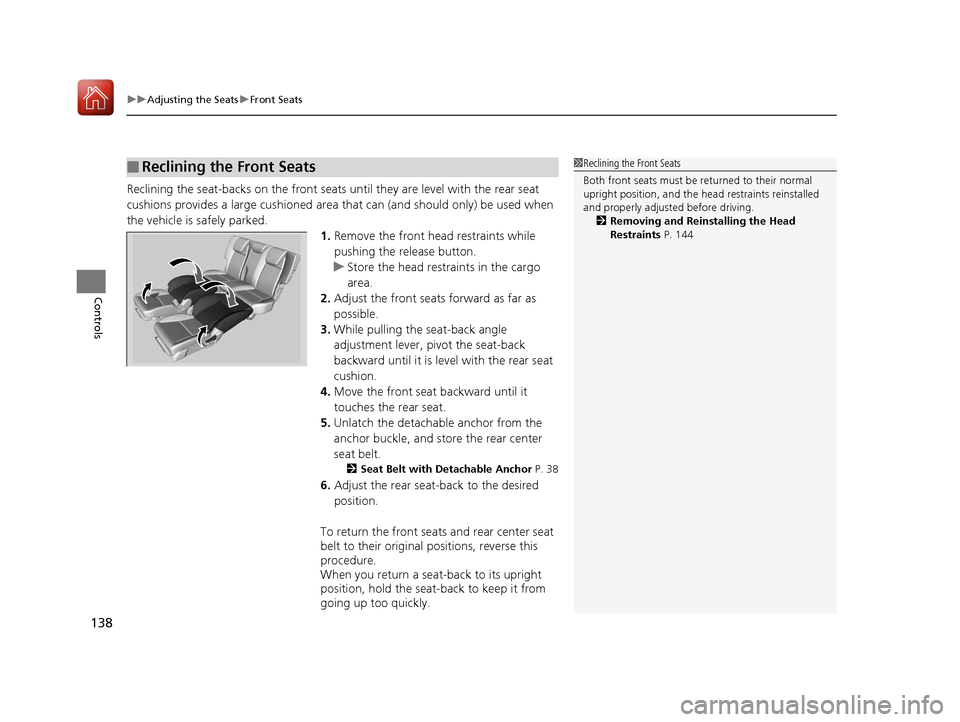

Reclining the seat-backs on the front seats until they are level with the rear seat
cushions provides a large cushioned area that can (and should only) be used when
the vehicle is safely parked.
1.Remove the front head restraints while
pushing the release button.
u Store the head restraints in the cargo
area.
2. Adjust the front seats forward as far as
possible.
3. While pulling the seat-back angle
adjustment lever, pivot the seat-back
backward until it is level with the rear seat
cushion.
4. Move the front seat backward until it
touches the rear seat.
5. Unlatch the detachable anchor from the
anchor buckle, and store the rear center
seat belt.
2 Seat Belt with Detachable Anchor P. 38
6.Adjust the rear sea t-back to the desired
position.
To return the front seats and rear center seat
belt to their original positions, reverse this
procedure.
When you return a seat-back to its upright
position, hold the seat-back to keep it from
going up too quickly.
■Reclining the Front Seats1 Reclining the Front Seats
Both front seats must be returned to their normal
upright position, and the head restraints reinstalled
and properly adjusted before driving.
2 Removing and Reinstalling the Head
Restraints P. 144
17 FIT -31T5A6200.book 138 ページ ２０１６年５月２７日　金曜日　午後６時３３分

139
uuAdjusting the Seats uRear Seats
Continued
Controls

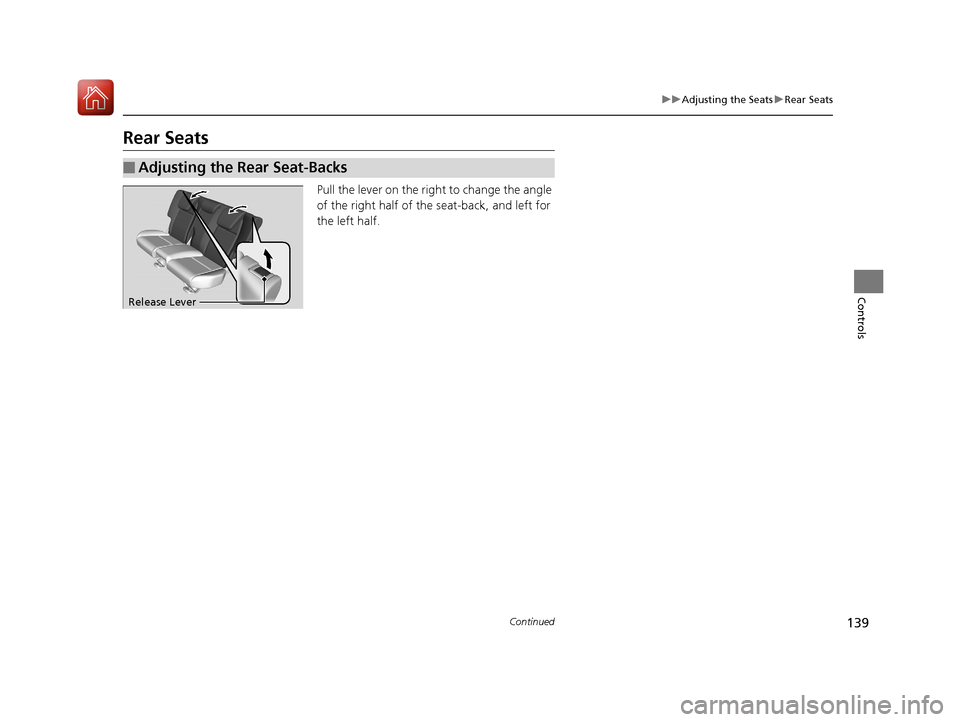

Rear Seats
Pull the lever on the right to change the angle
of the right half of the seat-back, and left for
the left half.
■Adjusting the Rear Seat-Backs
Release Lever
