fuel type HONDA FIT 2017 3.G Owners Manual

364
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 381
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 394
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 383
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 390
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the information display.
2 Maintenance Service Items P. 369
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 451
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
17 FIT -31T5A6200.book 364 ページ ２０１６年５月２７日　金曜日　午後６時３３分

378
uuMaintenance Under the Hood uEngine Coolant
Maintenance
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1.Check the amount of coolant in the reserve
tank.
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s coolant system. They may not be compatible
with the coolant or with the engine components.
Reserve Tank MAX
MIN
17 FIT -31T5A6200.book 378 ページ ２０１６年５月２７日　金曜日　午後６時３３分

394
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 - 2 psi (10 - 20
kPa, 0.1 - 0.2 kgf/cm
2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 399
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2 TPMS Calibration P. 347
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
U.S. models
17 FIT -31T5A6200.book 394 ページ ２０１６年５月２７日　金曜日　午後６時３３分

442
Information

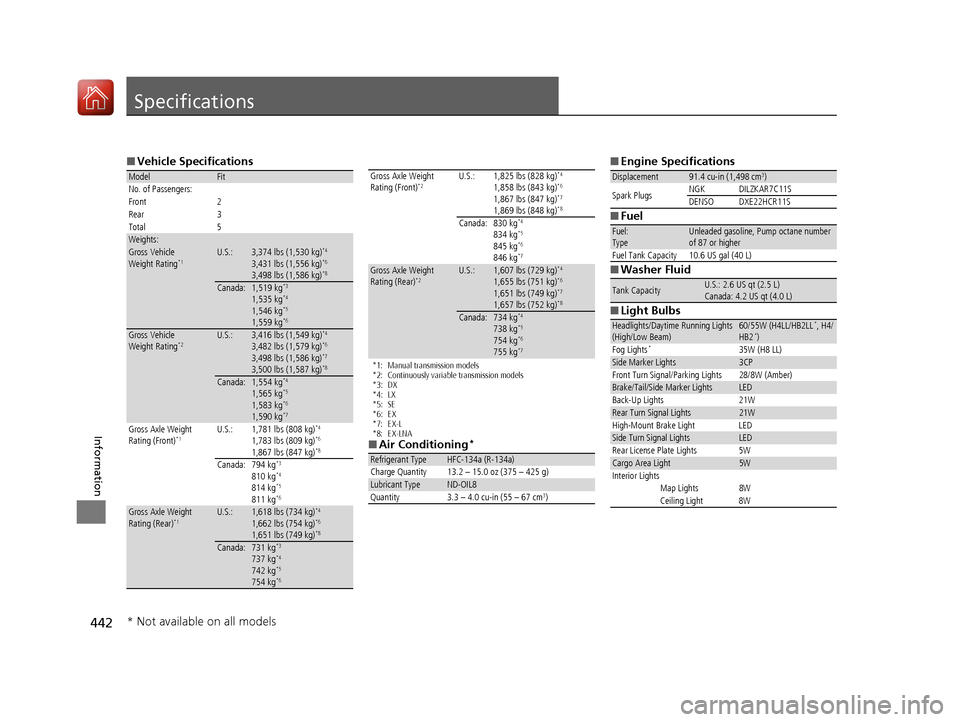

Specifications
■Vehicle Specifications
ModelFitNo. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating*1U.S.:3,374 lbs (1,530 kg)*4
3,431 lbs (1,556 kg)*6
3,498 lbs (1,586 kg)*8
Canada:1,519 kg*3
1,535 kg*4
1,546 kg*5
1,559 kg*6
Gross Vehicle
Weight Rating*2U.S.:3,416 lbs (1,549 kg)*4
3,482 lbs (1,579 kg)*6
3,498 lbs (1,586 kg)*7
3,500 lbs (1,587 kg)*8
Canada:1,554 kg*4
1,565 kg*5
1,583 kg*6
1,590 kg*7
Gross Axle Weight
Rating (Front)*1U.S.:1,781 lbs (808 kg)*4
1,783 lbs (809 kg)*6
1,867 lbs (847 kg)*8
Canada:794 kg*3
810 kg*4
814 kg*5
811 kg*6
Gross Axle Weight
Rating (Rear)*1U.S.:1,618 lbs (734 kg)*4
1,662 lbs (754 kg)*6
1,651 lbs (749 kg)*8
Canada:731 kg*3
737 kg*4
742 kg*5
754 kg*6
*1: Manual transmission models
*2: Continuously variable transmission models
*3: DX
*4: LX
*5: SE
*6: EX
*7: EX-L
*8: EX-LNA
■ Air Conditioning*
Gross Axle Weight
Rating (Front)*2U.S.:1,825 lbs (828 kg)*4
1,858 lbs (843 kg)*6
1,867 lbs (847 kg)*7
1,869 lbs (848 kg)*8
Canada:830 kg*4
834 kg*5
845 kg*6
846 kg*7
Gross Axle Weight
Rating (Rear)*2U.S.:1,607 lbs (729 kg)*4
1,655 lbs (751 kg)*6
1,651 lbs (749 kg)*7
1,657 lbs (752 kg)*8
Canada:734 kg*4
738 kg*5
754 kg*6
755 kg*7
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeND-OIL8
Quantity 3.3 – 4.0 cu-in (55 – 67 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
■ Light Bulbs
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11S
DENSODXE22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.2 US qt (4.0 L)
Headlights/Daytime Running Lights
(High/Low Beam)60/55W (H4LL/HB2LL*, H4/
HB2*)
Fog Lights*35W (H8 LL)Side Marker Lights3CP
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 21W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Side Turn Signal LightsLED
Rear License Plate Lights 5W
Cargo Area Light5W
Interior Lights
Map Lights8W
Ceiling Light 8W
* Not available on all models
17 FIT -31T5A6200.book 442 ページ ２０１６年５月２７日　金曜日　午後６時３３分

458

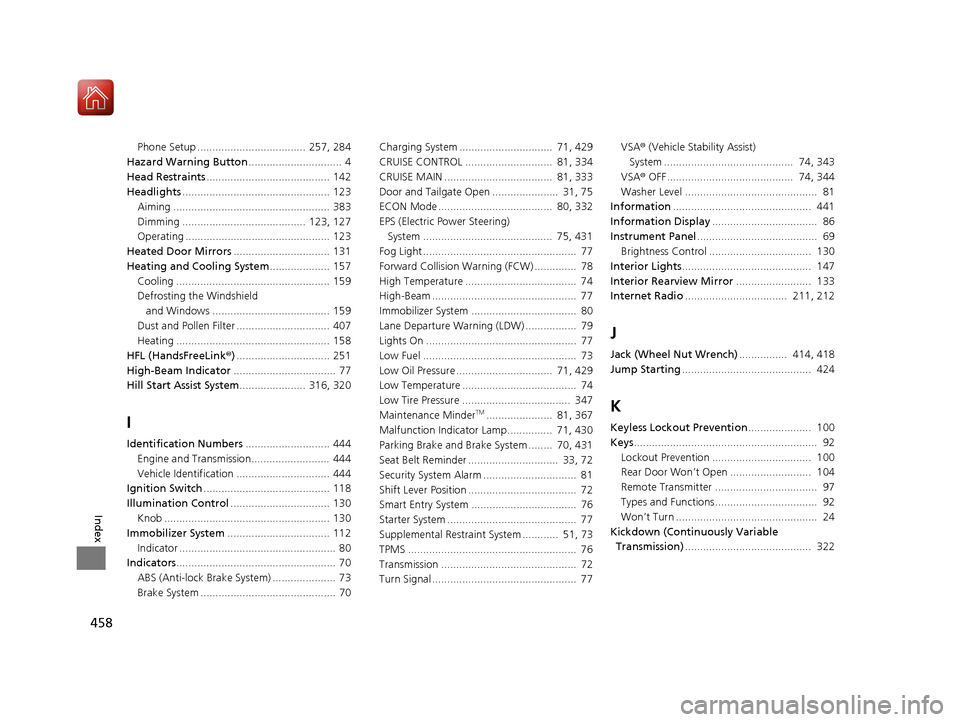

Index
Phone Setup .................................... 257, 284
Hazard Warning Button ............................... 4
Head Restraints ......................................... 142
Headlights ................................................. 123
Aiming .................................................... 383
Dimming ......................................... 123, 127
Operating ................................................ 123
Heated Door Mirrors ................................ 131
Heating and Cooling System .................... 157
Cooling ................................................... 159
Defrosting the Windshield
and Windows ....................................... 159
Dust and Pollen Filter ............................... 407
Heating ................................................... 158
HFL (HandsFreeLink ®)............................... 251
High-Beam Indicator .................................. 77
Hill Start Assist System ...................... 316, 320
I
Identification Numbers ............................ 444
Engine and Transmission.......................... 444
Vehicle Identification ............................... 444
Ignition Switch .......................................... 118
Illumination Control ................................. 130
Knob ....................................................... 130
Immobilizer System .................................. 112
Indicator .................................................... 80
Indicators ..................................................... 70
ABS (Anti-lock Brake System) ..................... 73
Brake System ............................................. 70 Charging System ............................... 71, 429
CRUISE CONTROL ............................. 81, 334
CRUISE MAIN .................................... 81, 333
Door and Tailgate Open ...................... 31, 75
ECON Mode ...................................... 80, 332
EPS (Electric Power Steering)
System ........................................... 75, 431
Fog Light ................................................... 77
Forward Collision Warning (FCW) .............. 78
High Temperature ..................................... 74
High-Beam ................................................ 77
Immobilizer System ................................... 80
Lane Departure Warning (LDW) ................. 79
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ................................ 71, 429
Low Temperature ...................................... 74
Low Tire Pressure .................................... 347
Maintenance Minder
TM...................... 81, 367
Malfunction Indicator Lamp............... 71, 430
Parking Brake and Brake System ........ 70, 431
Seat Belt Reminder .............................. 33, 72
Security System Alarm ............................... 81
Shift Lever Position .................................... 72
Smart Entry System ................................... 76
Starter System ........................................... 77
Supplemental Restraint System ............ 51, 73
TPMS ........................................................ 76
Transmission ............................................. 72
Turn Signal ................................................ 77 VSA
® (Vehicle Stability Assist)
System ........................................... 74, 343
VSA ® OFF .......................................... 74, 344
Washer Level ............................................ 81
Information .............................................. 441
Information Display ................................... 86
Instrument Panel ........................................ 69
Brightness Control .................................. 130
Interior Lights ........................................... 147
Interior Rearview Mirror ......................... 133
Internet Radio .................................. 211, 212
J
Jack (Wheel Nut Wrench) ................ 414, 418
Jump Starting ........................................... 424
K
Keyless Lockout Prevention ..................... 100
Keys ............................................................. 92
Lockout Prevention ................................. 100
Rear Door Won’t Open ........................... 104
Remote Transmitter .................................. 97
Types and Functions.................................. 92
Won’t Turn ............................................... 24
Kickdown (Continuously Variable Transmission) .......................................... 322
17 FIT -31T5A6200.book 458 ページ ２０１６年５月２７日　金曜日　午後６時３３分
