uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
Starter System
Indicator*
●Comes on for a few seconds when you
set the power mode to ON, then goes
off.
●Comes on if the starter system has a
problem.
●As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15 seconds
while pressing the brake pedal and clutch pedal
(manual transmission only), and manually start the
engine. Have your vehicle checked by a dealer.
Turn Signal and
Hazard Warning
Indicators
●The turn signal indicators blink when you
operate the turn signal lever.
●If you press the hazard warning button,
both indicators and al l turn signals blink
at the same time.
●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately.
2 Replacing Light Bulbs P. 384, 387
High Beam Indicator●Comes on when the high beam
headlights are on.—
Lights On Indicator
●Comes on whenever the light switch is
on, or in AUTO* when the exterior lights
are on.
●If you remove the key from the ignition switch*, or
set the power mode* to VEHICLE OFF (LOCK) while
the exterior lights are on, a chime sounds when the
driver’s door is opened.
Fog Light Indicator*●Comes on when the fog lights are on.—
U.S.
Canada
* Not available on all models
17 FIT -31T5A6200.book 77 ページ ２０１６年５月２７日　金曜日　午後６時３３分

384

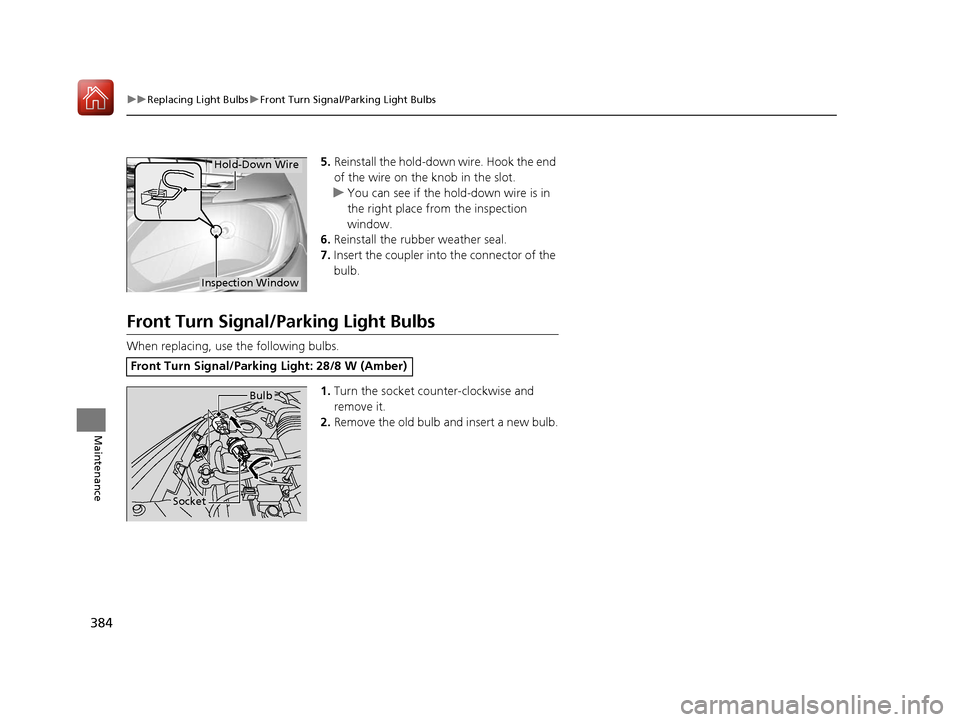

uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance
5. Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
u You can see if the hold-down wire is in
the right place from the inspection
window.
6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the
bulb.
Front Turn Signal/Parking Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Hold-Down Wire
Inspection Window
Front Turn Signal/Parking Light: 28/8 W (Amber)
Bulb
Socket
17 FIT -31T5A6200.book 384 ページ ２０１６年５月２７日　金曜日　午後６時３３分

386

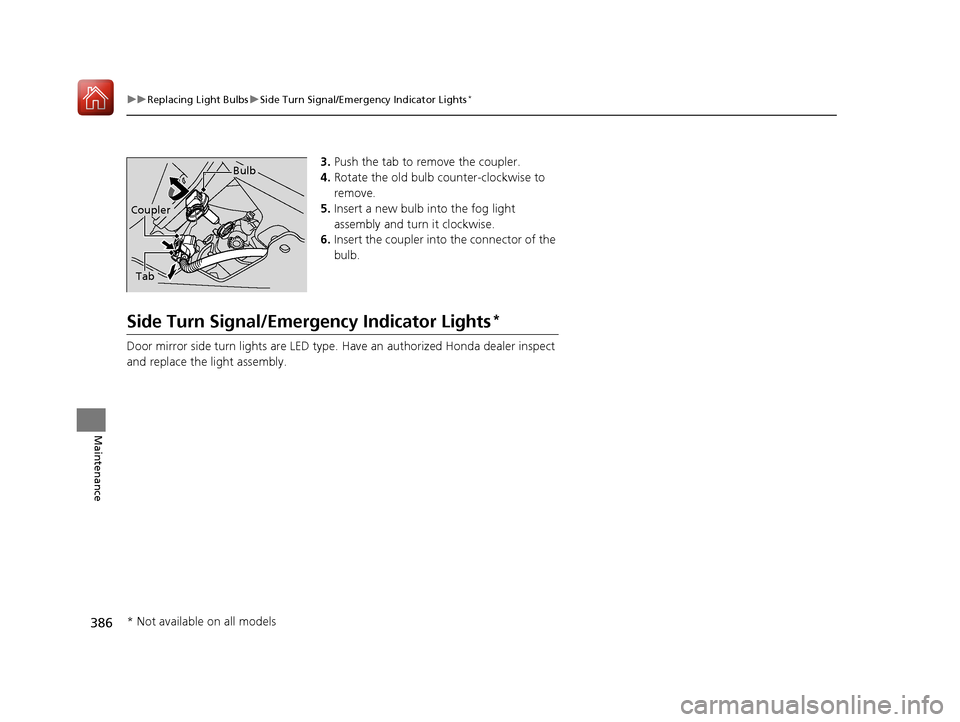

uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Lights*
Maintenance
3. Push the tab to remove the coupler.
4. Rotate the old bulb counter-clockwise to
remove.
5. Insert a new bulb into the fog light
assembly and turn it clockwise.
6. Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Tab
Bulb
Coupler
* Not available on all models
17 FIT -31T5A6200.book 386 ページ ２０１６年５月２７日　金曜日　午後６時３３分

387
uuReplacing Light Bulbs uBack-Up Light and Rear Turn Signal Light Bulbs
Maintenance
Back-Up Light and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
4. Insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W
Bolt
Bulb
Socket
17 FIT -31T5A6200.book 387 ページ ２０１６年５月２７日　金曜日　午後６時３３分

442
Information
Specifications
■Vehicle Specifications
ModelFitNo. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating*1U.S.:3,374 lbs (1,530 kg)*4
3,431 lbs (1,556 kg)*6
3,498 lbs (1,586 kg)*8
Canada:1,519 kg*3
1,535 kg*4
1,546 kg*5
1,559 kg*6
Gross Vehicle
Weight Rating*2U.S.:3,416 lbs (1,549 kg)*4
3,482 lbs (1,579 kg)*6
3,498 lbs (1,586 kg)*7
3,500 lbs (1,587 kg)*8
Canada:1,554 kg*4
1,565 kg*5
1,583 kg*6
1,590 kg*7
Gross Axle Weight
Rating (Front)*1U.S.:1,781 lbs (808 kg)*4
1,783 lbs (809 kg)*6
1,867 lbs (847 kg)*8
Canada:794 kg*3
810 kg*4
814 kg*5
811 kg*6
Gross Axle Weight
Rating (Rear)*1U.S.:1,618 lbs (734 kg)*4
1,662 lbs (754 kg)*6
1,651 lbs (749 kg)*8
Canada:731 kg*3
737 kg*4
742 kg*5
754 kg*6
*1: Manual transmission models
*2: Continuously variable transmission models
*3: DX
*4: LX
*5: SE
*6: EX
*7: EX-L
*8: EX-LNA
■ Air Conditioning*
Gross Axle Weight
Rating (Front)*2U.S.:1,825 lbs (828 kg)*4
1,858 lbs (843 kg)*6
1,867 lbs (847 kg)*7
1,869 lbs (848 kg)*8
Canada:830 kg*4
834 kg*5
845 kg*6
846 kg*7
Gross Axle Weight
Rating (Rear)*2U.S.:1,607 lbs (729 kg)*4
1,655 lbs (751 kg)*6
1,651 lbs (749 kg)*7
1,657 lbs (752 kg)*8
Canada:734 kg*4
738 kg*5
754 kg*6
755 kg*7
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeND-OIL8
Quantity 3.3 – 4.0 cu-in (55 – 67 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
■ Light Bulbs
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11S
DENSODXE22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.2 US qt (4.0 L)
Headlights/Daytime Running Lights
(High/Low Beam)60/55W (H4LL/HB2LL*, H4/
HB2*)
Fog Lights*35W (H8 LL)Side Marker Lights3CP
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 21W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Side Turn Signal LightsLED
Rear License Plate Lights 5W
Cargo Area Light5W
Interior Lights
Map Lights8W
Ceiling Light 8W
* Not available on all models
17 FIT -31T5A6200.book 442 ページ ２０１６年５月２７日　金曜日　午後６時３３分

Index
455
Index
Index
Numbers
7-Speed Manual Shift Mode................... 327
A
ABS (Anti-lock Brake System) .................. 353
Accessories and Modifications ................ 362
Accessory Power Socket ........................... 152
Additives Coolant .................................................. 378
Engine Oil ............................................... 373
Washer ................................................... 382
Additives, Engine Oil ............................... 373
Adjusting Front Seats.............................................. 135
Head Restraints ....................................... 142
Headlights .............................................. 383
Mirrors.................................................... 133
Rear Seats ............................................... 139
Steering Wheel ....................................... 132
Adjusting the Sound ................................ 200
Air Conditioning System Climate Control System .......................... 160
Defrosting the Windshield
and Windows....................................... 161
Dust and Pollen Filter .............................. 407
Air Conditioning System
(Heating and Cooling System) Cooling................................................... 159
Defrosting the Windshield
and Windows....................................... 159 Heating ................................................... 158
Heating and Cooling System .................... 157
Air Pressure ....................................... 395, 443
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ...................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags .................................. 50
Anti-lock Brake System (ABS) .................. 353
Indicator .................................................... 73
Armrest ..................................................... 146
Audio Remote Controls ............................ 171
Audio System ............................................ 166
Adjusting the Sound ................................ 178
Auxiliary Input Jack .................................. 168
Error Messages ........................................ 222
General Information ................................ 226
MP3/WMA/AAC .............................. 188, 213
Recommended CDs ................................. 226
Recommended Devices ............................ 228
Remote Controls ................................. 5, 171
Security Code .......................................... 170
Theft Protection ....................................... 170
USB Flash Drives ...................................... 228
USB Port(s) .............................................. 167
Audio/Information Screen ............... 174, 195Authorized Manuals
................................ 451
Auto Door Locking/Unlocking ................. 105
Customize ............................................... 106
Automatic Climate Control Sensors ........ 163
Auxiliary Input Jack .................................. 168
Average Fuel Economy .............................. 87
B
Battery...................................................... 403
Charging System Indicator................. 71, 429
Jump Starting .......................................... 424
Maintenance (Checki ng the Battery) ........ 403
Maintenance (Replacing) ......................... 405
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 150
Bluetooth ® HandsFreeLink ®..................... 251
Booster Seats (For Children) ...................... 65
Brake System ............................................ 351
Anti-lock Brake System (ABS)................... 353
Brake Assist System ................................. 354
Fluid ........................................................ 381
Foot Brake............................................... 352
Indicator............................................ 70, 431
Parking Brake .......................................... 351
Brake System Indicator .............................. 70
Brightness Control (Instrument Panel) .... 130
Bulb Replacement .................................... 383
Back-Up Light and Rear Turn Signal Lights ................................................... 387
Brake/Tail/Rear Side Marker Lights ........... 388
17 FIT -31T5A6200.book 455 ページ ２０１６年５月２７日　金曜日　午後６時３３分

456
Index
Fog Lights ................................................ 385
Headlights ............................................... 383
High-Mount Brake Light .......................... 388
Rear License Plate Light............................ 389
Side Turn Signal/Emergency Indicator Lights.................................................... 386
Bulb Specifications .................................... 442
C
Carbon Monoxide Gas ................................ 66
Cargo Area Cover ..................................... 155
Cargo Floor Box ........................................ 151
Carrying Cargo .................................. 307, 309
CD Player ................................................... 182
Certification Label .................................... 444
Changing Bulbs ......................................... 383
Charging System Indicator ................. 71, 429
Child Safety ................................................. 54
Childproof Door Locks ............................. 104
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................... 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks .............................. 104
Cleaning the Exterior ............................... 410 Cleaning the Interior
................................ 408
Climate Control System ............................ 160
Clock ............................................................ 90
Coat Hook ................................................. 153
Compact Spare Tire .......................... 415, 443
Console Compartment ............................. 149
Continuously Variable Transmission ....... 322
7-Speed Manual Shift Mode .................... 327
Creeping ................................................. 322
Fluid ........................................................ 380
Kickdown ................................................ 322
Operating the Shift Lever........... 20, 324, 326
Shift Lever Does Not Move ...................... 426
Shifting ........................................... 323, 325
Controls ....................................................... 89
Coolant (Engine) ...................................... 378
Adding to the Radiator ............................ 379
Adding to the Reserve Tank..................... 378
High Temperature Indicator ....................... 74
Low Temperature Indicator........................ 74
Overheating ............................................ 427
Creeping (Continuously Variable
Transmission) .......................................... 322
Cruise Control ........................................... 333
Indicator.................................................... 81
Cup Holders .............................................. 150
Customer Service Information ................. 452
Customized Features ................................ 229
D
Daytime Running Lights .......................... 127
Dead Battery ............................................ 424
Defrosting the Windshield and Windows ........................................ 159
Devices that Emit Radio Waves ............... 445
Dimming Headlights .............................................. 123
Rearview Mirror ...................................... 133
Dipstick (Engine Oil) ................................ 374
Directional Signals (Turn Signal) ............. 123
Display Setup .................................... 179, 201
Door Mirrors ............................................. 133
Doors .......................................................... 92
Auto Door Locking.................................. 105
Auto Door Unlocking .............................. 105
Door and Tailgate Open Indicator ....... 31, 75
Keys.......................................................... 92
Locking/Unlocking the Doors from the Inside..................................... 101
Locking/Unlocking the Doors from the Outside.................................... 95
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 397
Driving ...................................................... 305
Braking ................................................... 351
Continuously Variable Transmission ........ 322
Cruise Control ........................................ 333
Shifting Gear .......................... 323, 325, 329
Starting the Engine ......................... 315, 317
Dust and Pollen Filter .............................. 407
17 FIT -31T5A6200.book 456 ページ ２０１６年５月２７日　金曜日　午後６時３３分

459
Index
L
Lane Departure Warning (LDW)............. 340
Indicator ................................................... 79
LaneWatch
TM............................................ 345
LATCH (Child Seats) ................................... 59
Lights ................................................ 123, 383
Bulb Replacement ................................... 383
Daytime Running Lights .......................... 127
Fog Lights ............................................... 126
High-Beam Indicator ................................. 77
Interior.................................................... 147
Light Switches......................................... 123
Lights On Indicator.................................... 77
Turn Signals ............................................ 123
Load Limits ............................................... 309
Locking/Unlocking ..................................... 92
Auto Door Locking/Unlocking ................. 105
Childproof Door Locks ............................ 104
From Inside ............................................. 101
From Outside ............................................ 95
Keys.......................................................... 92
Lockout Prevention System ..................... 100
Using a Key............................................... 99
Lockout Prevention System ..................... 100
Low Battery Charge ................................. 429
Low Fuel Indicator ..................................... 73
Low Oil Pressure Indicator ................. 71, 429
Lower Anchors ........................................... 59
Lubricant Specifications Chart ................ 443
Luggage (Maximum Load Limit) ............. 309
M
Maintenance............................................. 363
Battery .................................................... 403
Brake Fluid .............................................. 381
Cleaning .................................................. 408
Coolant ................................................... 378
Heating and Cooling System .................... 407
Maintenance Minder
TM............................ 367
Oil ........................................................... 374
Precautions .............................................. 365
Radiator .................................................. 379
Remote Transmitter ................................. 405
Replacing Light Bulbs ............................... 383
Safety ...................................................... 365
Service Items ........................................... 369
Tires ........................................................ 394
Transmission Fluid ................................... 380
Under the Hood ...................................... 371
Malfunction Indicator Lamp .............. 71, 430
Manual Transmission ................................ 329
Reverse Lockout ...................................... 331
Map Lights ................................................ 148
Maximum Load Limit ............................... 309
Meters, Gauges ........................................... 85
Mirrors ....................................................... 133
Adjusting ................................................. 133
Door........................................................ 133
Exterior .................................................... 133
Interior Rearview ..................................... 133
Modifications (and Accessories) .............. 362
Moonroof .................................................. 117 MP3
........................................... 182, 188, 213
Multi-View Rear Camera .......................... 356
N
Numbers (Identification).......................... 444
O
Odometer................................................... 87
Oil (Engine) ............................................... 373
Adding .................................................... 375
Checking................................................. 374
Displaying Oil Life .................................... 367
Low Oil Pressure Indicator ................. 71, 429
Recommended Engine Oil ....................... 373
Viscosity .................................................. 373
Opening and Closing the Moonroof ....... 117
Opening/Closing Hood....................................................... 372
Power Windows ...................................... 115
Tailgate ................................................... 109
Overheating .............................................. 427
P
Paddle Shifters (7-Speed Manual Shift
Mode) ....................................... 20, 327, 328
Pandora ®................................................... 212
Panic Mode ............................................... 114
Parking ...................................................... 355
Parking Brake ........................................... 351
17 FIT -31T5A6200.book 459 ページ ２０１６年５月２７日　金曜日　午後６時３３分
