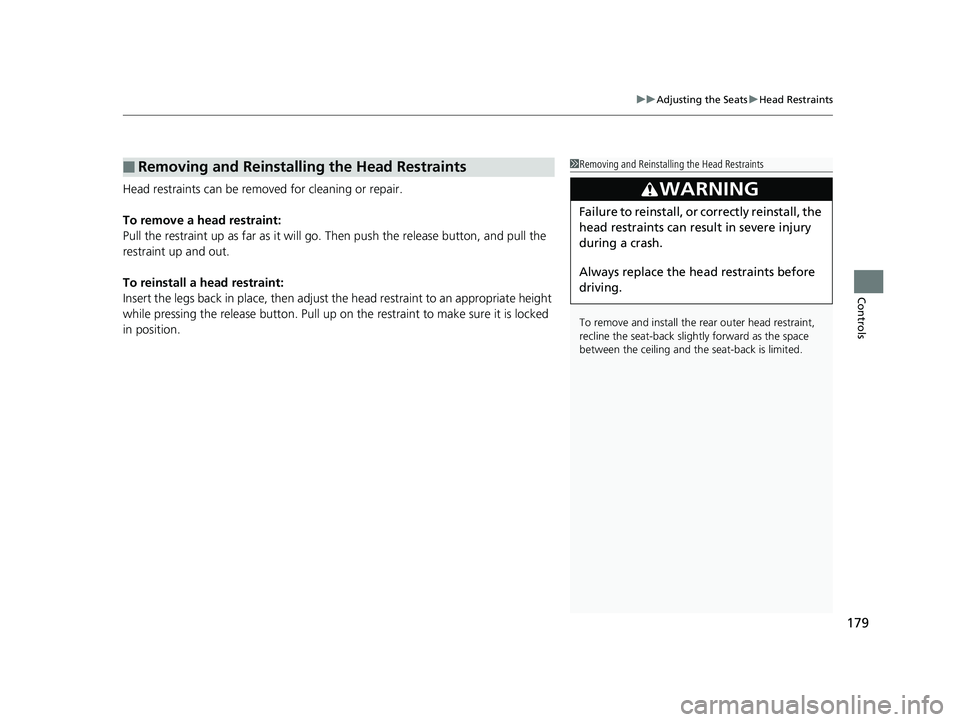

HONDA FIT 2018 Owner's Manual (in English)

179
uuAdjusting the Seats uHead Restraints
Controls
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
To remove and install the rear outer head restraint,
recline the seat-back slightly forward as the space
between the ceili ng and the seat-back is limited.
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
18 FIT JAZZ-31T5A6300.book 179 ページ ２０１８年６月２９日　金曜日　午後４時１１分

180
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
18 FIT JAZZ-31T5A6300.book 180 ページ ２０１８年６月２９日　金曜日　午後４時１１分

181
uuAdjusting the Seats uArmrest*
Controls

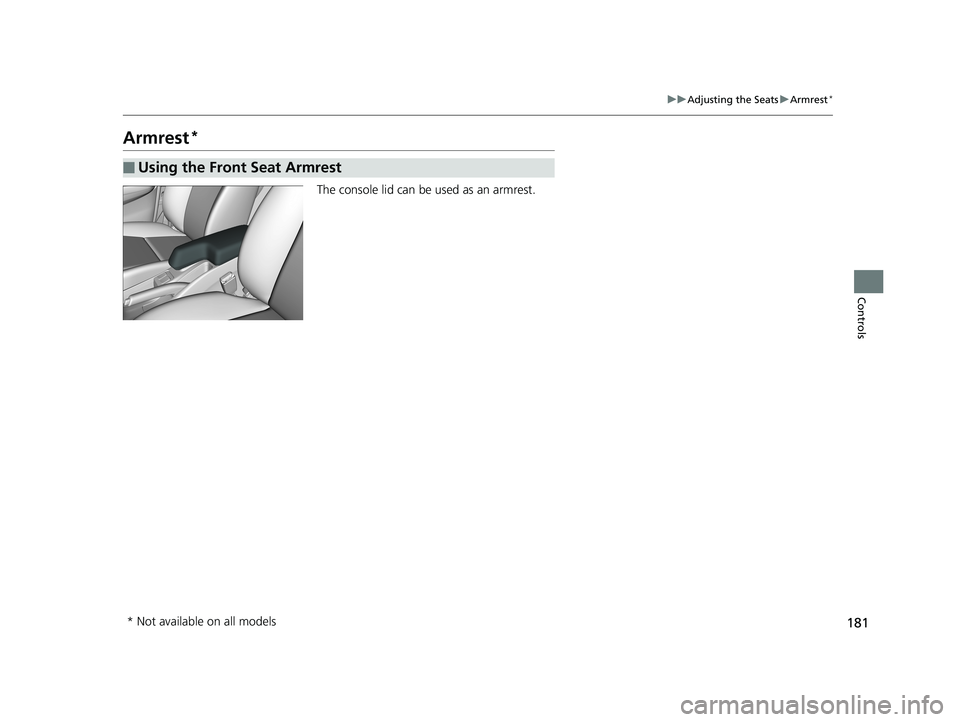

Armrest*
The console lid can be used as an armrest.
■Using the Front Seat Armrest
* Not available on all models
18 FIT JAZZ-31T5A6300.book 181 ページ ２０１８年６月２９日　金曜日　午後４時１１分

182
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior li ghts go off after about 15
minutes.
*1: Models with the sma rt entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
On
Off
Door Activated Position
Front*
Rear
Door Activated Position
Off
Models without smart entry system
Models with smart entry system
* Not available on all models
18 FIT JAZZ-31T5A6300.book 182 ページ ２０１８年６月２９日　金曜日　午後４時１１分

183
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

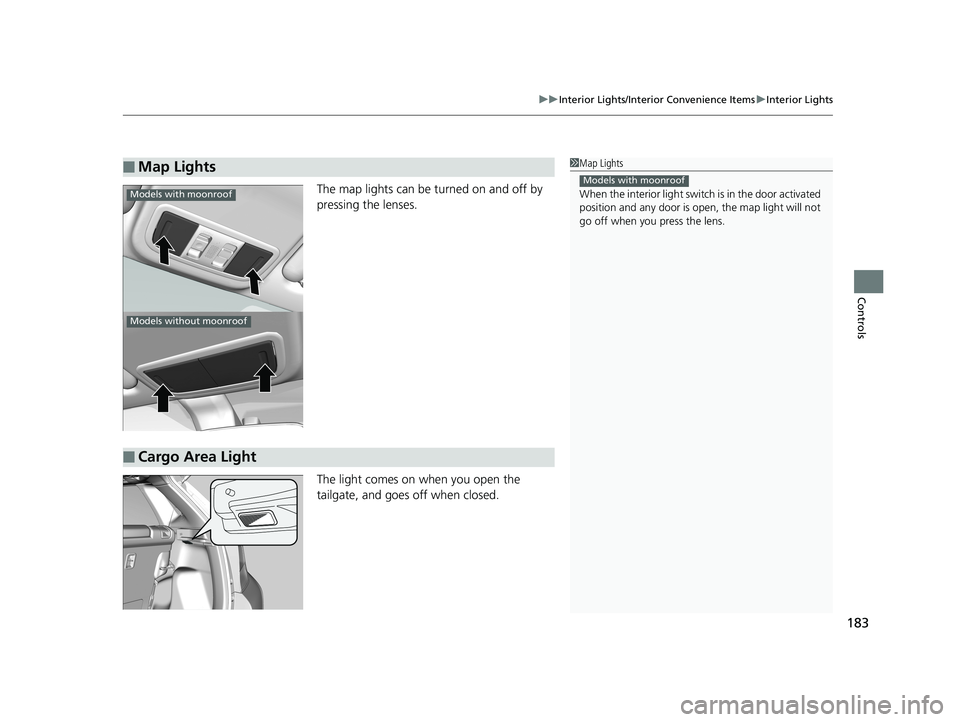

The map lights can be turned on and off by
pressing the lenses.
The light comes on when you open the
tailgate, and goes off when closed.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.
Models with moonroof
Models with moonroof
Models without moonroof
■Cargo Area Light
18 FIT JAZZ-31T5A6300.book 183 ページ ２０１８年６月２９日　金曜日　午後４時１１分

184
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box.
Pull the handle to open the console
compartment.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Console Compartment*
* Not available on all models
18 FIT JAZZ-31T5A6300.book 184 ページ ２０１８年６月２９日　金曜日　午後４時１１分

Continued185
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

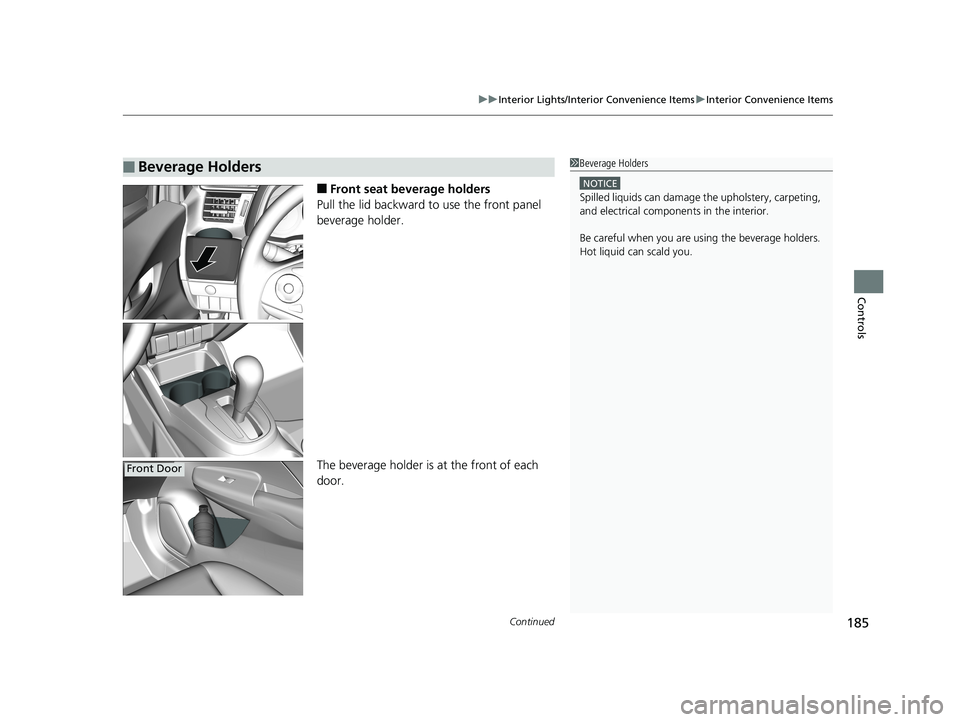

■Front seat beverage holders
Pull the lid backward to use the front panel
beverage holder.
The beverage holder is at the front of each
door.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front Door
18 FIT JAZZ-31T5A6300.book 185 ページ ２０１８年６月２９日　金曜日　午後４時１１分

186
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

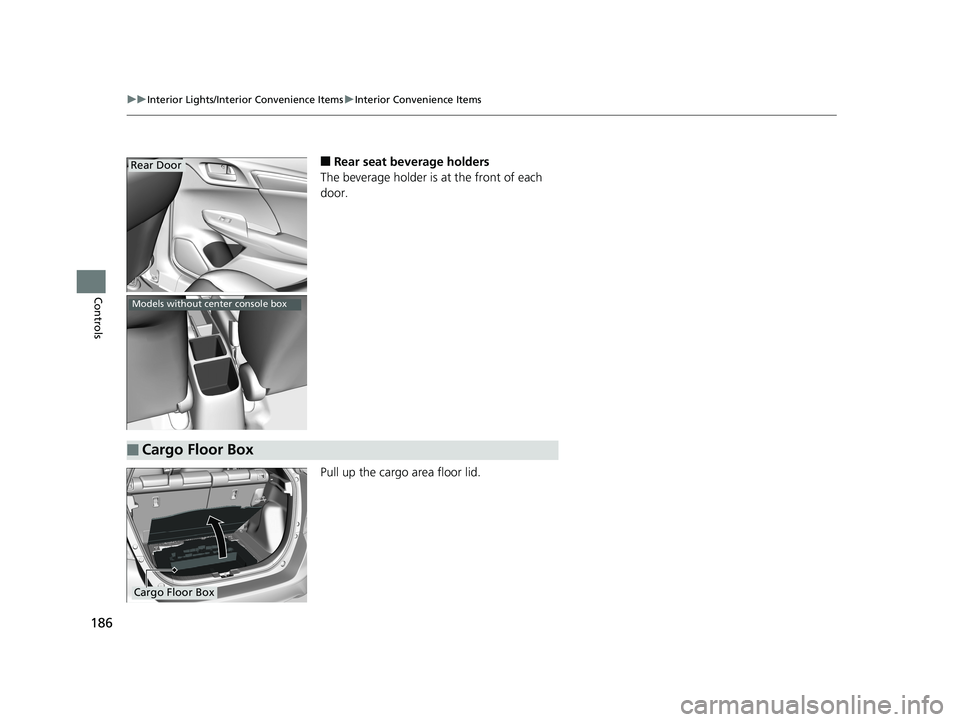

■Rear seat beverage holders
The beverage holder is at the front of each
door.
Pull up the cargo area floor lid.Rear Door
Models without center console box
■Cargo Floor Box
Cargo Floor Box
18 FIT JAZZ-31T5A6300.book 186 ページ ２０１８年６月２９日　金曜日　午後４時１１分

Continued187
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

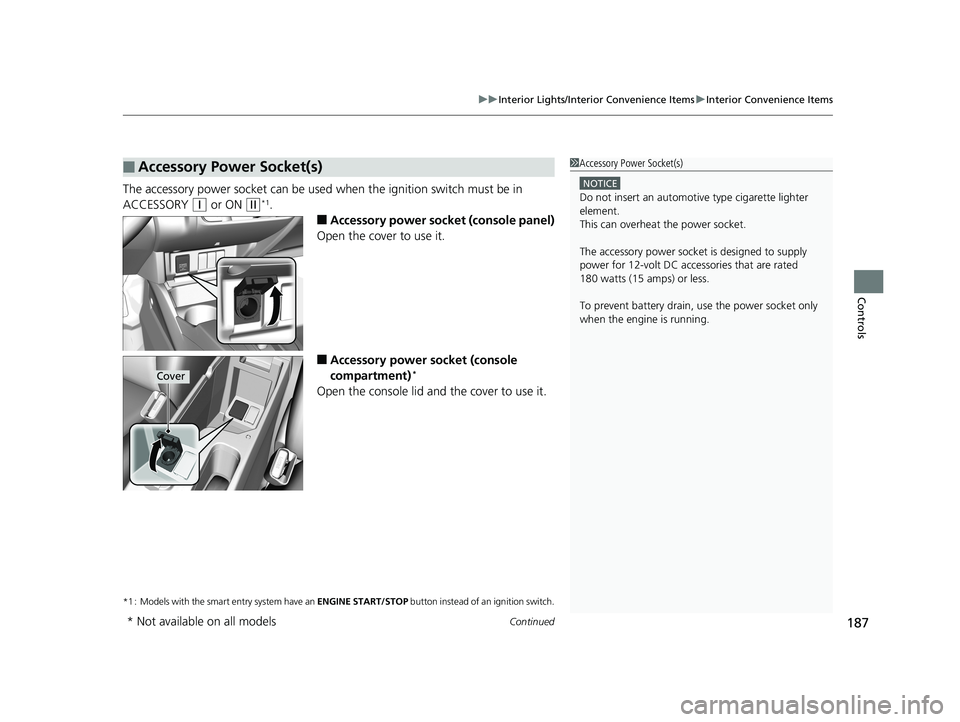

The accessory power socket can be used when the ignition switch must be in
ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (console
compartment)*
Open the console lid and the cover to use it.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Accessory Power Socket(s)1Accessory Power Socket(s)
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
Cover
* Not available on all models
18 FIT JAZZ-31T5A6300.book 187 ページ ２０１８年６月２９日　金曜日　午後４時１１分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
188
Controls

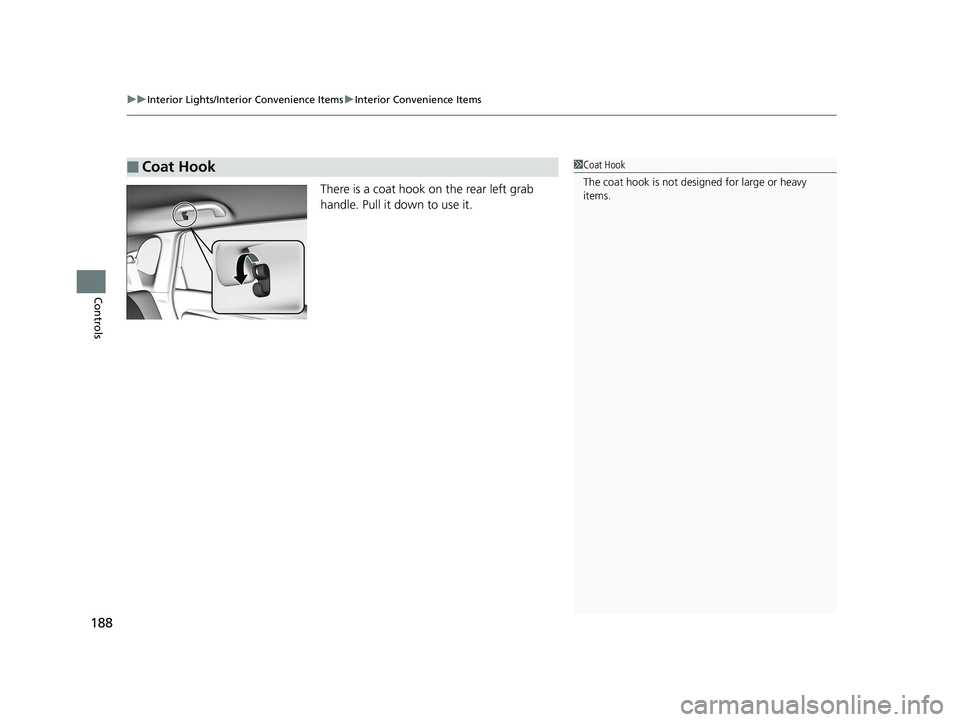

There is a coat hook on the rear left grab
handle. Pull it down to use it.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
18 FIT JAZZ-31T5A6300.book 188 ページ ２０１８年６月２９日　金曜日　午後４時１１分
