display HONDA HR-V 2016 2.G Owners Manual

384
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To switch the display, pres s the (select/reset) knob.

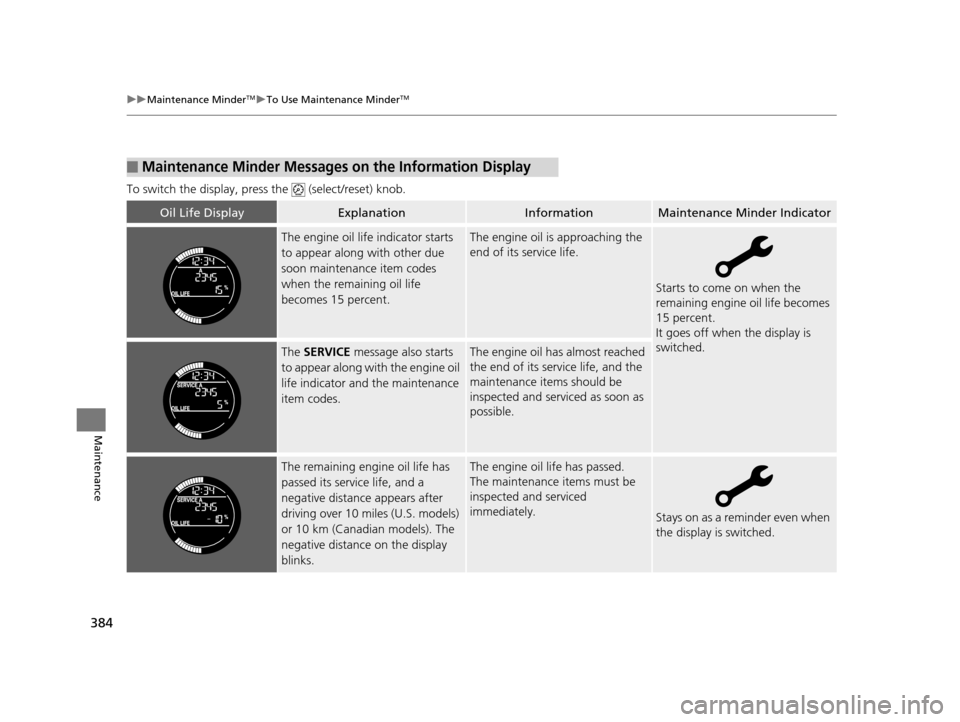

■Maintenance Minder Messages on the Information Display
Oil Life DisplayExplanationInformationMaintenance Minder Indicator
The engine oil life indicator starts
to appear along with other due
soon maintenance item codes
when the remaining oil life
becomes 15 percent.The engine oil is approaching the
end of its service life.
Starts to come on when the
remaining engine oil life becomes
15 percent.
It goes off when the display is
switched.
The SERVICE message also starts
to appear along with the engine oil
life indicator and the maintenance
item codes.The engine oil has almost reached
the end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
The remaining engine oil life has
passed its service life, and a
negative distance appears after
driving over 10 miles (U.S. models)
or 10 km (Canadian models). The
negative distance on the display
blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced
immediately.
Stays on as a reminder even when
the display is switched.
15 HR-V GAS-31T7A6000.book 384 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

385
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance

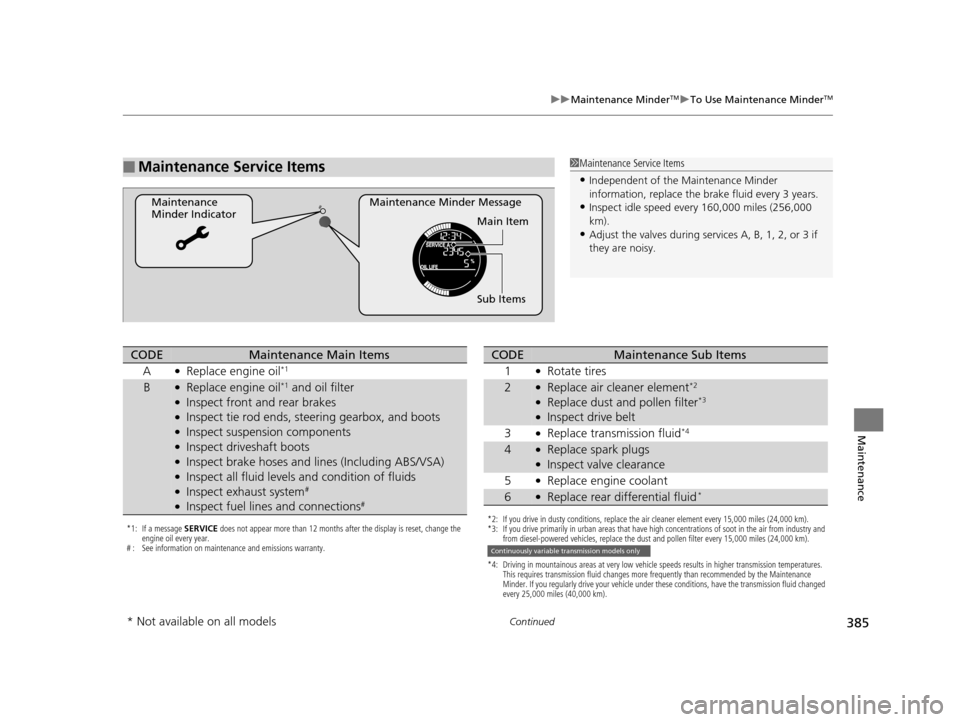

■Maintenance Service Items
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
Continuously variable transmission models only
* Not available on all models
15 HR-V GAS-31T7A6000.book 385 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

uuMaintenance MinderTMuTo Use Maintenance MinderTM
386
Maintenance

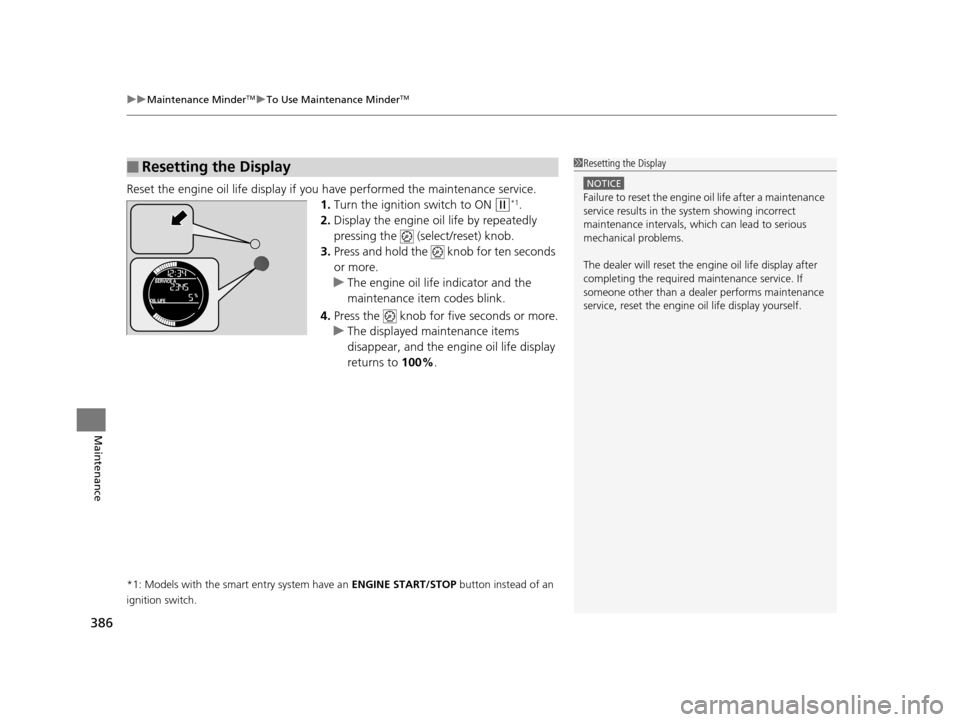

Reset the engine oil life display if yo u have performed the maintenance service.
1. Turn the ignition switch to ON
(w*1.
2. Display the engine oil life by repeatedly
pressing the (select/reset) knob.
3. Press and hold the knob for ten seconds
or more.
u The engine oil life indicator and the
maintenance item codes blink.
4. Press the knob for five seconds or more.
u The displayed maintenance items
disappear, and the engine oil life display
returns to 100%.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Resetting the Display1 Resetting the Display
NOTICE
Failure to reset the engine oil life after a maintenance
service results in the sy stem showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.
The dealer will reset the en gine oil life display after
completing the required ma intenance service. If
someone other than a deal er performs maintenance
service, reset the engine oil life display yourself.
15 HR-V GAS-31T7A6000.book 386 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

392
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

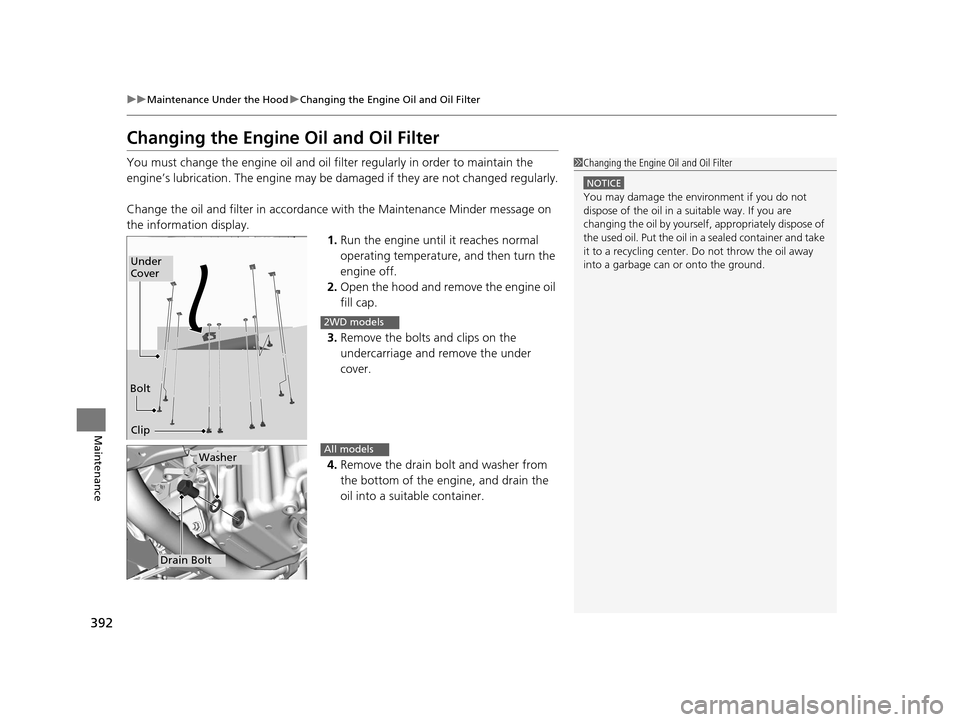

Changing the Engine Oil and Oil Filter
You must change the engine oil and oil f ilter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the Maintenance Minder message on
the information display. 1.Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the bolts and clips on the
undercarriage and remove the under
cover.
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under
Cover
Bolt Clip
2WD models
Washer
Drain Bolt
All models
15 HR-V GAS-31T7A6000.book 392 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

418
uuChecking and Maintaining Tires uTire Rotation
Maintenance

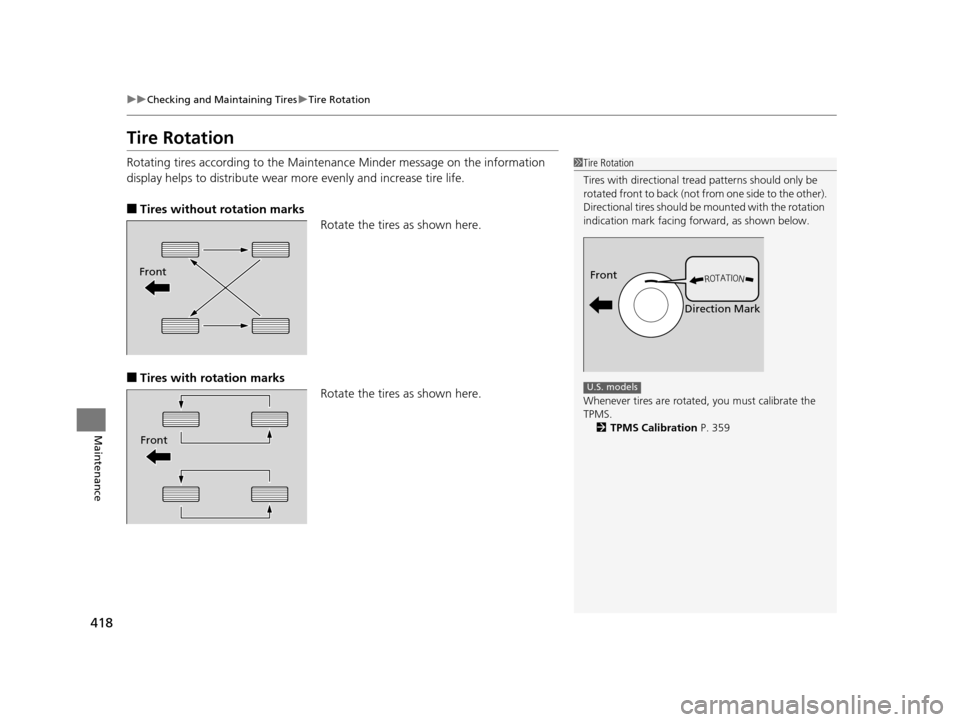

Tire Rotation
Rotating tires according to the Maintena nce Minder message on the information
display helps to distribute wear mo re evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 359
Front
Direction Mark
U.S. models
Front
Front
15 HR-V GAS-31T7A6000.book 418 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

420
Maintenance

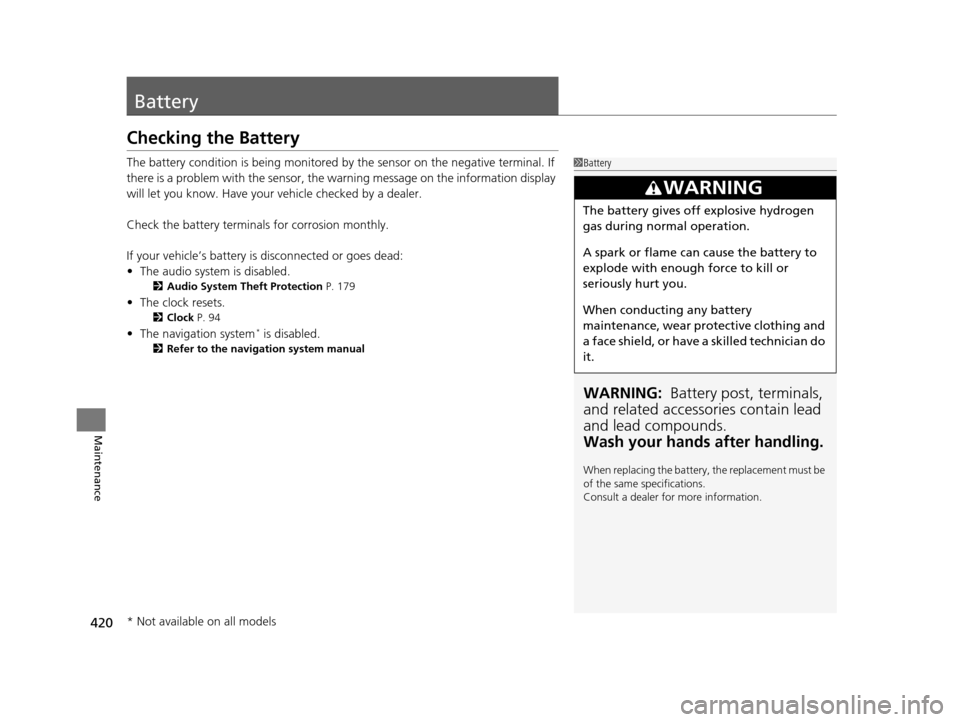

Battery
Checking the Battery
The battery condition is being monitored by the sensor on the negative terminal. If
there is a problem with the sensor, the warning message on the information display
will let you know. Have your vehicle checked by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 179
•The clock resets.
2 Clock P. 94
•The navigation system* is disabled.
2 Refer to the navigation system manual
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
15 HR-V GAS-31T7A6000.book 420 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

479
Index
Fluid ....................................................... 397
Foot Brake .............................................. 365
Indicator (Amber) ...................................... 72
Indicator (Red) .................................. 72, 453
Parking Brake.......................................... 363
Brake System Indicator (Amber) ............... 72
Brake System Indicator (Red) .................... 72
Brightness Control (Instrument Panel) ... 134
Bulb Replacement .................................... 399
Back-Up Light ......................................... 404
Brake/Tail/Rear Side Marker Lights........... 405
Fog Lights ............................................... 401
Front Side Marker Lights ......................... 401
Front Turn Signal/Parking Lights .............. 400
Headlights .............................................. 399
High-Mount Brake Light.......................... 405
Rear License Plate Lights ......................... 406
Rear Turn Signal Lights............................ 403
Side Turn Signal, Emergency Indicator Lights .................................................... 402
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 69
Cargo Floor Box ....................................... 155
Carrying Cargo ................................. 315, 317
CD Player .......................................... 191, 214
Certification Label ................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................ 75, 451Child Safety
................................................. 57
Childproof Door Locks ............................. 108
Child Seat .................................................... 57
Booster Seats ............................................. 68
Child Seat for Infants ................................. 59
Child Seat for Small Children ..................... 60
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 64
Larger Children .......................................... 67
Rear-facing Child Seat ............................... 59
Selecting a Child Seat ................................ 61
Childproof Door Locks ............................. 108
Cleaning the Exterior ............................... 427
Cleaning the Interior ................................ 425
Climate Control System ............................ 165
Synchronized Mode ................................. 172
Clock ............................................................ 94
Coat Hook ................................................. 157
Compact Spare Tire .......................... 434, 467
Continuously Variable Transmission ....... 333
7-Speed Manual Shift Mode .................... 338
Creeping ................................................. 333
Fluid ........................................................ 396
Kickdown ................................................ 333
Operating the Shift Lever ........... 21, 335, 337
Shift Lever Does Not Move ...................... 448
Shifting ........................................... 334, 336
Controls ....................................................... 93
Coolant (Engine) ....................................... 394
Adding to the Radiator ............................ 395
Adding to the Reserve Tank ..................... 394 High Temperature Indicator ....................... 77
Low Temperature Indicator........................ 77
Overheating ............................................ 449
Creeping (Continuously Variable Transmission) .......................................... 333
Cruise Control ........................................... 344
Indicator.................................................... 82
Cup Holders .............................................. 153
Customer Service Information ................. 476
D
Daytime Running Lights.......................... 131
Dead Battery ............................................. 446
Defrosting the Windshield and Windows ......................................... 164, 168
Devices that Emit Radio Waves ............... 469
Dimming
Headlights ............................................... 127
Rearview Mirror....................................... 138
Dipstick (Engine Oil) ................................. 390
Directional Signals (Turn Signal) ............. 127
Display Setup .................................... 188, 210
Door Mirrors ............................................. 139
Doors ........................................................... 96
Auto Door Locking .................................. 109
Auto Door Unlocking .............................. 109
Door and Tailgate Open Indicator ........ 34, 78
Keys .......................................................... 96
Locking/Unlocking the Doors from
the Inside .............................................. 105
15 HR-V GAS-31T7A6000.book 479 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

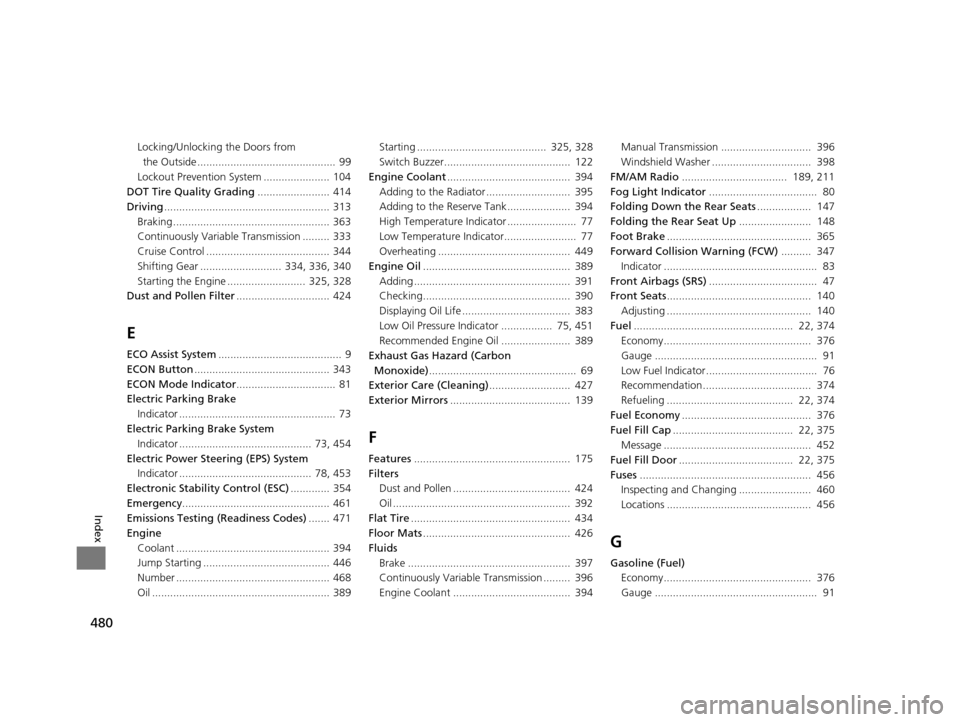

480
Index
Locking/Unlocking the Doors from the Outside .............................................. 99
Lockout Prevention System ...................... 104
DOT Tire Quality Grading ........................ 414
Driving ....................................................... 313
Braking .................................................... 363
Continuously Variable Transmission ......... 333
Cruise Control ......................................... 344
Shifting Gear ........................... 334, 336, 340
Starting the Engine .......................... 325, 328
Dust and Pollen Filter ............................... 424
E
ECO Assist System......................................... 9
ECON Button ............................................. 343
ECON Mode Indicator ................................. 81
Electric Parking Brake
Indicator .................................................... 73
Electric Parking Brake System Indicator ............................................ 73, 454
Electric Power Steering (EPS) System Indicator ............................................ 78, 453
Electronic Stability Control (ESC) ............. 354
Emergency ................................................. 461
Emissions Testing (Readiness Codes) ....... 471
Engine
Coolant ................................................... 394
Jump Starting .......................................... 446
Number ................................................... 468
Oil ........................................................... 389 Starting ........................................... 325, 328
Switch Buzzer.......................................... 122
Engine Coolant ......................................... 394
Adding to the Radiator ............................ 395
Adding to the Reserve Tank..................... 394
High Temperature Indicator ....................... 77
Low Temperature Indicator........................ 77
Overheating ............................................ 449
Engine Oil ................................................. 389
Adding .................................................... 391
Checking................................................. 390
Displaying Oil Life .................................... 383
Low Oil Pressure Indicator ................. 75, 451
Recommended Engine Oil ....................... 389
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 69
Exterior Care (Cleaning) ........................... 427
Exterior Mirrors ........................................ 139
F
Features.................................................... 175
Filters Dust and Pollen ....................................... 424
Oil ........................................................... 392
Flat Tire ..................................................... 434
Floor Mats ................................................. 426
Fluids Brake ...................................................... 397
Continuously Variable Transmission ......... 396
Engine Coolant ....................................... 394 Manual Transmission .............................. 396
Windshield Washer ................................. 398
FM/AM Radio ................................... 189, 211
Fog Light Indicator .................................... 80
Folding Down the Rear Seats .................. 147
Folding the Rear Seat Up ........................ 148
Foot Brake ................................................ 365
Forward Collision Warning (FCW) .......... 347
Indicator ................................................... 83
Front Airbags (SRS) .................................... 47
Front Seats ................................................ 140
Adjusting ................................................ 140
Fuel ..................................................... 22, 374
Economy................................................. 376
Gauge ...................................................... 91
Low Fuel Indicator..................................... 76
Recommendation.................................... 374
Refueling .......................................... 22, 374
Fuel Economy ........................................... 376
Fuel Fill Cap ........................................ 22, 375
Message ................................................. 452
Fuel Fill Door ...................................... 22, 375
Fuses ......................................................... 456
Inspecting and Changing ........................ 460
Locations ................................................ 456
G
Gasoline (Fuel) Economy................................................. 376
Gauge ...................................................... 91
15 HR-V GAS-31T7A6000.book 480 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

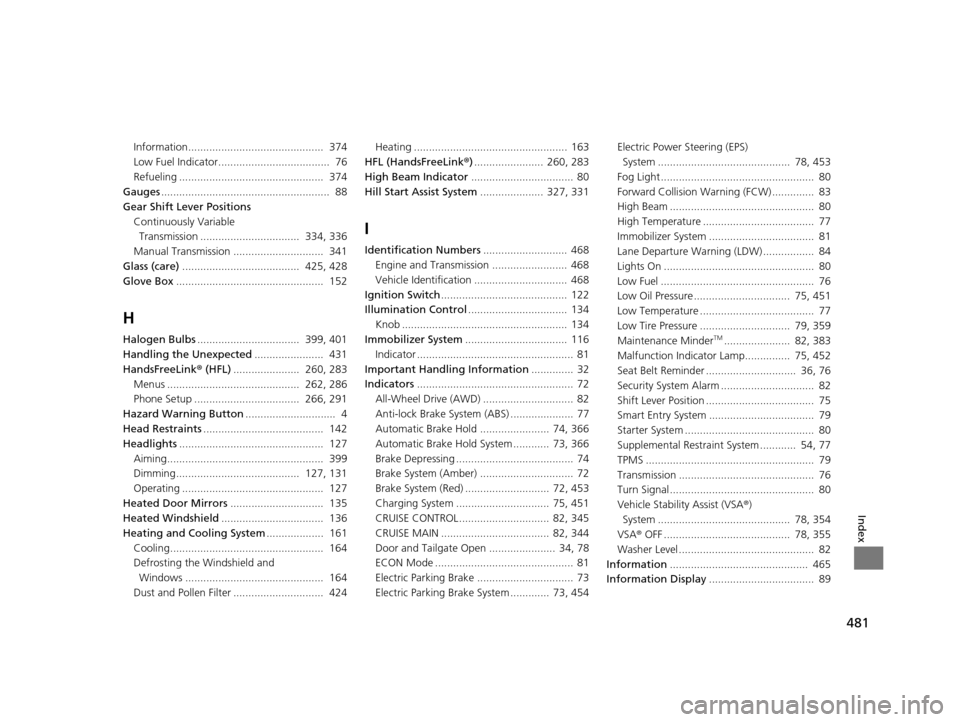

481
Index
Information............................................. 374
Low Fuel Indicator..................................... 76
Refueling ................................................ 374
Gauges ........................................................ 88
Gear Shift Lever Positions
Continuously Variable Transmission ................................. 334, 336
Manual Transmission .............................. 341
Glass (care) ....................................... 425, 428
Glove Box ................................................. 152
H
Halogen Bulbs .................................. 399, 401
Handling the Unexpected ....................... 431
HandsFreeLink ® (HFL) ...................... 260, 283
Menus ............................................ 262, 286
Phone Setup ................................... 266, 291
Hazard Warning Button .............................. 4
Head Restraints ........................................ 142
Headlights ................................................ 127
Aiming.................................................... 399
Dimming......................................... 127, 131
Operating ............................................... 127
Heated Door Mirrors ............................... 135
Heated Windshield .................................. 136
Heating and Cooling System ................... 161
Cooling................................................... 164
Defrosting the Windshield and Windows .............................................. 164
Dust and Pollen Filter .............................. 424 Heating ................................................... 163
HFL (HandsFreeLink ®)....................... 260, 283
High Beam Indicator .................................. 80
Hill Start Assist System ..................... 327, 331
I
Identification Numbers ............................ 468
Engine and Transmission ......................... 468
Vehicle Identification ............................... 468
Ignition Switch .......................................... 122
Illumination Control ................................. 134
Knob ....................................................... 134
Immobilizer System .................................. 116
Indicator .................................................... 81
Important Handling Information .............. 32
Indicators .................................................... 72
All-Wheel Drive (AWD) .............................. 82
Anti-lock Brake System (ABS) ..................... 77
Automatic Brake Hold ....................... 74, 366
Automatic Brake Hold System ............ 73, 366
Brake Depressing ....................................... 74
Brake System (Amber) ............................... 72
Brake System (Red) ............................ 72, 453
Charging System ............................... 75, 451
CRUISE CONTROL .............................. 82, 345
CRUISE MAIN .................................... 82, 344
Door and Tailgate Open ...................... 34, 78
ECON Mode .............................................. 81
Electric Parking Brake ................................ 73
Electric Parking Brake System ............. 73, 454 Electric Power Steering (EPS)
System ............................................ 78, 453
Fog Light ................................................... 80
Forward Collision Warning (FCW) .............. 83
High Beam ................................................ 80
High Temperature ..................................... 77
Immobilizer System ................................... 81
Lane Departure Warning (LDW) ................. 84
Lights On .................................................. 80
Low Fuel ................................................... 76
Low Oil Pressure ................................ 75, 451
Low Temperature ...................................... 77
Low Tire Pressure .............................. 79, 359
Maintenance Minder
TM...................... 82, 383
Malfunction Indicator Lamp............... 75, 452
Seat Belt Reminder .............................. 36, 76
Security System Alarm ............................... 82
Shift Lever Position .................................... 75
Smart Entry System ................................... 79
Starter System ........................................... 80
Supplemental Restraint System ............ 54, 77
TPMS ........................................................ 79
Transmission ............................................. 76
Turn Signal ................................................ 80
Vehicle Stability Assist (VSA® )
System ............................................ 78, 354
VSA ® OFF .......................................... 78, 355
Washer Level ............................................. 82
Information .............................................. 465
Information Display ................................... 89
15 HR-V GAS-31T7A6000.book 481 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

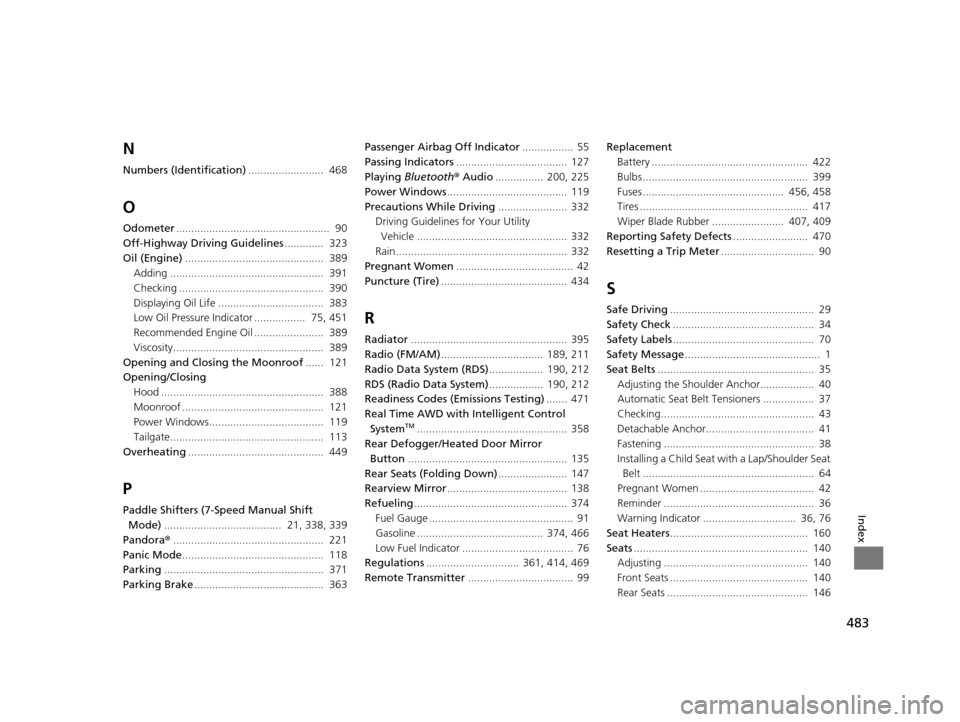

483
Index
N
Numbers (Identification)......................... 468
O
Odometer................................................... 90
Off-Highway Driving Guidelines ............. 323
Oil (Engine) .............................................. 389
Adding ................................................... 391
Checking ................................................ 390
Displaying Oil Life ................................... 383
Low Oil Pressure Indicator ................. 75, 451
Recommended Engine Oil ....................... 389
Viscosity.................................................. 389
Opening and Closing the Moonroof ...... 121
Opening/Closing
Hood ...................................................... 388
Moonroof ............................................... 121
Power Windows...................................... 119
Tailgate................................................... 113
Overheating ............................................. 449
P
Paddle Shifters (7-Speed Manual Shift
Mode) ....................................... 21, 338, 339
Pandora ®.................................................. 221
Panic Mode ............................................... 118
Parking ..................................................... 371
Parking Brake ........................................... 363 Passenger Airbag Off Indicator
................. 55
Passing Indicators ..................................... 127
Playing Bluetooth ® Audio ................ 200, 225
Power Windows ........................................ 119
Precautions While Driving ....................... 332
Driving Guidelines for Your Utility Vehicle .................................................. 332
Rain ......................................................... 332
Pregnant Women ....................................... 42
Puncture (Tire) .......................................... 434
R
Radiator.................................................... 395
Radio (FM/AM) .................................. 189, 211
Radio Data System (RDS) .................. 190, 212
RDS (Radio Data System) .................. 190, 212
Readiness Codes (Emissions Testing) ....... 471
Real Time AWD with Intelligent Control System
TM.................................................. 358
Rear Defogger/Heated Door Mirror
Button ..................................................... 135
Rear Seats (Folding Down) ....................... 147
Rearview Mirror ........................................ 138
Refueling ................................................... 374
Fuel Gauge ................................................ 91
Gasoline .......................................... 374, 466
Low Fuel Indicator ..................................... 76
Regulations ............................... 361, 414, 469
Remote Transmitter ................................... 99 Replacement
Battery .................................................... 422
Bulbs ....................................................... 399
Fuses ............................................... 456, 458
Tires ........................................................ 417
Wiper Blade Rubber ........................ 407, 409
Reporting Safety Defects ......................... 470
Resetting a Trip Meter ............................... 90
S
Safe Driving................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 70
Safety Message ............................................. 1
Seat Belts .................................................... 35
Adjusting the Shoulder Anchor.................. 40
Automatic Seat Belt Tensioners ................. 37
Checking................................................... 43
Detachable Anchor.................................... 41
Fastening .................................................. 38
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 64
Pregnant Women ...................................... 42
Reminder .................................................. 36
Warning Indicator ............................... 36, 76
Seat Heaters .............................................. 160
Seats .......................................................... 140
Adjusting ................................................ 140
Front Seats .............................................. 140
Rear Seats ............................................... 146
15 HR-V GAS-31T7A6000.book 483 ページ ２０１５年６月２９日　月曜日　午前１１時３６分
