fuel cap HONDA HR-V 2016 2.G Owners Manual

22

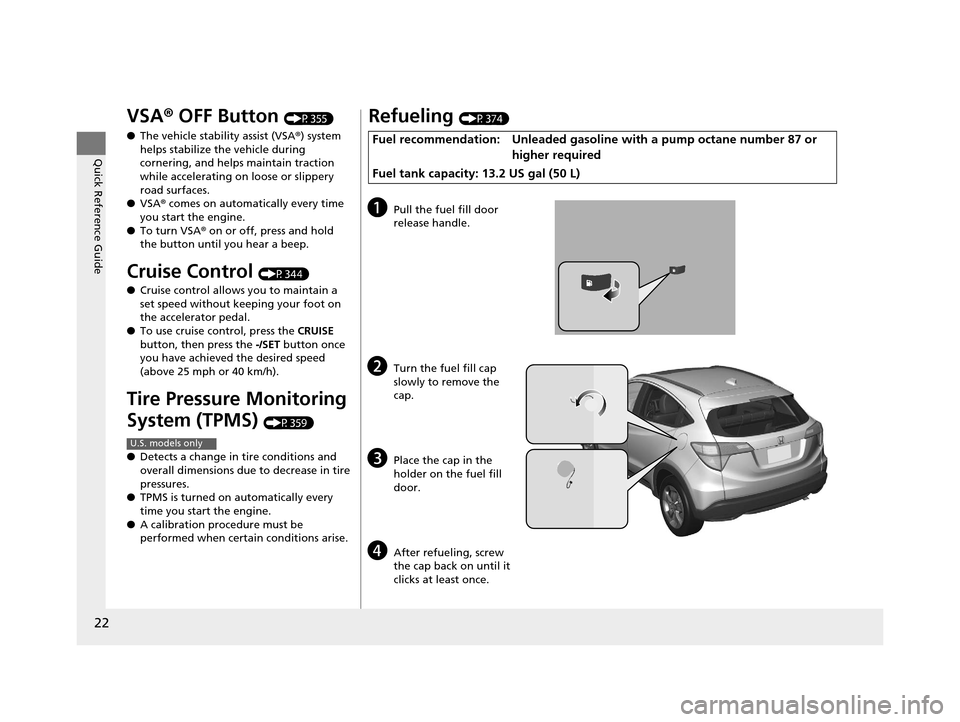

Quick Reference Guide
VSA® OFF Button (P355)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P344)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the -/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P359)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● TPMS is turned on automatically every
time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P374)
Fuel recommendation: Unlea ded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 13.2 US gal (50 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
15 HR-V GAS-31T7A6000.book 22 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

85
uuIndicators uInformation Display Warning and Information Messages
Continued
Instrument Panel
Information Display Warning and Information Messages
The following messages appear only on the information display.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check Fuel Cap Message P. 452
●Appears when there is a problem with the sensor on
the battery.●Stays on constantly - Have your vehicle checked
by a dealer.
15 HR-V GAS-31T7A6000.book 85 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

374
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasolin e. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 13.2 US gal (50 liters)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is ble nded with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
15 HR-V GAS-31T7A6000.book 374 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

375
uuRefueling uHow to Refuel
Driving

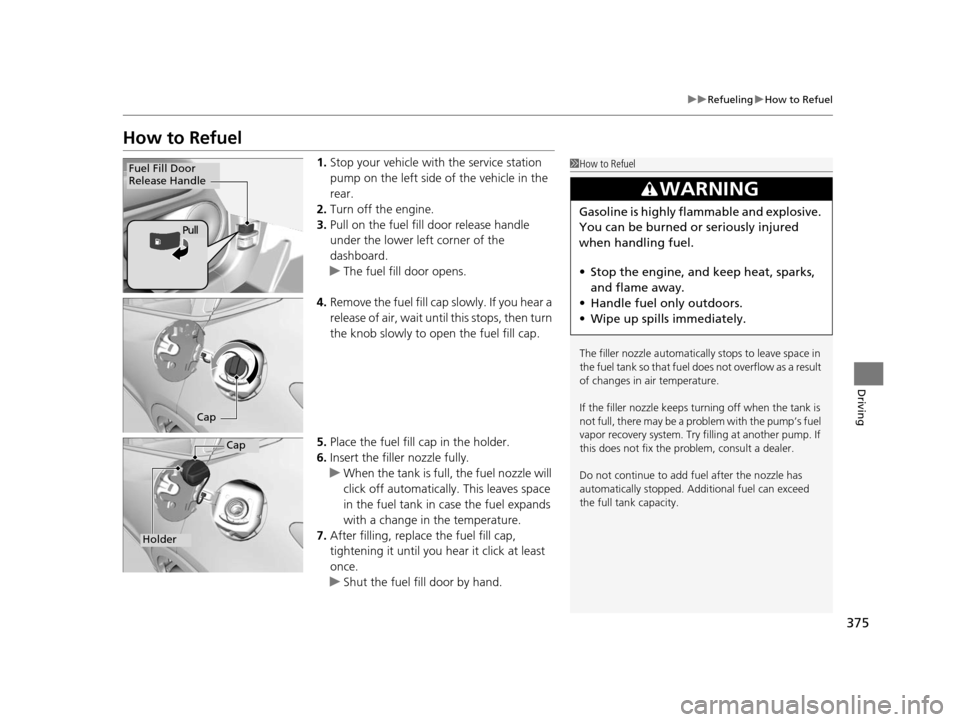

How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Pull on the fuel fill door release handle
under the lower left corner of the
dashboard.
u The fuel fill door opens.
4. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
5. Place the fuel fill cap in the holder.
6. Insert the filler nozzle fully.
u When the tank is full, the fuel nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
7. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.1How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Fill Door
Release Handle
Pull
Cap
Cap
Holder
15 HR-V GAS-31T7A6000.book 375 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

452
uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected

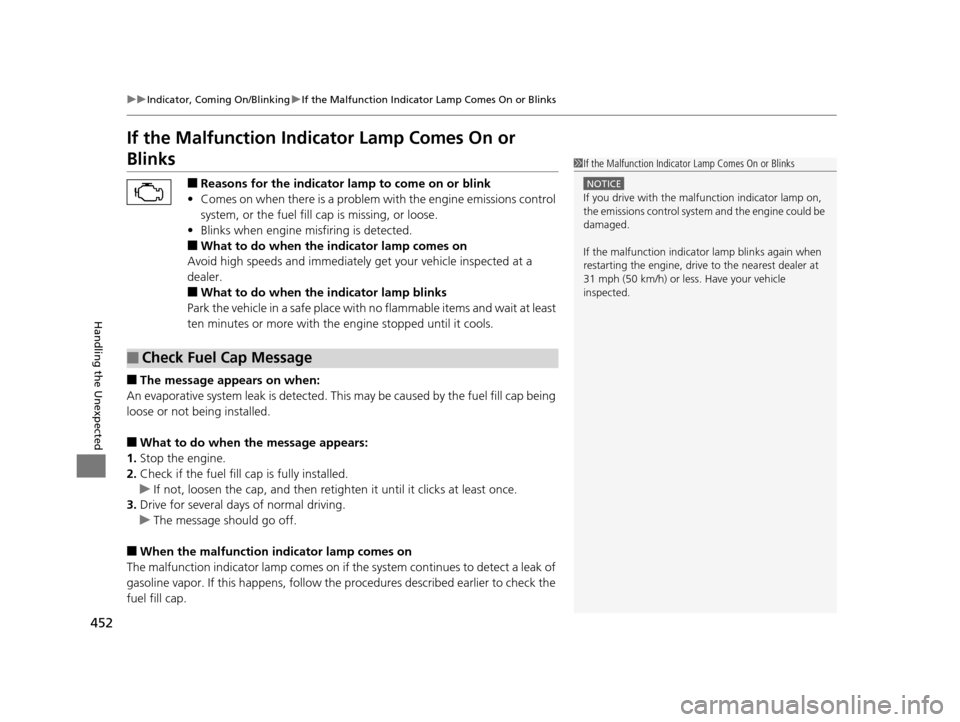

If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
ten minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Stop the engine.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then reti ghten it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, follow th e procedures described earlier to check the
fuel fill cap.
■Check Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
15 HR-V GAS-31T7A6000.book 452 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

466
Information
Specifications
■Vehicle Specifications
*1: 2WD
*2: AWD
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*1
4,166 lbs (1,890 kg)*2
Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*1
2,178 lbs (988 kg)*2
Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*1
1,988 lbs (902 kg)*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant Type ND-OIL8
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement109.8 cu-in (1,799 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
15 HR-V GAS-31T7A6000.book 466 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

480
Index
Locking/Unlocking the Doors from the Outside .............................................. 99
Lockout Prevention System ...................... 104
DOT Tire Quality Grading ........................ 414
Driving ....................................................... 313
Braking .................................................... 363
Continuously Variable Transmission ......... 333
Cruise Control ......................................... 344
Shifting Gear ........................... 334, 336, 340
Starting the Engine .......................... 325, 328
Dust and Pollen Filter ............................... 424
E
ECO Assist System......................................... 9
ECON Button ............................................. 343
ECON Mode Indicator ................................. 81
Electric Parking Brake
Indicator .................................................... 73
Electric Parking Brake System Indicator ............................................ 73, 454
Electric Power Steering (EPS) System Indicator ............................................ 78, 453
Electronic Stability Control (ESC) ............. 354
Emergency ................................................. 461
Emissions Testing (Readiness Codes) ....... 471
Engine
Coolant ................................................... 394
Jump Starting .......................................... 446
Number ................................................... 468
Oil ........................................................... 389 Starting ........................................... 325, 328
Switch Buzzer.......................................... 122
Engine Coolant ......................................... 394
Adding to the Radiator ............................ 395
Adding to the Reserve Tank..................... 394
High Temperature Indicator ....................... 77
Low Temperature Indicator........................ 77
Overheating ............................................ 449
Engine Oil ................................................. 389
Adding .................................................... 391
Checking................................................. 390
Displaying Oil Life .................................... 383
Low Oil Pressure Indicator ................. 75, 451
Recommended Engine Oil ....................... 389
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 69
Exterior Care (Cleaning) ........................... 427
Exterior Mirrors ........................................ 139
F
Features.................................................... 175
Filters Dust and Pollen ....................................... 424
Oil ........................................................... 392
Flat Tire ..................................................... 434
Floor Mats ................................................. 426
Fluids Brake ...................................................... 397
Continuously Variable Transmission ......... 396
Engine Coolant ....................................... 394 Manual Transmission .............................. 396
Windshield Washer ................................. 398
FM/AM Radio ................................... 189, 211
Fog Light Indicator .................................... 80
Folding Down the Rear Seats .................. 147
Folding the Rear Seat Up ........................ 148
Foot Brake ................................................ 365
Forward Collision Warning (FCW) .......... 347
Indicator ................................................... 83
Front Airbags (SRS) .................................... 47
Front Seats ................................................ 140
Adjusting ................................................ 140
Fuel ..................................................... 22, 374
Economy................................................. 376
Gauge ...................................................... 91
Low Fuel Indicator..................................... 76
Recommendation.................................... 374
Refueling .......................................... 22, 374
Fuel Economy ........................................... 376
Fuel Fill Cap ........................................ 22, 375
Message ................................................. 452
Fuel Fill Door ...................................... 22, 375
Fuses ......................................................... 456
Inspecting and Changing ........................ 460
Locations ................................................ 456
G
Gasoline (Fuel) Economy................................................. 376
Gauge ...................................................... 91
15 HR-V GAS-31T7A6000.book 480 ページ ２０１５年６月２９日　月曜日　午前１１時３６分
