rear view mirror HONDA HR-V 2016 2.G Owners Manual

7
Quick Reference Guide

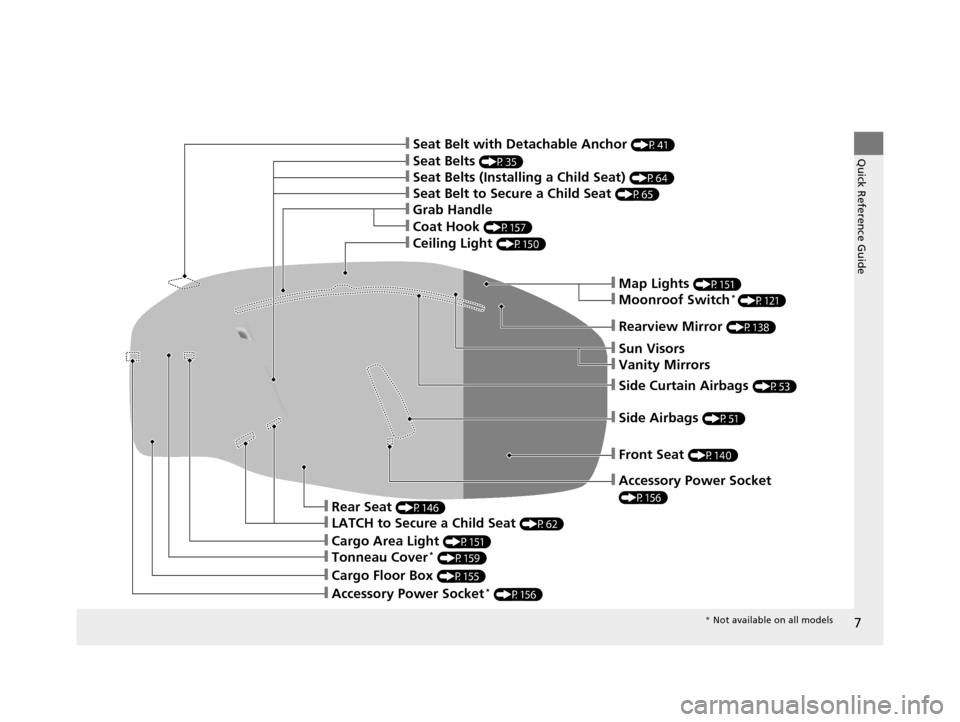

❙Front Seat (P140)
❙Rearview Mirror (P138)
❙Side Airbags (P51)
❙Accessory Power Socket
(P156)
❙Side Curtain Airbags (P53)
❙Ceiling Light (P150)
❙Seat Belts (P35)
❙Seat Belts (Installing a Child Seat) (P64)
❙Seat Belt to Secure a Child Seat (P65)
❙Seat Belt with Detachable Anchor (P41)
❙Cargo Area Light (P151)
❙Tonneau Cover* (P159)
❙Cargo Floor Box (P155)
❙Accessory Power Socket* (P156)
❙Rear Seat (P146)
❙LATCH to Secure a Child Seat (P62)
❙Map Lights (P151)
❙Moonroof Switch* (P121)
❙Sun Visors
❙Vanity Mirrors
❙Grab Handle
❙Coat Hook (P157)
* Not available on all models
15 HR-V GAS-31T7A6000.book 7 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

Visual Index
8
Quick Reference Guide

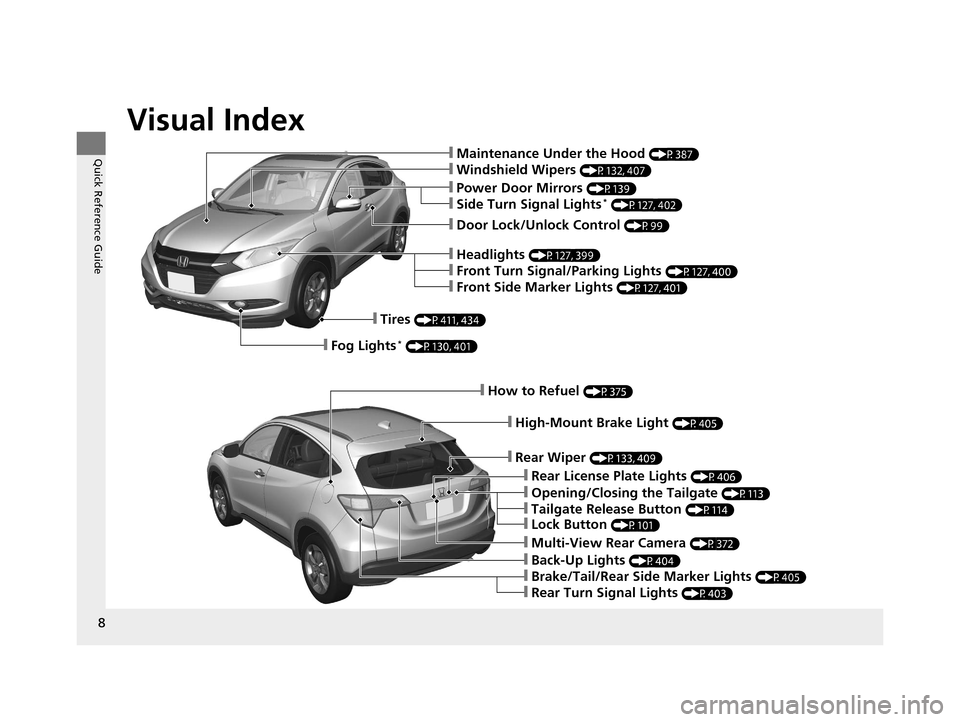

❙Power Door Mirrors (P139)
❙Maintenance Under the Hood (P387)
❙Windshield Wipers (P132, 407)
❙Headlights (P127, 399)
❙Front Turn Signal/Parking Lights (P127, 400)
❙Front Side Marker Lights (P127, 401)
❙Tires (P411, 434)
❙Fog Lights* (P130, 401)
❙Rear Wiper (P133, 409)
❙How to Refuel (P375)
❙Multi-View Rear Camera (P372)
❙Back-Up Lights (P404)
❙Brake/Tail/Rear Side Marker Lights (P405)
❙Rear Turn Signal Lights (P403)
❙Rear License Plate Lights (P406)
❙High-Mount Brake Light (P405)
❙Side Turn Signal Lights* (P127, 402)
❙Door Lock/Unlock Control (P99)
❙Opening/Closing the Tailgate (P113)
❙Tailgate Release Button (P114)
❙Lock Button (P101)
15 HR-V GAS-31T7A6000.book 8 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

93

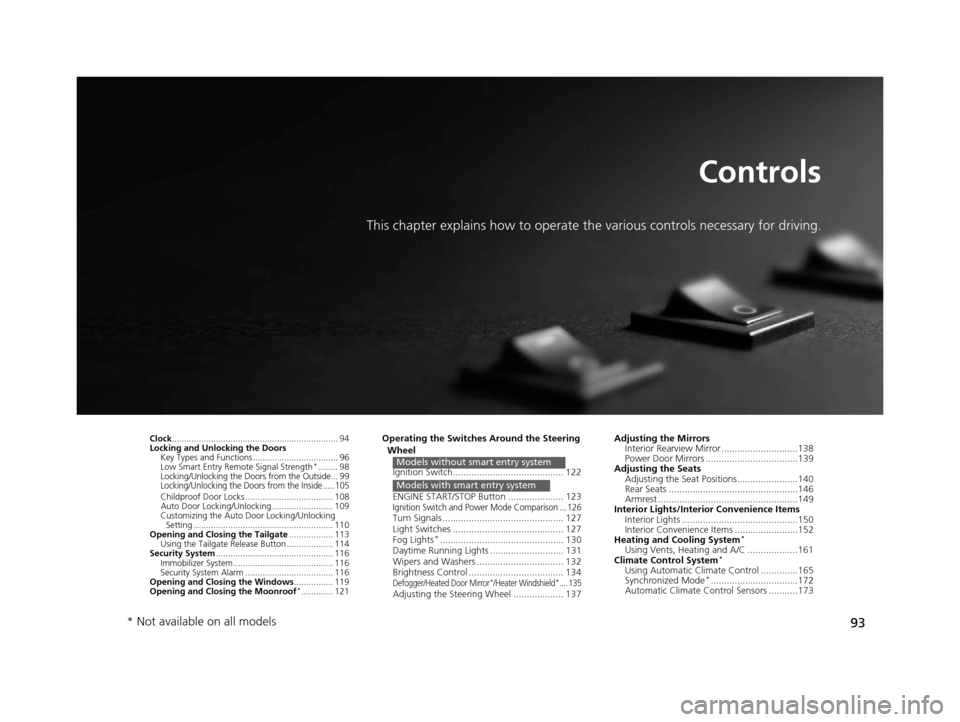

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................................... 94
Locking and Unlocking the Doors
Key Types and Functions................................... 96
Low Smart Entry Remote Signal Strength
*........ 98
Locking/Unlocking the Doors from the Outside... 99
Locking/Unlocking the Doors from the Inside .....105Childproof Door Locks .................................... 108
Auto Door Locking/Unlocking ......................... 109
Customizing the Auto Door Locking/Unlocking Setting ......................................................... 110
Opening and Closing the Tailgate .................. 113
Using the Tailgate Release Button ................... 114
Security System ................................................ 116
Immobilizer System......................................... 116
Security System Alarm .................................... 116
Opening and Closing the Windows ................ 119
Opening and Closing the Moonroof
*............. 121
Operating the Switches Around the Steering
Wheel
Ignition Switch.......................................... 122
ENGINE START/STOP Button ..................... 123
Ignition Switch and Power Mode Comparison ... 126Turn Signals .............................................. 127
Light Switches .......................................... 127
Fog Lights
*............................................... 130
Daytime Running Lights ............................ 131
Wipers and Washers ................................. 132
Brightness Control .................................... 134
Defogger/Heated Door Mirror*/Heater Windshield*.... 135Adjusting the Steering Wheel ................... 137
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors Interior Rearview Mirror .............................138
Power Door Mirrors ...................................139
Adjusting the Seats Adjusting the Seat Positions....................... 140
Rear Seats .................................................146
Armrest .....................................................149
Interior Lights/Interior Convenience Items Interior Lights ............................................150
Interior Convenience Items ........................152
Heating and Cooling System
*Using Vents, Heating and A/C ...................161
Climate Control System*Using Automatic Climate Control ..............165
Synchronized Mode*.................................172
Automatic Climate Control Sensors ...........173
* Not available on all models
15 HR-V GAS-31T7A6000.book 93 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

138
Controls
Adjusting the Mirrors

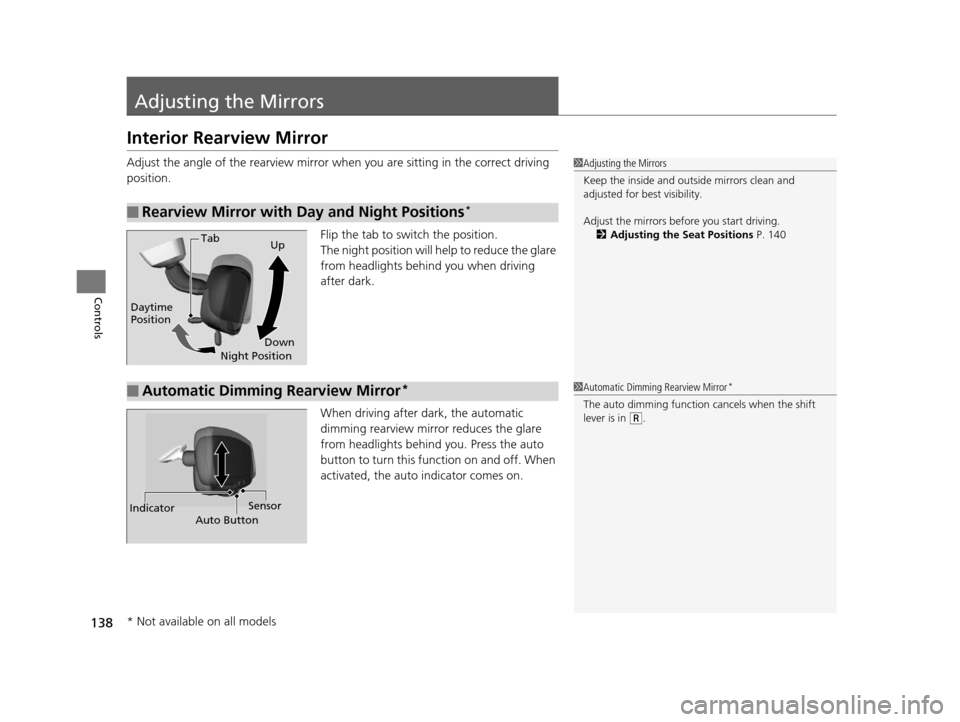

Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. Press the auto
button to turn this function on and off. When
activated, the auto indicator comes on.
■Rearview Mirror with Day and Night Positions*
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 140
Tab
Daytime
Position Night PositionUp
Down
■Automatic Dimming Rearview Mirror*1 Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the shift
lever is in
(R.
Sensor
Auto Button
Indicator
* Not available on all models
15 HR-V GAS-31T7A6000.book 138 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

uuWhen Driving uForward Collision Warning (FCW)*
348
Driving
1Forward Collision Warning (FCW)*
Never apply a film or attach any objects to the
windshield that could obs truct the FCW camera’s
field of vision.
Scratches, nicks, and othe r damage to the windshield
within the FCW camera’s fi eld of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Prop er calibration of the FCW
camera is necessary for the system to operate
properly.

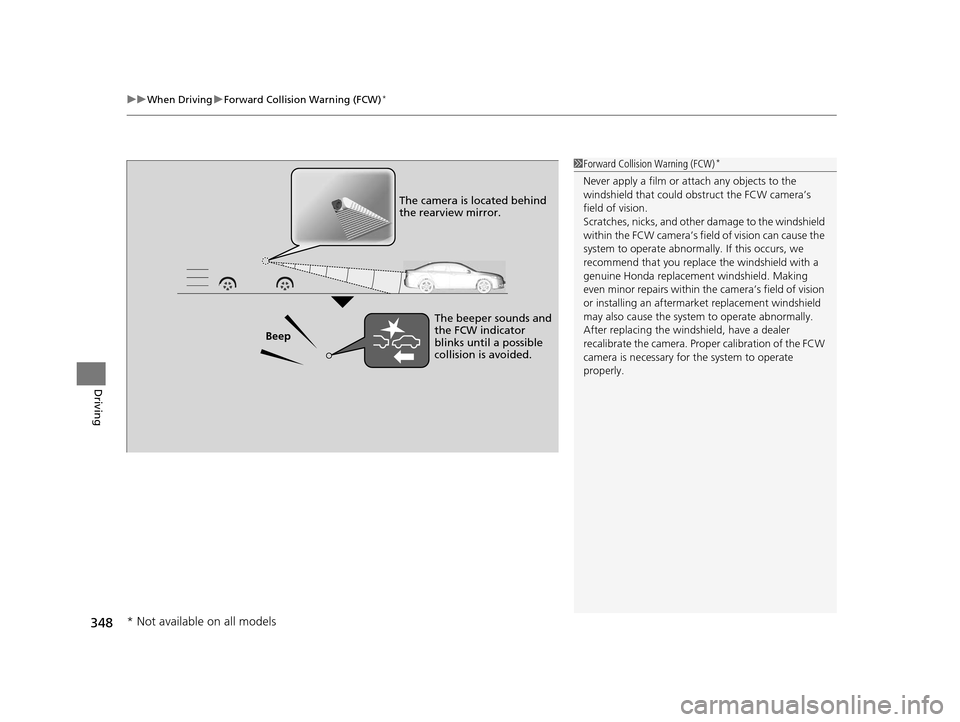

Beep The camera is located behind
the rearview mirror.
The beeper sounds and
the FCW indicator
blinks until a possible
collision is avoided.
* Not available on all models
15 HR-V GAS-31T7A6000.book 348 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

uuWhen Driving uLane Departure Warning (LDW)*
352
Driving
The system begins to search for lane mark ings when all the following conditions are
met:
• The vehicle is traveling between at 45-90 mph (72-145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not pressed.
The camera is located behind the rearview
mirror.
Press the LDW button to turn the system on
and off. u The indicator in the button comes on
when the system is on.

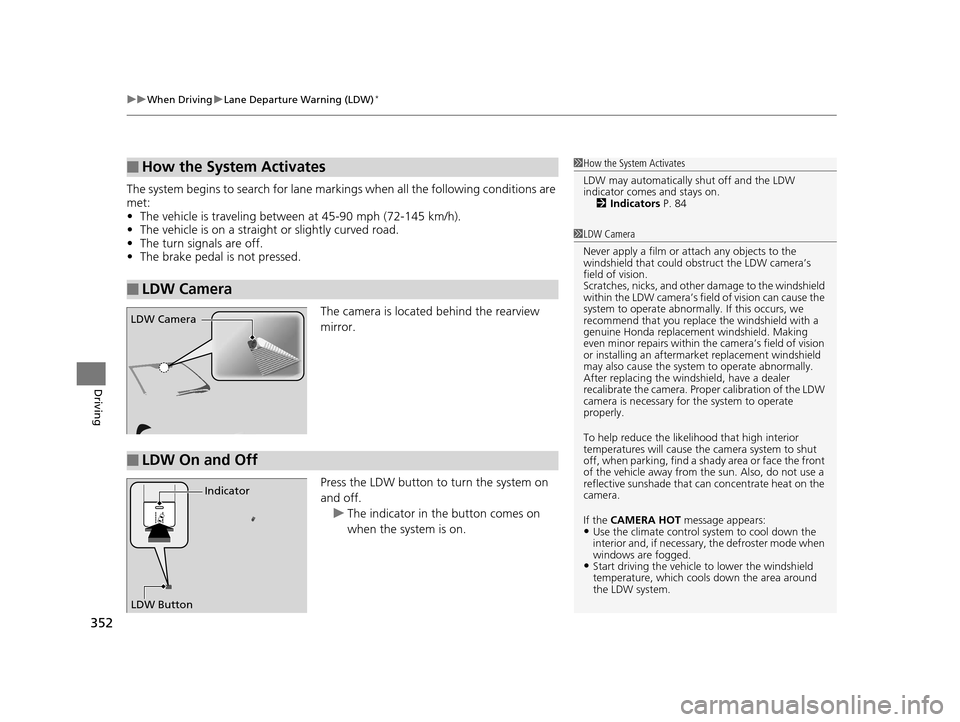

■How the System Activates
■LDW Camera
1How the System Activates
LDW may automatically shut off and the LDW
indicator comes and stays on.
2 Indicators P. 84
1LDW Camera
Never apply a film or attach any objects to the
windshield that could obs truct the LDW camera’s
field of vision.
Scratches, nicks, and othe r damage to the windshield
within the LDW camera’s fi eld of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Prop er calibration of the LDW
camera is necessary for the system to operate
properly.
To help reduce the likel ihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a sh ady area or face the front
of the vehicle away from the sun. Also, do not use a
reflective sunshade that can concentrate heat on the
camera.
If the CAMERA HOT message appears:
•Use the climate control system to cool down the
interior and, if necessary , the defroster mode when
windows are fogged.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the LDW system.
LDW Camera
■LDW On and Off
LDW Button Indicator
15 HR-V GAS-31T7A6000.book 352 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

356
uuWhen Driving uLaneWatchTM*
Driving

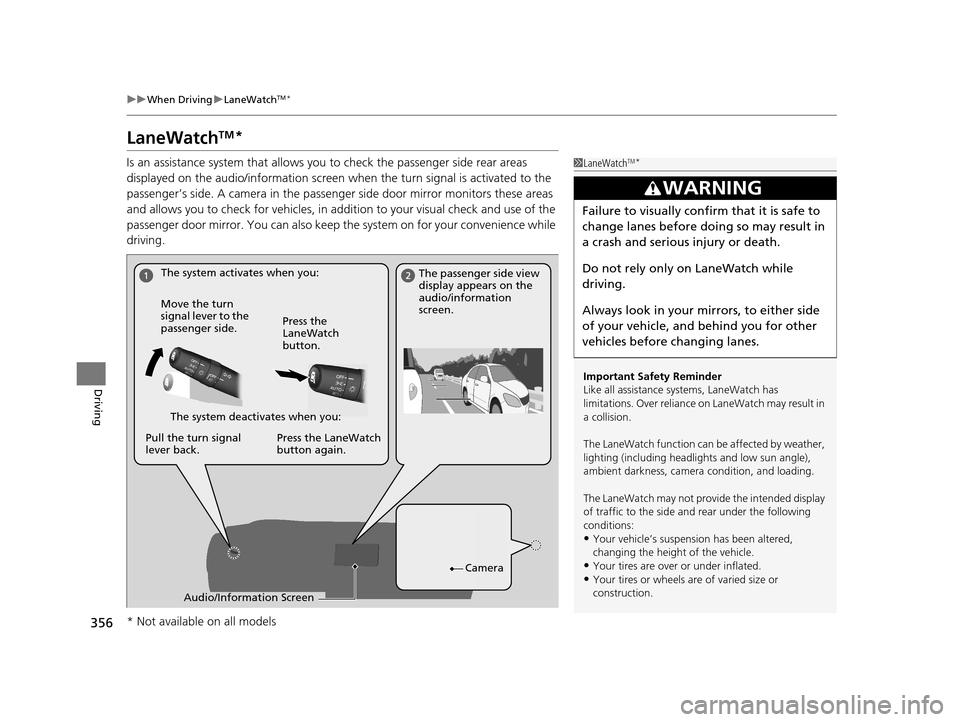

LaneWatchTM*
Is an assistance system that allows y ou to check the passenger side rear areas
displayed on the audio/information screen when the turn signal is activated to the
passenger’s side. A camera in the passenger side door mirror monitors these areas
and allows you to check for vehicles, in addition to your visual check and use of the
passenger door mirror. You can also keep th e system on for your convenience while
driving.1 LaneWatchTM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be affected by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspensi on has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.
•Your tires or wheels are of varied size or
construction.
3WARNING
Failure to visually confirm that it is safe to
change lanes before do ing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
The system activates when you: The passenger side view
display appears on the
audio/information
screen.
Move the turn
signal lever to the
passenger side. Press the
LaneWatch
button.
The system deactivates when you:
Pull the turn signal
lever back. Press the LaneWatch
button again.
Camera
Audio/Information Screen
* Not available on all models
15 HR-V GAS-31T7A6000.book 356 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

357
uuWhen Driving uLaneWatchTM*
Driving

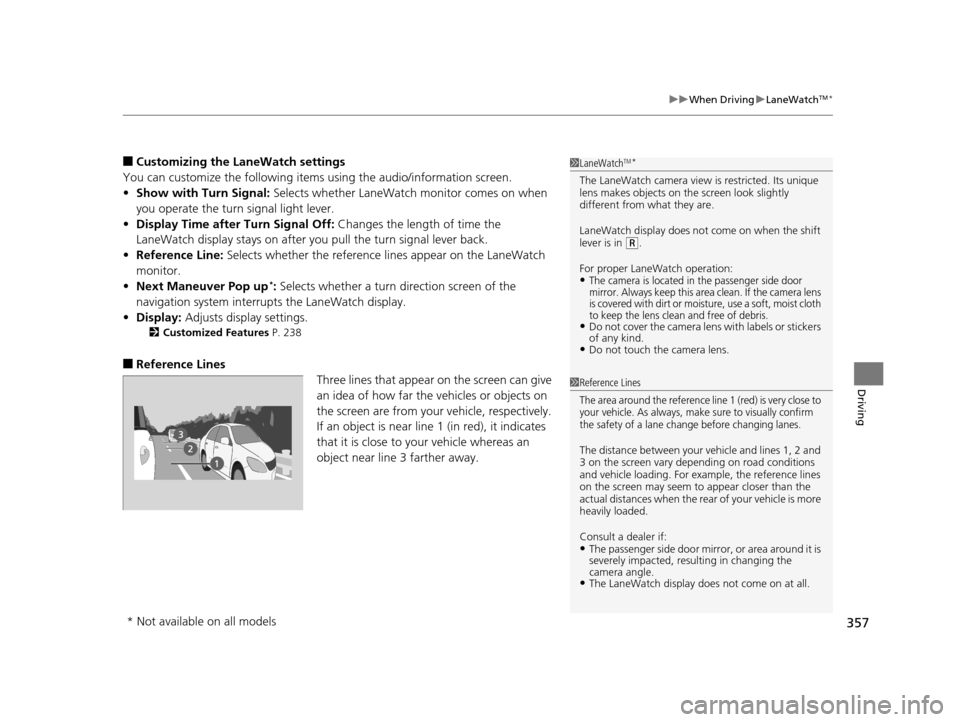

■Customizing the La neWatch settings
You can customize the following items using the audio/information screen.
• Show with Tu rn Signal: Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off: Changes the length of time the
LaneWatch display stays on after yo u pull the turn signal lever back.
• Reference Line: Selects whether the reference lines appear on the LaneWatch
monitor.
• Next Maneuver Pop up
*: Selects whether a turn direction screen of the
navigation system interr upts the LaneWatch display.
• Display: Adjusts display settings.
2Customized Features P. 238
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in
(R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera lens
is covered with dirt or moisture, use a soft, moist cloth
to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
1 Reference Lines
The area around the reference line 1 (red) is very close to
your vehicle. As always, make sure to visually confirm
the safety of a lane change before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For ex ample, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
* Not available on all models
15 HR-V GAS-31T7A6000.book 357 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

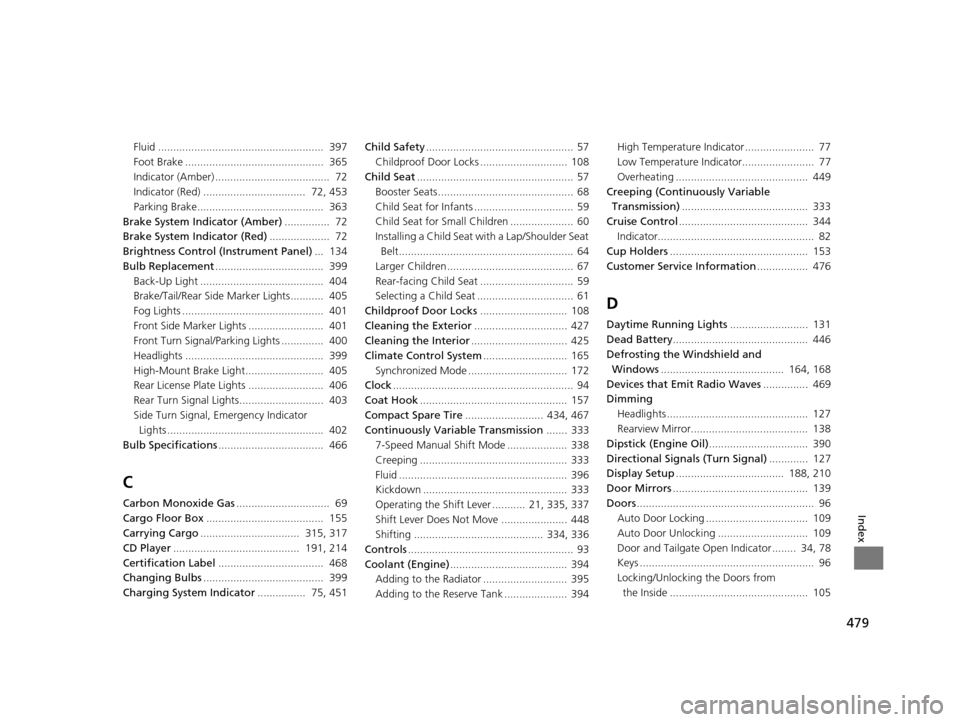

479
Index
Fluid ....................................................... 397
Foot Brake .............................................. 365
Indicator (Amber) ...................................... 72
Indicator (Red) .................................. 72, 453
Parking Brake.......................................... 363
Brake System Indicator (Amber) ............... 72
Brake System Indicator (Red) .................... 72
Brightness Control (Instrument Panel) ... 134
Bulb Replacement .................................... 399
Back-Up Light ......................................... 404
Brake/Tail/Rear Side Marker Lights........... 405
Fog Lights ............................................... 401
Front Side Marker Lights ......................... 401
Front Turn Signal/Parking Lights .............. 400
Headlights .............................................. 399
High-Mount Brake Light.......................... 405
Rear License Plate Lights ......................... 406
Rear Turn Signal Lights............................ 403
Side Turn Signal, Emergency Indicator Lights .................................................... 402
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 69
Cargo Floor Box ....................................... 155
Carrying Cargo ................................. 315, 317
CD Player .......................................... 191, 214
Certification Label ................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................ 75, 451Child Safety
................................................. 57
Childproof Door Locks ............................. 108
Child Seat .................................................... 57
Booster Seats ............................................. 68
Child Seat for Infants ................................. 59
Child Seat for Small Children ..................... 60
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 64
Larger Children .......................................... 67
Rear-facing Child Seat ............................... 59
Selecting a Child Seat ................................ 61
Childproof Door Locks ............................. 108
Cleaning the Exterior ............................... 427
Cleaning the Interior ................................ 425
Climate Control System ............................ 165
Synchronized Mode ................................. 172
Clock ............................................................ 94
Coat Hook ................................................. 157
Compact Spare Tire .......................... 434, 467
Continuously Variable Transmission ....... 333
7-Speed Manual Shift Mode .................... 338
Creeping ................................................. 333
Fluid ........................................................ 396
Kickdown ................................................ 333
Operating the Shift Lever ........... 21, 335, 337
Shift Lever Does Not Move ...................... 448
Shifting ........................................... 334, 336
Controls ....................................................... 93
Coolant (Engine) ....................................... 394
Adding to the Radiator ............................ 395
Adding to the Reserve Tank ..................... 394 High Temperature Indicator ....................... 77
Low Temperature Indicator........................ 77
Overheating ............................................ 449
Creeping (Continuously Variable Transmission) .......................................... 333
Cruise Control ........................................... 344
Indicator.................................................... 82
Cup Holders .............................................. 153
Customer Service Information ................. 476
D
Daytime Running Lights.......................... 131
Dead Battery ............................................. 446
Defrosting the Windshield and Windows ......................................... 164, 168
Devices that Emit Radio Waves ............... 469
Dimming
Headlights ............................................... 127
Rearview Mirror....................................... 138
Dipstick (Engine Oil) ................................. 390
Directional Signals (Turn Signal) ............. 127
Display Setup .................................... 188, 210
Door Mirrors ............................................. 139
Doors ........................................................... 96
Auto Door Locking .................................. 109
Auto Door Unlocking .............................. 109
Door and Tailgate Open Indicator ........ 34, 78
Keys .......................................................... 96
Locking/Unlocking the Doors from
the Inside .............................................. 105
15 HR-V GAS-31T7A6000.book 479 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

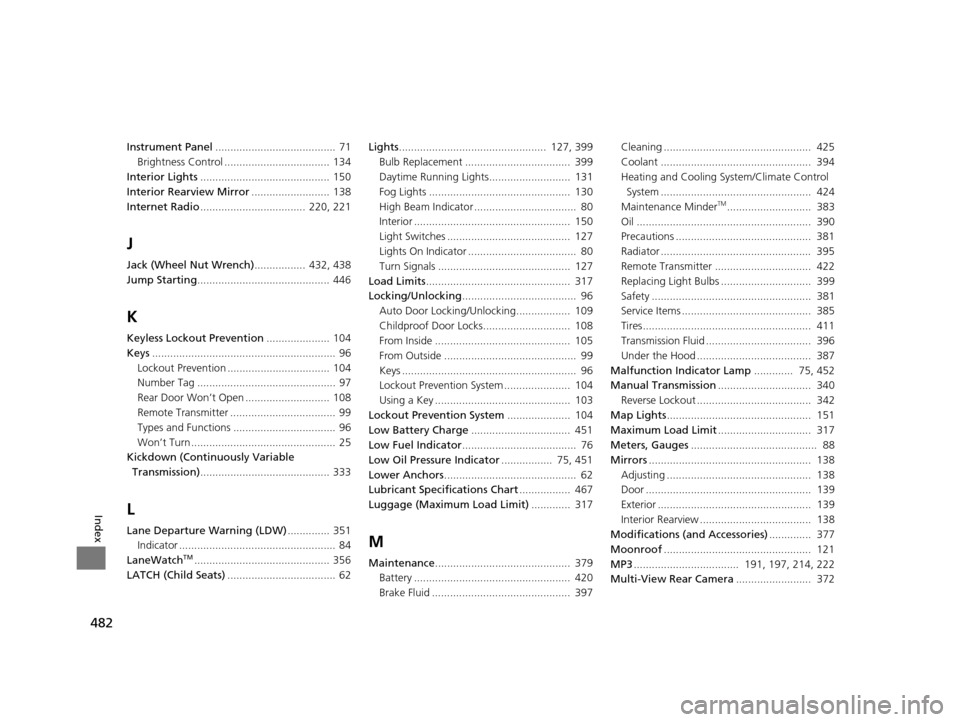

482
Index
Instrument Panel........................................ 71
Brightness Control ................................... 134
Interior Lights ........................................... 150
Interior Rearview Mirror .......................... 138
Internet Radio ................................... 220, 221
J
Jack (Wheel Nut Wrench) ................. 432, 438
Jump Starting ............................................ 446
K
Keyless Lockout Prevention ..................... 104
Keys ............................................................. 96
Lockout Prevention .................................. 104
Number Tag .............................................. 97
Rear Door Won’t Open ............................ 108
Remote Transmitter ................................... 99
Types and Functions .................................. 96
Won’t Turn ................................................ 25
Kickdown (Continuously Variable Transmission) ........................................... 333
L
Lane Departure Warning (LDW) .............. 351
Indicator .................................................... 84
LaneWatch
TM............................................. 356
LATCH (Child Seats) .................................... 62 Lights
................................................. 127, 399
Bulb Replacement ................................... 399
Daytime Running Lights........................... 131
Fog Lights ............................................... 130
High Beam Indicator .................................. 80
Interior .................................................... 150
Light Switches ......................................... 127
Lights On Indicator .................................... 80
Turn Signals ............................................ 127
Load Limits ................................................ 317
Locking/Unlocking ...................................... 96
Auto Door Locking/Unlocking.................. 109
Childproof Door Locks............................. 108
From Inside ............................................. 105
From Outside ............................................ 99
Keys .......................................................... 96
Lockout Prevention System ...................... 104
Using a Key ............................................. 103
Lockout Prevention System ..................... 104
Low Battery Charge ................................. 451
Low Fuel Indicator ...................................... 76
Low Oil Pressure Indicator ................. 75, 451
Lower Anchors ............................................ 62
Lubricant Specifications Chart ................. 467
Luggage (Maximum Load Limit) ............. 317
M
Maintenance............................................. 379
Battery .................................................... 420
Brake Fluid .............................................. 397 Cleaning ................................................. 425
Coolant .................................................. 394
Heating and Cooling System/Climate Control
System .................................................. 424
Maintenance Minder
TM............................ 383
Oil .......................................................... 390
Precautions ............................................. 381
Radiator .................................................. 395
Remote Transmitter ................................ 422
Replacing Light Bulbs .............................. 399
Safety ..................................................... 381
Service Items ........................................... 385
Tires........................................................ 411
Transmission Fluid ................................... 396
Under the Hood ...................................... 387
Malfunction Indicator Lamp ............. 75, 452
Manual Transmission ............................... 340
Reverse Lockout ...................................... 342
Map Lights ................................................ 151
Maximum Load Limit ............................... 317
Meters, Gauges .......................................... 88
Mirrors ...................................................... 138
Adjusting ................................................ 138
Door ....................................................... 139
Exterior ................................................... 139
Interior Rearview ..................................... 138
Modifications (and Accessories) .............. 377
Moonroof ................................................. 121
MP3 ................................... 191, 197, 214, 222
Multi-View Rear Camera ......................... 372
15 HR-V GAS-31T7A6000.book 482 ページ ２０１５年６月２９日　月曜日　午前１１時３６分
