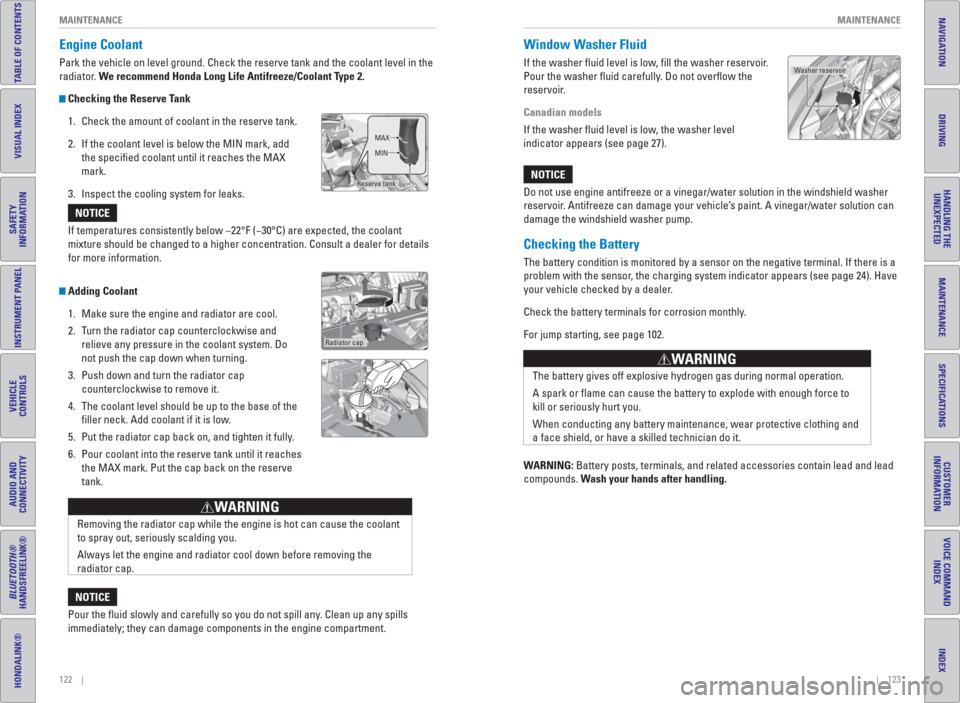

Engine Coolant
Park the vehicle on level ground. Check the reserve tank and the coolant level in the
radiator. We recommend Honda Long Life Antifreeze/Coolant Type 2.
Checking the Reserve Tank
1. Check the amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark, add
the specifi ed coolant until it reaches the MAX
mark.
3. Inspect the cooling system for leaks.
Adding Coolant
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system. Do
not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base of the
fi ller neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it fully.
6. Pour coolant into the reserve tank until it reaches
the MAX mark. Put the cap back on the reserve
tank. If temperatures consistently below −22°F (−30°C) are expected, the coolant
mixture should be changed to a higher concentration. Consult a dealer for details
for more information.
NOTICE
Reserve tankMAX
MIN
Radiator cap
Removing the radiator cap while the engine is hot can cause the coolant
to spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the
radiator cap.
WARNING
Pour the fl uid slowly and carefully so you do not spill any. Clean up any spills
immediately; they can damage components in the engine compartment.
NOTICE
Window Washer Fluid
If the washer fl uid level is low, fi ll the washer reservoir.
Pour the washer fl uid carefully. Do not overfl ow the
reservoir.
Canadian models
If the washer fl uid level is low, the washer level
indicator appears (see page 27).
Do not use engine antifreeze or a vinegar/water solution in the windshield washer
reservoir. Antifreeze can damage your vehicle’s paint. A vinegar/water solution can
damage the windshield washer pump.
NOTICE
The battery gives off explosive hydrogen gas during normal operation.
A spark or fl ame can cause the battery to explode with enough force to
kill or seriously hurt you.
When conducting any battery maintenance, wear protective clothing and
a face shield, or have a skilled technician do it.
WARNING
Checking the Battery
The battery condition is monitored by a sensor on the negative terminal. If there is a
problem with the sensor, the charging system indicator appears (see page 24). Have
your vehicle checked by a dealer.
Check the battery terminals for corrosion monthly.
For jump starting, see page 102.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash your hands after handling.
Washer reservoir

132 || 133 MAINTENANCE MAINTENANCE
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

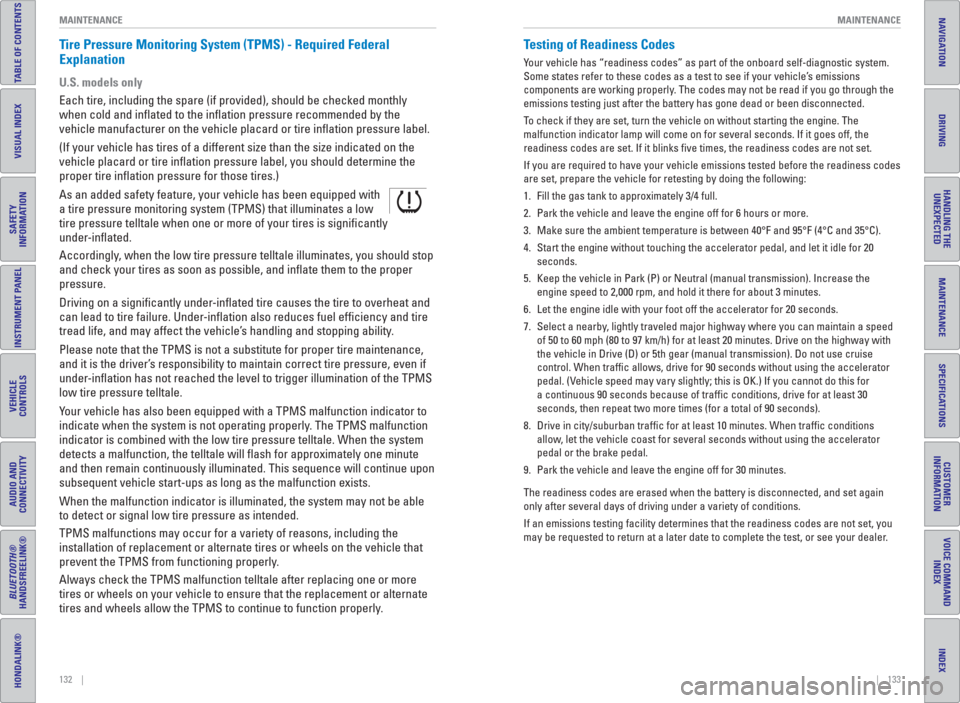

Tire Pressure Monitoring System ( TPMS) - Required Federal
Explanation
U.S. models only
Each tire, including the spare (if provided), should be checked monthly
when cold and infl ated to the infl ation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire infl ation pressure label.
(If your vehicle has tires of a different size than the size indicated on the
vehicle placard or tire infl ation pressure label, you should determine the
proper tire infl ation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale when one or more of your tires is signifi cantly
under-infl ated.
Accordingly, when the low tire pressure telltale illuminates, you should stop
and check your tires as soon as possible, and infl ate them to the proper
pressure.
Driving on a signifi cantly under-infl ated tire causes the tire to overheat and
can lead to tire failure. Under-infl ation also reduces fuel effi ciency and tire
tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance,
and it is the driver’s responsibility to maintain correct tire pressure, even if
under-infl ation has not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to
indicate when the system is not operating properly. The TPMS malfunction
indicator is combined with the low tire pressure telltale. When the system
detects a malfunction, the telltale will fl ash for approximately one minute
and then remain continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue to function properly.
Testing of Readiness Codes
Your vehicle has “readiness codes” as part of the onboard self-diagnostic system.
Some states refer to these codes as a test to see if your vehicle’s emissions
components are working properly. The codes may not be read if you go through the
emissions testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle emissions tested before the readiness codes
are set, prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in Park (P) or Neutral (manual transmission). Increase the
engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway with
the vehicle in Drive (D) or 5th gear (manual transmission). Do not use cruise
control. When traffi c allows, drive for 90 seconds without using the accelerator
pedal. (Vehicle speed may vary slightly; this is OK.) If you cannot do this for
a continuous 90 seconds because of traffi c conditions, drive for at least 30
seconds, then repeat two more times (for a total of 90 seconds).
8. Drive in city/suburban traffi c for at least 10 minutes. When traffi c conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set again
only after several days of driving under a variety of conditions.
If an emissions testing facility determines that the readiness codes are not set, you
may be requested to return at a later date to complete the test, or see your dealer.

134 || 135 CUSTOMER INFORMATION SPECIFICATIONS
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Vehicle
Engine and Fuel
Tires
Light Bulbs
Fluids*1: 2WD
*2: AWD
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*14,166 lbs (1,890 kg)*2Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*12,178 lbs (988 kg)*2Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*11,988 lbs (902 kg)*2Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant Type ND-OIL8
Engine Specifications
Fuel
Displacement109.8 cu-in (1,800 cm3)
Spark PlugsNGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 liters)
RegularSize215/55R17 94VPressure
psi (kPa[kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])
Compact
SpareSize T135/90D16 102M
Pressure
psi (kPa[kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2JCompact Spare16 x 4T
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
Brake Fluid
Continuously Variable Transmission Fluid
*
*1: 2WD
*2: AWD
Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change3.7 US qt (3.5 L)*14.2 US qt (4.0 L)*2
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 L)
Engine Oil
Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
CapacityChange 3.7 US qt (3.5 L)
Change
including
filter3.9 US qt (3.7 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.39 US gal (5.25 L)*1(change including the remaining
0.13 US gal (0.5 L) in the reserve tank)
1.38 US gal (5.24 L)*2
(change including the remaining
0.13 US gal (0.5 L) in the reserve tank)
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
Rear Differential Fluid*SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.318 US qt (1.247 ℓ)
SPECIFICATIONS
Learn about information specifi c to you as a Honda customer and how to get help.
Frequently Asked Questions/ Troubleshooting
Below are some frequently asked questions and troubleshooting items that you may
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 47. For vehicles with navigation, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button?*
A: The brake pedal must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’s exterior lights will automatically turn
on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though
the keyless access remote is within range?*
A: If you pull the handle too quickly, the system may not have time to confi rm the
door is unlocked. Wait to hear a beep to confi rm the door is unlocked. If you are
wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for
a code. Where do I nd this?
A: In most cases, you do not need to enter a code. Turn on the vehicle and the
audio system, and press and hold the power button until the system reactivates.
Q: Why can’t I operate Pandora
® through the audio system?
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode
is selected and the phone cable is properly connected to the USB adapter.
Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone
compatibility for Bluetooth
® Audio, Bluetooth® HandsFreeLink®, and SMS text
messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn
these off?*
A: From the Home screen, select Settings. Select the Voice Recog tab, then select
Voice Prompt. Select Off.
CUSTOMER INFORMATION
*if equipped *if equipped

144 || 145 INDEX INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
INDEX
ABS ................................................................25
Accessory Power Socket ...........................48
Airbags ............................................................9
About Your Airbags ..................................11
Advanced Airbags ......................................9
Airbag Care ...............................................14
Airbag System Components ...................13
Airbag System Indicators .......................11
Front Airbags (SRS) ....................................9
Passenger Airbag Off Indicator .............12
Side Airbags ..............................................10
Side Curtain Airbags ................................10
Supplemental Restraint System Indicator 11
Air Conditioning System .............................44
All Wheel Drive (AWD) ................................25
Ambient Meter .............................................94
Anti-lock Brake System (ABS) .............25, 92
Audio Commands .......................................141
Audio Operation ...........................................48
Accessory Power Socket .......................48
Auxiliary Input Jack .................................49
Bluetooth
® Audio ................................56, 64
Color Audio System ..................................51
Compact Disc (CD) .............................53, 61
FM/AM Radio ......................................52, 59
HDMI Port ..................................................48
HDMI Video ...............................................66
HondaLink™ ..............................................58
iPod
® .....................................................54, 62
Pandora® ....................................................65
SiriusXM® Radio .......................................60
Sound .........................................................50
Steering Wheel Controls .........................49
Touchscreen Operation ...........................57
USB Flash Drive ..................................55, 63
USB Port ....................................................48
Automatic Brake Hold .................................93
Automatic Dimming Rearview Mirror .......43
AUX Commands .........................................142
Auxiliary Input Jack .....................................49
AWD ...............................................................25
BACK button .................................................67
Battery .........................................................123
Bluetooth
® Audio ...................................56, 64
Bluetooth® Audio Commands ..................142
Bluetooth® HandsFreeLink® (HFL) .............67
E-Mail .........................................................75
HFL Controls ........................................67, 70
HondaLink™ Assist ..................................76
Making a Call ......................................69, 73
Pairing a Phone ..................................68, 72
Siri Eyes Free ............................................76SMS Text Messaging ...............................75
Speed Dial ...........................................69, 74
Talk Button Tips .........................................71
Brake Assist System ...................................92
Brake depress ..............................................27
Brake hold .....................................................27
Brake system ..........................................24, 25
Braking ..........................................................91
Brightness Control .......................................36
Built-in key ....................................................30
Calibration ...................................................106
Carbon Monoxide Gas ..................................4
Cargo Area Lights ........................................37
Changing a Flat Tire ...................................107
Changing Settings ........................................29
Changing Wiper Blades ............................124
Charging system ..........................................24
Childproof Door Locks .................................32
Child Safety ...................................................15
Child Seat ......................................................17
Adding Security with a Tether ................20
Installing a Child Seat ..............................18
Selecting a Child Seat .............................17
Climate Control Commands ......................140
Climate Control System ...............................45
Clock ..............................................................47
Color Audio System .....................................51
Compact Disc (CD) .................................53, 61
Compact Disc (CD) Commands ................141
Contact Us ...................................................136
Continuously Variable Transmission (CVT) 89
Coolant .........................................................122
Cruise Control .........................................27, 95
Customer Information ...............................135
Customized Features ...................................29
CVT .................................................................89
Dashboard and Other Controls ....................2
Destination ....................................................80
Detour ............................................................83
Dialing a Number ...................................69, 73
Door Mirrors .................................................43
Door Operation .......................................31, 32
Door/tailgate open .......................................26
DOT Tire Quality Grading ..........................130
Driving ............................................................84
Braking .......................................................91
Cruise Control ...........................................95
Eco Assist System ....................................94
Forward Collision Warning (FCW) .........96
Ignition .......................................................88
Lane Departure Warning (LDW) ............97
LaneWatch™ .............................................98Maximum Load Limit ................................86
Multi-View Rear Camera .................99, 100
Paddle Shifters .........................................90
Power Mode ..............................................89
Refueling ..................................................101
Shifting .......................................................89
Vehicle Stability Assist (VSA
®) ...............94
Eco Assist System .......................................94
ECON Button .................................................94
ECON mode ...................................................27
Electric parking brake .....................25, 27, 92
Electric Power Steering (EPS) ...................25
Electronic Stability Control (ESC) ..............94
E-Mail .............................................................75
Emergency Engine Stop ............................105
Emergency Towing ....................................105
Engine and Fuel ..........................................134
Engine Coolant ...........................................122
Engine Oil ....................................................120
ENGINE START/STOP button .....................89
Exterior lights ..........................................27, 37
Fastening a Seat Belt ....................................7
FCW ..........................................................25, 27
Find Nearest Place ......................................81
Find Place Commands ...............................139
Flat Tire ........................................................107
Floor Mats .....................................................40
Fluids ............................................................134
FM/AM Radio ..........................................52, 59
FM/AM Radio Commands .........................141
Fog lights .................................................27, 37
Foot Brake .....................................................91
Forward Collision Warning (FCW) .25, 27, 96
Frequently Asked Questions ....................135
Front Airbags (SRS) .......................................9
Front Door Inner Handle .............................32
Front Seats ....................................................39
Front Wipers .................................................38
Fuel Information .........................................101
Fuse Locations ...........................................111
Handling Information .....................................4
Hang-Up/Back button .....................67, 70, 77
Hazard lights .................................................27
HDMI Port .....................................................48
HDMI Video ...................................................66
Headlight-Wiper Integration ......................38
Head Restraints ............................................41
Heated Windshield Button .........................46
HFL Controls ............................................67, 70
High beams ...................................................27
High temperature .........................................25
Home Address ..............................................80
HondaLink™ ..................................................58
HondaLink™ Assist ......................................76
Honda Roadside Assistance ....................137Hood .............................................................119
Ignition ...........................................................88
Immobilizer ....................................................27
Info Commands ..........................................143
Information Display .....................................28
Instrument Panel ..........................................24
Condition Indicators .................................26
Malfunction Indicators ............................24
On/Off Indicators ......................................27
Interior Lights ...............................................36
Intermittent Wipers .....................................38
iPod
® ........................................................54, 62
iPod® Commands .......................................142
Jump Starting .............................................102
Key ..................................................................30
Lane Departure Warning (LDW) ....25, 26, 97
LaneWatch™ ................................................98
Lap/Shoulder Seat Belts ...............................5
LATCH-Compatible Child Seat....................18
LDW ..............................................25, 26, 27, 97
Light Bulbs ..................................................134
Lights ..............................................................36
Locking the Tailgate .....................................31
Lock Tab .........................................................32
Low fuel .........................................................26
Low oil pressure ...........................................24
Low temperature ..........................................26
Low tire pressure .........................................26
Maintenance ..............................................116
Maintenance Minder™ ...................27, 117
Safety Precautions .................................116
Service Codes .........................................118
Under the Hood .......................................119
Making a Call ..........................................69, 73
Malfunction indicator lamp ........................25
Manual Transmission ..................................91
Map Display Commands ...........................138
Map Legend ..................................................82
Map Lights ....................................................36
Master Door Lock Switch ...........................32
Maximum Load Limit ...................................86
Mirrors ...........................................................43
Moonroof .......................................................35
Multi-View Rear Camera ....................99, 100
Navigation .....................................................77
Detour .........................................................83
Display and Controls ................................78
Entering a Destination .............................80
Find Nearest Place ...................................81
Home Address ..........................................80
Map Legend ..............................................82
Place Category .........................................81
Routing .......................................................82
Steering Wheel Controls .........................77
Street Address ..........................................80
