uuFuses uInspecting and Changing Fuses
Handling the Unexpected

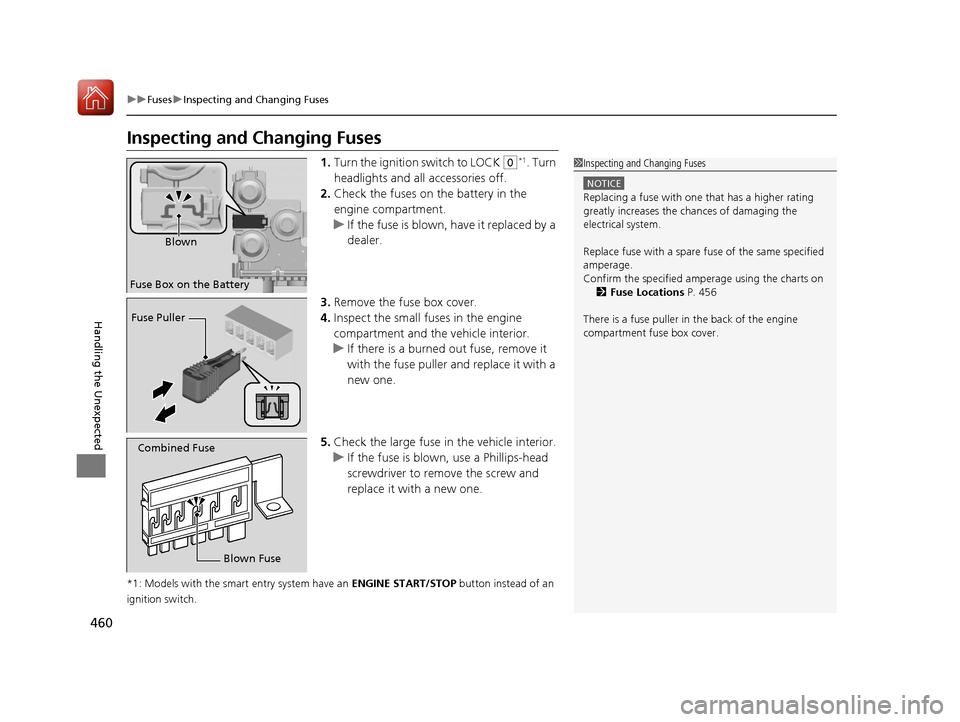

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
2 Fuse Locations P. 456
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
17 HR-V HDMC-31T7A6100.book 460 ページ ２０１６年７月２０日　水曜日　午前９時５０分

461
Handling the Unexpected

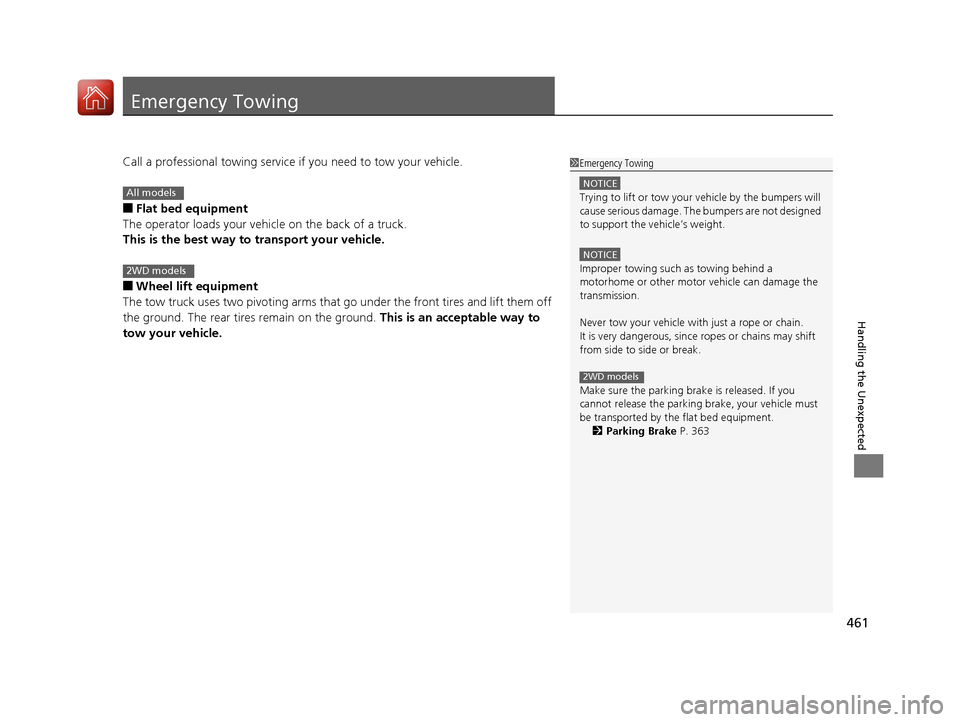

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment. 2 Parking Brake P. 363
2WD models
All models
2WD models
17 HR-V HDMC-31T7A6100.book 461 ページ ２０１６年７月２０日　水曜日　午前９時５０分

462
Handling the Unexpected
When You Cannot Open the Tailgate

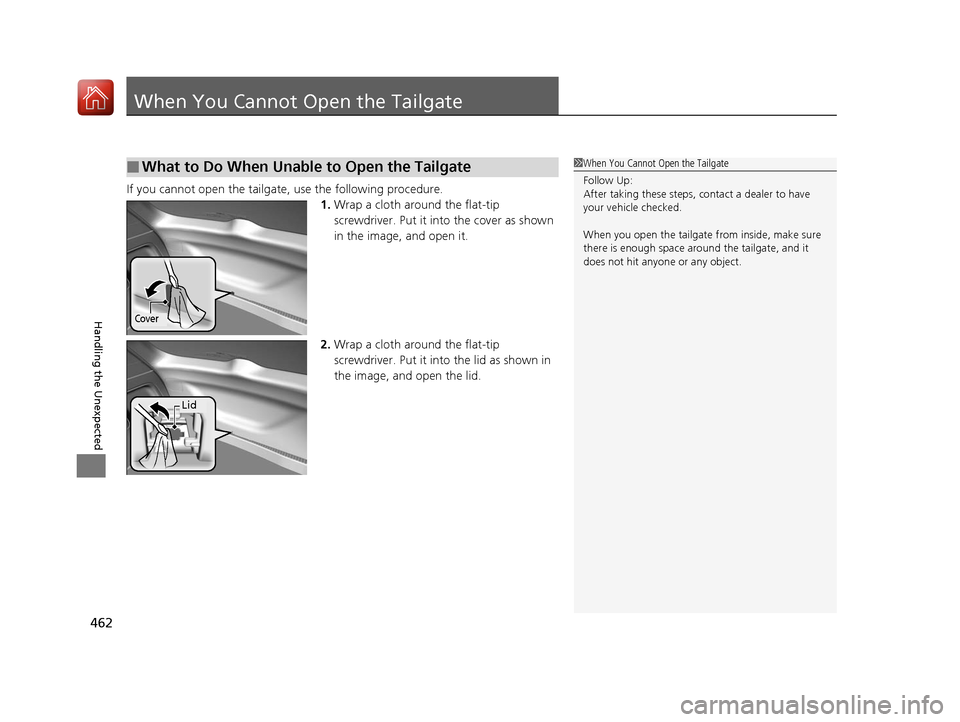

If you cannot open the tailgate, use the following procedure.1.Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover as shown
in the image, and open it.
2. Wrap a cloth around the flat-tip
screwdriver. Put it into the lid as shown in
the image, and open the lid.
■What to Do When Unable to Open the Tailgate1 When You Cannot Open the Tailgate
Follow Up:
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lid
17 HR-V HDMC-31T7A6100.book 462 ページ ２０１６年７月２０日　水曜日　午前９時５０分

463
uuWhen You Cannot Open the Tailgate u
Handling the Unexpected

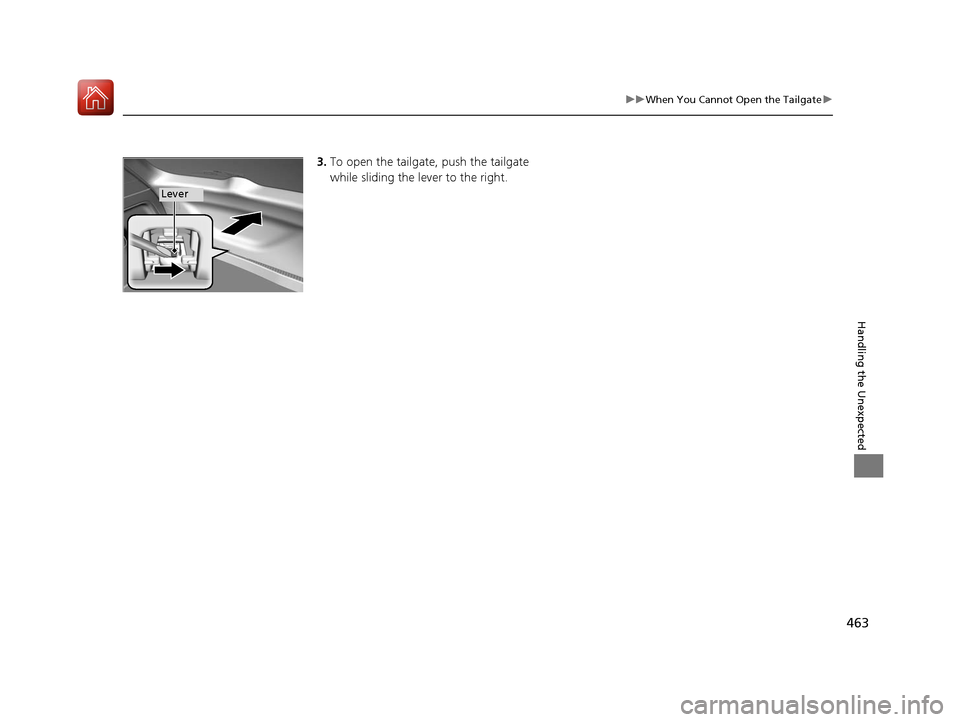

3.To open the tailgate, push the tailgate
while sliding the lever to the right.
Lever
17 HR-V HDMC-31T7A6100.book 463 ページ ２０１６年７月２０日　水曜日　午前９時５０分

464
17 HR-V HDMC-31T7A6100.book 464 ページ ２０１６年７月２０日　水曜日　午前９時５０分

465
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 466
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 468
Devices that Emit Radio Waves ....... 469
Reporting Safety Defects ................. 470Emissions Testing
Testing of Readiness Codes.............. 471
Warranty Coverages ........................ 473
Authorized Manuals ......................... 475
Customer Service Information ......... 476
17 HR-V HDMC-31T7A6100.book 465 ページ ２０１６年７月２０日　水曜日　午前９時５０分

466
Information
Specifications
■Vehicle Specifications
*1: 2WD
*2: AWD
■Air Conditioning
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*1
4,166 lbs (1,890 kg)*2
Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*1
2,178 lbs (988 kg)*2
Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*1
1,988 lbs (902 kg)*2
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL8
Quantity 4.27-5.00 cu-in (70-82 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement109.8 cu-in (1,799 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
17 HR-V HDMC-31T7A6100.book 466 ページ ２０１６年７月２０日　水曜日　午前９時５０分

467
uuSpecifications u
Information

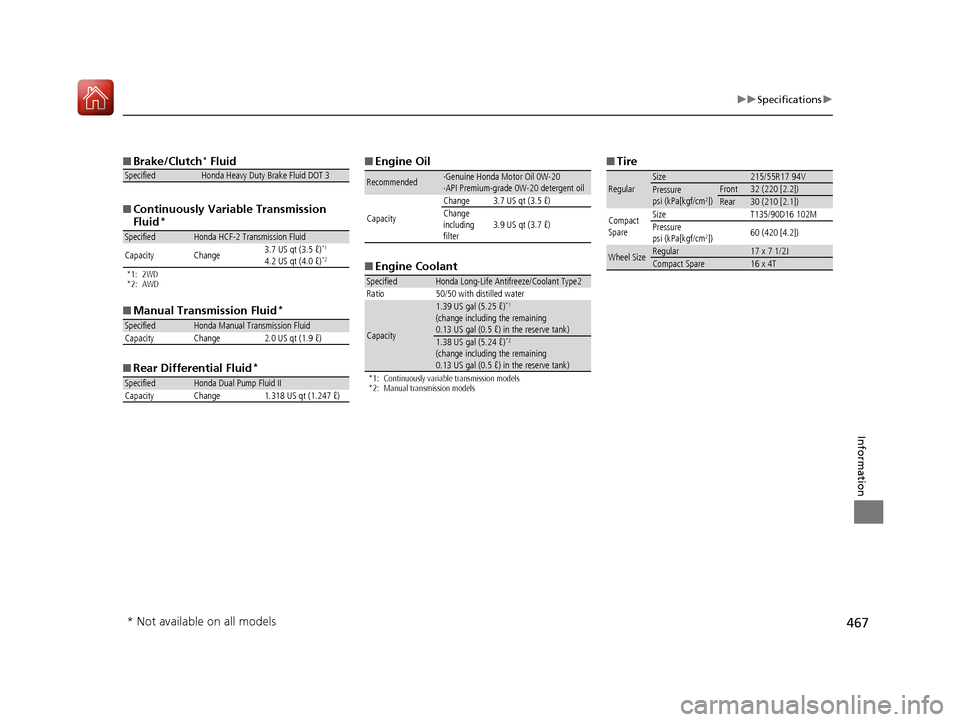

■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
*1: 2WD
*2: AWD
■Manual Transmission Fluid*
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 ℓ)*1
4.2 US qt (4.0 ℓ)*2
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.318 US qt (1.247 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.39 US gal (5.25 ℓ)*1
(change including the remaining
0.13 US gal (0.5 ℓ) in the reserve tank)
1.38 US gal (5.24 ℓ)*2
(change including the remaining
0.13 US gal (0.5 ℓ) in the reserve tank)
■ Tire
RegularSize215/55R17 94VPressure
psi (kPa[kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])
Compact
Spare Size
T135/90D16 102M
Pressure
psi (kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2JCompact Spare16 x 4T
* Not available on all models
17 HR-V HDMC-31T7A6100.book 467 ページ ２０１６年７月２０日　水曜日　午前９時５０分

468
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

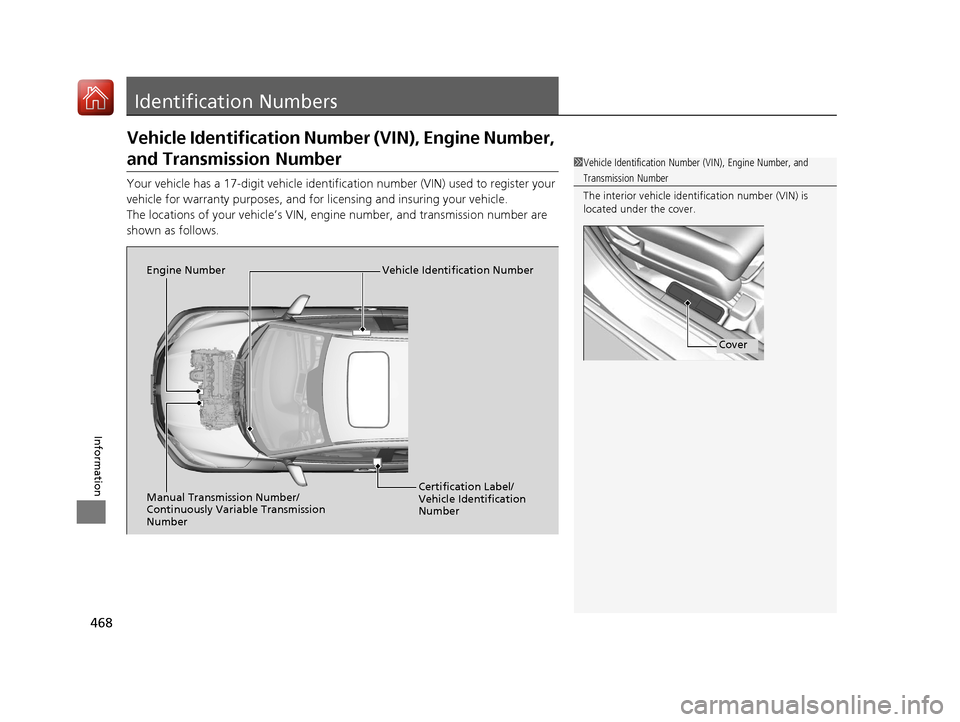

Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission Number/
Continuously Variable Transmission
Number
17 HR-V HDMC-31T7A6100.book 468 ページ ２０１６年７月２０日　水曜日　午前９時５０分

469
Information
Devices that Emit Radio Waves

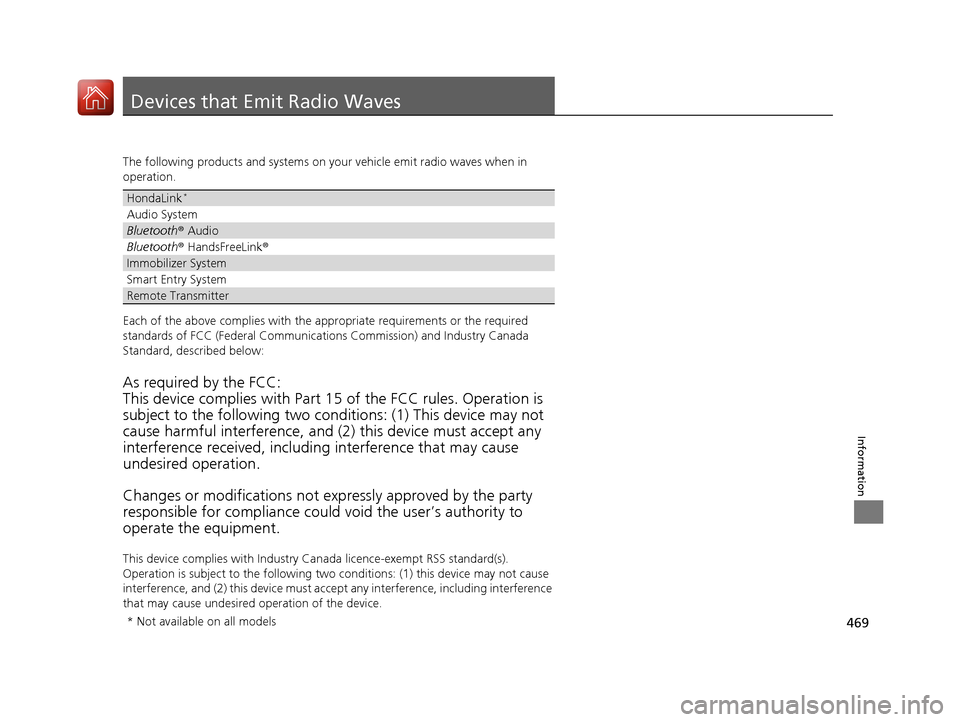

The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
HondaLink*
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Smart Entry System
Remote Transmitter
* Not available on all models
17 HR-V HDMC-31T7A6100.book 469 ページ ２０１６年７月２０日　水曜日　午前９時５０分
