gas type HONDA HR-V 2017 2.G Owners Manual

29
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 30
Important Handling Information ......... 32
Your Vehicle’s Safety Features ............ 33
Safety Checklist ................................. 34
Seat Belts About Your Seat Belts ........................ 35
Fastening a Seat Belt .......................... 38
Seat Belt Inspection ............................ 43
Airbags Airbag System Components ............... 44
Types of Airbags ................................ 47 Front Airbags (SRS) ............................ 47
Side Airbags....................................... 51
Side Curtain Airbags .......................... 53
Airbag System Indicators .................... 54
Airbag Care ....................................... 56
Child Safety Protecting Child Passengers ............... 57
Safety of Infants and Small Children ...... 59
Safety of Larger Children ................... 67
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 69 Safety Labels
Label Locations .................................. 70
17 HR-V HDMC-31T7A6100.book 29 ページ ２０１６年７月２０日　水曜日　午前９時５０分

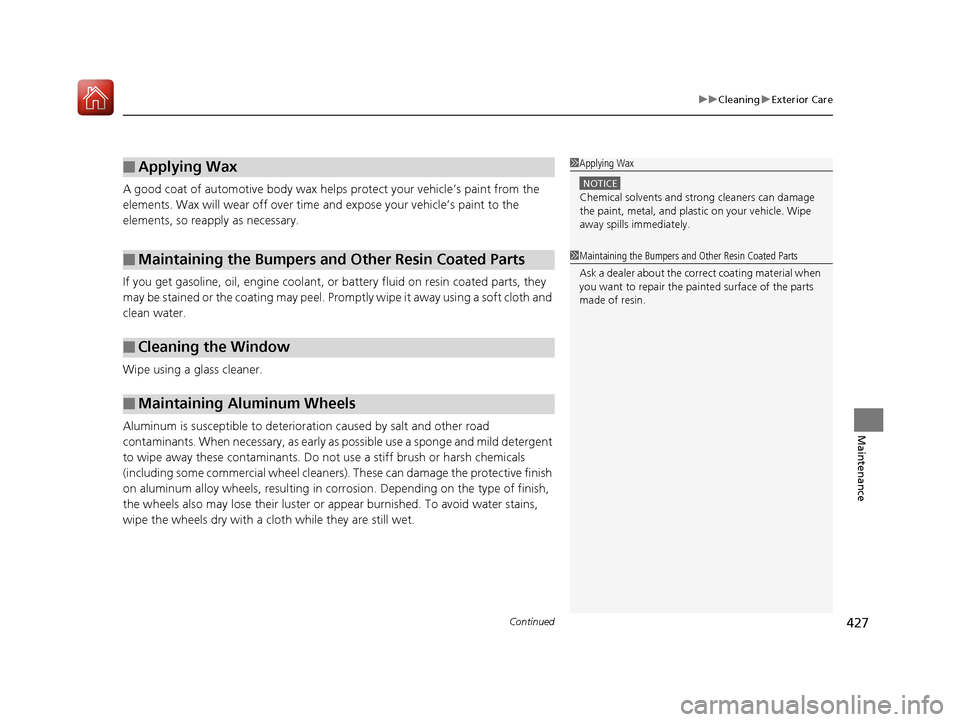

Continued427
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.
17 HR-V HDMC-31T7A6100.book 427 ページ ２０１６年７月２０日　水曜日　午前９時５０分

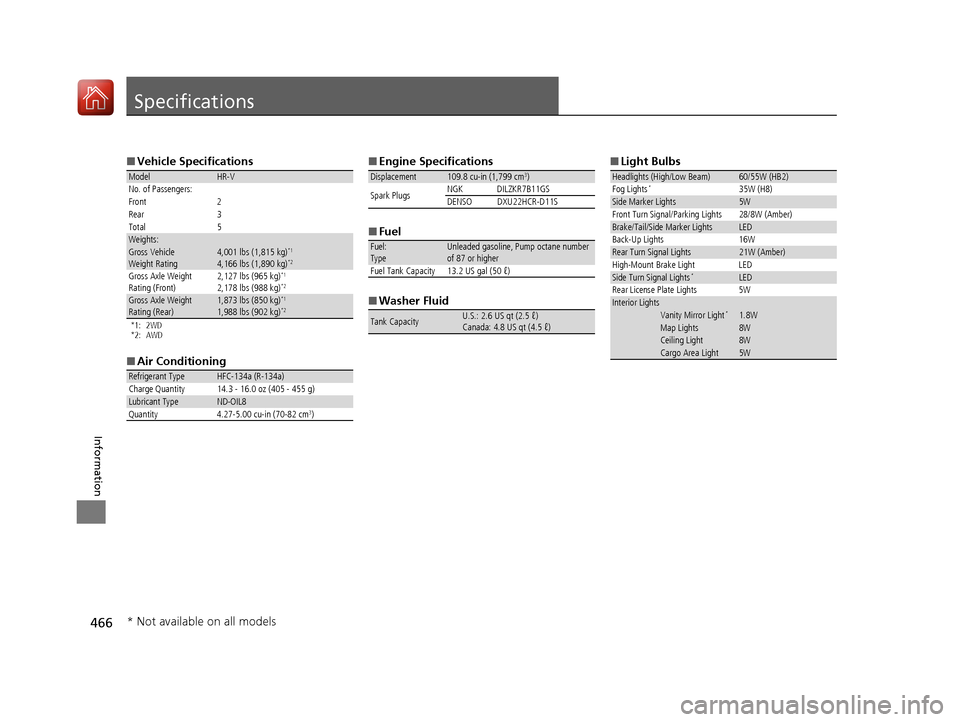

466
Information
Specifications
■Vehicle Specifications
*1: 2WD
*2: AWD
■Air Conditioning
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*1
4,166 lbs (1,890 kg)*2
Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*1
2,178 lbs (988 kg)*2
Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*1
1,988 lbs (902 kg)*2
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL8
Quantity 4.27-5.00 cu-in (70-82 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement109.8 cu-in (1,799 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
17 HR-V HDMC-31T7A6100.book 466 ページ ２０１６年７月２０日　水曜日　午前９時５０分
