spark HONDA HR-V 2018 Owner's Manual (in English)

389
uuRefueling uHow to Refuel
Driving
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Pull on the fuel fill door release handle
under the driver’s side lower outside corner
of the dashboard.
u The fuel fill door opens.
4. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
5. Place the fuel fill cap in the holder.
6. Insert the fuel filler nozzle fully.
u When the tank is full, the filler nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
7. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.1How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Fill Door
Release Handle
Pull
Cap
Cap
Holder
18 HR-V-31T7A6200.book 389 ページ ２０１７年６月３０日　金曜日　午後１時２３分

393
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance
Safety When Performing Maintenance
Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreas er or parts cleaner, not
gasoline.
• Wear eye protection and protective clothi ng when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your hands and limbs away
from moving parts.
■Maintenance Safety
■Vehicle Safety
1 Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
18 HR-V-31T7A6200.book 393 ページ ２０１７年６月３０日　金曜日　午後１時２３分

397
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
Continuously variable transmission models only
* Not available on all models
18 HR-V-31T7A6200.book 397 ページ ２０１７年６月３０日　金曜日　午後１時２３分

433
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a sensor located on the negative
terminal of the battery. If there is a problem with this sensor, the information display
will display a warning message. If this happens, have your vehicle inspected by a
dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 181
•The clock resets.
2 Clock P. 96
•The navigation system* is disabled.
2 Refer to the navigation system manual
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
18 HR-V-31T7A6200.book 433 ページ ２０１７年６月３０日　金曜日　午後１時２３分

460
Handling the Unexpected

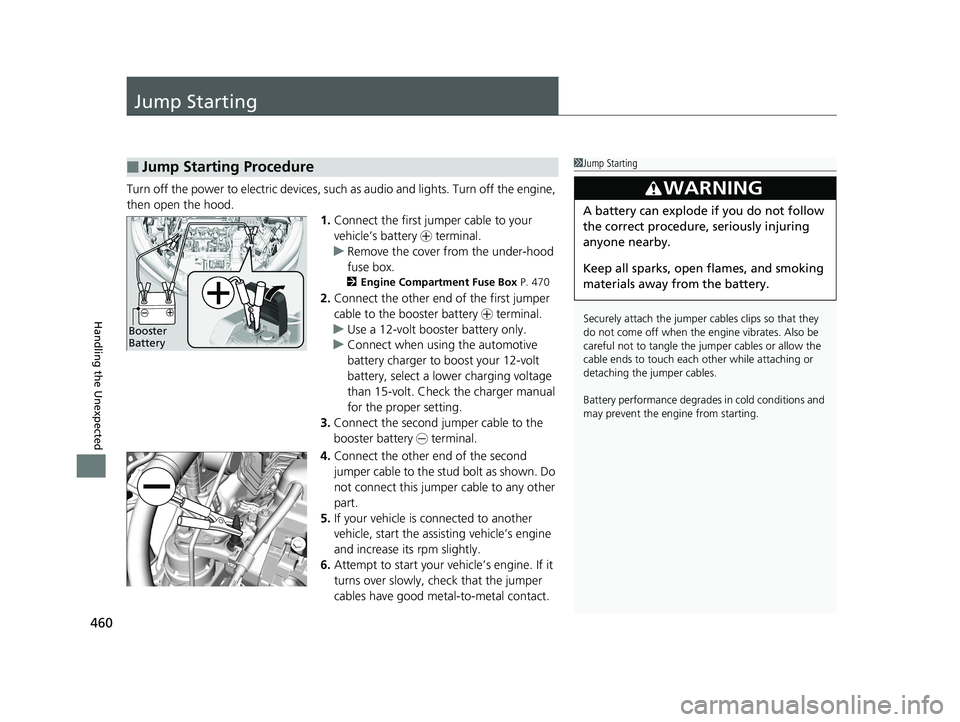

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle’s battery + terminal.
u Remove the cover from the under-hood
fuse box.
2 Engine Compartment Fuse Box P. 470
2.Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u Connect when using the automotive
battery charger to boost your 12-volt
battery, select a lo wer charging voltage
than 15-volt. Check the charger manual
for the proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
18 HR-V-31T7A6200.book 460 ページ ２０１７年６月３０日　金曜日　午後１時２３分

480
Information

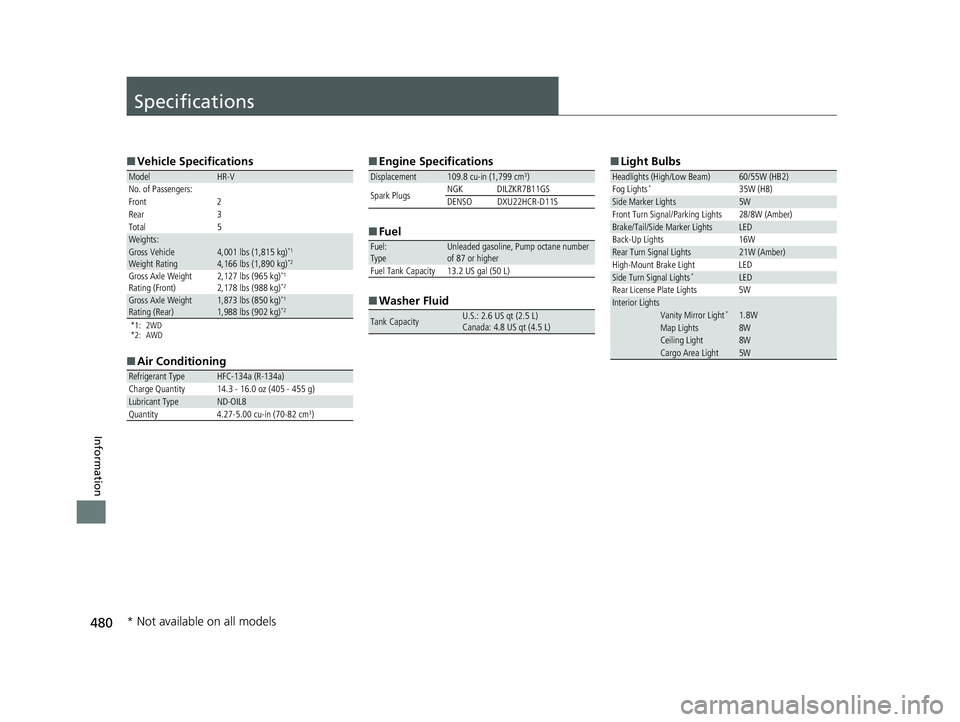

Specifications
■Vehicle Specifications
*1: 2WD
*2: AWD
■Air Conditioning
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*1
4,166 lbs (1,890 kg)*2
Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*1
2,178 lbs (988 kg)*2
Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*1
1,988 lbs (902 kg)*2
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL8
Quantity 4.27-5.00 cu-in (70-82 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement109.8 cu-in (1,799 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
18 HR-V-31T7A6200.book 480 ページ ２０１７年６月３０日　金曜日　午後１時２３分

499
Index
Shift Lever.......................... 21, 348, 350, 354
Operation ................................. 21, 349, 351
Releasing ................................................ 462
Won’t Move ........................................... 462
Shift Lever Position Indicator .... 77, 349, 351
Shifting (Transmission) ............ 348, 350, 354
Shoulder Anchor ........................................ 40
Side Airbags ............................................... 51
Side Curtain Airbags .................................. 53
Siri ® Eyes Free ........................................... 232
Snow Tires ................................................ 432
Spare Tire ......................................... 448, 481
Spark Plugs ............................................... 480
Specifications ........................................... 480
Specified Fuel ................................... 388, 480
Speedometer .............................................. 90
SRS Airbags (Airbags) ................................ 47
Starter System Indicator ............................ 82
Starting the Engine .......................... 339, 342
Does Not Start ........................................ 457
Engine Switch Buzzer ...................... 124, 127
Jump Starting ......................................... 460
Steering Wheel Adjusting ................................................ 139
Stopping ................................................... 385
Summer Tires ............................................ 432
Supplemental Restraint System (SRS) ....... 47
Switches (Around the Steering
Wheel) ............................................ 4, 5, 124T
Tachometer ................................................. 90
Tailgate ..................................................... 115
Unable to Open ....................................... 476
Temperature
High Temperature Indicator ....................... 79
Low Temperature Indicator ........................ 79
Tie-down Anchors .................................... 160
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 373
Indicator ............................................ 81, 469
Tires ........................................................... 423
Air Pressure ..................................... 425, 481
Checking and Maintaining ....................... 423
Inspection ................................................ 424
Labeling .................................................. 425
Puncture (Flat Tire) ................................... 448
Regulations ............................................. 427
Rotation .................................................. 431
Spare Tire ........................................ 448, 481
Summer .................................................. 432
Tire Chains .............................................. 432
Wear Indicators ....................................... 429
Winter ..................................................... 432
Tools .......................................................... 446
Towing a Trailer ....................................... 333
Towing Your Vehicle ................................ 334
Emergency .............................................. 475 TPMS (Tire Pressure Monitoring
System) .................................................... 373
Indicator............................................ 81, 469
Transmission ............................. 348, 350, 354
7-Speed Manual Shift Mode .................... 352
Continuously Variable ............................. 347
Fluid ........................................................ 408
Manual ................................................... 354
Number................................................... 482
Shift Lever Position Indicator...... 77, 349, 351
Trip Meter ................................................... 92
Troubleshooting ....................................... 445
Blown Fuse...................................... 470, 472
Brake Pedal Vibrates .................................. 25
Buzzer Sounds When Opening Door.......... 26
Emergency Towing .................................. 475
Engine Won’t Start .................................. 457
Noise When Braking .................................. 26
Overheating ............................................ 463
Puncture/Flat Tire .................................... 448
Rear Door Won’t Open...................... 26, 110
Shift Lever Won’t Move ........................... 462
Warning Indicators .................................... 74
Turn Signals .............................................. 129
Indicators (Instrument Panel) ..................... 82
18 HR-V-31T7A6200.book 499 ページ ２０１７年６月３０日　金曜日　午後１時２３分
