Continued149
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the Auto
Door Unlock setting to OFF using the multi-information display.
2Customized Features P. 123
If you do not want all the doors to unlock all the time, customize the Auto Door
Unlock setting to Off using th e master door lock switch.
2Customizing the Auto Door Locking/Unlocking Setting* P. 153
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 151
Inner Handle
Models with multi-information display
Models without multi-information display
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 149 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
150
Controls

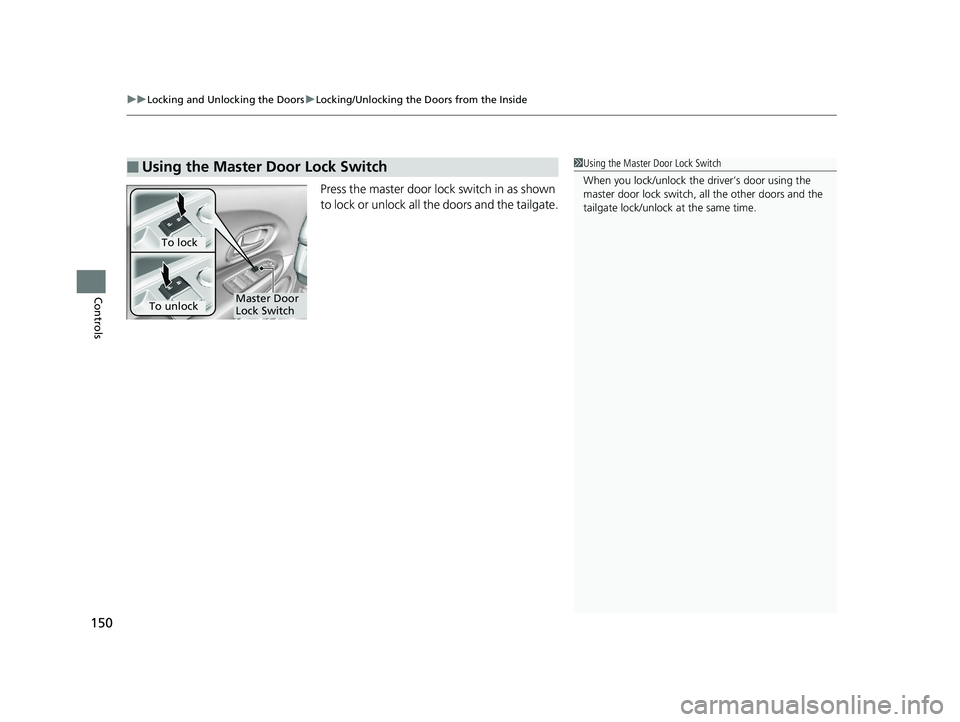

Press the master door lock switch in as shown
to lock or unlock all the doors and the tailgate.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
To lock
To unlockMaster Door
Lock Switch
20 HR-V HDMC HDMG-31T7A6400.book 150 ページ ２０１９年８月８日　木曜日　午後３時５２分

151
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls

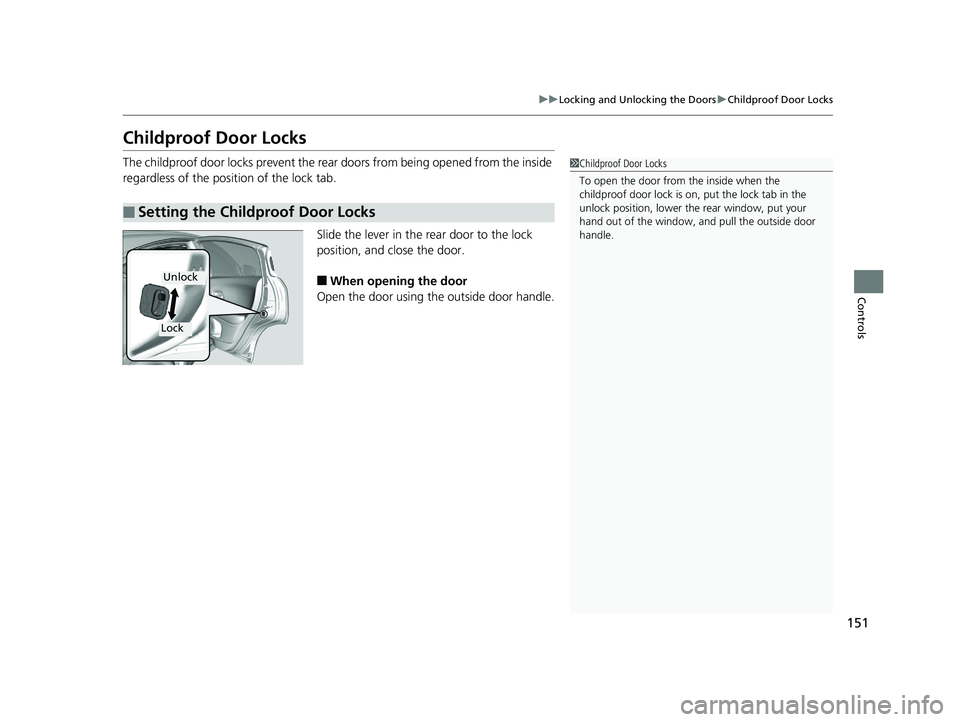

Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
20 HR-V HDMC HDMG-31T7A6400.book 151 ページ ２０１９年８月８日　木曜日　午後３時５２分

152
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors automatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors and the tailgate unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting
* P. 153
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display. 2 Customized Features P. 123
Models with multi-information display
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 152 ページ ２０１９年８月８日　木曜日　午後３時５２分

153
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Continued
Controls

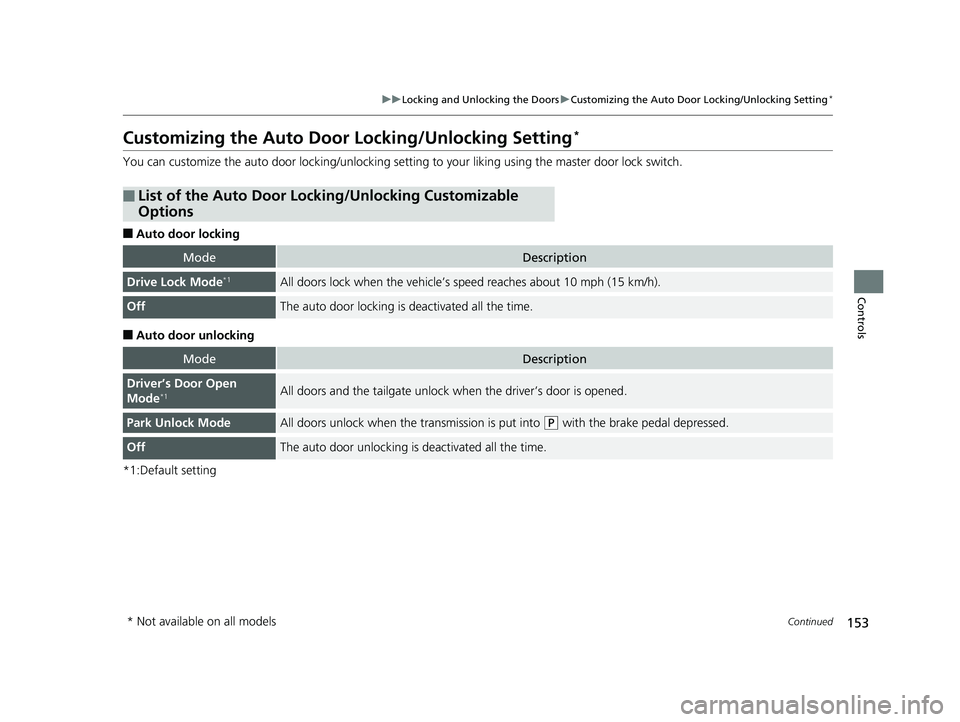

Customizing the Auto Door Locking/Unlocking Setting*
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■List of the Auto Door Locking/Unlocking Customizable
Options
ModeDescription
Drive Lock Mode*1All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver’s Door Open
Mode*1All doors and the tailgate unlock when the driver’s door is opened.
Park Unlock ModeAll doors unlock when the transmission is put into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 153 ページ ２０１９年８月８日　木曜日　午後３時５２分

154
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
*1:Default setting
*2:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*1Off
1Apply the parking brake.
2The driver’s door must be closed at this stage.Open the driver’s door.
3Turn the ignition switch to ON (w*2.
4
Press and hold the front of the master door lock switch on the dr iver’s door. You will hear a click more than five seconds elap sed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
u Customization is completed.
u All doors unlock and all turn signals blink three times.
20 HR-V HDMC HDMG-31T7A6400.book 154 ページ ２０１９年８月８日　木曜日　午後３時５２分

155
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
*1:Default setting
*2:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Customizing Flow for Auto Door Unlocking Options
StepsDriver Door Open Unlock Mode*1Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P with the
brake pedal depressed.Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2The driver’s door must be closed at this stage.Open the driv er’s door.
3Turn the ignition switch to ON (w*2.
4
Press and hold the rear of the master door lock switch on the dr iver’s door. You will hear a click more than five seconds elapsed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
u Customization is completed.
u All doors lock and all turn signals blink three times.
20 HR-V HDMC HDMG-31T7A6400.book 155 ページ ２０１９年８月８日　木曜日　午後３時５２分

156
Controls

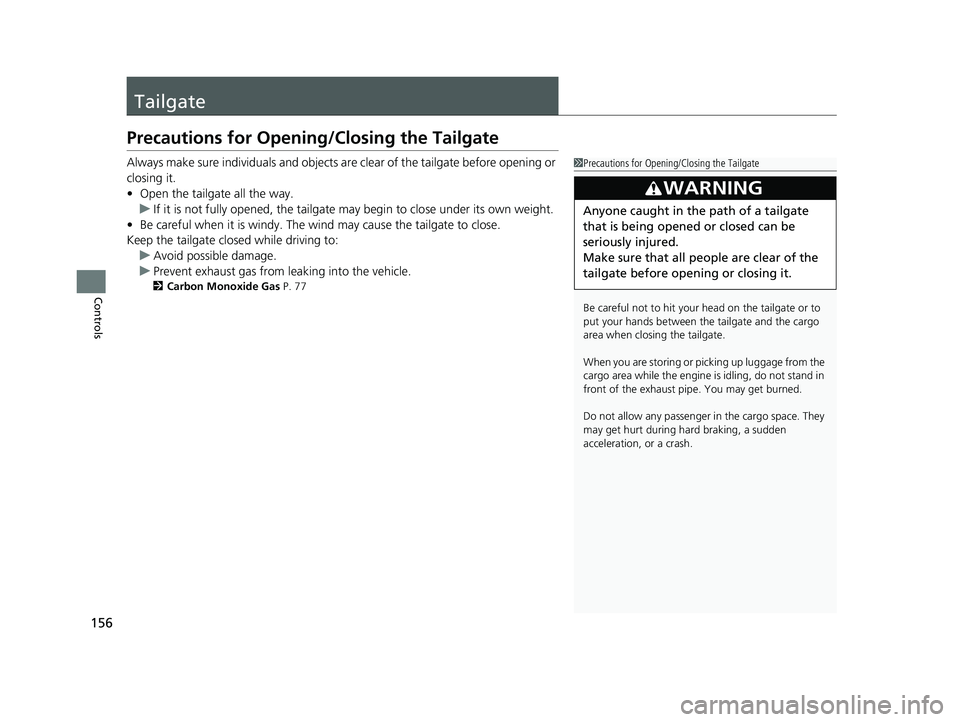

Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
•Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the tailgate to close.
Keep the tailgate closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 77
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all peop le are clear of the
tailgate before opening or closing it.
20 HR-V HDMC HDMG-31T7A6400.book 156 ページ ２０１９年８月８日　木曜日　午後３時５２分

157
uuTailgate uOpening/Closing the Tailgate
Continued
Controls

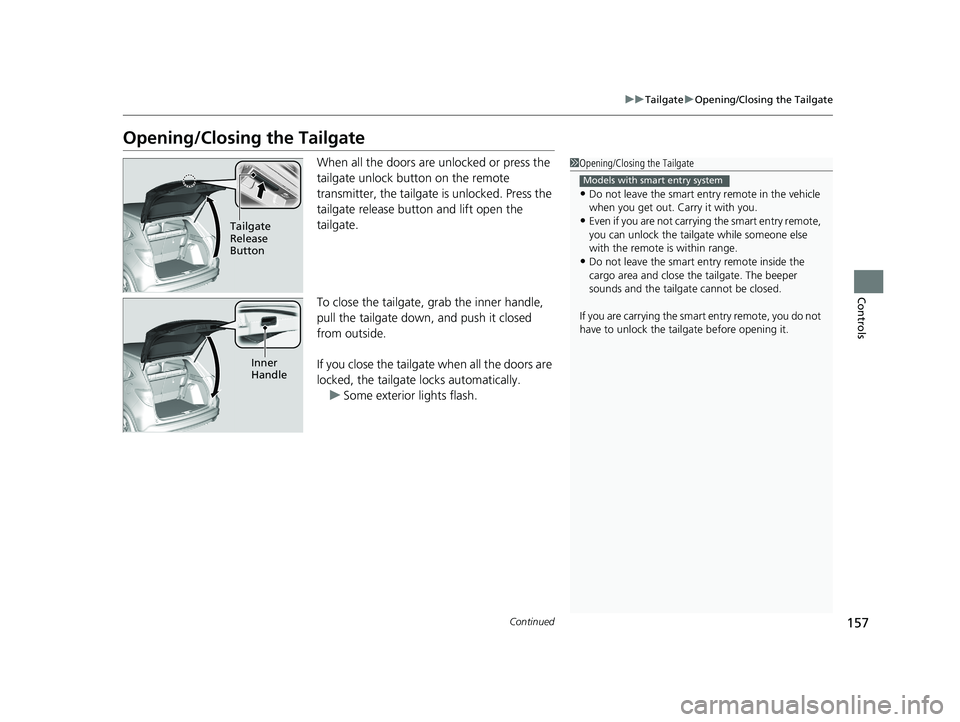

Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked. Press the
tailgate release button and lift open the
tailgate.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
If you close the tailgate when all the doors are
locked, the tailgate locks automatically.
u Some exterior lights flash.1Opening/Closing the Tailgate
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can unlock the tailga te while someone else
with the remote is within range.
•Do not leave the smart entry remote inside the
cargo area and close the tailgate. The beeper
sounds and the tailgate cannot be closed.
If you are carrying the sm art entry remote, you do not
have to unlock the tail gate before opening it.
Models with smart entry system
Tailgate
Release
Button
Inner
Handle
20 HR-V HDMC HDMG-31T7A6400.book 157 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuTailgate uOpening/Closing the Tailgate
158
Controls
Press the tailgate unlock button to unlock the
tailgate.

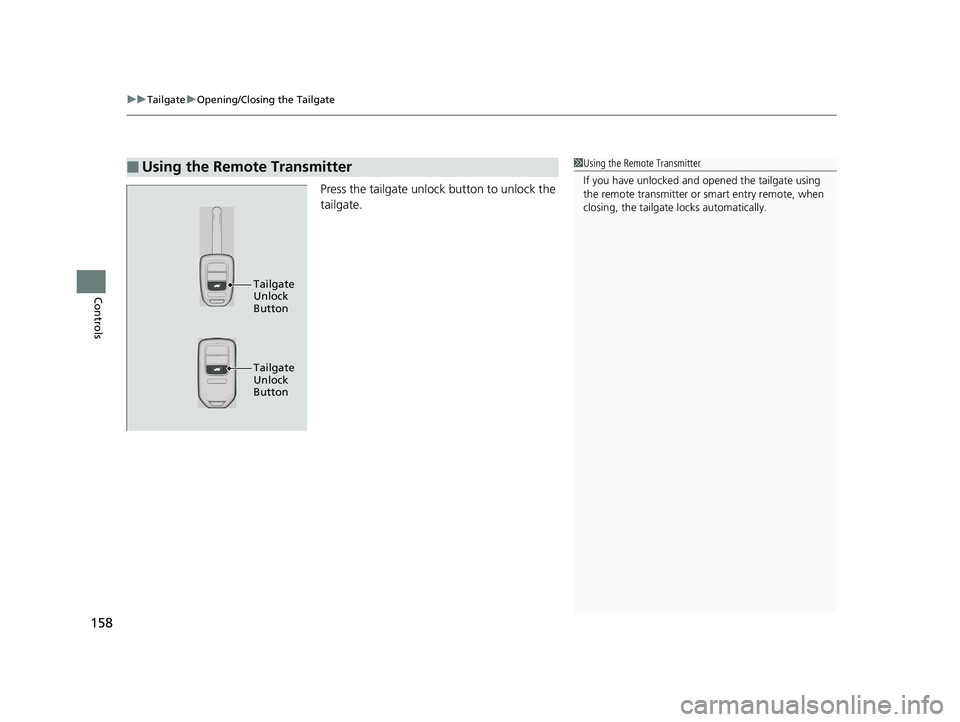

■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the tailgate using
the remote transmitter or smart entry remote, when
closing, the tailgate locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
20 HR-V HDMC HDMG-31T7A6400.book 158 ページ ２０１９年８月８日　木曜日　午後３時５２分
