Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 580
If a Tire Goes Flat Changing a Flat Tire ......................... 582
Engine Does Not Start Checking the Engine ........................ 591
If the Smart Entry Remote Battery is Weak .. 592
Emergency Engine Stop ................... 593
Jump Starting .................................... 594
Shift Lever Does Not Move .............. 596
Overheating How to Handle Overheating ............. 597 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On....599
If the Charging System Indicator Comes
On ................................................. 599
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 600
If the Brake System Indicator (Red) Comes On ................................................. 601
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 601
If the Electric Parking Brake System Indicator Comes On ....................... 602 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 603
Fuses Fuse Locations ................................. 604
Inspecting and Changing Fuses ........ 608
Emergency Towing ........................... 609
When You Cannot Open the Tailgate..... 610
20 HR-V HDMC HDMG-31T7A6400.book 579 ページ ２０１９年８月８日　木曜日　午後３時５２分

580
Handling the Unexpected
Tools

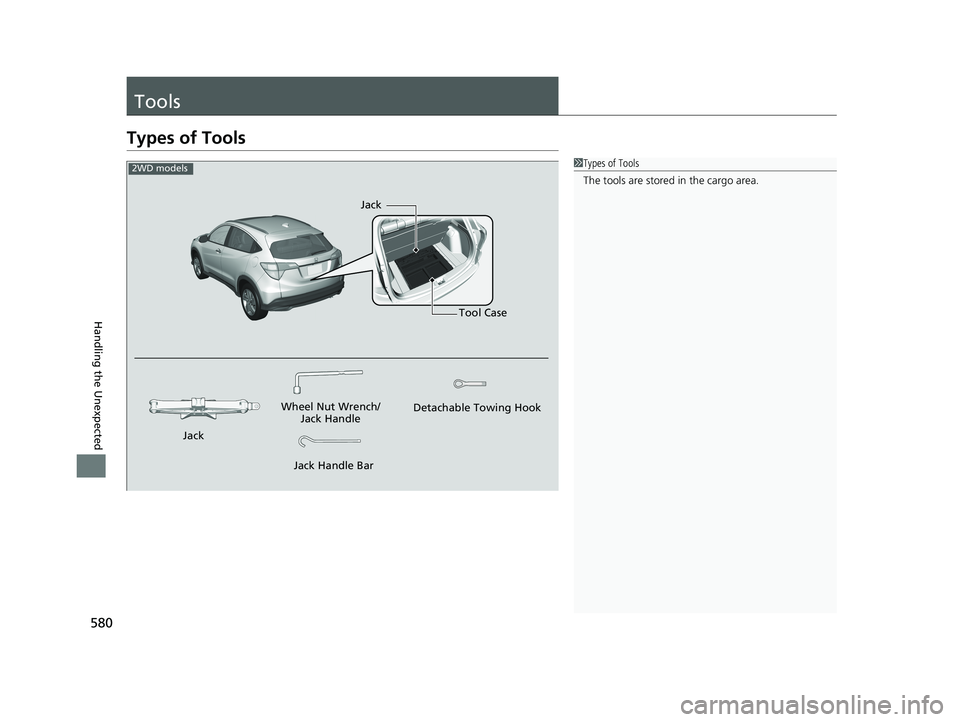

Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing HookTool Case
Jack
Jack
2WD models
20 HR-V HDMC HDMG-31T7A6400.book 580 ページ ２０１９年８月８日　木曜日　午後３時５２分

581

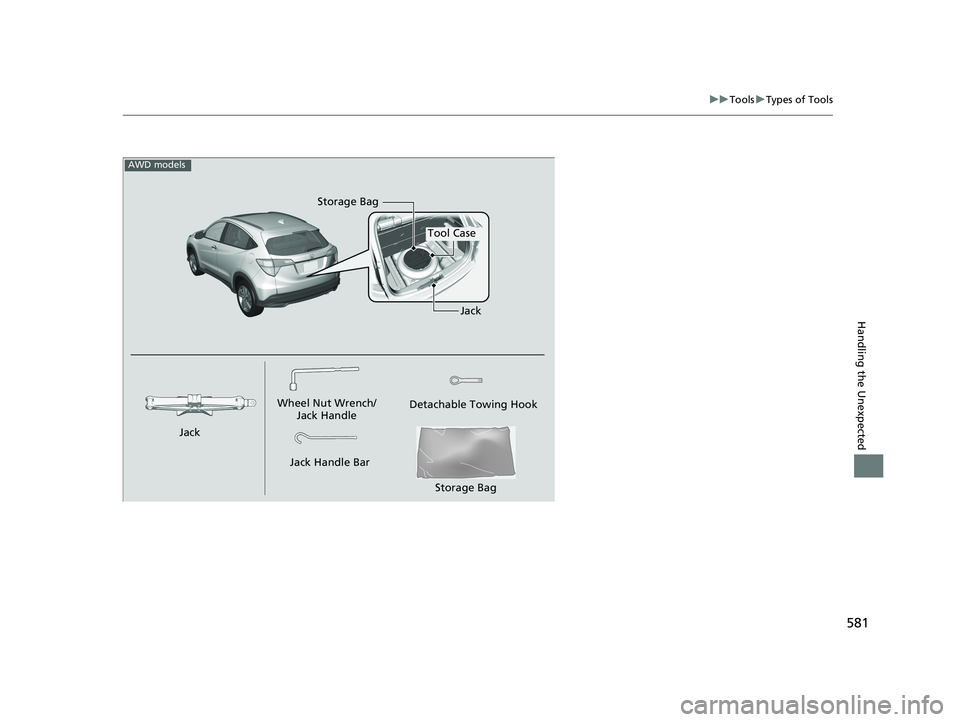

uuTools uTypes of Tools
Handling the Unexpected
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing Hook
Tool Case
Jack
Jack
AWD models
Storage Bag
Storage Bag
20 HR-V HDMC HDMG-31T7A6400.book 581 ページ ２０１９年８月８日　木曜日　午後３時５２分

582
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possibl e to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slippe ry surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
20 HR-V HDMC HDMG-31T7A6400.book 582 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued583
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the cargo area floor lid.
2. Take the tool case out of the cargo area.
Take the wheel nut wrench, jack handle bar
and jack out of the tool case.
Take the wheel nut wrench and jack handle
bar out of the tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.

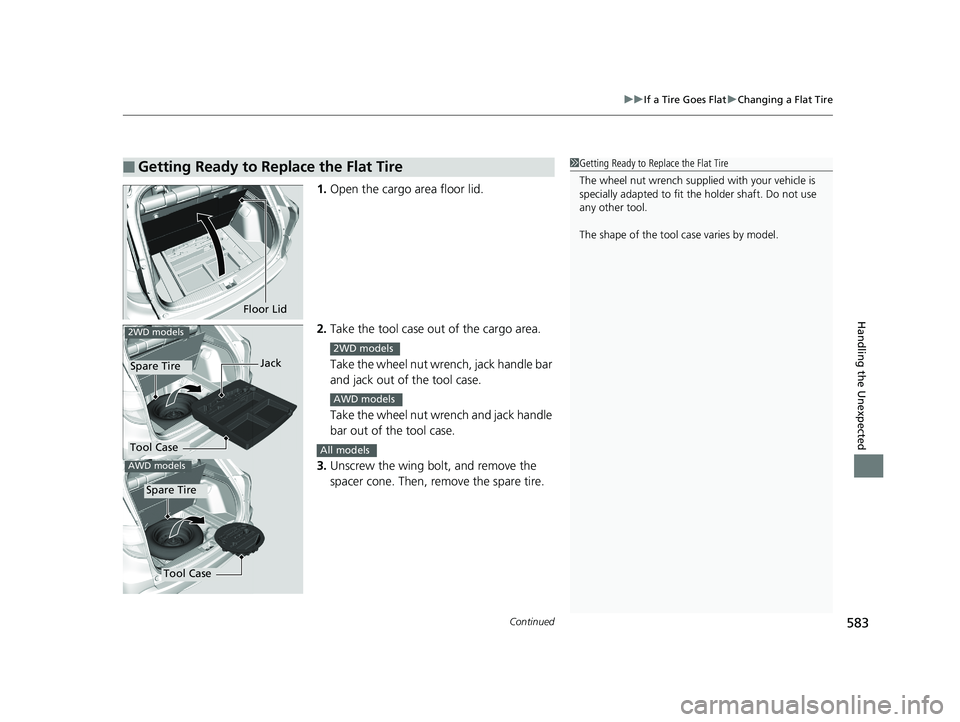

■Getting Ready to Replace the Flat Tire1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit th e holder shaft. Do not use
any other tool.
The shape of the tool case varies by model.
Floor Lid
Tool Case Jack
Spare Tire
2WD models
AWD models
Tool Case
Spare Tire
2WD models
AWD models
All models
20 HR-V HDMC HDMG-31T7A6400.book 583 ページ ２０１９年８月８日　木曜日　午後３時５２分

584
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

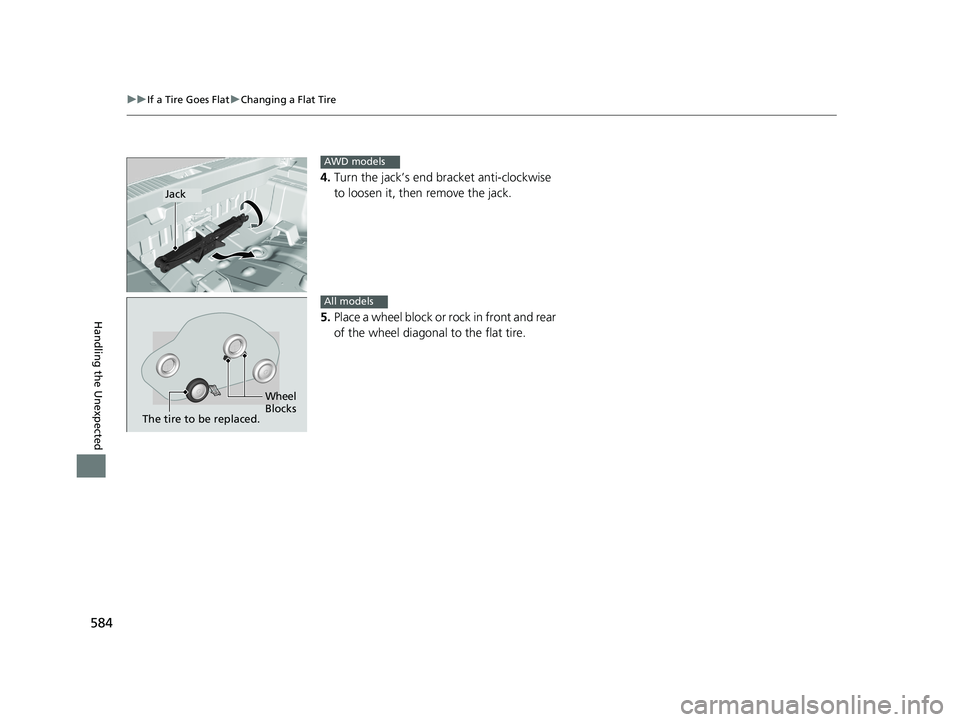

4. Turn the jack’s end bracket anti-clockwise
to loosen it, then remove the jack.
5. Place a wheel block or ro ck in front and rear
of the wheel diagonal to the flat tire.
Jack
AWD models
Wheel
Blocks
The tire to be replaced.
All models
20 HR-V HDMC HDMG-31T7A6400.book 584 ページ ２０１９年８月８日　木曜日　午後３時５２分

585
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

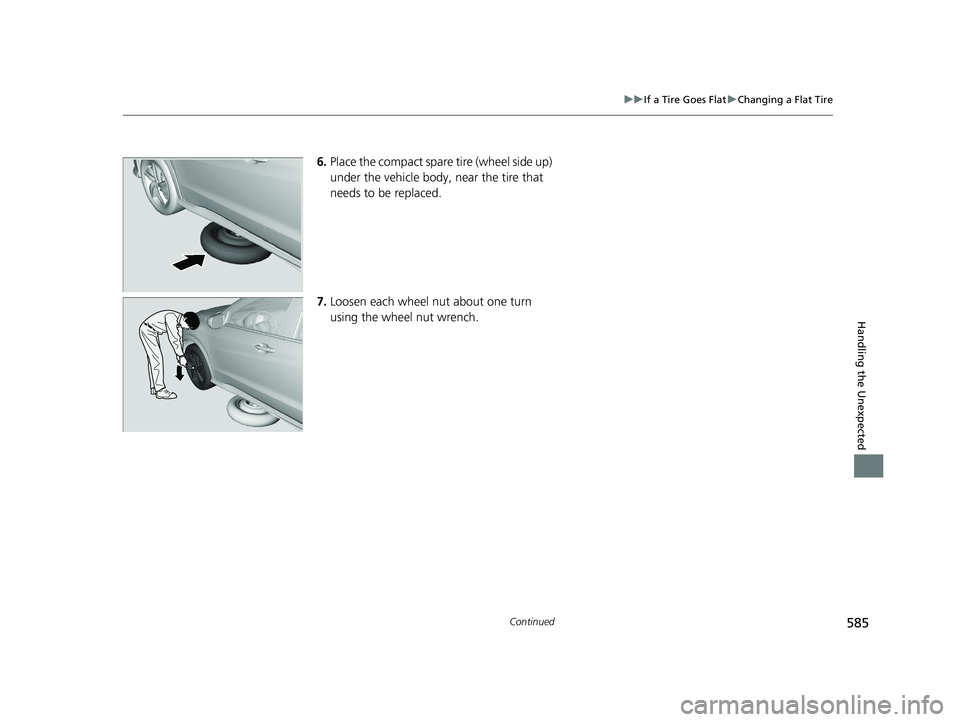

6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
20 HR-V HDMC HDMG-31T7A6400.book 585 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuIf a Tire Goes Flat uChanging a Flat Tire
586
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.•Use only where the ground is firm and level.•Use only at the jacking points.•Do not get in the vehicl e while using the jack.•Do not put anything on top of or underneath the
jack.
Store the wheel, jack, a nd tools securely before
driving.
Loose items can fly around the interior in a crash and
can seriously inju re the occupants.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
20 HR-V HDMC HDMG-31T7A6400.book 586 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued587
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wh eel nuts by applying extra
torque using your foot or a pipe.
Wheel
Nut
20 HR-V HDMC HDMG-31T7A6400.book 587 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuIf a Tire Goes Flat uChanging a Flat Tire
588
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the wheel nut wrench, jack
handle bar and jack back in the tool case.
Store the case in the cargo area under the
cargo floor lid.

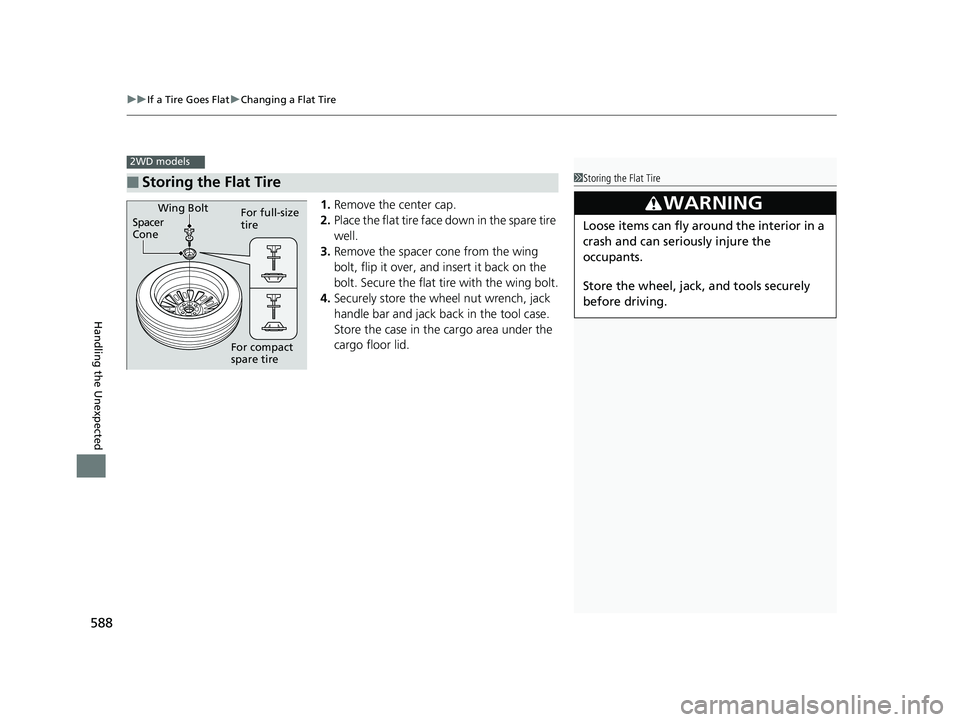

■Storing the Flat Tire
2WD models
1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.For full-size
tire
