fuse box location HONDA HR-V 2020 Owner's Manual (in English)

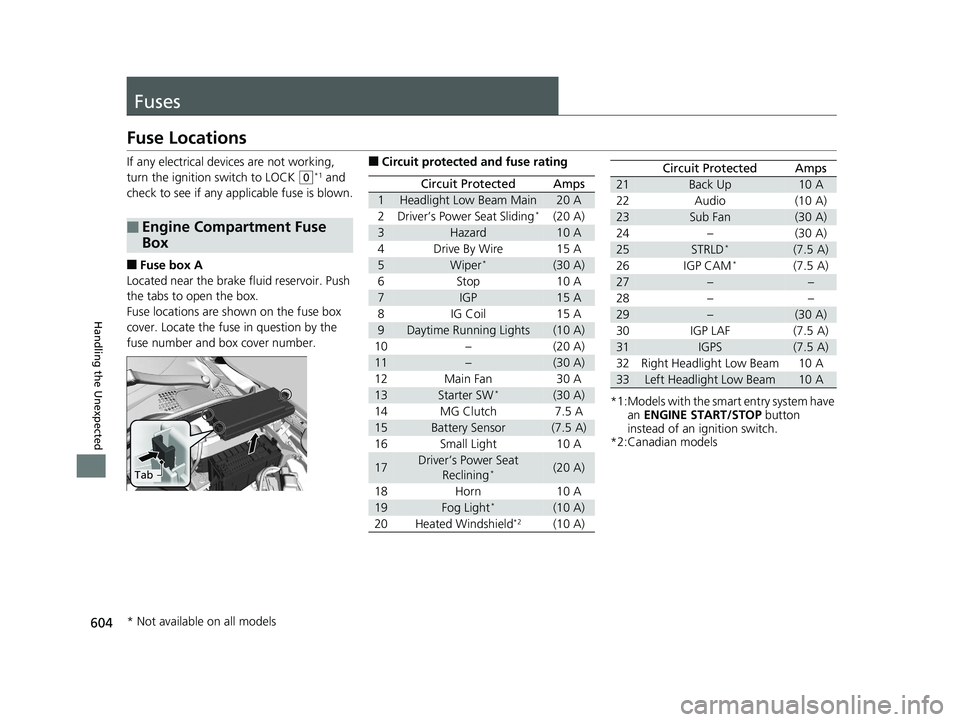

604
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2Driver’s Power Seat Sliding*(20 A)
3Hazard10 A
4Drive By Wire15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9Daytime Running Lights(10 A)
10–(20 A)
11–(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17Driver’s Power Seat Reclining*(20 A)
18Horn10 A
19Fog Light*(10 A)
20Heated Windshield*2(10 A)
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Canadian models
Circuit ProtectedAmps
21Back Up10 A
22Audio(10 A)
23Sub Fan(30 A)
24–(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29–(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 604 ページ ２０１９年８月８日　木曜日　午後３時５２分

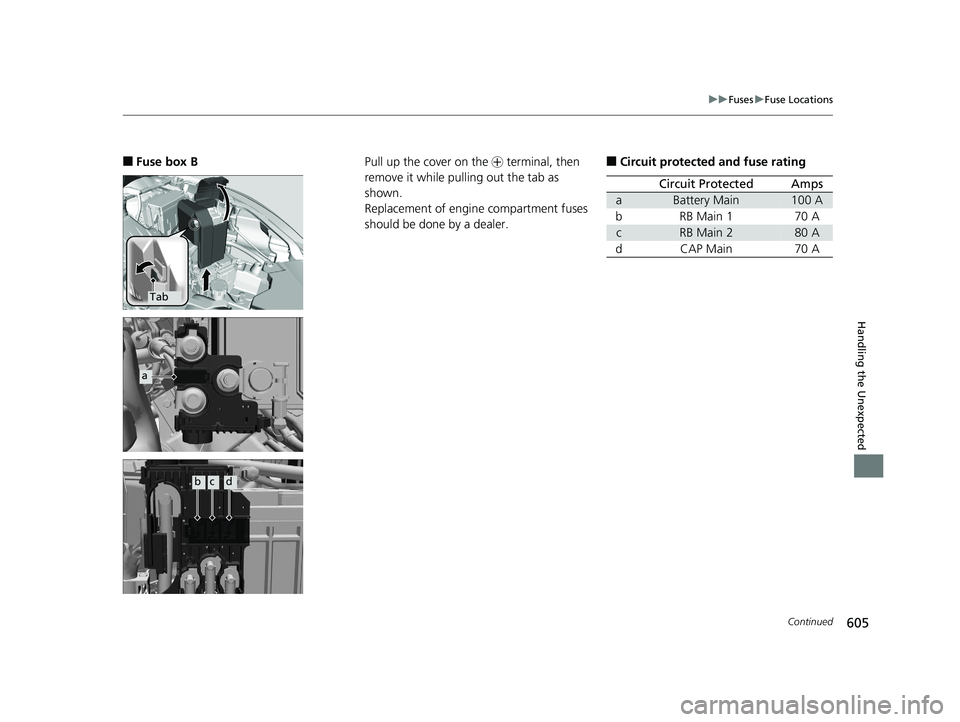

605
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse box B
Tab
a
bcd
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of engine compartment fuses
should be done by a dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery Main100 A
bRB Main 170 A
cRB Main 280 A
dCAP Main70 A
20 HR-V HDMC HDMG-31T7A6400.book 605 ページ ２０１９年８月８日　木曜日　午後３時５２分

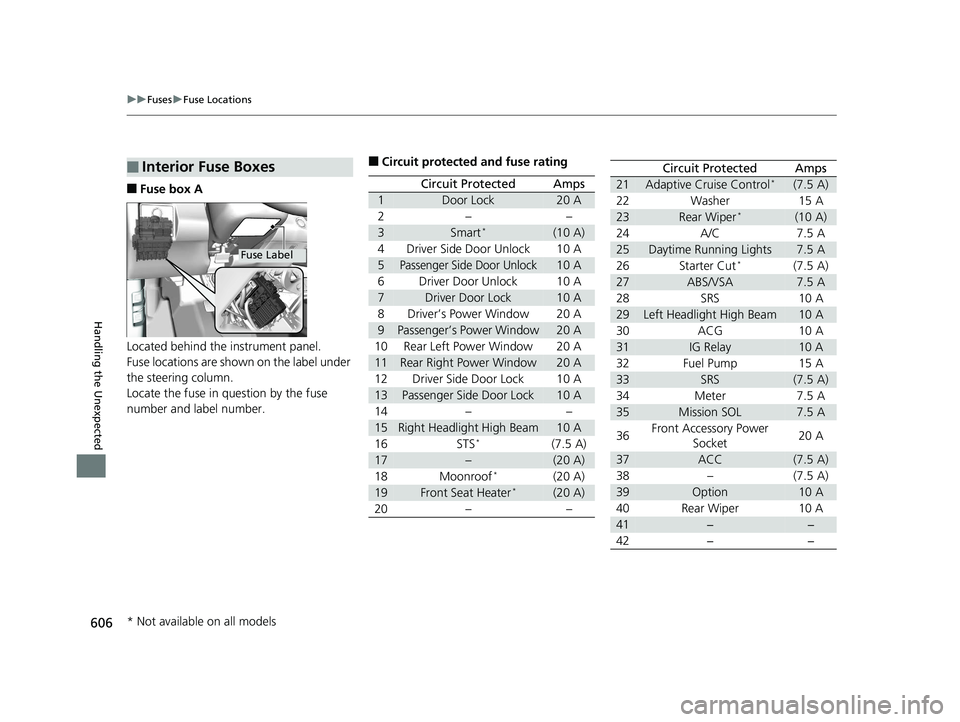

606
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box A
Located behind the instrument panel.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Boxes
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Door Lock20 A
2––
3Smart*(10 A)
4Driver Side Door Unlock10 A
5Passenger Side Door Unlock10 A
6Driver Door Unlock10 A
7Driver Door Lock10 A
8Driver’s Power Window20 A
9Passenger’s Power Window20 A
10Rear Left Power Window20 A
11Rear Right Power Window20 A
12Driver Side Door Lock10 A
13Passenger Side Door Lock10 A
14––
15Right Headlight High Beam10 A
16STS*(7.5 A)
17–(20 A)
18Moonroof*(20 A)
19Front Seat Heater*(20 A)
20––
Circuit ProtectedAmps
21Adaptive Cruise Control*(7.5 A)
22Washer15 A
23Rear Wiper*(10 A)
24A/C7.5 A
25Daytime Running Lights7.5 A
26Starter Cut*(7.5 A)
27ABS/VSA7.5 A
28SRS10 A
29Left Headlight High Beam10 A
30ACG10 A
31IG Relay10 A
32Fuel Pump15 A
33SRS(7.5 A)
34Meter7.5 A
35Mission SOL7.5 A
36Front Accessory Power Socket20 A
37ACC(7.5 A)
38–(7.5 A)
39Option10 A
40Rear Wiper10 A
41−−
42−−
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 606 ページ ２０１９年８月８日　木曜日　午後３時５２分

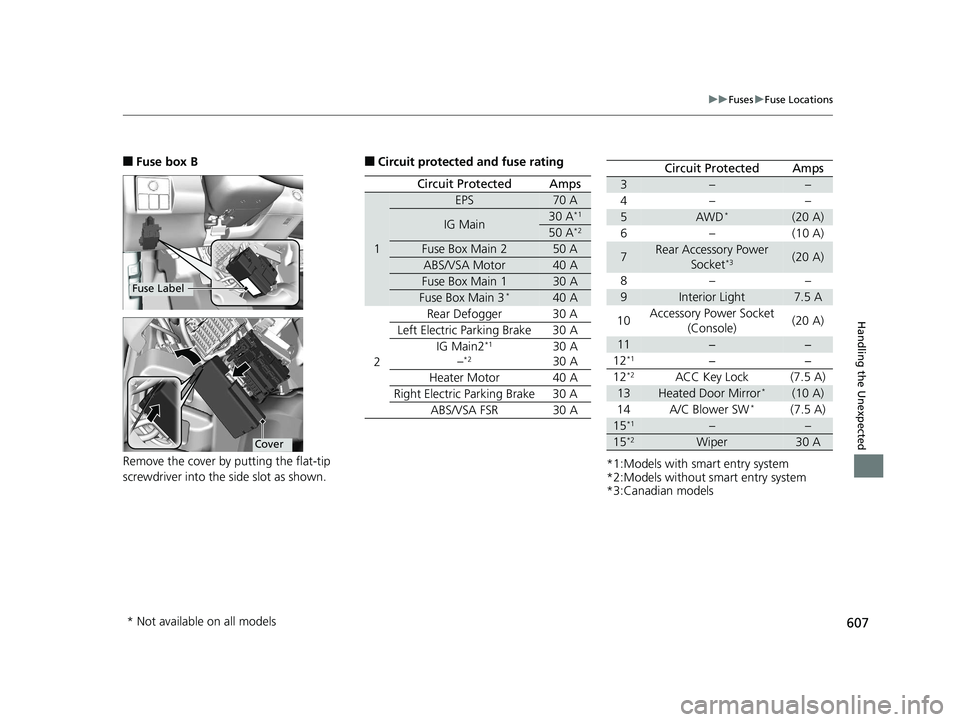

607
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
Left Electric Parking Brake 30 A IG Main2
*1
–*230 A
30 A
Heater Motor 40 A
Right Electric Parking Brake 30 A ABS/VSA FSR 30 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
Circuit ProtectedAmps
3––
4– –
5AWD*(20 A)
6–(10 A)
7Rear Accessory Power Socket*3(20 A)
8– –
9Interior Light7.5 A
10 Accessory Power Socket
(Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 607 ページ ２０１９年８月８日　木曜日　午後３時５２分

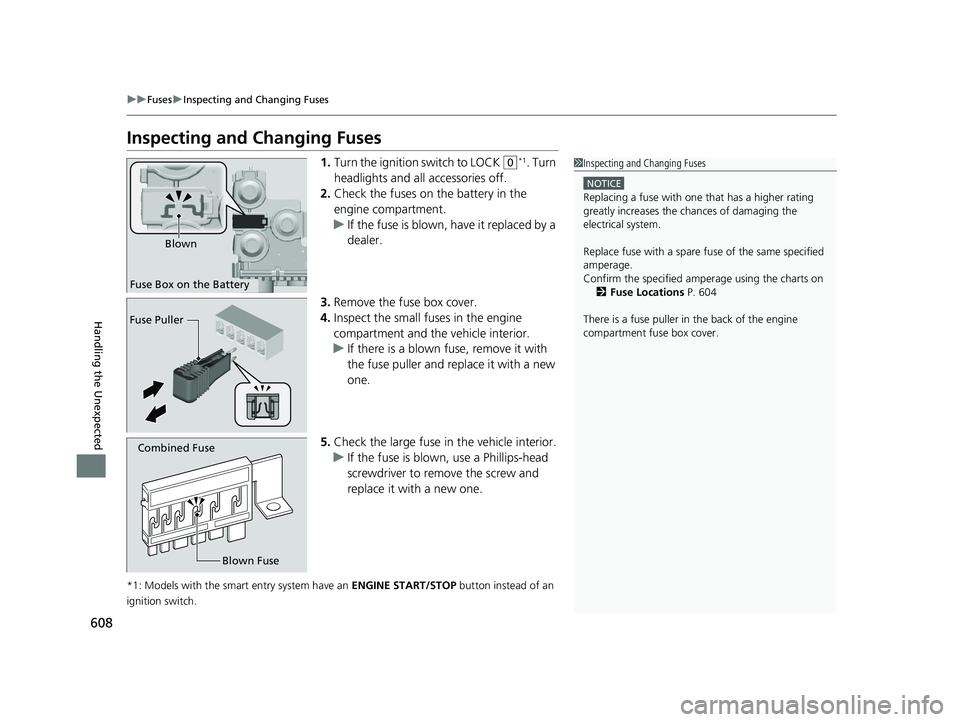

608
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
2 Fuse Locations P. 604
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
20 HR-V HDMC HDMG-31T7A6400.book 608 ページ ２０１９年８月８日　木曜日　午後３時５２分

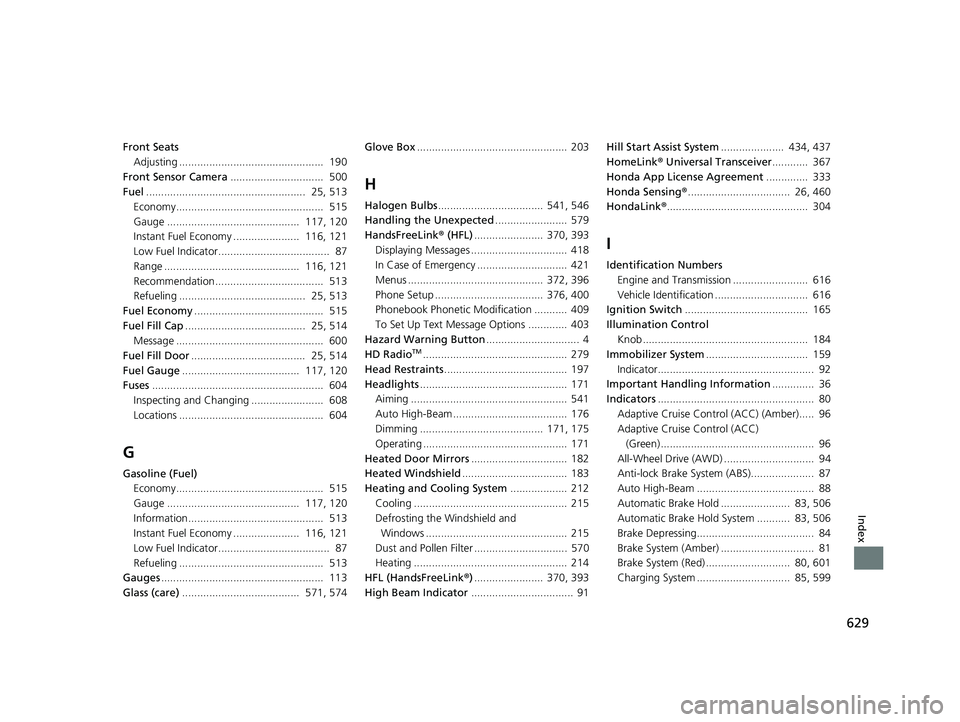

629
