oil filter HONDA HR-V 2020 Owner's Manual (in English)

517
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 518
Safety When Performing Maintenance .... 519
Parts and Fluids Used in Maintenance Service ........................................... 520
Maintenance Minder
TM..................... 521
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 529
Opening the Hood ........................... 530
Recommended Engine Oil ................ 531
Oil Check ......................................... 532
Adding Engine Oil ............................ 533
Changing the Engine Oil and Oil Filter ..... 534
Engine Coolant ................................ 536
Transmission Fluid ............................ 538
Brake Fluid ....................................... 539
Refilling Window Washer Fluid......... 540
Replacing Light Bulbs ....................... 541
Checking and Maintaining Wiper Blades.... 551Checking and Maintaining Tires
Checking Tires ................................. 555
Tire and Loading Information Label .. 557
Tire Labeling .................................... 557
DOT Tire Quality Grading (U.S. Vehicles).. 559Wear Indicators................................ 561 Tire Service Life ................................ 561
Tire and Wheel Replacement ........... 562
Tire Rotation .................................... 563
Winter Tires ..................................... 564
Battery ............................................... 566
Remote Transmitter Care
Replacing the Button Battery ........... 568
Heating and Cooling System
*/Climate
Control System* Maintenance ....... 570
Cleaning Interior Care .................................... 571
Exterior Care.................................... 573
Accessories and Modifications ........ 576
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 517 ページ ２０１９年８月８日　木曜日　午後３時５２分

523
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
6•Replace rear differential fluid*
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 523 ページ ２０１９年８月８日　木曜日　午後３時５２分

527
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
6•Replace rear differential fluid*
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 527 ページ ２０１９年８月８日　木曜日　午後３時５２分

534
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

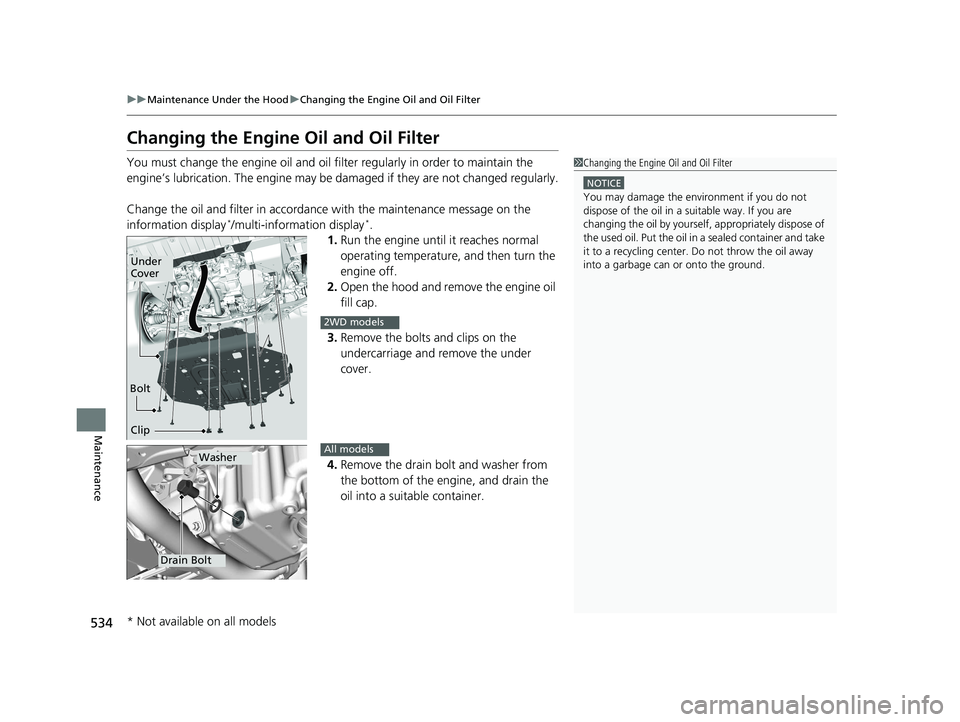

Changing the Engine Oil and Oil Filter
You must change the engine oil and oil f ilter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordan ce with the maintenance message on the
information display
*/multi-information display*.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the bolts and clips on the
undercarriage and remove the under
cover.
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under
Cover
Bolt Clip
2WD models
Washer
Drain Bolt
All models
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 534 ページ ２０１９年８月８日　木曜日　午後３時５２分

535
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.9 US qt (3.7 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
20 HR-V HDMC HDMG-31T7A6400.book 535 ページ ２０１９年８月８日　木曜日　午後３時５２分

570
Maintenance

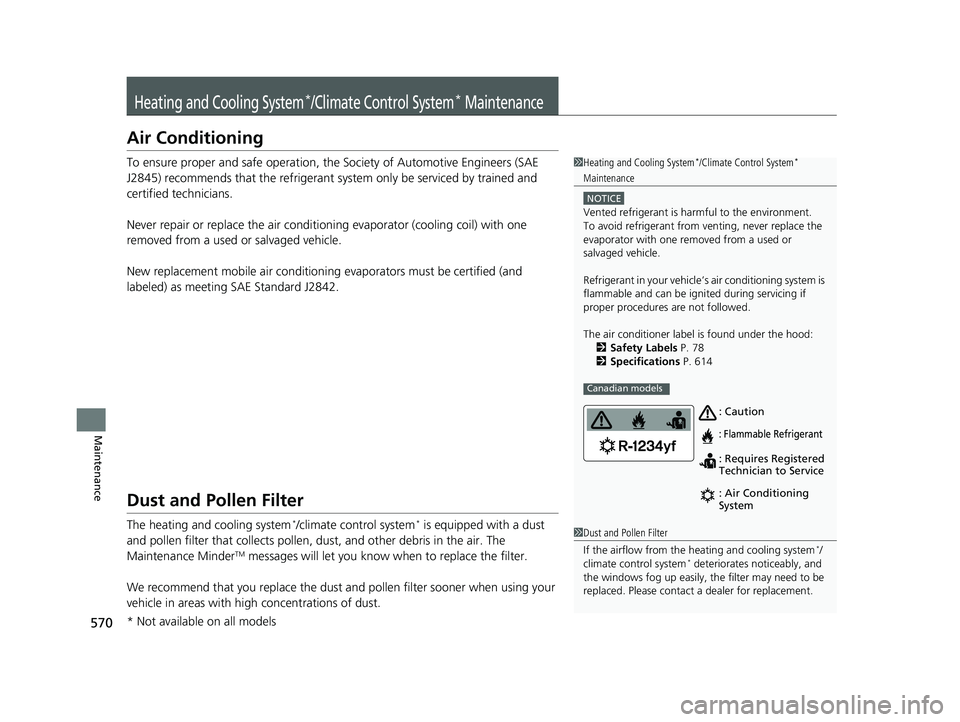

Heating and Cooling System*/Climate Control System* Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The heating and cooling system*/climate control system* is equipped with a dust
and pollen filter that collects pollen, dust, and other debris in the air. The
Maintenance Minder
TM messages will let you know when to replace the filter.
We recommend that you replace the dust a nd pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Heating and Cooling System*/Climate Control System*
Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 78
2 Specifications P. 614
Canadian models
: Caution
: Flammable Refrigerant
: Requires Registered
Technician to Service
: Air Conditioning
System
1Dust and Pollen Filter
If the airflow from the heating and cooling system
*/
climate control system* deteriorates noticeably, and
the windows fog up easily, the filter may need to be
replaced. Please contact a dealer for replacement.
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 570 ページ ２０１９年８月８日　木曜日　午後３時５２分

615

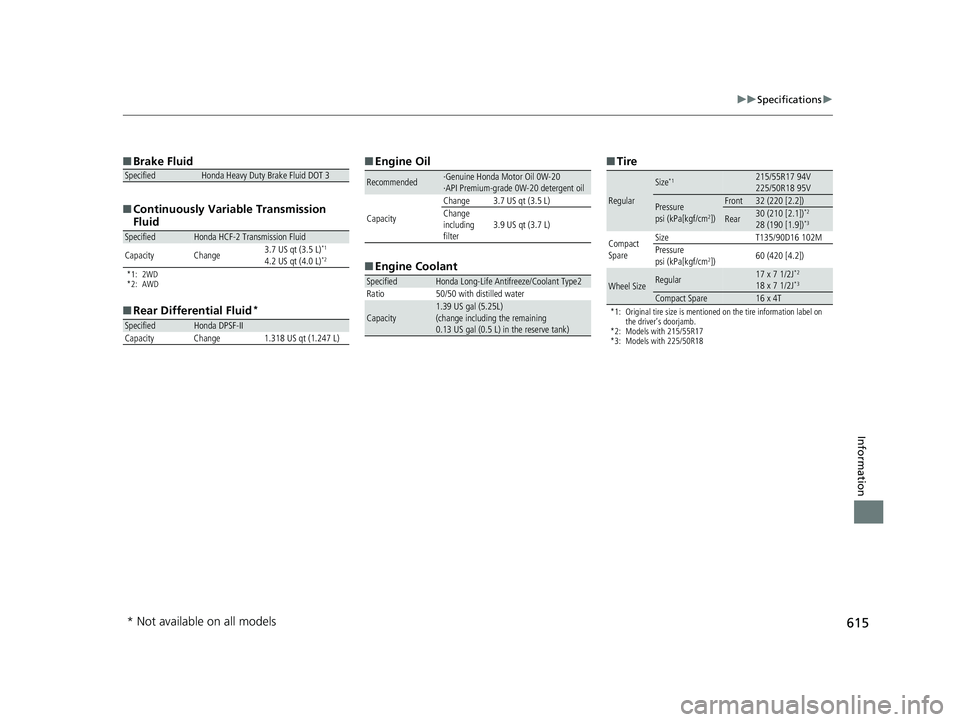

uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD
*2: AWD
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 L)*1
4.2 US qt (4.0 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.318 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 L)
Change
including
filter
3.9 US qt (3.7 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.39 US gal (5.25L)
(change including the remaining
0.13 US gal (0.5 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 215/55R17
*3: Models with 225/50R18
Regular
Size*1215/55R17 94V
225/50R18 95V
Pressure
psi (kPa[kgf/cm2])
Front32 (220 [2.2])
Rear30 (210 [2.1])*2
28 (190 [1.9])*3
Compact
Spare Size T135/90D16 102M
Pressure
psi (kPa[kgf/cm
2])
60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*2
18 x 7 1/2J*3
Compact Spare16 x 4T
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 615 ページ ２０１９年８月８日　木曜日　午後３時５２分

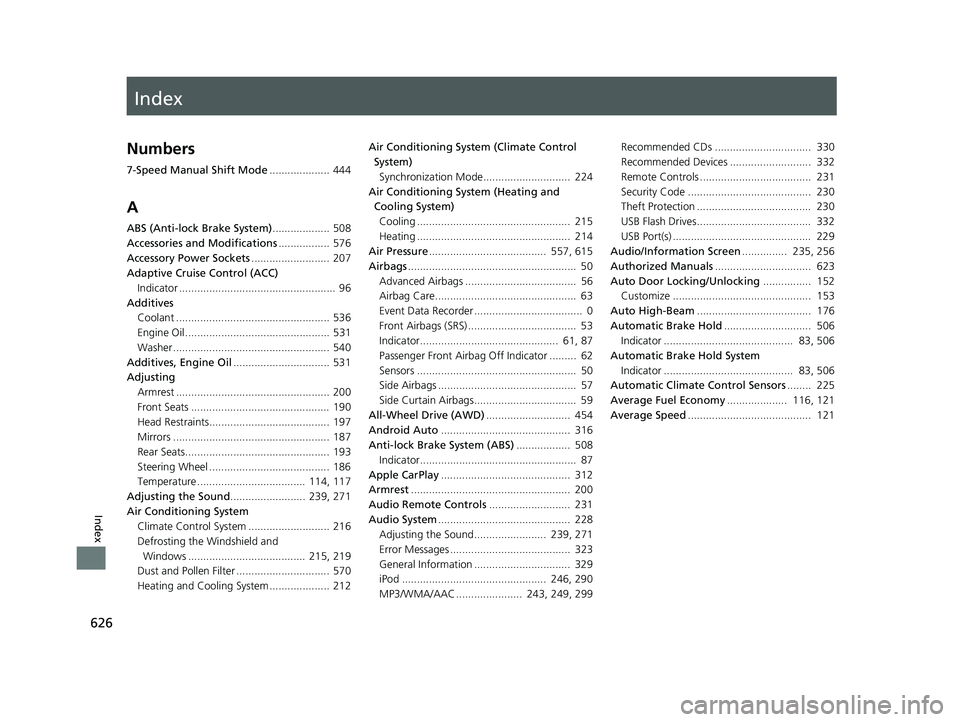

Index
626
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 444
A
ABS (Anti-lock Brake System) ................... 508
Accessories and Modifications ................. 576
Accessory Power Sockets .......................... 207
Adaptive Cruise Control (ACC) Indicator .................................................... 96
Additives Coolant ................................................... 536
Engine Oil ................................................ 531
Washer .................................................... 540
Additives, Engine Oil ................................ 531
Adjusting
Armrest ................................................... 200
Front Seats .............................................. 190
Head Restraints........................................ 197
Mirrors .................................................... 187
Rear Seats................................................ 193
Steering Wheel ........................................ 186
Temperature .................................... 114, 117
Adjusting the Sound ......................... 239, 271
Air Conditioning System Climate Control System ........................... 216
Defrosting the Windshield and
Windows ....................................... 215, 219
Dust and Pollen Filter ............................... 570
Heating and Cooling System .................... 212 Air Conditioning System (Climate Control
System)
Synchronization Mode............................. 224
Air Conditioning System (Heating and Cooling System)
Cooling ................................................... 215
Heating ................................................... 214
Air Pressure ....................................... 557, 615
Airbags ........................................................ 50
Advanced Airbags ..................................... 56
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 53
Indicator.............................................. 61, 87
Passenger Front Airbag Off Indicator ......... 62
Sensors ..................................................... 50
Side Airbags .............................................. 57
Side Curtain Airbags.................................. 59
All-Wheel Drive (AWD) ............................ 454
Android Auto ........................................... 316
Anti-lock Brake System (ABS) .................. 508
Indicator.................................................... 87
Apple CarPlay ........................................... 312
Armrest ..................................................... 200
Audio Remote Controls ........................... 231
Audio System ............................................ 228
Adjusting the Sound........................ 239, 271
Error Messages ........................................ 323
General Information ................................ 329
iPod ................................................ 246, 290
MP3/WMA/AAC ...................... 243, 249, 299 Recommended CDs ................................ 330
Recommended Devices ........................... 332
Remote Controls ..................................... 231
Security Code ......................................... 230
Theft Protection ...................................... 230
USB Flash Drives...................................... 332
USB Port(s) .............................................. 229
Audio/Information Screen ............... 235, 256
Authorized Manuals ................................ 623
Auto Door Locking/Unlocking ................ 152
Customize .............................................. 153
Auto High-Beam ...................................... 176
Automatic Brake Hold ............................. 506
Indicator ........................................... 83, 506
Automatic Brake Hold System Indicator ........................................... 83, 506
Automatic Climate Control Sensors ........ 225
Average Fuel Economy .................... 116, 121
Average Speed ......................................... 121
20 HR-V HDMC HDMG-31T7A6400.book 626 ページ ２０１９年８月８日　木曜日　午後３時５２分

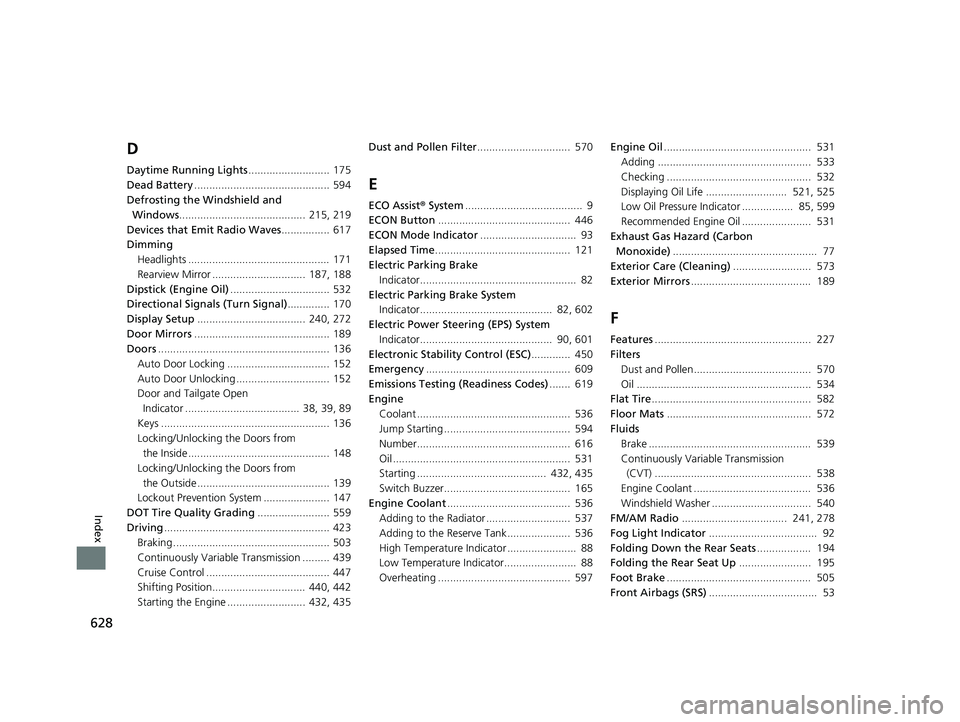

628
Index
D
Daytime Running Lights........................... 175
Dead Battery ............................................. 594
Defrosting the Windshield and Windows .......................................... 215, 219
Devices that Emit Radio Waves ................ 617
Dimming Headlights ............................................... 171
Rearview Mirror ............................... 187, 188
Dipstick (Engine Oil) ................................. 532
Directional Signals (Turn Signal) .............. 170
Display Setup .................................... 240, 272
Door Mirrors ............................................. 189
Doors ......................................................... 136
Auto Door Locking .................................. 152
Auto Door Unlocking ............................... 152
Door and Tailgate Open Indicator ...................................... 38, 39, 89
Keys ........................................................ 136
Locking/Unlocking the Doors from the Inside ............................................... 148
Locking/Unlocking the Doors from
the Outside ............................................ 139
Lockout Prevention System ...................... 147
DOT Tire Quality Grading ........................ 559
Driving ....................................................... 423
Braking .................................................... 503
Continuously Variable Transmission ......... 439
Cruise Control ......................................... 447
Shifting Position............................... 440, 442
Starting the Engine .......................... 432, 435 Dust and Pollen Filter
............................... 570
E
ECO Assist® System ....................................... 9
ECON Button ............................................ 446
ECON Mode Indicator ................................ 93
Elapsed Time ............................................. 121
Electric Parking Brake Indicator.................................................... 82
Electric Parking Brake System Indicator............................................ 82, 602
Electric Power Steering (EPS) System
Indicator............................................ 90, 601
Electronic Stability Control (ESC) ............. 450
Emergency ................................................ 609
Emissions Testing (Readiness Codes) ....... 619
Engine
Coolant ................................................... 536
Jump Starting .......................................... 594
Number................................................... 616
Oil ........................................................... 531
Starting ........................................... 432, 435
Switch Buzzer.......................................... 165
Engine Coolant ......................................... 536
Adding to the Radiator ............................ 537
Adding to the Reserve Tank..................... 536
High Temperature Indicator ....................... 88
Low Temperature Indicator........................ 88
Overheating ............................................ 597 Engine Oil
................................................. 531
Adding ................................................... 533
Checking ................................................ 532
Displaying Oil Life ........................... 521, 525
Low Oil Pressure Indicator ................. 85, 599
Recommended Engine Oil ....................... 531
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 77
Exterior Care (Cleaning) .......................... 573
Exterior Mirrors ........................................ 189
F
Features.................................................... 227
Filters Dust and Pollen....................................... 570
Oil .......................................................... 534
Flat Tire ..................................................... 582
Floor Mats ................................................ 572
Fluids Brake ...................................................... 539
Continuously Vari able Transmission
(CVT) .................................................... 538
Engine Coolant ....................................... 536
Windshield Washer ................................. 540
FM/AM Radio ................................... 241, 278
Fog Light Indicator .................................... 92
Folding Down the Rear Seats .................. 194
Folding the Rear Seat Up ........................ 195
Foot Brake ................................................ 505
Front Airbags (SRS) .................................... 53
20 HR-V HDMC HDMG-31T7A6400.book 628 ページ ２０１９年８月８日　木曜日　午後３時５２分
