set clock HONDA HR-V 2020 Owner's Manual (in English)

13
Quick Reference Guide
Controls (P133)
Clock (P134)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the multi-information display
*/
information display* is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation system
aSelect the (HOME) icon, then select
Settings .
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 13 ページ ２０１９年８月８日　木曜日　午後３時５２分

21
Quick Reference Guide
Audio System (P228)
For navigation system operation () See the Navigation System Manual
(P234)
Models with color audio system
MENU/CLOCK Button
LIST/SELECT
Knob
(Day/Night)
Button
(Back) Button
(Sound) Button
VOL /
(Volume/Power)
Knob
CD Slot
(CD Eject) Button
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
*
Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 21 ページ ２０１９年８月８日　木曜日　午後３時５２分

115
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Each time you press the (select/reset) knob, the information display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 115 ページ ２０１９年８月８日　木曜日　午後３時５２分

133
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................................. 134
Locking and Unlocking the Doors
Key................................................................. 136
Low Smart Entry Remote Signal Strength
*...... 138Locking/Unlocking the Doors from the Outside ... 139Locking/Unlocking the Doors from the Inside .. 148
Childproof Door Locks .................................... 151
Auto Door Locking/Unlocking ......................... 152
Customizing the Auto Door Locking/Unlocking Setting
*....................................................... 153
Tailgate ............................................................. 156
Opening/Closing the Tailgate.......................... 157
Security System Immobilizer System......................................... 159
Security System Alarm .................................... 159
Opening and Closing the Windows ................ 162
Moonroof
*........................................................ 164 Operating the Switches Around the Steering
Wheel
Ignition Switch ............................................... 165
ENGINE START/STOP Button ........................... 166
Ignition Switch and Power Mode Comparison .....169Turn Signals ................................................... 170
Light Switches ................................................ 171
Fog Lights
*..................................................... 174
Daytime Running Lights .................................. 175
Auto High-Beam
*........................................... 176
Wipers and Washers....................................... 179
Defogger/Heated Door Mirror*/Heated Windshield*..... 182Brightness Control.......................................... 184
Adjusting the Steering Wheel ......................... 186
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors Interior Rearview Mirror.................................. 187
Power Door Mirrors ........................................ 189
Adjusting the Seats Front Seats ..................................................... 190
Rear Seats ...................................................... 193
Maintain a Proper Sitting Position ................... 196
Head Restraints .............................................. 197
Armrest .......................................................... 200
Interior Lights/Interior Convenience Items Interior Lights ................................................. 201
Interior Convenience Items ............................. 203
Heating and Cooling System
*Using Vents, Heating and A/C ........................ 212
Climate Control System*Using Automatic Climate Control ................... 216
Automatic Climate Control Sensors ................ 225
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 133 ページ ２０１９年８月８日　木曜日　午後３時５２分

134
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w*1.
■Using the Settings menu on the audio/information screen1.Select the ( HOME) icon, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
Models without navigation system1 Adjusting the Time
The clock in the multi-information display
*/
information display* is automatically adjusted along
with the audio system’s clock display.
The clock is automatically updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 352
You can turn the clock display on and off. 2 Customized Features P. 352
Models with navigation system
Models without navigation system
Models with display audio system
Models with display audio system
34
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 134 ページ ２０１９年８月８日　木曜日　午後３時５２分

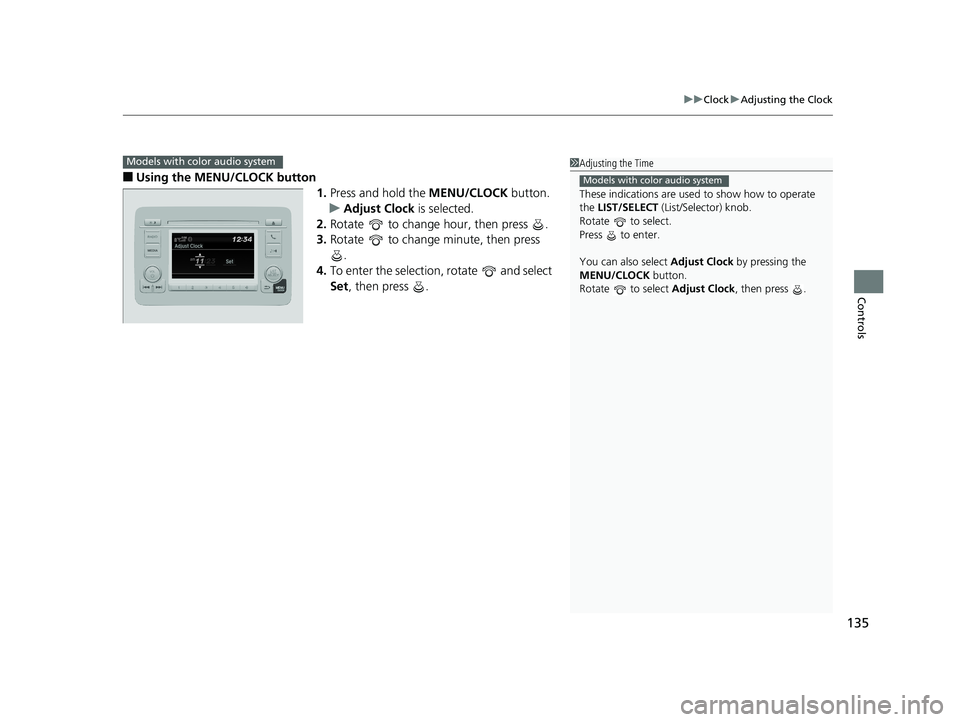

135
uuClock uAdjusting the Clock
Controls
■Using the MENU /CLOCK button
1.Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set, then press .
Models with color audio system1Adjusting the Time
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
You can also select Adjust Clock by pressing the
MENU/CLOCK button.
Rotate to select Adjust Clock, then press .
Models with color audio system
20 HR-V HDMC HDMG-31T7A6400.book 135 ページ ２０１９年８月８日　木曜日　午後３時５２分

234
Features
Audio System Basic Operation
To use the audio system, the ignition switch must be in ACCESSORY (q or ON (w.
Use the selector knob or MENU/CLOCK
button to access some audio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
MENU/CLOCK button: Press to select any
mode.
The available mode includes the wallpaper,
display, clock, langu age setup, and play
modes. Play modes can be also selected from
scan, random, repeat, and so on.
(Back) button: Press to go back to the previous display.
(Sound) button: Press to select the sound setting mode.
(Day/Night) button: Press to change the audio/information screen
brightness.
Press , then adjust th e brightness using .
u Each time you press , the mode switches between the daytime mode,
nighttime mode and OFF mode.
Models with color audio system1Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items 2 Adjust Clock P. 134
2 Wallpaper Setup P. 237
2 Display Setup P. 240
2 Scan P. 242, 245, 251
2 Play Mode P. 245, 248, 251
2 RDS Settings P. 242
2 Bluetooth P. 349, 376
Press the SOURCE, , , or button on the
steering wheel to cha nge any audio setting.
2 Audio Remote Controls P. 231
One of the operating system us ed in this unit is eCos.
For software license terms and conditions, visit their
website (eCos license URL: http://
ecos.sourceware.org/li cense-overview.html)
For source code disclo sure and other details
regarding eCos, visit: http://
www.hondaopensource2.com
(Back)
Button
Selector Knob MENU/
CLOCK

Button
(Day/Night)
Button
(Sound)
Button
20 HR-V HDMC HDMG-31T7A6400.book 234 ページ ２０１９年８月８日　木曜日　午後３時５２分

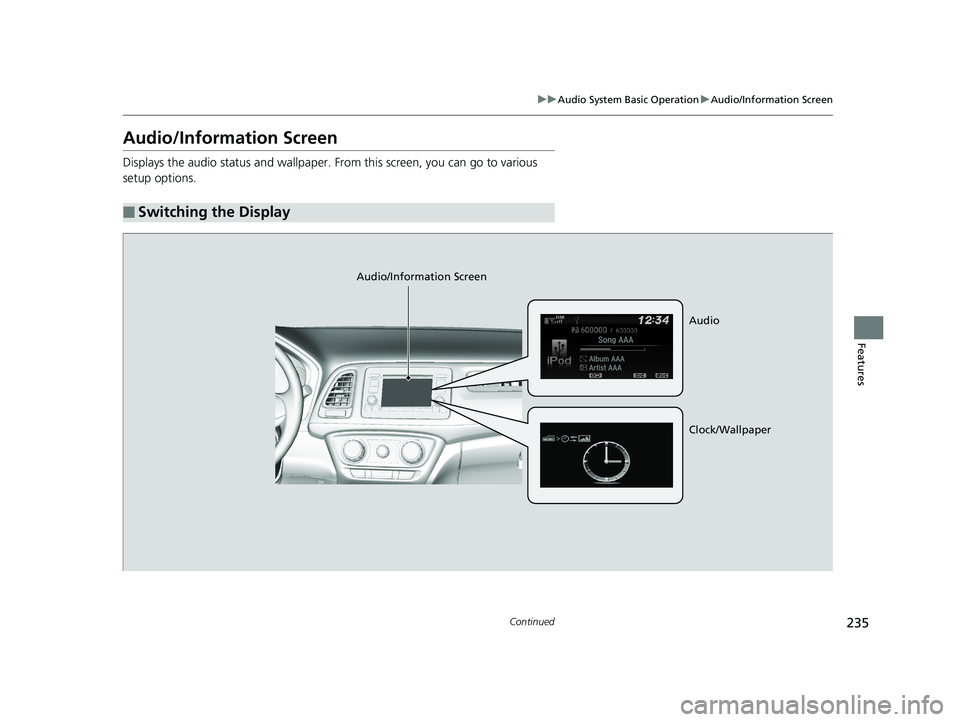

235
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this screen, you can go to various
setup options.
■Switching the Display
Audio/Information Screen
Audio
Clock/Wallpaper
20 HR-V HDMC HDMG-31T7A6400.book 235 ページ ２０１９年８月８日　木曜日　午後３時５２分

236
uuAudio System Basic Operation uAudio/Information Screen
Features
■Audio
Shows the current audio information.
■Clock/Wallpaper
Shows a clock screen or an image you import.
■Change display
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display Change, then press .
4. Rotate to select Wallpaper, then press .
u If you want to return to the audio display, select Audio.
20 HR-V HDMC HDMG-31T7A6400.book 236 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued237
uuAudio System Basic Operation uAudio/Information Screen
Features
You can change, store, and delete the wallpaper on the audio/ information screen.
■Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive.
1.Connect the USB flash drive to the USB
port.
2 USB Port(s) P. 229
2.Press the MENU/CLOCK button.
3. Rotate to select Settings, then press
.
4. Rotate to select Wallpaper, then press
.
5. Rotate to select Import, then press .
u The picture name is displayed on the list.
6. Rotate to select a desired picture, then
press .
u The selected picture is displayed.
7. Press to save the picture.
8. Press to select OK.
9. Rotate to select a location to save the
picture, then press .
u The display will return to the wallpaper
setting screen.
■Wallpaper Setup1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file name must be fewer than 64 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.•The maximum image size is 1,920 x 936 pixels. If
the image size is less than 480 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•If the USB flash drive doe s not have any pictures,
the No compatible images were found. See
Owner’s Manual. message appears.
20 HR-V HDMC HDMG-31T7A6400.book 237 ページ ２０１９年８月８日　木曜日　午後３時５２分
