HONDA HR-V 2021 (in English) Owner's Guide
Manufacturer: HONDA, Model Year: 2021, Model line: HR-V, Model: HONDA HR-V 2021Pages: 643, PDF Size: 39.63 MB
Page 31 of 643
29
Quick Reference Guide
Maintenance (P521)
Under the Hood (P533)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P545)
●Inspect all lights regularly.
Wiper Blades (P555)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P559)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 29 ページ 2020年9月23日 水曜日 午前7時0分
Page 32 of 643
30
Quick Reference Guide
Handling the Unexpected (P583)
Flat Tire (P586)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P603)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P595)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P608)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P601)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P613)
●Call a professional towing service if you
need to tow your vehicle.
21 HR-V HDMC-31T7A6500.book 30 ページ 2020年9月23日 水曜日 午前7時0分
Page 33 of 643
31
Quick Reference Guide

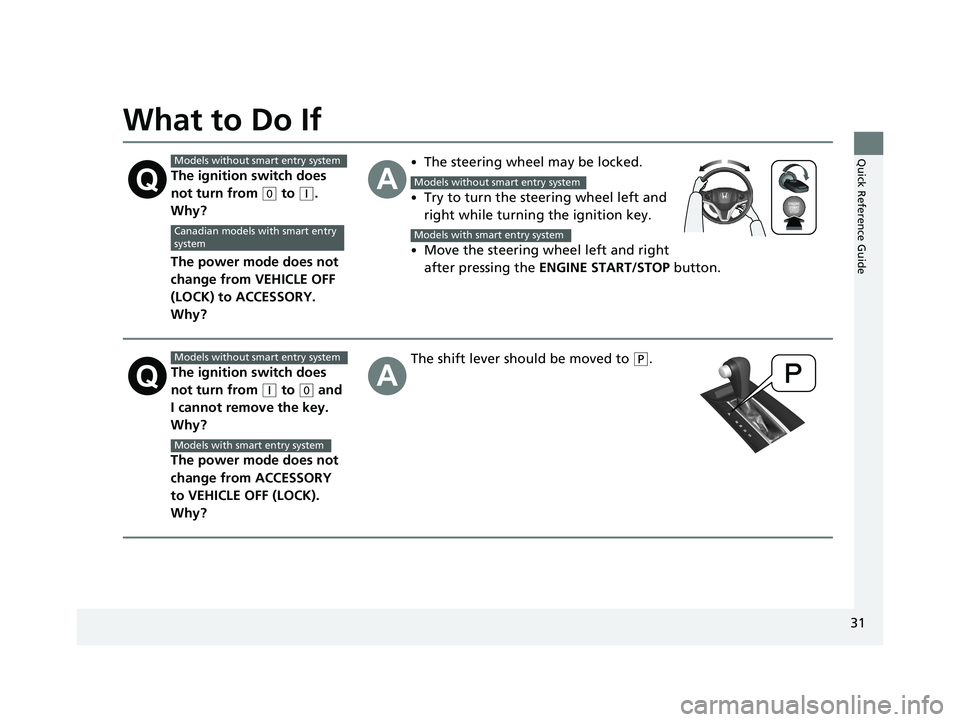

What to Do If
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
•The steering wheel may be locked.
•Try to turn the steering wheel left and
right while turning the ignition key.
•Move the steering wheel left and right
after pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Models without smart entry system
Canadian models with smart entry
system
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
21 HR-V HDMC-31T7A6500.book 31 ページ 2020年9月23日 水曜日 午前7時0分
Page 34 of 643
32
Quick Reference Guide

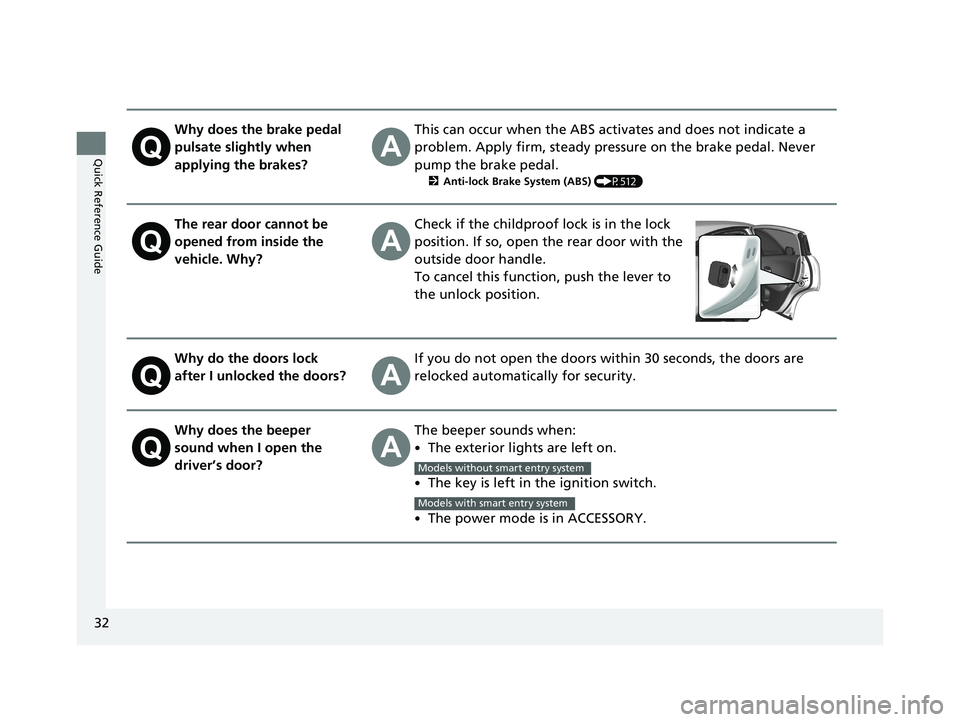

Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P512)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with the
outside door handle.
To cancel this function, push the lever to
the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
•The exterior lights are left on.
•The key is left in the ignition switch.
•The power mode is in ACCESSORY.
Models without smart entry system
Models with smart entry system
21 HR-V HDMC-31T7A6500.book 32 ページ 2020年9月23日 水曜日 午前7時0分
Page 35 of 643
33

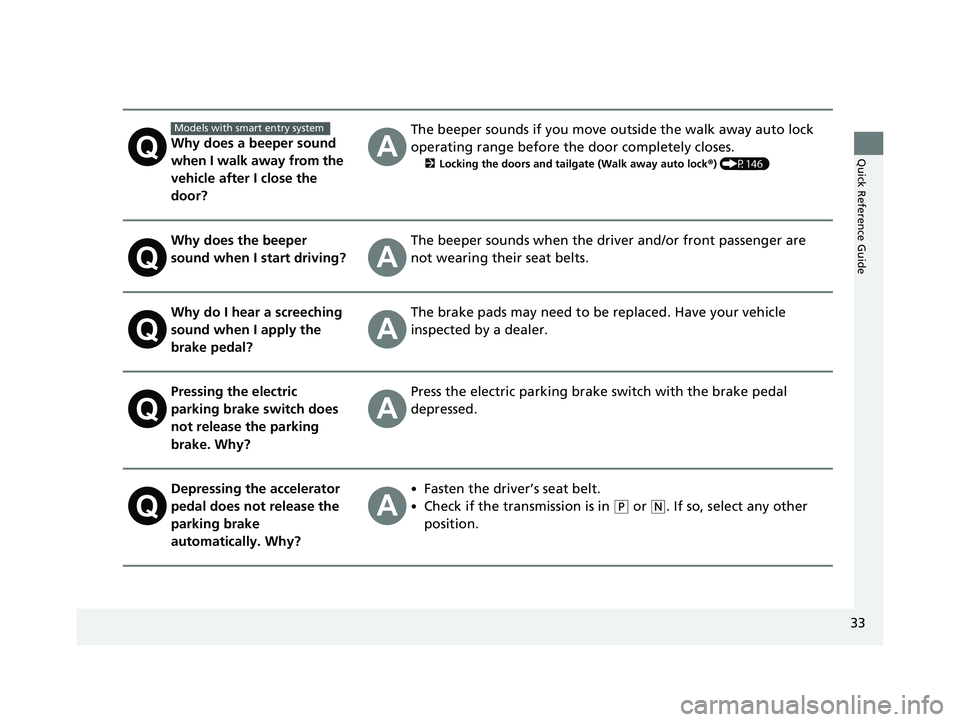

Quick Reference GuideWhy does a beeper sound
when I walk away from the
vehicle after I close the
door?
The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P146)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?•Fasten the driver’s seat belt.
•Check if the tran smission is in (P or (N. If so, select any other
position.
Models with smart entry system
21 HR-V HDMC-31T7A6500.book 33 ページ 2020年9月23日 水曜日 午前7時0分
Page 36 of 643
34

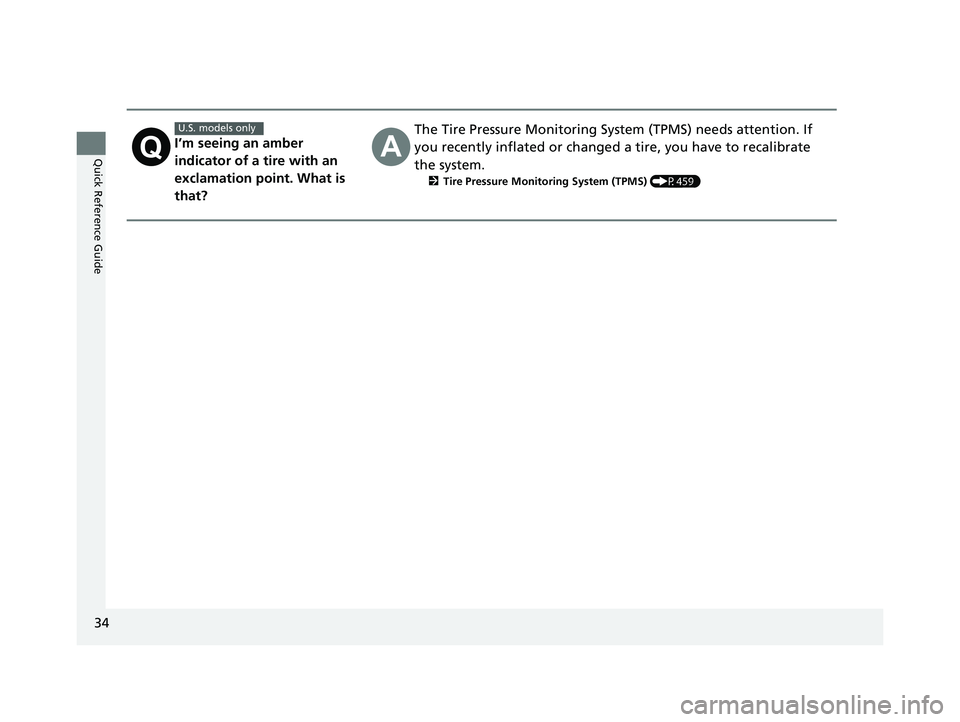

Quick Reference GuideI’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?
The Tire Pressure Monitoring System (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS) (P459)
U.S. models only
21 HR-V HDMC-31T7A6500.book 34 ページ 2020年9月23日 水曜日 午前7時0分
Page 37 of 643
35

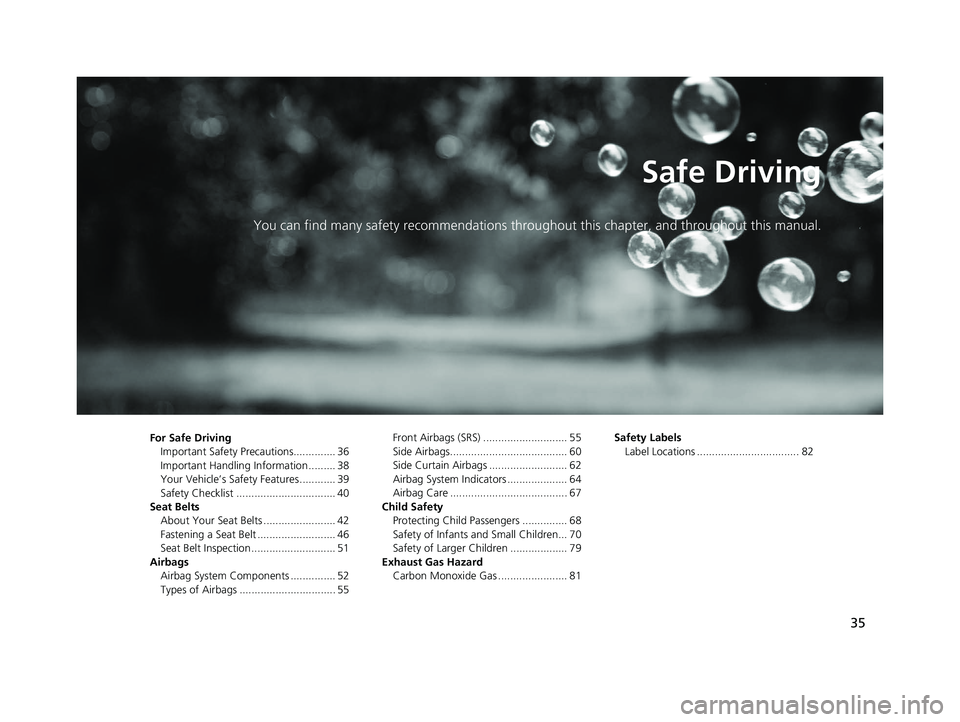

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 36
Important Handling Information ......... 38
Your Vehicle’s Safety Features ............ 39
Safety Checklist ................................. 40
Seat Belts About Your Seat Belts ........................ 42
Fastening a Seat Belt .......................... 46
Seat Belt Inspection ............................ 51
Airbags Airbag System Components ............... 52
Types of Airbags ................................ 55 Front Airbags (SRS) ............................ 55
Side Airbags....................................... 60
Side Curtain Airbags .......................... 62
Airbag System Indicators .................... 64
Airbag Care ....................................... 67
Child Safety Protecting Child Passengers ............... 68
Safety of Infants a nd Small Children... 70
Safety of Larger Children ................... 79
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 81 Safety Labels
Label Locations .................................. 82
21 HR-V HDMC-31T7A6500.book 35 ページ 2020年9月23日 水曜日 午前7時0分
Page 38 of 643
36
Safe Driving

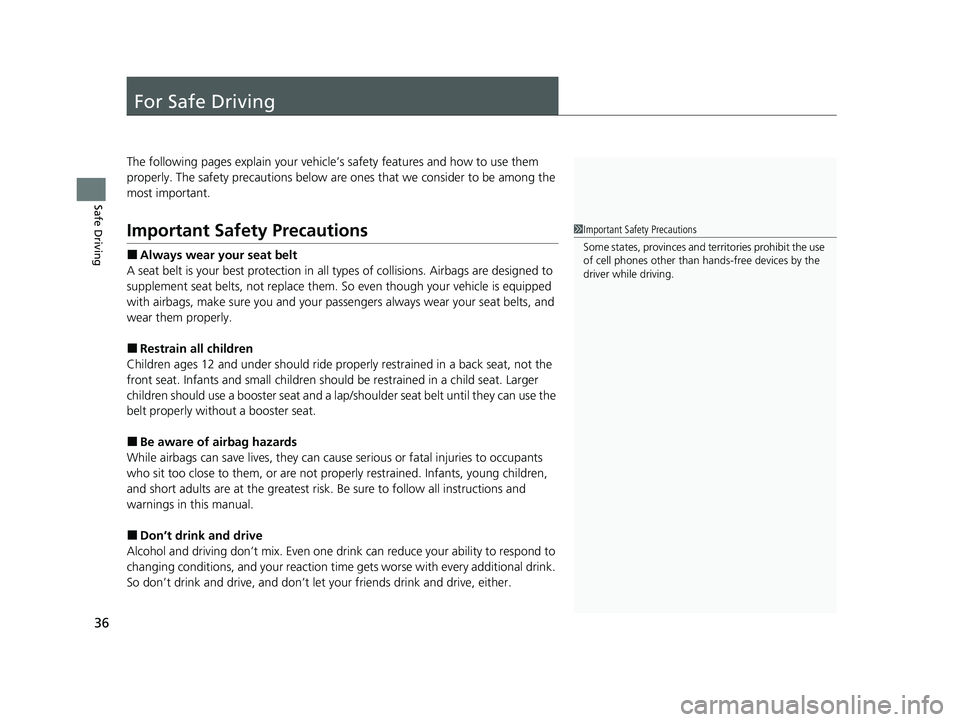

For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride prop erly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
21 HR-V HDMC-31T7A6500.book 36 ページ 2020年9月23日 水曜日 午前7時0分
Page 39 of 643
37
uuFor Safe Driving uImportant Safety Precautions
Safe Driving

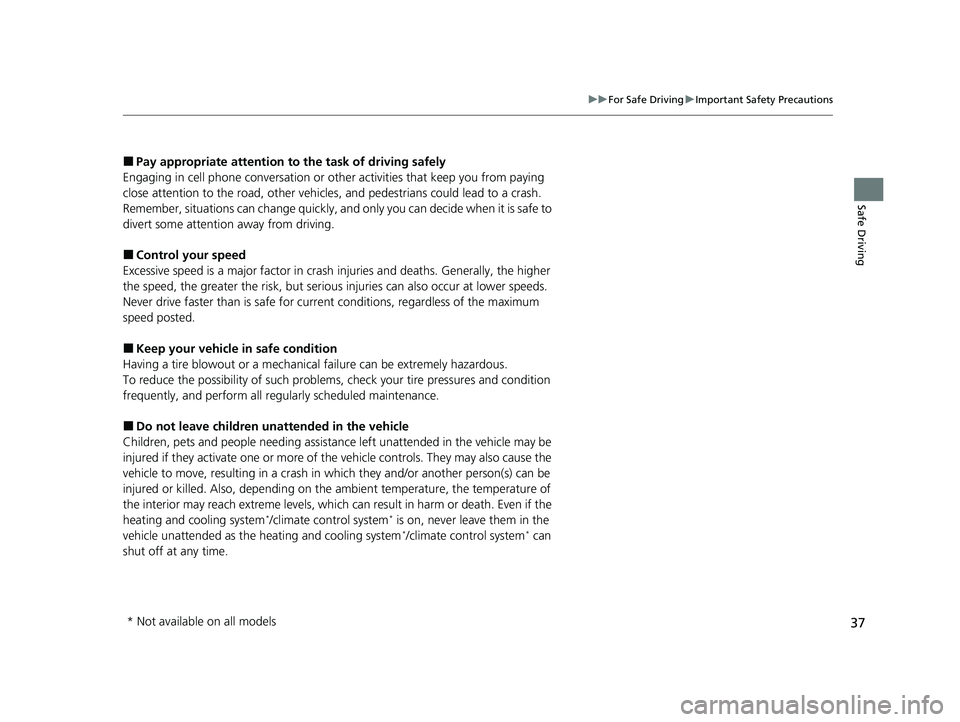

■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
heating and cooling system
*/climate control system* is on, never leave them in the
vehicle unattended as the heating and cooling system*/climate control system* can
shut off at any time.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 37 ページ 2020年9月23日 水曜日 午前7時0分
Page 40 of 643
38
uuFor Safe Driving uImportant Handling Information
Safe Driving

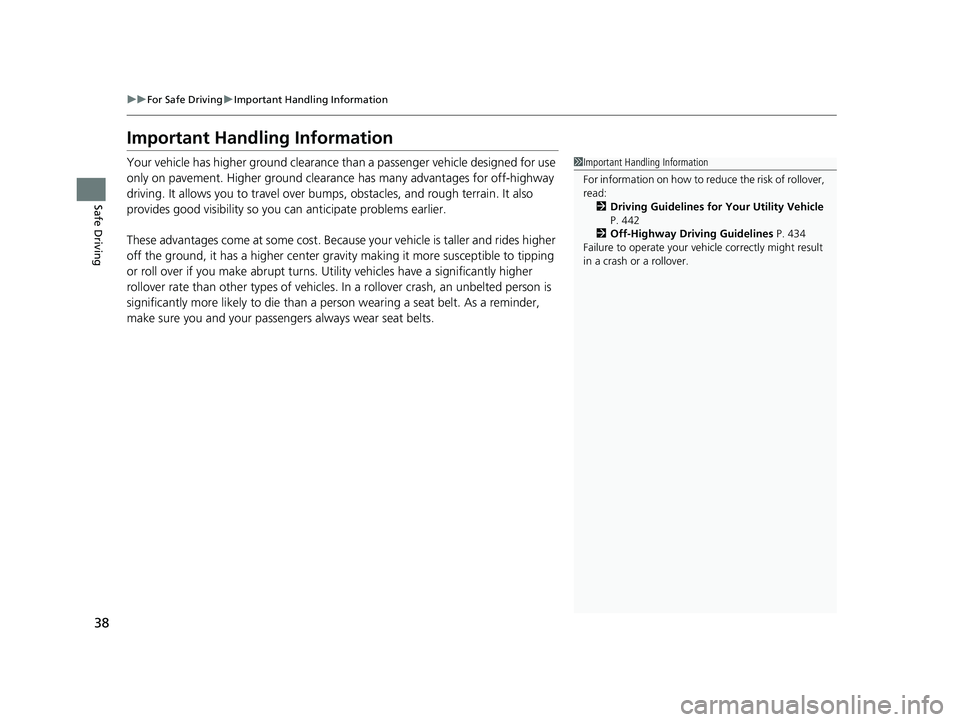

Important Handling Information
Your vehicle has higher ground clearance than a passenger vehicle designed for use
only on pavement. Higher ground clearance has many advantages for off-highway
driving. It allows you to travel over bum ps, obstacles, and rough terrain. It also
provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Beca use your vehicle is taller and rides higher
off the ground, it has a higher center grav ity making it more susceptible to tipping
or roll over if you make abrupt turns. Utili ty vehicles have a significantly higher
rollover rate than other types of vehicles. In a rollover crash, an unbelted person is
significantly more likely to die than a pe rson wearing a seat belt. As a reminder,
make sure you and your passeng ers always wear seat belts.1Important Handling Information
For information on how to reduce the risk of rollover,
read:
2 Driving Guidelines for Your Utility Vehicle
P. 442
2 Off-Highway Driving Guidelines P. 434
Failure to operate your vehi cle correctly might result
in a crash or a rollover.
21 HR-V HDMC-31T7A6500.book 38 ページ 2020年9月23日 水曜日 午前7時0分
