key HONDA HR-V 2021 (in English) Owner's Guide

428
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, and check for damage and excessive wear.
2 Checking and Maintaining Tires P. 559
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
21 HR-V HDMC-31T7A6500.book 428 ページ ２０２０年９月２３日　水曜日　午前７時０分

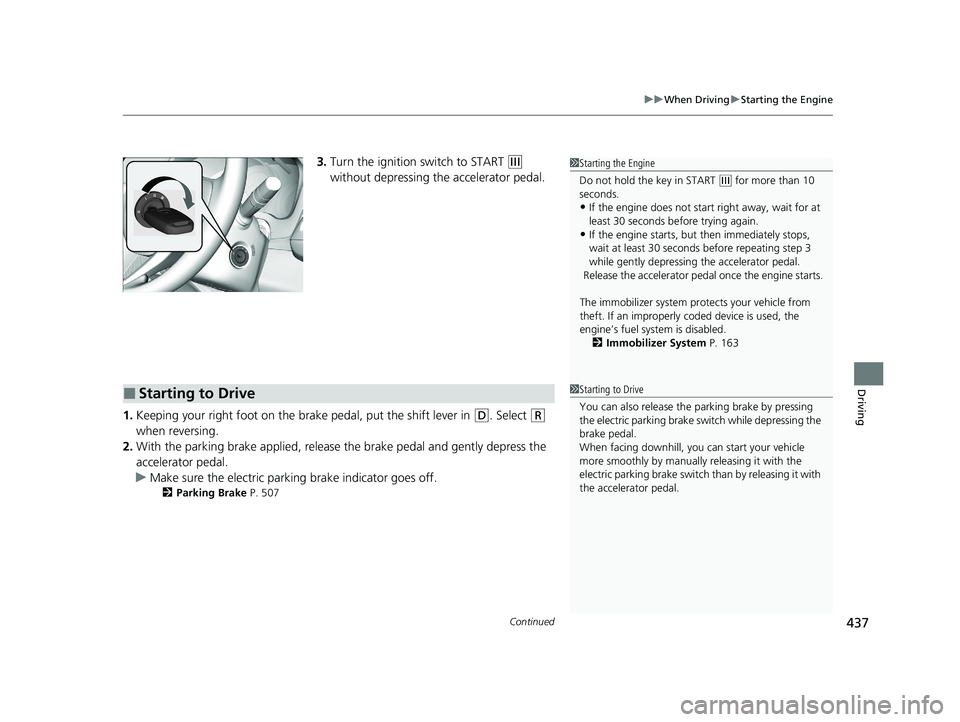

Continued437
uuWhen Driving uStarting the Engine
Driving
3. Turn the ignition switch to START (e
without depressing the accelerator pedal.
1. Keeping your right foot on the br ake pedal, put the shift lever in
(D. Select (R
when reversing.
2. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the electric parkin g brake indicator goes off.
2Parking Brake P. 507
1Starting the Engine
Do not hold the key in START
(e for more than 10
seconds.
•If the engine does not sta rt right away, wait for at
least 30 seconds before trying again.
•If the engine starts, but then immediately stops,
wait at least 30 seconds before repeating step 3
while gently depressing the accelerator pedal.
Release the accelerator pedal once the engine starts.
The immobilizer system pr otects your vehicle from
theft. If an improperly c oded device is used, the
engine’s fuel system is disabled. 2 Immobilizer System P. 163
■Starting to Drive1Starting to Drive
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
21 HR-V HDMC-31T7A6500.book 437 ページ ２０２０年９月２３日　水曜日　午前７時０分

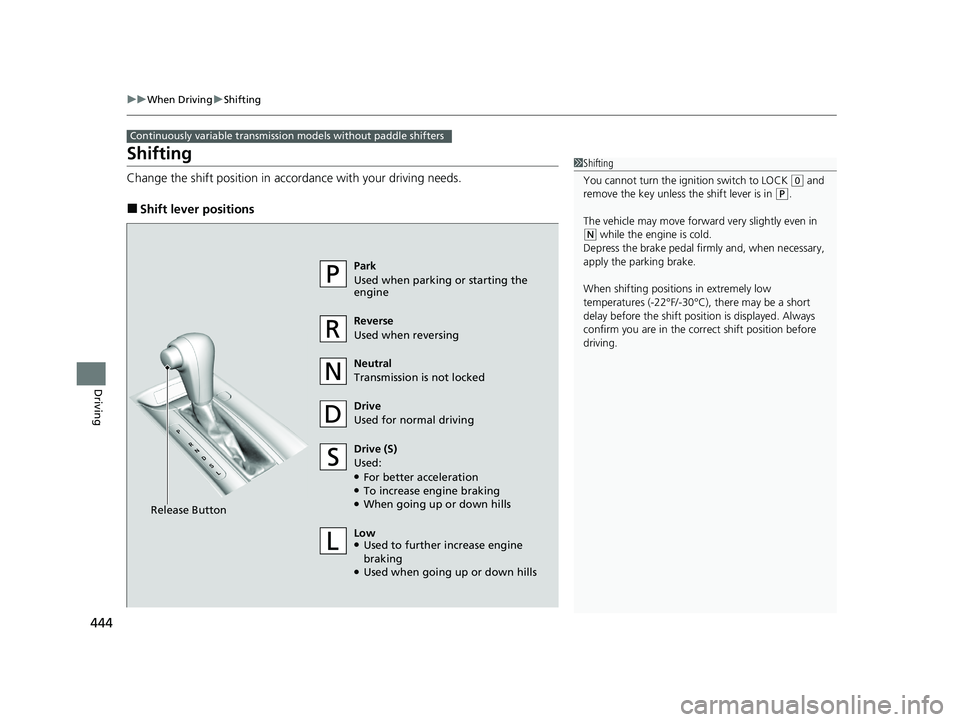

444
uuWhen Driving uShifting
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
Continuously variable transmission models without paddle shifters
1Shifting
You cannot turn the ignition switch to LOCK
(0 and
remove the key unless the shift lever is in ( P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
When shifting positions in extremely low
temperatures (-22°F/-30°C), there may be a short
delay before the shift posit ion is displayed. Always
confirm you are in the corr ect shift position before
driving.
Park
Used when parking or starting the
engine
Reverse
Used when reversing
Neutral
Transmission is not locked
Drive
Used for normal driving
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills
Release Button
Low
●Used to further increase engine
braking
●Used when going up or down hills
21 HR-V HDMC-31T7A6500.book 444 ページ ２０２０年９月２３日　水曜日　午前７時０分

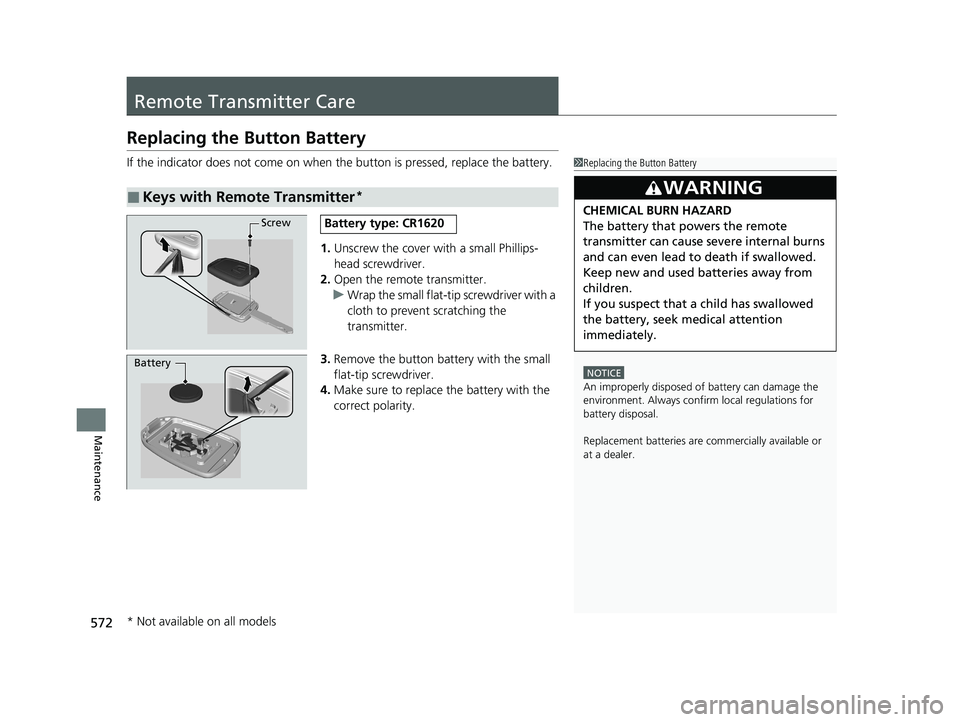

572
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.ScrewBattery type: CR1620
Battery
* Not available on all models
21 HR-V HDMC-31T7A6500.book 572 ページ ２０２０年９月２３日　水曜日　午前７時０分

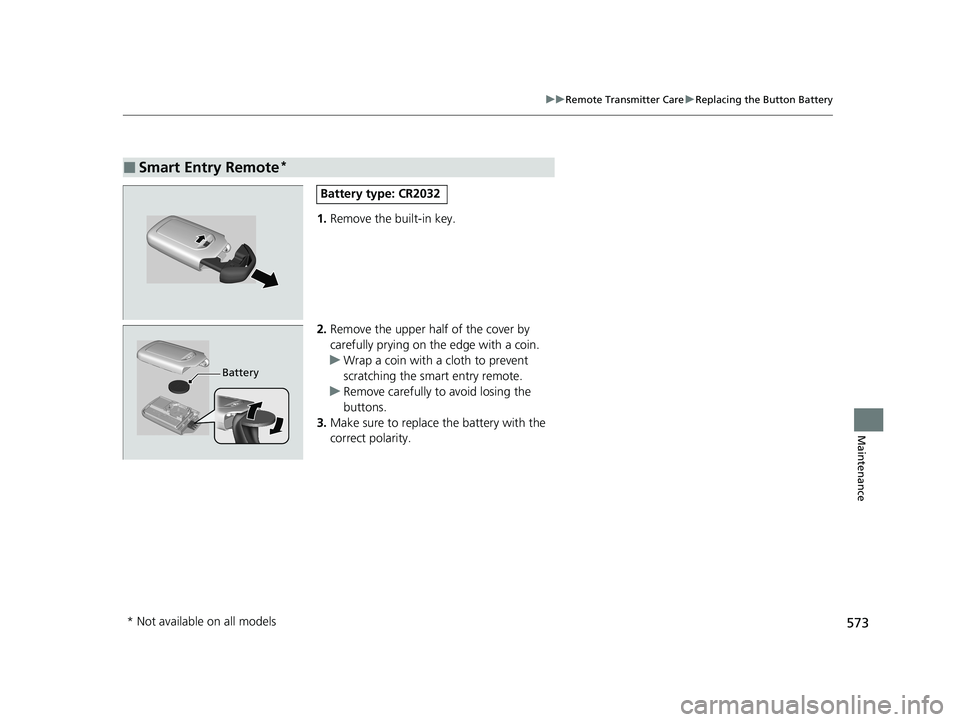

573
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
21 HR-V HDMC-31T7A6500.book 573 ページ ２０２０年９月２３日　水曜日　午前７時０分

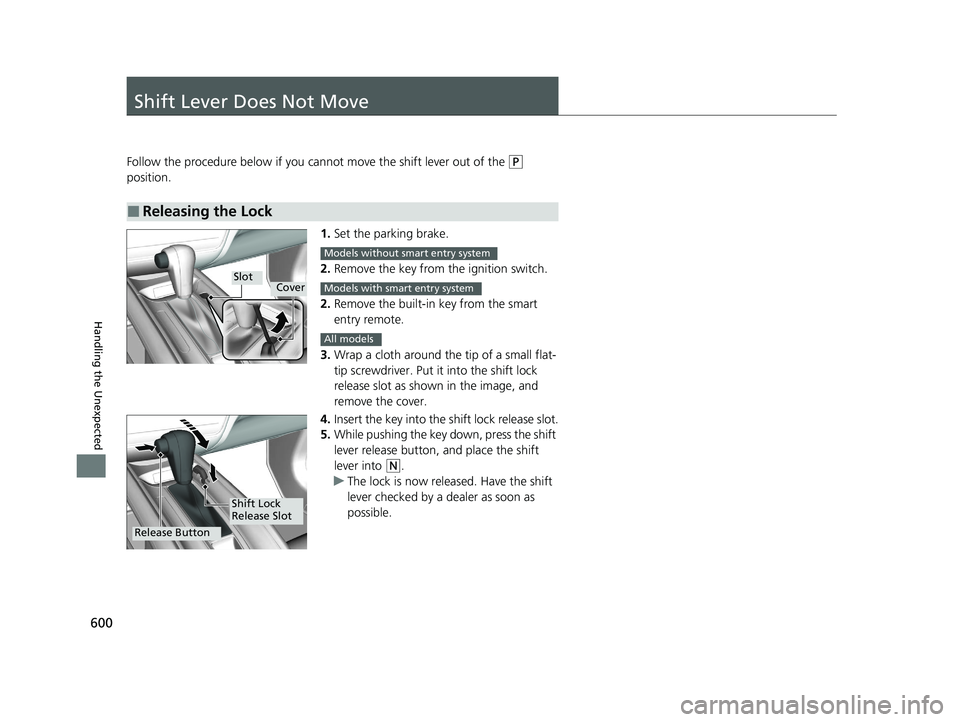

600
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
SlotCover
Models without smart entry system
Models with smart entry system
All models
Release Button
Shift Lock
Release Slot
21 HR-V HDMC-31T7A6500.book 600 ページ ２０２０年９月２３日　水曜日　午前７時０分

611
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
Left Electric Parking Brake 30 A IG Main2
*1
–*230 A
30 A
Heater Motor 40 A
Right Electric Parking Brake 30 A ABS/VSA FSR 30 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
Circuit ProtectedAmps
3––
4– –
5AWD*(20 A)
6–(10 A)
7Rear Accessory Power Socket*3(20 A)
8– –
9Interior Light7.5 A
10 Accessory Power Socket
(Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
21 HR-V HDMC-31T7A6500.book 611 ページ ２０２０年９月２３日　水曜日　午前７時０分

633
Index
Dipstick (Engine Oil)................................ 536
Directional Signals (Turn Signal) ............. 174
Display Setup .................................... 244, 276
Door Mirrors ............................................. 193
Doors ........................................................ 140
Auto Door Locking.................................. 156
Auto Door Unlocking .............................. 156
Door and Tailgate Open Indicator ..................................... 40, 41, 93
Keys........................................................ 140
Locking/Unlocking the Doors from the
Inside .................................................... 152
Locking/Unlocking the Doors from the Outside ................................................. 143
Lockout Prevention System ..................... 151
DOT Tire Quality Grading ........................ 563
Driving ...................................................... 427
Braking ................................................... 507
Continuously Variable Transmission ........ 443
Cruise Control ........................................ 451
Shifting Position .............................. 444, 446
Starting the Engine ......................... 436, 439
Dust and Pollen Filter .............................. 574
E
ECO Assist® System ..................................... 11
ECON Button ............................................ 450
ECON Mode Indicator ................................ 97
Elapsed Time ............................................ 125 Electric Parking Brake
Indicator .................................................... 86
Electric Parking Brake System Indicator ............................................ 86, 606
Electric Power Steering (EPS) System
Indicator ............................................ 94, 605
Electronic Stability Control (ESC) ............. 454
Emergency ................................................ 613
Emissions Testing (Readiness Codes) ....... 623
Engine Coolant ................................................... 540
If the Battery Is Dead ............................... 598
Number ................................................... 620
Oil ........................................................... 535
Starting ........................................... 436, 439
Switch Buzzer .......................................... 169
Engine Coolant ......................................... 540
Adding to the Radiator ............................ 541
Adding to the Reserve Tank ..................... 540
High Temperature Indicator ....................... 92
Low Temperature Indicator ........................ 92
Overheating ............................................ 601
Engine Oil ................................................. 535
Adding .................................................... 537
Checking ................................................. 536
Displaying Oil Life ............................ 525, 529
Low Oil Pressure Indicator .................. 89, 603
Recommended Engine Oil ........................ 535
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 193
F
Features.................................................... 231
Filters Dust and Pollen ....................................... 574
Oil ........................................................... 538
Flat Tire ..................................................... 586
Floor Mats ................................................. 576
Fluids
Brake ...................................................... 543
Continuously Variable Transmission (CVT) ..................................................... 542
Engine Coolant ....................................... 540
Windshield Washer ................................. 544
FM/AM Radio .................................... 245, 282
Fog Light Indicator ..................................... 96
Folding Down the Rear Seats .................. 198
Folding the Rear Seat Up ......................... 199
Foot Brake ................................................ 509
Front Airbags (SRS) ..................................... 55
Front Seats Adjusting ................................................ 194
Front Sensor Camera ................................ 504
Fuel ...................................................... 27, 517
Economy ................................................. 520
Gauge ............................................. 121, 124
Instant Fuel Economy ...................... 120, 125
Low Fuel Indicator ..................................... 91
Range ............................................. 120, 125
Recommendation .................................... 517
Refueling........................................... 27, 517
Fuel Economy ........................................... 520
21 HR-V HDMC-31T7A6500.book 633 ページ ２０２０年９月２３日　水曜日　午前７時０分

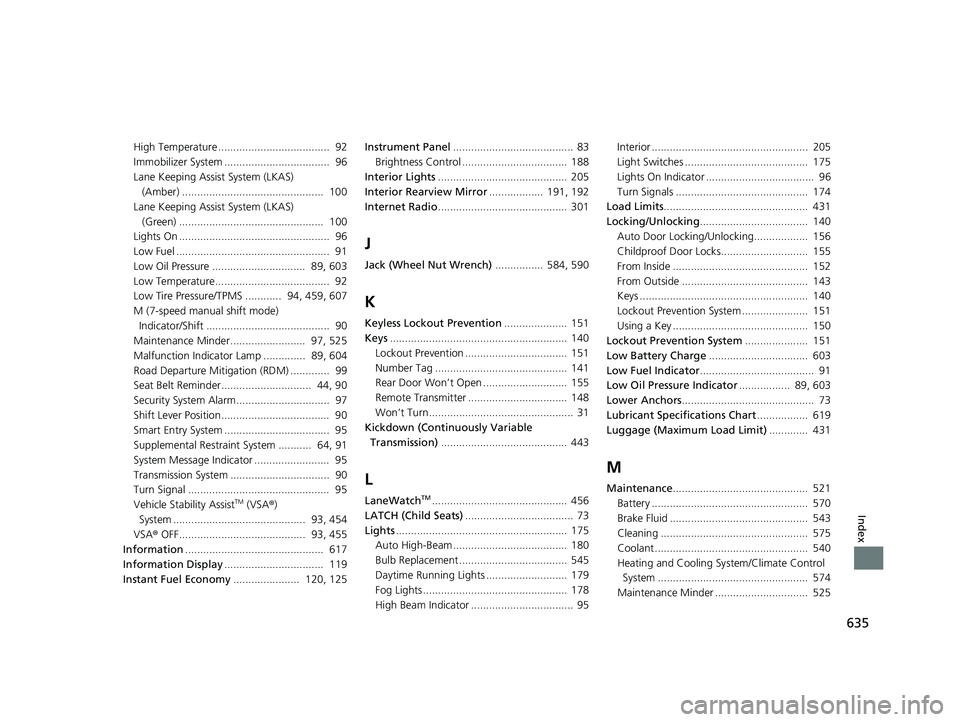

635
Index
High Temperature ..................................... 92
Immobilizer System ................................... 96
Lane Keeping Assist System (LKAS) (Amber) ............................................... 100
Lane Keeping Assist System (LKAS)
(Green) ................................................ 100
Lights On .................................................. 96
Low Fuel ................................................... 91
Low Oil Pressure ............................... 89, 603
Low Temperature...................................... 92
Low Tire Pressure/TPMS ............ 94, 459, 607
M (7-speed manual shift mode) Indicator/Shift ......................................... 90
Maintenance Minder......................... 97, 525
Malfunction Indicator Lamp .............. 89, 604
Road Departure Mitigation (RDM) ............. 99
Seat Belt Reminder.............................. 44, 90
Security System Alarm............................... 97
Shift Lever Position.................................... 90
Smart Entry System ................................... 95
Supplemental Restraint System ........... 64, 91
System Message Indicator ......................... 95
Transmission System ................................. 90
Turn Signal ............................................... 95
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 93, 454
VSA ® OFF.......................................... 93, 455
Information .............................................. 617
Information Display ................................. 119
Instant Fuel Economy ...................... 120, 125 Instrument Panel
........................................ 83
Brightness Control ................................... 188
Interior Lights ........................................... 205
Interior Rearview Mirror .................. 191, 192
Internet Radio ........................................... 301
J
Jack (Wheel Nut Wrench) ................ 584, 590
K
Keyless Lockout Prevention ..................... 151
Keys ........................................................... 140
Lockout Prevention .................................. 151
Number Tag ............................................ 141
Rear Door Won’t Open ............................ 155
Remote Transmitter ................................. 148
Won’t Turn ................................................ 31
Kickdown (Continuously Variable
Transmission) .......................................... 443
L
LaneWatchTM............................................. 456
LATCH (Child Seats) .................................... 73
Lights ......................................................... 175
Auto High-Beam ...................................... 180
Bulb Replacement .................................... 545
Daytime Running Lights ........................... 179
Fog Lights ................................................ 178
High Beam Indicator .................................. 95 Interior .................................................... 205
Light Switches ......................................... 175
Lights On Indicator .................................... 96
Turn Signals ............................................ 174
Load Limits ................................................ 431
Locking/Unlocking .................................... 140
Auto Door Locking/Unlocking.................. 156
Childproof Door Locks............................. 155
From Inside ............................................. 152
From Outside .......................................... 143
Keys ........................................................ 140
Lockout Prevention System ...................... 151
Using a Key ............................................. 150
Lockout Prevention System ..................... 151
Low Battery Charge ................................. 603
Low Fuel Indicator ...................................... 91
Low Oil Pressure Indicator ................. 89, 603
Lower Anchors ............................................ 73
Lubricant Specifications Chart ................. 619
Luggage (Maximum Load Limit) ............. 431
M
Maintenance............................................. 521
Battery .................................................... 570
Brake Fluid .............................................. 543
Cleaning ................................................. 575
Coolant ................................................... 540
Heating and Cooling Sy stem/Climate Control
System .................................................. 574
Maintenance Minder ............................... 525
21 HR-V HDMC-31T7A6500.book 635 ページ ２０２０年９月２３日　水曜日　午前７時０分
