79
uuChild Safety uSafety of Larger Children
Continued
Safe Driving

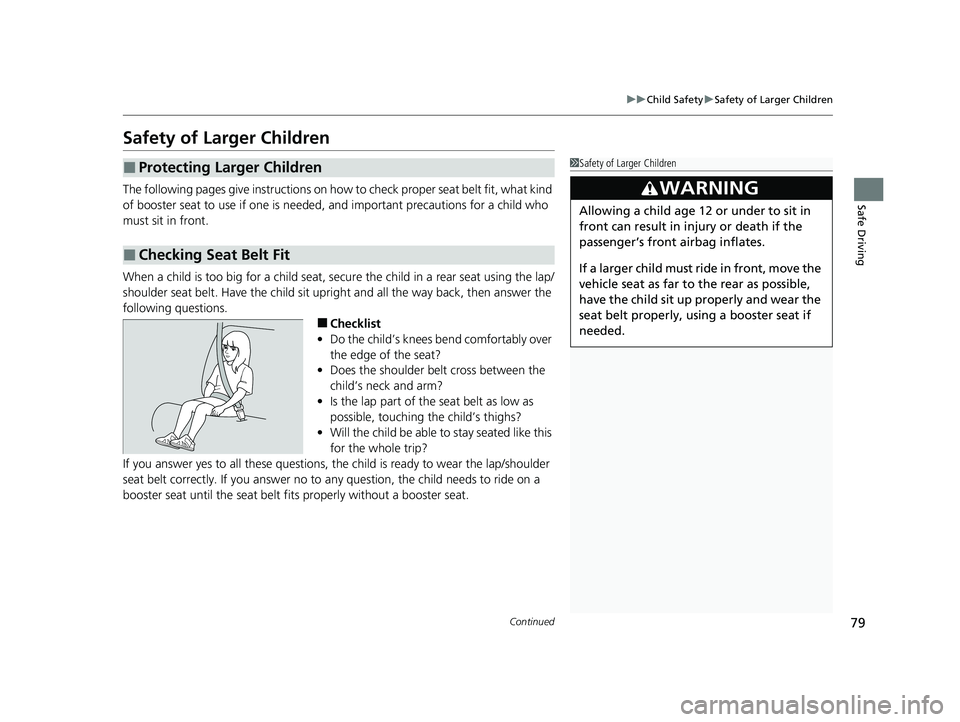

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
21 HR-V HDMC-31T7A6500.book 79 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuChild Safety uSafety of Larger Children
80

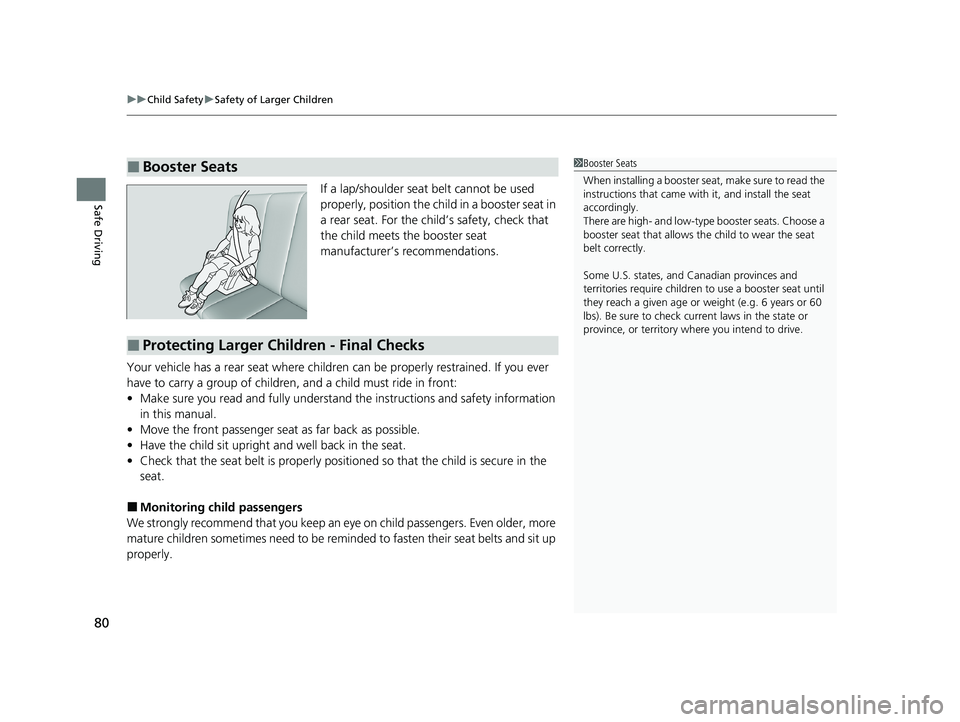

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
a rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
21 HR-V HDMC-31T7A6500.book 80 ページ ２０２０年９月２３日　水曜日　午前７時０分

81
Safe Driving

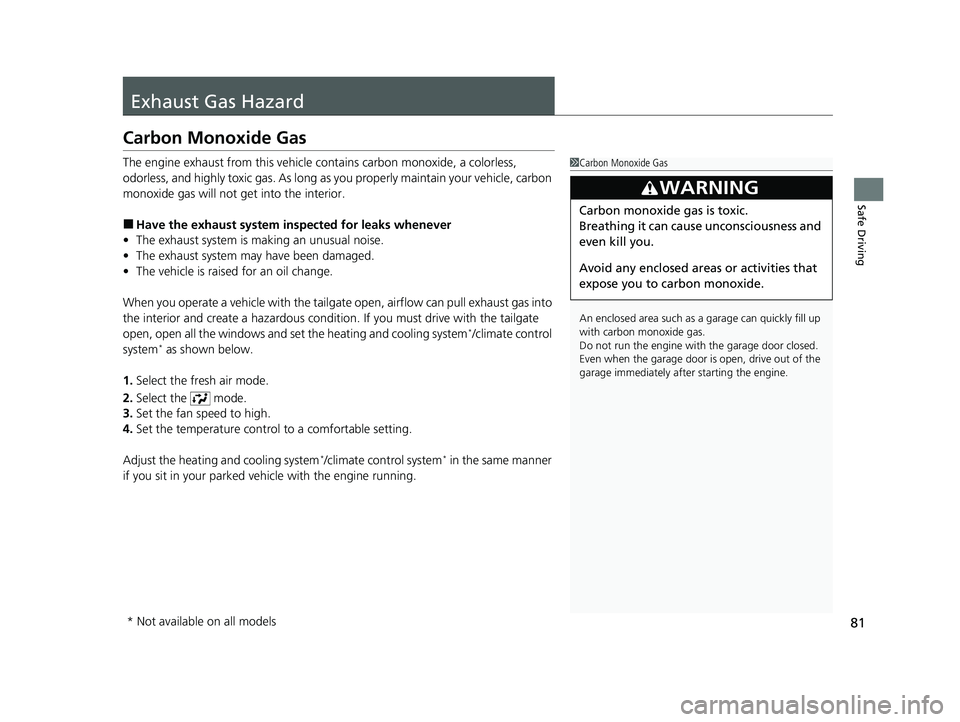

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the heating and cooling system
*/climate control
system* as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the heating and cooling system
*/climate control system* in the same manner
if you sit in your parked vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 81 ページ ２０２０年９月２３日　水曜日　午前７時０分

82
Safe Driving

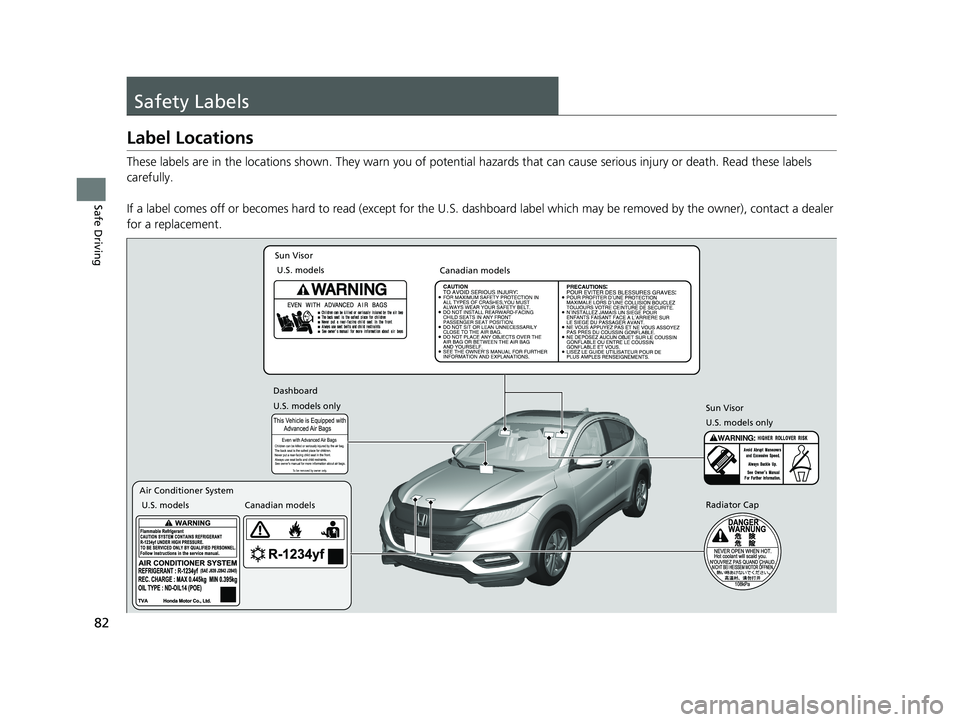

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
U.S. models only Dashboard
Sun Visor
U.S. models Canadian models
Radiator Cap
Sun Visor
U.S. models only
Air Conditioner System
U.S. models Canadian models
21 HR-V HDMC-31T7A6500.book 82 ページ ２０２０年９月２３日　水曜日　午前７時０分

83
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Information Display Warning and Information Messages
*.................. 103
Multi-Information Display Warning and Information Messages
*.................. 104
Gauges and Displays Gauges ............................................ 117
Information Display
*........................ 119
Multi-Information Display*............... 122
* Not available on all models
21 HR-V HDMC-31T7A6500.book 83 ページ ２０２０年９月２３日　水曜日　午前７時０分

84
Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake System
Indicator
(Red)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 605
•Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 605
U.S.
Canada
(Red)
* Not available on all models
21 HR-V HDMC-31T7A6500.book 84 ページ ２０２０年９月２３日　水曜日　午前７時０分

85
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake System
Indicator
(Amber)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
• Comes on if there is a problem
with an automatic brake hold
system.
•Stays on constantly - Have your vehicle
checked by a dealer.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
21 HR-V HDMC-31T7A6500.book 85 ページ ２０２０年９月２３日　水曜日　午前７時０分

86
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Electric
Parking Brake
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off if the parking
brake has been released.
• Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on for about 15 seconds
when you pull the electric parking
brake switch while the ignition
switch is in LOCK
(0*1.
• Stays on for about 15 seconds
when you turn the ignition switch
to LOCK
(0*1 while the electric
parking brake is set.
• Blinks and the electric parking brake
system indicator comes on at the
same time - There is a problem with the
electric parking brake system. The
parking brake may not be set.
Electric
Parking Brake
System
Indicator
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the electric parking brake
system.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 606
U.S.
Canada
U.S.
Canada
* Not available on all models
21 HR-V HDMC-31T7A6500.book 86 ページ ２０２０年９月２３日　水曜日　午前７時０分

87
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

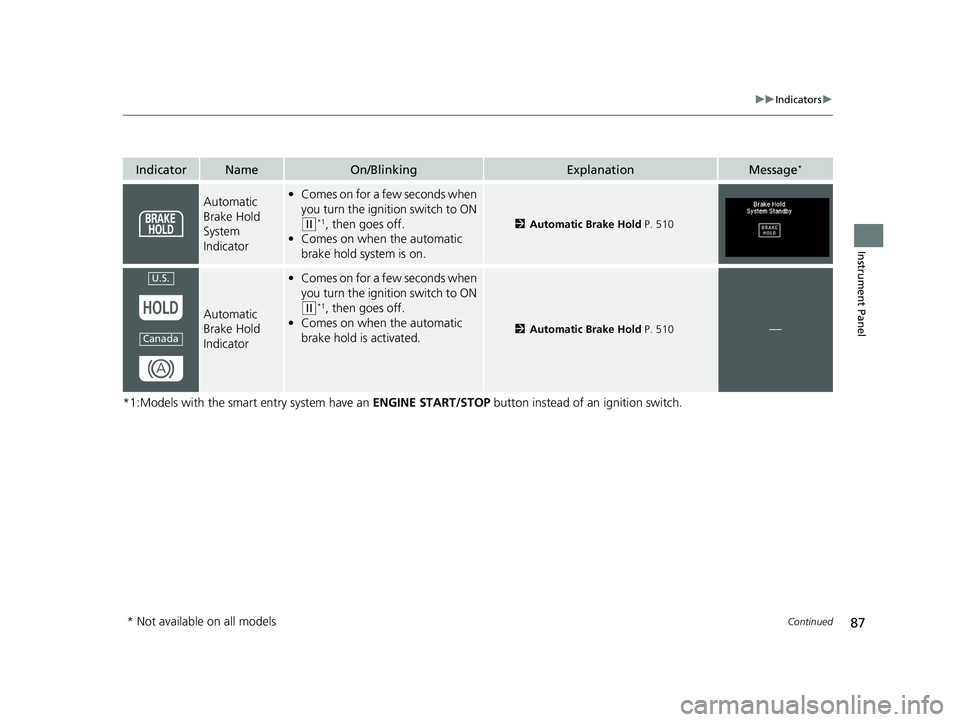

Automatic
Brake Hold
System
Indicator•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the automatic
brake hold system is on.2 Automatic Brake Hold P. 510
Automatic
Brake Hold
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the automatic
brake hold is activated.
2 Automatic Brake Hold P. 510—
U.S.
Canada
* Not available on all models
21 HR-V HDMC-31T7A6500.book 87 ページ ２０２０年９月２３日　水曜日　午前７時０分

88
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

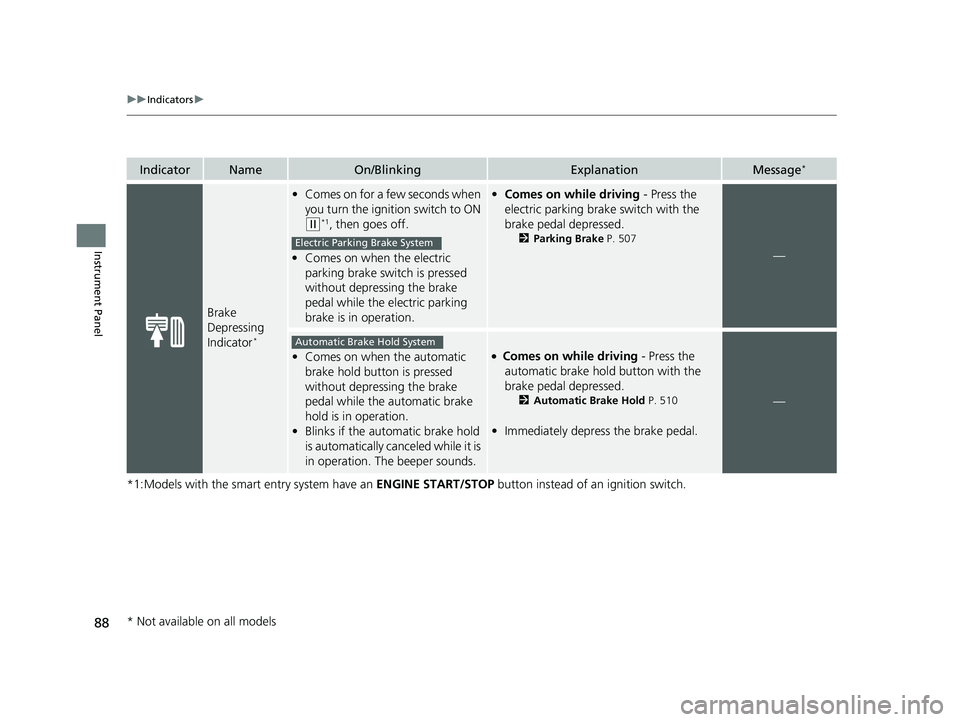

Brake
Depressing
Indicator
*
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the electric
parking brake switch is pressed
without depressing the brake
pedal while the electric parking
brake is in operation.
• Comes on while driving - Press the
electric parking brake switch with the
brake pedal depressed.
2 Parking Brake P. 507
—
•Comes on when the automatic
brake hold button is pressed
without depressing the brake
pedal while the automatic brake
hold is in operation.
• Blinks if the automatic brake hold
is automatically canceled while it is
in operation. The beeper sounds.●Comes on while driving - Press the
automatic brake hold button with the
brake pedal depressed.
2 Automatic Brake Hold P. 510
•Immediately depress the brake pedal.
—
Electric Parking Brake System
Automatic Brake Hold System
* Not available on all models
