check engine light HONDA HR-V 2021 Owner's Manual (in English)

Contents
Child Safety P. 68Exhaust Gas Hazard P. 81Safety Labels P. 82
Tailgate P. 160 Security System P. 163
Operating the Switches Around the Steering Wheel P. 169 Adjusting the Mirrors P. 191
Interior Lights/Interior Convenience Items P. 205 Heating and Cooling System
* P. 216
Audio Error Messages P. 327General Information on the Audio System P. 333
Bluetooth ® HandsFreeLink ® P. 374, 397
Off-Highway Driving Guidelines P. 434 When Driving P. 436 Honda Sensing®* P. 464
Multi-View Rear Camera P. 515 Refueling P. 517 Fuel Economy and CO
2 Emissions P. 520
Maintenance Under the Hood P. 533 Replacing Light Bulbs P. 545
Checking and Maintaining Tires P. 559 Battery P. 570 Remote Transmitter Care P. 572
Cleaning P. 575 Accessories and Modifications P. 580
Engine Does Not Start P. 595 If the Battery Is Dead P. 598 Shift Lever Does Not Move P. 600
Emergency Towing P. 613 If You Cannot Open the Tailgate P. 614
Devices that Emit Radio Waves P. 621 Reporting Safety Defects P. 622
Authorized Manuals P. 628 Customer Service Information P. 629
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 83
ControlsP. 137
FeaturesP. 231
DrivingP. 427
MaintenanceP. 521
Handling the UnexpectedP. 583
InformationP. 617
IndexP. 631
21 HR-V HDMC-31T7A6500.book 5 ページ ２０２０年９月２３日　水曜日　午前７時０分

29
Quick Reference Guide
Maintenance (P521)
Under the Hood (P533)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P545)
●Inspect all lights regularly.
Wiper Blades (P555)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P559)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 29 ページ ２０２０年９月２３日　水曜日　午前７時０分

95
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

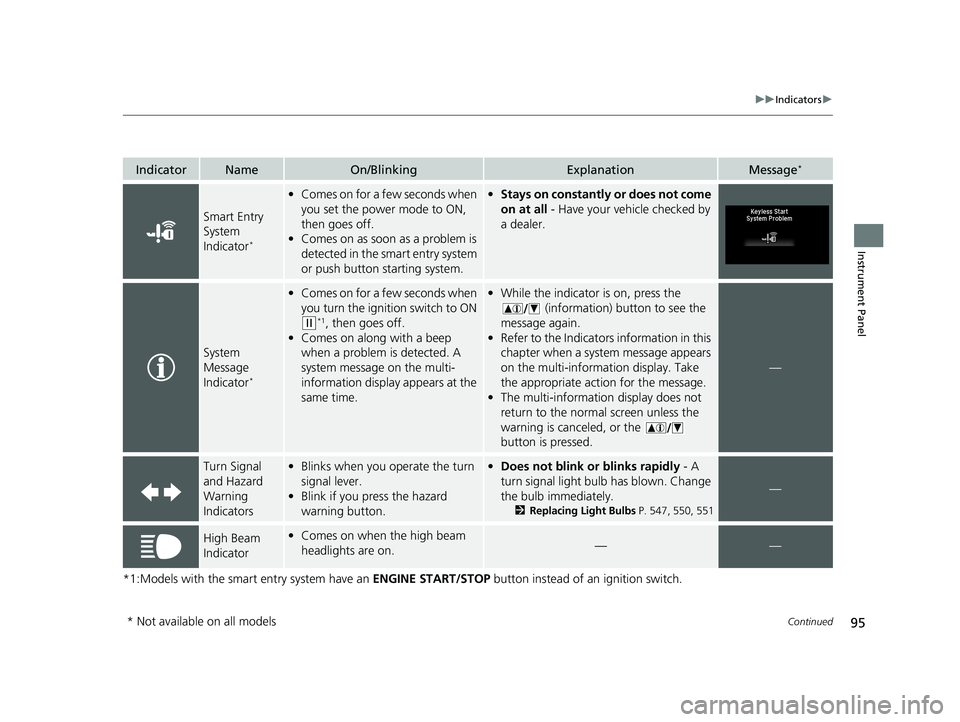

IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System
Indicator
*
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.•Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
System
Message
Indicator
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at the
same time.
•While the indicator is on, press the
(information) button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink if you press the hazard
warning button.•Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 547, 550, 551
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
* Not available on all models
21 HR-V HDMC-31T7A6500.book 95 ページ ２０２０年９月２３日　水曜日　午前７時０分

96
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

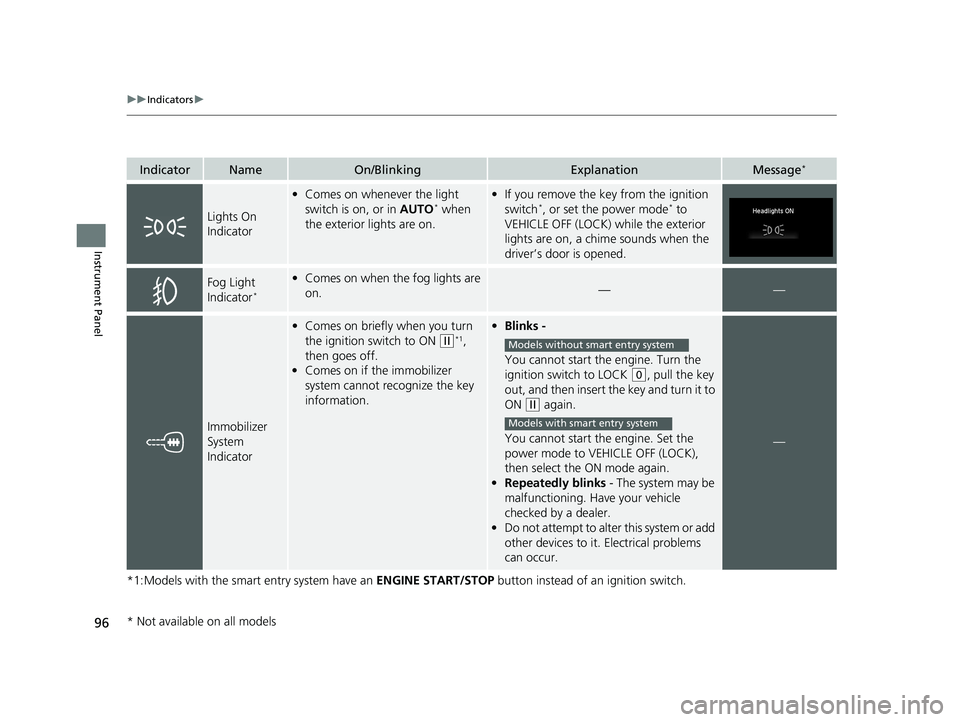

Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
• If you remove the key from the ignition
switch*, or set the power mode* to
VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
Fog Light
Indicator*
• Comes on when the fog lights are
on.——
Immobilizer
System
Indicator
•Comes on briefly when you turn
the ignition switch to ON
(w*1,
then goes off.
• Comes on if the immobilizer
system cannot recognize the key
information.
• Blinks -
You cannot start the engine. Turn the
ignition switch to LOCK
(0, pull the key
out, and then insert the key and turn it to
ON
(w again.
You cannot start the engine. Set the
power mode to VEHICLE OFF (LOCK),
then select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems
can occur.
—
Models without smart entry system
Models with smart entry system
* Not available on all models
21 HR-V HDMC-31T7A6500.book 96 ページ ２０２０年９月２３日　水曜日　午前７時０分

116
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel

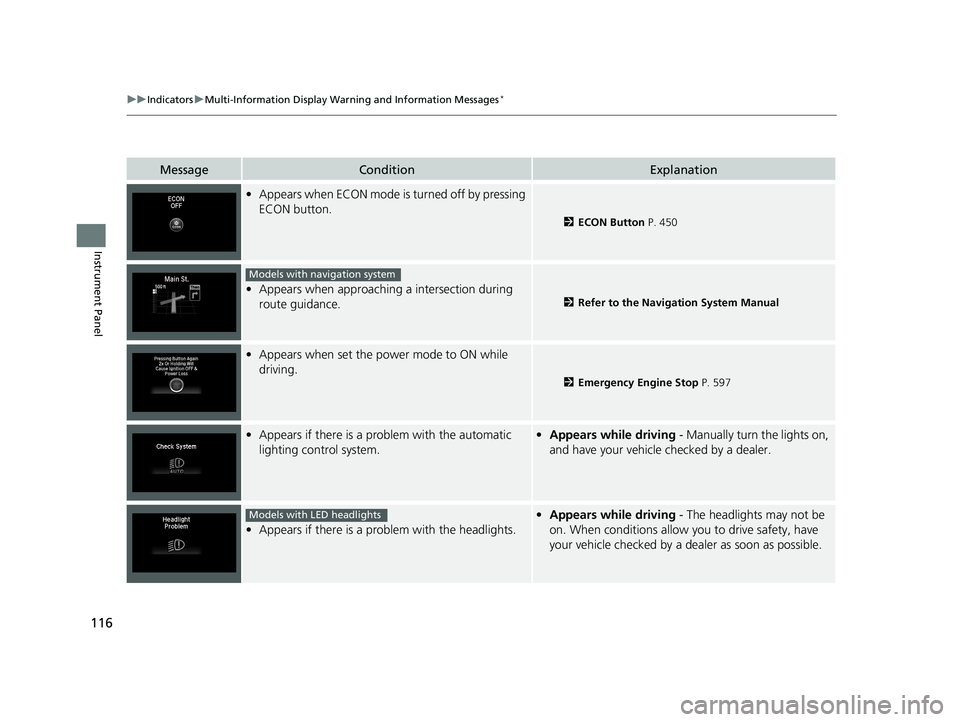

MessageConditionExplanation
•Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button P. 450
•Appears when approaching a intersection during
route guidance.2 Refer to the Navigation System Manual
•Appears when set the po wer mode to ON while
driving.
2 Emergency Engine Stop P. 597
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
Models with navigation system
Models with LED headlights
21 HR-V HDMC-31T7A6500.book 116 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam*
182
Controls

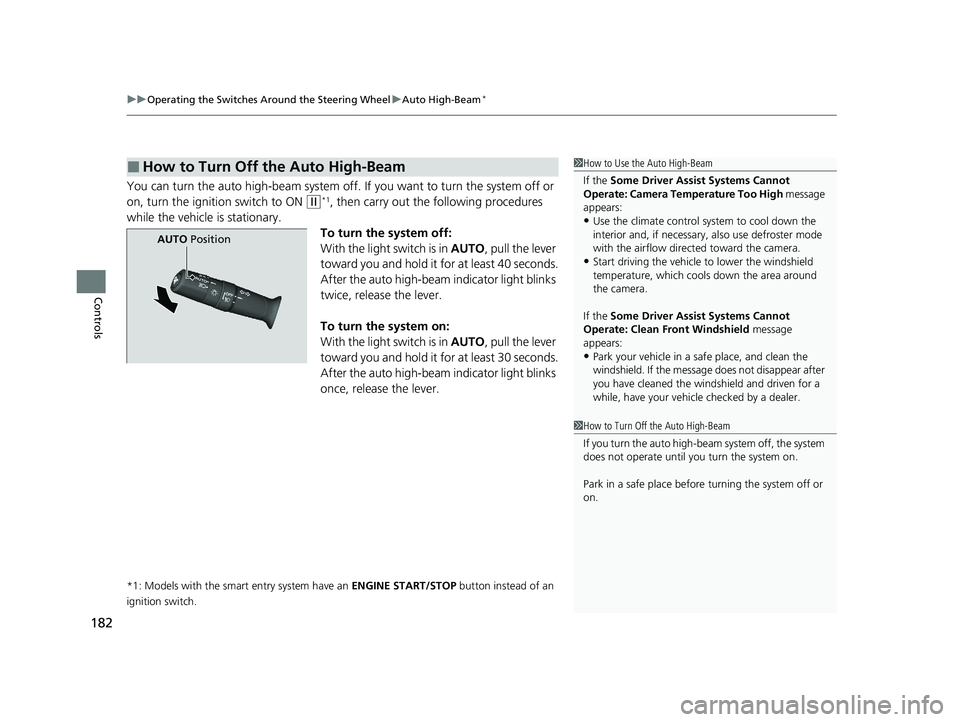

You can turn the auto high-beam system off. If you want to turn the system off or
on, turn the igniti on switch to ON
(w*1, then carry out the following procedures
while the vehicle is stationary.
To turn the system off:
With the light switch is in AUTO, pull the lever
toward you and hold it for at least 40 seconds.
After the auto high-beam indicator light blinks
twice, release the lever.
To turn the system on:
With the light switch is in AUTO, pull the lever
toward you and hold it for at least 30 seconds.
After the auto high-beam indicator light blinks
once, release the lever.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■How to Turn Off the Auto High-Beam1 How to Use the Auto High-Beam
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed toward the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
1 How to Turn Off the Auto High-Beam
If you turn the au to high-beam system off, the system
does not operate until you turn the system on.
Park in a safe place before turning the system off or
on.
AUTO Position
21 HR-V HDMC-31T7A6500.book 182 ページ ２０２０年９月２３日　水曜日　午前７時０分

428
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, and check for damage and excessive wear.
2 Checking and Maintaining Tires P. 559
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
21 HR-V HDMC-31T7A6500.book 428 ページ ２０２０年９月２３日　水曜日　午前７時０分

436
Driving
When Driving

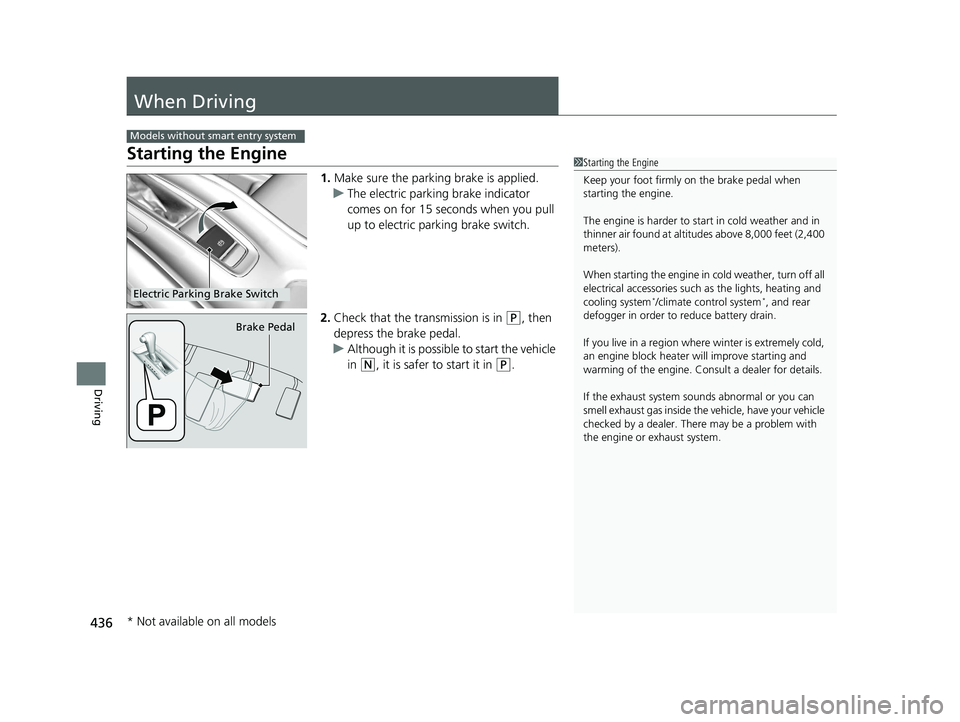

Starting the Engine
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up to electric parking brake switch.
2. Check that the tr ansmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
Models without smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, heating and
cooling system
*/climate control system*, and rear
defogger in order to reduce battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.Electric Parking Brake Switch
Brake Pedal
* Not available on all models
21 HR-V HDMC-31T7A6500.book 436 ページ ２０２０年９月２３日　水曜日　午前７時０分

439
uuWhen Driving uStarting the Engine
Continued
Driving

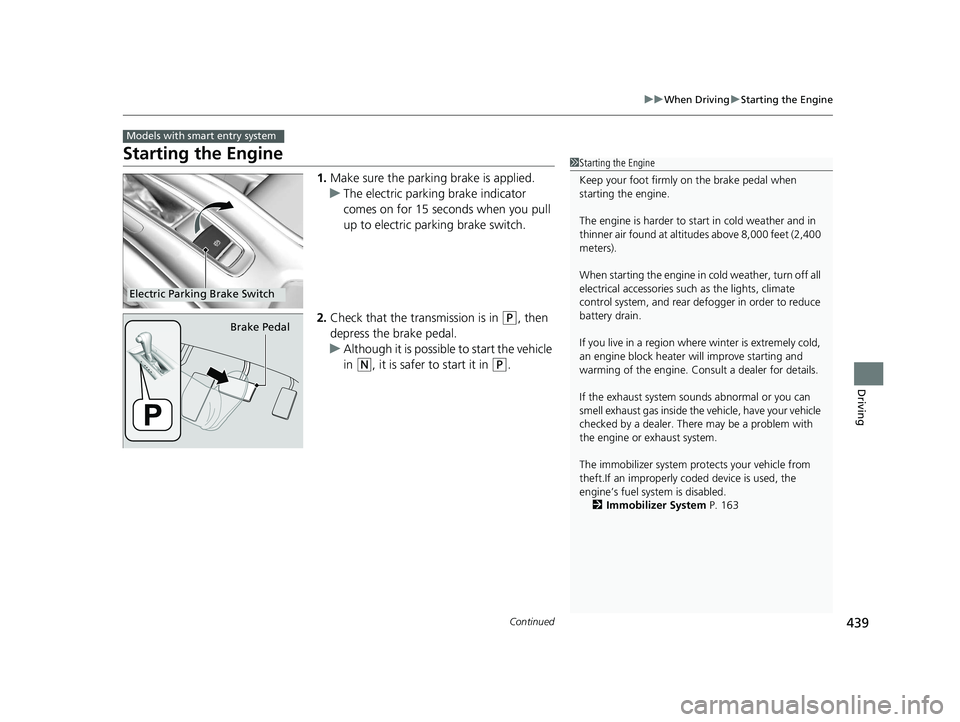

Starting the Engine
1. Make sure the parkin g brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up to electric parking brake switch.
2. Check that the transmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
Models with smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system pr otects your vehicle from
theft.If an improperly c oded device is used, the
engine’s fuel system is disabled.
2 Immobilizer System P. 163
Electric Parking Brake Switch
Brake Pedal
21 HR-V HDMC-31T7A6500.book 439 ページ ２０２０年９月２３日　水曜日　午前７時０分

445
uuWhen Driving uShifting
Driving

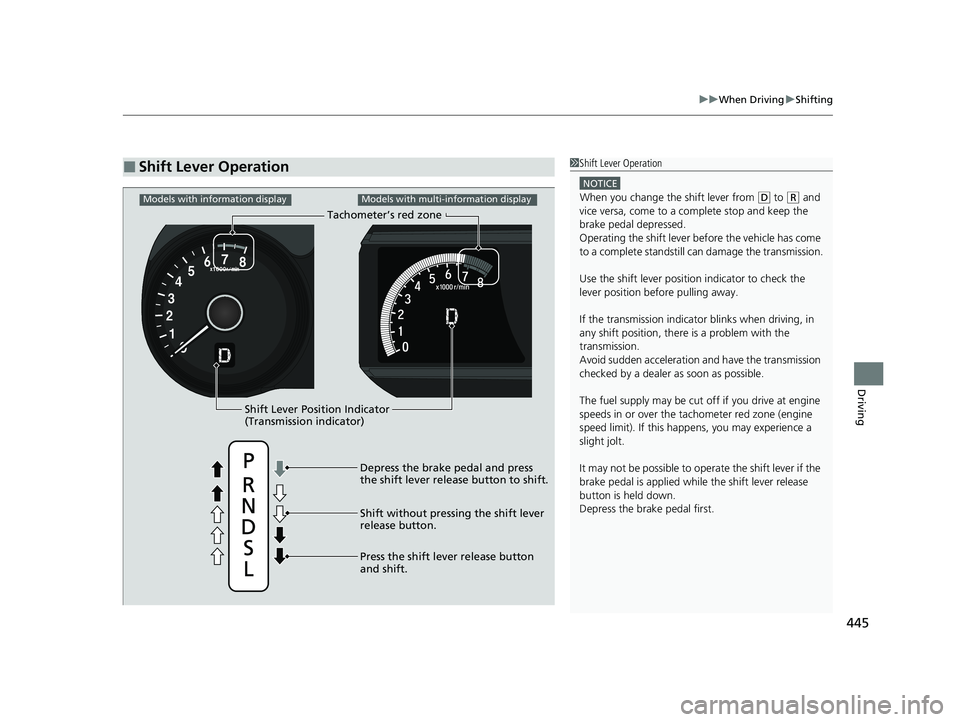

■Shift Lever Operation1Shift Lever Operation
NOTICE
When you change the shift lever from (D to ( R and
vice versa, come to a complete stop and keep the
brake pedal depressed.
Operating the shift lever be fore the vehicle has come
to a complete standstill can damage the transmission.
Use the shift lever position indicator to check the
lever position befo re pulling away.
If the transmission indicator blinks when driving, in
any shift position, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
The fuel supply may be cut of f if you drive at engine
speeds in or over the ta chometer red zone (engine
speed limit). If this happe ns, you may experience a
slight jolt.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
Shift Lever Position Indicator
(Transmission indicator) Tachometer’s red zone
Depress the brake pedal and press
the shift lever rel ease button to shift.
Shift without pressing the shift lever
release button.
Press the shift lever release button
and shift.
Models with information displayModels with multi-information display
21 HR-V HDMC-31T7A6500.book 445 ページ ２０２０年９月２３日　水曜日　午前７時０分
