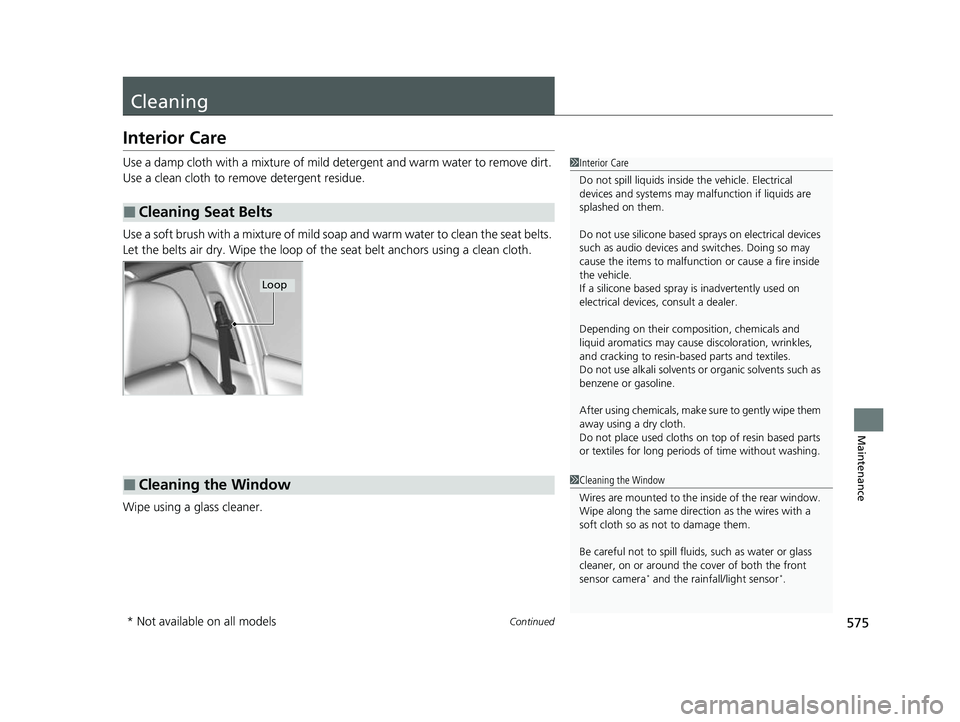

575Continued
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loop of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera
* and the rainfall/light sensor*.
* Not available on all models
22 HR-V HDMC-31T7A6600.book 575 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

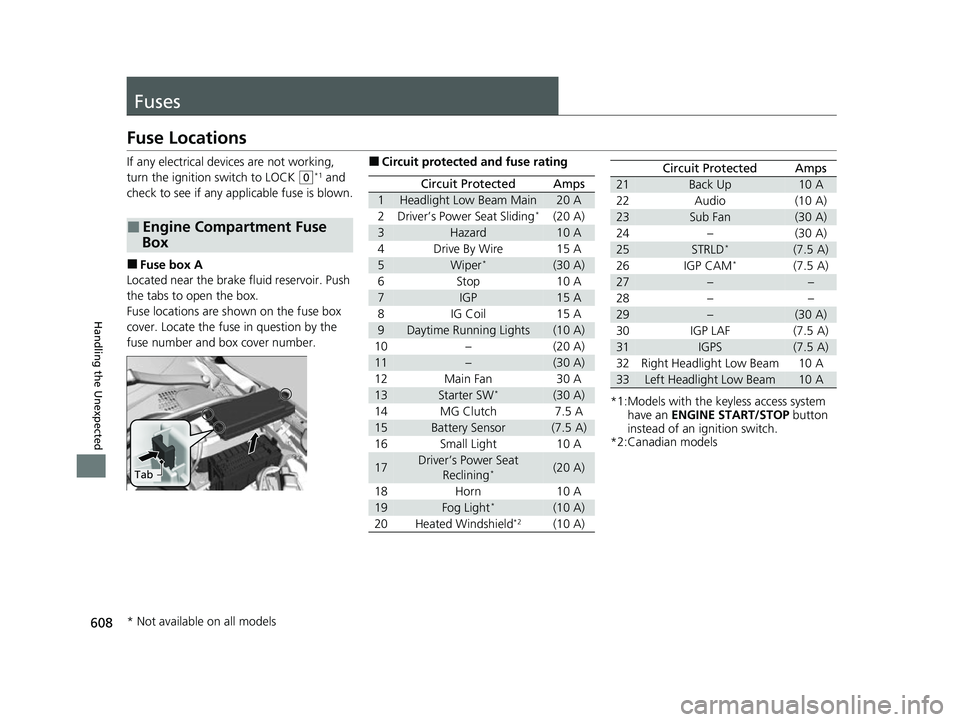

608
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2Driver’s Power Seat Sliding*(20 A)
3Hazard10 A
4Drive By Wire15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9Daytime Running Lights(10 A)
10–(20 A)
11–(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17Driver’s Power Seat
Reclining*(20 A)
18Horn10 A
19Fog Light*(10 A)
20Heated Windshield*2(10 A)
*1:Models with the keyless access system have an ENGINE START/STOP button
instead of an ignition switch.
*2:Canadian models
Circuit ProtectedAmps
21Back Up10 A
22Audio(10 A)
23Sub Fan(30 A)
24–(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29–(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
22 HR-V HDMC-31T7A6600.book 608 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

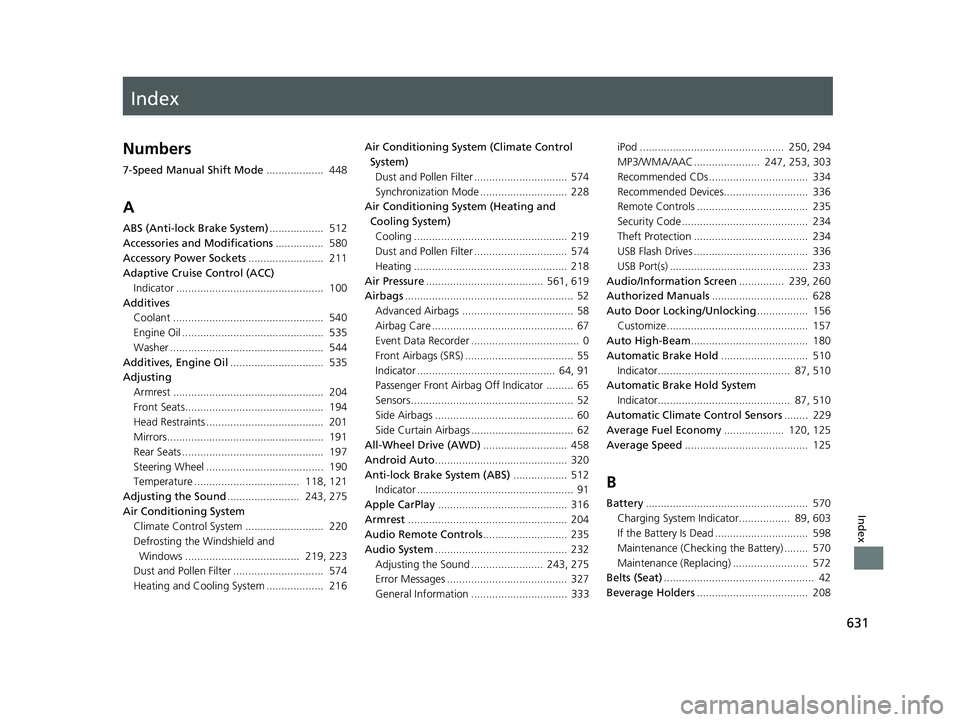

Index
631
Index
Index
Numbers
7-Speed Manual Shift Mode................... 448
A
ABS (Anti-lock Brake System) .................. 512
Accessories and Modifications ................ 580
Accessory Power Sockets ......................... 211
Adaptive Cruise Control (ACC) Indicator ................................................. 100
Additives Coolant .................................................. 540
Engine Oil ............................................... 535
Washer ................................................... 544
Additives, Engine Oil ............................... 535
Adjusting
Armrest .................................................. 204
Front Seats.............................................. 194
Head Restraints ....................................... 201
Mirrors.................................................... 191
Rear Seats ............................................... 197
Steering Wheel ....................................... 190
Temperature ................................... 118, 121
Adjusting the Sound ........................ 243, 275
Air Conditioning System Climate Control System .......................... 220
Defrosting the Windshield and
Windows ...................................... 219, 223
Dust and Pollen Filter .............................. 574
Heating and Cooling System ................... 216 Air Conditioning System (Climate Control
System)
Dust and Pollen Filter ............................... 574
Synchronization Mode ............................. 228
Air Conditioning System (Heating and
Cooling System)Cooling ................................................... 219
Dust and Pollen Filter ............................... 574
Heating ................................................... 218
Air Pressure ....................................... 561, 619
Airbags ........................................................ 52
Advanced Airbags ..................................... 58
Airbag Care ............................................... 67
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 55
Indicator .............................................. 64, 91
Passenger Front Airbag Off Indicator ......... 65
Sensors ...................................................... 52
Side Airbags .............................................. 60
Side Curtain Airbags .................................. 62
All-Wheel Drive (AWD) ............................ 458
Android Auto ............................................ 320
Anti-lock Brake System (ABS) .................. 512
Indicator .................................................... 91
Apple CarPlay ........................................... 316
Armrest ..................................................... 204
Audio Remote Controls ............................ 235
Audio System ............................................ 232
Adjusting the Sound ........................ 243, 275
Error Messages ........................................ 327
General Information ................................ 333 iPod ................................................ 250, 294
MP3/WMA/AAC ...................... 247, 253, 303
Recommended CDs ................................. 334
Recommended Devices............................ 336
Remote Controls ..................................... 235
Security Code .......................................... 234
Theft Protection ...................................... 234
USB Flash Drives ...................................... 336
USB Port(s) .............................................. 233
Audio/Information Screen ............... 239, 260
Authorized Manuals ................................ 628
Auto Door Locking/Unlocking ................. 156
Customize ............................................... 157
Auto High-Beam ....................................... 180
Automatic Brake Hold ............................. 510
Indicator............................................ 87, 510
Automatic Brake Hold System
Indicator............................................ 87, 510
Automatic Climate Control Sensors ........ 229
Average Fuel Economy .................... 120, 125
Average Speed ......................................... 125
B
Battery...................................................... 570
Charging System Indicator................. 89, 603
If the Battery Is Dead ............................... 598
Maintenance (Checki ng the Battery) ........ 570
Maintenance (Replacing) ......................... 572
Belts (Seat) .................................................. 42
Beverage Holders ..................................... 208
22 HR-V HDMC-31T7A6600.book 631 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

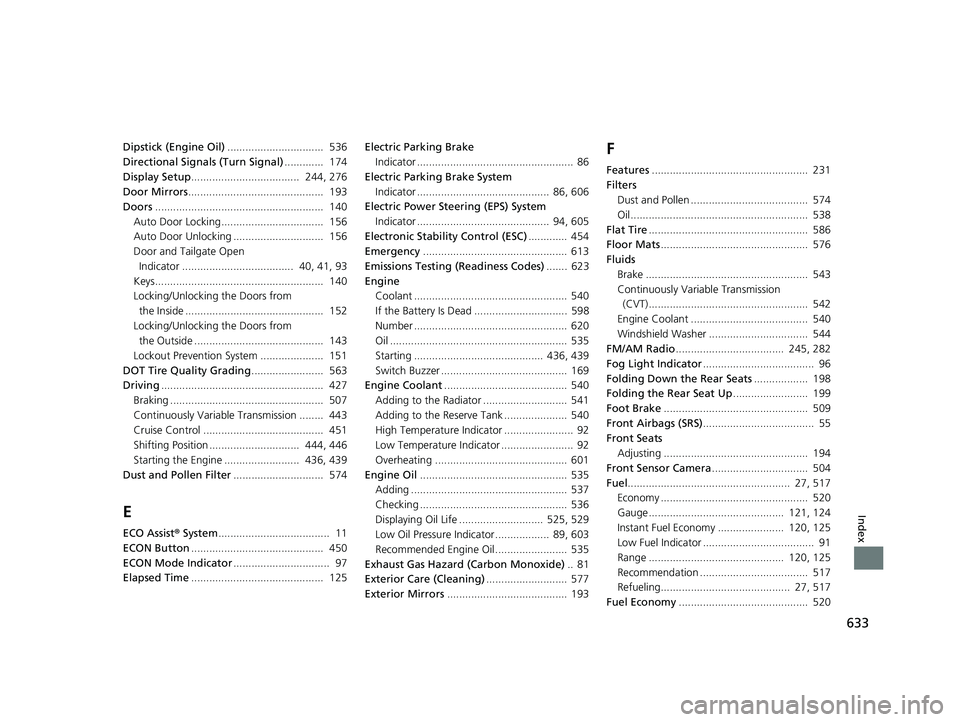

633
Index
Dipstick (Engine Oil)................................ 536
Directional Signals (Turn Signal) ............. 174
Display Setup .................................... 244, 276
Door Mirrors ............................................. 193
Doors ........................................................ 140
Auto Door Locking.................................. 156
Auto Door Unlocking .............................. 156
Door and Tailgate Open Indicator ..................................... 40, 41, 93
Keys........................................................ 140
Locking/Unlocking the Doors from
the Inside .............................................. 152
Locking/Unlocking the Doors from the Outside ........................................... 143
Lockout Prevention System ..................... 151
DOT Tire Quality Grading ........................ 563
Driving ...................................................... 427
Braking ................................................... 507
Continuously Variable Transmission ........ 443
Cruise Control ........................................ 451
Shifting Position .............................. 444, 446
Starting the Engine ......................... 436, 439
Dust and Pollen Filter .............................. 574
E
ECO Assist® System ..................................... 11
ECON Button ............................................ 450
ECON Mode Indicator ................................ 97
Elapsed Time ............................................ 125 Electric Parking Brake
Indicator .................................................... 86
Electric Parking Brake System Indicator ............................................ 86, 606
Electric Power Steering (EPS) System
Indicator ............................................ 94, 605
Electronic Stability Control (ESC) ............. 454
Emergency ................................................ 613
Emissions Testing (Readiness Codes) ....... 623
Engine Coolant ................................................... 540
If the Battery Is Dead ............................... 598
Number ................................................... 620
Oil ........................................................... 535
Starting ........................................... 436, 439
Switch Buzzer .......................................... 169
Engine Coolant ......................................... 540
Adding to the Radiator ............................ 541
Adding to the Reserve Tank ..................... 540
High Temperature Indicator ....................... 92
Low Temperature Indicator ........................ 92
Overheating ............................................ 601
Engine Oil ................................................. 535
Adding .................................................... 537
Checking ................................................. 536
Displaying Oil Life ............................ 525, 529
Low Oil Pressure Indicator .................. 89, 603
Recommended Engine Oil ........................ 535
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 193
F
Features.................................................... 231
Filters Dust and Pollen ....................................... 574
Oil ........................................................... 538
Flat Tire ..................................................... 586
Floor Mats ................................................. 576
Fluids
Brake ...................................................... 543
Continuously Variable Transmission (CVT) ..................................................... 542
Engine Coolant ....................................... 540
Windshield Washer ................................. 544
FM/AM Radio .................................... 245, 282
Fog Light Indicator ..................................... 96
Folding Down the Rear Seats .................. 198
Folding the Rear Seat Up ......................... 199
Foot Brake ................................................ 509
Front Airbags (SRS) ..................................... 55
Front Seats Adjusting ................................................ 194
Front Sensor Camera ................................ 504
Fuel ...................................................... 27, 517
Economy ................................................. 520
Gauge ............................................. 121, 124
Instant Fuel Economy ...................... 120, 125
Low Fuel Indicator ..................................... 91
Range ............................................. 120, 125
Recommendation .................................... 517
Refueling........................................... 27, 517
Fuel Economy ........................................... 520
22 HR-V HDMC-31T7A6600.book 633 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

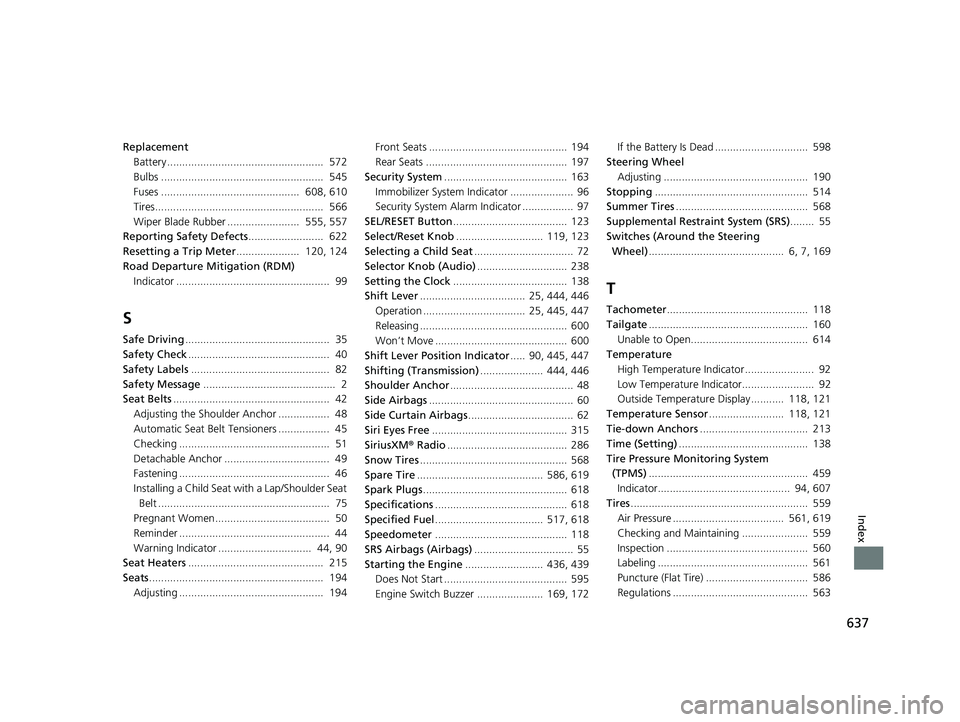

637
Index
ReplacementBattery .................................................... 572
Bulbs ...................................................... 545
Fuses .............................................. 608, 610
Tires........................................................ 566
Wiper Blade Rubber ........................ 555, 557
Reporting Safety Defects ......................... 622
Resetting a Trip Meter ..................... 120, 124
Road Departure Mitigation (RDM) Indicator ................................................... 99
S
Safe Driving ................................................ 35
Safety Check ............................................... 40
Safety Labels .............................................. 82
Safety Message ............................................ 2
Seat Belts .................................................... 42
Adjusting the Shoulder Anchor ................. 48
Automatic Seat Belt Tensioners ................. 45
Checking .................................................. 51
Detachable Anchor ................................... 49
Fastening .................................................. 46
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 75
Pregnant Women...................................... 50
Reminder .................................................. 44
Warning Indicator ............................... 44, 90
Seat Heaters ............................................. 215
Seats .......................................................... 194
Adjusting ................................................ 194 Front Seats .............................................. 194
Rear Seats ............................................... 197
Security System ......................................... 163
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 97
SEL/RESET Button ...................................... 123
Select/Reset Knob ............................. 119, 123
Selecting a Child Seat ................................. 72
Selector Knob (Audio) .............................. 238
Setting the Clock ...................................... 138
Shift Lever ................................... 25, 444, 446
Operation .................................. 25, 445, 447
Releasing ................................................. 600
Won’t Move ............................................ 600
Shift Lever Position Indicator ..... 90, 445, 447
Shifting (Transmission) ..................... 444, 446
Shoulder Anchor ......................................... 48
Side Airbags ................................................ 60
Side Curtain Airbags ................................... 62
Siri Eyes Free ............................................. 315
SiriusXM ® Radio ........................................ 286
Snow Tires ................................................. 568
Spare Tire .......................................... 586, 619
Spark Plugs ................................................ 618
Specifications ............................................ 618
Specified Fuel .................................... 517, 618
Speedometer ............................................ 118
SRS Airbags (Airbags) ................................. 55
Starting the Engine .......................... 436, 439
Does Not Start ......................................... 595
Engine Switch Buzzer ...................... 169, 172 If the Battery Is Dead ............................... 598
Steering Wheel
Adjusting ................................................ 190
Stopping ................................................... 514
Summer Tires ............................................ 568
Supplemental Restraint System (SRS) ........ 55
Switches (Around the Steering Wheel) ............................................. 6, 7, 169
T
Tachometer ............................................... 118
Tailgate ..................................................... 160
Unable to Open....................................... 614
Temperature High Temperature Indicator ....................... 92
Low Temperature Indicator........................ 92
Outside Temperature Display ........... 118, 121
Temperature Sensor ......................... 118, 121
Tie-down Anchors .................................... 213
Time (Setting) ........................................... 138
Tire Pressure Monitoring System (TPMS) ..................................................... 459
Indicator............................................ 94, 607
Tires ........................................................... 559
Air Pressure ..................................... 561, 619
Checking and Maintaining ...................... 559
Inspection ............................................... 560
Labeling .................................................. 561
Puncture (Flat Tire) .................................. 586
Regulations ............................................. 563
22 HR-V HDMC-31T7A6600.book 637 ページ ２０２１年４月１２日　月曜日　午前１０時５０分
