6
Quick Reference Guide
Quick Reference Guide

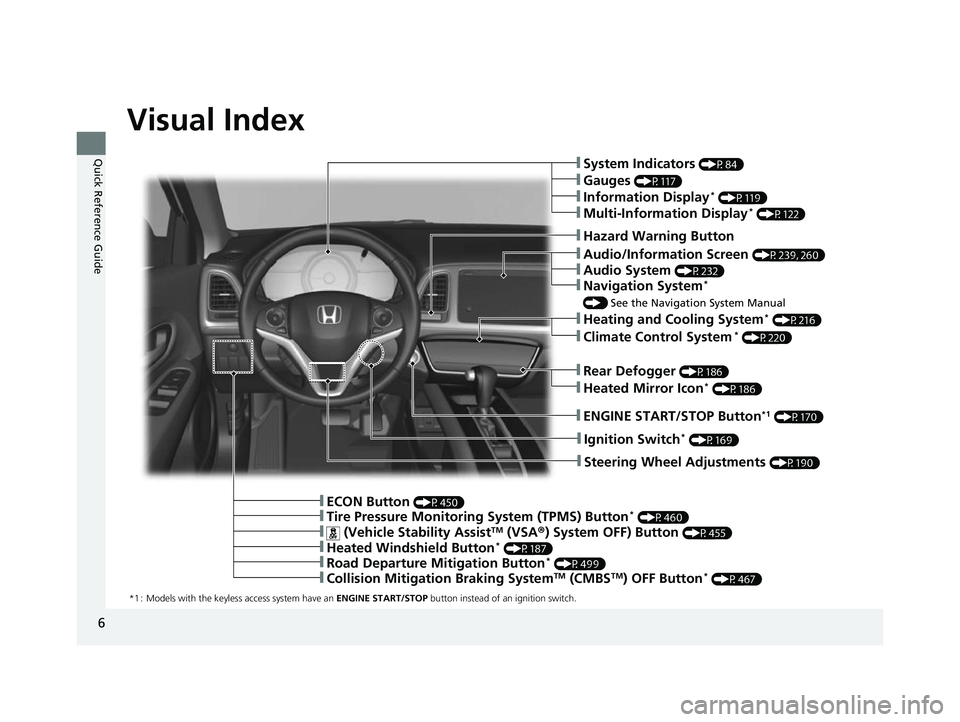

Visual Index
*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
❚ENGINE START/STOP Button*1 (P170)
❚Steering Wheel Adjustments (P190)
❚Hazard Warning Button
❚Ignition Switch* (P169)
❚Tire Pressure Monitoring System (TPMS) Button* (P460)
❚ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P455)
❚Heated Windshield Button* (P187)
❚Road Departure Mitigation Button* (P499)
❚Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P467)
❚ECON Button (P450)
❚Rear Defogger (P186)
❚Heating and Cooling System* (P216)
❚Audio/Information Screen (P239, 260)
❚System Indicators (P84)
❚Heated Mirror Icon* (P186)
❚Climate Control System* (P220)
❚Audio System (P232)
❚Navigation System*
() See the Navigation System Manual
❚Gauges (P117)
❚Information Display* (P119)
❚Multi-Information Display* (P122)
22 HR-V HDMC-31T7A6600.book 6 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

7
Quick Reference Guide

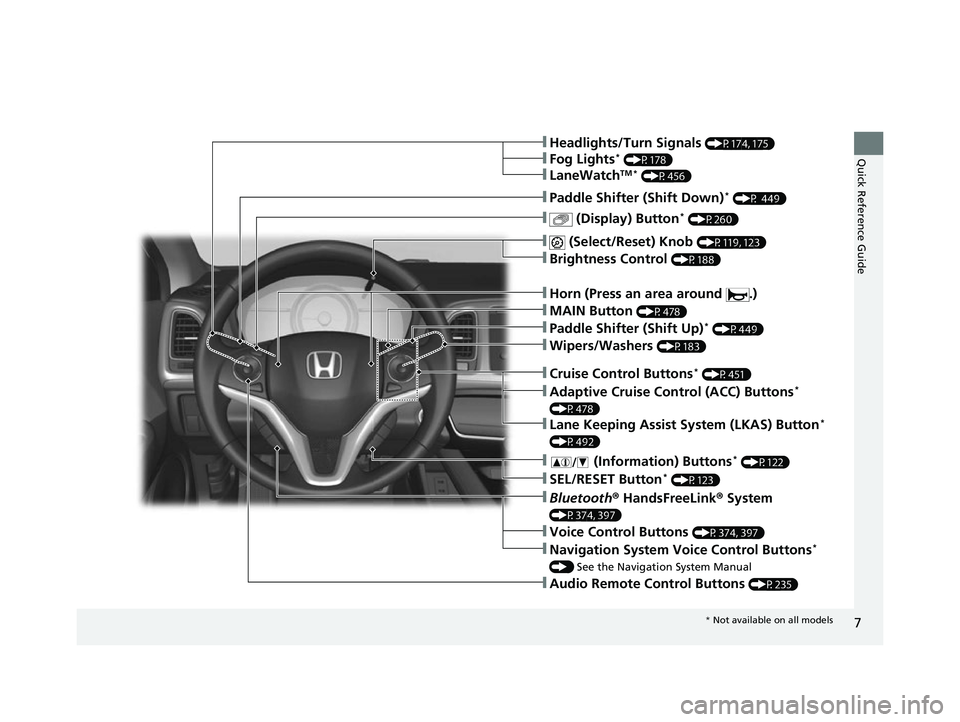

❚Wipers/Washers (P183)
❚Paddle Shifter (Shift Up)* (P449)
❚ (Display) Button* (P260)
❚Paddle Shifter (Shift Down)* (P 449)
❚Audio Remote Control Buttons (P235)
❚Headlights/Turn Signals (P174, 175)
❚ (Select/Reset) Knob (P119, 123)
❚Bluetooth® HandsFreeLink ® System
(P374, 397)
❚ (Information) Buttons* (P122)
❚SEL/RESET Button* (P123)
❚Adaptive Cruise Control (ACC) Buttons*
(P478)
❚Lane Keeping Assist System (LKAS) Button*
(P492)
❚Cruise Control Buttons* (P451)
❚Horn (Press an area around .)
❚Fog Lights* (P178)
❚LaneWatchTM * (P456)
❚Brightness Control (P188)
❚Voice Control Buttons (P374, 397)
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚MAIN Button (P478)
* Not available on all models
22 HR-V HDMC-31T7A6600.book 7 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

15
Quick Reference Guide

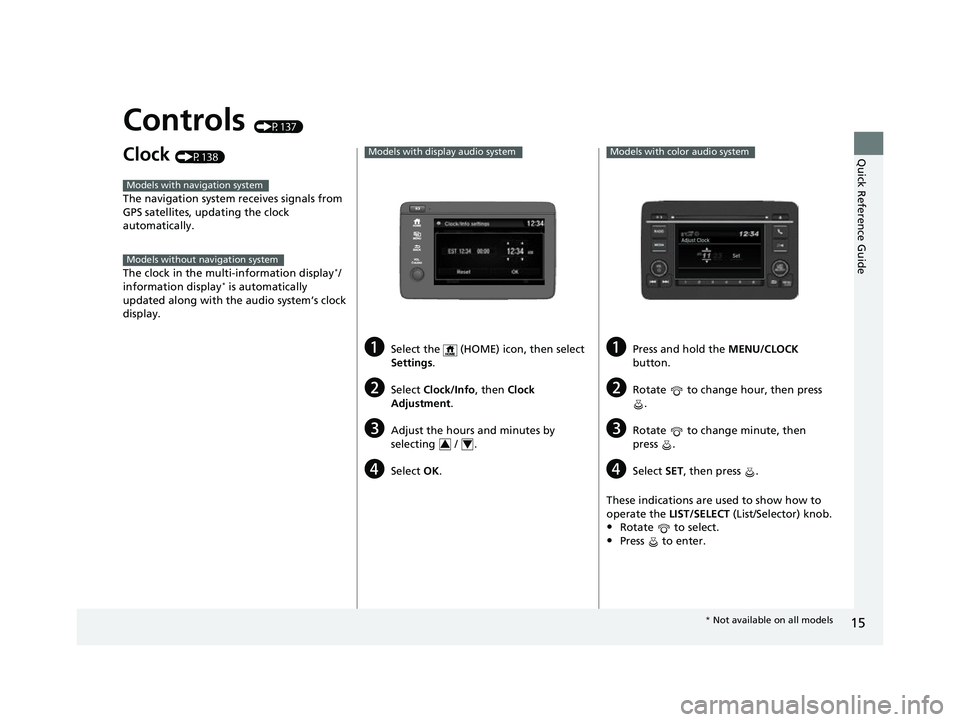

Controls (P137)
Clock (P138)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the multi-information display
*/
information display* is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation system
aSelect the (HOME) icon, then select
Settings .
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press
.
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
22 HR-V HDMC-31T7A6600.book 15 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

23
Quick Reference Guide

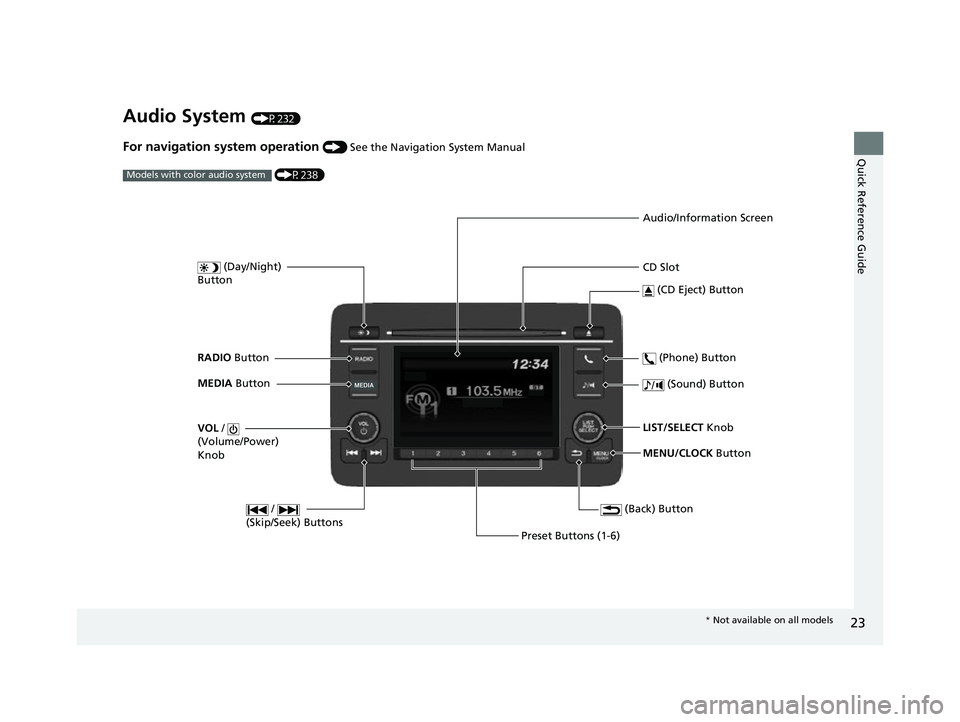

Audio System (P232)
For navigation system operation () See the Navigation System Manual
(P238)
Models with color audio system
MENU/CLOCK Button
LIST/SELECT
Knob
(Day/Night)
Button
(Back) Button
(Sound) Button
VOL /
(Volume/Power)
Knob
CD Slot
(CD Eject) Button
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
*
Not available on all models
22 HR-V HDMC-31T7A6600.book 23 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

116

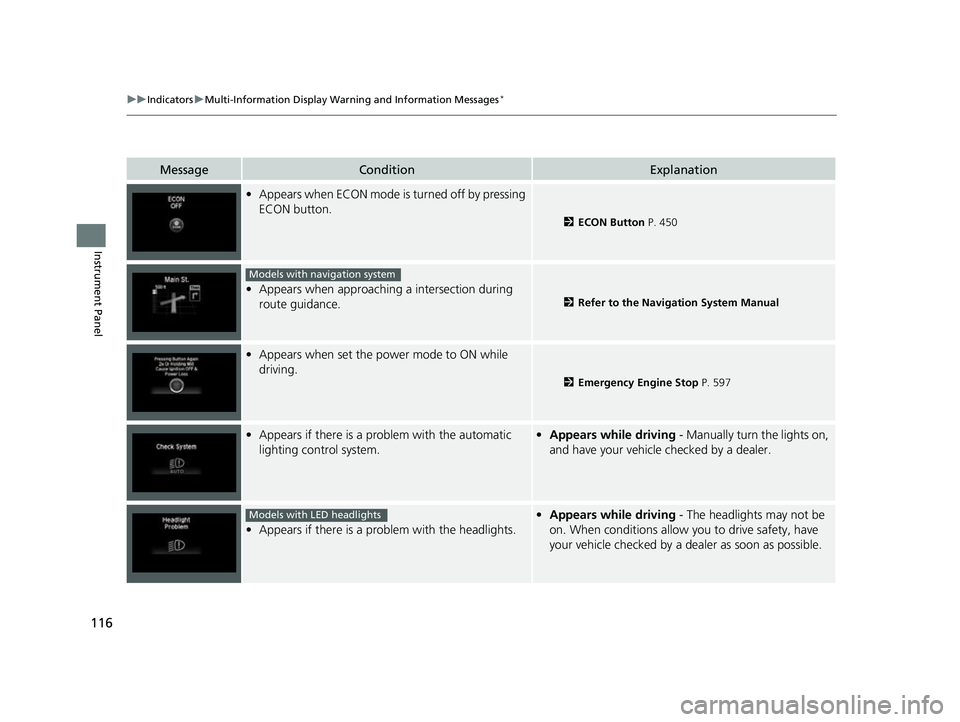

uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button P. 450
•Appears when approaching a intersection during
route guidance.2 Refer to the Navigation System Manual
•Appears when set the po wer mode to ON while
driving.
2 Emergency Engine Stop P. 597
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
Models with navigation system
Models with LED headlights
22 HR-V HDMC-31T7A6600.book 116 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuGauges and Displays uMulti-Information Display*
126
Instrument Panel

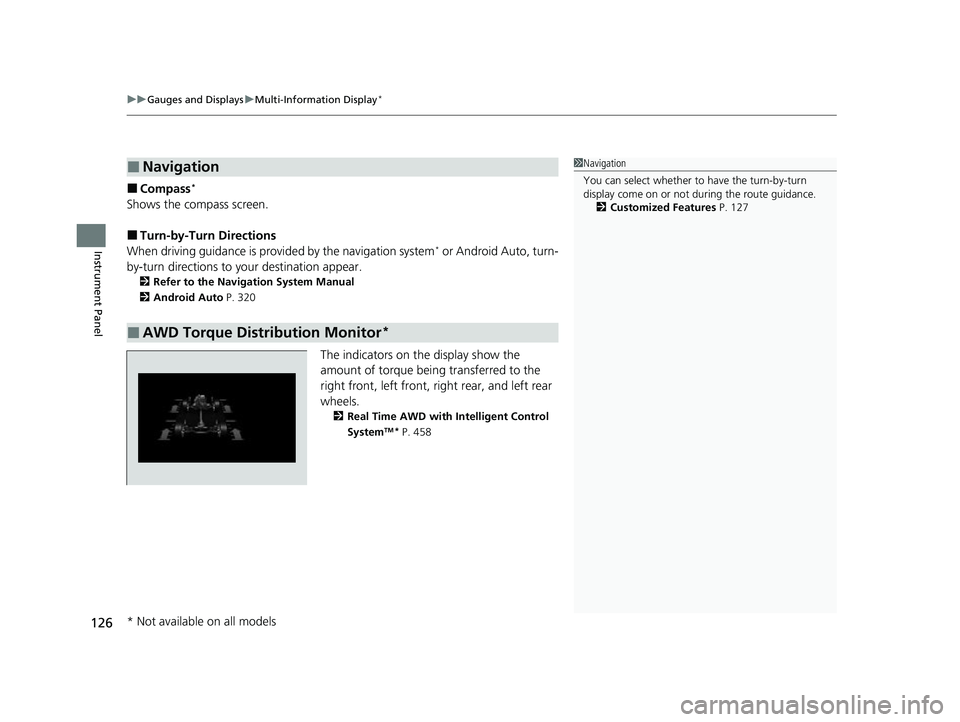

■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 320
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM* P. 458
■Navigation
■AWD Torque Distribution Monitor*
1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 127
* Not available on all models
22 HR-V HDMC-31T7A6600.book 126 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

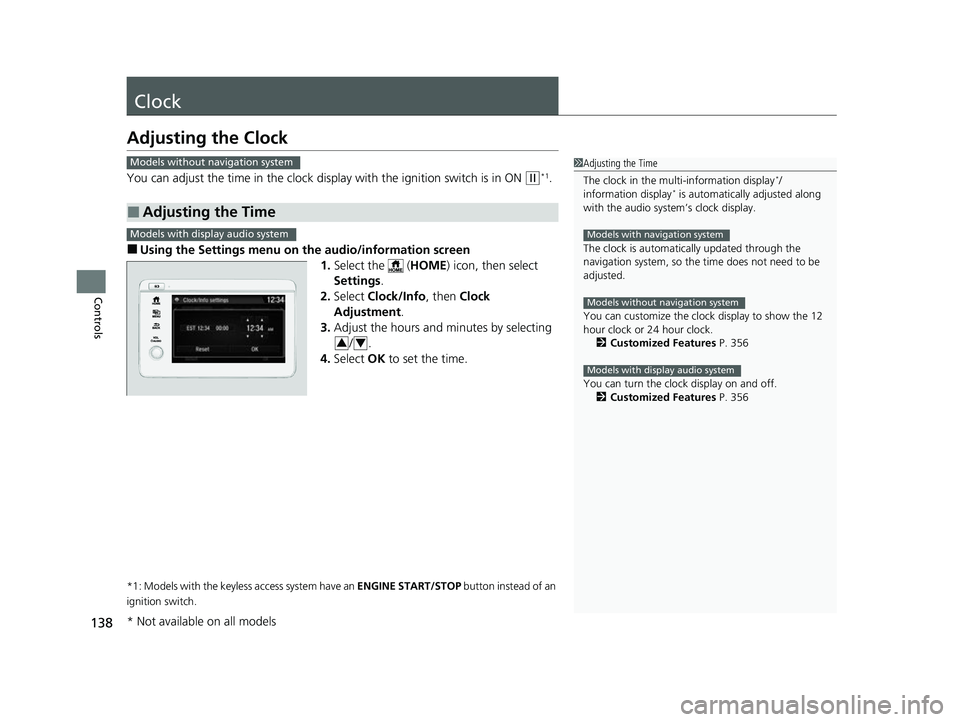

138
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w*1.
■Using the Settings menu on the audio/information screen
1.Select the ( HOME) icon, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
Models without navigation system1 Adjusting the Time
The clock in the multi-information display
*/
information display* is automatically adjusted along
with the audio system’s clock display.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 356
You can turn the clock display on and off. 2 Customized Features P. 356
Models with navigation system
Models without navigation system
Models with display audio system
Models with display audio system
34
* Not available on all models
22 HR-V HDMC-31T7A6600.book 138 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

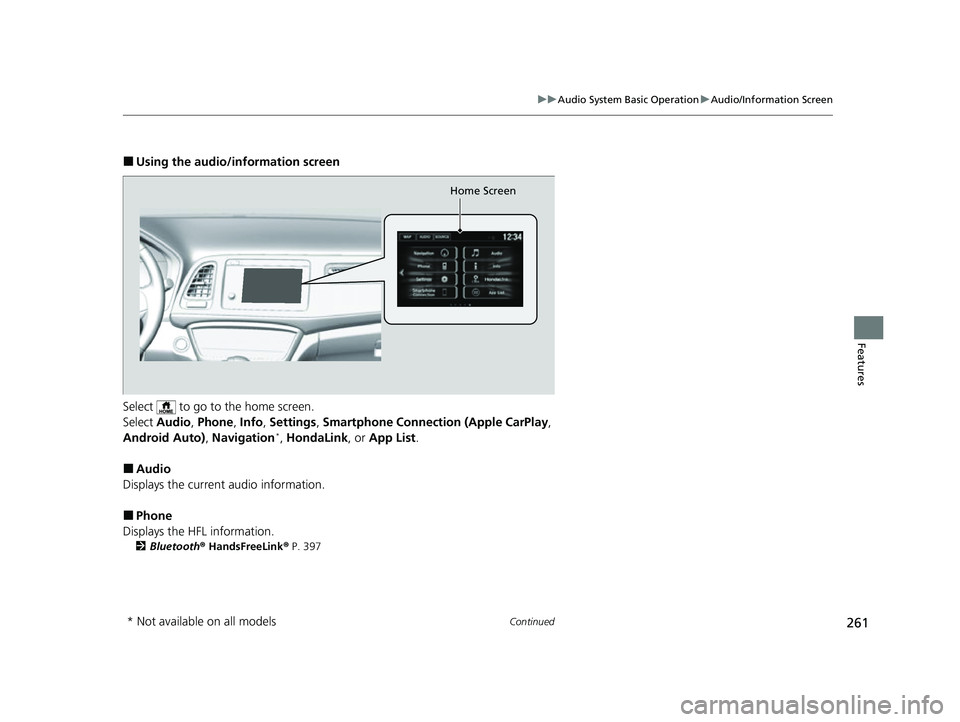

261
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
■Using the audio/in formation screen
Select to go to the home screen.
Select Audio , Phone , Info , Settings , Smartphone Connection (Apple CarPlay ,
Android Auto), Navigation
*, HondaLink , or App List.
■Audio
Displays the current audio information.
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 397
Home Screen
* Not available on all models
22 HR-V HDMC-31T7A6600.book 261 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

263
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

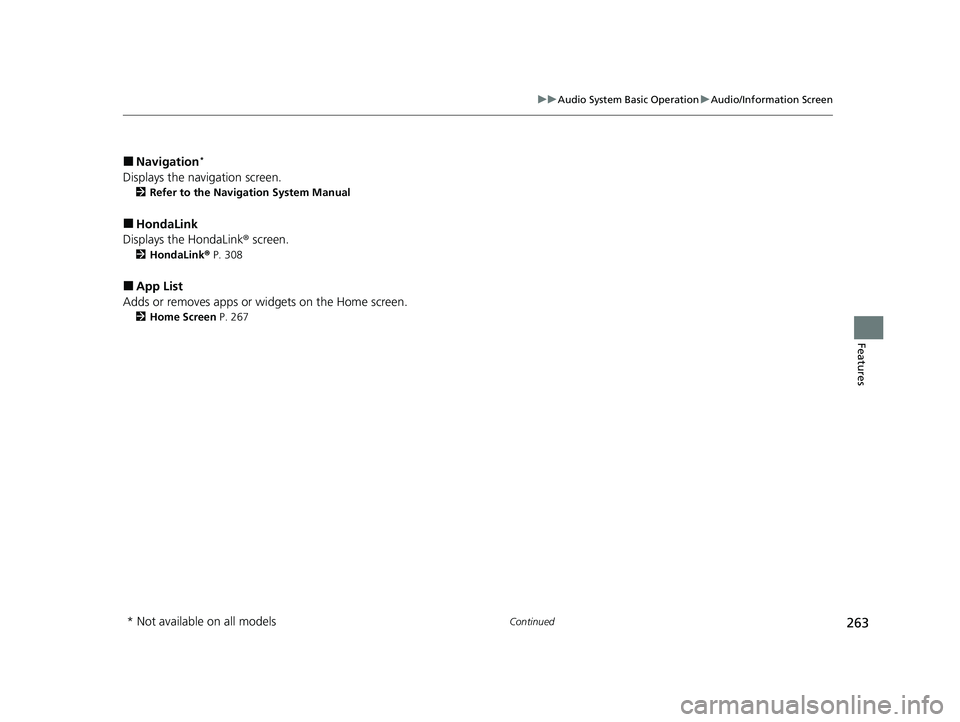

■Navigation*
Displays the navigation screen.
2 Refer to the Navigation System Manual
■HondaLink
Displays the HondaLink ® screen.
2HondaLink ® P. 308
■App List
Adds or removes apps or widgets on the Home screen.
2 Home Screen P. 267
* Not available on all models
22 HR-V HDMC-31T7A6600.book 263 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued271
uuAudio System Basic Operation uAudio/Information Screen
Features

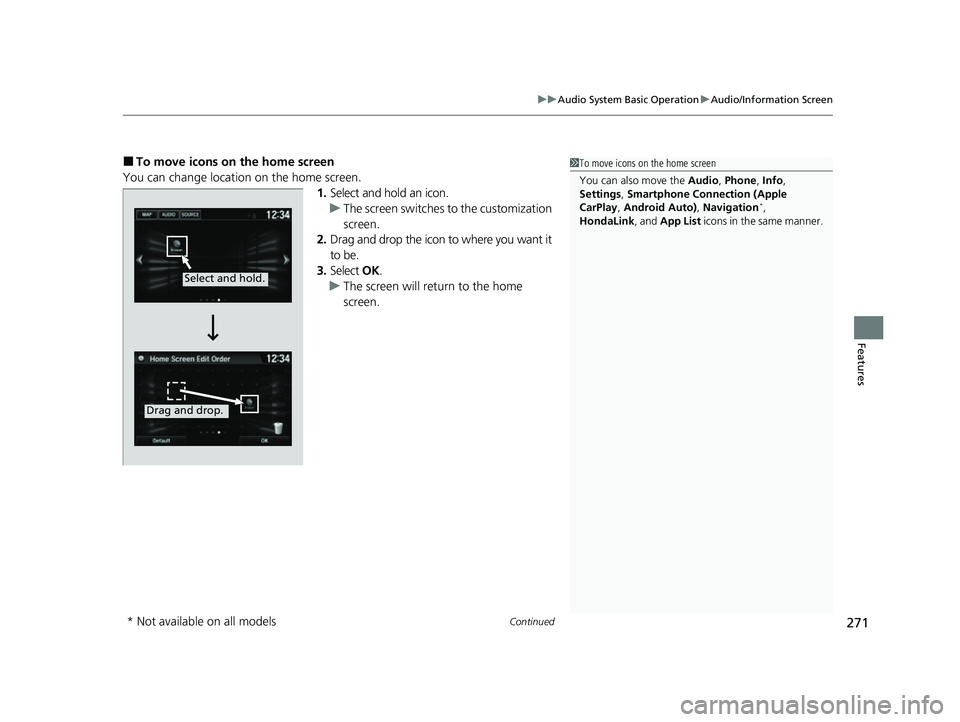

■To move icons on the home screen
You can change location on the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon to where you want it
to be.
3. Select OK.
u The screen will return to the home
screen.1To move icons on the home screen
You can also move the Audio, Phone , Info,
Settings , Smartphone Connection (Apple
CarPlay , Android Auto) , Navigation
*,
HondaLink, and App List icons in the same manner.
Select and hold.
Drag and drop.
