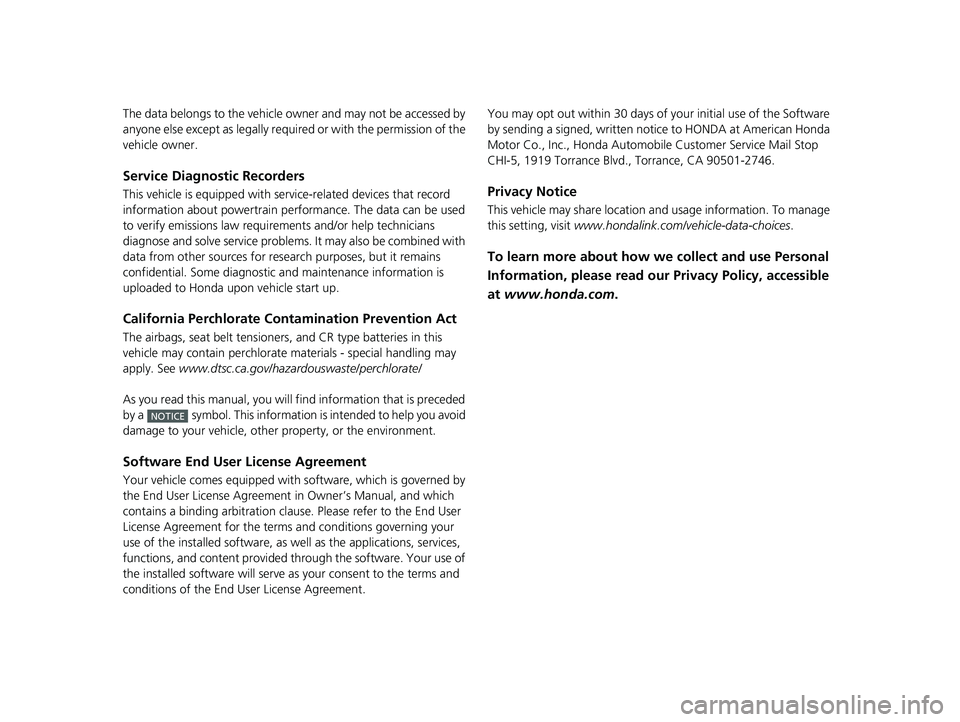

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems . It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazard ouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
NOTICE
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc., Honda Automobile Customer Service Mail Stop
CHI-5, 1919 Torrance Blvd., Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location an d usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.honda.com .
22 HR-V HDMC-31T7A6600.book 1 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
❚ENGINE START/STOP Button*1 (P170)
❚Steering Wheel Adjustments (P190)
❚Hazard Warning Button
❚Ignition Switch* (P169)
❚Tire Pressure Monitoring System (TPMS) Button* (P460)
❚ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P455)
❚Heated Windshield Button* (P187)
❚Road Departure Mitigation Button* (P499)
❚Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P467)
❚ECON Button (P450)
❚Rear Defogger (P186)
❚Heating and Cooling System* (P216)
❚Audio/Information Screen (P239, 260)
❚System Indicators (P84)
❚Heated Mirror Icon* (P186)
❚Climate Control System* (P220)
❚Audio System (P232)
❚Navigation System*
() See the Navigation System Manual
❚Gauges (P117)
❚Information Display* (P119)
❚Multi-Information Display* (P122)
22 HR-V HDMC-31T7A6600.book 6 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

16
Quick Reference Guide

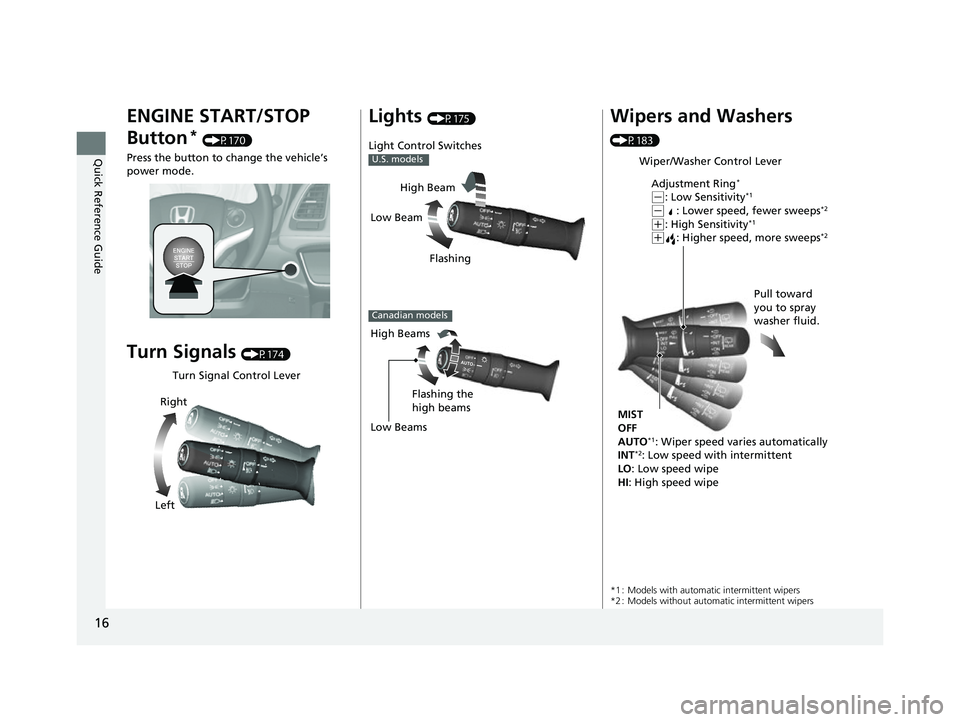

ENGINE START/STOP
Button
* (P170)
Press the button to change the vehicle’s
power mode.
Turn Signals (P174)
Turn Signal Control Lever
Right
Left
Lights (P175)
Light Control Switches
U.S. models
Low Beam High Beam
Flashing
Canadian models
Low Beams High Beams Flashing the
high beams
Wipers and Washers
(P183)
*1 : Models with automatic intermittent wipers
*2 : Models without automa tic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Adjustment Ring
*
(
-: Low Sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+: Higher speed, more sweeps*2
22 HR-V HDMC-31T7A6600.book 16 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

18
Quick Reference Guide

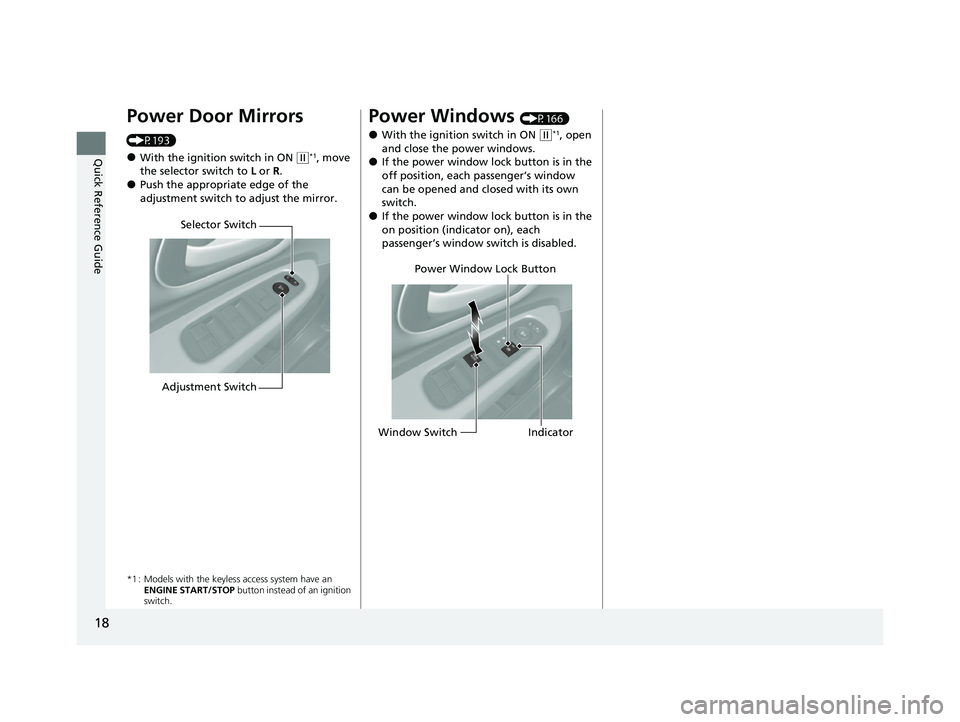

Power Door Mirrors
(P193)
●With the ignition switch in ON (w*1, move
the selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1 : Models with the keyless access system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P166)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switch
Indicator
22 HR-V HDMC-31T7A6600.book 18 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

31
Quick Reference Guide

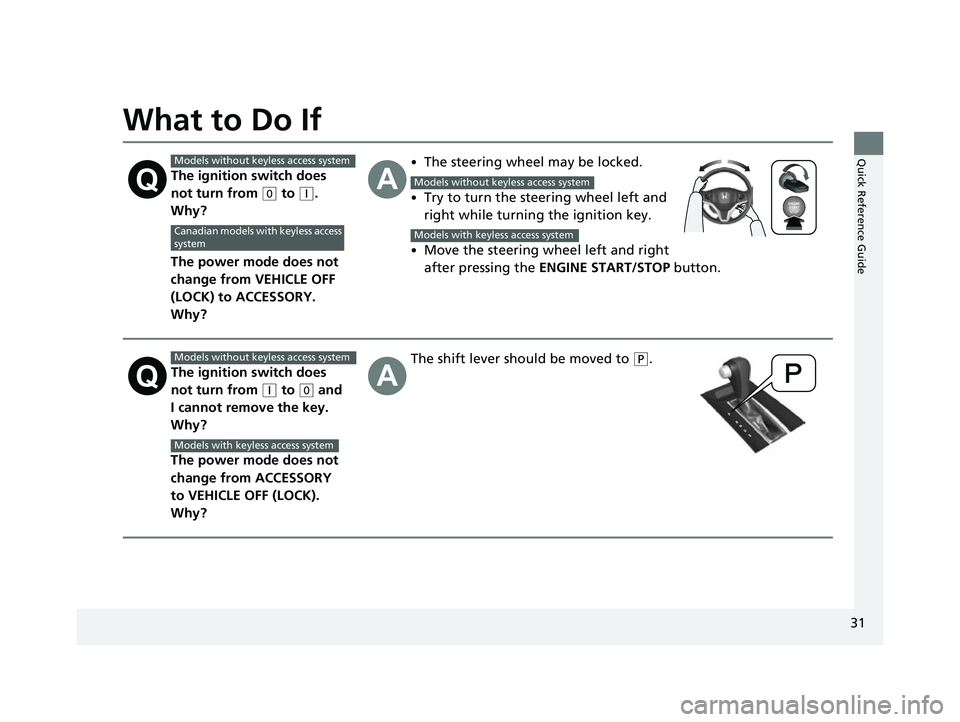

What to Do If
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
•The steering wheel may be locked.
•Try to turn the steering wheel left and
right while turning the ignition key.
•Move the steering wheel left and right
after pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Models without keyless access system
Canadian models with keyless access
system
Models without keyless access system
Models with keyless access system
Models without keyless access system
Models with keyless access system
22 HR-V HDMC-31T7A6600.book 31 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuSeat Belts uAbout Your Seat Belts
44
Safe DrivingThe seat belt system in cludes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If the ignition switch is turned to ON
(w*1 and
a seat belt is not fastened, a beeper will sound
and the indicator will blink. After a few
seconds, the beeper will stop and the
indicator will come on and remain illuminated
until the seat belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Belt Reminder1 Seat Belt Reminder
The indicator will also co me on if a front passenger
does not fasten their seat be lt within six seconds after
the ignition switch is turned to ON
( w*1.
When no one is sitting in th e front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
The indicator also may no t come on and the beeper
may not sound when the occupant is not heavy
enough to trigger the weight sensor. Such occupants
(e.g., infants and smaller children) should be moved
to the rear seat as a deploying front airbag likely will
injure or kill them. 2 Protecting Child Passengers P. 68
Models with information display
Models with multi-information
display
22 HR-V HDMC-31T7A6600.book 44 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

55
uuAirbags uTypes of Airbags
Continued
Safe Driving

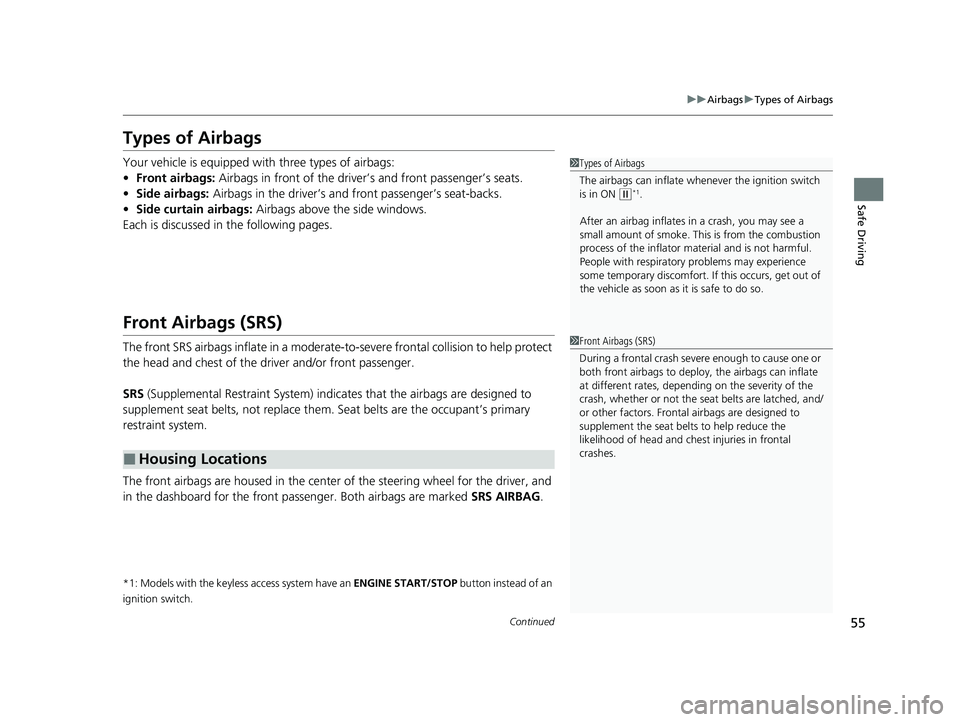

Types of Airbags
Your vehicle is equipped wi th three types of airbags:
• Front airbags: Airbags in front of the driver’s and front passenger’s seats.
• Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indica tes that the airbags are designed to
supplement seat belts, not replace them . Seat belts are the occupant’s primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front pass enger. Both airbags are marked SRS AIRBAG.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Housing Locations
1 Types of Airbags
The airbags can inflate whenever the ignition switch
is in ON
(w*1.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
22 HR-V HDMC-31T7A6600.book 55 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

64
uuAirbags uAirbag System Indicators
Safe Driving

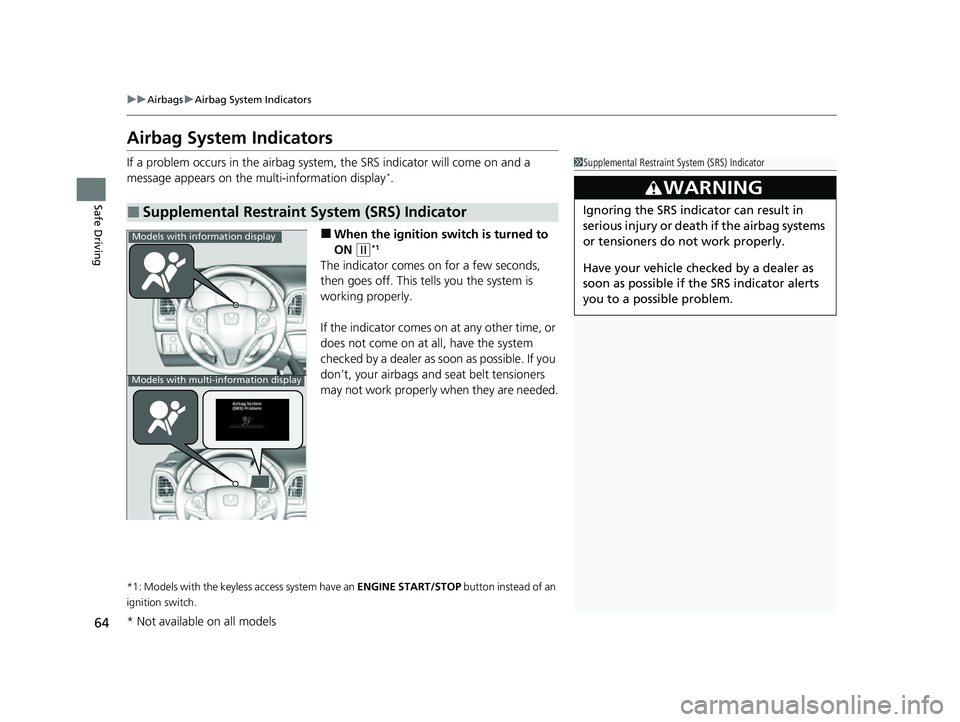

Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the multi-information display*.
■When the ignition sw itch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as s oon as possible. If you
don’t, your airbags and seat belt tensioners
may not work properly when they are needed.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator
1 Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
Models with information display
Models with multi-information display
* Not available on all models
22 HR-V HDMC-31T7A6600.book 64 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

84

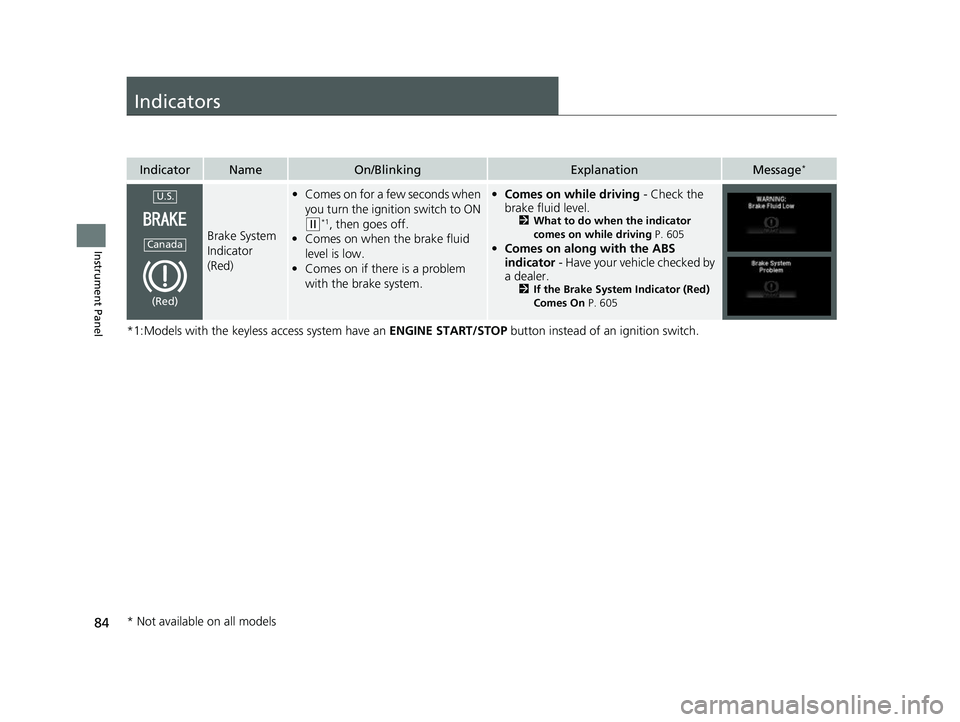

Instrument Panel
Indicators
*1:Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake System
Indicator
(Red)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 605
•Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 605
U.S.
Canada
(Red)
* Not available on all models
22 HR-V HDMC-31T7A6600.book 84 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

85
uuIndicators u
Continued
Instrument Panel
*1:Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake System
Indicator
(Amber)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
• Comes on if there is a problem
with an automatic brake hold
system.
•Stays on constantly - Have your vehicle
checked by a dealer.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
22 HR-V HDMC-31T7A6600.book 85 ページ ２０２１年４月１２日　月曜日　午前１０時５０分
