HONDA HRV 2023 User Guide

9

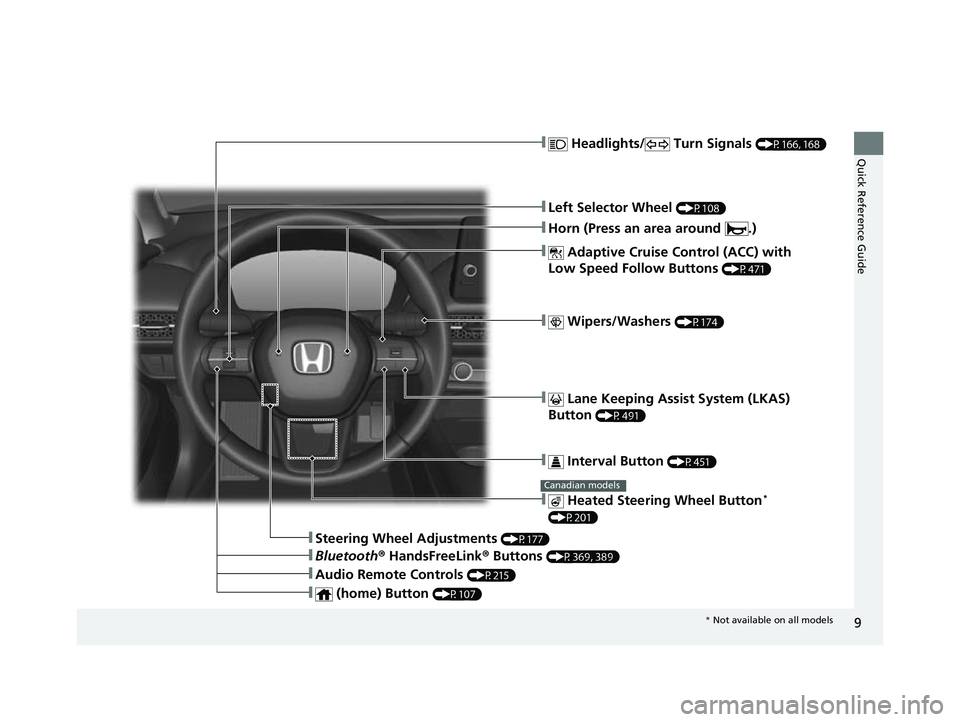

Quick Reference Guide❚ Headlights/ Turn Signals (P166, 168)
❚Left Selector Wheel (P108)
❚ Adaptive Cruise Control (ACC) with
Low Speed Follow Buttons
(P471)
❚ Lane Keeping Assist System (LKAS)
Button
(P491)
❚ Interval Button (P451)
❚Steering Wheel Adjustments (P177)
❚ Heated Steering Wheel Button*
(P201)
$BOBEJBO
NPEFMT
❚Horn (Press an area around .)
❚ Wipers/Washers (P174)
❚Bluetooth ® HandsFreeLink ® Buttons (P369, 389)
❚Audio Remote Controls (P215)
❚ (home) Button (P107)
* Not available on all models
23 HR-V-313V06000_01.book 9 ページ ２０２２年４月４日　月曜日　午前１０時４９分

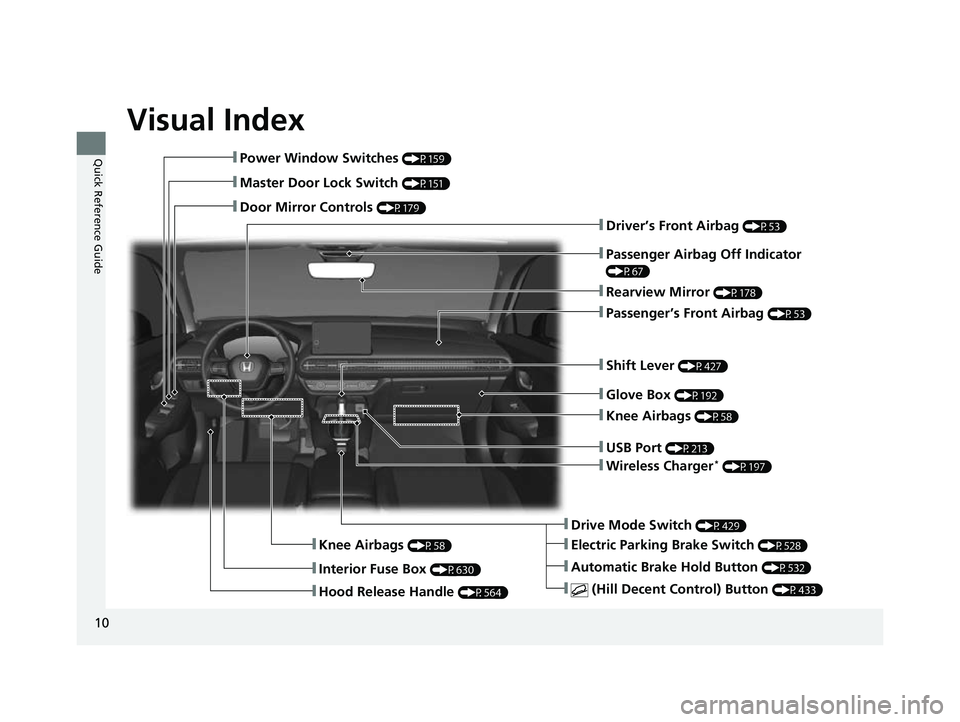

Visual Index
10
Quick Reference Guide❚Power Window Switches (P159)
❚Master Door Lock Switch (P151)
❚Door Mirror Controls (P179)
❚Interior Fuse Box (P630)
❚Hood Release Handle (P564)
❚Driver’s Front Airbag (P53)
❚Passenger’s Front Airbag (P53)
❚Drive Mode Switch (P429)
❚ (Hill Decent Control) Button (P433)
❚Rearview Mirror (P178)
❚Automatic Brake Hold Button (P532)
❚Electric Parking Brake Switch (P528)
❚Glove Box (P192)
❚Shift Lever (P427)
❚USB Port (P213)
❚Knee Airbags (P58)
❚Knee Airbags (P58)
❚Passenger Airbag Off Indicator
(P67)
❚Wireless Charger* (P197)
23 HR-V-313V06000_01.book 10 ページ ２０２２年４月４日　月曜日　午前１０時４９分

11
Quick Reference Guide

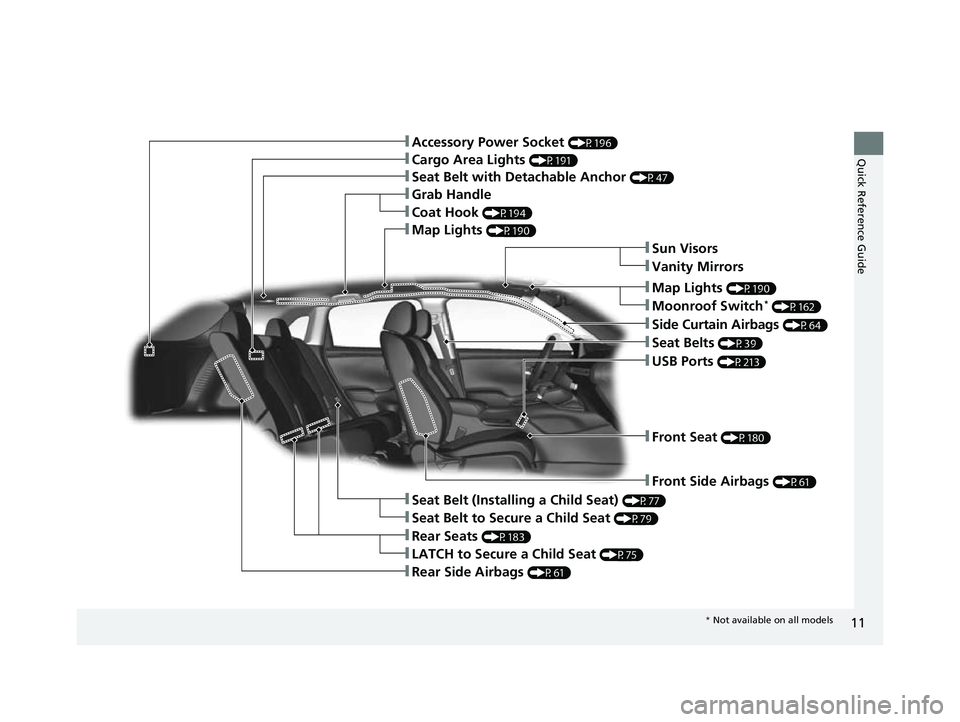

❚Seat Belt (Installing a Child Seat) (P77)
❚Sun Visors
❚Vanity Mirrors
❚Map Lights (P190)
❚Moonroof Switch* (P162)
❚Seat Belts (P39)
❚Front Seat (P180)
❚Front Side Airbags (P61)
❚USB Ports (P213)
❚Cargo Area Lights (P191)
❚Seat Belt with Detachable Anchor (P47)
❚Accessory Power Socket (P196)
❚Grab Handle
❚Coat Hook (P194)
❚Seat Belt to Secure a Child Seat (P79)
❚LATCH to Secure a Child Seat (P75)
❚Rear Seats (P183)
❚Rear Side Airbags (P61)
❚Map Lights (P190)
❚Side Curtain Airbags (P64)
* Not available on all models
23 HR-V-313V06000_01.book 11 ページ ２０２２年４月４日　月曜日　午前１０時４９分

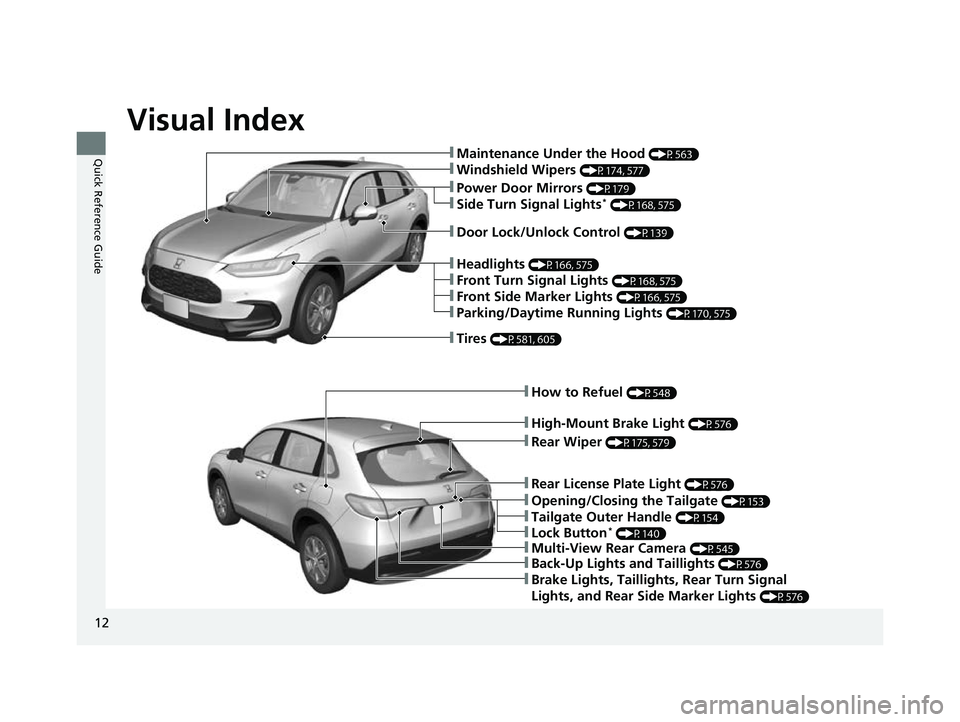

Visual Index
12
Quick Reference Guide❚Maintenance Under the Hood (P563)
❚Windshield Wipers (P174, 577)
❚Tires (P581, 605)
❚Rear Wiper (P175, 579)
❚How to Refuel (P548)
❚Multi-View Rear Camera (P545)
❚Back-Up Lights and Taillights (P576)
❚Brake Lights, Taillights, Rear Turn Signal
Lights, and Rear Side Marker Lights
(P576)
❚High-Mount Brake Light (P576)
❚Opening/Closing the Tailgate (P153)
❚Tailgate Outer Handle (P154)
❚Lock Button* (P140)
❚Side Turn Signal Lights* (P168, 575)
❚Power Door Mirrors (P179)
❚Headlights (P166, 575)
❚Front Turn Signal Lights (P168, 575)
❚Front Side Marker Lights (P166, 575)
❚Parking/Daytime Running Lights (P170, 575)
❚Rear License Plate Light (P576)
❚Door Lock/Unlock Control (P139)
23 HR-V-313V06000_01.book 12 ページ ２０２２年４月４日　月曜日　午前１０時４９分

13
Quick Reference Guide

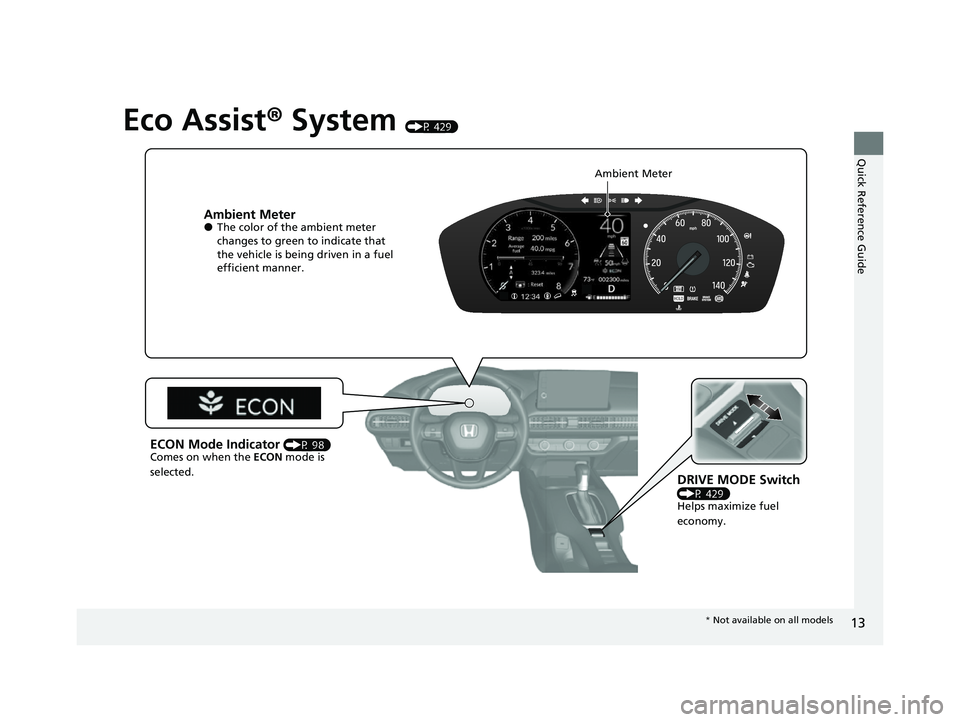

Eco Assist® System (P 429)
Ambient Meter●The color of the ambient meter
changes to green to indicate that
the vehicle is being driven in a fuel
efficient manner.
DRIVE MODE Switch
(P 429) Helps maximize fuel
economy.
ECON Mode Indicator (P 98)
Comes on when the ECON mode is
selected. Ambient Meter
*
Not available on all models
23 HR-V-313V06000_01.book 13 ページ ２０２２年４月４日　月曜日　午前１０時４９分

14
Quick Reference Guide

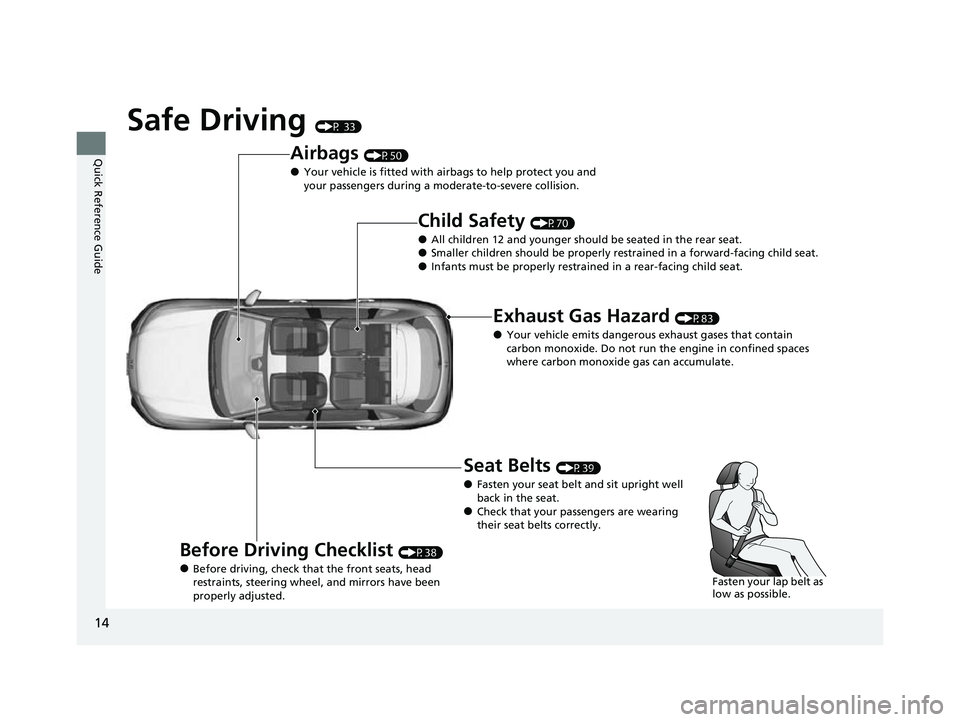

Safe Driving (P 33)
Airbags (P50)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P70)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P83)
●Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P38)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P39)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 HR-V-313V06000_01.book 14 ページ ２０２２年４月４日　月曜日　午前１０時４９分

15
Quick Reference Guide

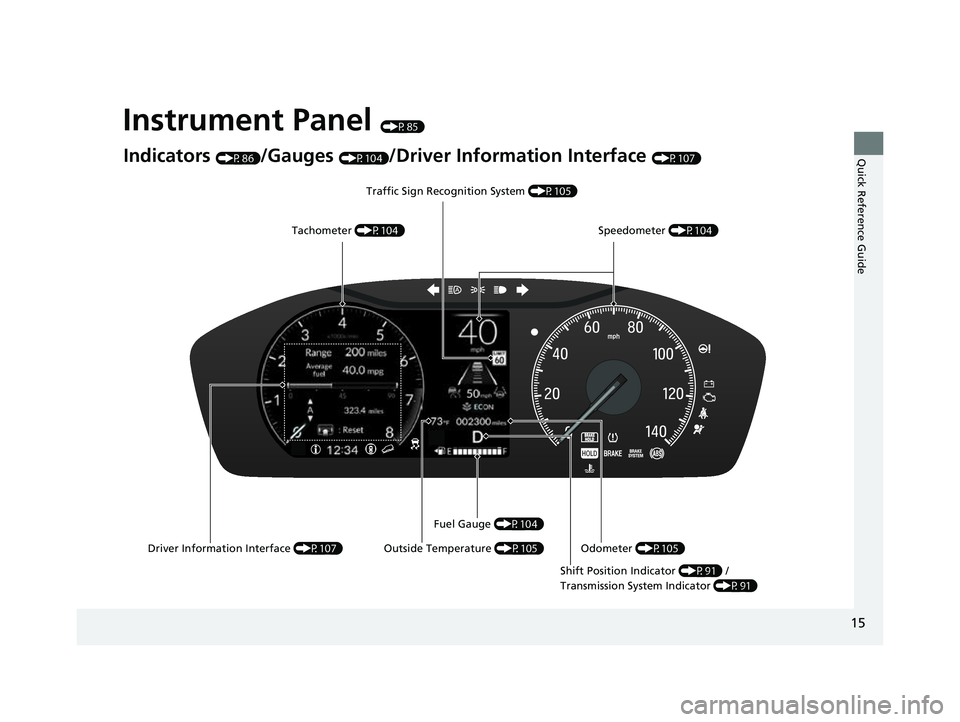

Instrument Panel (P85)
Indicators (P86)/Gauges (P104)/Driver Information Interface (P107)
Tachometer (P104) Speedometer (P104)
Traffic Sign Recognition System
(P105)
Driver Information Interface (P107)Fuel Gauge
(P104)
Outside Temperature (P105)Odometer (P105)
Shift Position Indicator (P91) /
Transmission System Indicator (P91)
23 HR-V-313V06000_01.book 15 ページ ２０２２年４月４日　月曜日　午前１０時４９分

16
Quick Reference Guide

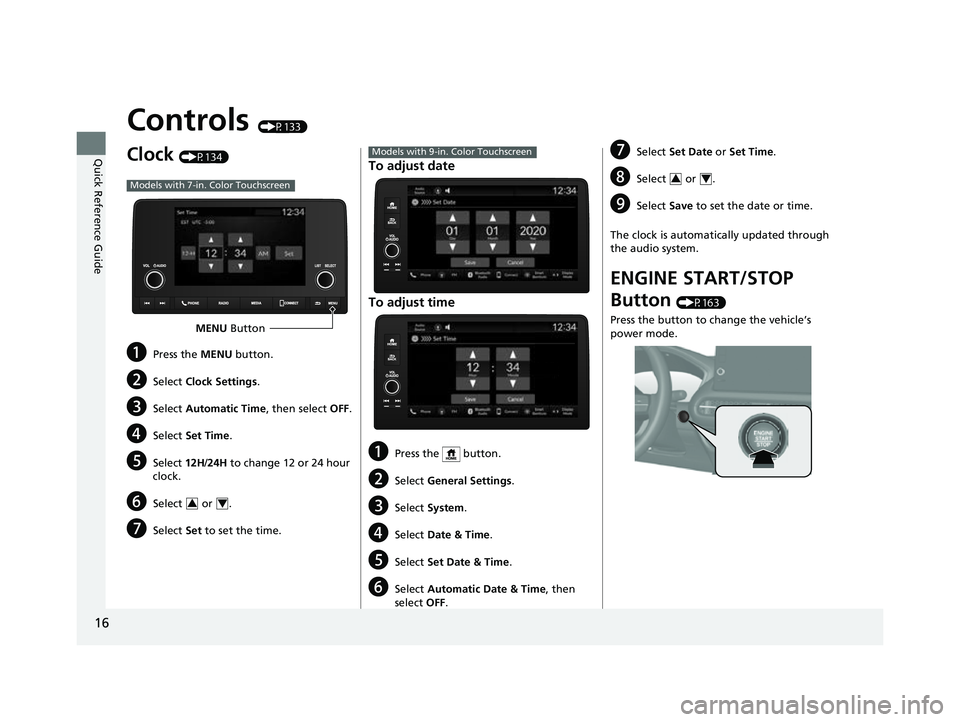

Controls (P133)
Clock (P134)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings.
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The clock is automatically updated through
the audio system.
ENGINE START/STOP
Button
(P163)
Press the button to change the vehicle’s
power mode.
34
23 HR-V-313V06000_01.book 16 ページ ２０２２年４月４日　月曜日　午前１０時４９分

17
Quick Reference Guide

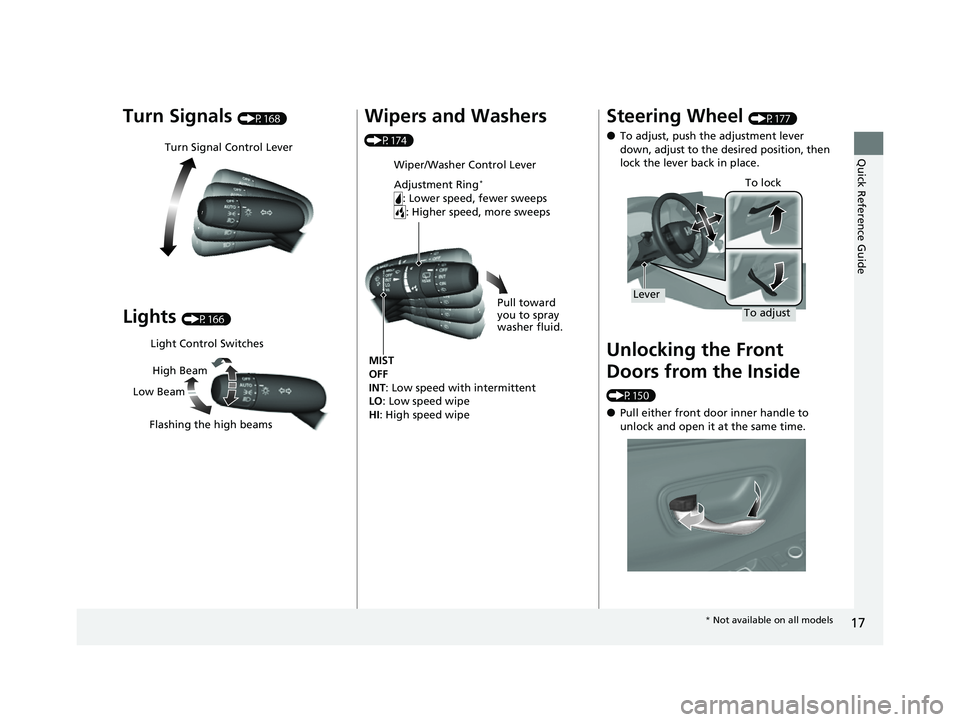

Turn Signals (P168)
Lights (P166)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing the high beams
Wipers and Washers
(P174)
Wiper/Washer Control Lever
Adjustment Ring
*
: Lower speed, fewer sweeps : Higher speed, more sweeps
MIST
OFF
INT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P177)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P150)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjustTo lock
Lever
*
Not available on all models
23 HR-V-313V06000_01.book 17 ページ ２０２２年４月４日　月曜日　午前１０時４９分

18
Quick Reference Guide

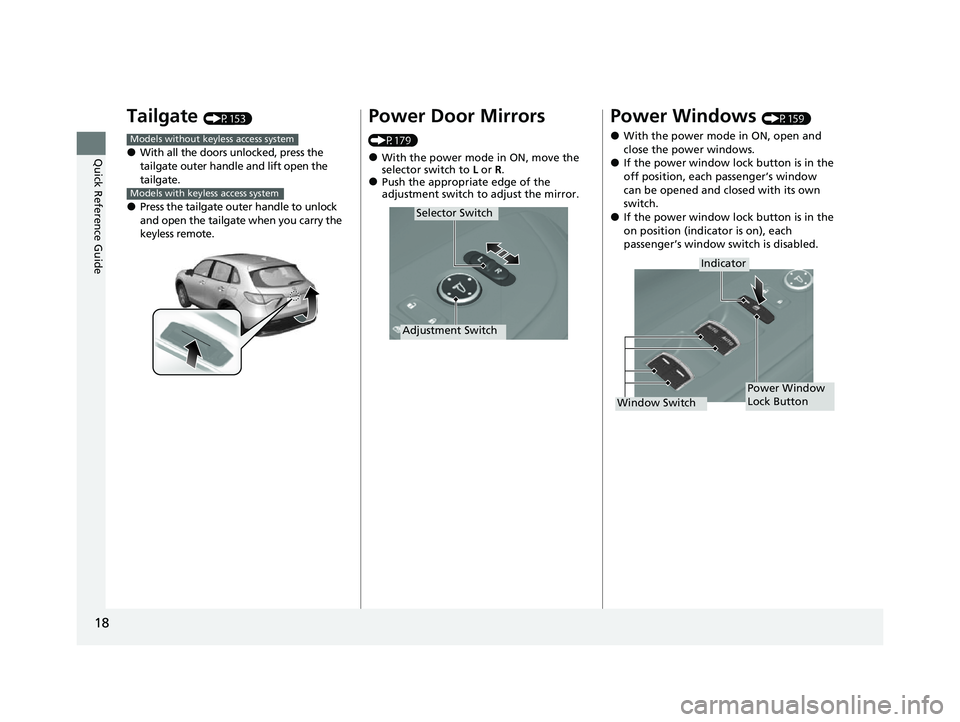

Tailgate (P153)
●With all the doors unlocked, press the
tailgate outer handle and lift open the
tailgate.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless remote.
Models without keyless access system
Models with keyless access system
Power Door Mirrors
(P179)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P159)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
